GE JTP95BD, JTP95WD Specification
TM
Specification Created 7/01
JTP95BD/WD - GE Profile™ 30" Built-In Double Microwave/Convection Oven
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
20''
28''
21''
A
F
A
B
C
CONDUIT
(48-1/2'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
MINIMUM
CUTOUT
LOCATION
21-5/8''
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
D
E
CUTOUT DEPTH
23-1/2'' MIN.
Installation Information: Before
installing, consult installation instructions
packed with product for current
dimensional data.

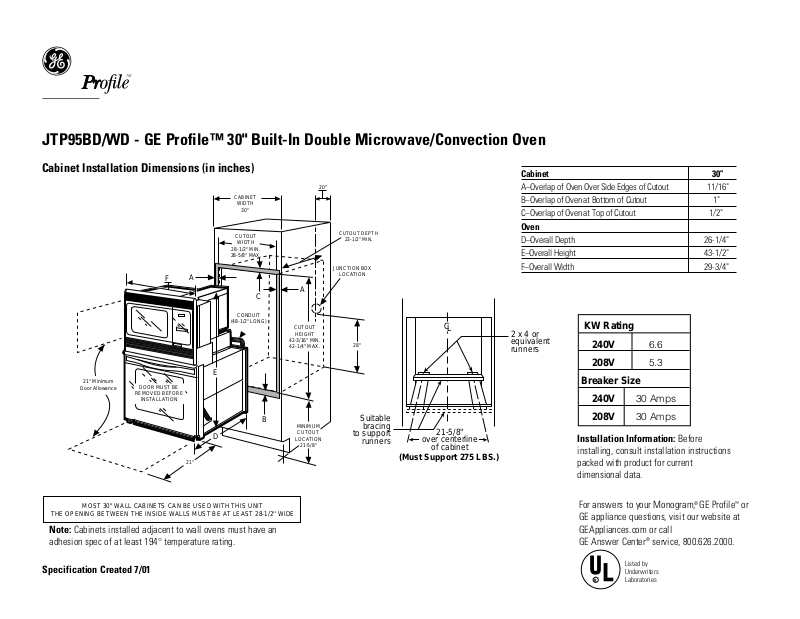

Cabinet Installation Dimensions (in inches)
C
L
(Must Support 275 LBS.)
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
A–Overlap of Oven Over Side Edges of Cutout 11/16"
B–Overlap of Oven at Bottom of Cutout 1"
C–Overlap of Oven at Top of Cutout 1/2"
Cabinet 30"
D–Overall Depth 26-1/4"
E–Overall Height 43-1/2"
F–Overall Width 29-3/4"
Oven
R
Listed by
Underwriters
Laboratories
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least 194° temperature rating.
For answers to your Monogram,
®
GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 6.6
208V 5.3
Breaker Size
240V 30 Amps
208V 30 Amps
TM
Specification Created 7/01
JTP95BD/WD - GE Profile™ 30" Built-In Double Microwave/Convection Oven
