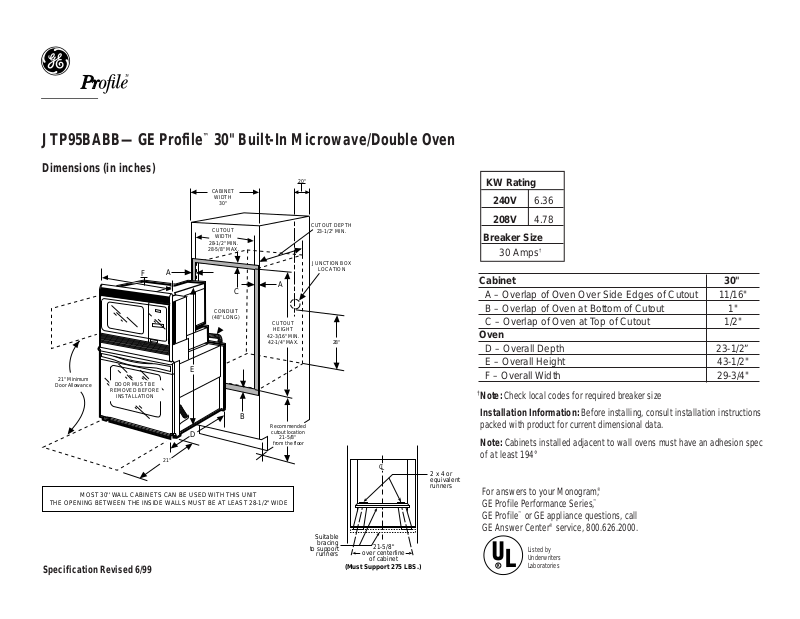

JTP95BABB—GE Profile™30" Built-In Microwave/Double Oven
Specification Revised 6/99
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least 194°
Dimensions (in inches)
20''
28''
21''
A
F
A
B
C
CONDUIT
(48'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
Recommended
cutout location
21-5/8''
from the floor
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
D
CUTOUT DEPTH
23-1/2'' MIN.
E
Cabinet 30"
A – Overlap of Oven Over Side Edges of Cutout 11/16"
B – Overlap of Oven at Bottom of Cutout 1"
C – Overlap of Oven at Top of Cutout 1/2"
Oven
D – Overall Depth 23-1/2”
E – Overall Height 43-1/2"
F – Overall Width 29-3/4"
C
L
(Must Support 275 LBS.)
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
2 x 4 or
equivalent
runners
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
KW Rating
240V 6.36
208V 4.78
Breaker Size
30 Amps
†
†
Note: Check local codes for required breaker size
Specification Revised 6/99
TM
JTP95BABB—GE Profile™30" Built-In Microwave/Double Oven
SENSOR COOKING
CONVECTION OVEN
BEVERAGE
EXPRESS COOK
EXPRESS COOK
EXPRESS COOK
EXPRESS COOK
EXPRESS COOK
EXPRESS COOK
D
ISPLAY ON
/OFF
M
IN
/SEC
GUIDE BEHIND DOOR
DEFROST
AUTO/TIME
CONVECTION
BAKE
CONVECTION
ROAST
VEGETABLE
AM/PM
HELP
SOUND
LEVEL
REMINDER
Features and Benefits
• Microwave Upper Oven
- 1.6 cu ft Capacity
- 1000 Watts
- 10 Power Levels
- Turntable
- Sensor Cooking Controls for Popcorn, Beverage, Reheat, Vegetable, Potato, Chicken and Fish
- Auto Defrost
• Convection Lower Oven with TrueTemp™ System
- Self-Cleaning Oven
- SmartSet Electronic Controls with Touchpads
- Convection Bake and Roast
- Convection Conversion
- Variable Broil
- Six-Pass Broil Element
- Automatic Meat Thermometer
- Electronic Clock and Kitchen Timer
- Roasting Rack
- Delay Bake Option with Cook and Hold
- 3 Oven Racks with 7 Embossed Rack Positions
- Control Lock Capability
• Integrated Designer-Style Handles
• Big View Window
• 30" Oven Cabinet Width Required
• JTP95WAWW - White on white
• JTP95BABB - Black on black
