GE JTP86SH Specification
GE Appliances
20''
28''
21''
A
F
A
B
C
CONDUIT
(48'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
Minimum
cutout location
21-5/8''
from the floor
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
D
CUTOUT DEPTH
23-1/2'' MIN.
E
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
18"
over centerline
of cabinet
R

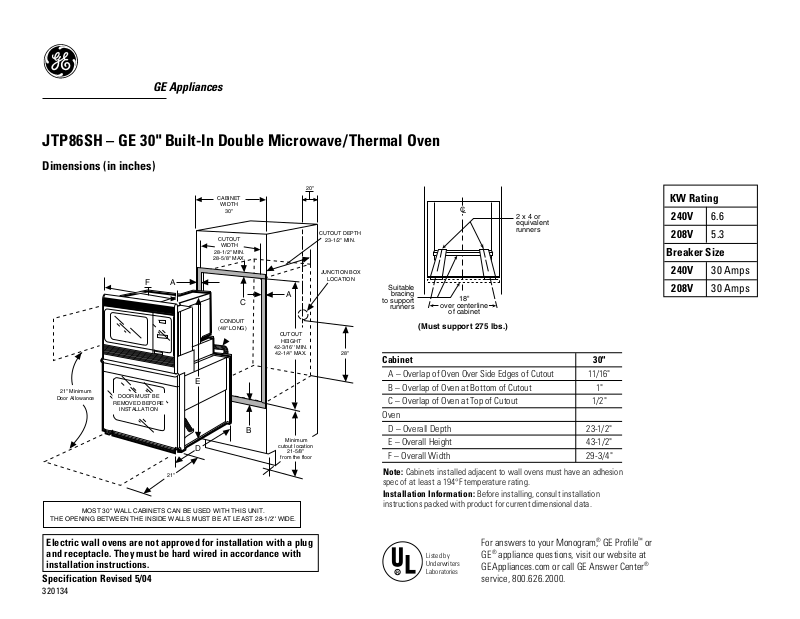

JTP86SH – GE 30" Built-In Double Microwave/Thermal Oven
Dimensions (in inches)
KW Rating
240V 6.6
208V 5.3
Breaker Size
Electric wall ovens are not approved for installation with a plug
and receptacle. They must be hard wired in accordance with
installation instructions.
Specification Revised 5/04
320134
(Must support 275 lbs.)
Cabinet 30"
A – Overlap of Oven Over Side Edges of Cutout 11/16"
B – Overlap of Oven at Bottom of Cutout 1
C – Overlap of Oven at Top of Cutout 1/2
"
"
Oven
D – Overall Depth 23-1/2
E – Overall Height 43-1/2
"
"
F – Overall Width 29-3/4"
Note: Cabinets installed adjacent to wall ovens must have an adhesion
spec of at least a 194°F temperature rating.
Installation Information:
Before installing, consult installation
instructions packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
Listed by
Underwriters
Laboratories
GE® appliance questions, visit our website at
GEAppliances.com or call GE Answer Center®
service, 800.626.2000.
240V 30 Amps
208V 30 Amps
GE Appliances
JTP86SH – GE 30" Built-In Double Microwave/Thermal Oven
Features and Benefits
• Upper Oven – 1.6 cu. ft. Capacity Microwave/1000 Watts with Turntable
• Sensor and Convenience Cooking Controls
• Electronic Touch Controls with Kitchen Timer
• Lower Oven – Extra-Large 4.4 cu. ft. Capacity Self-Cleaning Thermal Oven
with Delay Clean Option
• TrueTemp
™
System
• SmartSet Electronic Oven Controls with Digipad
• 2 Oven Racks with 6 Embossed Positions
• Frameless Glass Oven Door with Big ClearView
™
Window and Interior Oven Light
• Model JTP86SHSS – Stainless steel
Specification Revised 5/04
320134
