GE JTP86BF, JTP86CF, JTP86WF Specification
GE Appliances

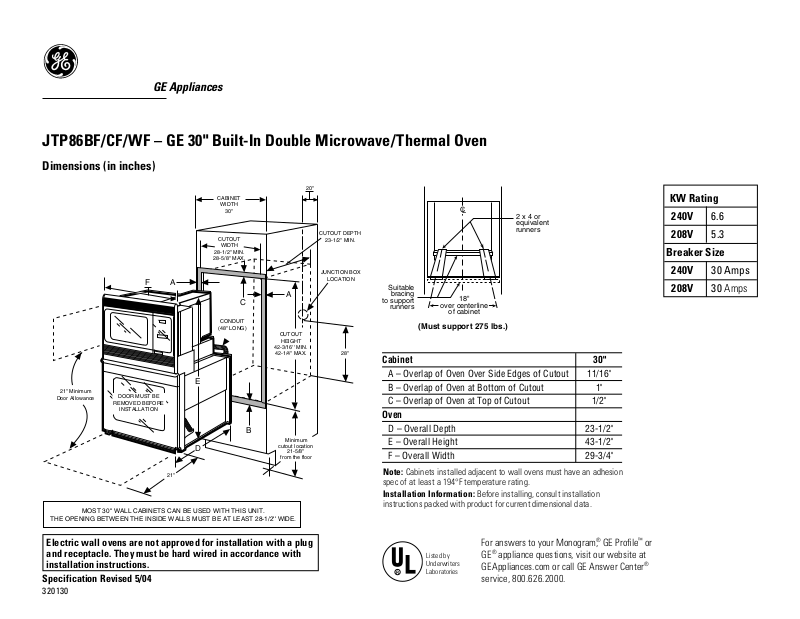

JTP86BF/CF/WF – GE 30" Built-In Double Microwave/Thermal Oven
Dimensions (in inches)
20''
CABINET WIDTH 30''
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
F A
A
C
CONDUIT (48'' LONG)
CUTOUT
HEIGHT 42-3/16'' MIN.
42-1/4'' MAX.
E
21" Minimum
Door Allowance DOOR MUST BE REMOVED BEFORE
INSTALLATION
B
Minimum D cutout location
21-5/8'' from the floor
21''
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Specification Revised 5/04
CUTOUT DEPTH
23-1/2'' MIN.
JUNCTION BOX
LOCATION
C |
|
L |
2 x 4 or |
|
equivalent |
|
runners |
Suitable |
|
|
|
|
|
bracing |
18" |
|
to support |
||
runners |
over centerline |
|
|
of cabinet |
|
(Must support 275 lbs.)
28'' |
|
|
|
|
Cabinet |
30" |
|||
|
||||
|
|
A – Overlap of Oven Over Side Edges of Cutout |
11/16" |
|
|
|
B – Overlap of Oven at Bottom of Cutout |
1" |
|
|
|
C – Overlap of Oven at Top of Cutout |
1/2" |
|
|
Oven |
|
||
|
|
D – Overall Depth |
23-1/2" |
|
|
|
E – Overall Height |
43-1/2" |
|
|
|
F – Overall Width |
29-3/4" |
|
|
|
Note: Cabinets installed adjacent to wall ovens must have an adhesion |
||
|
|
spec of at least a 194°F temperature rating. |
|
|
|
|
Installation Information: Before installing, consult installation |
||
|
|
instructions packed with product for current dimensional data. |
||
|
|
For answers to your Monogram,® GE Profile™ or |
|
Listed by |
GE® appliance questions, visit our website at |
|
Underwriters |
GEAppliances.com or call GE Answer Center® |
R |
Laboratories |
service, 800.626.2000. |
|
|
KW Rating
240V 6.6
208V 5.3
Breaker Size
240V |
30 Amps |
|
|
208V |
30 Amps |
320130
GE Appliances
JTP86BF/CF/WF – GE 30" Built-In Double Microwave/Thermal Oven
Features and Benefits
• Upper Oven – 1.6 cu. ft. Capacity Microwave/1000 Watts with Turntable
• Sensor and Convenience Cooking Controls
• Electronic Touch Controls with Kitchen Timer
• Lower Oven – Extra-Large 4.4 cu. ft. Capacity Self-Cleaning Thermal Oven with Delay Clean Option
• TrueTemp™ System
• SmartSet Electronic Oven Controls with Digipad
• 2 Oven Racks with 6 Embossed Positions
• Frameless Glass Oven Door with Big ClearView™ Window and Interior Oven Light
•Model JTP86WFWW – White on white
•Model JTP86BFBB – Black on black
•Model JTP86CFCC – Bisque on bisque
Specification Revised 5/04
320130
