GE JTP85WAWW Specification
Specification Revised 2/00
GE Appliances
JTP85WAWW - GE 30" Built-In Microwave/Double Oven
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
20''
28''
21''
A
F
A
B
C
CONDUIT
(48-1/2'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
MINIMUM
CUTOUT
LOCATION
21-5/8''
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
D
E
CUTOUT DEPTH
23-1/2'' MIN.
*Most 30" wall cabinets can be used
with this unit.
The opening between the inside walls
must be at least 28-1/2" wide.
A = Allow minimum of 21" for clearance to
adjacent corners, drawers, walls, etc.,
when door is opened.
B = Allow 11/16" for overlap of oven
over side edges of cutout.
C = Allow 1" for overlap of oven—
top and bottom of cutout.
Installation Information: Before
installing, consult installation instructions
packed with product for current
dimensional data.

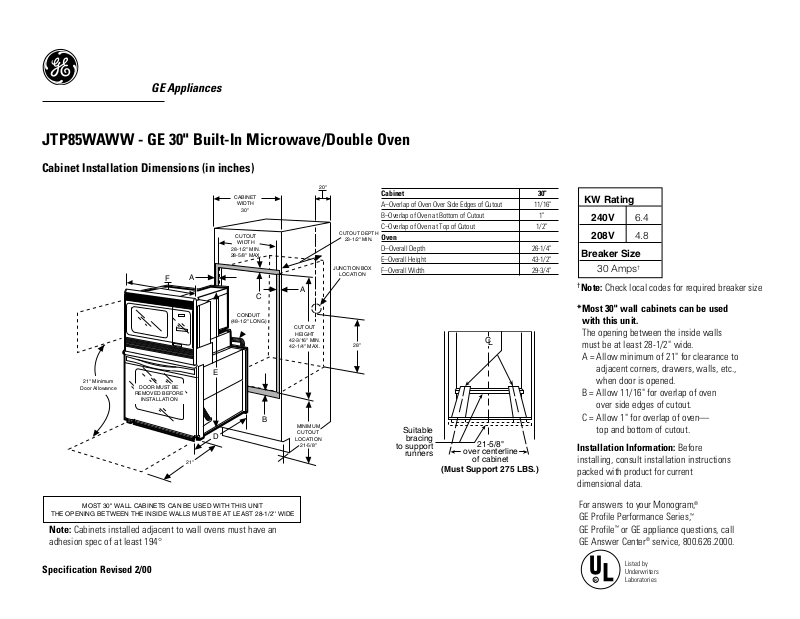

Cabinet Installation Dimensions (in inches)
C
L
(Must Support 275 LBS.)
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
A–Overlap of Oven Over Side Edges of Cutout 11/16"
B–Overlap of Oven at Bottom of Cutout 1"
C–Overlap of Oven at Top of Cutout 1/2"
Cabinet 30"
D–Overall Depth 26-1/4"
E–Overall Height 43-1/2"
F–Overall Width 29-3/4"
Oven
R
Listed by
Underwriters
Laboratories
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least 194°
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 6.4
208V 4.8
Breaker Size
30 Amps
†
†
Note: Check local codes for required breaker size
Specification Revised 2/00
GE Appliances
JTP85WAWW - GE 30" Built-In Microwave/Double Oven
SENSOR COOKING
BEVERAGE
SNACKS
REMINDER
GUIDE BEHIND DOOR
COOK
TIME
COOK
POWER
LEVEL
CONVENIENCE COOKING
EXPRESS COOK
EXPRESS
COOK
EXPR
ESS COOK
EXPRESS COOK
SOUND ON/OFF
DISPLAY
ON/OFF
EX
PRESS COOK
EXPRESS COOK
Features and Benefits
• Microwave Upper Oven
- 1.6 cu ft Capacity
- 1000 Watts
- 10 Power Levels
- Turntable
- Sensor Cooking Controls for Popcorn, Potato and Reheat
- Convencience Cooking Controls for Beverage, Snack and Cook
- Auto Defrost
• Lower Oven with TrueTemp
™
System
- 4.2 cu ft Capacity Self-Cleaning Oven
- SmartSet Electronic Controls with Touchpads
- Electronic Clock and Kitchen Timer
- Variable Broil
- Six-Pass Broil Element
- Audible Preheat Signal
- Broiler Pan with Grid
- Delay Bake Option with Cook and Hold
- 2 Oven Racks with 6 Embossed Rack Positions
- Control Lock Capability
Sure-Grip Designer-Style Handles
• 30" Oven Cabinet Width Required
• JTP85WAWW - White on white
