GE JTP15AA, JTP15BA, JTP17SC, JTP18WA, JTP18AA Installation Instructions

...

Installation Instructions

30” Built In W all Oven

JTP15AA, JTP15BA , JTP17SC, JTP18WA, JTP18AA, JTP18BA, JTP18WA, JTP27BA, JTP27WA, JTP45BA, JTP45WA, JTP47SC, JTP56AA, JTP56BA, JTP56WA, JT910AA, JT910BA, JT910CA, JT910SA, JT910WA, JT950AA, JT950BA, JT950CA, JT950SA, JT950WA, ZET737BA, ZET737WA, ZET757BA, ZET757WA

Questions? Call GE Answer Center at 800.626.2000 or Visit our

Website at: www.geappliances.com

Before you begin

Read these instructions carefully and completely

• IMPORTANT-Save these instructions for

local inspector’s use.

• IMPORTANT-Observe all governing

codes and ordiances.

Parts Included

Bottom Trim

4 screws (single) 8 screws (double)

Tools You Will Need

• Note to Installer- Be sure to leave these instructions with the consumer.

• OWNER- Keep these instructions for future reference.

• NOTE- This appliance must be properly grounded.

Materials Needed

Wire Nuts

Strain Relief Clamp

Junction Box

36” of String

1/8” Drill Bit & Electric or Hand Drill

Pub. No. 31-10435

229C4053P417

Phillips Screwdriver

Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS

For Your Safety

• Be sure your oven is installed properly by a qualified installer or service technician.

• Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure. Weight on the oven door could cause the oven to tip and result in injury. Never allow anyone to climb, sit, stand or hang on the oven door.

• Make sure the cabinets and wall coverings around the oven can withstand the temperatures (up to 200°F.) generated by the oven.

CAUTION: The electrical power to the oven supply line must be shut off while line connections

are being made. Failure to do so could result in serious injury or death.

Electrical Requirements

This appliance must be supplied with the proper voltage and frequency, and connected to an individual, properly grounded branch circuit, protected by a circuit breaker or fuse, having amperage as noted on rating plate. (Rating Plate is located on oven frame.)

We recommend you have the electrical wiring and hookup of your oven connected by a qualified electrician. After installation, have the electrician show you where your main range disconnect is located.

Check with your local utilities for electrical codes which apply in your area. Failure to wire your oven according to governing codes could result in a hazardous condition. If there are not local codes, your range must be wired and fused to meet the requirements of the National Electrical Code, ANSI/NFPA No. 70Latest Edition. You can get a copy by writing:

National Fire Protection Association

Battery March Park

Quincy, MA 02269

Effective January 1, 1996, the National Electrical Code requires that new, but not existing, construction utilize a 4 conductor connection to an electric range. When installing an electric range in new construction, follow the instructions in the section on NEW CONSTRUCTION AND FOUR CONDUCTOR BRANCH CIRCUIT CONNECTION.

You must use a three-wire, single-phase A.C. 208Y/120 Volt or 240/120 Volt, 60 hertz electrical system. If you connect to aluminum wiring, properly installed connectors approved for use with aluminum wiring must be used.

Installation Instructions

Pre- Installation Checklist

ALL INSTALLATION INFORMATION ON THE FOLLOWING PAGES ARE TO BE USED FOR SINGLE AND DOUBLE OVEN INSTALLATION!

Remove packaging materials. Check behind hinges, and under false bottom. Remove labels on door, plastic on trims and panel, and all tape around oven.

Oven Racks

EASY INSTALLATION OF YOUR NEW

30" WALL OVEN

Before you begin-Read these instructions completely and carefully.

Before you begin-Read these instructions completely and carefully. IMPORTANT- Save these instructions for local inspector's use.

IMPORTANT- Save these instructions for local inspector's use.

30" WALL OVEN

IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.

IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES. Note to Installer- Be sure to leave these instructions with the consumer.

Note to Installer- Be sure to leave these instructions with the consumer.

Note to Installer- Be sure to leave these instructions with the consumer. OWNER- Keep these instructions for future reference.

OWNER- Keep these instructions for future reference.

Before you begin-Read these instructions completely and carefully.

Note- This appliance must be properly grounded (if applicable).

IMPORTANT- Save these instructions for local inspector's use.

IMPORTANT- Save these instructions for local inspector's use. IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.

IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.

IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES. Note to Installer- Be sure to leave these instructions with the consumer.

Note to Installer- Be sure to leave these instructions with the consumer.

Note to Installer- Be sure to leave these instructions with the consumer. OWNER- Keep these instructions for future reference.

OWNER- Keep these instructions for future reference.

FOR YOUR SAFETY

Note- This appliance must be properly grounded (if applicable).

Before you begin-Read these

Before you begin-Read these instructions completely and

instructions completely and

instructions completely and carefully.

carefully.

ELECTRICAL REQUIREMENTS

FOR YOUR SAFETY

ELECTRICAL REQUIREMENTS

IMPORTANT- Save these

ELECTRICAL REQUIREMENTS

ELECTRICAL REQUIREMENTS instructions for local inspector's use.

instructions for local inspector's use.

Before you begin-Read these

IMPORTANT- OBSERVE ALL

Before you begin-Read these

instructions completely and

GOVERNING CODES AND ORDIANCES.

instructions completely and

carefully.

Note to Installer- Be sure to leave

carefully.

IMPORTANT- Save these

these instructions with the consumer.

IMPORTANT- Save these

instructions for local inspector's use.

OWNER- Keep these instructions

instructions for local inspector's use.

IMPORTANT- OBSERVE ALL

for future reference.

IMPORTANT- OBSERVE ALL

GOVERNING CODES AND ORDIANCES.

Note- This appliance must be

GOVERNING CODES AND ORDIANCES.

Note to Installer- Be sure to leave

properly grounded (if applicable).

Note to Installer- Be sure to leave

Literature

Before you begin-Read these

Broiler Pan and Grid

these instructions with the consumer.

these instructions with the consumer. OWNER- Keep these instructions

OWNER- Keep these instructions

OWNER- Keep these instructions for future reference.

for future reference.

for future reference. Note- This appliance must be

Note- This appliance must be

Note- This appliance must be properly grounded (if applicable).

properly grounded (if applicable).

Before you begin-Read these instructions com

instructions com

instructions com carefully.

carefully.

carefully. IMPORTANT- Save these

IMPORTANT- Save these

IMPORTANT- Save these instructions for local inspector's use.

instructions for local inspector's use.

IMPORTANT- OBSERVE ALL

GOVERNING CODES AND ORDIANCES.

GOVERNING CODES AND ORDIANCES. Note to Installer- Be sure to leave

Note to Installer- Be sure to leave

Note to Installer- Be sure to leave these instructions with the consumer. OWNER- Keep these instructions for future reference.

these instructions with the consumer.

instructions com

OWNER- Keep these instructions

carefully.

for future reference.

for future reference. pletely and

pletely and

Note- This appliance must be

properly grounded (if applicable).

Before you begin-Read these

instructions completely and

carefully.

IMPORTANT- Save these

IMPORTANT- Save these instructions for local inspector's use.

instructions for local inspector's use.

instructions for local inspector's use. IMPORTANT- OBSERVE ALL

IMPORTANT- OBSERVE ALL

Pack

GOVERNING CODES AND ORDIANCES.

Note to Installer- Be sure to leave

these instructions with the consumer.

OWNER- Keep these instructions

for future reference.

Note- This appliance must be

properly grounded (if applicable).

Open the door to the stop position.

DO NOT LIFT THE DOOR BY THE

HANDLE!

Grasp the door on both sides and lift up and off the hinges.

Open oven door and remove literature pack, broiler pan and grid, and oven racks.

Remove Installation Instruction from literature pack and read them carefully before you begin.

Be sure to place all literature, Use and Care, Installations, etc. in a safe place for future reference.

EASY INSTALLATION OF YOU NEW

30" WALL OVEN

Before you begin-Read these instructions completely and carefully.

Before you begin-Read these instructions completely and carefully. IMPORTANT- Save these instructions for local inspector's use.

IMPORTANT- Save these instructions for local inspector's use.

IMPORTANT- Save these instructions for local inspector's use. IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.

IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.

IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES. Note to Installer- Be sure to leave these instructions with the consumer.

Note to Installer- Be sure to leave these instructions with the consumer.

Note to Installer- Be sure to leave these instructions with the consumer. OWNER- Keep these instructions for future reference.

OWNER- Keep these instructions for future reference.

OWNER- Keep these instructions for future reference. Note- This appliance must be properly grounded (if applicable).

Note- This appliance must be properly grounded (if applicable).

FOR YOUR SAFETY

ELECTRICAL REQUIREMENTS

Before you begin-Read these

instructions completely and

carefully.

IMPORTANT- Save these

instructions for local inspector's use.

IMPORTANT- OBSERVE ALL

GOVERNING CODES AND ORDIANCES.

Note to Installer- Be sure to leave

these instructions with the consumer.

OWNER- Keep these instructions

for future reference.

Note- This appliance must be

properly grounded (if applicable).

Before you begin-Read these

instructions completely and

carefully.

IMPORTANT- Save these

instructions for local inspector's use.

IMPORTANT- OBSERVE ALL

GOVERNING CODES AND ORDIANCES.

Note to Installer- Be sure to leave

these instructions with the consumer.

OWNER- Keep these instructions

for future reference.

Note- This appliance must be

properly grounded (if applicable).

NOTE:The oven door is very heavy. Be sure you have a firm grip before lifting the oven door off the hinges. Use caution once the door is removed. Do not lay the door on its handle. This could cause dents or scratches

(Continued on following page)

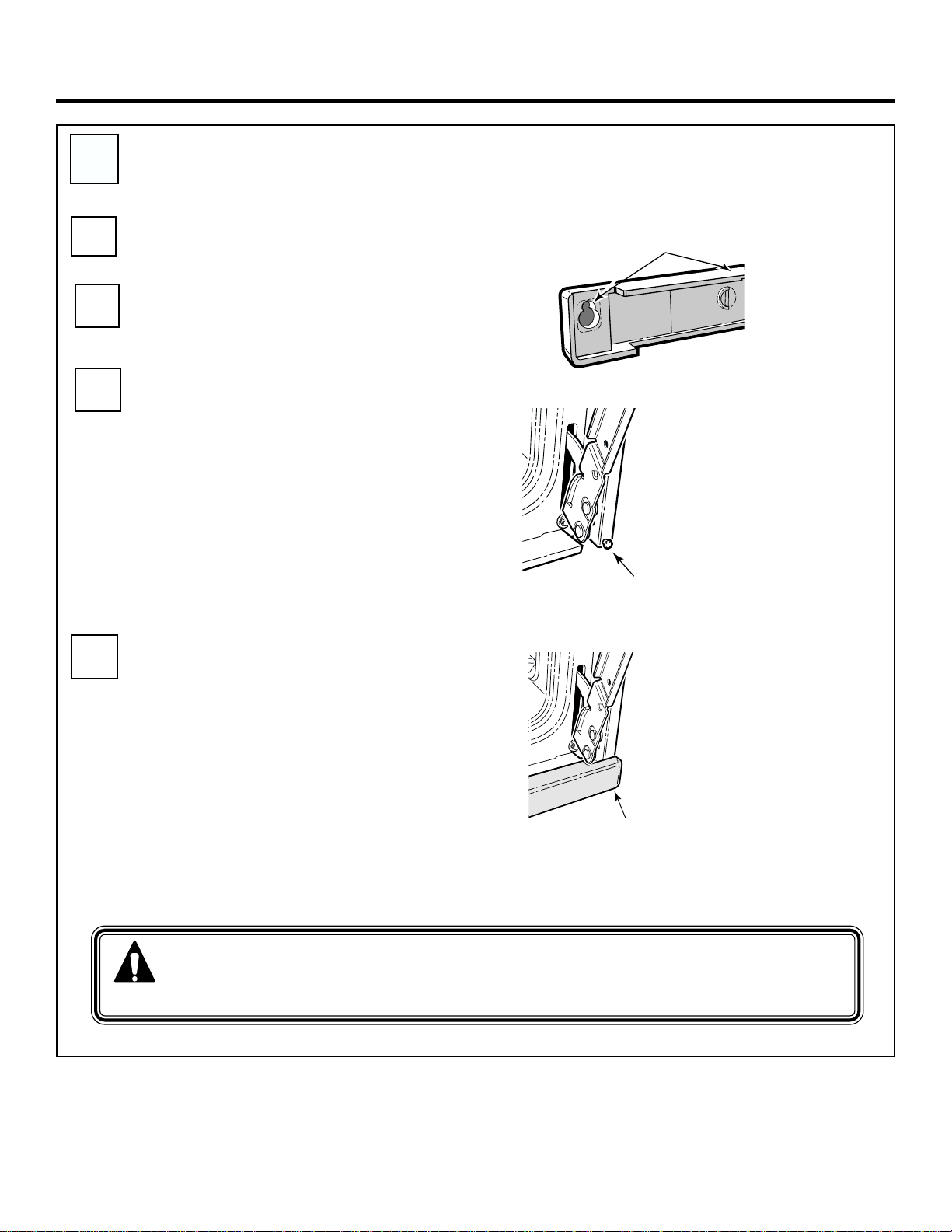

Installation Instructions

Pre- Installation Checklist cont.

Cover hinge with paper towel rolls or toweling.

CAUTION: When the door is removed and the hinge arms are at the stop postion, DO

NOT bump or try to move the hinge arms. The hinges could snap back causing an injury to the hands. Cover the hinges with toweling or empty towel rolls while working in the oven area.

Place the oven on a table or platform even with the cutout opening. (Platform must support 150 lbs. single, 275 lbs double.)

Remove the bottom trim from the top of the oven. It will be installed at the end of installation. The trim is wrapped separately and taped to the top of the unit.

Bottom T rim

Shipping Location

Side T rim

Installation Instructions

ALLOW A MINIMUM

OF 21" FOR CLEARANCE

TO ADJACENT CORNERS,

DRAWERS, WALLS ETC.

WHEN THE DOOR IS OPENED.

Cutouts for Single Built-In-Oven

ALLOW 11/16" FOR

OVERLAP OF THE

OVEN OVER SIDE

EDGES OF CUTOUT

21"

CUTOUT

WIDTH

28 1/2" MIN.

28 5/8" MAX.

THE OPENING

BETWEEN INSIDE

WALLS MUST BE AT LEAST

28 1/2"WIDE

ALLOW 1" FOR

OVERLAP ON OVEN TOP AND BOTTOM

OF CUTOUT

CABINET

WIDTH

30"

CUTOUT

HEIGHT

27 1/4" MIN.

27 5/16" MAX.

RECOMMENDED

CUTOUT

LOCATION

32 1/2"

FROM THE

FLOOR

JUNCTION BOX

22" TO

BOTTOM OF

JUNCTION BOX

Cabinet Width 30” Recommended

LOCATION

Cutout Location from Floor 32 1/2”

Cutout Depth 23 1/2” Min.

Cutout Width 28 1/2” Min.

28 5/8” Max.

Cutout Height 27 1/4” Min.

27 5/16” Max.

NOTE: If the cabinet does not have a front frame and the sides are less than 3/4” thick, shim both sides equally to establish the cutout width.

SUITABLE BRACING TO SUPPORT RUNNERS

2" x 4" or EQUIVALENT RUNNERS

If the cabinet does not have a solid bottom, then two braces or runners must be installed to support the weight of the oven. For single ovens the runners and braces must

21 5/8"

OVER CENTERLINE

OF CABINET

support 150 pounds.

THIS OVEN IS NOT APPROVED FOR STACKABLE

OR SIDE BY SIDE INSTALLATION

Installation Instructions

ALLOW A MINIMUM OF 21"

FOR CLEARANCE TO

ADJACENT CORNERS,

DRAWERS, WALLS ETC.

Cutouts for Double Built-In-Oven

ALLOW 11/16"

FOR OVERLAP

OF THE OVEN

OVER SIDE EDGES

OF CUTOUT

WHEN THE DOOR

IS OPENED.

CUTOUT

WIDTH

28 1/2" MIN.

28 5/8" MAX.

THE OPENING

BETWEEN INSIDE

WALLS MUST

BE AT LEAST

28 1/2"WIDE

ALLOW 1" FOR

OVERLAP ON OVEN TOP AND BOTTOM

OF CUTOUT

CUTOUT

HEIGHT

51 13/16" MIN.

51 15/16" MAX.

JUNCTION BOX

LOCATION

47" TO

BOTTOM OF

JUNCTION BOX

Cabinet Width 30” Recommended

Cutout Location from Floor 12”

Cutout Depth 23 1/2” Min.

Cutout Wdth 28 1/2” Min.

28 5/8” Max.

Cutout Height 51 13/16” Min.

51 15/16” Max.

SUITABLE BRACING TO SUPPORT RUNNERS

21"

21 5/8"

OVER CENTERLINE

OF CABINET

30"

CABINET

WIDTH

RECOMMENDED

CUTOUT LOCATION

12" FROM THE FLOOR

NOTE: If the cabinet does not have a front frame and the sides are less than 3/4” thick, shim both sides equally to establish the cutout

2" x 4" or EQUIVALENT RUNNERS

width.

If the cabinet does not have a solid bottom, then two braces and runners must be installed to support the weight of the oven. For double ovens the runners and braces must support 275 pounds.

Installation Instructions

Cutouts For Single Oven Under Counter

Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of oven for approved cooktop models.

25"

Top and/or side fillers may be necessary if unit is positioned between existing cabinets. Be sure they are attached securely since they will anchor the oven in the cabinet.

28 1/2" MIN. 28 5/8" MAX.

27 1/4" MIN. 27 5/16" MAX.

240V / 208V Junction Box Location

Allow 11/16" Overlap Top of Oven & Side Edges of Cutout

Gas and electrical connections for 30" gas cooktop must be located in an adjacent accessible location to the right. For a 36" gas cooktop the connections may be made to the left.

22" MIN.

Above Support Platform

36" Typical Countertop Height

3/4" Support

Platform

Required

MUST SUPPORT 150 LBS.

24"

5 9/16" Reference dimension for maximum support height with typical 36" countertop height

NOTE: This Oven is not approved to be installed under a Solid Disk, Induction or Downdraft Modular Cooktop.

Installation Instructions

Ground Wires

B1 B2

Electrical Connections

Turn off the circuit breaker or remove fuses to the oven branch circuit.

With the oven in front of the cabinet opening, on a table or platform, connect the flexible conduit to the electrical junction box as shown below. You will need to purchase a strain relief clamp to complete the connection of the conduit to the junction box.

JUNCTION BOX

LOCATION

Ground Wires

NEW CONSTRUCTION AND FOUR-

CONDUCTOR BRANCH CIRCUIT

a.Cut the neutral (White) lead from the crimp.

Re-strip the neutral (white) lead to expose the proper length of conductor.

CONNECTION

•When installing in a new construction, or

•When installing oven in a mobile home, or

•When local codes do not permit grounding through neutral:

CONDUIT

48 1/2"

LONG

PLACE OVEN ON

A SUPPORT TO ASSIST IN CONNECTING

CONDUIT

BARE

GROUND

STRAIN RELIEF CLAMP

( NOT INCLUDED )

MUST BE USED

AT JUNCTION BOX

RED

WHITE

BLACK

Junction Box Cover

b.Attach the appliance grounding lead (green

or bare copper) in accordance with local codes. If the residence grounding conductor is aluminum, see WARNING note.

c.Connect the oven neutral (white) lead to

the branch circuit neutral (white or gray) in accordance with local codes, using wire nut.

d.Connect the oven red lead to the branch

circuit red lead and the oven black lead to the branch circuit black lead in accordance with local codes, using wire nuts. If the residence red, black or white leads are aluminum conductors, see “ WARNING” note.

e.Install Junction Box Cover.

( Continued on Next Page)

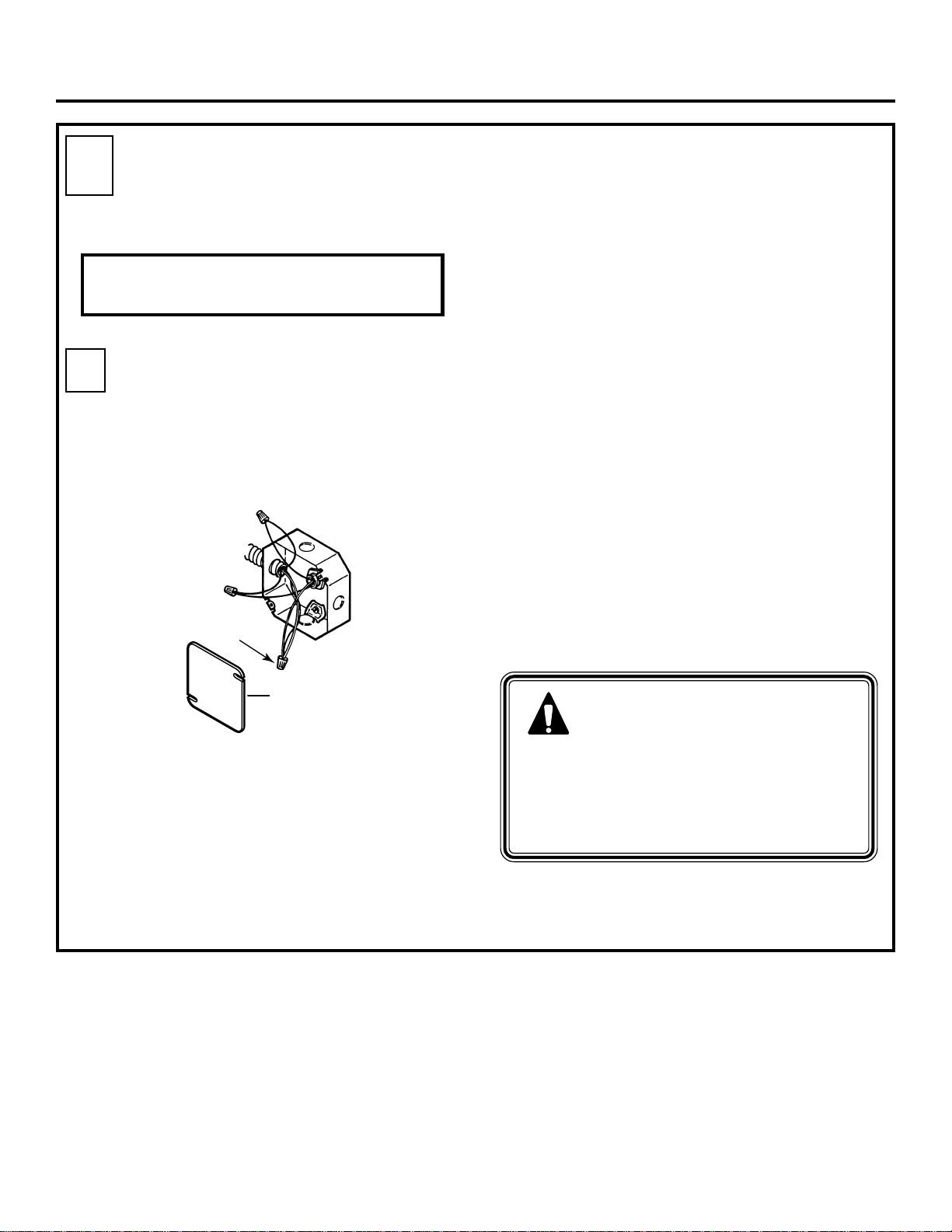

Installation Instructions

Electrical Connections

THREE-CONDUCTOR BRANCH

CIRCUIT CONNECTION

When connecting to a 3-conductor branch circuit, if local codes permit:

a.Connect the bare oven ground conductor

with the crimped neutral (white) lead to the branch circuit neutral (white or gray in color), using wire nut.

Ground and Neutral Wires

cont.

Do not shorten the flexible conduit.The conduit strain Relief Clamp must be securely attached to the junction box and the flexible conduit must be securely attached to the clamp. If the flexible conduit will not fit within the clamp, do not install the oven until a clamp of the proper size is obtained.

NOTE TO ELECTRICIAN: The 3 power leads supplied with this appliance are UL recognized for connection to larger gauge household wiring. The insulation of these 3 leads is rated at temperatures much higher than the temperature rating of household wiring. The current carrying capacity of the conductor is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

Junction Box Cover

.Connect the oven red lead to the branch

circuit red lead, using wire nut.

c.Connect the oven black lead to the branch

circuit black lead in accordance with local codes, using wire nut.

d.Install Junction Box Cover.

WARNING: Improper connection of aluminum

house wiring to copper leads can result in an electrical hazard or fire. Use only connectors designed for joining copper to aluminum and follow the manufacturer’s recommended procedure closely.

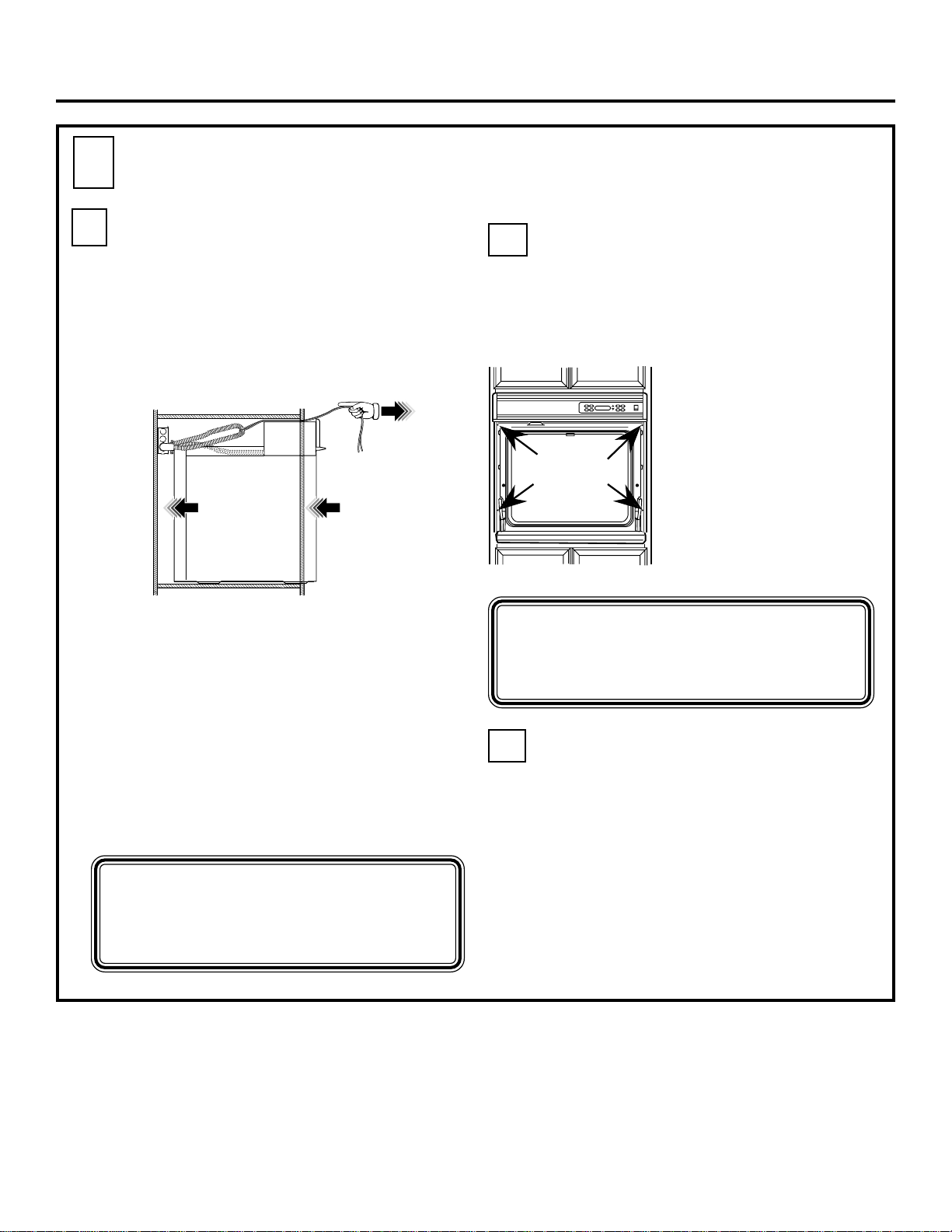

Installation Instructions

Securing the Oven

With the conduit connected, the oven is ready to be slid into the cutout opening.

a. Loop a 36” string around the conduit

before the oven is slid into place. This will keep the conduit from falling behind the oven.

Pull out on string loop while pushing the oven into the cabinet

Drill four-1/8” pilot holes through the mounting holes (top and bottom) of the side trim, for the four #8 screws provided. Drill eight holes for the

Double Oven.

The screws must be a minimum of 1/4” from the front of the cutout.

MOUNTING

HOLE

LOCATIONS

b. Lift oven into cabinet cutout using the

oven opening as an grip. Carefully push against oven front frame. Do not push against outside edges.

c. As you slide the oven back, pull the

string so that the conduit will lie on top of the oven in a natural loop.

d. When you are sure the conduit is out

of the way, slide the oven all the way back into the opening. Remove the string.

Note: Before drilling the pilot holes make sure the oven is pushed as far back into the opening as it will go and centered.

NOTE: Mounting screws must be used. Failure to do so could result in the oven falling out of the cabinet causing serious injury.

Secure the oven to cabinet with screws provided.

Installation Instructions

Installing the Bottom Trim

Make sure the flat side is up on the bottom trim.

Find the Key Slot on the back of the trim.

Match the key slot with the rivet on the bottom of the side trim

Key hole slot and wide flange at top

Lower trim mounting rivet on bottom of side trim.

Push the trim down until it snaps into place.

Push trim down at both ends until it snaps into place.

CAUTION: Be sure you do not tip the oven foward during installation or you may bend the bottom trim. The bottom trim provides an opening for cooling air to enter the cabinet. This opening should never be blocked.

Installation Instructions

E1 E2

E3 E4

Replacing the Oven Door

Make sure the hinge is in the door stop position.

Remove the toweling or paper towel holder from the hinge.

Grasp the door on both sides.

Hold the door over the hinges lining up the hinges with the hinge slots on the bottom of the door.

Slide the door down onto the hinges as far as it will go.

Close the door.

The oven door is heavy. You may need help lifting the door high enough to slide it down onto the hinges. Do not lift the door by the handle.

Installation Instructions

Pre-Test Check List

Remove all protective film if present, and any stickers.

Check to be sure that all wiring is secure and not pinched or in contact with moving parts.

Operation Checklist

Remove all items from the inside of the oven.

Turn on the power to the oven. (Refer to your Use and Care Manual.) Verify that the bake and broil units, and all cooking functionsoperate properly.

Check that the circuit breaker is not tripped or the house fuse is blown.

Check that conduit is securely connected to the junction box.

See Use & Care manual for troubleshooting list.

Check that the bottom trim is installed properly (see page 11).

Check to be sure the mounting screws are installed and flush with the side trim, (see page 10).

NOTE TO ELECTRICIAN: The power leads supplied with this appliance are UL recognized for connections to larger gauge household wiring. The insulation of these leads is rated at temperatures much higher than the temperature rating of household wiring. The current carrying capacity of a conductor is governed by the wire gauge and also the temperature rating of the insulation around the wire.

NOTE: ALUMINUM WIRING A. WARNING:

IMPROPER CONNECTION OF ALUMINUM HOUSE WIRING TO THE COPPER LEADS CAN RESULT IN A SERIOUS PROBLEM.

B. Splice copper wires to aluminum

wiring using special connectors designed and UL approved for joining copper to aluminum and follow the manufacturer’s recommended connector procedure closely.

NOTE:Wire used, location and enclosure of splices, etc., must conform to good wiring practice and local codes.

NOTES

Pub. No. 31-10435

229C4053P417

GE JTP15AA, JTP15BA, JTP17SC, JTP18WA, JTP18AA Installation Instructions
