GE JTD915WK, JTD915CK, JTD915BK Specification
JTD915WK/CK/BK
GE Profile™ 30" Warming Drawer
Dimensions and Installation Information (in inches)
KW Rating
120V .45
Breaker Size
120V 15 Amps
Optional Accessories: JXPN2 – Optional Pan Set Accessory for Warming Drawer. Two commercial pans with lids (4” deep) ZXD30B –3/4” panel kit capability
Undercounter Installation: A solid barrier must be installed at least 1” from the lowest point of the bottom of cooktop burner box to the top of the cutout. Use any solid material such as 1/4”-thick plywood. Allow at least 1/4” air gap between the barrier and the top of the warming drawer. See label on top of the warming drawer for approved cooktop models.
Under Oven Installation: Additional clearance between cutouts may be required. Check to be sure that oven supports above the warming drawer location do not obstruct the required interior 23-1/2” depth and 9-1/4” height.
Door handle protrudes 2-3/4” from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

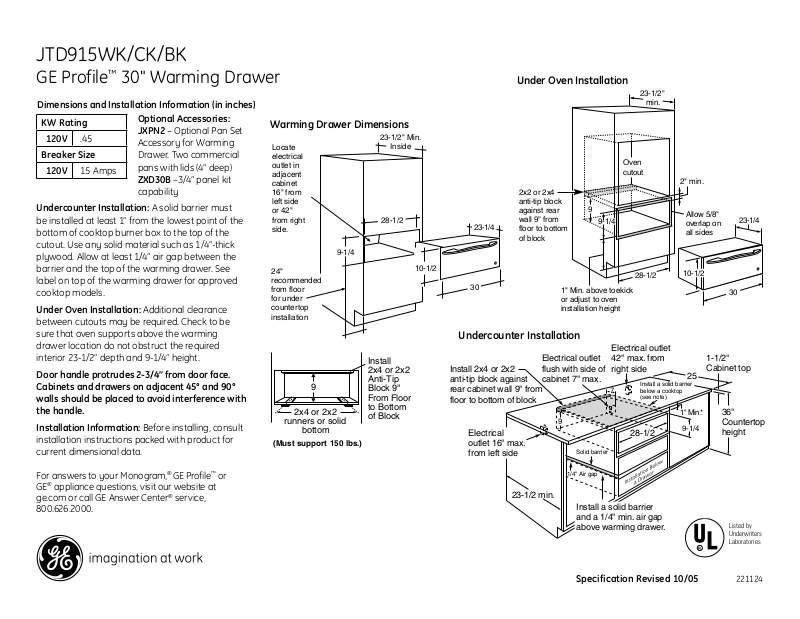

Warming Drawer Dimensions
|
|
|
23-1/2" Min. |
Locate |
|
|
Inside |
|
|
||
electrical |
|
|
|
outlet in |
|
|
|
adjacent |
|
|
|
cabinet |
|
|
|
16" from |
|
|
|
left side |
|
|
|
or 42" |
|
|
|
from right |
28-1/2 |
||
side. |
|
|
|
|
9-1/4 |
|
|
24" |
10-1/2 |
||
|
|
|
|
recommended |
|
|
|
from floor |
|
|
|
for under |
|
|
|
countertop |
|
|
|
installation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Install |
|
|
|
|
|
|
|
|
2x4 or 2x2 |
|
|
|
|
|
|
|
|
Anti-Tip |
|
|
|
|
|
|
|
|
|
9 |
|
|
|
Block 9" |
||||
|
|
|
|
|
|
|
|
From Floor |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
to Bottom |
|
|
|
2x4 or 2x2 |
|
|
|
||
|
|
|
|
|
of Block |
|||
|
|
|
||||||
|
|
runners or solid |
||||||
|
|
|
||||||
|
|
|
bottom |
|
||||
(Must support 150 lbs.) |
|
|||||||
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
Under Oven Installation
23-1/2"
min.
23-1/4
30
|
Oven |
|
cutout |
2x2 or 2x4 |
|
anti-tip block |
9 |
against rear |
|
wall 9" from |
9-1/4 |
floor to bottom |
|
of block
28-1/2
1" Min. above toekick or adjust to oven installation height
2" min. |
|
|
Allow 5/8" |
23-1/4 |
|
overlap on |
||
|
||
all sides |
|
10-1/2
30
Undercounter Installation
Install 2x4 or 2x2 anti-tip block rear cabinet w floor to bottom
Electrical outlet 16" max.
from left side
Electrical outlet Electrical outlet 42" max. from
flush with side of right side
25
Install a solid barrier
7
below a cooktop (see note).
1"Min.*
9
28-1/2 9-1/4
Solid barrier
1/4" Air gap
1-1/2" Cabinet top
36" Countertop height
23-1/2 min.
Install a solid barrier and a 1/4" min. air gap above warming drawer.
Listed by Underwriters Laboratories
R
Specification Revised 10/05 |
221124 |
JTD915WK/CK/BK
GE Profile™ 30" Warming Drawer
Features and Benefits
•Flush Appearance Installation - Transitions smoothly into the kitchen cabinetry to deliver a clean and sophisticated appearance
•Variable Degree Control - Provides temperature settings from 80 degrees to 210 degrees to deliver flexible warming performance for a variety of needs
•Variable Humidity Control - Gives cooks the ability to customize warming, from crisp to moist, based on their desired result
•Frameless Drawer Front - Achieves a smooth appearance for an attractive, modern presentation that is easy to wipe clean
•“On” Indicator Light - Illuminates when the warming drawer is operating for cooking convenience and kitchen safety
•Half Rack - Delivers a versatile option to help maximize drawer space for warming multiple foods at once
•Model JTD915WKWW – White on white
•Model JTD915CKCC – Bisque on bisque
•Model JTD915BKBB – Black on black
