Page 1
Warming Drawer
Electric
www.GEAppliances.com
JKD915
JTD915
49-80300 02-05 JR
Safety Instructions . . . . . . . . . . . 2, 3
Operating Instructions
Control Knob . . . . . . . . . . . . . . . . . .5
Crisping Stale Items . . . . . . . . . . . . .7
Drawer . . . . . . . . . . . . . . . . . . . . . . .6
Features . . . . . . . . . . . . . . . . . . . . . .4
Moisture Selector . . . . . . . . . . . . . . .5
ON Signal Light . . . . . . . . . . . . . . . .5
Pans . . . . . . . . . . . . . . . . . . . . . . . . . 5
Proofing Yeast Bread
and Dough . . . . . . . . . . . . . . . . . . . .7
Rack . . . . . . . . . . . . . . . . . . . . . . . . .6
Temperature Selection Charts . . .7, 8
Warming Serving Bowl
and Plates . . . . . . . . . . . . . . . . . . . . .6
Care and Cleaning . . . . . . . . . . . . 9
Installation Instructions . . . . 10–15
Troubleshooting Tips . . . . . . . . . 16
Consumer Support
Consumer Support . . . . .Back Cover
Product Registration . . . . . . . . 19, 20
Warranty for Customers
in Canada . . . . . . . . . . . . . . . . . . . .23
Warranty for Customers
in the U.S.A. . . . . . . . . . . . . . . . . . .22
Write the model and serial
numbers here:
Model # ____________________
Serial # ____________________
You can find them on a label located
on the backside of the lower drawer
front.
In Canada, contact us at:
www.GEAppliances.ca
Owner’s Manual and
Installation Instructions
Page 2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
When using electrical appliances, basic safety precautions should be followed, including
the following:
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■ Be sure your appliance is properly
installed and grounded by a qualified
technician in accordance with the
provided installation instructions.
■ Do not attempt to repair or replace any
part of your warming drawer unless it is
specifically recommended in this manual.
All other servicing should be referred to
a qualified technician.
■ Have the installer show you the location
of the circuit breaker or fuse. Mark it for
easy reference.
■ Before performing any service, unplug
or disconnect the power supply at the
household distribution panel by removing
the fuse or switching off the circuit
breaker.
■ Do not leave children alone—children
should not be left alone or unattended
in an area where an appliance is in use.
They should never be allowed to sit or
stand on any part of the appliance.
■ Do not allow anyone to climb, stand or
hang on the drawer. They could damage
the warming drawer, or cause severe
personal injury.
■ Be sure the warming drawer is securely
installed in a cabinet that is firmly attached
to the house structure.
■ Never leave the drawer open when you
are not watching the warming drawer.
■ Always keep combustible wall covering,
curtains or drapes a safe distance from
your warming drawer.
■ Always keep wooden and plastic utensils
and canned food a safe distance away
from your warming drawer.
■ Teach children not to play with the
controls or any other part of the warming
drawer.
■ Do not place more than 50 pounds into
the drawer.
■ For your safety, never use your appliance
for warming or heating the room.
SAFETY PRECAUTIONS
All warming drawers can tip and injury could result if not properly installed.
To prevent accidental tipping of the warming drawer, attach it to the wall with an anti-tip brace
as described in the Installation Instructions.
WARNING ANTI-TIP BRACE REQUIRED
2
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
Page 3
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
3
www.GEAppliances.com
The purpose of the warming drawer is to hold hot cooked foods at serving temperature.
Always start with hot food; cold food cannot be heated or cooked in the warming drawer.
■ Do not warm food in the warming drawer
for more than two hours.
■
CAUTION: Items of interest to
children should not be stored in cabinets
above the warming drawer; children
climbing on the drawer to reach items
could be seriously injured.
■ Use only dry pot holders—moist or damp
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
touch hot heating elements. Do not use
a towel or other bulky cloth.
■ Do not let cooking grease or other
flammable materials accumulate in
or near the warming drawer.
■ Do not use water on grease fires.
Never pick up a flaming pan. Turn
the controls off.
■ Flame in the warming drawer can be
smothered by closing the drawer or
using a multi-purpose dry chemical or
foam-type fire extinguisher.
■ Do not touch the heating element or
the interior surface of the warming
drawer. These surfaces may be hot
enough to burn.
■ REMEMBER: The inside surface of the
warming drawer may be hot when the
drawer is opened.
■ Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
■ Never leave jars or cans of fat drippings in
or near your warming drawer.
■ Use care when opening the drawer. Open
the drawer a crack and let hot air or steam
escape before removing or replacing food.
Hot air or steam which escapes can cause
burns to hands, face and/or eyes.
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ Keep the vent unobstructed.
■ Do not use the warming drawer to dry
newspapers. If overheated, they can catch
on fire.
■ Do not use the warming drawer for a
storage area. Items stored in the warming
drawer can ignite.
■ Do not leave paper products, cooking
utensils or food in the warming drawer
when not in use.
■ Clean only parts listed in the Care and
cleaning of the warming drawer section.
■ Do not use aluminum foil to line the
drawer. Foil is an excellent heat insulator
and will trap heat beneath it. This will
upset the performance of the drawer and
it could damage the interior finish.
■ Wear proper apparel. Loose fitting or
hanging garments should never be worn
while using this appliance.
WARNING!
SAFETY PRECAUTIONS
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Page 4

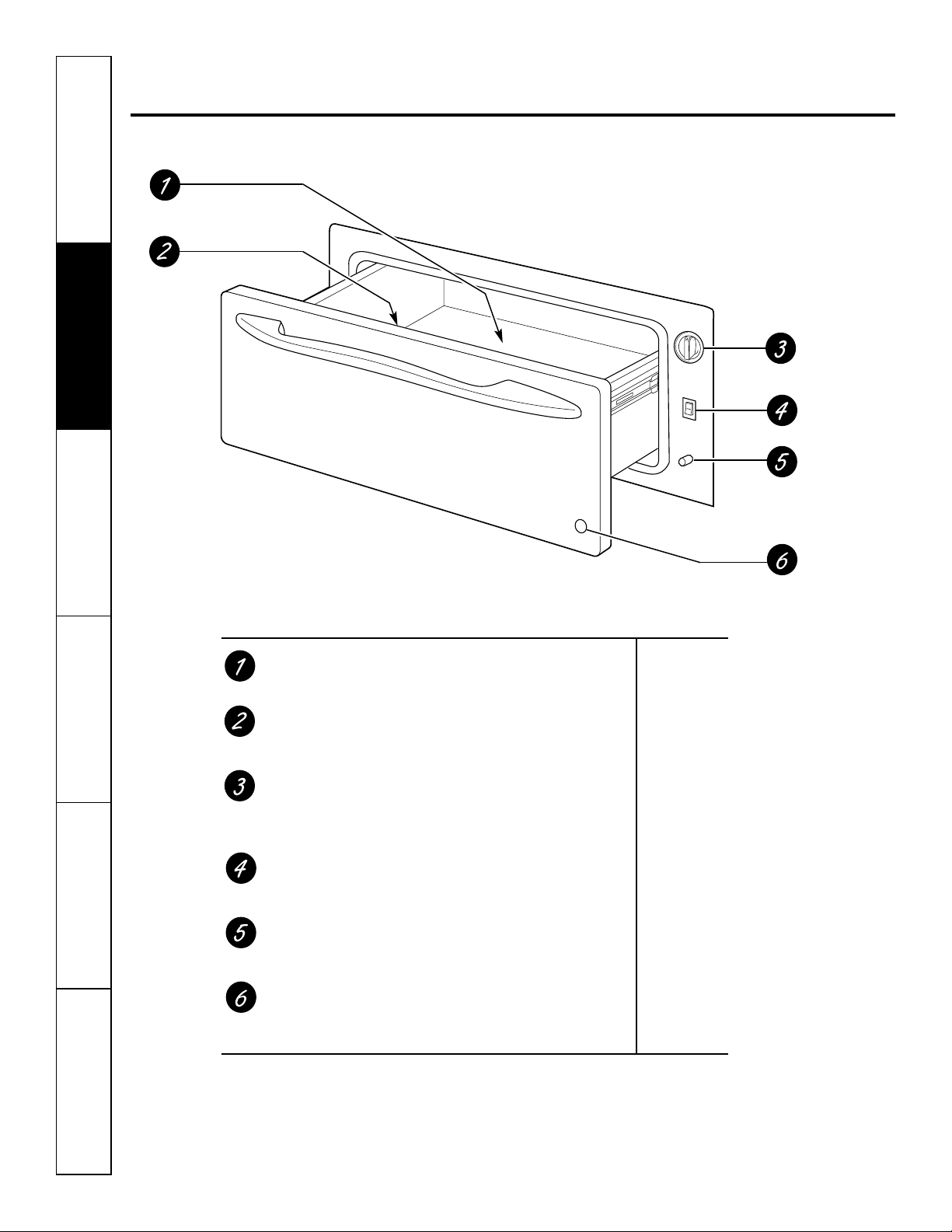

Features of your warming drawer.
Not all features are on all models. Appearance may vary.
Feature Index Page
Warming Drawer 10
Moisture Selector (on back of panel)
Use this to keep foods moist or crisp. 6, 8, 9
Control Knob
The control knob has settings for 6, 8, 9
PROOF, LOW, MED and HIGH.
ON/OFF Switch
Use this switch to turn the warming drawer on. 6
ON Signal Light
Glows when the ON/OFF switch is in the ON position. 6
ON Signal Light Viewer Lens
The ON signal light is visible through the 6
light viewer lens when the drawer is closed.
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
4
Page 5
5
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
Using the warming drawer. www.GEAppliances.com
The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not
use to heat cold food other than proofing yeast dough, crisping crackers, chips or dry cereal.
Control Knob
The warming drawer controls are hidden
with the drawer shut. Open the drawer.
The controls are on the right side of the
front frame.
To use the warming drawer, press the
ON/OFF switch to the ON position.
Slide the moisture selector control to the
open or closed setting. (See the Moisture
Selector section.)
Turn the control knob to the desired
setting.
PROOF . . . . . . . . . . . . . . . . 75–95°F
LOW . . . . . . . . . . . . . . . . . 140–160°F
MED . . . . . . . . . . . . . . . . . 160–195°F
HIGH . . . . . . . . . . . . . . . . . 195–230°F
ON Signal Light
The ON signal light is located below
the ON/OFF switch and glows when the
ON/OFF switch is in the ON position.
It stays on until the ON/OFF switch is
moved to the OFF position.
The ON signal light is visible through the
light viewer in the drawer front panel
when the drawer is closed. This is a
reminder that the heat is on.
Additional Pans
An accessory pan kit JXPN2 is available
from GE at extra cost.
Two pans with lids (4” deep)
■ One large pan (14 quarts)
■ One medium pan (6 quarts)
Moisture Selector
The moisture selector is located on the
inside front of the drawer.
To keep foods moist, slide the moisture
selector control away from the control
knob. This closes the vent and seals the
moisture inside the drawer. With the vent
closed hot foods stay moist and soft.
In this setting condensation may occur around
the inside edge of the drawer.
To keep foods crisp, slide the moisture
selector control to the right towards the
control knob. This opens the vents and
allows the moisture to escape.
With the vents open, it is normal for moisture to
collect on surfaces above the warming drawer.
PROOF
HI
MED
LO
M
Closed
Vent
oist
Crisp
Open
Vent
Page 6
Using the warming drawer.
To Warm Serving Bowl and Plates
To warm serving bowls and plates set the
control on LOW.
■ Use only heat-safe dishes.
■ Place the empty dishes on the rack
to raise them off the bottom of the
drawer. If you want hotter dishes or
want to heat fine china, please check
with the manufacturer of the dishes
for their maximum heat tolerance.
■ Preheat empty serving dish while
preheating the drawer.
■ When holding hot, cooked foods and
warming empty serving dishes at the
same time, place the serving dishes on
the high rack position and the food on
the bottom of the drawer.
CAUTION: Dishes may be
hot. Use pot holders or mitts when removing
hot dishes.
When using the warming drawer…
Do not line the warming drawer with
aluminum foil.
■
Allow time for the drawer to be
preheated:
LOW 8 minutes
MED 15 minutes
HIGH 20 minutes
NOTE: It is not necessary to preheat the drawer
for proofing.
Food in heat-safe glass and glass ceramic
pans may need higher thermostat setting
as compared to food in metal pans.
■ Repeated opening of the drawer allows
the hot air to escape and the food to
cool. Allow extra time for temperature
inside the drawer to stabilize after
adding items.
■ With large loads it may be necessary to
use a higher thermostat setting and
cover some of the cooked food items.
■ Food should be kept hot in its cooking
container or transferred to a heat-safe
serving dish.
■ Aluminum foil may be used to cover
food to prevent it from drying out.
CAUTION:
Plastic containers
or plastic wrap will melt if in direct contact
with the drawer. Melted plastic may not be
removable and is not covered under your
warranty.
■ Remove serving spoons, etc., before
placing containers in warming drawer.

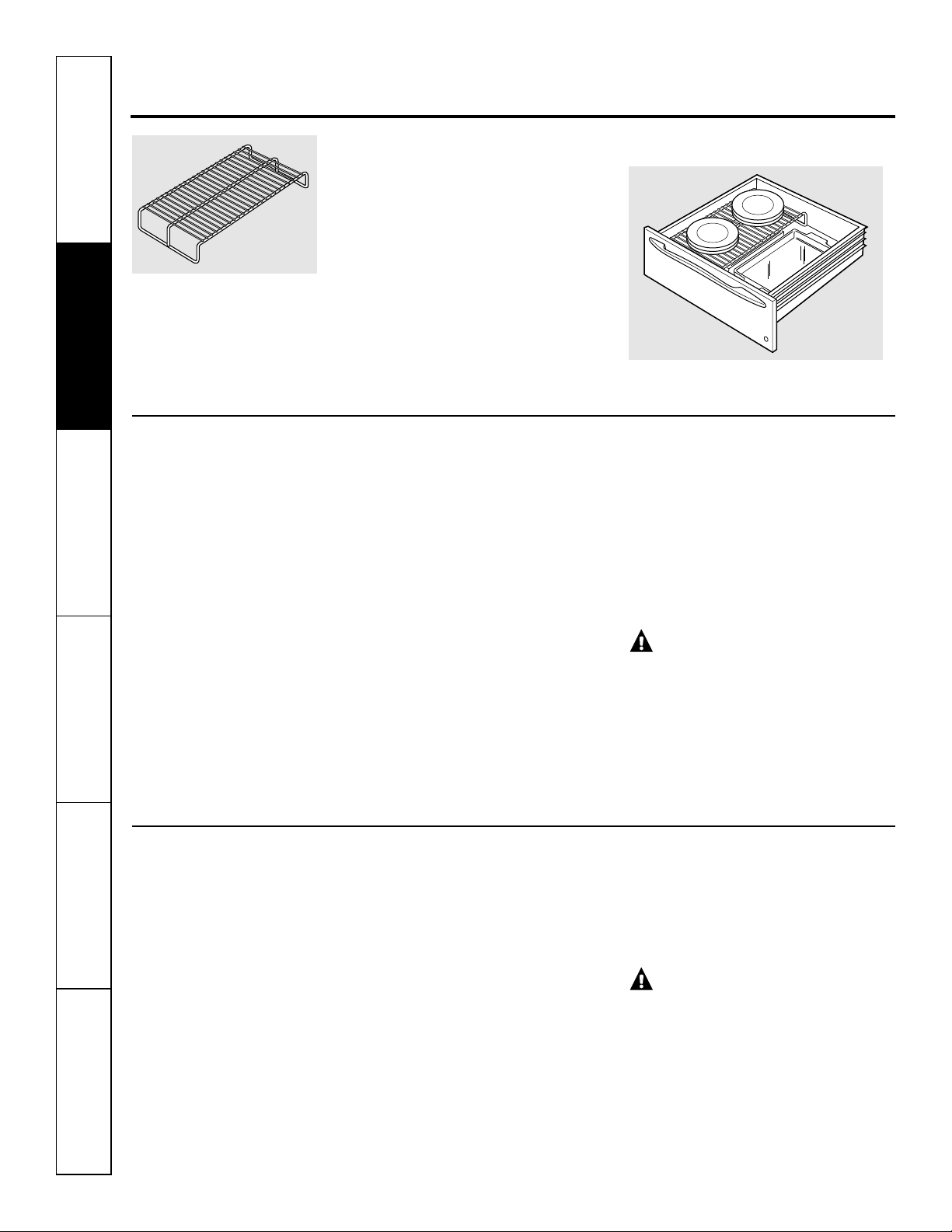

Rack
■ Rack will fit from front to back.
■ Preheat with the rack in place.
■ Using the rack allows for double
stacking of items.
Double stacking items with the rack in position.
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
6
Page 7
7
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
www.GEAppliances.com

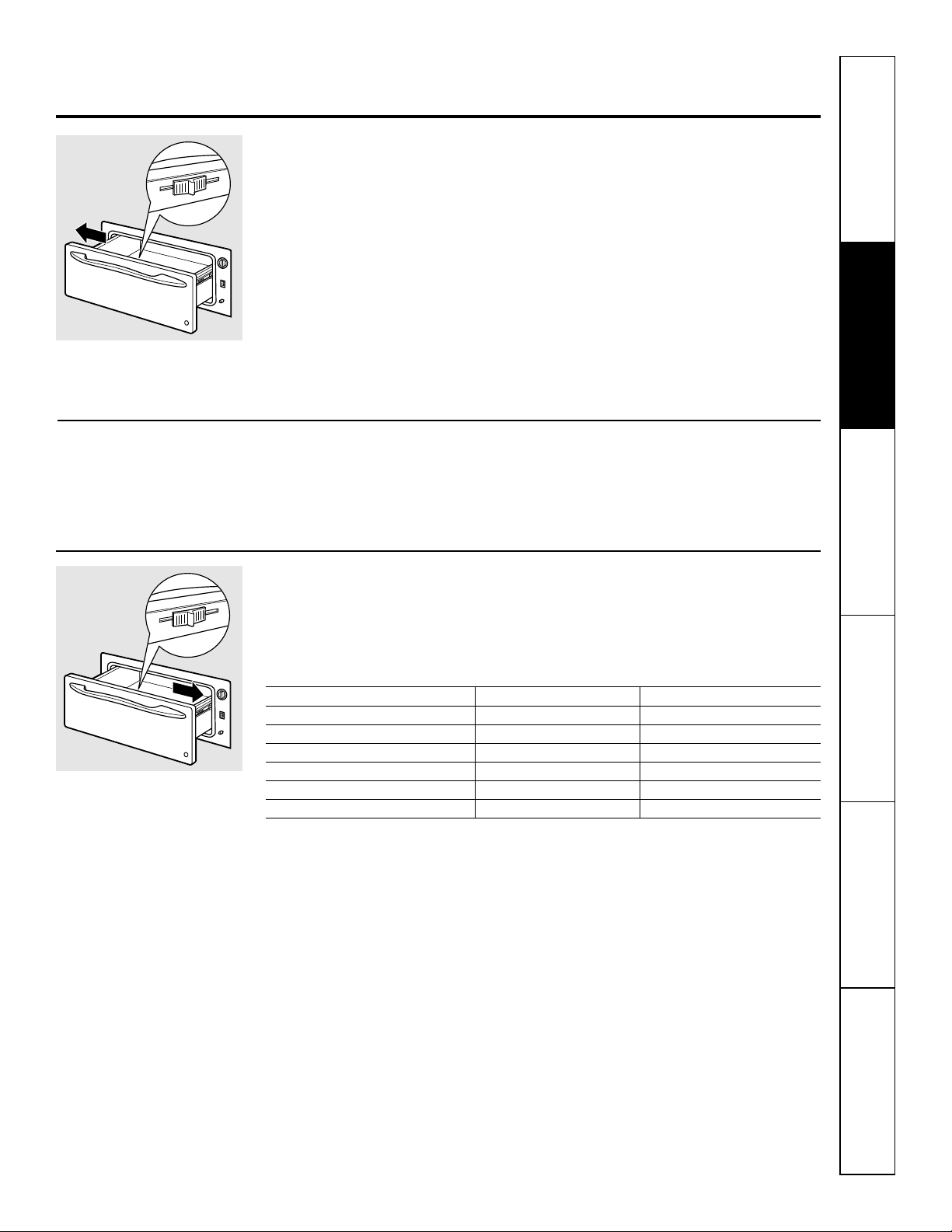

To Proof Yeast Bread Dough
Yeast dough can be proofed in the warming
drawer.
■ Place your dish on the warming
drawer bottom.
■ You must always turn the control
knob to LOW then immediately
back to PROOF.
■ Close the vent.
■ Lightly oil the top of the dough in
a bowl large enough to double the
dough size. Cover with a cloth.
■ Preheating not required for proofing.
■ Check the dough height in 40
minutes. Add time as needed. The
dough should remain in the drawer
until it has doubled in size and a slight
depression remains when the surface
is touched gently with a finger.
To Crisp Stale Items
■ Place food in low sided dishes or pans.
■ Preheat on LOW setting and open
the vent.
■ Check crispness after 45 minutes. Add
time as needed.
Temperature Selection Chart for Crisp Foods
To keep several different foods hot, set the temperature to the food needing the highest setting.
Place the items needing the highest setting on the bottom of the drawer and items needing less
heat on the rack.
Food Type Control Setting Moisture Selector Setting
Bacon HIGH OPEN
Bread, hard rolls MED OPEN
Fried foods HIGH OPEN
Pies, two crusts MED OPEN
Pizza HIGH OPEN
Potatoes, baked HIGH OPEN
Tortilla Chips LOW OPEN
Tips:
■ Leave food uncovered.
■ Do not use plastic containers or plastic wrap.
■ Preheat prior to use according to recommended times.
M
Closed
Vent
oist
Crisp
Open
Vent
Page 8

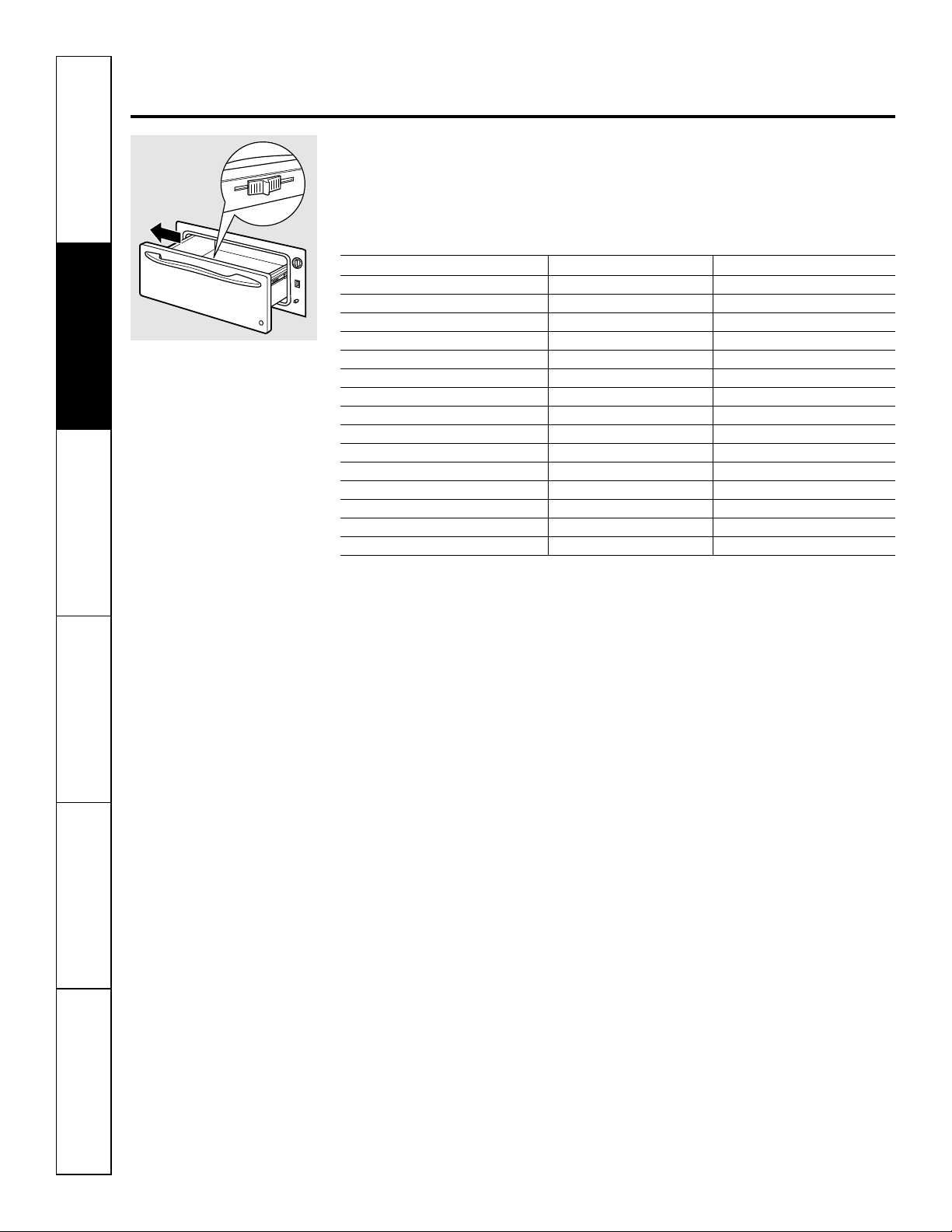

Using the warming drawer.
Temperature Selection Chart for Moist Foods
To keep several different foods hot, set the temperature to the food needing the highest setting.
Place the items needing the highest setting on the bottom of the drawer and items needing less
heat on the rack.
Food Type Control Setting Moisture Selector Setting
Beef, medium and well done* MED CLOSED
Bread, soft rolls MED CLOSED
Casseroles MED CLOSED
Cooked cereal MED CLOSED
Eggs MED CLOSED
Fish, seafood MED CLOSED
Fruit MED CLOSED
Gravy, cream sauces MED CLOSED
Ham MED CLOSED
Lamb MED CLOSED
Pancakes, waffles HIGH CLOSED
Pies, one crust MED CLOSED
Pork MED CLOSED
Potatoes, mashed MED CLOSED
Poultry HIGH CLOSED
Vegetables MED CLOSED
* USDA/FSIS recommends an internal temperature of 145°F. as the minimum doneness for beef. Use a portable meat
thermometer to check internal temperatures.
Tips:
■ Cover food with lid or aluminum foil.
■ Do not put water in the warming drawer.
■ Do not use plastic containers or plastic wrap.
■ Preheat prior to use according to recommended times.
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
8
M
oist
Closed
Vent
Page 9
9
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
Care and cleaning of the warming drawer. www.GEAppliances.com
Be sure the controls are in the OFF position and all surfaces are cool before cleaning any part of the
warming drawer.
Warming Drawer
Use soap and warm water to thoroughly
clean.
Rack
Clean the rack with detergent and water.
After cleaning, rinse the rack with clean
water and dry with a clean cloth.
Stainless Steel
Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface, use
warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface
in the direction of the grain. Follow
cleaner instructions for cleaning the
stainless steel surface.
To inquire about purchasing stainless
steel appliances cleaner or polish, or to
find the location of a dealer nearest you,
please call our toll-free number:
National Parts Center 1.877.959.8688
www.GEAppliances.com
Control Knob
The control knob may be removed for easier
cleaning.
Before removing the knob for cleaning,
please note that it is in the PROOF
position.
Wash the knob in soap and water or
a vinegar and hot water solution but
do not soak.
Dry and replace the knob.
Page 10
10
Before You Begin
IMPORTANT: Save these instructions for the
local electrical inspector’s use.
IMPORTANT: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE TO INSTALLER: Leave these instructions
with the appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s
Manual and Installation Instructions for
future use.
NOTE: This appliance must be properly
grounded.
NOTE: Insure that the power cord does not
contact the hot surfaces on the bottom of
ovens, cooktops, or any other appliance.
Tools Needed
■ 2 x4 or 2 x 2 lumber for runners and brace
■ Wood screws and adhesive or other hardware
for installing runners or shelf to support
warmer drawer.
Runners must be level, rigidly mounted and capable of
supporting 150 pounds.
■ Saw
■ Level
■ Drill and 1/16″ bit
■ Phillips screwdriver
Custom Panel Kits
ZXD27B—This kit provides for the installation
of a custom front panel on 27″ wide models.
ZXD30B—This kit provides for the installation
of a custom front panel on 30″ wide models.
Product Dimensions
27″
23
1
⁄4″
9″
1″
A
10
1
⁄2″
26
1
⁄4″
Including handle
Dimension A
27 ″ Drawer 30 ″ Drawer
26
3
⁄4″ 30 ″
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
Installation of the warming drawer.
Read these instructions completely and carefully.
Page 11
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
11
Advance Planning
■ The warming drawer may be installed directly
into a wall or wall oven cabinetry.
■ The warming drawer may be installed below
a countertop, a single or double oven and
side by side using 2 drawers.
■ When installing warming drawer with a
cooktop allow a 2″ minimum from bottom
of a cooktop burner box to top of cutout.
■ Electrical power cord is located on the right
side of the warming drawer. Locate the outlet
within reach of the 56″ long power cord in
adjacent cabinet, within 42″ of the right side
or 16″ from the left side of the cutout.
A recessed receptacle can be installed on
the right side of the cutout, 7″ maximum
from the back of the cabinet.
Grounding the Appliance
IMPORTANT—(Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
Do not use an extension cord or adapter plug
with this appliance. Follow National Electrical
codes and ordinances.
This warming drawer must be supplied with 120V,
60Hz, and connected to an individual, properly
grounded branch circuit, and protected by a 15
or 20 amp circuit breaker or time delay fuse.
■ A properly grounded 3-prong receptacle
should be located within reach of the drawer’s
56″ long power cord.
■ Locate the receptacle in an adjacent cabinet.
■ —within 42″ of the right side or,
■ —within 16″ of the left side or
■ —A recessed receptacle may be located on the
right side of the cutout, 7″ maximum from
the back of the cabinet. In this location, the
excess power cord should be coiled and
taped to the right side of the unit.
IMPORTANT—(Please read carefully)
The power cord of this appliance is equipped
with a 3-prong (grounding) plug that mates with
a standard 3-prong grounding wall receptacle to
minimize the possibility of electric shock. The
customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded and has
the correct polarity.
■ Where a standard 2-prong wall receptacle is
encountered, it is the personal responsibility
and obligation of the customer to have it
replaced with a properly grounded 3-prong
wall receptacle.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD.
Recessed receptacle
7″ max. from rear
on right side
Drill 11⁄2″ hole for
power cord for left
or right side outlet
location
Read these instructions completely and carefully.
Page 12
Installation Below a Countertop
■ When installed, the front face of the warming
drawer will be nearly flush with cabinetry doors or
drawer fronts.
■ Drawer overlaps will conceal cut edges on all sides
of the opening.
The rough opening for the drawer must be:
—Depth: 231⁄2″ minimum from inside back to front
of cabinet frame.
—Width: 251⁄2″ for 27″ wide models
281⁄2″ for 30″ wide models.
—Height: 91⁄4″
■ 5″ minimum above floor or 1″ above toekick. 231⁄4″
from floor to bottom of cutout is recommended
for under countertop installation.
Installation below a cabinet drawer:
The warming drawer may be installed beneath a cabinet
drawer. In this installation, a solid barrier should be
installed above the warming drawer to block access.
Use any solid material such as 1/4″ thick plywood. Allow
at least 1/4″ air gap between the barrier and the top of
the warming drawer. Observe the 5″ min. above the floor
or 1″ above the toekick min. installation height.
NOTE: If you are installing in frameless cabinets, it may
be necessary to install 1/2″ wide cleats to accept drawer
mounting screws. See drawer to find exact locations of
mounting screws.
When installed under a cooktop:
Warming drawers are suitable for installation below only
certain specified cooktop models. See the label attached
to the top of the warming drawer for suitable models. A
solid barrier and air gap between cooktop and warming
drawer is required. See Note above.
Electrical
outlet 16″ max.
from left side
Electrical outlet 42″ max.
from right side
1″ Min.*
25″
9″
9
1
⁄4″
23
1
⁄2″ Min.
36″
Countertop
height
Electrical outlet
flush with side of
cabinet 7″ max.
Install 2x4 or 2x2
anti-tip block against
rear cabinet wall 9”
from floor to bottom
of block
*NOTE: When installing the warming drawer below a cooktop,
a solid barrier must be installed at least 1″ from the lowest point
of the bottom of cooktop burner box to the top of cutout. Use any
solid material such as 1/4″ thick plywood. Allow at least 1/4 ″ air
gap between the barrier and the top of the warming drawer. See
label on top of the warming drawer for approved cooktop models.
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
12
Installation of the warming drawer.
Read these instructions completely and carefully.
Remove Packaging and Parts
Parts provided: 4 Wood screws
Place carton on a flat surface.
Open one end of the carton and lift off
the top piece.
Lift the warming drawer up and out of
the carton.
Place the drawer on top of the shipping
carton to protect the drawer front and the
finished flooring.
Remove all packing materials and tape.
Locate package containing 4 wood screws
and set aside.
7″
11⁄2″ Cabinet top
Install a solid barrier
and a 1/4” min. air gap
above warming drawer
1/4” Air gap
Solid barrier
Dimension A
27 ″ Drawer 30 ″ Drawer
25
1
⁄2″ 281⁄2″
Install a solid barrier below
a cooktop (see Note)
WARNING!
IN CANADA THIS DRAWER IS NOT
APPROVED FOR INSTALLATION
UNDER A COOKTOP.
Page 13
13
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
■ When installed, the front face of the warming
drawer will be nearly flush with cabinetry doors
or drawer fronts.
■ Drawer overlaps will conceal cut edges on
all sides of the opening.
The rough opening for the drawer must be:
—Depth: 231⁄2″ minimum from inside back
to front of cabinet frame.
—Width: 251⁄2″ for 27″ wide models
281⁄2″ for 30″ wide models.
—Height: 91⁄4″
—Allow 2″ minimum between oven and drawer
cutouts for clearance of overlaps.
NOTE: If you are installing in frameless cabinets,
it may be necessary to install 1/2″ wide cleats to
accept drawer mounting screws. See drawer to
find exact locations of mounting screws.
When installed under a wall oven:
Warming drawers are suitable for installation
below only certain specified wall oven models.
See the label attached to the top of the warming
drawer for suitable models.
NOTE: Electrical receptacle can be installed
as shown for countertop installations. Do not
install receptacle above the top of the warming
drawer cutout.
231⁄2″
Min.
2x2 or 2x4 anti-tip
block against rear
wall 9” from floor
to bottom of block
1″ Min. above toekick or adjust
to oven installation height
A
NOTE: Additional clearance between cutouts may
be required. Check to be sure that oven supports
above the warming drawer location do not obstruct
the required interior 231⁄2″ depth and 91⁄4″ height.
Installation below a single oven
2″ Min
1″ Min. above toekick
NOTE: Additional clearance between cutouts may
be required. Check to be sure that oven supports
above the warming drawer location do not obstruct
the required interior 231⁄2″ depth and 91⁄4″ height.
Installation below a double oven
Dimension A Dimension B
27 ″ Drawer 25
1
⁄2″ 263⁄4″
30 ″ Drawer 28
1
⁄2″ 30 ″
2x2 or 2x4 anti-tip
block against rear
wall 9” from floor
to bottom of block
2″ Min.
Allow 5/8”
overlap on
all sides
101⁄2″
23
1
⁄2″
Min.
Allow 5/8″ overlap
on all sides
A
231⁄4″
101⁄2″
9″
91⁄4″
23
1
⁄4″
Installation Below Wall Ovens
Read these instructions completely and carefully.
9″
91⁄4″
B
Oven
cutout
Oven
cutout
B
WARNING!
IN CANADA THE WALL OVEN
IS ONLY APPROVED FOR
INSTALLATION WITH A BOTTOM
CUTOUT AT A MINIMUM OF 32.5"
FROM THE FLOOR.
WARNING!
IN CANADA THIS DRAWER IS NOT APPROVED
FOR INSTALLATION UNDER A DOUBLE OVEN.
Page 14
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
14
Step 1—Install Anti-Tip Brace
WARNING: ANTI-TIP PRECAUTIONS:
The anti-tip brace must be installed to prevent
the drawer from tipping forward when opened
and loaded.
Failure to do so could result in personal injury.
Install 2x4 or 2x2 anti-tip brace
against rear cabinet wall 9″
from floor to bottom of brace
2x4 or 2x2 runners
or solid bottom
9″
Provide Cabinet Support
IMPORTANT: When installed below a single or
double oven, check to be sure that any oven
supports above the cutout do not obstruct the
231⁄2″ required depth of the warming drawer
cutout.
■
A 2″ minimum clearance between oven
and warming drawer cutouts are required.
Additional clearance may be required if
2 x 4 blocks are used to support runners or
solid floor of the oven above.
■
The warming drawer may be supported by
either a solid bottom, 2 x 4 or 2 x 2 runners.
■
The support must be level and rigidly
mounted, flush with the bottom edge
of the cutout.
■ There is no way to level the drawer once it
has been installed. Be sure supports are level.
■
The entire weight of the drawer is supported
by the runners or solid floor and must be
capable of supporting 150 lbs.
231⁄2″
22″
27″
2″ x 4″ or equivalent runners
231⁄2″
25″
30″
2″ x 4″ or equivalent runners
Installation of the warming drawer.
Read these instructions completely and carefully.
Page 15
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
15
Step 2—Install Warming Drawer
Slide the left corner into opening and push
power cord into the hole leading to the
outlet location. Thread the cord through
as drawer is being pushed back into the
opening.
If the outlet is installed inside the
opening, plug the cord into the outlet.
In this location, the excess power cord
should be coiled and taped to the right
side of the unit. Make sure the cord does
not get trapped by the drawer.
NOTE: Insure that the power cord does not
contact the hot surfaces on the bottom of
ovens, cooktops, or any other appliance.
Push the drawer back until the front flange
is flush to the cabinet front.
Open the drawer fully.
Drill pilot holes through the holes in the
overlapping frame, one on each corner.
Drive wood screws provided into each
corner.
Read these instructions completely and carefully.
Page 16
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
16
Troubleshooting Tips
Save time and money! Review the chart on this page first
and you may not need to call for service.
Problem Possible Causes What To Do
Warming drawer A fuse in your home may • Replace the fuse or reset the circuit breaker.
will not work be blown or the circuit
breaker tripped.
Warming drawer not • Plug in.
plugged in.
Controls improperly set. • See the Using the warming drawer section.
Drawer does not Ball bearings out • Fully extend the drawer and push it all the way in.
slide smoothly of alignment. See the Care and cleaning section.
or drags
Drawer over-loaded or • Reduce weight to less than 50 pounds. Redistribute
load unbalanced. drawer contents.
Excessive Liquid in warming • Remove liquid.
condensation drawer.
Uncovered foods. • Cover food with lid or aluminum foil.
Temperature setting • Reduce temperature setting.
too high.
Incorrect Moisture • Set the Moisture Selector to the open vent setting to
Selector setting. allow venting.
No heat in the Room temperature • Turn the knob to LOW then back to PROOF.
PROOF setting may prevent the
thermostat from
tripping on.
Food dries out Moisture escaping. • Cover food with lid or aluminum foil.
Before you call for service…
Page 17
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
17
Notes.
Page 18
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
18
Notes.
Page 19
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus
™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus
™
—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁
Cut here
19
Page 20
20
Consumer Product Ownership Registration
Important
Mail
Today!
First
Name
Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■
Street
Address
City
State
Date Placed
In Use
Month
Day
Year
Zip
Code
Apt. #
Last
Name
Phone
Number
_
_
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
1
23
Model Number
Serial Number
✁
Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800.GE.CARES
(800.432.2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number
Serial Number
E-mail Address*
GE Appliances
GE Consumer & Industrial
Louisville, Kentucky
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important
communications from GE Appliances (GEA).
■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to www.GEAppliances.com and click
on “Privacy Policy” or call 800.626.2224.
Page 21
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
21
Notes.
Page 22
Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
For The Period Of: GE Will Replace:
One Year Any part of the warming drawer which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor and
original purchase in-home service to replace the defective part.
22
GE Electric Warming Drawer Warranty. (For customers in the United States)
■ Service trips to your home to teach you how to
use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or
used for other than the intended purpose or used
commercially.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule service,
on-line, 24 hours a day, visit us at www.GEAppliances.com, or
call 800.GE.CARES (800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
Page 23
For The Period Of: Camco Will Replace:
One Year Any part of the warming drawer which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, Camco will also provide, free of charge, all labor and
original purchase in-home service to replace the defective part.
23
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support
GE Electric Warming Drawer Warranty. (For customers in Canada)
■ Service trips to your home to teach you how to
use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or
used for other than the intended purpose or used
commercially.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
What Camco Will Not Cover:
All warranty service provided by our Factory Service Centers
or an authorized Customer Care
®
technician. For service,
call 1.800.361.3400.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Warrantor: CAMCO INC.
Page 24
Consumer Support.
GE Appliances Website
In the U.S.: www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions,
and so much more... In Canada: www.geappliances.ca
Schedule Service In the U.S.: www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your
convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
In Canada, call 1.800.361.3400
Real Life Design Studio In the U.S.: www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of
all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities
and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with
disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties In the U.S.: www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still
in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer
Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories In the U.S.: www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be
referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055.
Contact Us In the U.S.: www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance In the U.S.: www.GEAppliances.com
Register your new appliance on-line–at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail
in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca
Printed in the United States
Loading...
