GE JT3800SH Specification

Suitable

bracing

to support

runners

2 x 4 or equivalent runners level with bottom of cutout

and flush with sides of cutout or solid bottom floor.

30 ''

CUTOUT WIDTH

28-1/2" MIN.

28-5/8" MAX.

Recommended

minimum cutout location from the floor

21-5/8"

24"

CUTOUT HEIGHT

42-3/16" MIN. 42-1/4" MAX.

(must support 275 lbs.)

23" MIN. door opening allowance

CONDUIT

48"

CABINET 30"

A –Overlap of oven at top of cutout 1" B – Overlap of oven over side of edges of cutout 3/4" C –Overlap of oven at bottom of cutout 1" OVEN D –Install depth 23-1/2" E –Overall height with trim 42-3/8" F –Overall width 29-3/4"

CT9800 PT9800 PT7800 JT3800

ATTENTION INSTALLER:

All electric wall ovens must be hard-wired (direct-wired)

into an approved junction box. A plug and receptacle is NOT permitted on these products.

NOTE: If the cabinet does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. For single ovens, the runners and braces must support 200 lbs (91 kg). For double ovens, the runners and braces must support 375 lbs. (170 kg).

NOTE: If marks, blemishes or the cutout opening are visible above the installed oven, it may be necessary to add wood shims under the runners and front trim until the marks or opening are covered.

NOTE: If the cabinet does not have a front frame and the sides are less than 3/4" (1.9 cm) thick, shim both sides equally to establish the cutout width.

9-1/2" MAX. RIGHT SIDE ONLY

CUTOUT DEPTH 23-1/2" MIN.

28" MIN. to

bottom of junction box

Junction box location (Junction box may be located in adjacent cabinet)

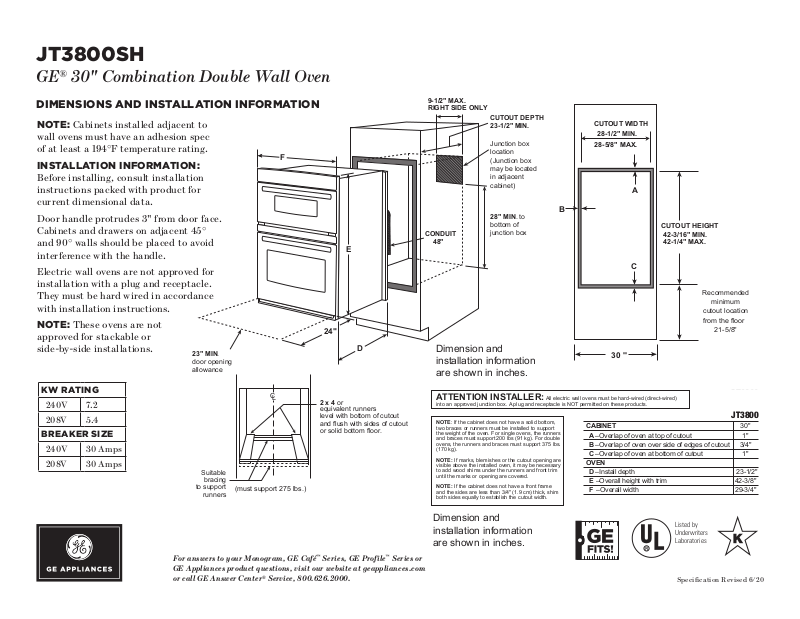

JT3800SH

GE® 30" Combination Double Wall Oven

DIMENSIONS AND INSTALLATION INFORMATION

NOTE: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.

INSTALLATION INFORMATION : Before installing, consult installation instructions packed with product for current dimensional data.

Door handle protrudes 3" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.

Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.

NOTE: These ovens are not approved for stackable or side-by-side installations.

KW RATI N G

240V 7.2

208V 5.4

BREAKER SIZE

240V 30 Amps

208V 30 Amps

Dimension and installation information are shown in inches.

JT3800

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

Dimension and installation information are shown in inches.

Listed by Underwriters Laboratories

Speci fication Revised 6/20

JT3800SH

GE® 30" Combination Double Wall Oven

FEATURES AND BENEFITS

High capacity microwave

Sensor cooking microwave (upper oven)

16" turntable (upper oven)

Self-clean with Steam Clean option (lower oven)

Never-scrub, heavy-duty oven racks (lower oven)

Glass touch controls

Halogen interior oven lighting (lower oven)

10-pass bake element (lower oven)

8-pass broil element (lower oven)

Fit Guarantee

Model JT3800SHSS – Stainless steel

GUARANTEED FIT

Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy

Visit geappliances.com for more info

Speci fication Revised 6/20
