JT3500DF
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the oor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
PT7550
JT5500
JT3500
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the oor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the oor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Cabinet 30"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 3/4"
C – Overlap of oven at bottom of cutout 1-1/4"
Oven
D – Install depth 23-1/2"
E – Overall height with trim 53"
F – Overall width 29-3/4"
PT7550
JT5500
JT3500
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
47" to
bottom of
junction box
D
F
E
Conduit
40"
Junction box
location
9-1/2" MAX.
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the oor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
22"

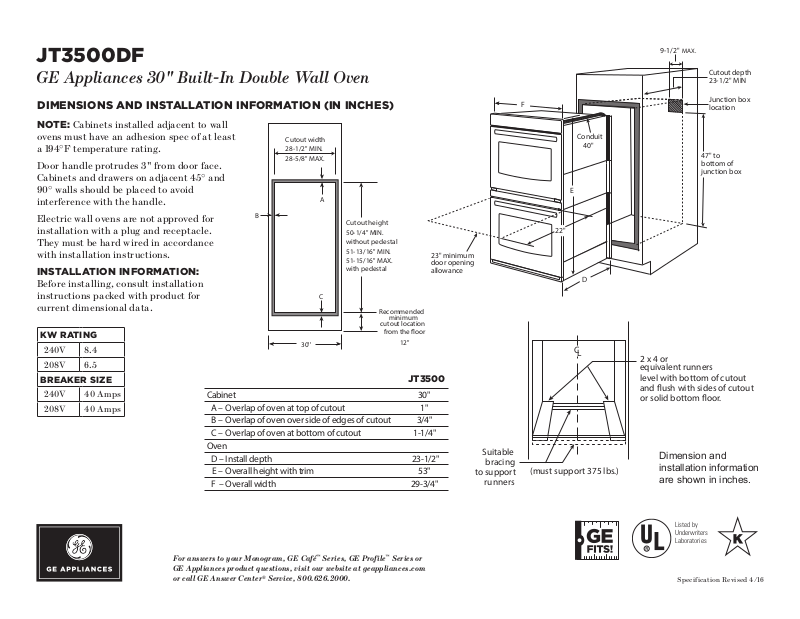

GE Appliances 30" Built-In Double Wall Oven
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Cabinets installed adjacent to wall
ovens must have an adhesion spec of at least
a 194°F temperature rating.
Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and
90° walls should be placed to avoid
interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle.
They must be hard wired in accordance
with installation instructions.
INSTALLATION I N FORMATI O N :
Before installing, consult installation
instructions packed with product for
current dimensional data.
23" minimum
door opening
allowance
9-1/2" MAX.
Cutout depth
23-1/2" MIN
F
Junction box
location
Conduit
40"
E
47" to
bottom of
junction box
22"
D
KW R ATI N G
240V 8.4
208V 6.5
BREAKER SIZE
240V 40 Amps
208V 40 Amps
Cabinet 30"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 3/4"
C – Overlap of oven at bottom of cutout 1-1/4"
Oven
D – Install depth 23-1/2"
E – Overall height with trim 53"
F – Overall width 29-3/4"
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
JT3500
Suitable
bracing
to support
runners
C
L
2 x 4 or
equivalent runners
level with bottom of cutout
and ush with sides of cutout
or solid bottom oor.
Dimension and
(must support 375 lbs.)
installation information
are shown in inches.
Listed by
Underwriters
Laboratories
Speci fication Revised 4/16
![](/html/6b/6be7/6be750f908d7fa90b4e8750f0db5381df07cb38893734d59ae8aa2a0c2543550/bg2.png)
JT3500DF
GE Appliances 30" Built-In Double Wall Oven
Features and Benefits
Self-clean with steam clean option (both ovens) – Clean your oven the way
you want
Self-clean heavy-duty oven racks – Conveniently clean your oven and
racks together
Ten-pass bake element – Even baking is assured with heat that covers more
surface area
Eight-pass broil element – Get full broil coverage and even browning from
edge to edge
Double oven 10.0 cu. ft. total oven capacity (5.0 cu. ft. both ovens) – Large
meals are easy with capacity that fits more at one time
Black gloss oven interior – Enjoy a clean and sleek appearance
Electronic touch controls – Confidently operate the oven with one easy touch
Hidden bake – Make cleanup easy by eliminating hard-to-reach areas
Audible preheat signal – Know when the oven is ready
Certified Sabbath mode – Prepare foods by kosher standards
Model JT3500DFBB – Black on black
Model JT3500DFWW – White on white
GUARANTEED FIT
Replacing a similar wall oven from GE or another brand? GE wall ovens are
guaranteed for an exact fit to make replacement easy
Visit geappliances.com for more info
Speci fication Revised 4/16
