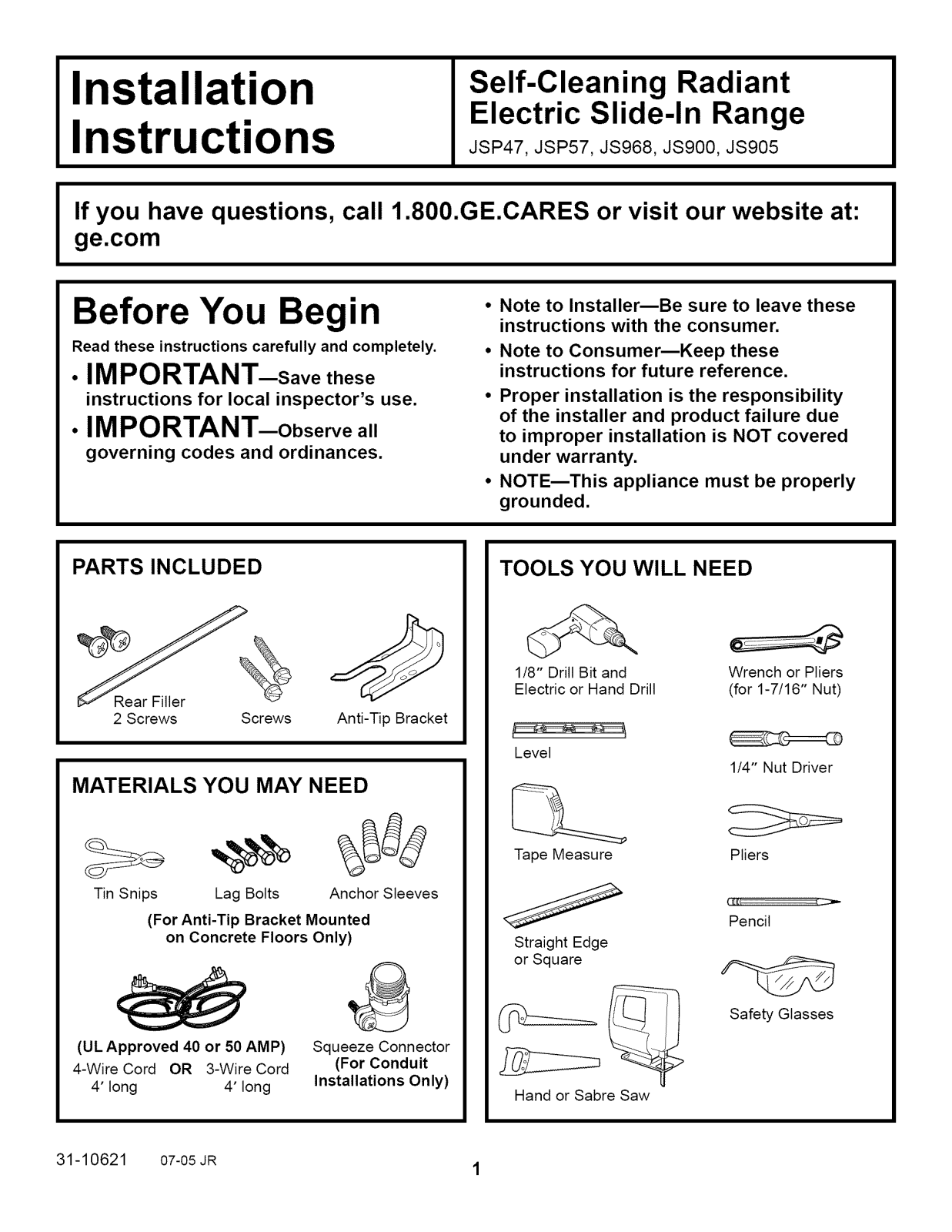

Installation
Self-Cleaning Radiant
Electric Slide-In Range
Instructions
If you have questions, call 1.800.GE.CARES or visit our website at:
ge.com
JSP47, JSP57, JS968, JS900, JS905
Before You Begin
Read these instructions carefully and completely.
• IMPORTANT-save these
instructions for local inspector's use.
• IMPORTANT-observe all
governing codes and ordinances.
PARTS INCLUDED
2 Screws Screws
MATERIALS YOU MAY NEED
Anti-Tip Bracket
• Note to Installer--Be sure to leave these
instructions with the consumer.
• Note to Consumer--Keep these
instructions for future reference.
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered
under warranty.
• NOTE--This appliance must be properly
grounded.
TOOLS YOU WILL NEED
1/8" Drill Bit and
Electric or Hand Drill
Level
Wrench or Pliers
(for 1-7/16" Nut)
1/4" Nut Driver
Tin Snips Lag Bolts Anchor Sleeves
(For Anti-Tip Bracket Mounted
on Concrete Floors Only)
(UL Approved 40 or 50 AMP)
4-Wire Cord OR 3-Wire Cord
4" long 4" long
31-10621 07-05 JR 1
Squeeze Connector
(For Conduit
Installations Only)
Tape Measure
Straight Edge
or Square
Hand or Sabre Saw
Pliers
Pencil
Safety Glasses
Installation Instructions

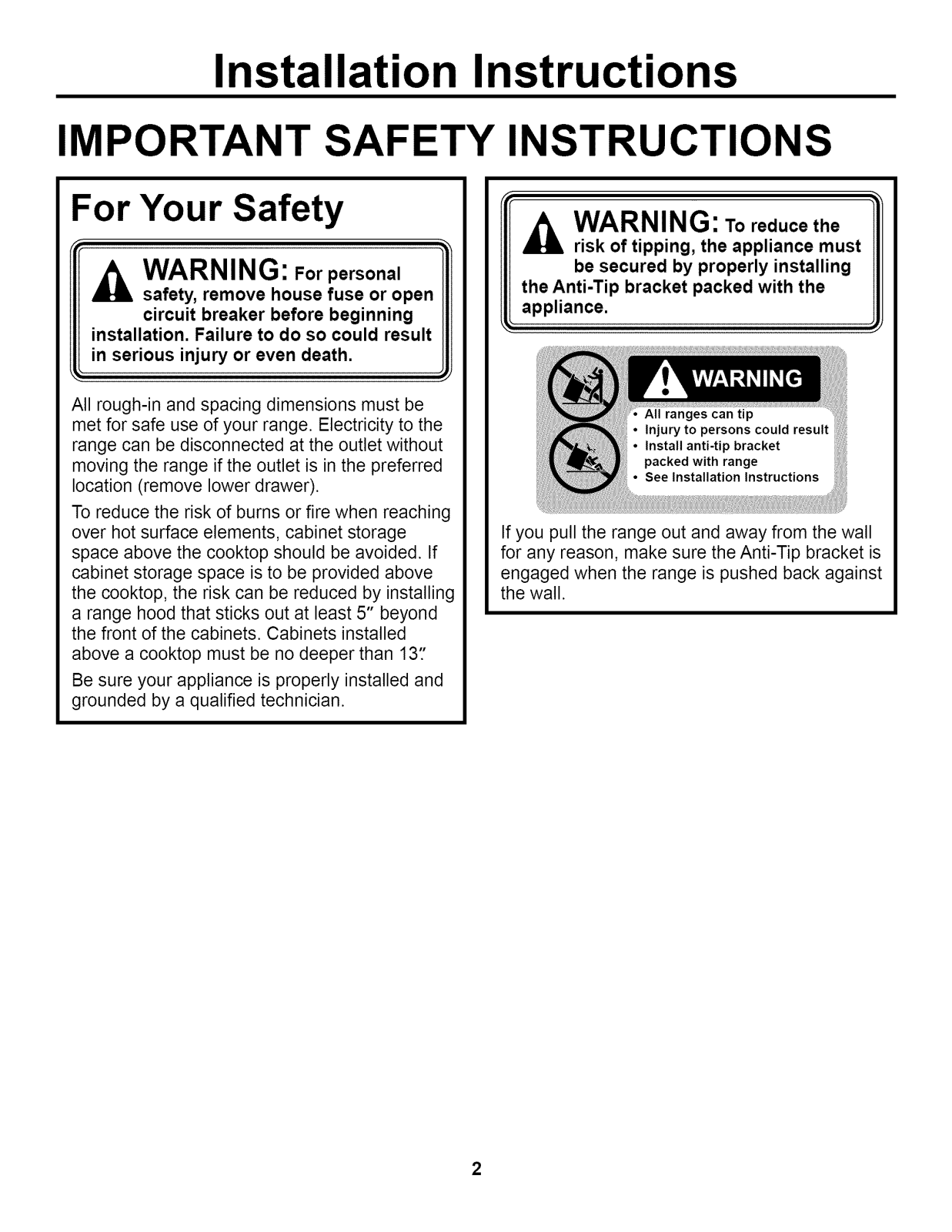

IMPORTANT SAFETY INSTRUCTIONS
For Your Safety
/l WARNING: Forpersonal
safety, remove house fuse or open
circuit breaker before beginning
installation. Failure to do so could result
in serious injury or even death.
All rough-in and spacing dimensions must be
met for safe use of your range. Electricity to the
range can be disconnected at the outlet without
moving the range if the outlet is in the preferred
location (remove lower drawer).
To reduce the risk of burns or fire when reaching
over hot surface elements, cabinet storage
space above the cooktop should be avoided. If
cabinet storage space is to be provided above
the cooktop, the risk can be reduced by installing
a range hood that sticks out at least 5" beyond
the front of the cabinets. Cabinets installed
above a cooktop must be no deeper than 13"
Be sure your appliance is properly installed and
grounded by a qualified technician.
WARNING:Toreducethe
risk of tipping, the appliance must
be secured by properly installing
the Anti-Tip bracket packed with the
appliance.
All ranges can tip
Injury to persons could result
Install anti-tip bracket
If you pull the range out and away from the wall
for any reason, make sure the Anti-Tip bracket is
engaged when the range is pushed back against
the wall.
2
Installation Instructions

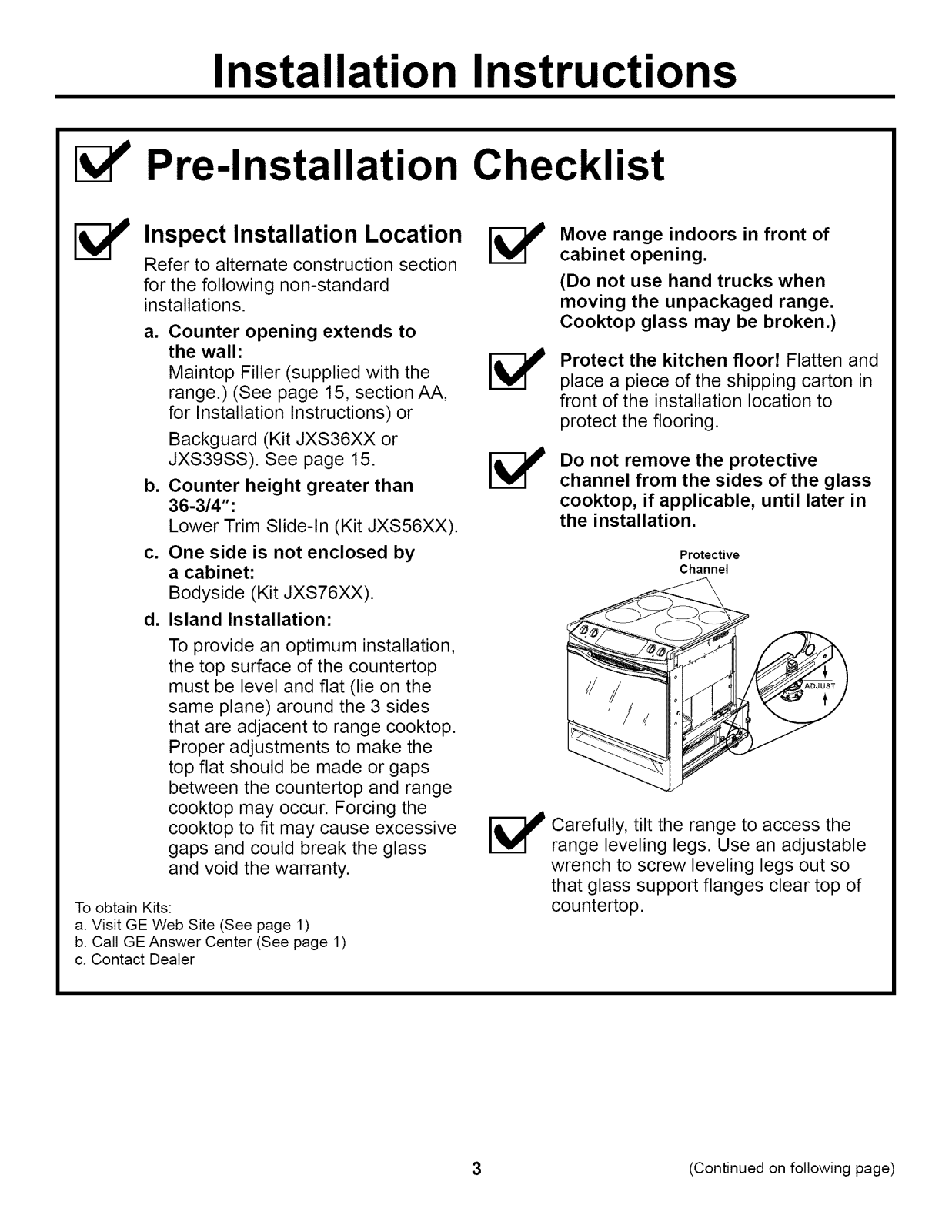

Pre-lnstallation Checklist
Inspect Installation Location
Refer to alternate construction section
for the following non-standard
installations.
a. Counter opening extends to
the wall:

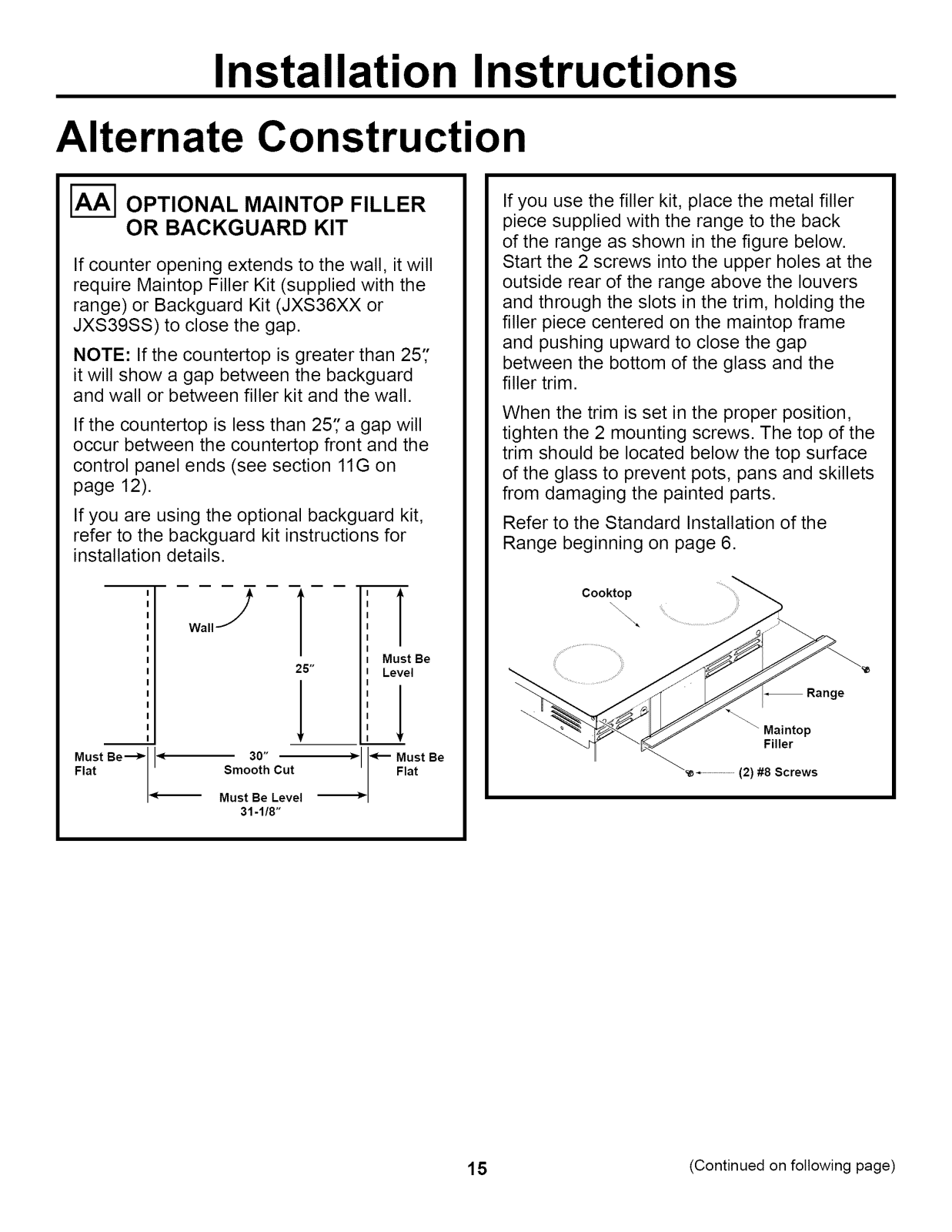

Maintop Filler (supplied with the
range.) (See page 15, section AA,
for Installation Instructions) or
Backguard (Kit JXS36XX or
JXS3988). See page 15.
b. Counter height greater than
36-3/4":
Lower Trim Slide-In (Kit JXS56XX).
c. One side is not enclosed by
a cabinet:
Bodyside (Kit JXS76XX).
d. Island Installation:
To provide an optimum installation,
the top surface of the countertop
must be level and flat (lie on the
same plane) around the 3 sides
that are adjacent to range cooktop.
Proper adjustments to make the
top flat should be made or gaps
between the countertop and range
cooktop may occur. Forcing the
cooktop to fit may cause excessive
gaps and could break the glass
and void the warranty.
To obtain Kits:
a. Visit GE Web Site (See page 1)
b. Call GE Answer Center (See page 1)
c. Contact Dealer
Move range indoors in front of
cabinet opening.
(Do not use hand trucks when
moving the unpackaged range.
Cooktop glass may be broken.)
Protect the kitchen floor! Flatten and
place a piece of the shipping carton in
front of the installation location to
protect the flooring.
Do not remove the protective
channel from the sides of the glass
cooktop, if applicable, until later in
the installation.
Protective
Channel
[_ Carefully, tilt the range to access the
range leveling legs. Use an adjustable
wrench to screw leveling legs out so
that glass support flanges clear top of
countertop.
3 (Continued on following page)
Installation Instructions

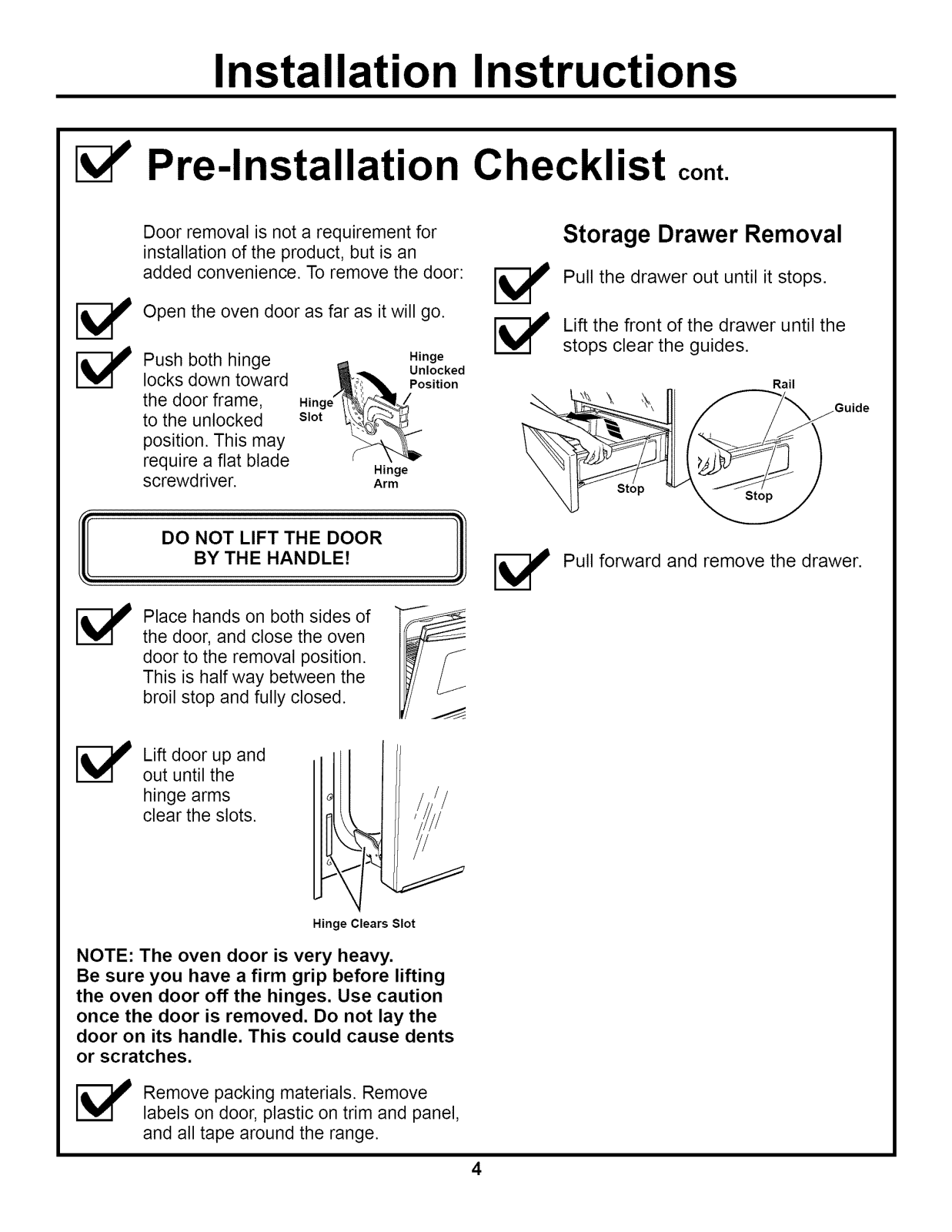

Pre-lnstallation Checklist cont.
Door removal is not a requirement for
installation of the product, but is an
added convenience. To remove the door:
Open the oven door as far as it will go.
Push both hinge Hinge
locks down toward /_!q _ Position
the door frame, sHiontge,'_
to the unlocked
position. This may
require a flat blade H_nge
screwdriver. Arm
DO NOT LIFT THE DOOR
BY THE HANDLE!
Place hands on both sides of
the door, and close the oven
door to the removal position.
This is half way between the
broil stop and fully closed.
_.._b,. Unlocked
Storage Drawer Removal
Pull the drawer out until it stops.
Lift the front of the drawer until the
stops clear the guides.
Rail
Pull forward and remove the drawer.
[_ ift door up and
NOTE: The oven door is very heavy.
Be sure you have a firm grip before lifting
the oven door off the hinges. Use caution
once the door is removed. Do not lay the
door on its handle. This could cause dents
or scratches.
[_ emove packing materials. Remove
out until the
hinge arms
clear the slots.
Hinge Clears Slot
labels on door, plastic on trim and panel,
and all tape around the range.
4
Installation Instructions

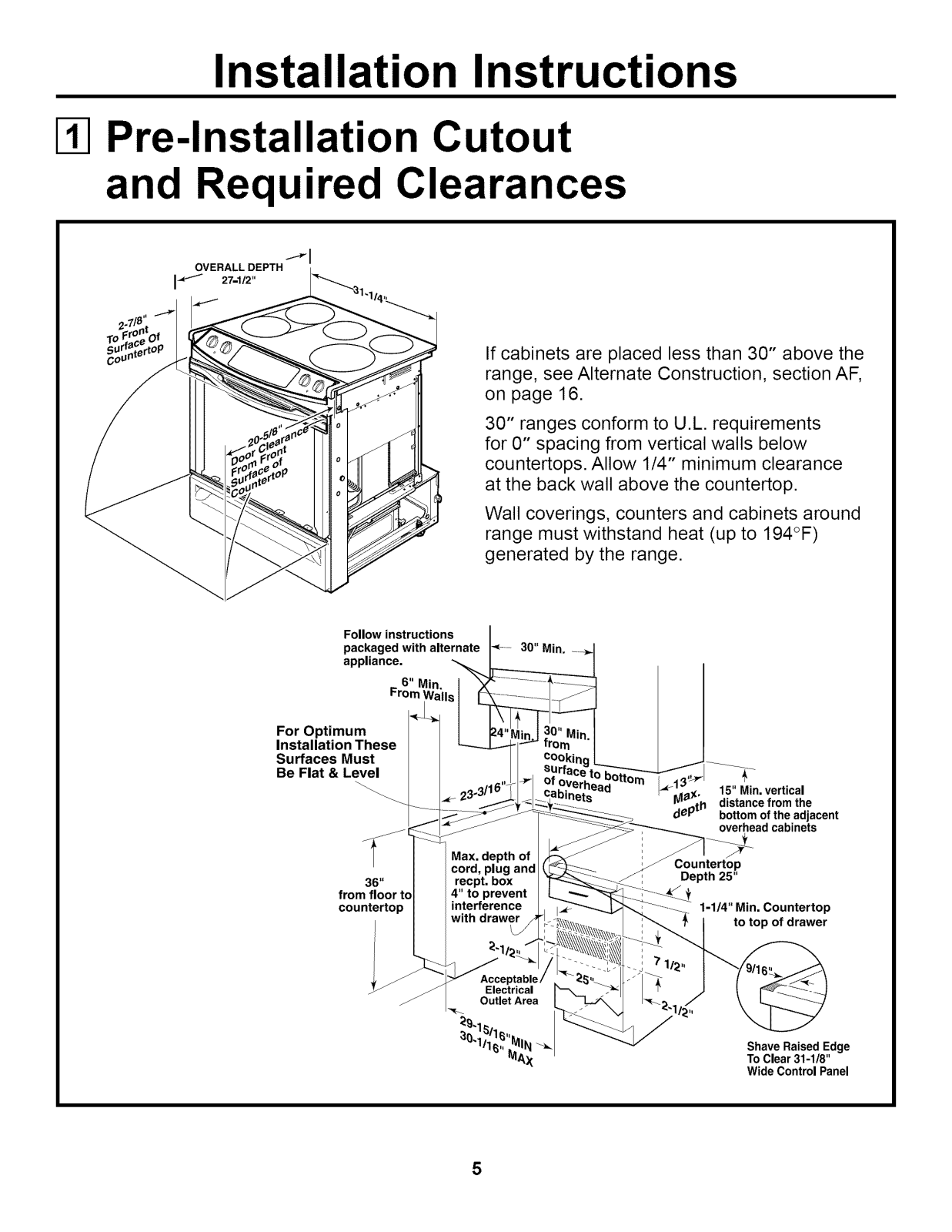

Ill Pre-lnstallation Cutout
and Required Clearances
OVERALL DEPTH
I_ 27-1/2"
If cabinets are placed less than 30" above the
range, see Alternate Construction, section AF,
on page 16.
30" ranges conform to U.L. requirements
for O" spacing from vertical walls below
countertops. Allow 114" minimum clearance
at the back wall above the countertop.
Wall coverings, counters and cabinets around
range must withstand heat (up to 194°F)
generated by the range.
Follow instructions
packaged with alternate
appliance.
For Optimum
Installation These
Surfaces Must
Be Flat & Level
36"
from floor to
countertop
F6" Min.
rom IIs
Electrical
Outlet Area
15" Min. vertical
distance from the
bottom of the adjacent
overhead cabinets
J Countertop
Depth 25"
1-114" Min. Countertop
to top of drawer
Shave Raised Edge
To Clear 31-1/8"
Wide Control Panel
5
Installation Instructions

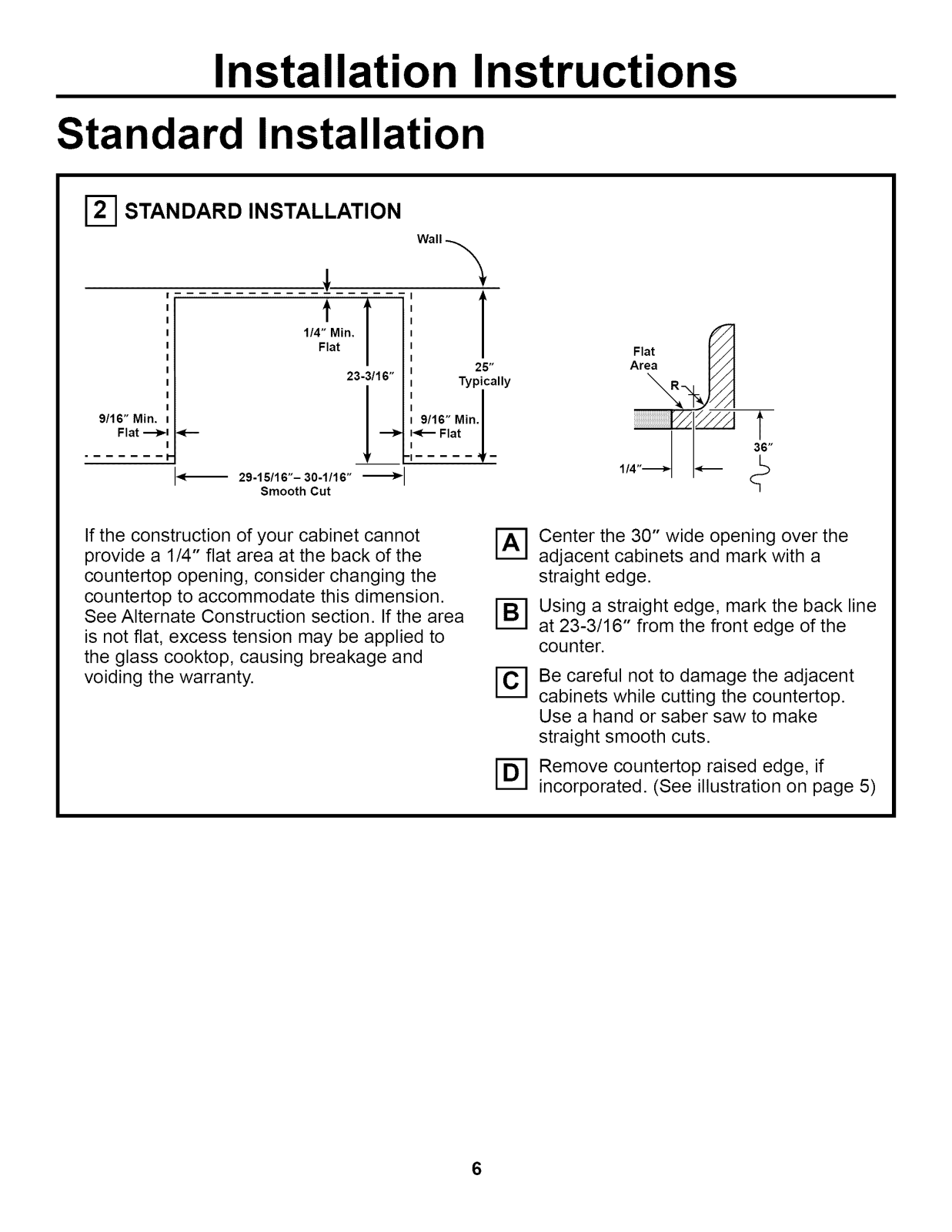

Standard Installation
r_ STANDARD INSTALLATION
t
1/4" Min,
Flat
Typically
T
25"
Flat
Area
9/16" Min.
Flat ._-t
I
....... i=
29-15/16"-30-1/16"
Smooth Cut
If the construction of your cabinet cannot
provide a 114" flat area at the back of the
countertop opening, consider changing the
countertop to accommodate this dimension.
See Alternate Construction section. If the area I1=il
is not flat, excess tension may be applied to
the glass cooktop, causing breakage and
voiding the warranty.
9/16" Min. I
LC_I
@
1/4"-_
Center the 30" wide opening over the
adjacent cabinets and mark with a
straight edge.
Using a straight edge, mark the back line
at 23-3/16" from the front edge of the
counter.
Be careful not to damage the adjacent
cabinets while cutting the countertop.
Use a hand or saber saw to make
straight smooth cuts.
Remove countertop raised edge, if
incorporated. (See illustration on page 5)
6
Installation Instructions

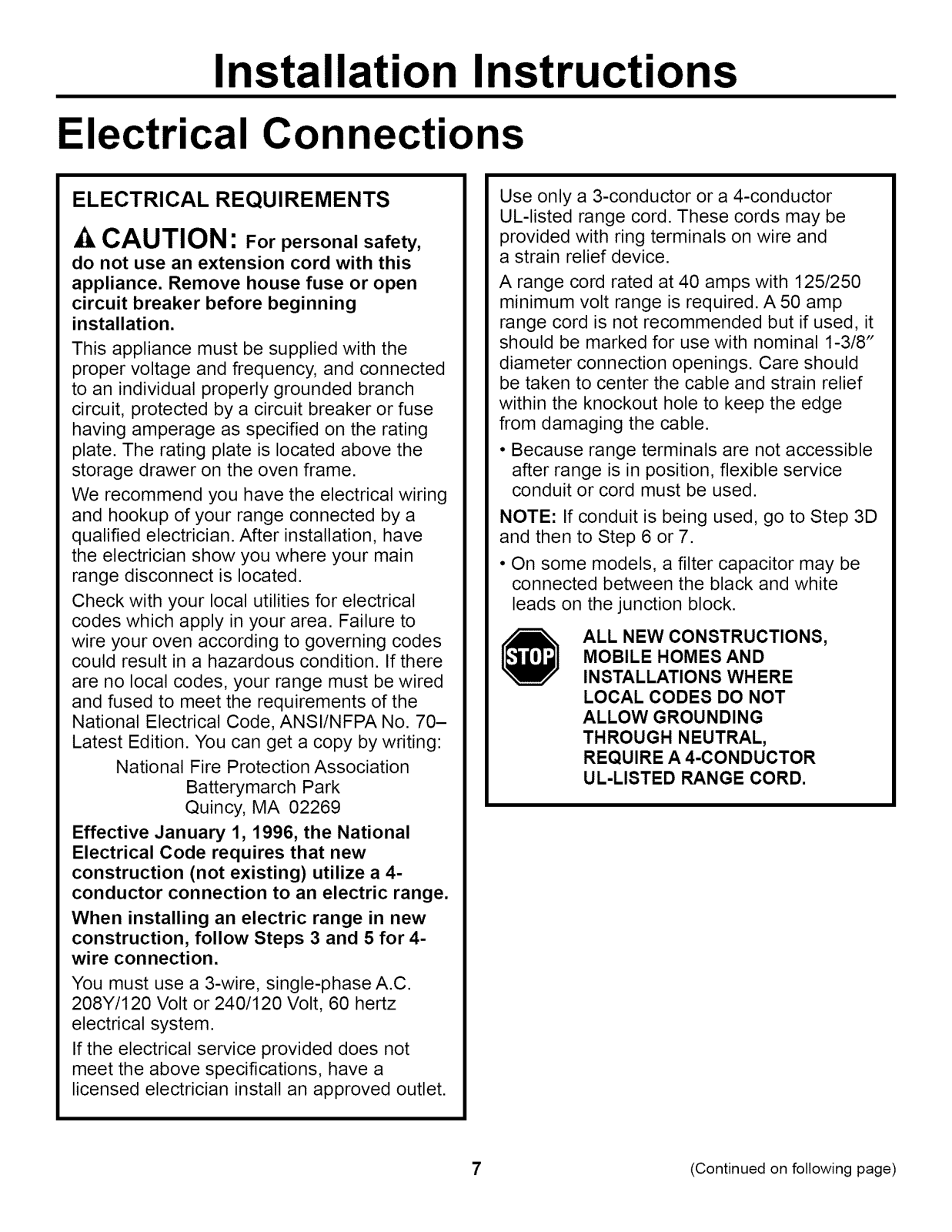

Electrical Connections
ELECTRICAL REQUIREMENTS
CAUTION: For personal safety,
do not use an extension cord with this
appliance. Remove house fuse or open
circuit breaker before beginning
installation.
This appliance must be supplied with the
proper voltage and frequency, and connected
to an individual properly grounded branch
circuit, protected by a circuit breaker or fuse
having amperage as specified on the rating
plate. The rating plate is located above the
storage drawer on the oven frame.
We recommend you have the electrical wiring
and hookup of your range connected by a
qualified electrician. After installation, have
the electrician show you where your main
range disconnect is located.
Check with your local utilities for electrical
codes which apply in your area. Failure to
wire your oven according to governing codes
could result in a hazardous condition. If there
are no local codes, your range must be wired
and fused to meet the requirements of the
National Electrical Code, ANSI/NFPA No. 70-
Latest Edition. You can get a copy by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
Effective January 1, 1996, the National
Electrical Code requires that new
construction (not existing) utilize a 4-
conductor connection to an electric range.
When installing an electric range in new

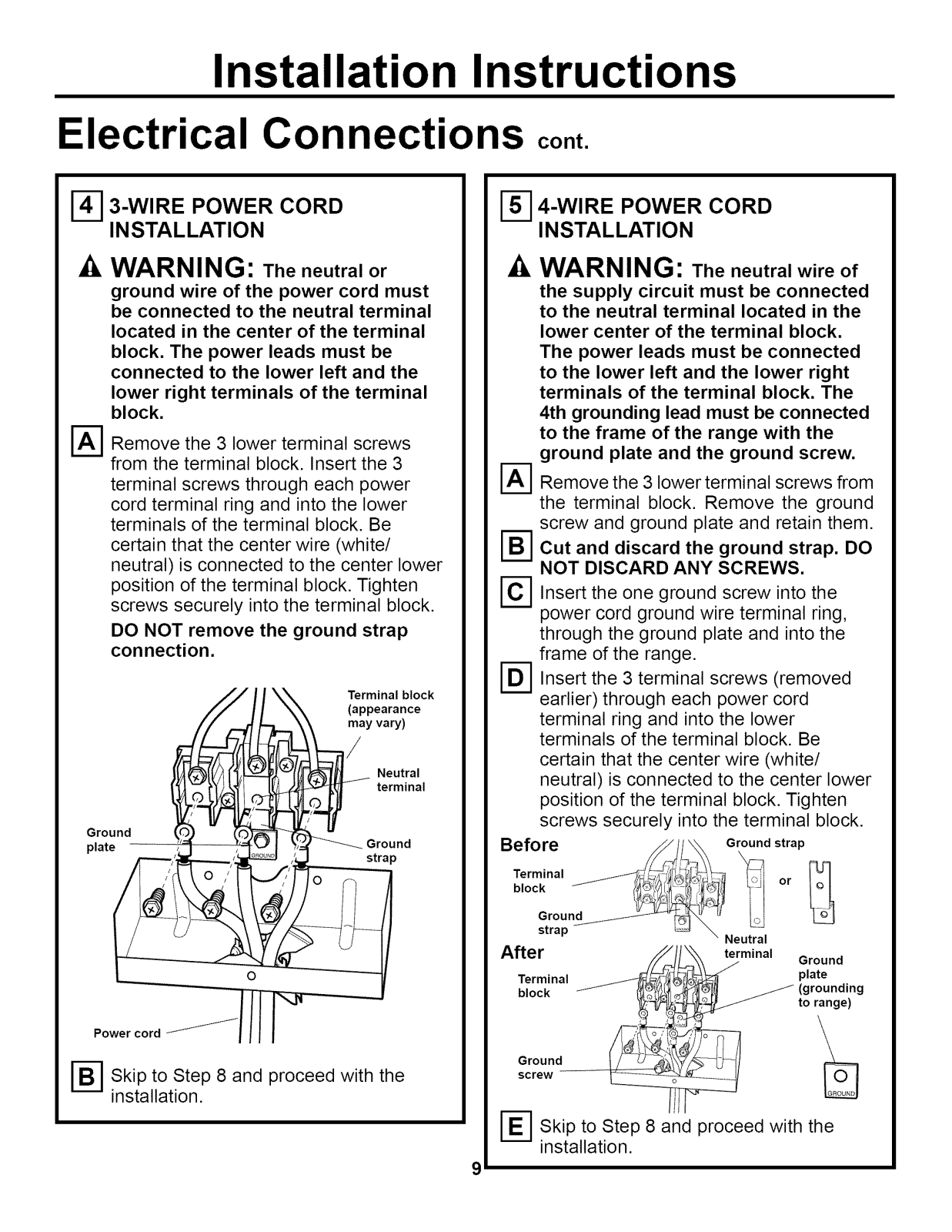

construction, follow Steps 3 and 5 for 4-
wire connection.
You must use a 3-wire, single-phase A.C.
208Y/120 Volt or 240/120 Volt, 60 hertz
electrical system.
If the electrical service provided does not
meet the above specifications, have a
licensed electrician install an approved outlet.
Use only a 3-conductor or a 4-conductor
UL-listed range cord. These cords may be
provided with ring terminals on wire and
a strain relief device.
A range cord rated at 40 amps with 125/250
minimum volt range is required. A 50 amp
range cord is not recommended but if used, it
should be marked for use with nominal 1-3/8"
diameter connection openings. Care should
be taken to center the cable and strain relief
within the knockout hole to keep the edge
from damaging the cable.
• Because range terminals are not accessible
after range is in position, flexible service
conduit or cord must be used.
NOTE: If conduit is being used, go to Step 3D
and then to Step 6 or 7.
• On some models, a filter capacitor may be
connected between the black and white
leads on the junction block.
ALL NEW CONSTRUCTIONS,
MOBILE HOMES AND
INSTALLATIONS WHERE
LOCAL CODES DO NOT
ALLOW GROUNDING
THROUGH NEUTRAL,
REQUIRE A 4-CONDUCTOR
UL-LISTED RANGE CORD.
7 (Continued on following page)
Installation Instructions
Electrical Connections cont.

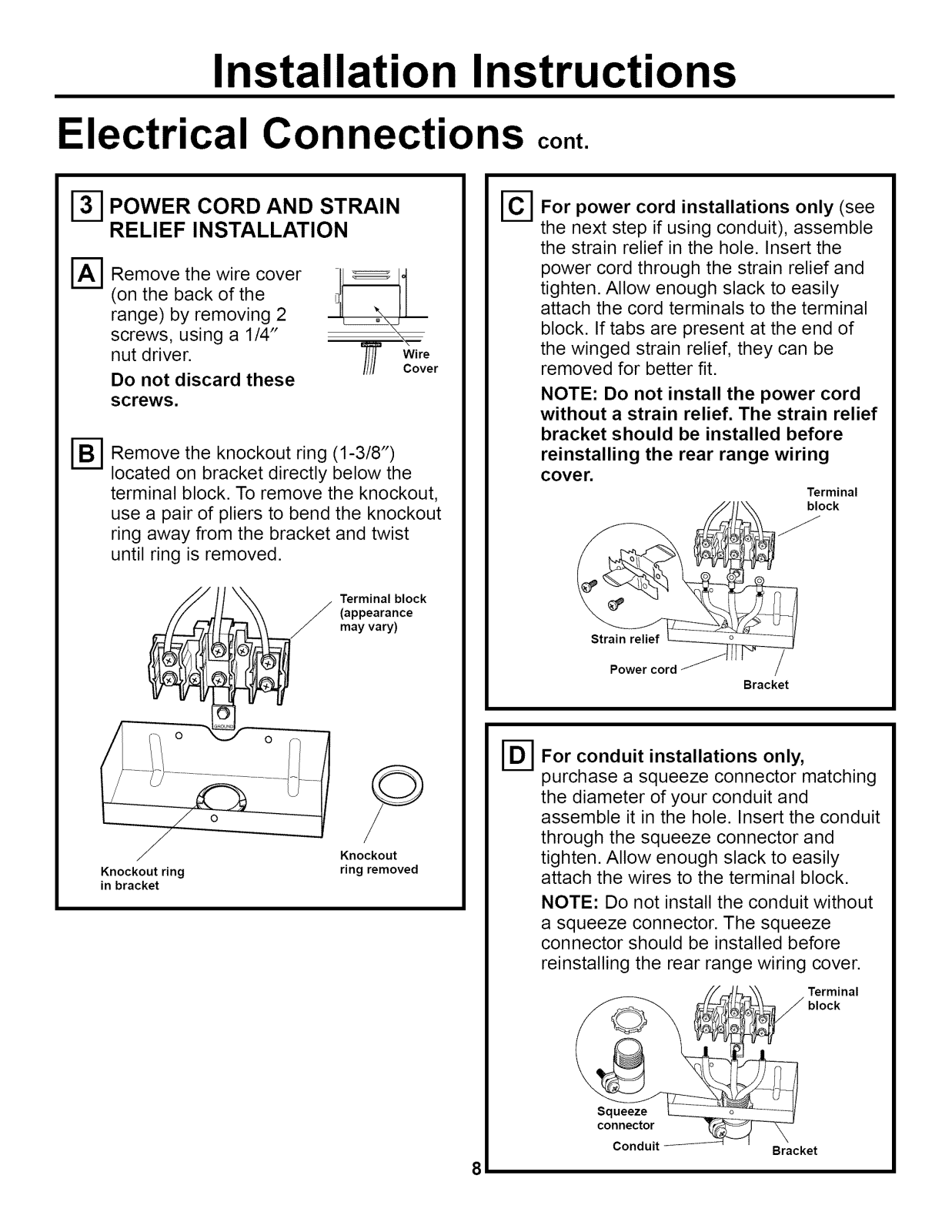

POWER CORD AND STRAIN
RELIEF INSTALLATION
Remove the wire cover
(on the back of the
range) by removing 2
screws, using a 114"
nut driver.
Do not discard these
screws.
Remove the knockout ring (1-3/8")
located on bracket directly below the
terminal block. To remove the knockout,
use a pair of pliers to bend the knockout
ring away from the bracket and twist
until ring is removed.
Terminal block
(appearance
may vary)
For power cord installations only (see
@
the next step if using conduit), assemble
the strain relief in the hole. Insert the
power cord through the strain relief and
tighten. Allow enough slack to easily
attach the cord terminals to the terminal
block. If tabs are present at the end of
the winged strain relief, they can be
removed for better fit.
NOTE: Do not install the power cord
without a strain relief. The strain relief
bracket should be installed before
reinstalling the rear range wiring
cover,
Terminal
block
/
Knockout ring
in bracket
Strap:r:l;e_ord _1 ,, , /
Bracket
For conduit installations only,
@
purchase a squeeze connector matching
the diameter of your conduit and
o
Knockout
ring removed
assemble it in the hole. Insert the conduit
through the squeeze connector and
tighten. Allow enough slack to easily
attach the wires to the terminal block.
NOTE: Do not install the conduit without
a squeeze connector. The squeeze
connector should be installed before
reinstalling the rear range wiring cover.
_ _rml_na'
et
Installation Instructions
Electrical Connections cont.
[_ 3-WIRE POWER CORD
INSTALLATION
WARNING: The neutral or
ground wire of the power cord must
be connected to the neutral terminal
located in the center of the terminal
block. The power leads must be
connected to the lower left and the
lower right terminals of the terminal
block.
Remove the 3 lower terminal screws
from the terminal block. Insert the 3
terminal screws through each power
cord terminal ring and into the lower
terminals of the terminal block. Be
certain that the center wire (white/
neutral) is connected to the center lower
position of the terminal block. Tighten
screws securely into the terminal block.
DO NOT remove the ground strap
connection.
Ground
plate
Terminal block
(appearance
mayvary)
Neutral
terminal
Ground
strap
_-_ 4-WIRE POWER CORD
INSTALLATION
-& WARNING: The neutral wire of
the supply circuit must be connected
to the neutral terminal located in the
lower center of the terminal block.
The power leads must be connected
to the lower left and the lower right
terminals of the terminal block. The
4th grounding lead must be connected
to the frame of the range with the
ground plate and the ground screw.
I-_ Remove the 3 lower terminal screws from
the terminal block. Remove the ground
screw and ground plate and retain them.
[_Cut and discard the ground strap. DO
NOT DISCARD ANY SCREWS.
IC-I Insert the one ground screw into the
power cord ground wire terminal ring,
through the ground plate and into the
frame of the range.
Insert the 3 terminal screws (removed
@
earlier) through each power cord
terminal ring and into the lower
terminals of the terminal block. Be
certain that the center wire (white/
neutral) is connected to the center lower
position of the terminal block. Tighten
screws securely into the terminal block.
Before _//_\ Ground strap
block __ _l or
Power cord
I-B-I Skip to Step 8 and proceed with the
installation.
orou 12
strap _ Neutral
After _/...._,_JL__[minal Ground
Terminal _ /__J _ (grounding
block to
screw
Ground
I-E-1 Skip to 8 and with the
installation.
9
__ plate
Step proceed

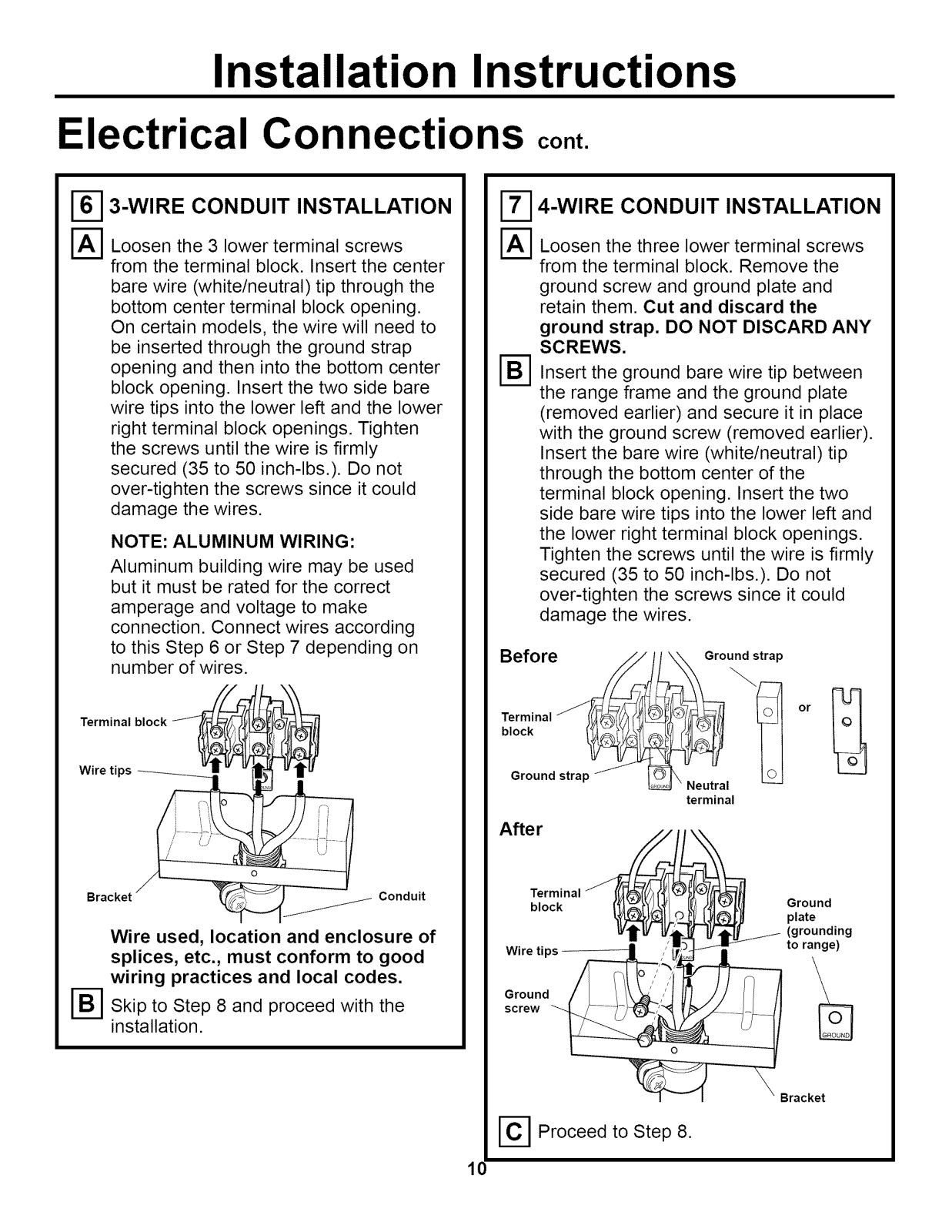

Installation Instructions
Electrical Connections cont.
3-WIRE CONDUIT INSTALLATION
Loosen the 3 lower terminal screws
from the terminal block. Insert the center
bare wire (white/neutral) tip through the
bottom center terminal block opening.
On certain models, the wire will need to
be inserted through the ground strap
opening and then into the bottom center
block opening. Insert the two side bare
wire tips into the lower left and the lower
right terminal block openings. Tighten
the screws until the wire is firmly
secured (35 to 50 inch-lbs.). Do not
over-tighten the screws since it could
damage the wires.
NOTE: ALUMINUM WIRING:
Aluminum building wire may be used
but it must be rated for the correct
amperage and voltage to make
connection. Connect wires according
to this Step 6 or Step 7 depending on
number of wires.
4-WIRE CONDUIT INSTALLATION
Loosen the three lower terminal screws
from the terminal block. Remove the
ground screw and ground plate and
retain them. Cut and discard the
ground strap. DO NOT DISCARD ANY
SCREWS.
Insert the ground bare wire tip between
the range frame and the ground plate
(removed earlier) and secure it in place
with the ground screw (removed earlier).
Insert the bare wire (white/neutral) tip
through the bottom center of the
terminal block opening. Insert the two
side bare wire tips into the lower left and
the lower right terminal block openings.
Tighten the screws until the wire is firmly
secured (35 to 50 inch-lbs.). Do not
over-tighten the screws since it could
damage the wires.
Ground strap
Terminal block
Wire tips
Conduit
Wire used, location and enclosure of
splices, etc., must conform to good
wiring practices and local codes.
I-B-I Skip to Step 8 and proceed with the
installation.
block
Ground strap f
After
Terminal
block
Wire tips
Ground
screw "_-
IC-I Proceed to Step 8.
10
___ or _
\ Neutral
terminal
Ground
plate
(grounding
to range)
Bracket

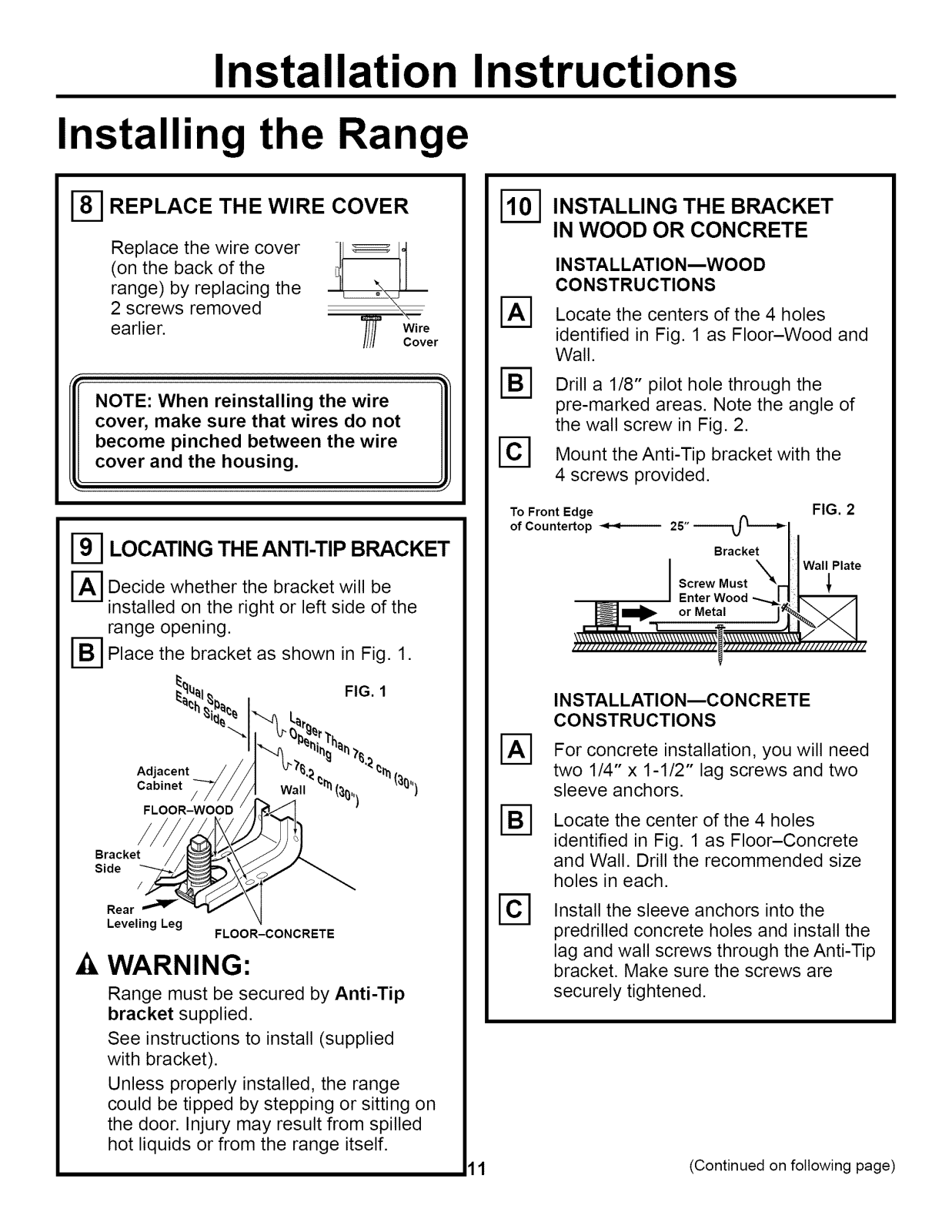

Installation Instructions
Installing the Range
r_ REPLACE THE WIRE COVER
Replace the wire cover
(on the back of the
range) by replacing the
2 screws removed
earlier.
NOTE: When reinstalling the wire
cover, make sure that wires do not
become pinched between the wire
cover and the housing.
i i
r_ LOCATING THE ANTI-TIP BRACKET
_] Decide whether the bracket will be
installed on the right or left side of the
range opening.
[_ Place the bracket as shown in Fig. 1.
[-_ INSTALLING THE BRACKET
IN WOOD OR CONCRETE
INSTALLATIONmWOOD
CONSTRUCTIONS
Locate the centers of the 4 holes
r
_'] Drill a 1/8" pilot hole through the
[_ Mount theAnti-Tip bracket with the
identified in Fig. 1 as Floor-Wood and
Wall.
pre-marked areas. Note the angle of
the wall screw in Fig. 2.
4 screws provided.
To Front Edge
of Countertop _ 25"----_ L---._
Bracket
Screw Must X
Enter Wood
or Metal
FIG. 2
Wall Plate
_%_1 FIG. 1
Ad'acent _//_ "__ }_ _'_ _
CaJbinet /_-'_//J Wall4_ %1(_Q,,) q_{_}")
FLOOR-WOOD
Bracket
Bide
/
Rear
Leveling Leg
FLOOR-CONCRETE
WARNING:
Range must be secured by Anti-Tip
bracket supplied.
See instructions to install (supplied
with bracket).
Unless properly installed, the range
could be tipped by stepping or sitting on
the door. Injury may result from spilled
hot liquids or from the range itself.
11
N
N
@
INSTALLATION_CONCRETE
CONSTRUCTIONS
For concrete installation, you will need
two 1/4" x 1-1/2" lag screws and two
sleeve anchors.
Locate the center of the 4 holes
identified in Fig. 1 as Floor-Concrete
and Wall. Drill the recommended size
holes in each.
Install the sleeve anchors into the
predrilled concrete holes and install the
lag and wall screws through the Anti-Tip
bracket. Make sure the screws are
securely tightened.
(Continued on following page)

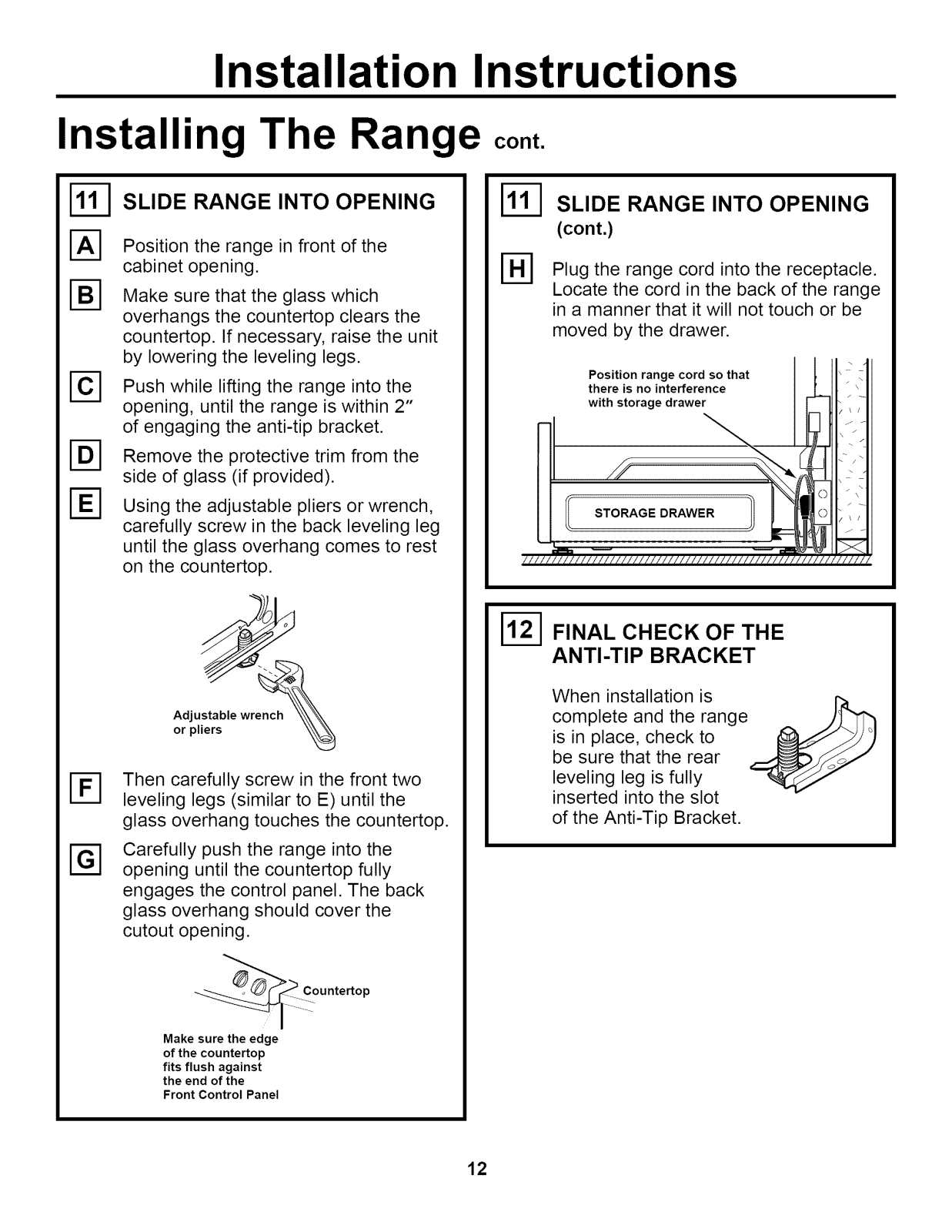

Installation Instructions
Installing The Range cont.
@
@
%
SLIDE RANGE INTO OPENING
Position the range in front of the
cabinet opening.
Make sure that the glass which
overhangs the countertop clears the
countertop. If necessary, raise the unit
by lowering the leveling legs.
Push while lifting the range into the
opening, until the range is within 2"
of engaging the anti-tip bracket.
Remove the protective trim from the
side of glass (if provided).
Using the adjustable pliers or wrench,
carefully screw in the back leveling leg
until the glass overhang comes to rest
on the countertop.
®
SLIDE RANGE INTO OPENING
(cont.)
Plug the range cord into the receptacle.
Locate the cord in the back of the range
in a manner that it will not touch or be
moved by the drawer.
.X
I////
\
i /
/\
\
i /
Position range cord so that
there is no interference
with storage drawer
I STORAGE DRAWER
FINAL CHECK OF THE
ANTI-TIP BRACKET
@
Adjustable wrench
or pliers
Then carefully screw in the front two
leveling legs (similar to E) until the
glass overhang touches the countertop.
Carefully push the range into the
opening until the countertop fully
engages the control panel. The back
glass overhang should cover the
cutout opening.
i°unte °P
MaRe sure the edge
of the countertop
fits flush against
the end of the
Front Control Panel
When installation is
complete and the range
is in place, check to
be sure that the rear
leveling leg is fully
inserted into the slot
of the Anti-Tip Bracket.
12

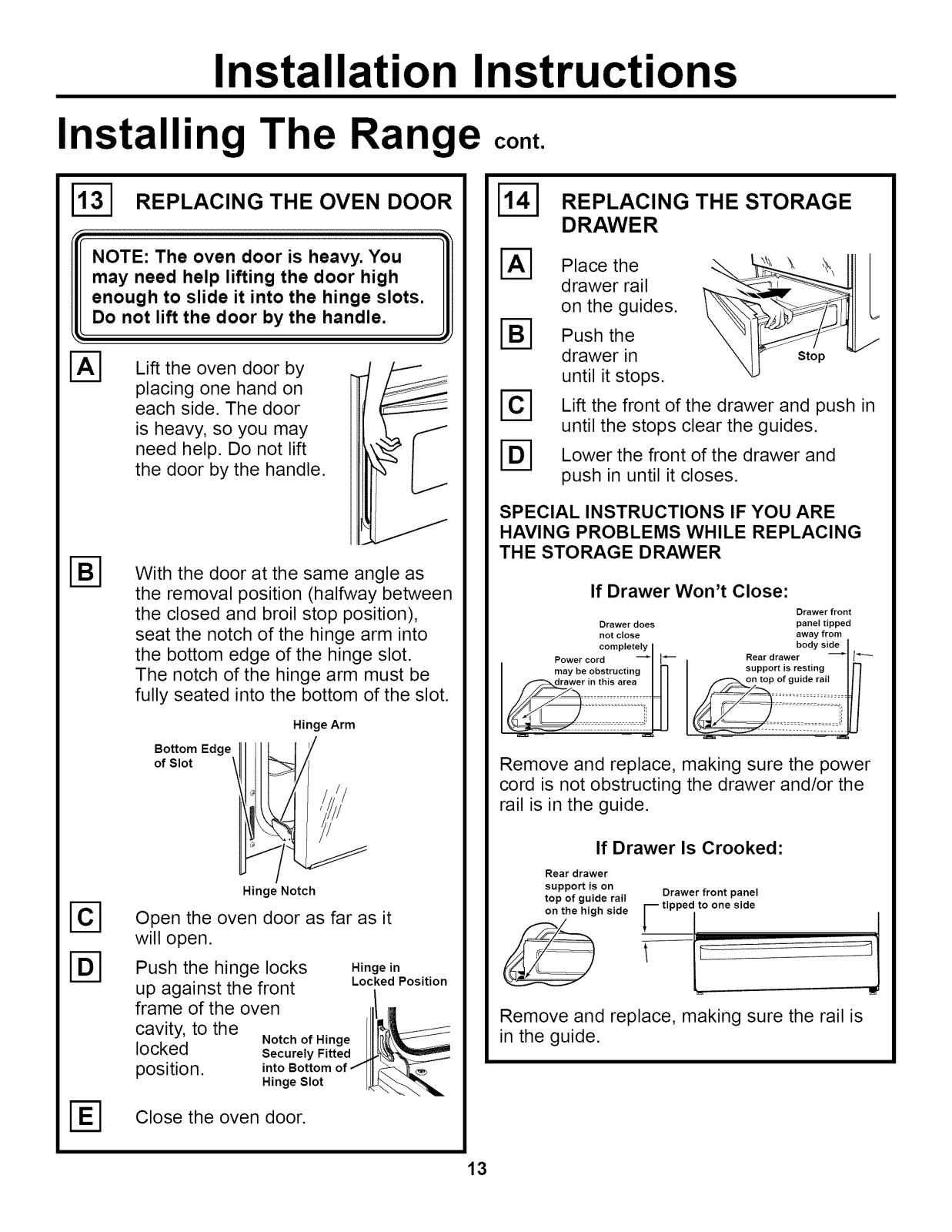

Installation Instructions
Installing The Range
I-_ REPLACING THE OVEN DOOR
NOTE: The oven door is heavy. You
may need help lifting the door high
enough to slide it into the hinge slots.
Do not lift the door by the handle.
i
Lift the oven door by
placing one hand on
each side. The door
is heavy, so you may
need help. Do not lift
the door by the handle.
With the door at the same angle as
the removal position (halfway between
the closed and broil stop position),
seat the notch of the hinge arm into
the bottom edge of the hinge slot.
The notch of the hinge arm must be
fully seated into the bottom of the slot.
Hinge Arm
cont.
REPLACING THE STORAGE
DRAWER
Place the
drawer rail
on the guides.
Push the
drawer in
until it stops.
@
@
SPECIAL INSTRUCTIONS IF YOU ARE
HAVING PROBLEMS WHILE REPLACING
THE STORAGE DRAWER
Lift the front of the drawer and push in
until the stops clear the guides.
Lower the front of the drawer and
push in until it closes.
If Drawer Won't Close:
Drawer does panel tipped
not close away from
completely I body side_l
Power cord _l I_ Rear drawer i I_
may be obstructing support is resting
drawer in this area "i"_ on top of guide rail i_
Stop
Drawer front
@
@
%
of Slot
Bottom Edge t
Hinge Notch
Open the oven door as far as it
will open.
Push the hinge locks Hinge in
up against the front | "
frame of the oven I I_
cavity, to the IIIl_l__-f_
...... Notch of Hinge III[[_I\_[_C___
,UUKrdU Securely Fitted ..__
position, into Bottom of / I_
- Hinge Slot _._'_
Close the oven door.
Locked Position
Remove and replace, making sure the power
cord is not obstructing the drawer and/or the
rail is in the guide.
If Drawer Is Crooked:
Rear drawer
support is on
top of guide rail Drawer front panel
on the high side [_ tippedlto one side
Remove and replace, making sure the rail is
in the guide.
13

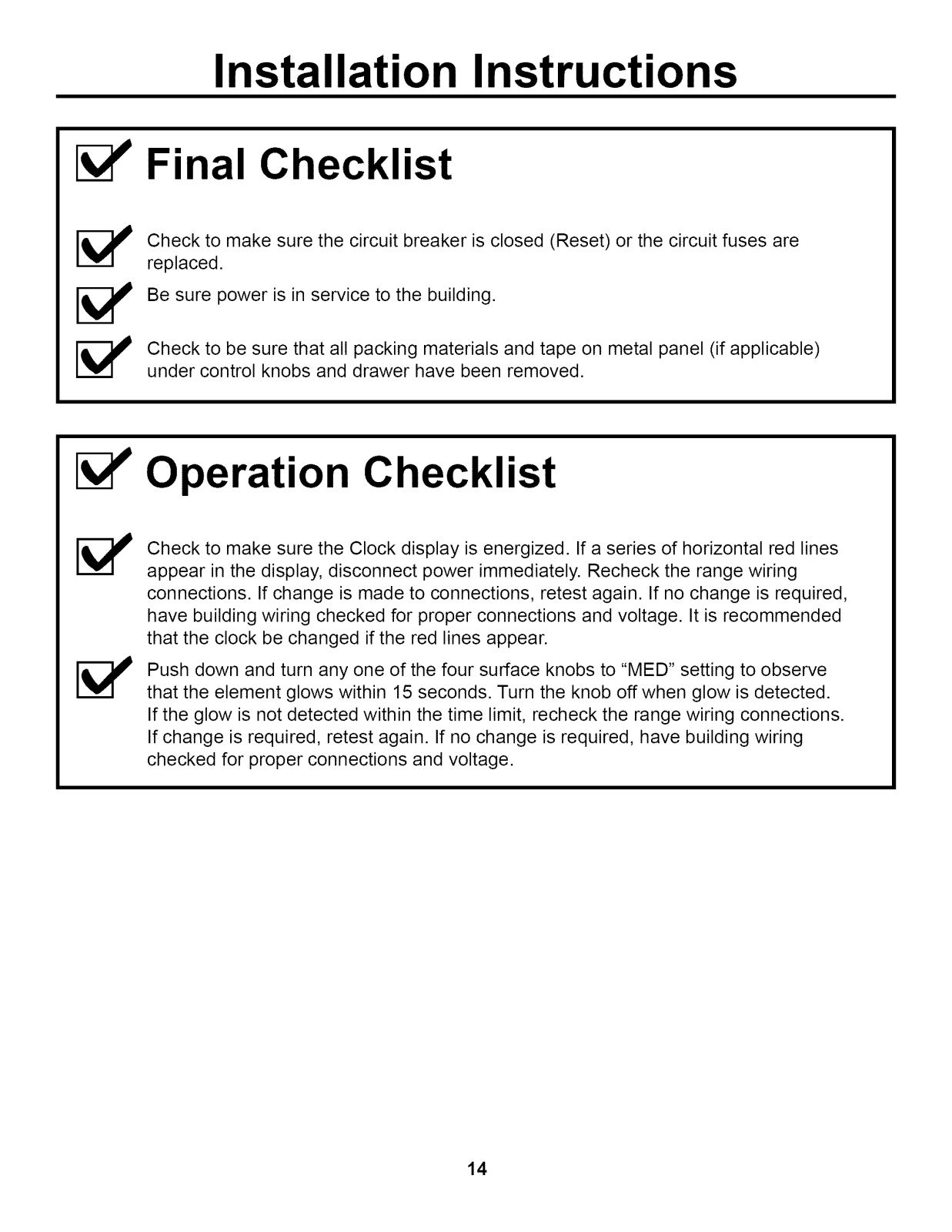

Installation Instructions
Final Checklist
Check to make sure the circuit breaker is closed (Reset) or the circuit fuses are
replaced.
Be sure power is in service to the building.
Check to be sure that all packing materials and tape on metal panel (if applicable)
under control knobs and drawer have been removed.
Operation Checklist
Check to make sure the Clock display is energized. If a series of horizontal red lines
appear in the display, disconnect power immediately. Recheck the range wiring
connections. If change is made to connections, retest again. If no change is required,
have building wiring checked for proper connections and voltage. It is recommended
that the clock be changed if the red lines appear.
Push down and turn any one of the four surface knobs to "MED" setting to observe
that the element glows within 15 seconds. Turn the knob off when glow is detected.
If the glow is not detected within the time limit, recheck the range wiring connections.
If change is required, retest again. If no change is required, have building wiring
checked for proper connections and voltage.
14
Installation Instructions
Alternate Construction
[_-----] OPTIONAL MAINTOP FILLER
OR BACKGUARD KIT
If counter opening extends to the wall, it will
require Maintop Filler Kit (supplied with the
range) or Backguard Kit (JXS36XX or
JXS39SS) to close the gap.
NOTE: If the countertop is greater than 25"
it will show a gap between the backguard
and wall or between filler kit and the wall.
If the countertop is less than 25" a gap will
occur between the countertop front and the
control panel ends (see section 11G on
page 12).
If you are using the optional backguard kit,
refer to the backguard kit instructions for
installation details.
1
25"
T
Must Be
Level
If you use the filler kit, place the metal filler
piece supplied with the range to the back
of the range as shown in the figure below,
Start the 2 screws into the upper holes at the
outside rear of the range above the louvers
and through the slots in the trim, holding the
filler piece centered on the maintop frame
and pushing upward to close the gap
between the bottom of the glass and the
filler trim,
When the trim is set in the proper position,
tighten the 2 mounting screws. The top of the
trim should be located below the top surface
of the glass to prevent pots, pans and skillets
from damaging the painted parts.
Refer to the Standard Installation of the
Range beginning on page 6.
Cooktop
"\\\\\
Flat
Must Be---_ L
J
30" >
Smooth Cut
Must Be Level "_
31-1/8"
_'-- Must Be
Flat
\ Maintop
Filler
(2) #8 Screws
15 (Continued on following page)
Installation Instructions
Alternate Construction cont.
[A-'-_ COUNTERTOPS HIGHER
THAN 36-1/2"
If countertop height is between 36-1/2"
and 38" a lower trim kit (JXS56XX) is
recommended. Refer to the kit instructions
for installation details.
Flat & Level
With Back&
pposite Side
_,_I'
[_--] FOR NON-BUILT-IN
INSTALLATION (END OF
CABINET LOCATION)
[_'] ISLAND INSTALLATION
Attach the Anti-Tip bracket per instructions
in section D, making sure that the rear of
the bracket is 25" from the front of the
countertop.
Be aware that the screws provided are long
and may penetrate through the back of the
island cabinets. In this event, use shorter
screws (not provided) or the screws provided
should be used in the floor (see Section D
for Wood/Concrete Floor Installation).
Do not use Backguard Kit JXS36XX or
JXS39SS.
[A-_ FOR CABINET OPENINGS
APPROXIMATELY 30-3/8"
If range is installed in cabinet opening
approximately 30-3/8" the Vertical Side Trim
Kit (JXS86XX) should be used to cover gaps
between range sides and cabinet. Refer to
the kit instructions for installation details.
When installing the range at the end of
a cabinet section which will expose the
unfinished side of the range, use Body Side
Kit (JXS76XX). Refer to the kit instructions
for installation details.
[A-_ CABINETS OVER THE RANGE
LESS THAN 30"
If a 30" clearance between cooking surface
and overhead combustible material or metal
cabinets cannot be maintained, protect the
underside of the cabinets above the cooktop
with not less than 1/4" insulating millboard
covered with sheet metal not less than
0.0122" thick.
16
NOTES
17

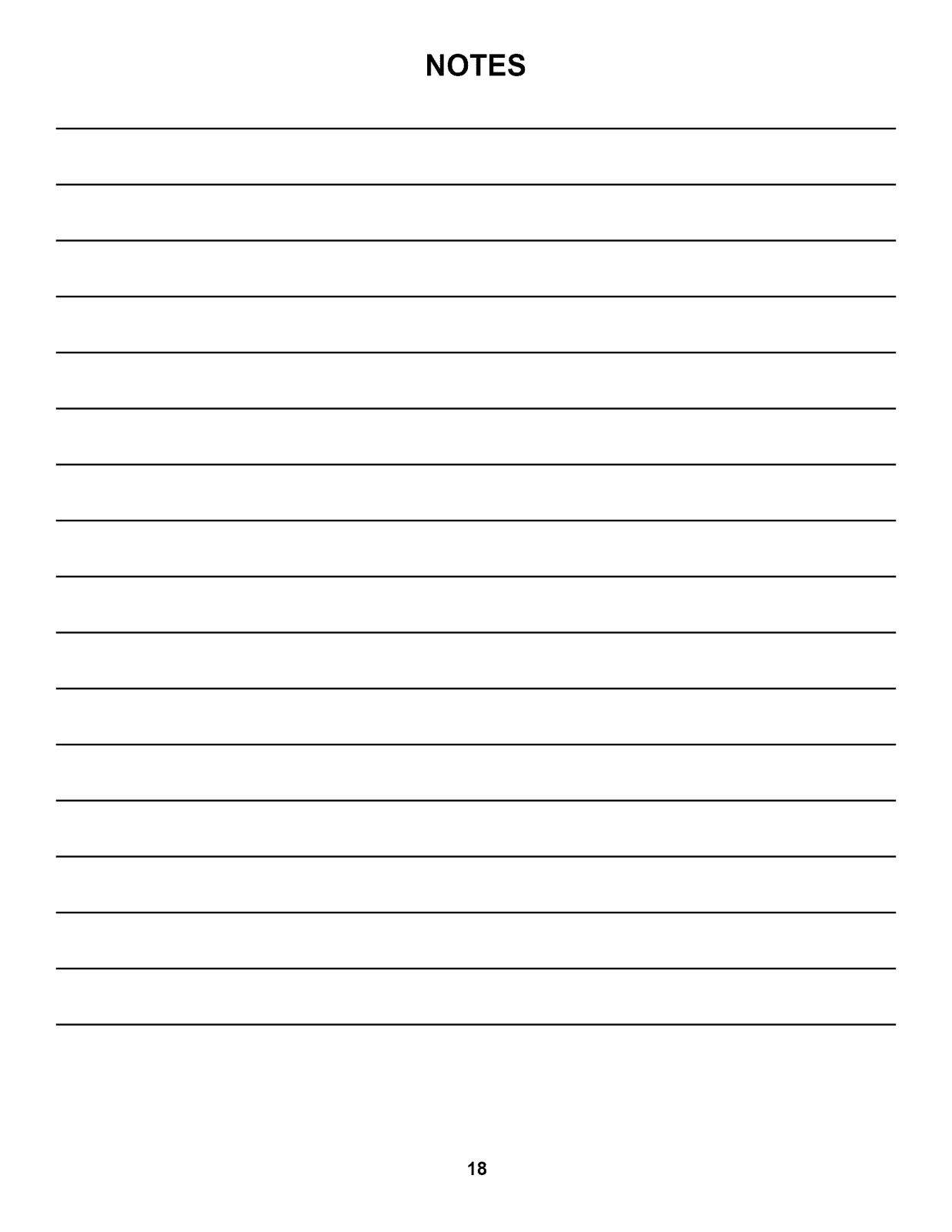

NOTES
18
NOTES
19

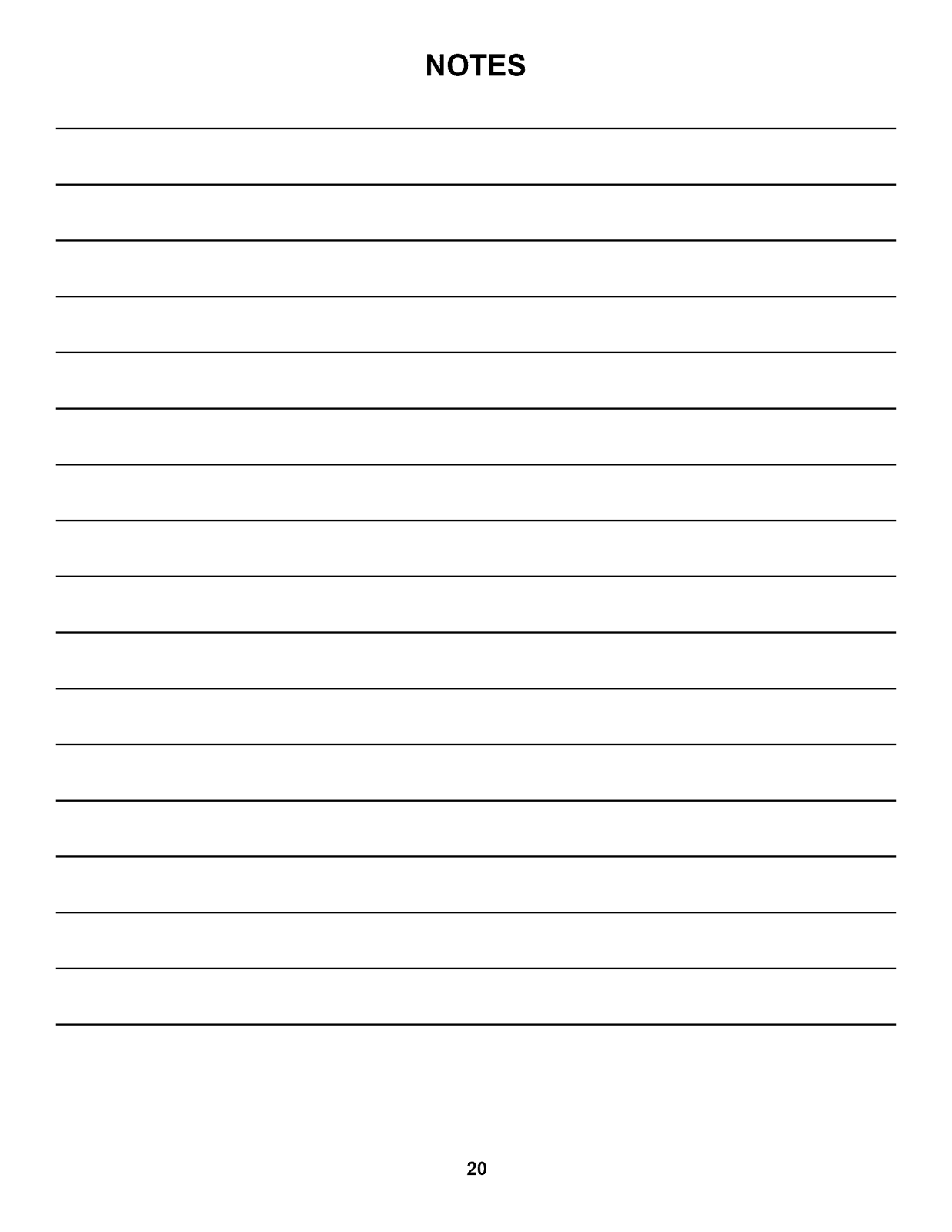

NOTES
20
Loading...
