GE JS760DP, JS760EP, JS760SP, JS760FP Specification

JS760DP/EP/SP/FP

29-7/8"

36"

+1/2"

-1/4"

27-1/3"

Wall-Mounted

30" min

See note A

Side Wall

Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"

30"

0" permitted

recommend
6" space to
each side wall

0"

minimum
to cabinets
below
cooktop

36"

24"

Recommended

7-1/2"

6-1/2"

2-1/2"

30"

single ovens
double ovens

3"

4"

single ovens
double ovens

2-1/2"

29-7/8"

48-1/4"

*25-7/8"

*Depth including door handle is approximately 28-1/4".

37-1/4"

36"

+1/2"

-1/4"

27-1/3"

ADA

GE® 30" Slide-In Electric Convection Range with No Preheat Air Fry

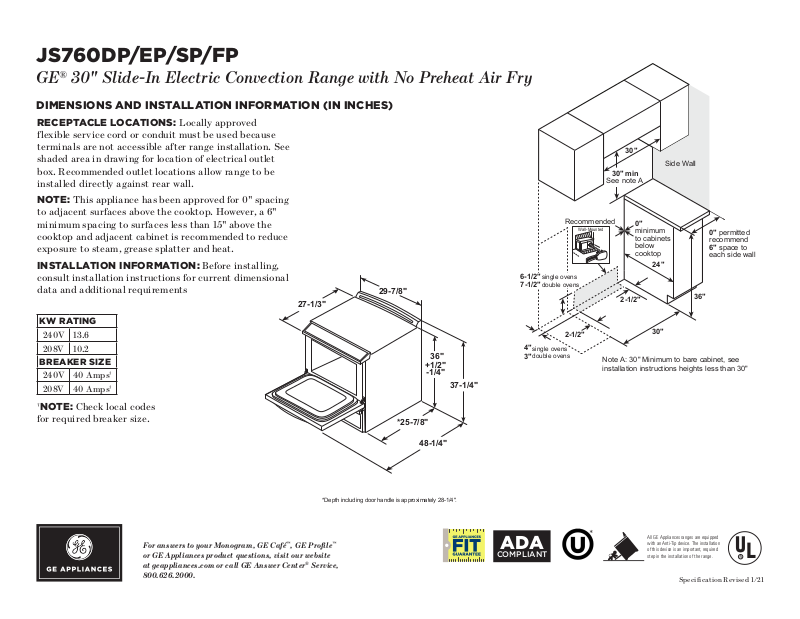

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

RECEPTACLE LOCATIONS: Locally approved
flexible service cord or conduit must be used because
terminals are not accessible after range installation.
shaded area in drawing for location of electrical outlet
box. Recommended

outlet locations allow range to be

installed directly against rear wall.

NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.

INSTALLATION IN FOR M AT I O N : Before installing,
consult installation instructions for current dimensional
data and additional requirements

KW RATI N G

240V 13.6

208V 10.2

BREAKER SIZE

240V 40 Amps
208V 40 Amps

†

NOTE: Check local codes

for required breaker size.

†

†

See

For answers to your Monogram, GE Café™, GE Profile™
or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer Center® Service,

800.626.2000.

COMPLIANT

*

All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.

Specification Revised 1/21

JS760DP/EP/SP/FP

GE® 30" Slide-In Electric Convection Range with No Preheat Air Fry

FEATURES AND BENEFITS

No Preheat Air Fry – With this air fryer right in the oven, you can cook healthier,
crispier versions of your favorite foods. There's no preheat required and it shortens the
cook time because every minute counts.

12"/9" Dual Element – Two heating elements in one offer flexibility.

Convection – This convection oven cooks and browns more evenly, using a rear
fan to circulate hot air.

9"/6" Power Boil Element – Produces rapid, powerful heat.

Fifth Element Warming Zone – Provides low-heat capability for foods.

Fast Preheat – Make hot meals in a hurry with less time preheating.

Self-Clean with Steam Clean Option – Clean your oven the way you want.

Smooth-Glide Storage Drawer – Drawer opens and closes easily for instant access and
extra storage.

Hidden Bake Oven Interior – Make cleanup easy by eliminating hard-to-reach areas.

Sabbath Mode Enhanced – The Shabbos Keeper* connects to your range to
automatically enable Shabbos compatible modes each week and before every holiday.

Model JS760DPBB – Black on black

Model JS760DPWW – White on white

Model JS760EPES – Slate

Model JS760SPSS – Stainless steel

Model JS760FPDS – Black slate

*

Purchase of Shabbos Keeper required for OU certification and Sabbath Mode Enhanced feature.

GUARANTEED FIT
Replace your old 30" free-standing range with
a new 30" slide-in model. GE slide-in ranges are
guaranteed for an exact fit or GE Appliances will
pay up to $300 toward mo di fic ations.

Visit geappliances.com for more info

Specification Revised 1/21
