GE JGBS66DEK Specification
JGBS66DEK
To cabinets below cooktop
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4-1/2"
4"
2"
8"
5"
3"
14-1/2"
9"
30"
29-7/8"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4-1/2"
4"
2"
8"
5"
3"
14-1/2"
9"
30"

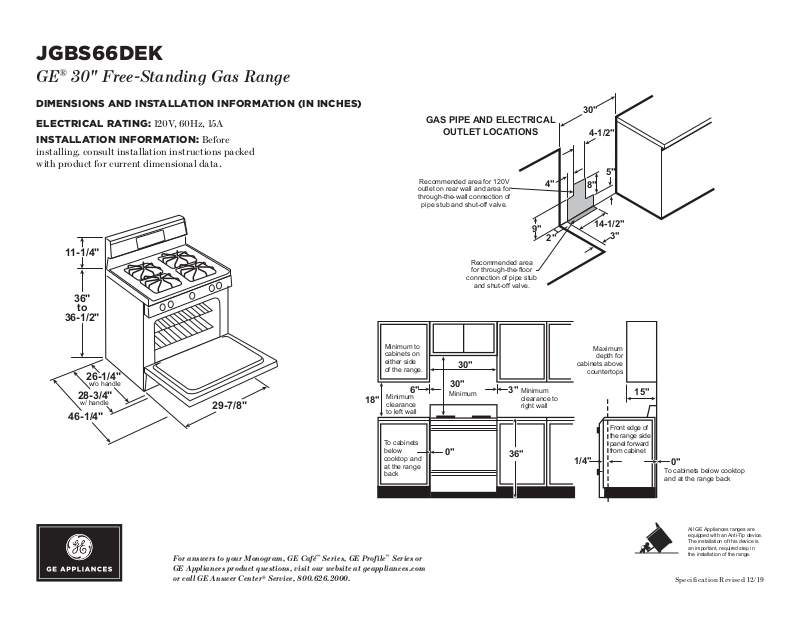

GE® 30" Free-Standing Gas Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING: 120V, 60Hz, 15A
INSTALL AT ION INFOR M AT ION: Before
installing, consult installation instructions packed
with product for current dimensional data.
29-7/8"
11-1/4"
36"
to
36-1/2"
26-1/4"
w/o handle
28-3/4"
w/ handle
46-1/4"
GAS PIPE AND ELECTRICAL
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
18"
Minimum to
cabinets on
either side
of the range.
6"
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
OUTLET LOCATIONS
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
30"
30"
Minimum
3"
Minimum
clearance to
right wall
0"
36"
9"
4"
2"
30"
4-1/2"
5"
8"
14-1/2"
Maximum
depth for
cabinets above
countertops
1/4"
3"
15"
Front edge of
the range side
panel forward
from cabinet
0"
and at the range back
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE Appliances ranges are
equipped with an Anti-Tip device.
The installation of this device is
an important, required step in
the installation of the range.
Specif ication Revised 12/19
JGBS66DEK
GE® 30" Free-Standing Gas Range
FEATURES AND BENEFITS
Edge-to-edge cooktop – A large cooking surface gives you extra room for pots
and pans of all sizes and lets cookware move easily from burner to burner
Extra-large integrated non-stick griddle – Cook up to six grilled cheeses at once
on the industry’s largest integrated griddle
15,000 BTU Power Boil burner – Delivers high heat for fast boiling
Center oval burner – Large oval fifth burner is ideal for griddle cooking
Steam clean – Save time and effort by steam-cleaning the oven after cooking.
No special water, kits or extra steps required.
Precise Simmer burner – Delicate foods don’t burn with low, even heat
Heavy duty, dishwasher-safe grates – Easily and safely clean grates in the dishwasher
5.0 cu. ft. oven capacity – Cook more dishes at once
Sealed cooktop burners – Contain spills and make cleaning quick and easy
Deep-recessed cooktop – Contains spills for quick and easy cleaning
Model JGBS66DEKWW – White on white
Specif ication Revised 12/19
