GE JGBS62DEKWW, JGBS62REKSS Specification Sheet
JGBS62DEK/REK
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
®
GE
30" Free-Standing Gas Range
30"

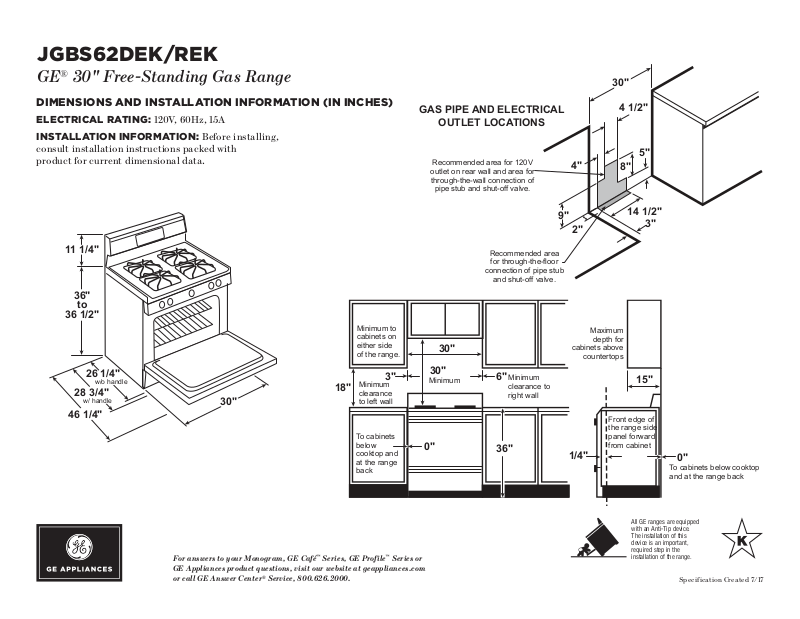

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING: 120V, 60Hz, 15A
INSTALL ATION I N FORMATION: Before installing,
consult installation instructions packed with
product for current dimensional data.
11 1/4"
36"
to
36 1/2"
26 1/4"
w/o handle
28 3/4"
w/ handle
30"
46 1/4"
18"
Minimum to
cabinets on
either side
of the range.
3"
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
30"
30"
Minimum
6"
Minimum
clearance to
right wall
0"
36"
4"
9"
2"
cabinets above
countertops
1/4"
4 1/2"
5"
8"
14 1/2"
3"
Maximum
depth for
15"
Front edge of
the range side
panel forward
from cabinet
0"
To cabinets below cooktop
and at the range back
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
Speci ficat ion Created 7/17
JGBS62DEK/REK
®
GE
FEATURES AND BENEFITS
15,000 BTU Power Boil burner – Delivers high heat for fast boiling
Two-piece continuous edge-to-edge cooktop – A large, continuous cooking surface
gives you extra room for pots and pans of all sizes and lets cookware move easily
from burner to burner
Steam clean – Helps to clean with the power of steam
Precise Simmer burner – Delicate foods don’t burn with low, even heat
Sealed cooktop burners – Contains spills and make cleaning quick and easy
5.0 cu. ft. oven capacity – Enough room to cook an entire meal at once
Model JGBS62DEKBB – Black on black
Model JGBS62DEKWW – White on white
Model JGBS62REKSS – Stainless steel
30" Free-Standing Gas Range
Speci ficat ion Created 7/17
