GE JB350RFSS User Manual
JB350RF
30
25
2-1/2
2-1/2
7-1/2
Acceptable electrical
outlet area
29-7/8
47
11
35-3/4
to
36-1/2
w/o handle
w/handle
47-7/8
28
25-1/2
30
" Free-Standing Electric
Single Oven

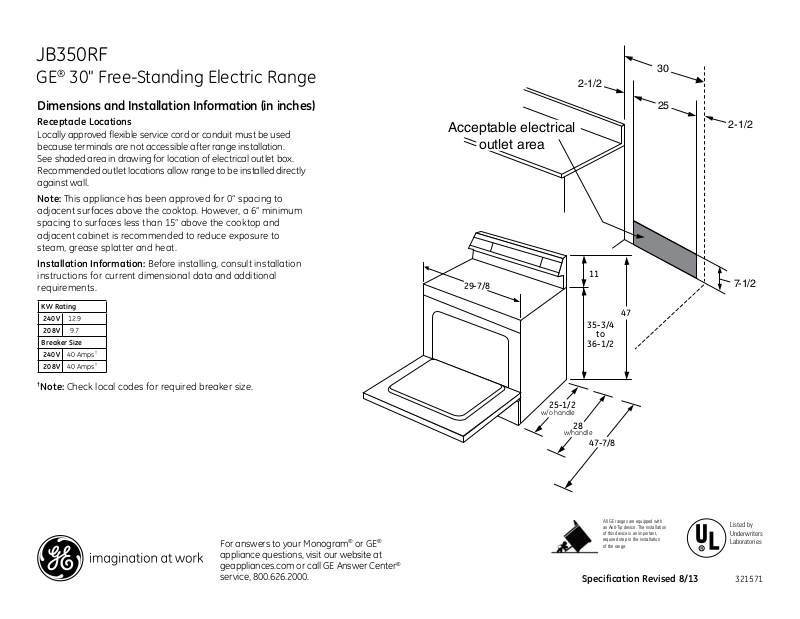

GE® 30" Free-Standing Electric Range
Dimensions and Installation Information (in inches)
Receptacle Locations
Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly
against wall.
Note: This appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a 6” minimum
spacing to surfaces less than 15” above the cooktop and
adjacent cabinet is recommended to reduce exposure to
steam, grease splatter and heat.
Installation Information: Before installing, consult installation
instructions for current dimensional data and additional
requirements.
KW Rating
12.9
240V
9.7
208V
Breaker Size
240V
208V
40 Amps
40 Amps
†
†
†
Note: Check local codes for required breaker size.
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 8/13
Listed by
Underwriters
Laboratories
321571
JB350RF
GE® 30" Free-Standing Electric Range
Features and Benefits
• Power Boil Coil Element - Produces rapid, powerful heat
• Heavy-Duty Self-Clean Roller Rack - Provide easy access to oven interior
• 5.3 cu. ft. Oven Capacity - Enough room to cook an entire meal at once
• Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
• Removable Full-Width Storage Drawer - Store cookware or kitchen
accessories
• Chrome Drip Bowls - Contain spills and remove for easy cleaning
• Model JB350RFSS - Stainless steel
Specification Revised 8/13
321571
