GE JB255GJSA Specification Sheet
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

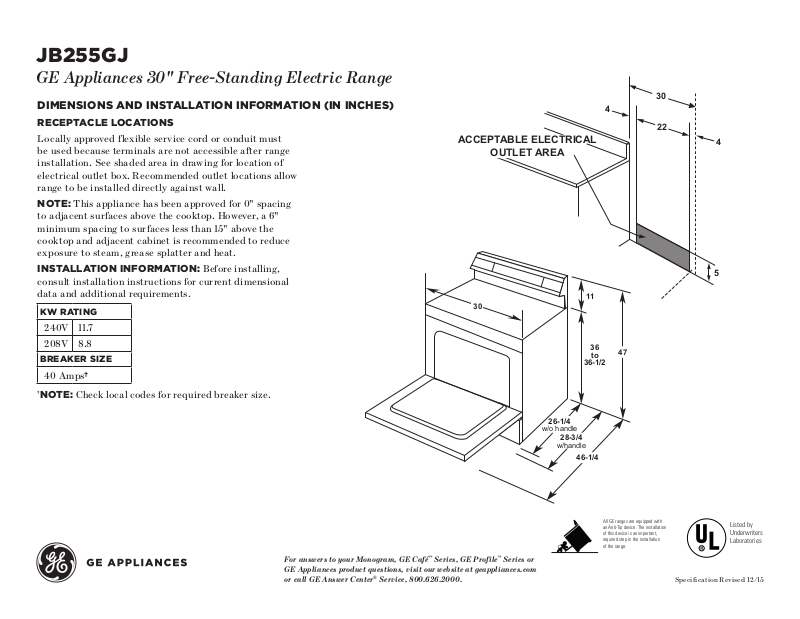

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
Specif ication Revised 12/15
JB255GJ
GE Appliances 30" Free-Standing Electric Range
For answers to your Monogram, GE Café
™
Series, GE Profile
™
Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
®
Service, 800.626.2000.
KW R ATI N G
240V 11.7
208V 8.8
BREAKER SIZE
40 Amps†
RECEPTAC L E LOCATIONS
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION I N FORMATI O N : Before installing,
consult installation instructions for current dimensional
data and additional requirements.
†
NOTE: Check local codes for required breaker size.
30
22
4
4
5
SINGLE OVEN
ACCEPTABLE ELECTRICAL
OUTLET AREA
30
36
to
36-1/2
11
46-1/4
28-3/4
26-1/4
47
w/handle
w/o handle
30
22
4
4
5
30
" FREE-STANDING ELECTRIC
SINGLE OVEN
ACCEPTABLE ELECTRICAL
OUTLET AREA
Specif ication Revised 12/15
JB255GJ
GE Appliances 30" Free-Standing Electric Range
FEATURES AND BENEFITS
5.0 cu. ft. oven capacity – Enough room to cook an entire meal at once
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Coil heating elements – Provide even heat and easy cleanup
Dual-element bake – Upper and lower elements produce even heat and great results
Removable full-width storage drawer – Store cookware or kitchen accessories
Model JB255GJSA – Silver
