GE JB250RK Specification
JB250RK
30
" FREE-STANDING ELECTRIC
SINGLE OVEN
GE® Series 30" Free-Standing Electric Range

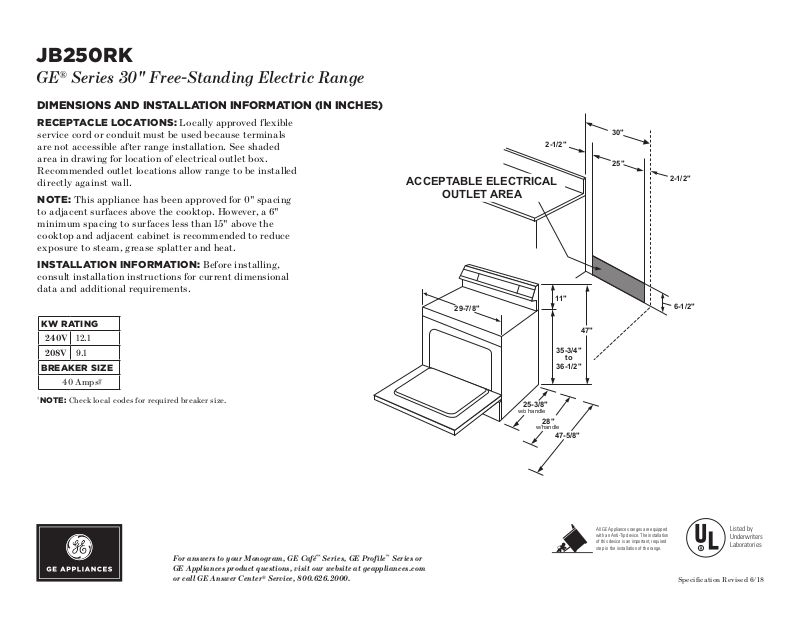

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS: Locally approved flexible
service cord or conduit must be used because terminals
are not accessible after range installation. See shaded
area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed
directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION I N FORMATI O N : Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW R ATI N G
24 0V 12.1
208V 9.1
BREAKER SIZE
40 A mps†
†
NOTE: Check local codes for required breaker size.
2-1/2"
ACCEPTABLE ELECTRICAL
OUTLET AREA
29-7/8"
25-3/8"
w/o handle
28"
w/handle
11"
35-3/4"
to
36-1/2"
47-5/8"
30"
25"
2-1/2"
6-1/2"
47"
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Listed by
Underwriters
Laboratories
Speci fication Revised 6/18
JB250RK
GE® Series 30" Free-Standing Electric Range
FEATURES AND BENEFITS
5.3 cu. ft. oven capacity – Enough room to cook an entire meal at once
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Coil heating elements – Provide even heat and easy cleanup
Dual-element Bake – Upper and lower elements produce even heat
and great results
Removable full-width storage drawer – Store cookware or kitchen accessories
Model JB250RKSS - Stainless steel
Speci fication Revised 6/18
