GE JA624RNSS Specification Sheet
JA624RN
24-3/8"
30" MIN
15" MIN
36" MAX
5"
2"
2-1/2"
A
13"
MAX
24-3/8"
2"
41"
36"
24"
A= 44-3/4" for model JAS02SN
and 47" for model JA624RN.
(Depth with
door open)
From combustible
walls above
cooking surface
Surface
mount
outlet
Outlet box
Cord
Wall Mounted
Wall
Floor
Recommended acceptable electrical
outlet area. Orient the electrical
receptacle so the length is parallel
to the floor.
2-1/4"
24-3/8"
30" MIN
15" MIN
36" MAX
5"
2"
2-1/2"
A
13"
MAX
24-3/8"
2"
41"
36"
24"
A= 44-3/4" for model JAS02SN
and 47" for model JA624RN.
(Depth with
door open)
From combustible
walls above
cooking surface
Surface
mount
outlet
Outlet box
Wall Mounted
GE Appliances 24" Self Clean Free-Standing Electric Range

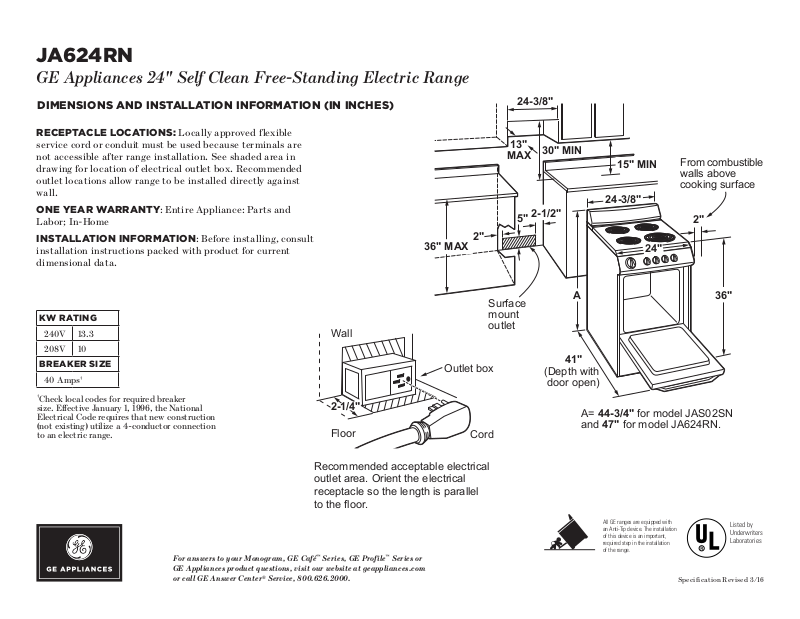

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS: Locally approved flexible
service cord or conduit must be used because terminals are
not accessible after range installation. See shaded area in
drawing for location of electrical outlet box. Recommended
outlet locations allow range to be installed directly against
wall.
ONE YEAR WARRANTY: Entire Appliance: Parts and
Labor; In-Home
INSTALLATION I N FORMATI O N : Before installing, consult
installation instructions packed with product for current
dimensional data.
KW R ATI N G
240V 13.3
208V 10
BREAKER SIZE
40 Amps
†
Check local codes for required breaker
size. Effective January 1, 1996, the National
Electrical Code requires that new construction
(not existing) utilize a 4-conductor connection
to an electric range.
†
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Speci fication Revised 3/16
JA624RN
GE Appliances 24" Self Clean Free-Standing Electric Range
FEATURES AND BENEFITS
Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing
Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning quick and easy
8" Element
6" Element
ClearView™ Window - Features a convenient viewing area to check the progress of food
Removable Full-Width Storage Drawer - This convenient drawer can be used for storing
cookware or kitchen accessories
Dual Element Bake - Alternates the upper broiling element and the lower baking element for
even heating and optimal baking results
Electronic Clock and Timer - Features a convenient digital clock and easy-to-use timer with
an audible signal to help coordinate cooking times in the kitchen
Upfront Controls - Controls are placed within easy reach at the front center of the cooktop
Element "On" Indicator Lights
Audible Preheat Signal - Features an audible signal that activates when the oven has reached
the desired cooking temperature
Front
Right
OFF
Right Rear
HI
ront
t F
Lef
OFF
LO
1
Hot
Surface
2
3
4
LO
HI
LO
HI
1
9
1
9
2
8
2
8
3
7
3
4
7
6
5
5
6
4
5
OFF
Left Rear
OFF
ner
LO
Bur
HI
On
9
1
9
8
2
8
7
3
7
6
4
5
6
Delay Self-Clean
Delay Bake
Auto Oven Shut-off
Model JA624RNSS – Stainless Steel
Speci fication Revised 3/16
