GE J2S968SEK Specification

J2S968SEK

R

2-7/8"

To

Front

Surf

ace Of

Counter

top

20-5/8"
Door Clearance
From Front
Surface of
Countertop

31-1/4

30

27-1/2

44-3/4

A/B

*

Accessor

y

Backguard

36

2"

(Grates)

24

*JXS37 is 5-1/4"

and JXS32 is 4"

23-3/16

30

If you are NOT using the
Filler strip or Backguard:

23-3/16

30

30

If you are NOT using the
Filler strip or Backguard:

If you are using the
Filler strip or Backguard:

25

Acceptable
Gas Line &

Electrical

Outlet Area

Max.

depth of

cord, plug,
receptacle box
& gas hookup

3-1/2 to pre

v

ent

interference

with draw

er

30 Min.

30 Min

.

Shave

Raised Edge To Clear

31-1/8

Wide Control Panel

36

A/B

23-3/16

18 Min.

13 Max.

3

29-15/16 Min.
30-1/16 Max.

A is 4" min.

from w

alls on J2S968

B is 6" min.

from w

alls on JGS968/905

25

9/16

7

12

15

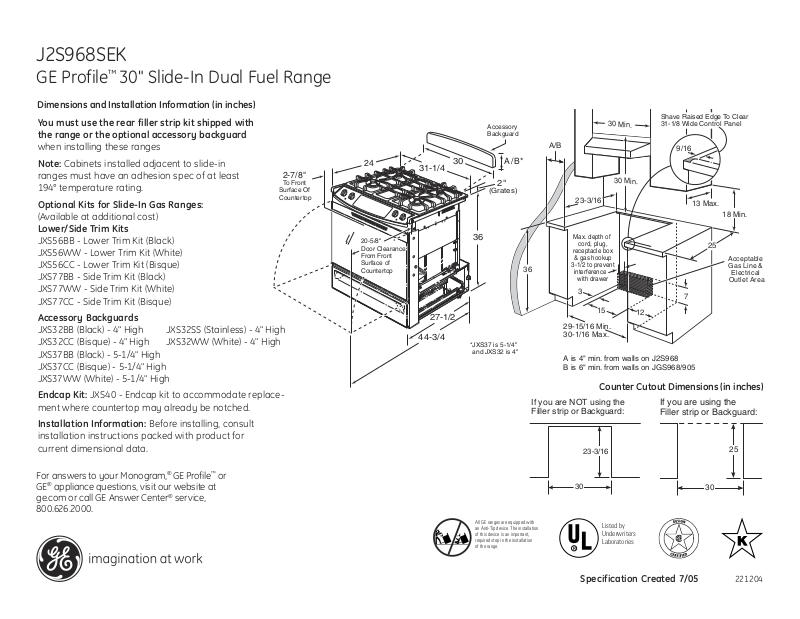

GE Profile™ 30" Slide-In Dual Fuel Range

Dimensions and Installation Information (in inches)

You must use the rear filler strip kit shipped with
the range or the optional accessory backguard

when installing these ranges

Note: Cabinets installed adjacent to slide-in
ranges must have an adhesion spec of at least
194° temperature rating.

Optional Kits for Slide-In Gas Ranges:
(Available at additional cost)
Lower/Side Trim Kits

JXS56BB - Lower Trim Kit (Black)
JXS56WW - Lower Trim Kit (White)
JXS56CC - Lower Trim Kit (Bisque)
JXS77BB - Side Trim Kit (Black)
JXS77WW - Side Trim Kit (White)
JXS77CC - Side Trim Kit (Bisque)

Accessory Backguards
JXS32BB (Black) - 4" High JXS32SS (Stainless) - 4" High
JXS32CC (Bisque) - 4" High JXS32WW (White) - 4" High
JXS37BB (Black) - 5-1/4" High
JXS37CC (Bisque) - 5-1/4" High
JXS37WW (White) - 5-1/4" High

Endcap Kit: JXS40 - Endcap kit to accommodate replace­ment where countertop may already be notched.

Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Counter Cutout Dimensions (in inches)

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Listed by
Underwriters
Laboratories

Specification Created 7/05

221204

J2S968SEK

I

H

8

6

4

2

L

O

L

O

2

4

6

8

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

9

I

H

8

6

4

2

L

O

2

4

6

8

GE Profile™ 30" Slide-In Dual Fuel Range

Features and Benefits

• Precise Air™ Convection System - Delivers even air and heat circulation for superior
baking and roasting results

• Single/Multi-Rack Convection Bake - Provides ideal airflow throughout the oven,
ensuring optimal results on both racks

• Convection Roast - Provides even cooking and consistent results, roasting meats
up to 25% faster than a conventional oven

• Self-Clean Oven - Conveniently cleans the oven cavity without the need
for scrubbing

• Glass Touch Controls - Features the smooth glass design that is easy-to-operate
and easy-to-clean

• Power Boil™ Burner - Delivers 15,000 BTUs of forceful heat for rapid boiling

• Heavy-Duty Die-Cast Knobs - Add durability and brushed chrome for enhanced
style and performance

• High Output Burner - Provides a powerful burner output for efficient heat-up
and boiling

• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more
items at once

• Continuous Grates - Provide a flat, sturdy surface allowing easy movement of
pans between burners

• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning quick and easy

• Auto Recipe™ Conversion - Automatically converts standard recipe temperatures to
proper convection settings, eliminating the guesswork

• Model J2S968SEKSS - Stainless steel

Specification Created 7/05

221204
