GE J2B918SEK Specification
J2B918SEK
CERTIFIED
24
30" FS Gas Ranges-CL
30
8
4
9
2
2-1/2
Recommended area for
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
30
47-3/4
26-1/4
46-3/8
36-1/4±1/4
Installation Information (Dimensions in inches)
Recommended common area
for gas outlet and electrical
outlet for GE free-standing
gas range models
7-1/2
2
30
3
3
9
3
C
L
Recommended area for
through-the-wall connection
of pipe stub/shut-off valve.
Recommended area for
through-the-floor connection
of pipe stub/shut-off valve.
This area allows for
flush range installation
with the rear wall.
J2B900_gas_locate.eps
Recommended area for gas outlet
7-1/2
2-1/4
30
4
8
3
C
L
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Product is shipped with a 4-prong
plug. Recommended outlet is a
NEMA 14-50R receptacle
.
Wall Mounted
J2B900_elec_locate.eps
Recommended area for electric outlet

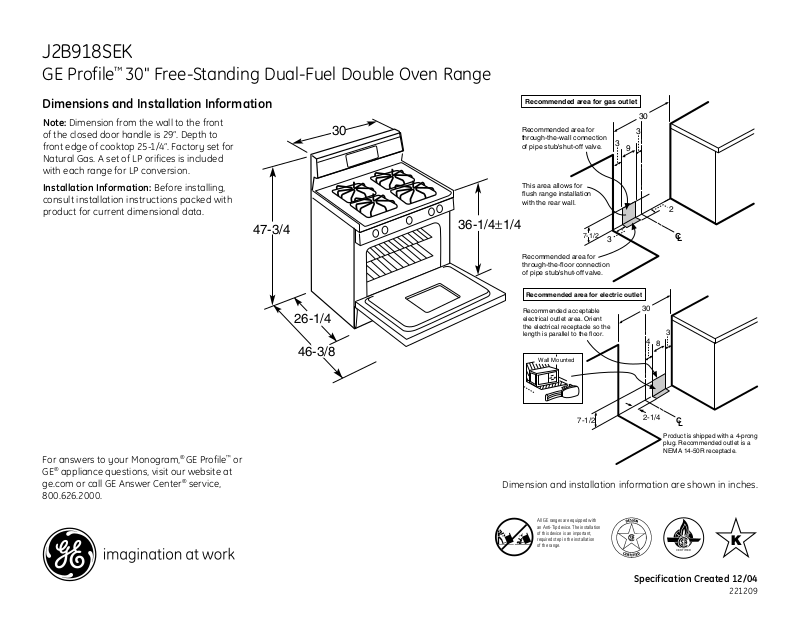

GE Profile™ 30" Free-Standing Dual-Fuel Double Oven Range
Dimensions and Installation Information
Note: Dimension from the wall to the front
of the closed door handle is 29”. Depth to
front edge of cooktop 25-1/4”. Factory set for
Natural Gas. A set of LP orifices is included
with each range for LP conversion.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Dimension and installation information are shown in inches.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 12/04
221209
J2B918SEK
GE Profile™ 30" Free-Standing Dual-Fuel Double Oven Range
Features and Benefits
• Electric convection oven - Features electric heating elements and a fan
that circulates air throughout the oven cavity, to deliver uniform and
savory cooking results
• Self clean oven - Conveniently cleans the oven cavity without need of scrubbing
• Center oval burner - Fifth burner in the center of the cooktop, ideal for griddle or
odd-size cookware
• Non-stick griddle - Placed over a fifth center burner the griddle provides a flat,
non-stick surface for cooking and warming all types of foods
• Super-large oven capacity – Provides an impressively large oven interior for
cooking more dishes and large meals at once
• Deep recessed cooktop - Designed with a recessed surface to help contain spills
and make cleaning easy
• QuickSet VI glass touch oven controls - A smooth glass design that is
easy-to-operate and easy-to-clean
• Precise simmer burner - Offers the low setting of 600 BTUs, ensuring more
temperature control for simmering
• Sealed cooktop burners - Eliminates the space between the burners and the
cooktop to help contain spills and boil over liquids, ensuring easy cleanup
™
• Power Boil
rapid boiling
• Model J2B918SEKSS - Stainless steel
17,000 BTU burner – Delivers 17,000 BTUs of forceful heat for
Specification Created 12/04
221209
