Specification Revised 2/06
410116

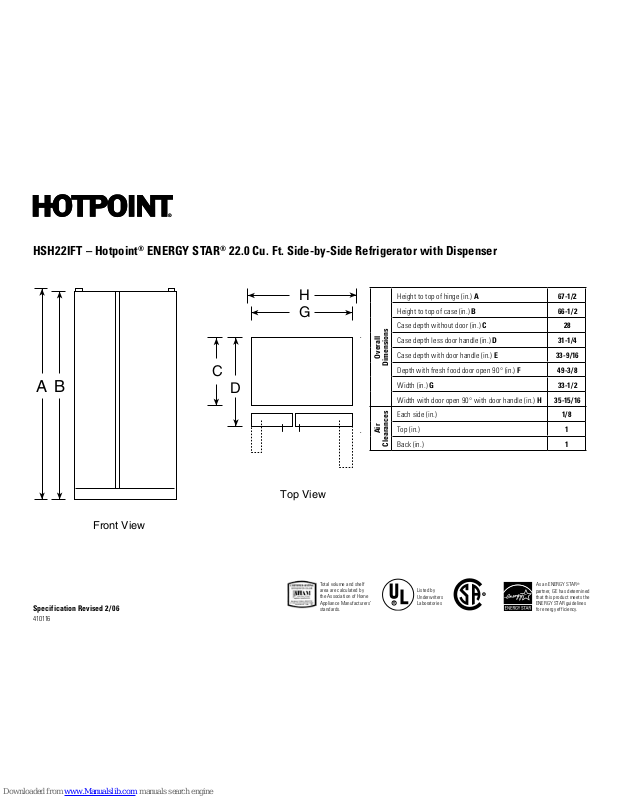

HSH22IFT – Hotpoint® ENERGY STAR® 22.0 Cu. Ft. Side-by-Side Refrigerator with Dispenser
®
"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
R
Listed by
Underwriters
Laboratories
R
®
Overall
Dimensions
Height to top of hinge (in.) A 67-1/2
Height to top of case (in.) B
66-1/2
Case depth without door (in.) C 28
Case depth less door handle (in.) D
31-1/4
Case depth with door handle (in.) E
33-9 /16
Depth with fresh food door open 90° (in.) F
49-3 /8
Width (in.) G
33-1/2
Width with door open 90° with door handle (in.) H
35-15/16
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Revised 2/06
410116
HSH22IFT – Hotpoint® ENERGY STAR® 22.0 Cu. Ft. Side-by-Side Refrigerator with Dispenser
®
Warmer
Colder
Wate
r
Crushed
Cubed
Lock
Hold 3 secnds
Warmer
Colder
0 is Off / 5 is Normal / 9 is Coldest
Set Point
Freezer
Refrigerator
Adjust Temperature
Features and Benefits
• External Temperature Controls with Child Lock – Combines the ease of 0-9 temperature settings with the
sophistication of electronic controls
• Adjustable Humidity Vegetable/Fruit Crisper – Provides easy storage for your fruits and vegetables
• Adjustable Gallon Door Bins – Make room for milk and other gallon-size containers
• Adjustable Spillproof Glass shelves – Helps to contain spills for ease of cleaning
• GE SmartWater™ Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• FrostGuard™ Technology – Reduces freezer burn, so foods retain their texture and flavor
• Deluxe Quiet Design - Significantly reduces operating noise
• NeverClean™ Condenser - Condenser coils are encased, so they don’t require cleaning in normal
operating environments
• Model HSH22IFTWW – White on white
• Model HSH22IFTCC – Bisque on bisque
• Model HSH22IFTBB – Black on black
®
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
