GE Hotpoint Catalog

Download

Page 1

2000/2001

019756

Major appliances

Page 2

Hotpoint appliances

Hotpoint

appliances are a good choice when value and affordability are important. Hotpoint appliances offer a wide choice of products combining flexibility, convenience and strong value with a recognized brand name. From more traditional styling to dependable features, Hotpoint appliances bring a practical approach to the kitchen.

Page 3

Refrigeration..........................................................................................................................................4-5

Side-by-sides ..........................................................................................................................6-7

Top-freezers..........................................................................................................................8-13

GE Bottom-freezer....................................................................................................................11

GE Cycle and manual defrost...................................................................................................14

GE Spacemaker™models.........................................................................................................15

GE Upright freezers..................................................................................................................16

GE Chest freezers.....................................................................................................................17

Specifications......................................................................................................................18-21

Free-standing ranges

Smooth top........................................................................................................................................22

Electric ..............................................................................................................................................23

30" ranges ..........................................................................................................................24-27

Specialty application ranges.....................................................................................................28

Specifications......................................................................................................................29-30

Gas ................................................................................................................................................31

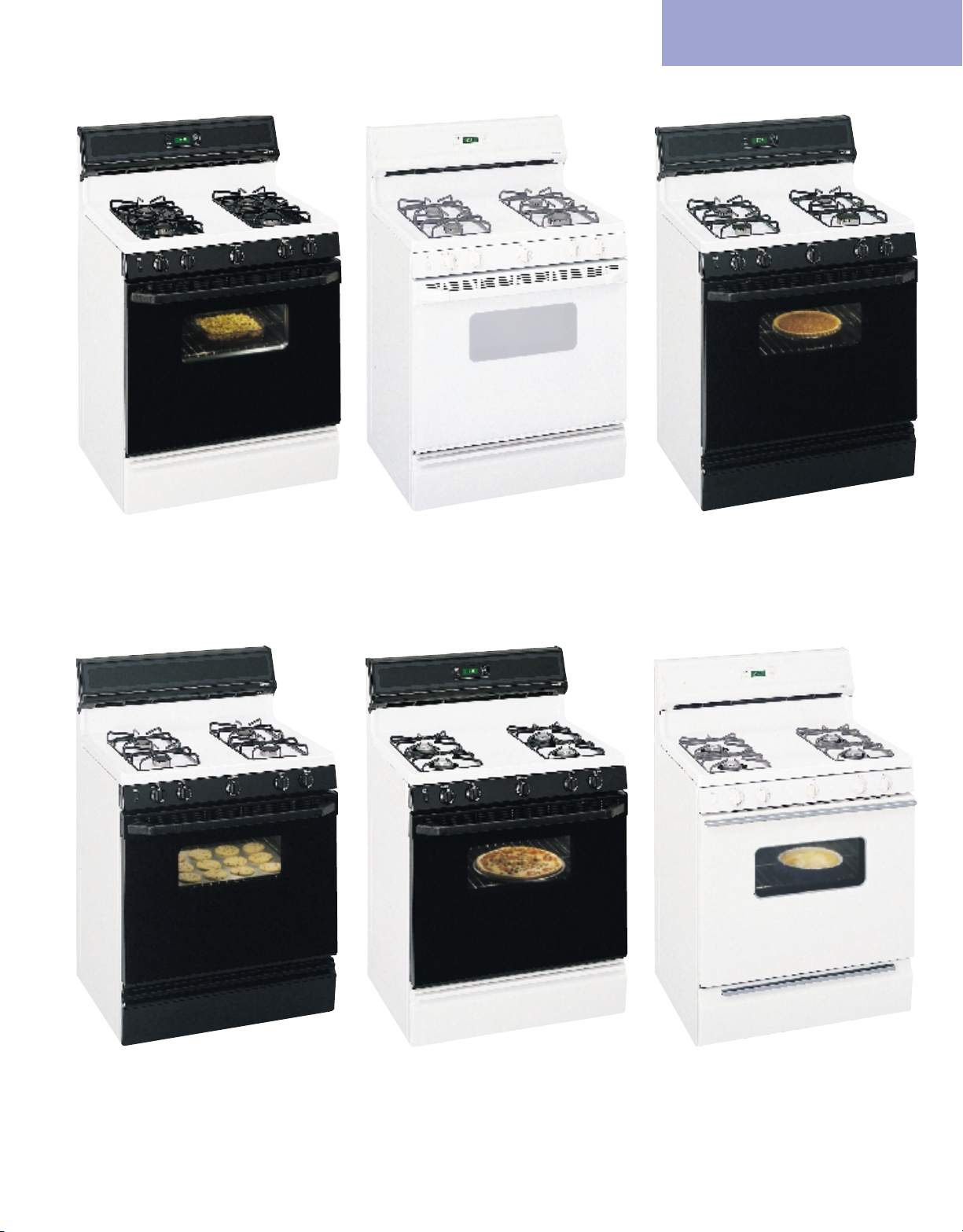

30" ranges ..........................................................................................................................32-37

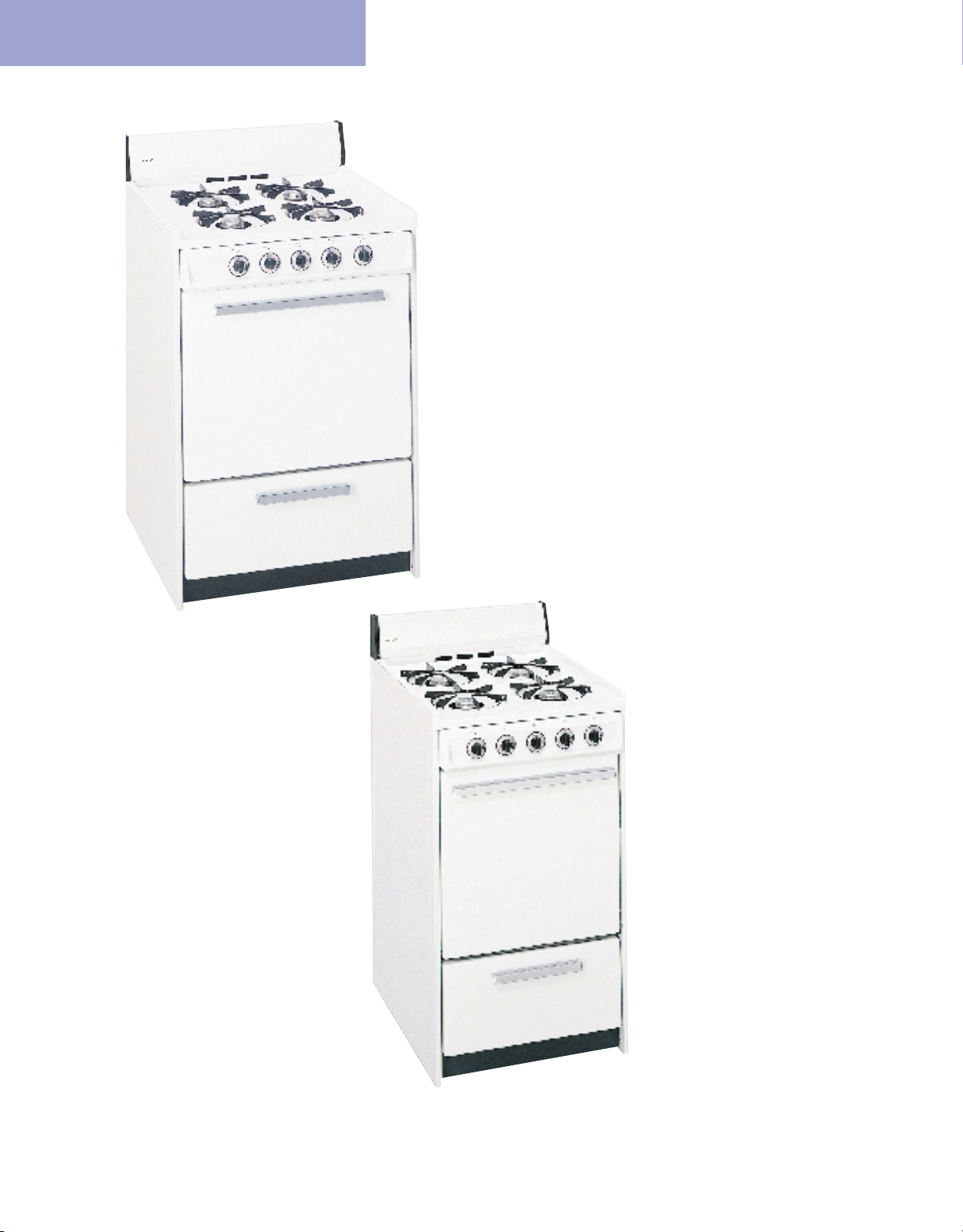

Compact ranges.......................................................................................................................38

Specifications......................................................................................................................39-41

GE Hoods .................................................................................................................................................42

Specifications...........................................................................................................................43

Microwave ovens

Counter Saver Plus™...........................................................................................................44-45

GE Spacemaker over-the-range ..........................................................................................46-47

GE Countertop ....................................................................................................................48-49

Specifications......................................................................................................................50-53

Dishwashers.......................................................................................................................................54-55

GE Spacemaker®undersink.....................................................................................................56

GE Built-in 18”.........................................................................................................................56

GE Convertible .........................................................................................................................56

Specifications......................................................................................................................58-60

GE Disposers and GE Compactors.......................................................................................................57

Specifications...........................................................................................................................61

Washers and dryers

Super and Extra-large capacity washers...................................................................................62

Extra-large capacity dryers .......................................................................................................63

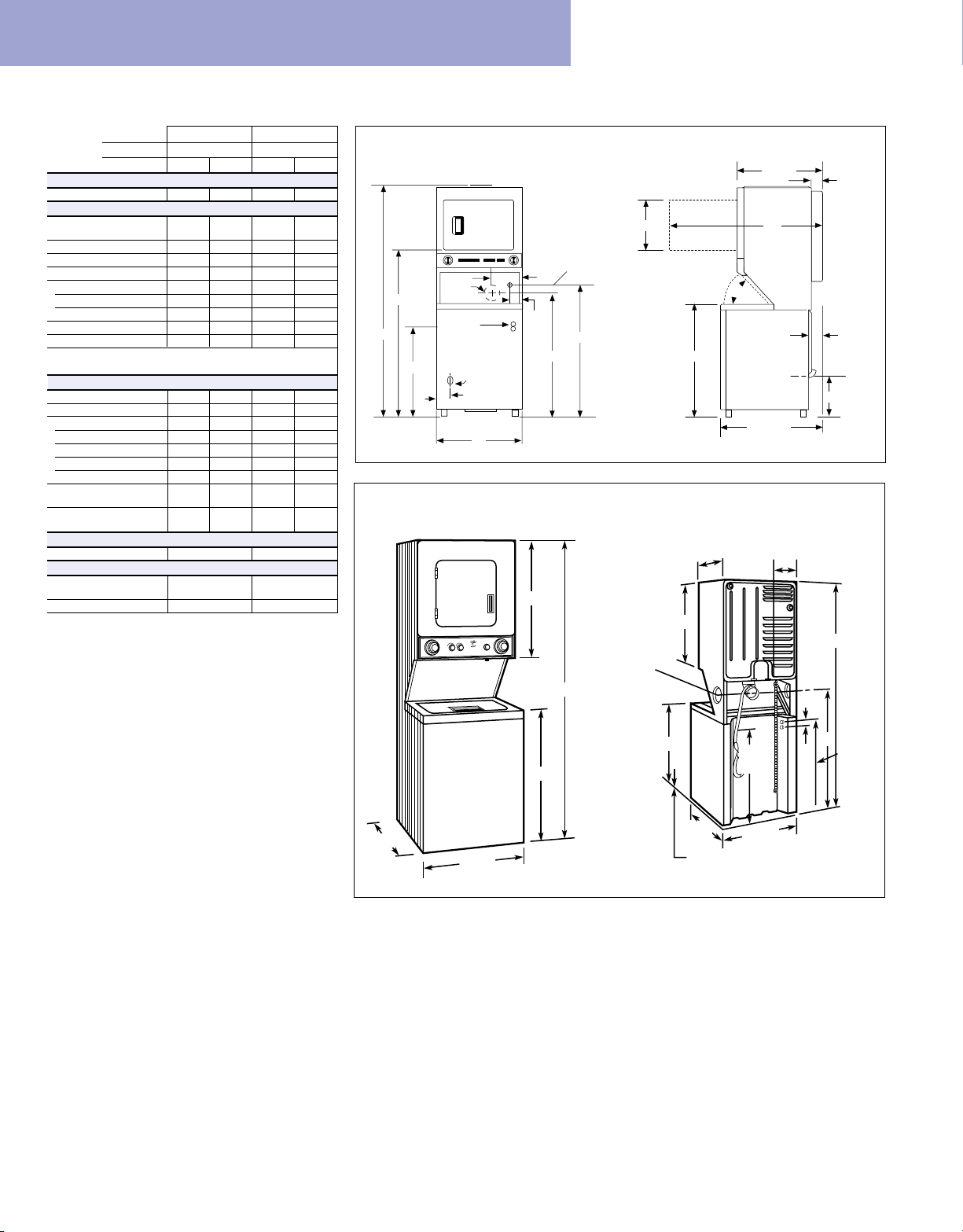

GE Spacemaker®washers and dryers.................................................................................64-65

Specifications......................................................................................................................66-69

GE Smartwater™whole home water improvement

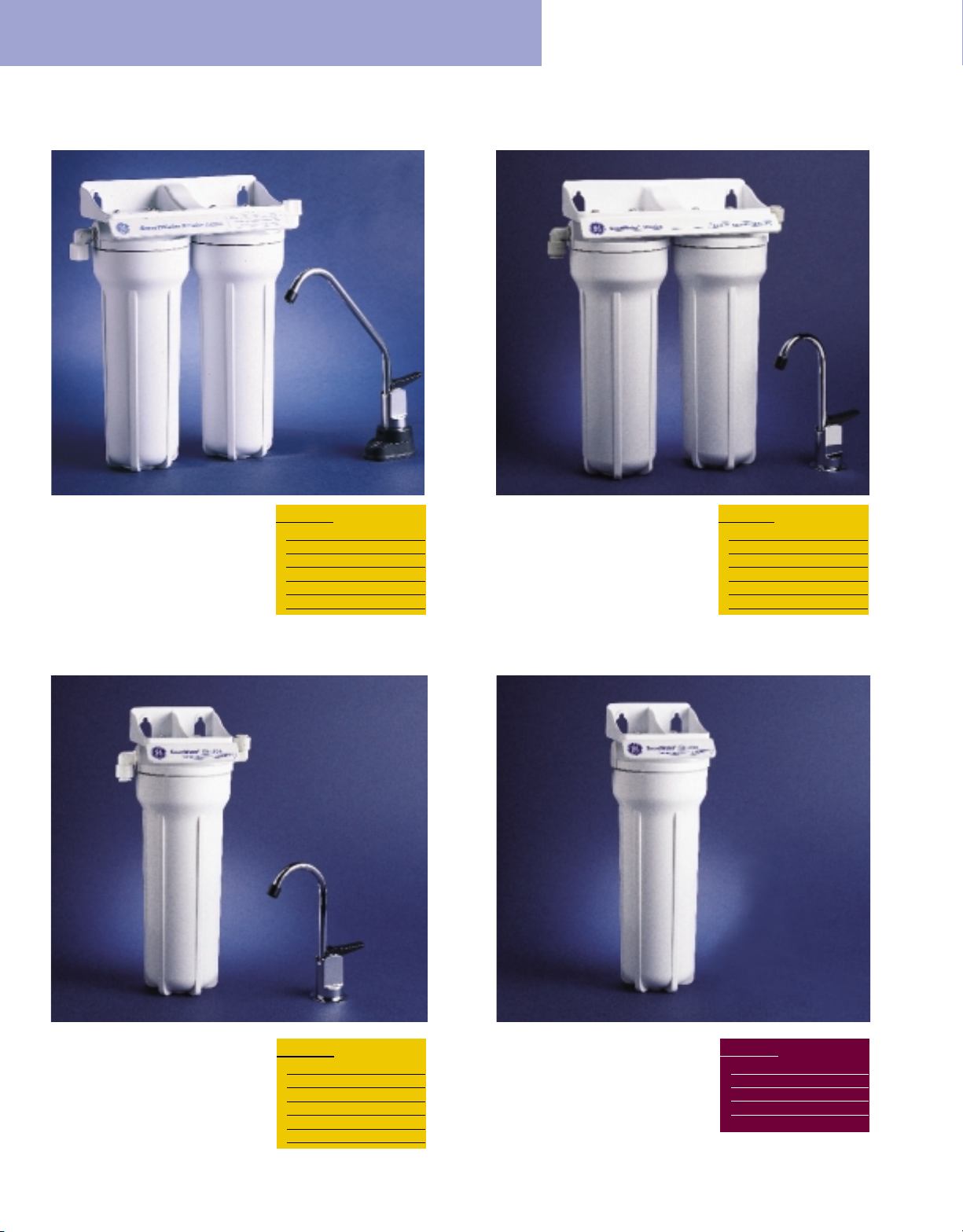

GE Smartwater™filtration systems.......................................................................................70-73

GE Smartwater™softening systems ..........................................................................................74

Specifications......................................................................................................................75-77

GE Air conditioning

GE Built-in “J” Series .........................................................................................................78-79

GE Profile™and GE Deluxe, Value and Heat/Cool Series ....................................................80-81

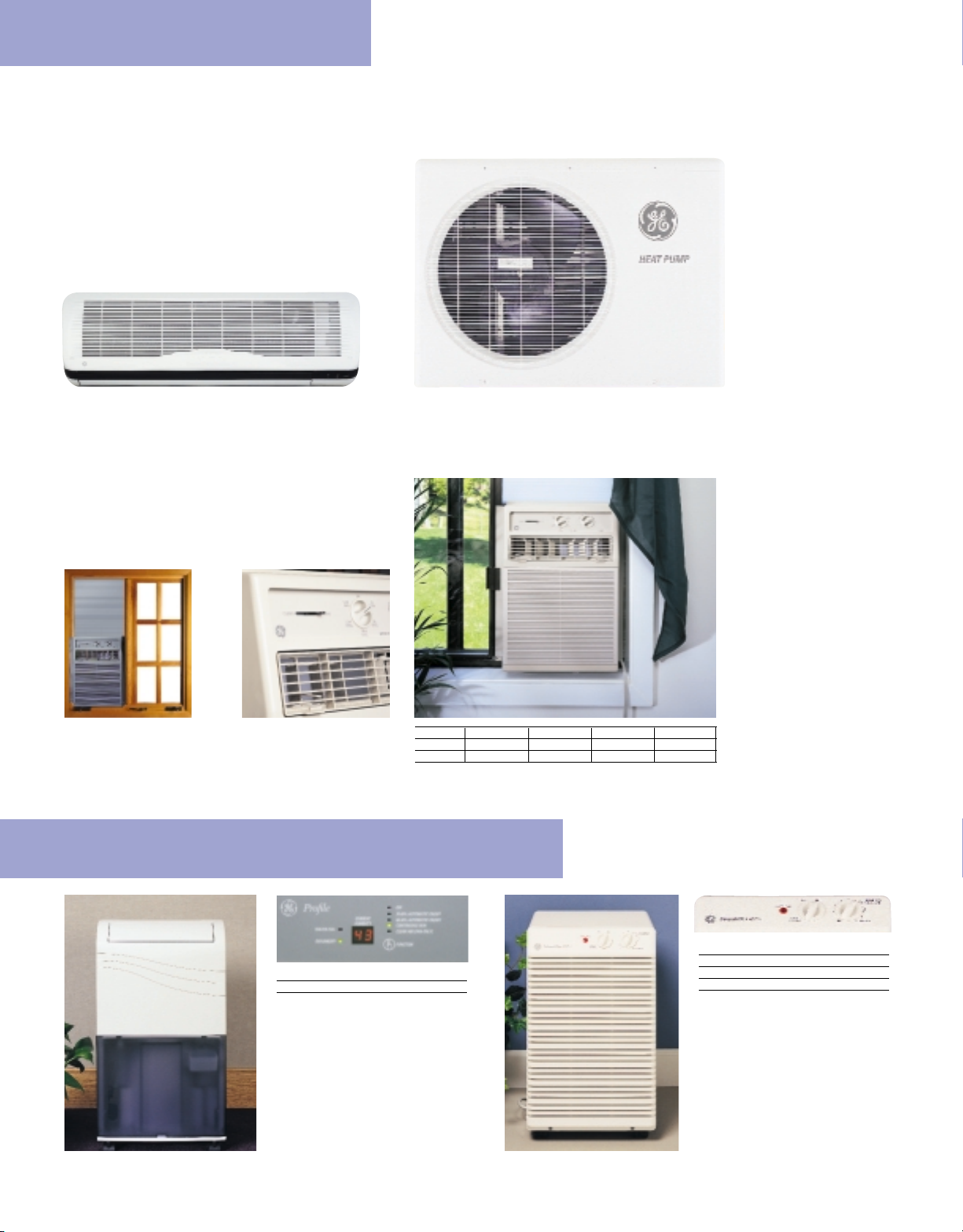

GE Quiet-Aire™split system......................................................................................................82

GE Slide-Aire............................................................................................................................82

GE Profile™and GE Dehumidifiers ...........................................................................................82

Specifications .....................................................................................................................83-86

Warranties ...............................................................................................................................................87

Consumer Services ..................................................................................................................Back cover

Table of contents

Page 4

Side-by-side refrigerators

Hotpoint Side-by-side refrigerators are available with a variety of convenient extras, including gallon storage on the door, to fit a range of food storage needs.

Spill-proof glass shelves

Help contain spills for ease of cleaning.

Adjustable door bins

Door bins hold gallon containers and six-packs in the fresh food compartment.

QuietSound Noise Reduction Package

Significantly reduces noise.

Slide-out freezer storage bin

Allows for easy loading and unloading of bulk purchases.

Vegetable/fruit crispers

Crispers offer adjustable humidity environments, providing optimum storage conditions to keep food fresher longer.

Not all features available on all models.

Side-by-side refrigerators

CSX26MRD

One Touch! ice dispenser

Exterior ice and water service responds to a mere touch, delivering crushed ice, cubes or chilled water to your glass.

Page 5

Top-freezer refrigerators

Hotpoint Top-freezer no-frost refrigerators have a wide range of capacities with a variety of new features, including gallon door storage, providing maximum food storage flexibility and convenience.

Full-width freezer shelf

Provides maximum convenience and flexibility in storing frozen food items.

Spill-proof glass shelves

Help contain spills for ease of cleaning.

Fixed gallon door storage

Provides storage for gallon containers, six-packs and other large fresh food items; in the freezer, storage for large, bulky items.

Twin crisper system

Controls storage conditions with two different humidity levels to keep foods fresh.

Dairy compartment

Convenient counterbalanced dairy door covers butter and cheese to keep unwanted odors away.

All 14 and 16 cu. ft. models have galvanized steel doors.

Snack pan

Excellent for rewrapped meats, cheese, hors d’oeuvres, pudding and other snacks.

Not all features available on all models.

Nice Cubes™Icemaker

Provides rounded-shape ice, designed for better fit into a glass, reducing ice clogging as you drink a beverage.

CTX21DAB

Top-freezer refrigerators

Page 6

One Touch! dispenser

Discover the convenience of the One Touch! dispenser delivering crushed ice, cubes or chilled water–directly through the door!

CSX26MRD

■

25.6 cubic foot capacity

■

9.59 cubic foot freezer

■

One Touch! dispenser

■

QuietSound Noise Reduction Package

■

Adjustable gallon door storage

■

Spill-proof shelves

■

Adjustable temperature meat pan

■

Adjustable humidity vegetable/fruit crisper

Side-by-side refrigerators

CSX26MRD

Page 7

Not all features available on all models. For additional features, specifications and color availability, refer to page 18. For warranty information, refer to page 87.

CSX22GRB

■

21.9 cubic foot capacity

■

6.90 cubic foot freezer

■

One Touch! dispenser

■

QuietSound Noise Reduction Package

■

Fixed gallon door storage

■

Adjustable temperature meat pan

■

Adjustable humidity vegetable/fruit crisper

CSX20BAB

■

19.7 cubic foot capacity

■

6.79 cubic foot freezer

■

Adjustable wire Everwhite

cabinet shelves

■

Classic white vegetable/

fruit crispers

■

Fixed gallon door storage

■

Equipped for optional

automatic icemaker

CSX22BCB

■

Similar features and appearance as CSX20BAB except 21.9 cubic foot capacity and includes One Touch! dispenser with cubes only.

QuietSound Noise Reduction Package

Significantly reduces noise.

Side-by-side refrigerators

CSX22BCB

CSX20BAB

CSX22GRB

Page 8

Gallon door storage

Door shelves hold gallon containers and six-packs in the fresh food compartment; in the freezer, they store larger frozen food containers.

CTX21DAB

■

20.6 cubic foot capacity

■

6.30 cubic foot freezer

■

Two split, one full-width spill-proof glass shelves

■

Three door shelves, two with gallon storage

■

Two clear tall vegetable/ fruit crispers

■

Clear snack pan

■

Equipped for optional automatic icemaker

CTX21DIB (not shown)

■

Similar features and appearance as CTX21DAB except is equipped with factory-installed Nice Cubes

™

icemaker.

CTX21DAB

Top-freezer refrigerators

Page 9

CTX18DAB

■

18.2 cubic foot capacity

■

5.13 cubic foot freezer

■

Fixed gallon door storage

■

Two split, one full-width spill-proof glass shelves

■

Two clear tall vegetable/ fruit crispers

■

Clear snack pan

■

Equipped for optional automatic icemaker

CTX18DIB (not shown)

■

Similar features and appearance as CTX18DAB except is equipped with factory-installed Nice Cubes

™

icemaker.

CTX18BAC

■

17.6 cubic foot capacity

■

4.01 cubic foot freezer

■

Two classic white vegetable/fruit crispers

■

White snack pan

■

Two full-width wire Everwhite cabinet shelves

■

Tall bottle storage

■

Equipped for optional automatic icemaker

CTX16HAB

■

15.6 cubic foot capacity

■

3.86 cubic foot freezer

■

Two split, one full-width adjustable glass shelves

■

Two clear vegetable/ fruit crispers

■

Clear snack pan

■

Equipped for optional automatic icemaker

Spill-proof glass shelves help contain spills for ease of cleaning.

Not all features available on all models. For additional features, specifications and color availability, refer to page 19. For warranty information, refer to page 87.

Top-freezer refrigerators

CTX18DAB

CTX16HAB

CTX18BAC

Page 10

Arrange wire Everwhite shelves for day-to-day needs; then adapt as storage needs change.

Nice Cubes

™

icemaker

Models equipped with Nice Cubes™icemaker let you provide continuous icemaking.

CTX21BAB

■

20.6 cubic foot capacity

■

6.30 cubic foot freezer

■

Two full-width wire Everwhite

cabinet shelves

■

Three door shelves, two with

tall bottle storage

■

Two classic white tall

vegetable/fruit crispers

■

White snack pan

■

Equipped for optional

automatic icemaker

CTX18CIB

■

18.2 cubic foot capacity

■

5.13 cubic foot freezer

■

One full-width classic white

vegetable/fruit crisper

■

Two full-width wire

Everwhite cabinet shelves

■

Equipped with factory-

installed Nice Cubes

™

icemaker

CTX18CAB (not shown)

■

Similar features and

appearance as CTX18CIB except is equipped for optional automatic icemaker.

Not all features available on all models. For additional features, specifications and color availability, refer to pages 18 and 19. For warranty information, refer to page 87.

Top-freezer refrigerators

CTX21BAB

CTX18CIB

Page 11

Bottom-freezer refrigerator

TCX18IAD

GE Refrigerator with bottom-

freezer

A versatile, bottom-freezer refrigerator that puts the fresh food compartment right at eye level.

TCX18IAD

■

17.6 cubic foot capacity

■

Two adjustable humidity vegetable/fruit crispers

■

Snack pan

■

Gallon door storage

■

Adjustable glass shelves

■

Wire Everwhite sliding freezer basket

■

Equipped for optional automatic icemaker

Gallon door storage provides easy access for oversized containers.

Page 12

CTX16CYB

■

16.4 cubic foot capacity

■

3.86 cubic foot freezer

■

Two adjustable wire Everwhite cabinet shelves

■

Tall bottle door storage

■

Two white vegetable/ fruit crispers

■

Recessed door handles

■

Equipped for optional automatic icemaker

CTX14CYB (not shown)

■

Similar features and appearance as CTX16CYB except 14.4 cubic foot capacity.

CTX16BYB

■

15.6 cubic foot capacity

■

3.86 cubic foot freezer

■

Tall bottle door storage

■

White snack pan

■

Two classic white vegetable/ fruit crispers

■

Recessed door handles

■

Equipped for optional automatic icemaker

CTX16CIB

■

16.4 cubic foot capacity

■

3.86 cubic foot freezer

■

Two full-width wire Everwhite cabinet shelves

■

Tall bottle door storage

■

Two white vegetable/ fruit crispers

■

Equipped with

factory installed Nice Cubes™ icemaker

CTX16CAB (not shown)

■

Similar features and appearance as CTX16CIB except equipped for optional automatic icemaker.

CTX14CIB (not shown)

■

Similar features and appearance as CTX16CIB except 14.4 cubic foot capacity.

CTX14CAB (not shown)

■

Similar features and appearance as CTX16CAB except 14.4 cubic foot capacity.

GE Top-freezer refrigerators

When space is limited, these refrigerators solve a host of food storage problems.

TBX16SSB (not shown)

■

15.6 cubic foot capacity

■

3.86 cubic foot freezer

■

Two full-width wire Everwhite cabinet shelves

■

Tall bottle storage

■

Only 64" high

TBX16RIC (not shown)

■

Similar features and appearance as the TBX16SSB except equipped with

factory-

installed Nice Cubes

™

icemaker

■

Only 64” high

TBX12SAX

■

12.1 cubic foot capacity

■

3.00 cubic foot freezer

■

Two full-width wire Everwhite cabinet shelves

■

Tall bottle storage

■

Two Ice ’N Easy trays

■

Classic white interior

TBX10SNB

■

9.8 cubic foot capacity

■

2.33 cubic foot freezer

■

Two full-width wire Everwhite cabinet shelves

■

Tall bottle storage

■

Two Ice ’N Easy trays

■

Classic white interior

■

Rounded doors

Recessed handles

Color-matched recessed door handles reflect the latest in European design and appearance.

Top-freezer refrigerators

CTX16CYB

Page 13

Not all features available on all models. For additional features, specifications and color availability, refer to page 19. For warranty information, refer to page 87.

Top-freezer refrigerators

CTX16CIB

TBX12SAX

CTX16BYB

TBX10SNB

Page 14

For additional features, specifications and color availability, refer to page 20. For warranty information, refer to page 87.

Cycle defrost refrigerators

Manual defrost refrigerator

GE Cycle defrost refrigerators

Provide manual defrosting in the zero-degree freezer.

TDX11SNY

■

11.0 cubic foot capacity

■

2.4 cubic foot freezer

■

Two modular door bins, two stationary shelves

■

Three adjustable wire Everwhite cabinet shelves

■

Full-width vegetable/fruit pan

■

Two mini Ice ’N Easy trays

■

Full-width freezer shelf

TDX9SNY (not shown)

■

9.0 cubic foot capacity

■

2.4 cubic foot freezer

■

Four modular door bins, one stationary shelf

■

Two adjustable wire Everwhite cabinet shelves

■

Full-width vegetable/fruit pan

■

Two mini Ice ’N Easy trays

■

Full-width freezer shelf

GE Manual defrost refrigerator

Single-door model with short-term frozen food compartment.

TAX10SNX

■

9.6 cubic foot capacity

■

.94 cubic foot compartment for short-term frozen food storage (not a zero-degree freezer)

■

Two adjustable wire Everwhite cabinet shelves

■

Full-width vegetable/fruit pan

■

Tall bottle storage

TDX11SNY

TAX10SNX

Page 15

For additional features, specifications and color availability, refer to page 20. For warranty information, refer to page 87.

Spacemaker™refrigerators

GE Spacemaker

™

refrigerators

Sizes and capacities for every need – the family room, den, office, dorm or cabin; spaceefficient models that bring surprising convenience to small places.

TAX6SNXWN/WH

■

6.0 cubic foot capacity

■

Two adjustable cabinet shelves

■

Reversible door

■

Available in white or woodgrain

■

Optional black panel or custom wood panel available with TK6 trim kit

TAX4SNCWH

■

4.3 cubic foot capacity

■

Three wire cabinet shelves

■

Two full-width and one half-width door shelves

■

Can rack in door

■

Rounded door

■

Reversible door

■

Available in white only

TAX4BNCBL

■

4.3 cubic foot capacity

■

Two wire cabinet shelves

■

White vegetable/fruit pan with cover

■

Two full-width and one half-width door shelves

■

Can rack in door

■

Reversible door

■

Available in black only

TAX2BNCBL

■

1.8 cubic foot capacity

■

One slide-out cabinet shelf

■

1-1⁄2 door shelves with retaining rod

■

Available in black only

TAX2SNCWH (not shown)

■

Similar features and appearance as the TAX2BNCBL except is only available in white.

TAX4SNCWH

TAX6SNXWH

TAX4BNCBL

TAX2BNCBL

Page 16

Upright freezers

Spacious GE Upright freezers from no-frost to compacts

Select from these quality uprights for ease in viewing frozen foods! A range of capacities handles your exact requirements.

FUM17DA

■

17.1 cubic foot capacity

■

Manual defrost

■

Four cabinet shelves (1 adj.)

■

Five door shelves

FUM21DA (not shown)

■

20.6 cubic foot capacity

■

Manual defrost

■

Four cabinet shelves (1 adj.)

■

Six door shelves

FUM14DA (not shown)

■

14.1 cubic foot capacity

■

Manual defrost

■

Three cabinet shelves (1 adj.)

FUM12SA (not shown)

■

11.6 cubic foot capacity

■

Manual defrost

■

Three cabinet shelves

■

Four door shelves

FUM14SA (not shown)

■

14.1 cubic foot capacity

■

Manual defrost

■

Three cabinet shelves

■

Five door shelves

FUM17SA (not shown)

■

17.1 cubic foot capacity

■

Manual defrost

■

Three cabinet shelves

■

Five door shelves

FUM21SA (not shown)

■

20.6 cubic foot capacity

■

Manual defrost

■

Four cabinet shelves

■

Six door shelves

FUM9SA

■

8.7 cubic foot capacity

■

Manual defrost

■

Four cabinet shelves

■

Five door shelves

FUM5SA (not shown)

■

5.0 cubic foot capacity

■

Manual defrost

■

Rounded doors

■

Two cabinet shelves

■

Three door shelves

Safety lock provides security.

FUF20DA Frost-Free (not shown)

■

20.3 cubic foot capacity

■

Five cabinet shelves (3 adj.)

■

Six door shelves

FUF17DA Frost-Free (not shown)

■

16.7 cubic foot capacity

■

Four cabinet shelves (3 adj.)

■

Five door shelves

FUF14DA Frost-Free (not shown)

■

13.7 cubic foot capacity

■

Three cabinet shelves (2 adj.)

For additional features, specifications and color availability, refer to page 21. For warranty information, refer to page 87.

FUM17DA

FUM9SA

Page 17

Chest freezers

For routine family needs, unexpected guests or changing schedules, there’s a chest freezer to keep you prepared. Cook meals ahead and freeze; or take advantage of supermarket specials.

FCM20DA

■

19.7 cubic foot capacity

■

Two lift-out and sliding bulk storage baskets

■

Temperature monitor with audible alarm

■

Interior light

■

Built-in lock

■

Power “ON” light

FCM25DA (not shown)

■

24.9 cubic foot capacity

■

Three lift-out and sliding bulk storage baskets

FCM15DA (not shown)

■

14.8 cubic foot capacity

■

Two lift-out and sliding bulk storage baskets

Lift-out and sliding wire baskets for easy loading and unloading.

FCM15SA (not shown)

■

14.8 cubic foot capacity

■

One lift-out and sliding bulk storage basket

FCM9SA

■

8.8 cubic foot capacity

■

Adjustable temperature control

FCM9DA (not shown)

■

8.8 cubic foot capacity

■

One lift-out and sliding bulk storage basket

■

Temperature monitor with audible alarm

■

Interior light

■

Built-in lock

FCM7DA (not shown)

■

7.2 cubic foot capacity

FCM5SA (not shown)

■

5.0 cubic foot capacity

■

Adjustable temperature control

GE Chest freezers from compact to large-capacity models

For additional features, specifications and color availability, refer to page 21. For warranty information, refer to page 87.

FCM9SA

FCM20DA

Page 18

Refrigeration specifications

Side-by-side no-frost refrigerators

Side-by-sides provide storage flexibility combined with high performance and style. A wide variety of convenience features include full-length freezer and separate storage compartments. The Automatic Energy Saver System and efficient foam insulation on no-frost models help cut operating costs.

Front View

Note: Before installing, consult installa-

tion instructions packed with product for current dimensional data.

Top View

Note: Before purchasing any appliance on

which the Federal Trade Commission requires an energy label, read important energy cost and efficiency information available from your retailer.

GE Refrigerator with bottom - freezer

A versatile, bottom-freezer refrigerator that puts the fresh food compartment right at eye level.

Listed by Underwriters Laboratories, Inc.

Bottom-freezer refrigerator

TCX18IAD

Capacity

Total (cu. ft.) 17.6

Fresh food (cu. ft.) 12.90

Freezer (cu. ft.) 4.7

Shelf area (sq. ft.) 23.0

Features

Automatic icemaker Opt. (IM3)

Ice ’N Easy trays 2

Ice tray shelf ■

Ice storage bin ■

Cabinet shelves

(spill-proof) 4 Glass

(adjustable) 4 Split

Snack pan ■

Vegetable/fruit crisper(s) 2 Adj. Humid.

Modular door bins 4 Adj.

1 Fixed w/

Door shelf (full-width) Gallon Storage

Dairy compartments 1 Clear

Interior light ■

Wire Everwhite freezer storage basket 1 Full-Width

Freezer compartment shelf 1 Full-Width

Freezer door shelves 2 Full-Width

Freezer interior light ■

Economical/Quiet

Cabinet/door insulation Foam

Appearance

Color(s) available* WW, AA

Full-length door handle(s) Color Matched

Textured steel doors and case ■

Door stops ■

Reversible doors ■

Adjustable front rollers ■

Adjustable rollers ■

Coil-free back ■

Weights & Dimensions

Height to top of hinge (in.) A 66-1/4

Height to top of case (in.) B 65-3/4

Case depth without door (in.) C 26-1/4

Case depth less door handle (in.) D 28

Case depth with door handle (in.) E 29-1/8

Depth with door open 90° (in.) F 57-1/4

Width (in.) G 31

Side clearance for 90° door open 1-3/4

Air clearances

Each side (in.) 0

Top (in.) 1

Back (in.) 0**

Approx. shipping wt. (lbs.) 247

**Color(s) available: WW = White on white, AA = Almond on almond

**Metal cover on back when touching wall, gives 1-1/4" clearance.

Front View

Top View

Side-by-side no-frost refrigerators

CSX26MRD CSX22GRB CSX22BCB CSX20BAB

Capacity

Total (cu. ft.) 25.6 21.9 21.9 19.7

Fresh food (cu. ft.) 16.0 14.95 14.95 12.95

Freezer (cu. ft.) 9.59 6.90 6.90 6.79

Shelf area (sq. ft.) 24.1 22.8 22.4 20.6

Features

Automatic icemaker ■■ ■Opt. (IM3)

Exterior crushed ice, cubes One Touch! One Touch! and chilled water service Dispenser Dispenser (Cubes only)

Dispenser light ■

Ice ’N Easy trays 2

Ice storage bin ■■■■

Cabinet shelves (total) 3 Glass Spill-proof 3 Glass 3 Wire Everwhite 3 Wire Everwhite

(adjustable) 3 3 3 3

Adj. Humid. Adj. Humid. Sealed Sealed

Vegetable/fruit crisper(s) (upper) (clear) (clear) (classic white) (classic white)

Adj. Temp. Adj. Temp. Sealed Sealed

Meat pan (lower) (clear) (clear) (classic white) (classic white)

4 (2 Adj. 4 (2 w/ 4 (2 w/ 4 (2 w/

Door shelves (total) w/gal. storage) gal. storage) gal. storage) gal. storage)

Dairy compartment Clear Clear White White

Utility bin ■■■■

Freezer compartment shelf(s) (Wire Everwhite) 3 Adj. 3 Adj. 4 (3 Adj.)

Freezer sliding baskets 3

Freezer sliding storage bin 1 1 1 1

Freezer door shelves (total) 5 5 5 6

Economical/Quiet

QuietSound Noise Reduction System ■■■■

Energy Saver (condenser loop) ■■■■

Insulation (cabinet) Foam Foam Foam Foam

Baked-Enamel- Baked-Enamel- Baked-Enamel- Baked-Enamel-

Cabinet liner on-Steel on-Steel on-Steel on-Steel

Door liner ABS ABS ABS ABS

Appearance

Color(s) available* WW, AA WW, AA WH WH, AD

Door handle(s) CM CM Black Black

Textured steel case & doors ■■■■

Adjustable rollers ■■■■

Door stops ■■■■

Coil-free back ■■■■

Weights & Dimensions

Height to top of hinge (in.) A 69-3/4 67-5/8 67-5/8 67-5/8

Height to top of case (in.) B 68-3/4 66-5/8 66-5/8 66-5/8

Case depth without door (in.) C 28 28 28 28

Case depth (less handle) with door (in.) D 30-1/2 30-1/2 30-1/2 30-1/2

Case depth with door handle (in.) E 32-1/2 32-1/2 32-1/2 32-1/2

Depth with door open 90° (in.) F 49-3/4 49-3/8 49-3/8 47-3/8

Width (in.) G 35-3/4 33-1/2 33-1/2 31-1/2

Width with door open 90° less door handle (in.) H 36-1/8 34-3/8 34-3/8 32-1/4

Air clearances

Each side (in.) 3/4† 3/4† 3/4† 3/4†

Top (in.) 1 1 1 1

Back (in.) 1 1 1 1

Approx. shipping weight (lbs.) 354 327 327 311

CM = Color Matched *Color(s) available: WW = White on white, AA = Almond on almond, WH = White/Black handles, AD = Almond/Black handles. †If installed against a wall, allow clearance of 11-1/4" on freezer side to remove ice bin.

See page 87 for warranty information.

H G

Page 19

Top-freezer no-frost refrigerators

CTX21DAB CTX18DAB CTX18CAB

CTX16CAB

CTX14CAB

CTX21DIB CTX21BAB CTX18DIB CTX16HAB CTX18BAC CTX18CIB CTX16CIB CTX16CYB CTX16BYB CTX14CIB CTX14CYB TBX16SSB TBX16RIC TBX12SAX TBX10SNB

Capacity

Total (cu. ft.) 20.6 20.6 18.2 15.6 17.6 18.2 16.4 16.4 15.6 14.4 14.4 15.6 15.6 12.1 9.8

Fresh food (cu. ft.) 14.25 14.25 13.04 11.69 13.62 13.04 12.58 12.58 11.69 10.58 10.58 11.69 11.69 9.10 7.50

Freezer (cu. ft.) 6.30 6.30 5.13 3.86 4.01 5.13 3.86 3.86 3.86 3.86 3.86 3.86 3.86 3.00 2.33

17.5 17.2

Shelf area (sq. ft.) 25.2 24.2 23.4 19.6 19.9 20.1 16.7 17.5 19.2 16.4 17.2 17.2 16.4 13.6 12.1

Features

Opt. (IM3) Opt. (IM3) Opt. (IM3) Opt. (IM3) Opt. (IM3)

Automatic icemaker ■ Opt. (IM3) ■ Opt. (IM3) Opt. (IM3) ■■Opt. (IM3) Opt. (IM3) ■ Opt. (IM3) Opt. (IM3) ■ Opt. (IM3)

2 2 2 2 2

Ice ’N Easy trays — 2 — 22—— 22 — 22 2 2

—— —— — Utility-

Ice storage bin Bucket Bucket ■■ Bucket Opaque

■■

Ice tray shelf — ■■— ■■

Cabinet shelves 2 Split, 2 F/W 2 Split, 2 Split, 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W

(total) 1 F/W Glass Wire 1 F/W Glass 1 F/W Glass Wire Wire Wire Wire Wire Wire Wire Wire Wire Wire Wire

(adjustable) 3 2 3 3 2 2 2 2 2 2 2 2 2 2

(spill-proof) 3 3

Door shelves 3 (2 w/gal. 3 (2 w/tall 2 w/gal. 2 w/gal. w/tall bottle storage storage) bottle) storage storage 2 2 2 2 2 2 2 2 2 2 2

1 F/W 1 F/W

2 (tall 2 (classic (classic 2 (classic 2 (classic 2 (classic 2 (classic 2 (classic 2 (classic 2 (classic (classic wh.) 1 (classic

Vegetable/fruit crisper(s) 2 (tall clear) classic white) 2 (tall clear) 2 Clear white) white) white) white) white) white) white) white) white) Divided white)

Snack pan Clear White Clear Clear White White

Dairy compartment(s) 1 Clear 1 White 1 Clear Clear 1 White 1 White 1 White 1 White 1 White 1 White 1 White 1 White ■■

■■ ■

Utility bin —- —- ■■— ■

Freezer compartment shelf(s) 1 Adj. F/W 1 Adj. F/W 1 Adj. F/W (Wire Everwhite) (2 Pos.) (2 Pos.) (2 Pos.) Step shelf Step shelf Trivet Step shelf 1 F/W

Freezer door shelves 2 2 2 2 2 2 2 2 2 2 2 2 2 2 4

Quiet/Economical

Cabinet/door insulation Foam Foam Foam Foam Foam Foam Foam Foam Foam Foam Foam Foam Foam Foam Foam

Cabinet/door liner ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS Plastic

Energy Saver Switch ■■■■■■ ■

Appearance

Color(s) available* WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WW, AA WH, AD WH

White

Door handle(s) CM CM CM CM CM CM CM Recessed Recessed CM Recessed CM CM Black recessed

Customer installed handles ■■■ ■■

Textured steel case & doors ■■■■■■■ ■■■■■■■■

Reversible doors ■■■■■■■■■ ■■■■

Right or left door opening ■■■■ ■■■■■

Coil-free back ■■■■■■■■■■■

4 Fixed 4 Fixed 4 Fixed 4 Fixed 4 Fixed 4 Fixed 4 Fixed (2 Level (2 Level (2 Level (2 Level (2 Level (2 Level (2 Level Level Level

Adjustable rollers ■■■■■■Legs) Legs) Legs) Legs) Legs) Legs) Legs) Legs Legs

Door stops ■■■■■■■■■ ■■■■■■

Weights & Dimensions

Height to top of hinge (in.) A 66-7/8 66-7/8 64-3/4 64-3/4 67-3/8 64-3/4 67-3/8 67-3/8 64-3/4 61-3/4 61-3/4 64-3/4 64-3/4 60-5/8 59-1/8

Height to top of case (in.) B 66-1/4 66-1/4 64 64-1/4 66-7/8 64 66-7/8 66-7/8 64-1/4 61-1/4 61-1/4 64-1/4 64-1/4 60-1/4 58-5/8

Case depth without door (in.) C 27-5/8 27-5/8 27-3/4 25-3/8 26-1/4 27-3/4 26-1/4 26-1/4 25-3/8 25-3/8 25-3/8 25-3/8 25-3/8 27-7/16 25

Case depth with door less handle (in.) D 30 30 30 27-7/8 30 30 28-3/4 28-3/4 27-7/8 27-7/8 27-7/8 27-7/8 27-7/8 29-11/16 26-3/8

Case depth with door handle (in.) E 31-3/4 31-3/4 31-3/4 29-3/4 31-7/8 31-3/4 30-5/8 28-3/4 27-7/8 29-3/4 27-7/8 29-3/4 29-3/4 31-7/16 28

Depth with door open 90° (in.) F 60 60 58-1/8 54-3/8 55-7/8 58-1/8 55-1/4 55-1/4 54-3/8 54-3/8 54-3/8 54-3/8 54-3/8 51-9/16 48-3/4

Width (in.) G 31-1/4 31-1/4 29-3/8 28 28 29-3/8 28 28 28 28 28 28 28 23-3/8 23-5/8

Width with door open 90° less handle (in.) H 31-1/4 31-1/4 29-3/8 28-1/4 28-7/8 29-3/8 28-1/4 28-1/4 28-1/4 28-1/4 28-1/4 28-1/4 28-1/4 23-9/16 24-1/8

Air clearances

Each side (in.) 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4† 3/4†

Top (in.) 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1

Back (in.) 1 1 1 1 1 1 1 1 1 1 1 1 1 3/4 1

190 170

Approx. shipping weight (lbs.) 229 229 213 190 196 213 195 190 186 174 174 170 170 152 157

Top-freezer no-frost refrigerators

Enjoy the convenience of a large capacity freezer at eye level. The refrigerator compartment features distinctive storage bins and, on most models, adjustable shelves that adapt quickly to changing storage needs. Energy Saver Switch and efficient foam insulation help cut operating costs.

Front View

Top View

Refrigeration specifications

See page 87 for warranty information.

Page 20

GE Cycle and manual defrost refrigerators

Cycle defrost:

Two-door refrigerators combine dependability in food storage with economical operation. Freezer requires manual defrost.

Manual defrost:

Single-door refrigerators feature a compartment for short-term frozen food storage and a fresh food compartment with an adjustable shelf.

Top View

Front View

Top View

Front View

Refrigeration specifications

Front View

Top View

Note: Right-hand Refrigerator Door: As you face the front of the refrigerator,

the handle is on your left and the hinges are on your right. Left-hand Refrigerator Door: As you face the front of the refrigerator, the handle is on your right and the hinges are on your left.

GE Cycle GE Manual defrost defrost two door single door

TDX11SNY TDX9SNY TAX10SNX

Capacity

Total (cu. ft.) 11.0 9.0 9.6

Fresh food (cu. ft.) 8.60 6.60 8.64

Freezer (cu. ft.) 2.40 2.40 .94*

Shelf area (sq. ft.) 15.5 15.2 9.88

Features

Ice ’N Easy trays 2 Mini 2 Mini 2

Freezer chiller tray with baffle ■

Cabinet shelves wire Everwhite 3 Adj. 2 Adj. 2 Adj.

Vegetable/fruit crisper 1 F/W 1 F/W 1 F/W

2 Modules, 4 Modules,

Door shelves 2 Stationary 1 Stationary 3 F/W

Tall bottle storage on door ■■■

Dairy compartment(s) 2 2 1

Egg storage bin Pockets

Freezer compartment shelf(s) 1 F/W 1 F/W

Economical/Quiet

Cabinet/door insulation Foam Foam Foam

Cabinet/door liner Plastic Plastic Plastic

Appearance

Color(s) available White White White/Almond

Door handle(s) White White Black

Reversible doors ■■■

Right or left door opening ■

Weights & Dimensions

Height to top of hinge (in.) A 63-1/2 55 58

Height to top of case (in.) B 63 54-1/2 57-9/16

Case depth without door (in.) C 20-1/2 20-1/2 21-3/8

Case depth less door handle (in.) D 23-1/4 23-1/4 23-1/2

Case depth with door handle (in.) E 24-1/2 24-3/4 24-13/16

Depth with door open 90° (in.) F 46 46 44-13/16

Width (in.) G 23-1/4 23-1/2 23

Width with door open 90° (in.) H 23-3/4 23-3/4 23-1/2

Air clearances

Each side (in.) 1/2 1/2 5/8

Top (in.) 2 2 2

Back (in.) 2 2 1

Approx. shipping weight (lbs.) 139 126 135

*Compartment for short-term storage of frozen food. The frozen food compartment of this

refrigerator will make ice, and pre-frozen foods can be stored for about two weeks. It will not effectively freeze fresh foods or provide long-term storage for meats, poultry, or fish.

GE Spacemaker™compact refrigerators

TAX6SNXWH TAX6SNXWN TAX4BNCBL TAX4SNCWH TAX2SNCWH TAX2BNCBL

Capacity

Total (cu. ft.) 6.0 4.3 4.3 1.8 1.8

Fresh food (cu. ft.) 5.51 3.26 3.26 1.51 1.51

Freezer (cu. ft.) .49* .42* .42* .21* .21*

Shelf area (sq. ft.) 8.8 6.0 6.0 2.9 2.9

Features

Ice ’N Easy trays 2 Mini 1 Mini 2 Mini 1 Mini 1 Mini

Manual defrost ■■■■■

Cabinet shelves 2 (Adj.) Full-width wire Full-width wire 1 Plastic 1 Plastic

Vegetable/fruit pan White

Door shelves 3 F/W 2 F/W, 1 H/W 2 F/W, 1 H/W 1-1/2 1-1/2

Utility bin Tray

Economical/Quiet

Cabinet/door insulation Foam Foam Foam Foam Foam

Cabinet/door liner Polystyrene Polystyrene Polystyrene Polystyrene Polystyrene

Appearance

White

Color(s) available Woodgrain Black White White Black

White Visor Color-Matched Color-Matched Color-Matched Color-Matched

Door handles Black Visor Recessed Recessed Recessed Recessed

Rounded doors ■■ ■

Reversible door(s) ■■ ■

Right or left door opening Right Hand

Weights & Dimensions

Height (in.) A 34-1/4 32-7/8 32-7/8 19-7/8 19-7/8

Width (in.) B 23-5/8 20-1/16 20-1/16 18-7/8 18-7/8

Depth with handle (in.) C 25-7/8 21-7/8 21-7/8 19-1/4 19-1/4

Depth with door open 90° (in.) D 47-1/2 39-1/4 39-1/4 37 37

Air clearances

Each side (in.) 0†† 1/2 1/2 1/2 1/2

Top (in.) 1-1/2 2 2 2 2

Back (in.) 3/4 2 2 2 2

Approx. shipping weight (lbs.) 88 77 77 51 51

Accessories

Custom trim kit TK6 Optional†

*Compartment for short-term storage of frozen food. The frozen food compartment of this refrigerator will make

ice, and pre-frozen foods can be stored for about two weeks. It will not effectively freeze fresh foods or provide long-term storage for meats, poultry, or fish.

†TK6 trim kit comes with black panel.

††If installed against a wall, allow 1-1/4" on hinge side to allow for proper door opening.

Cycle defrost

Manual defrost

See page 87 for warranty information.

Page 21

op View

Freezer specifications

GE Upright freezers

Quality, convenient freezers equipped with door shelves and spacious interiors for ease in viewing frozen foods.

GE Chest freezers

Large-capacity or smaller chest models save money and deliver big performance features.

Listed by Underwriters Laboratories, Inc.

Total volume and shelf area ratings are calculated by the Association of Home Appliance Manufacturers’ standards.

Front View

Top View

Front View

Side View

GE Upright frost-free GE Upright manual defrost

FUF20DA FUF17DA FUF14DA FUM21DA FUM21SA FUM17DA FUM17SA FUM14DA FUM14SA FUM12SA FUM9SA FUM5SA

Capacity

Total volume (cu. ft.) 20.3 16.7 13.7 20.6 20.6 17.1 17.1 14.1 14.1 11.6 8.7 5.0

Shelf area (sq. ft.) 23.9 18.4 14.3 25.3 21.9 19.1 16.2 17.9 15.0 13.0 10.1 6.0

Features

Audible temperature alarm ■■■■ ■ ■

Temperature control Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable

Limited food loss warranty ■■■■■■■■■■■■

Door shelves (total) 6 5 5665555453

Defrost water drain ■■■■■■■

Power “ON” light ■■■■ ■ ■

Interior light ■■■■ ■ ■

Lock ■■■■ ■ ■

Cabinet shelves (total) 5 (3 Adj.) 4 (3 Adj.) 3 (2 Adj.) 4 (1 Adj.) 4 4 (1 Adj.) 3 3 (1 Adj.) 3342

Refrigerated shelves 343323342

Bulk storage basket Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out

Drop-front storage ■■■■

Economical/Quiet

Defrost Frost-Free Frost-Free Frost-Free Manual Manual Manual Manual Manual Manual Manual Manual Manual

Magnetic door gasket ■■■■■■■■■■■■

Baked Baked Baked Baked Baked Baked Baked Baked Baked Baked

enamel-on- enamel-on- enamel-on- enamel-on- enamel-on- enamel-on- enamel-on- enamel-on- enamel-on- enamel-on-

Cabinet liner steel steel steel steel steel steel steel steel steel steel Polystyrene Polystyrene

Wrap-around condenser ■■■■■■■■■■■■

Appearance

Color available White White White White White White White White White White White White

Door handle ■■■■Recessed ■ Recessed ■ Recessed Recessed ■ Recessed

Textured steel case and door ■■■■■■■■■■■■

Rounded door ■

Weights & Dimensions

Height (in.) A 70 64-1/2 59 70 70 64-1/2 64-1/2 59 59 54-1/2 53-3/8 33-1/2

Width (in.) B 32 32 28 32 32 32 32 28 28 28 21-1/2 21-3/8

Depth (in.) C 28-1/2 26-1/2 28-1/2 28-1/2 28-1/2 26-1/2 26-1/2 28-1/2 28-1/2 26-1/2 26-3/8 26-1/8

Depth with door open 90° (in.) D 59-1/8 57-1/8 55-1/8 59-1/8 59-1/8 57-1/8 57-1/8 55-1/8 55-1/8 53-1/8 49-1/8 45-3/4

Air clearances

Each side (in.) 3 3 3 3 3 3 3 3 3 3 1 1

Top (in.) 3 3 3333333344

Back (in.) 3 3 3 3 3 3 3 3 3 3 4 4

Approx. shipping weight (lbs.) 231 213 173 231 231 211 211 173 173 168 120 80

NOTE: For proper installation of Upright Freezers (except FUM9SA and FUM5SA), allow clearance of 3" on each side; 3" or 4" on top; and 3" on back.

GE Chest freezers

FCM25DA FCM20DA FCM15DA FCM15SA FCM9DA FCM9SA FCM7DA FCM5SA

Capacity

Total volume (cu. ft.) 24.9 19.7 14.8 14.8 8.8 8.8 7.2 5.0

Features

Manual defrost ■■■■ ■■■■

Audible temperature alarm ■■■ ■

Temperature control Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable

Wrap-around condenser ■■■■ ■■■■

Wrap-around evaporator ■ ■■■■■■■

Limited food loss warranty ■■■■ ■■■

Defrost water drain ■■■■ ■■■

Power “ON” light ■■■ ■

Interior light ■■■ ■

Lock ■■■ ■

Removable sliding bulk storage basket(s) 3 2 2 1 1 1

Economical/Quiet

Cabinet/lid insulation—Foam ■■■■ ■■■■

Steel Steel Steel Steel Steel Steel Steel Steel

Cabinet liner Epoxy-Coated Epoxy-Coated Epoxy-Coated Epoxy-Coated Epoxy-Coated Epoxy-Coated Epoxy-Coated Epoxy-Coated

Appearance

Color available White White White White White White White White

Handle ■■■Recessed ■ Recessed ■ Recessed

Textured steel case and lid ■ ■■■■■■■

Weights & Dimensions

Height (in.) A 35 35 35 35 34-1/4 34-1/4 34-1/4 34-1/4

Width (in.) B 73-1/4 61-1/4 48 48 41 41 35 27

Depth (in.) C 29-1/2 29-1/2 29-1/2 29-1/2 23-1/4 23-1/4 23-1/4 23-1/2

Height with lid open (in.) D 60-3/4 59-1/2 60-3/4 60-3/4 55-1/4 55-1/4 55-1/4 55-1/4

Air clearances

Each side (in.) 3 3 3 3 3 3 3 3

Back (in.) 3 3 3 3 3 3 3 3

Approx. shipping weight (lbs.) 229 201 160 160 137 137 120 105

NOTE: For proper installation of Chest Freezers, allow clearance of 3" on each side and 3" on back.

See page 87 for warranty information.

Page 22

All features may not be available on all models.

*Among leading manufacturers’ brands

Smooth top ranges

The Hotpoint free-standing smooth top ranges provide quick cooking response. The fast, ribbon heating elements are positioned beneath the smooth cooktop and direct heat straight up to the pan. This sophisticated cooking method provides even heat for uniform cooking. The hot surface indicator lights provide safe, confident cooking. Electronic oven controls provide an easy, two-step self-cleaning oven operation.

Single control knob

Quickly and easily sets your oven to bake, broil, or even self-clean with the turn of a single control.

Removable full-width storage drawer

Conveniently stores cooking utensils close at hand. Drawer removes easily for cleaning underneath.

5.0 cu. ft. capacity

Hotpoint’s smooth top ranges now have America’s largest oven capacity.* This oven is big enough to handle just about any cooking possibility.

Ribbon heating elements

Unlike conventional elements, the heat comes from brightly glowing ribbon elements positioned beneath the smooth fingerprint and scratch resistant patterned glass surface.

Frameless glass oven door

The full-width frameless door offers easy-clean, contemporary styling.

Two-step self-clean

Simply latch the oven door and turn to “Auto Self-Clean”– the oven does the rest.

Electronic oven controls

Easy-to-use electronic oven controls provide:

■

Simple touchpad oven operation ■Auto Self-Clean

■

Self-clean cycling light ■Preheated oven light with audible preheat signal ■Auto oven shut-off ■Electronic clock and timer ■Automatic oven timer ■Oven “ON” light

■

Delay Bake option.

RB787BC

Smooth top ranges

Page 23

All features may not be available on all models.

*Among leading manufacturers’ brands

Electronic oven controls

Easy-to-use electronic oven controls provide: ■Simple touchpad oven operation ■Auto Self-Clean ■Self-clean cycling light

■

Preheated oven light with audible preheat signal ■Auto oven

shut-off ■Electronic clock and timer ■Automatic oven timer

■

Oven “ON” light ■Delay Bake option.

Frameless glass oven door

The full-width frameless door offers easy-clean, contemporary styling.

Plug-in surface elements

Unplug to permit clean-up or removal of drip bowls for easy cleaning in dishwasher. Plus easy access for cleaning of recessed areas designed to catch spillovers.

Lift-up cooktop

Cooktop lifts up to allow easy clean-up of hard-to-reach spots underneath.

Removable full-width storage drawer

Conveniently stores cooking utensils close at hand. Drawer removes easily for cleaning underneath.

Two-step self-clean

Simply latch the oven door and turn to “Auto Self-Clean”– the oven does the rest.

One-piece upswept cooktop

No cracks or crevices to trap dirt! The porcelain enamel-on-steel surface wipes clean easily.

Calrod®surface elements

An exclusive feature. The design of the removable Calrod®surface elements assures fast, clean cooking and better heat distribution.

RB757WC

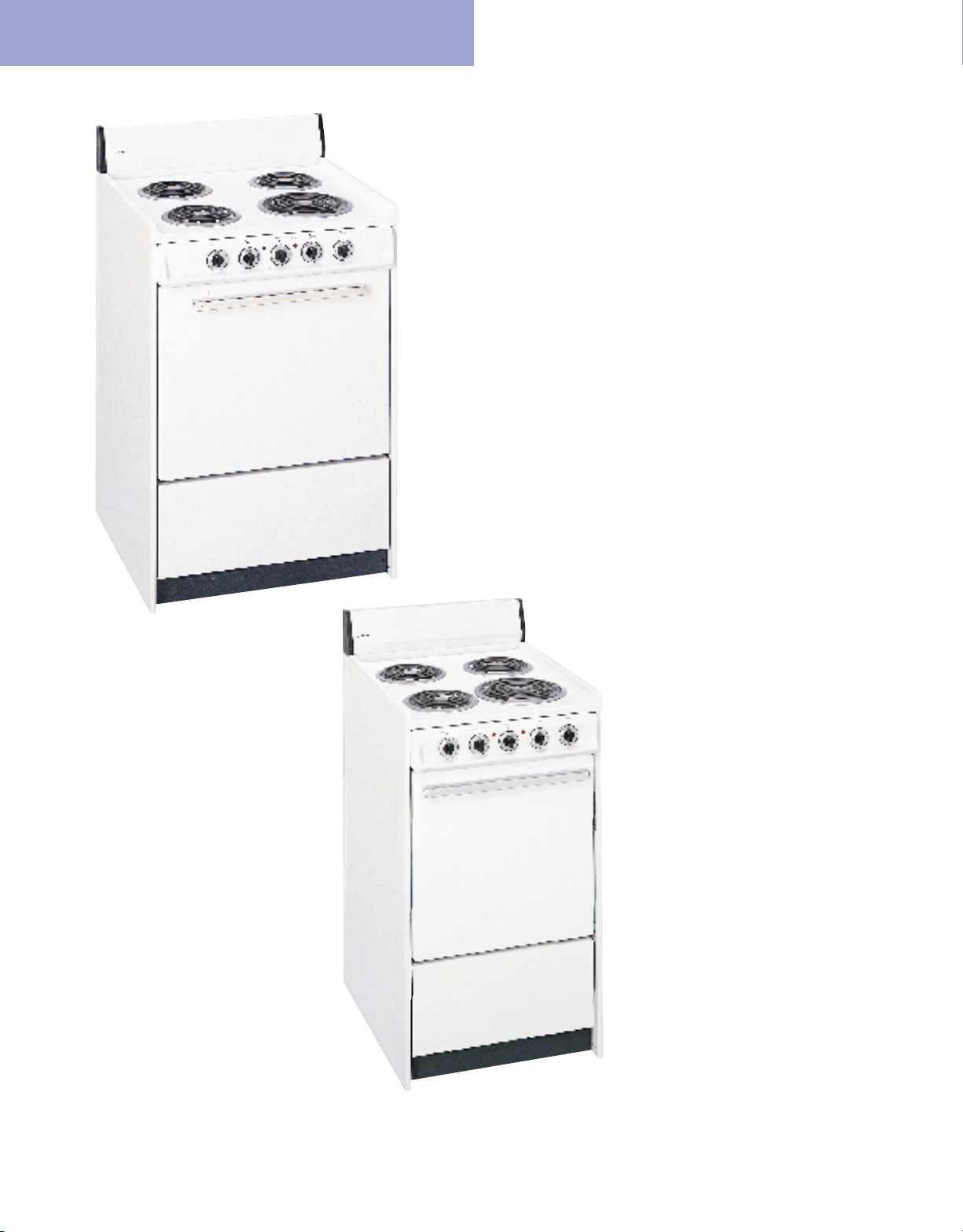

Electric ranges

Quality Hotpoint free-standing electric ranges are perfect solutions for today’s busy schedules! Self-cleaning ovens save you time and effort. On ranges with one-piece, upswept cooktops, a simple wipe-up does the job. White on white models are designed to complement the elegance and efficiency of today’s kitchens.

Electric ranges

5.0 cu. ft. capacity

Hotpoint’s standard clean ranges now have America’s largest oven capacity.* This oven is big enough to handle just about any cooking possibility.

Page 24

RB797WC

■

White on white model

■

Circuwave

™

■

Smooth, easy-to-clean fingerprint and scratch resistant patterned glass cooktop

■

Two 8" and two 6" ribbon heating elements

■

Hot surface indicator lights

■

Frameless white glass oven door with window

■

Designer-style handle

RB797AC

■

Same features and appearance as RB797WC, available in Almond on almond.

RB797BC

■

Same features and appearance as RB797WC, available in Black on black.

RB787WC

■

White on white model

■

Smooth, easy-to-clean fingerprint and scratch resistant patterned glass cooktop

■

Two 8" and two 6" ribbon heating elements

■

Hot surface indicator lights

■

Auto oven shut-off

■

Two-step self-clean

■

Single oven control knob

■

Frameless white glass oven door with window

■

Designer-style handle

RB787BC

■

Same features and appearance as RB787WC, except Black on black.

RB757WC

■

White on white model

■

Auto oven shut-off

■

Two-step self-clean

■

Two 8" and two 6" plug-in Calrod®heating elements with one-piece chrome drip bowls

■

Lift-up cooktop

■

Frameless white glass oven door with window

■

Designer-style handle

RB757BC

■

Same features and

appearance as RB757WC, except has porcelain-enameled drip bowls and is available in White or Almond with black glass oven door.

RB753BC

■

White or almond model

■

Two 8" and two 6" plug-in Calrod®heating elements with one-piece chrome drip bowls

■

Frameless black glass oven door

■

Designer-style handle

30" electric ranges with self-clean ovens

Put an end to messy oven cleaning! Choose from these quality ranges, all with the convenience of self-cleaning ovens. Simply set the controls and the oven cleans itself. All models feature

5.0 cu. ft. capacity; electronic clock and minute timer; two oven shelves; broiler pan with grid; lift-off oven door; interior oven light; infinite heat controls; removable, full-width storage drawer; and porcelain-enameled, upswept cooktop. Models RB797WC/AC/BC and RB787WC/BC have ribbon cooktops.

30" electric ranges

RB787BC

Ribbon Range

RB797WC

Ribbon Range

RB787WC

Ribbon Range

Page 25

Electronic oven controls

Easy-to-use electronic oven controls provide:

■

Simple touchpad oven operation ■Auto Self-Clean

■

Self-clean cycling light ■Preheated oven light with audible preheat signal ■Auto oven shut-off ■Electronic clock and timer ■Automatic oven timer ■Oven “ON” light ■Delay Bake option.

For detailed specifications, installation information and color availability, refer to page 29. For warranty information, refer to page 87.

30" electric ranges

RB757BC

Self-Cleaning Oven

RB753BCB

Self-Cleaning Oven

RB757WC

Self-Cleaning Oven

Page 26

RB526C

■

White on white or Almond on almond model

■

Two 8" and two 6" plug-in heating elements

■

Color-matched oven door with window

■

Designer-style handle

■

Electronic clock and minute timer

RB525BC

■

White or almond model

■

One 8" and three 6" plug-in heating elements

■

Frameless solid black glass oven door

■

Chrome visor door handle

RB525C (not shown)

■

Same features and

appearance as RB525BC, except has color-matched painted oven door.

RB585WC

■

White on white model

■

Smooth, easy-to-clean, fingerprint and scratch resistant patterned glass cooktop

■

Two 8" and two 6" ribbon heating elements

■

Hot surface indicator lights

■

Electronic clock and minute timer

■

Auto oven shut-off with override

■

Audible pre-heat signal

■

Frameless white glass oven door with window

■

Designer-style handle

RB585BC

■

Same features and appearance as RB585WC, except available in white or almond with black glass oven door.

RB536BC

■

White or almond model

■

Electronic clock and minute timer

■

Lift-up cooktop

■

Two 8" and two 6" plug-in heating elements

■

Frameless black glass oven door with window

■

Designer-style handle

RB530WC

■

White on white model

■

Electronic clock and minute timer

■

Two 8" and two 6" plug-in heating elements

■

Designer-style handle

30" electric ranges with standard clean ovens

Choose from these quality Hotpoint ranges featuring standard clean ovens. Calrod®models feature easy-to-clean, upswept, porcelain-enameled cooktop; 5.0 cu. ft. capacity; two oven shelves; plug-in Calrod®heating elements; one-piece removable chrome drip bowls; full-width removable storage drawer and broiler pan with grid. (Except for model RB585 which has a ribbon cooktop.)

30" electric ranges

RB585WC

Page 27

For detailed specifications, installation information and color availability, refer to page 29. For warranty information, refer to page 87.

30" electric ranges

RB530WC

RB526C

RB536BC

RB525BC

Page 28

For detailed specifications, installation information and color availability, refer to page 30. For warranty information, refer to page 87.

Specialty application ranges

Hotpoint 20" electric range

RA524W

■

Standard clean oven

■

One 8" and three 6" plug-in heating elements with chrome drip bowls

■

Lift-up cooktop with porcelain-enameled subtop

■

Two heating element “ON” indicator lights

Hotpoint 24" electric range

RA520W

■

Standard clean oven

■

One 8" and three 6" plug-in heating elements with chrome drip bowls

■

Lift-up cooktop with porcelain-enameled subtop

■

Two heating element “ON” indicator lights

RA520W

RA524W

Page 29

1/4

†

30" free-standing range installation information (in inches)

Note: 30" Electric Ranges conform to U.L. requirements for 0"

spacing from walls below countertops. However some kitchen cabinet finishes can be damaged by heat from the range heating elements. It is recommended that a clearance of at least 1-1/2 inches be maintained to walls. Where varnished wood or plastic film finishes are used, a minimum clearance of 6 inches should be maintained.

Receptacle locations

Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against rear wall.

Installation information: Before installing, consult installation instructions packed with product for current dimensional data.

Listed by Underwriters Laboratories

FULL ONE-YEAR WARRANTY One year from date of original purchase, we will provide free of charge, parts and service labor in your home to repair or replace any part of the appliance that fails because of a manufacturing defect. Complete details from your dealer.

†

The range may be placed with a 0" clearance (flush) at the back wall and side walls if the range side trims extend beyond the cabinet fronts at least 1/4". Self-Clean models only.

All Hotpoint ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.

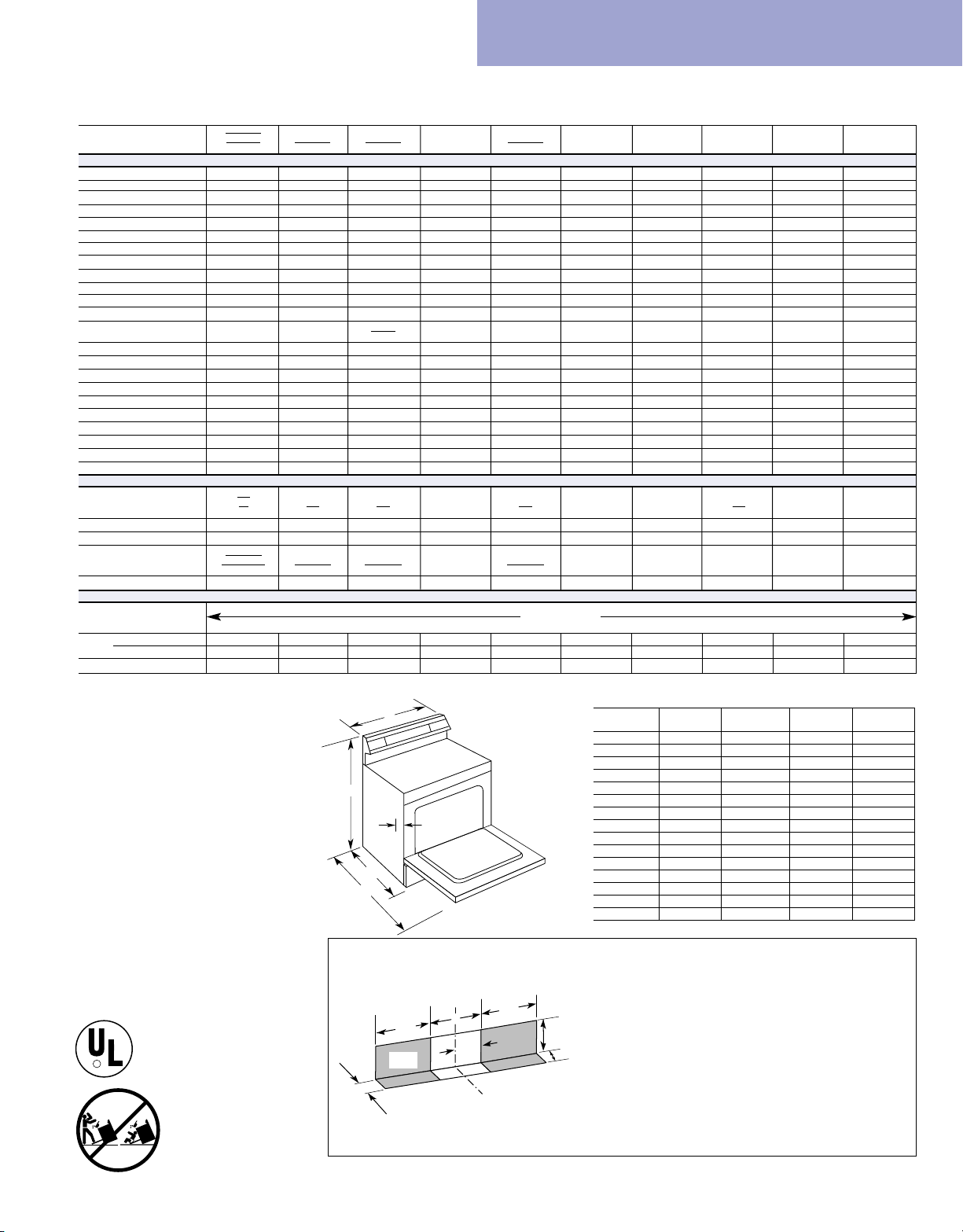

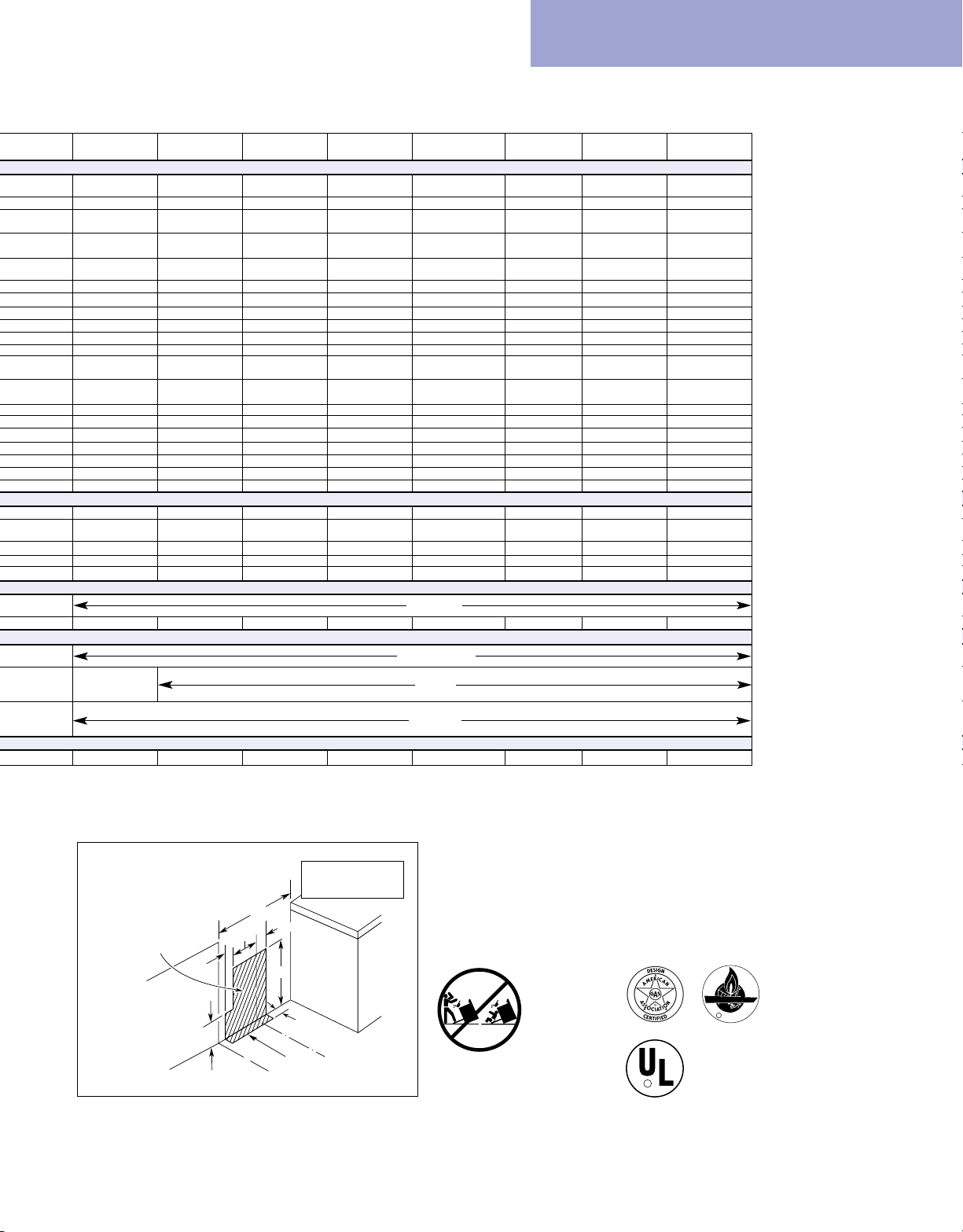

Electric range specifications

30" electric range dimensions (in inches)

ABC*D

Models Width Height Depth

RB797WC 29 -7/8 46-1/2 26-3/8 46-3/8

RB797AC 29 -7/8 46-1/2 26-3/8 46-3/8

RB797BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB787WC 29 -7/8 46-1/2 26-3/8 46-3/8

RB787BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB757WC 29 -7/8 46-1/2 26-3/8 46-3/8

RB757BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB753BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB585WC 29 -7/8 46-1/2 26-3/8 46-3/8

RB585BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB536BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB530WC 29 -7/8 46-1/2 26-3/8 46-3/8

RB526C 29 -7/8 46-1/2 26-3/8 46-3/8

RB525BC 29 -7/8 46-1/2 26-3/8 46-3/8

RB525C 29 -7/8 46-1/2 26-3/8 46-3/8

*Dimensions from wall to front of closed oven door.

23 -3/4 x 19 x 18-1/2

30" electric ranges

RB797WC RB797AC RB787WC

RB757WC RB585WC

Models RB797BC RB787BC RB757BC RB753BC RB585BC RB536BC RB530WC RB526C RB525BC RB525C

Features

Self-clean oven ■■■ ■

Oven capacity 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0

Cleaning time Variable Variable Variable Variable

Standard clean oven ■■■ ■■■

Circuwave

™

■

Oven shelves 2 2 22222 222

Patterned cooktop Ribbon Ribbon Ribbon

Porcelain-enameled upswept cooktop ■■ ■■ ■■■

Lift-up cooktop ■■ ■■ ■■■

8-inch heating elements 2 2 22222 211

6-inch heating elements 2 2 22222 233

Plug-in Calrod®heating elements ■■ ■■ ■■■

Removable one-piece Chrome drip bowls Porcelain Chrome Chrome Chrome Chrome Chrome Chrome

Electronic oven control ■■■■■

Electronic clock and minute timer ■■■■■■■ ■

Electronic automatic oven timer ■■ ■

Auto oven shut-off ■■■■■

Audible preheat signal ■■■■■

Hot surface indicator lights ■■ ■

Heating element “ON” indicator lights ■■ ■■ ■■■

Oven cycling light ■■■■■■■ ■■■

Interior oven light ■■■■■■■

Broiler pan with grid ■■■■■■■ ■■■

Appearance

AA WW WW WW WW

Color appearance* BB BB WH/AD WH/AD WH/AD WH/AD WW AA WH/AD WH/AD

Oven window door ■■■ ■ ■■ ■

Door handle Designer-Style Designer-Style Designer-Style Designer-Style Designer-Style Designer-Style Designer-Style Designer-Style Visor Visor

White Glass

Almond Glass

White Glass White Glass White Glass

Lift-off oven door Black Glass Black Glass Black Glass Black Glass Black Glass Black Glass White CM Glass Black Glass CM

Full-width storage drawer ■■■■■■■ ■■■

Weights and Dimensions

Overall oven interior dimensions (W x H x D in inches)

KW rating @ 240V 10.6 10.5 11.7 10.2 10.5 12.6 12.6 11.0 10.1 10.1

@ 208V 8.0 7.9 8.8 7.7 7.9 9.9 9.9 8.7 8.0 8.0

Approx. shipping weight (lbs.) 164 166 1 55 14 9 166 15 8 170 150 1 50 155

*BB=Black on black, WW=White on white, WH=White, AD=Almond, CM=Oven door is color-matched to cooktop and drawer front (either White or Almond).

Dimensions from wall to front of closed oven door handle: 28-1/2” on models RB797/787/757/753/585/536/530; 28-3/8” on RB526C and RB525BC; 28” on RB525C

See page 87 for warranty information.

7-1/2

3-1/2

CENTER LINE

2-1/4

7-1/2

REAR WALL

2-1/4

Page 30

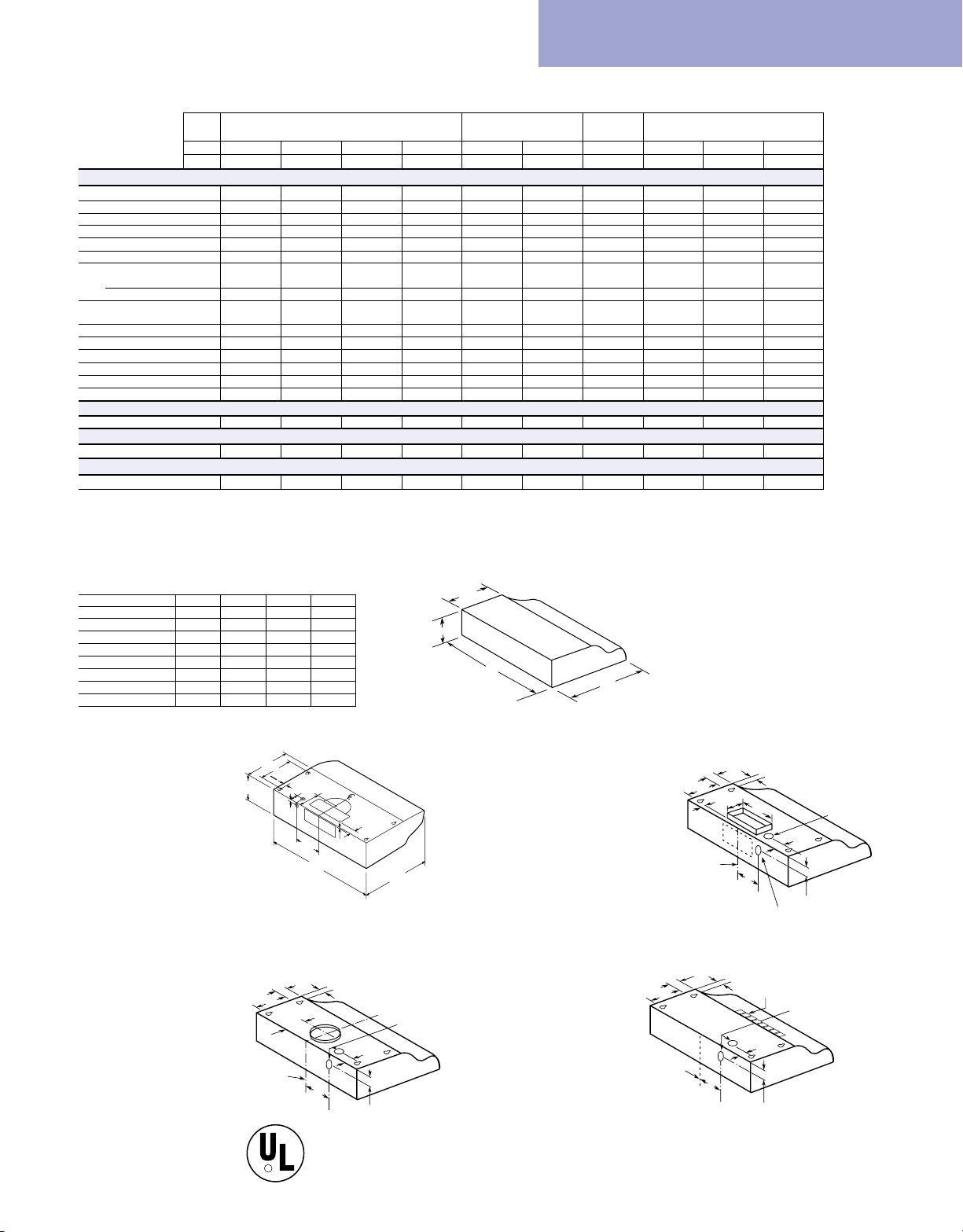

Electric range specifications

See page 87 for warranty information.

Installation information: Before installing, consult installation instructions packed with product for current dimensional data.

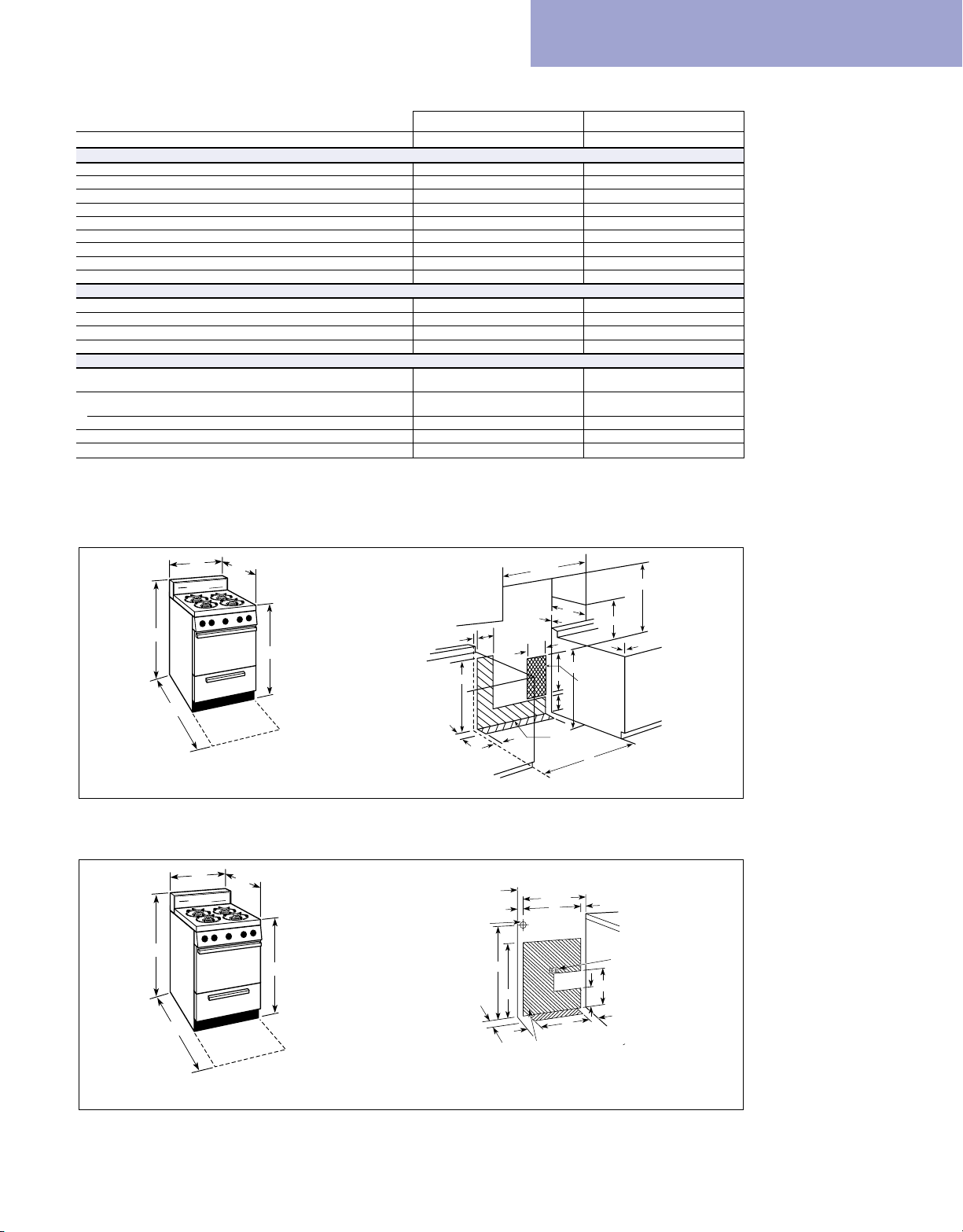

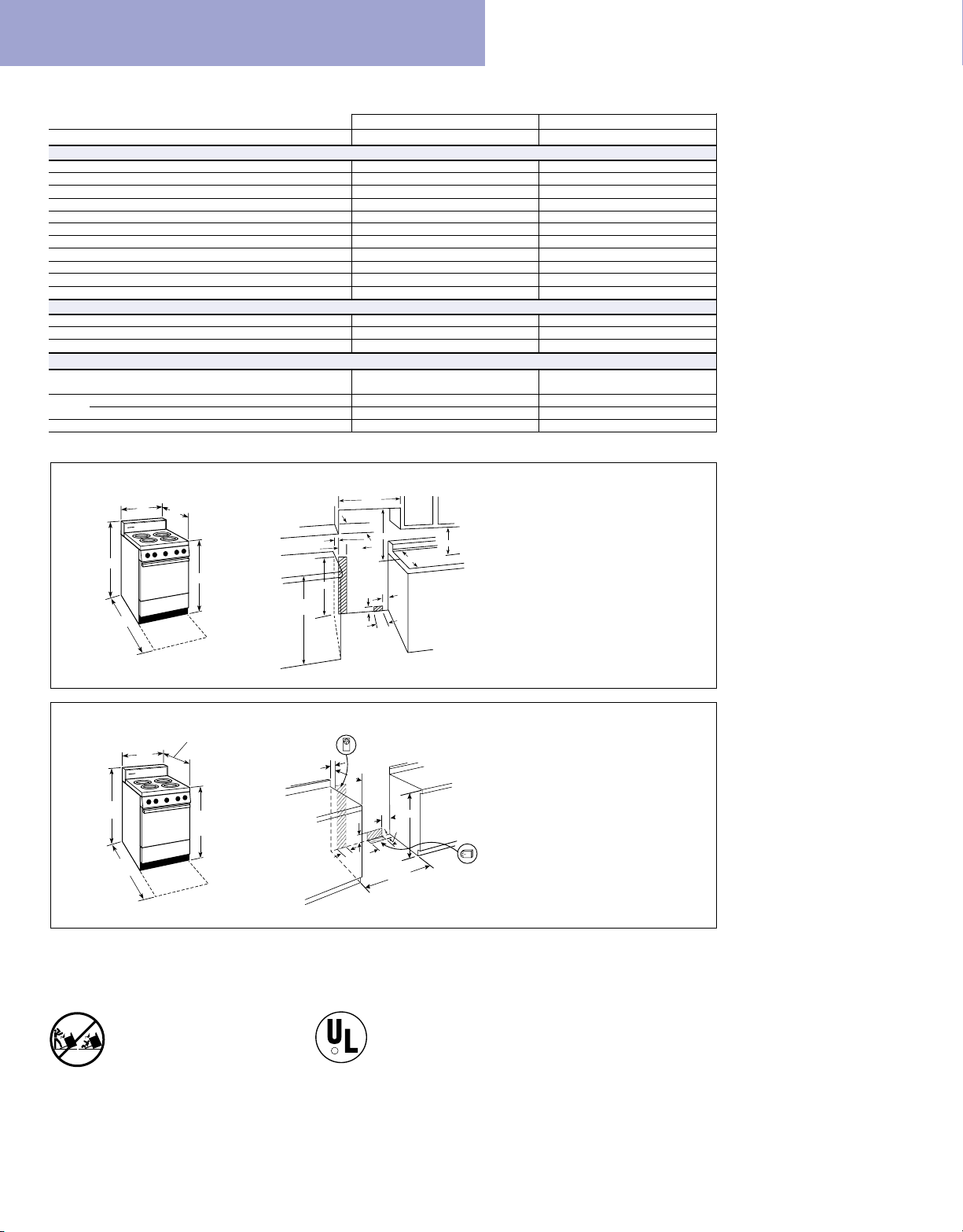

20" free-standing range dimensions and installation information (in inches)

2-1/2

Surface

mount

20-3/8

Flush

mount

1-3/4

Listed by Underwriters Laboratories

Hotpoint 24" and 20" electric ranges 24" range 20" range

Models RA524W RA520W Features

Oven cleaning Standard Standard Oven shelves 22 Recessed lift-up cooktop ■■ Porcelain-enameled subtop ■■ 8-inch heating elements 1 Plug-in 1 Plug-in 6-inch heating elements 3 Plug-in 3 Plug-in Removable drip bowls Chrome Chrome Push-to-turn controls ■■ Heating element “ON” indicator lights 2 2 Oven cycling light ■■ Broiler pan with grid ■■

Appearance

Color appearance WH/AD* WH/AD* Porcelain-enameled oven door Solid CM* Solid CM* Four leveling legs ■■

Weights and Dimensions

Overall oven interior dimensions (W x H x D in inches) 19 x 14 x 19 16 x 15 x 19 KW rating @ 240V 8.2 8.2

@ 208V 6.2 6.2 Approx. ship. wt. (lbs.) 145 120 *WH=White, AD=Almond, CM=Color-Matched.

24" free-standing range dimensions and installation information (in inches)

Receptacle locations

Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawings for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against rear wall.

Note: 24" Ranges conform to U.L. requirements for 0" spacing from range to adjacent walls below countertop. To reduce possibility of scorching of the side wall adjacent to the heating elements, it is recommended a 2" spacing from adjacent side walls be allowed for possible extended high-heat, no-load heating element operation.

Note: Compact 20" Electric Ranges conform to U.L. requirements for 0" spacing from range to adjacent walls below countertop. To reduce possibility of scorching of side walls adjacent to heating elements, it is recommended a minimum of 2-1/2" spacing from adjacent side walls be allowed for possible extended, high-heat, no-load operation of heating elements.

40-1/2

40-1/4*

*Depth including up-front angled control panel

24-3/8

18" Min.

36"

Max.

13" Max.

2-1/2

All Hotpoint ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.

Top of

side

panel

*Depth including handle 25-9/16". Depth to front of control knobs 26-1⁄8"

25-1/ 2*

from wall to front of control panel

40-1/2

40-1/4

Page 31

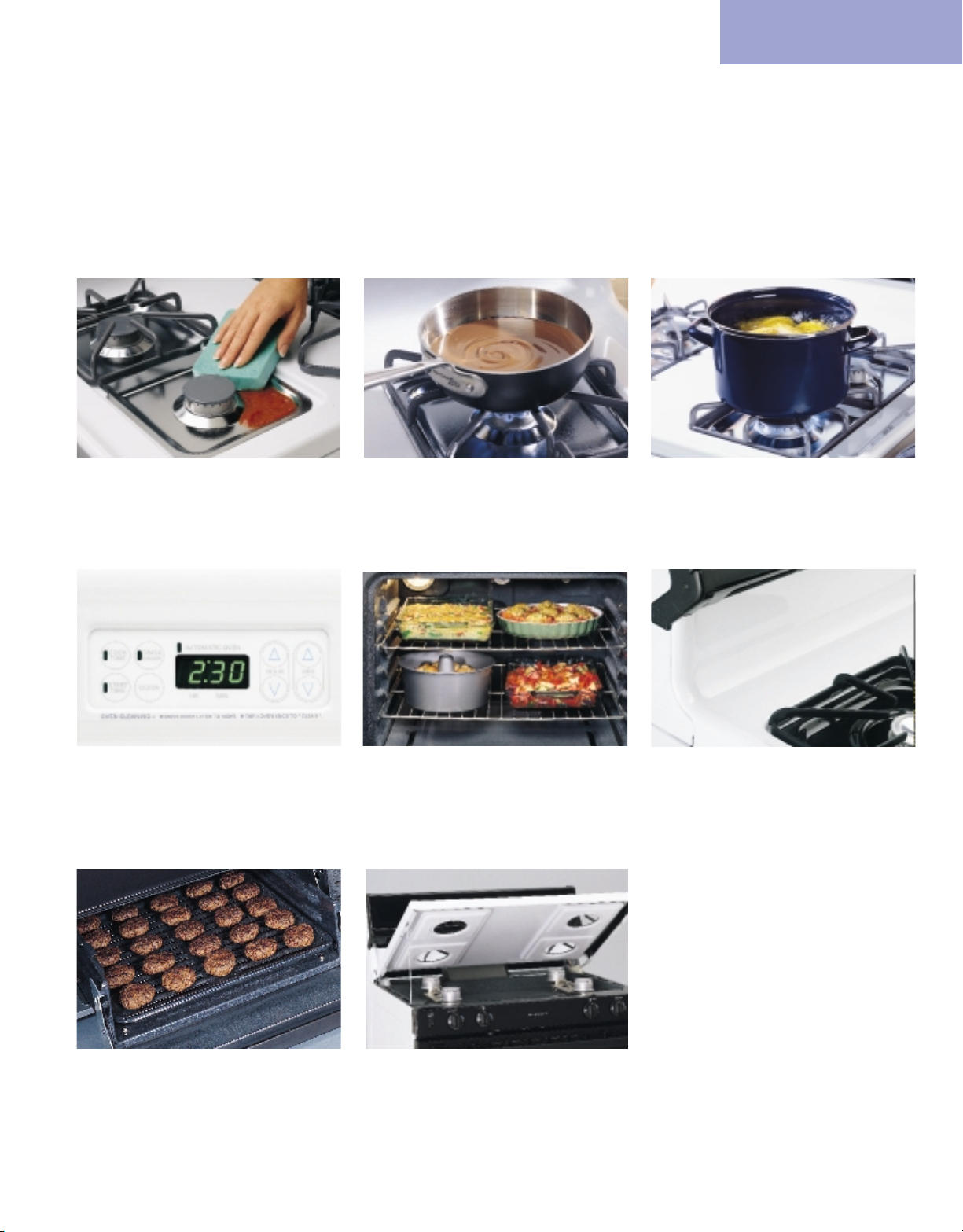

EasySet clock and oven timer

Easy-to-use electronic touchpad controls and delayed baking function with the convenience of knobs for controlling the oven, make cooking simple.

One-piece upswept cooktop

Has no cracks or crevices to trap dirt. The porcelain enamel-on-steel surface wipes clean easily.

Extra-large broiler pan/grid

Porcelain-enameled broiler pan and grid are extra large. Allows for extra broiling space.

Sealed gas burners

Special burner design helps contain spills and boilover liquids from dripping beneath cooktop for easy clean-up.

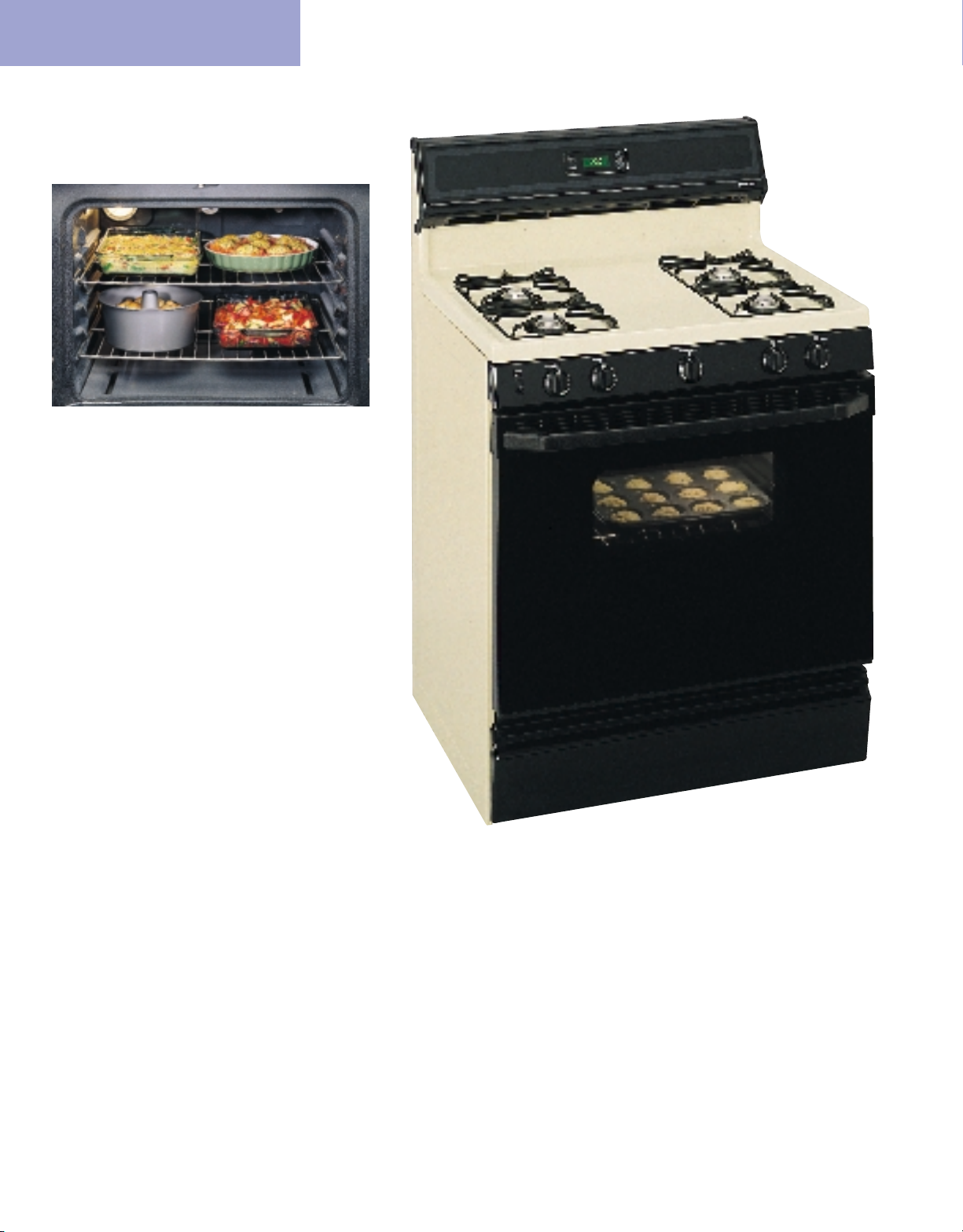

Capacity Plus™gas ranges

Extra-large oven has more usable capacity than any other leading brand. Sixth embossed rack position increases cooking flexibility.

Lift-up cooktop with easy-clean subtop

Standard burner models have a cooktop that lifts up for easy access to porcelain-enameled subtop. Twin rod supports allow cooktop to lift and lock into place. No pipes or wires to interfere with clean-up.

Simmer 600 burner

Offers true simmer capability with a low (600 BTU) setting. Provides low, even heat distribution for delicate foods and sauces.

Performance Plus burner

Provides maximum output (12,000 BTU) for fast heat-up and boiling.

Gas ranges

Hotpoint Capacity Plus™gas ranges feature:

■

More usable oven capacity than any other

leading manufacturer

■

Available with self-cleaning, continuous cleaning or standard

clean oven

■

Select models feature sealed burners that provide simmer

capability and maximum output

■

Extra-large broiler pan and grid

■

Six embossed rack positions

■

Upswept porcelain-enameled cooktop

All features may not be available on all models.

Gas ranges

Page 32

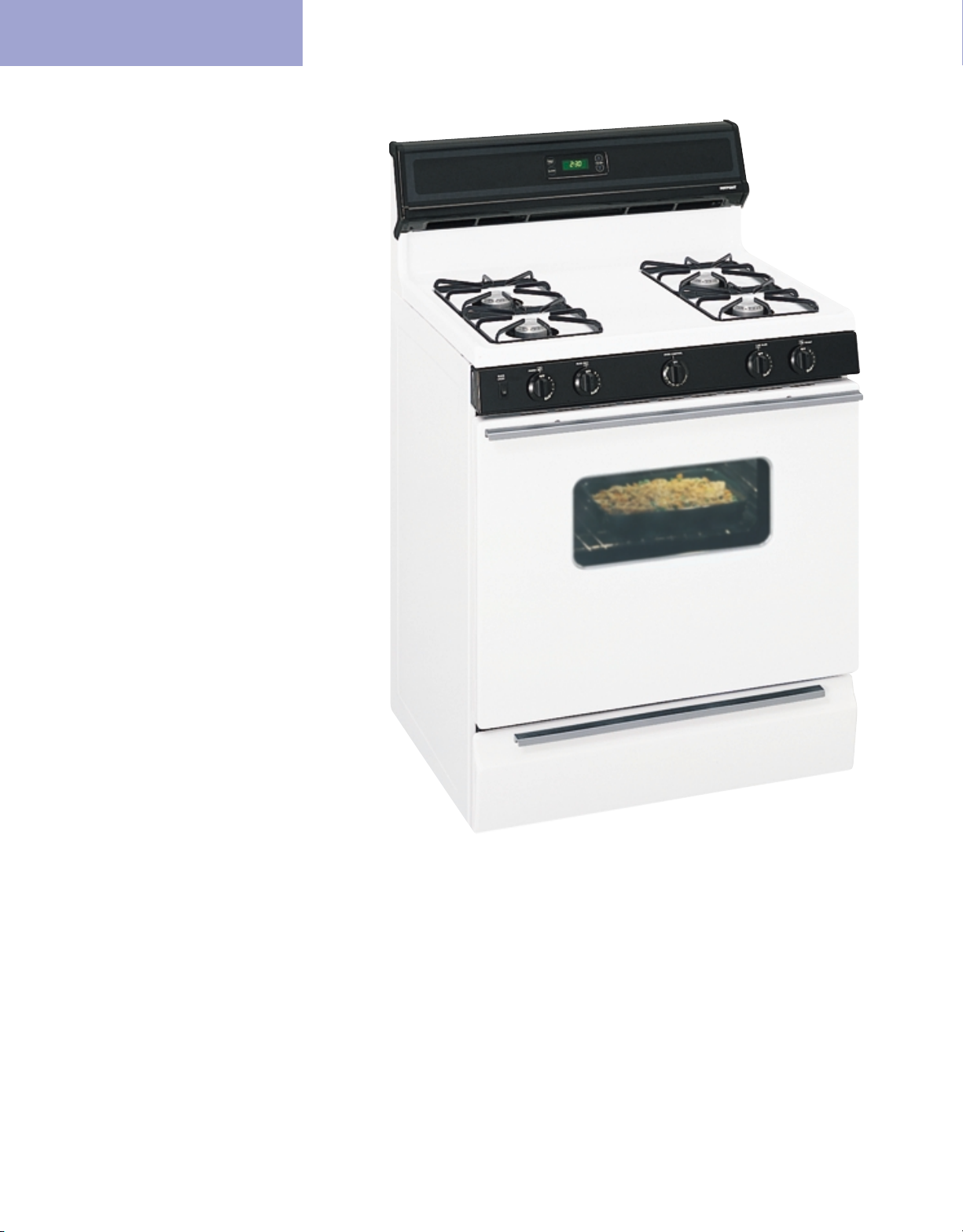

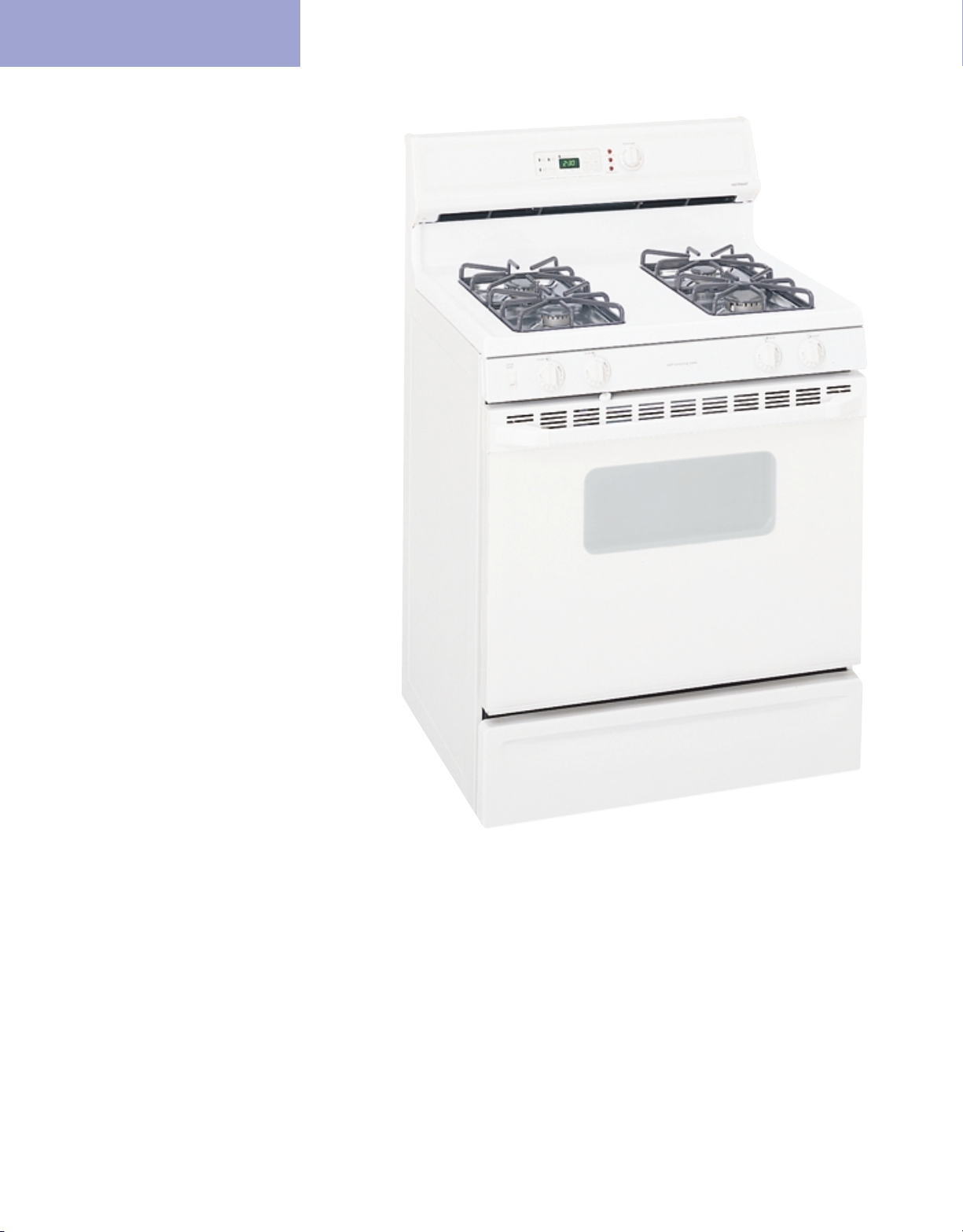

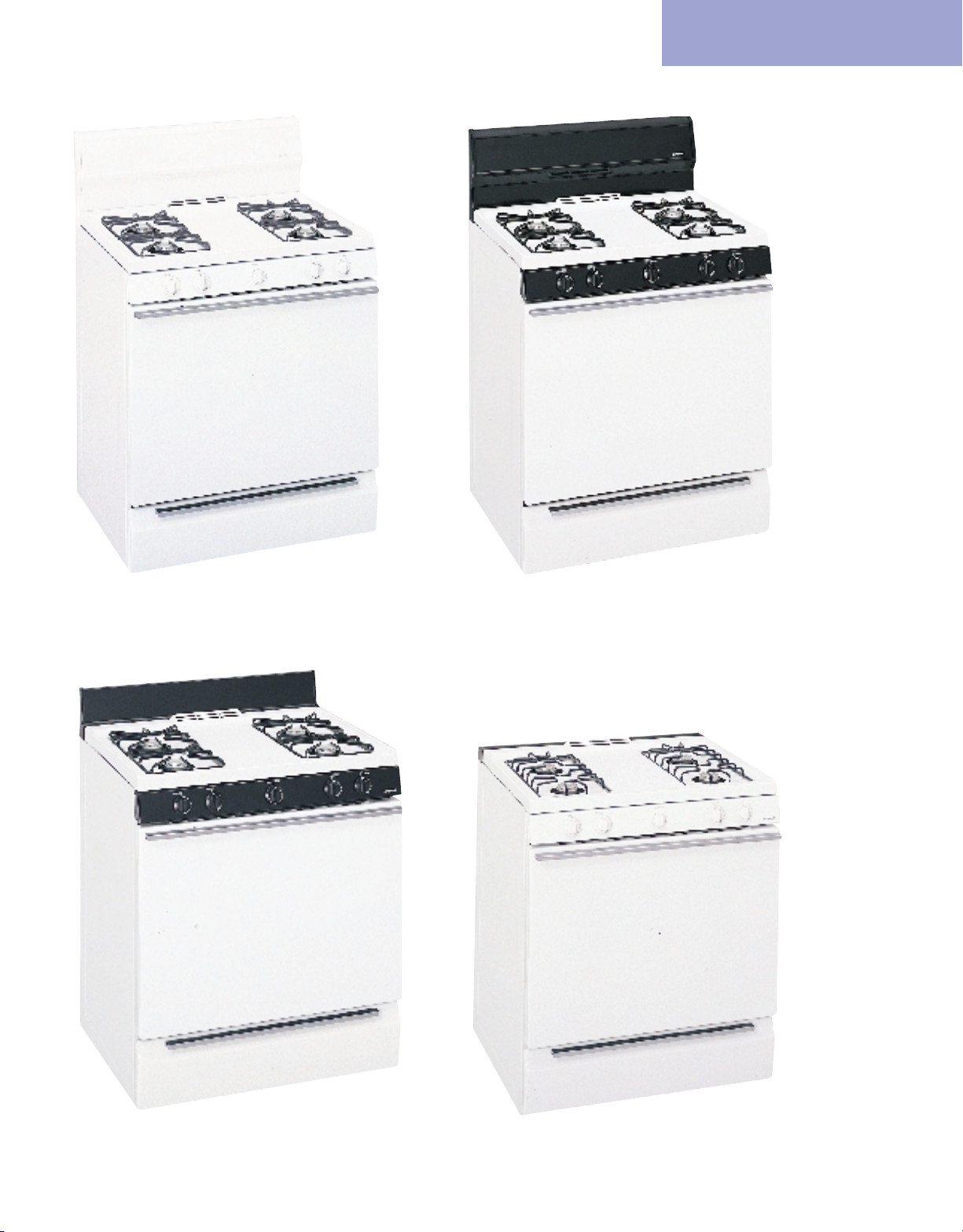

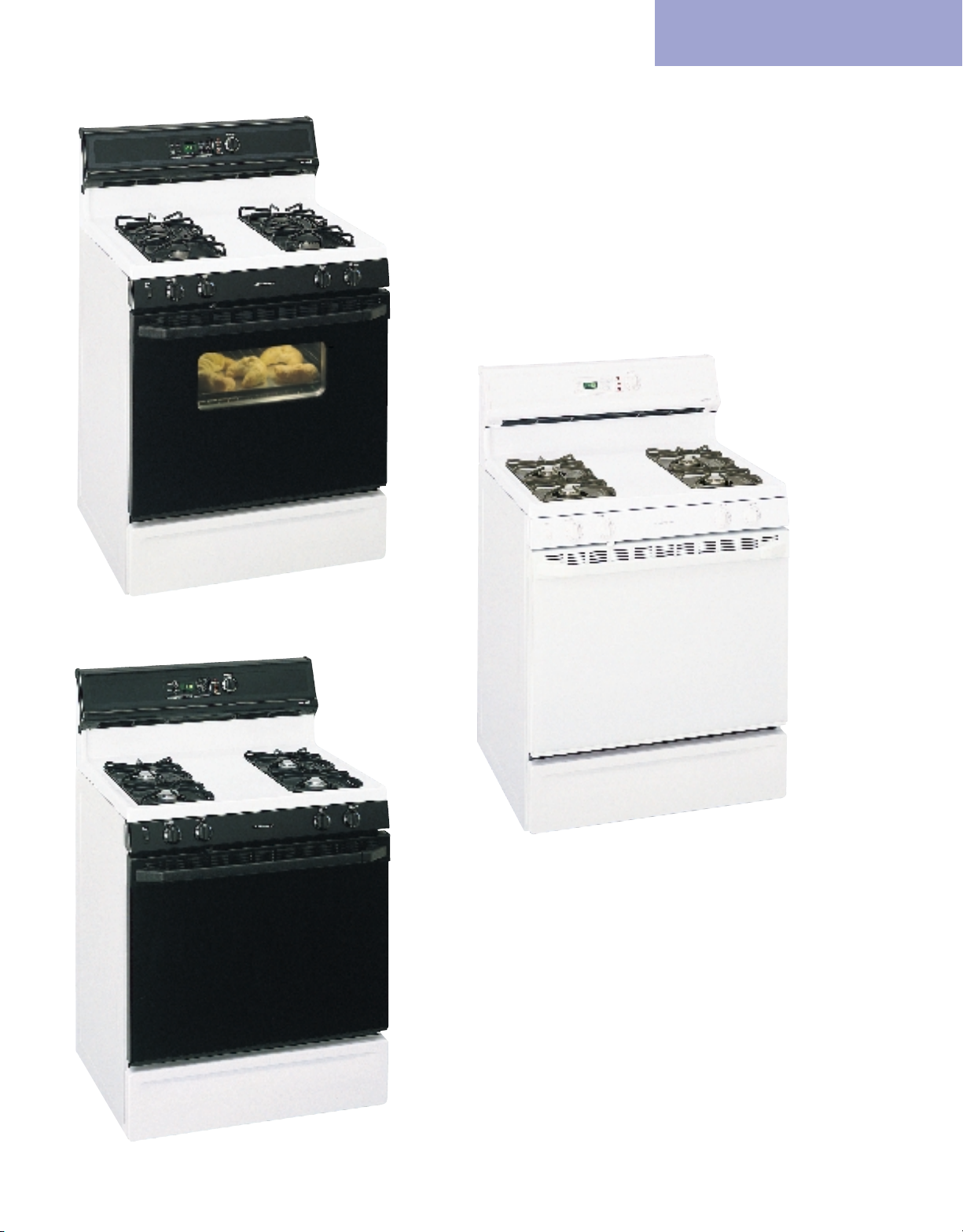

CAPACITY PLUS™30"

free-standing gas ranges

Features more usable oven capacity than any other leading brand, a sixth embossed rack position, extra-large broiler pan, porcelain-enameled upswept cooktop, interior oven light and electronic pilotless ignition.

RGB745WEA

■

White on white model

■

Extra-large, self-cleaning oven

■

Sealed cooktop burners

■

Simmer 600 burner

■

Performance Plus burner

■

Heavy-steel grates

■

In-oven broiling

■

Frameless white glass oven door with window

■

EasySet III clock and oven timer

■

Removable chrome drip pans

■

Storage drawer

RGB745BEA

■

White or almond model

■

Extra-large, self-cleaning oven

■

Sealed cooktop burners

■

Simmer 600 burner

■

Performance Plus burner

■

Heavy-steel grates

■

In-oven broiling

■

Frameless black glass oven door with window

■

EasySet III clock and oven timer

■

Removable black porcelain-enameled drip pans

■

Storage drawer

RGB744WEA

■

White on white model

■

Extra-large self-cleaning oven

■

In-oven broiling

■

Frameless solid white glass oven door

■

EasySet II clock and oven timer

■

Twin cooktop burners

■

Lift-up cooktop

■

Removable chrome drip pans

■

Storage drawer

RGB744BEA

■

White or almond model

■

Extra-large, self-cleaning oven

■

In-oven broiling

■

Frameless solid black glass oven door

■

EasySet II clock and oven timer

■

Automatic oven timer

■

Twin cooktop burners

■

Lift-up cooktop

■

Removable black porcelain-enameled drip pans

■

Storage drawer

30" gas ranges

RGB745WEA

CAPACITY PLUS

™

Page 33

For detailed specifications, installation information and color availability, refer to pages 40 and 41. For warranty information refer to page 87.

30" gas ranges

RGB745BEA

CAPACITY PLUS

™

RGB744BEA

CAPACITY PLUS

™

RGB744WEA

CAPACITY PLUS

™

Page 34

CAPACITY PLUS™30"

free-standing gas ranges

RGB628BEA

■

White or almond model

■

Extra-large continuous cleaning oven

■

Frameless black glass oven door with window

■

Electronic clock and timer

■

Twin cooktop burners

■

Lift-up cooktop

RGB535BEA

■

White or almond model

■

Extra-large standard oven

■

Sealed cooktop burners

■

Simmer 600 burner

■

Performance Plus burner

■

Heavy-steel grates

■

Frameless black glass oven door with window

■

Electronic clock and timer

■

Removable black porcelain-enameled drip pans

RGB533WEA

■

White on white model

■

Extra-large standard oven

■

Sealed cooktop burners

■

Simmer 600 burner

■

Performance Plus burner

■

Frameless white glass oven door with window

■

Electronic clock and timer

RGB532BEA

■

White or almond model

■

Extra-large standard oven

■

Sealed cooktop burners

■

Simmer 600 burner

■

Performance Plus burner

■

Frameless black glass oven door with window

■

Electronic clock and timer

RGB530BEA

■

White or almond model

■

Extra-large standard oven

■

Sealed cooktop burners

■

Frameless black glass oven

door with window

RGB528BEA

■

White or almond model

■

Extra-large standard oven

■

Frameless black glass oven

door with window

■

Electronic clock and timer

■

Twin cooktop burners

■

Lift-up cooktop

RGB528PEA

■

White on white model

■

Extra-large standard oven

■

White porcelain-enameled

oven door with window

■

Electronic clock and timer

■

Twin cooktop burners

■

Lift-up cooktop

Features more usable oven capacity than any other leading manufacturer, a sixth embossed rack position, extra-large broiler pan, porcelain-enameled, upswept cooktop, interior oven light, slide-out broiler drawer and electronic pilotless ignition.

30" gas ranges

RGB628BEA

CAPACITY PLUS

™

Page 35

RGB528BEA

CAPACITY PLUS

™

RGB528PEA

CAPACITY PLUS

™

For detailed specifications, installation information and color availability, refer to pages 40 and 41. For warranty information refer to page 87.

30" gas ranges

RGB533WEA

CAPACITY PLUS

™

RGB530BEA

CAPACITY PLUS

™

RGB535BEA

CAPACITY PLUS

™

RGB532BEA

CAPACITY PLUS

™

Page 36

RGB526PEA

■

White or almond model

■

Extra-large standard oven

■

Color-matched porcelainenameled oven door with window

■

Electronic clock and timer

■

Slide-out broiler drawer

■

Electronic pilotless ignition

RGB525PEA

■

White on white model

■

Extra-large standard oven

■

Solid white porcelainenameled oven door

■

Slide-out broiler drawer

■

Electronic pilotless ignition

RGB525PPA

■

Same features as RGB525PEA, except with standing pilot ignition system.

RGB524PEA

■

White or almond model

■

Extra-large standard oven

■

Solid color-matched porcelain-enameled oven door

■

Slide-out broiler drawer

■

Electronic pilotless ignition

RGB524PPA

■

Same features as RGB524PEA, except with standing pilot ignition system.

RGB508PEA

■

White or almond model

■

Extra-large standard oven

■

Solid color-matched porcelain-enameled oven door

■

Drop-down broiler door

■

Electronic pilotless ignition

RGB508PPA

■

Same features as RGB508PEA, except with standing pilot ignition system.

RGB501PPA

■

Extra-large standard oven

■

Solid white porcelainenameled oven door

■

Removable square one-piece wire grates

■

Drop-down door broiler

■

Standing pilot ignition system

■

One oven shelf

Available in White only with pilot ignition.

CAPACITY PLUS

™

30" free-standing gas ranges

Models feature an extra-large standard oven, six embossed rack positions, twin cooktop burners and lift-up cooktop.

RGB526PEA

CAPACITY PLUS

™

30" gas ranges

Page 37

RGB524PEA/PPA

CAPACITY PLUS

™

30" gas ranges

For detailed specifications, installation information and color availability, refer to pages 40 and 41. For warranty information refer to page 87.

RGB501PPARGB508PEA/PPA

CAPACITY PLUS

™

RGB525PEA/PPA

CAPACITY PLUS

™

Page 38

RGA520EW

■

Standard oven

■

Electronic pilotless ignition

■

Porcelain-enameled oven door

■

Recessed, lift-up cooktop

■

Round burner grates

■

Push-to-turn controls

RGA520PW

■

Same features as RGA520EW, except with standing-pilot ignition system.

RGA520EW/PW

RGA524EW/PW

20" compact gas ranges with standard oven

Compact gas ranges

For detailed specifications, installation information and color availability, refer to page 39. For warranty information refer to page 87.

RGA524EW

■

Standard oven

■

Electronic pilotless ignition

■

Porcelain-enameled oven door

■

Recessed, lift-up cooktop

■

Round burner grates

■

Push-to-turn controls

RGA524PW

■

Same features as RGA524EW, except with standing-pilot ignition system.

24" compact gas ranges with standard oven

Page 39

24" and 20" gas ranges 24" range 20" range

20" gas range dimensions and installation information (in inches)

24" gas range dimensions and installation information (in inches)

2-1/2

18-1/4

Recommended gas hook-up locations behind range. Gas fittings and shut-off cock should not protrude more than 2-1/2" from wall to allow range to fit against wall

Left side of range

Location for

hardpipe

connection

to range

Polarized 120V. Outlet to be located 6" to 24" from floor

40-1/2

40-1/4*

*Depth including up-front angled control panel

1-1/2

30" Min.

24-3/8

Electrical Connection Area

Gas Hookup Area

Check local codes before making connections

13"

Max.

18" Min.

Installation information: Before installing, consult installation instructions packed with product for current dimensional data.

Gas range specifications

See page 87 for warranty information.

Models RGA524EW/PW RGA520EW/PW Features

Oven cleaning Standard Standard Oven shelves 22 Recessed lift-up cooktop ■■ Porcelain-enameled subtop ■■ Round grates ■■ Ignition system Electronic/Pilot Electronic/Pilot Push-to-turn controls ■■ Broiler pan with grid ■■ Separate broiler drawer (with tip down door) ■■

Appearance

Color appearance* WH/AD WH/AD Porcelain-enameled oven door Solid color-matched Solid color-matched Removable oven door ■ Four leveling legs ■■

Weights and Dimensions

Overall oven interior dimensions (WxHxD in inches) 19 x 14 x 19 14-7/8 x 16 x 19-1/2

Burner BTU’s:

Top (Nat/LP) 9,000/8,000 9,000/8,000

Oven (Nat/LP) 18,000/18,000 18,000/18,000 Gas range electrical rating** 120V, 60 Hz, 5A 120V, 60 Hz, 5A Approx. ship. wt. (lbs.) 140 124

*WH=White, AD=Almond Factory set for natural gas. Can be converted to LP by a qualified technician. **Electrical rating not applicable to standing pilot model RGA524PW and RGA520PW.

24-3/4

40-1/2

40-1/4*

*Depth including up-front angled control panel

Page 40

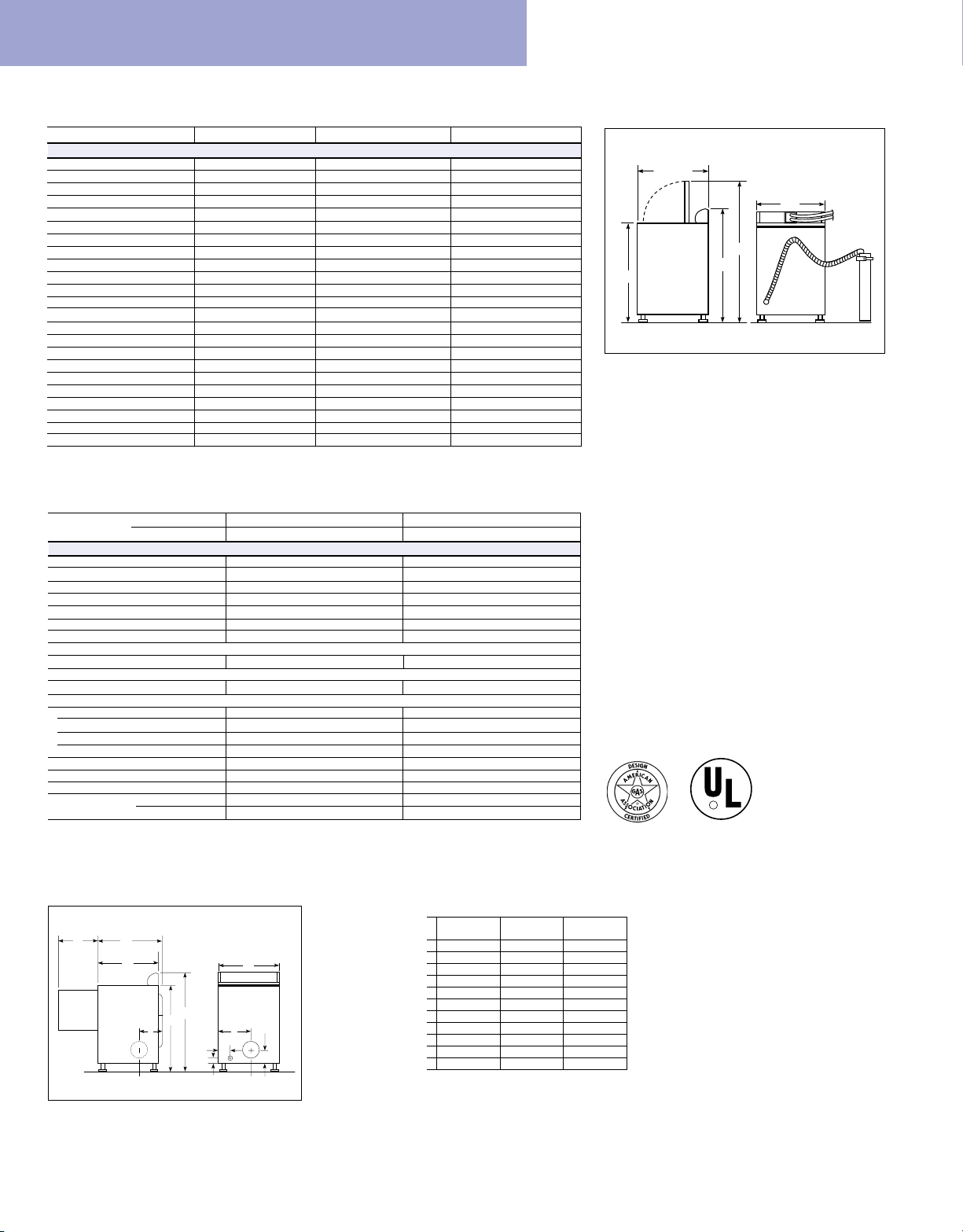

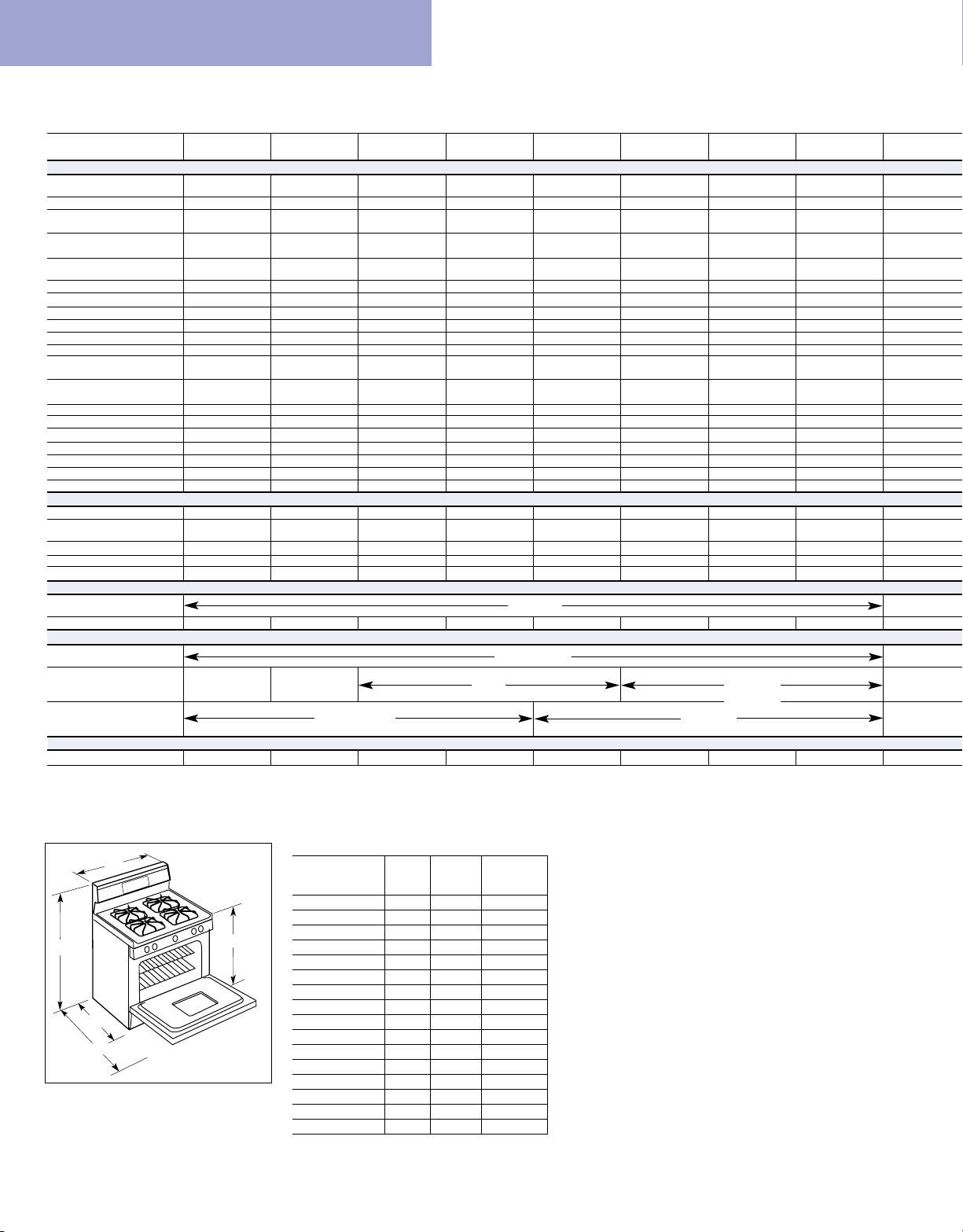

Gas range specifications

30" gas range dimensions (in inches)

B C* Depth with

Models Height Depth door open RGB745WEA 46-1/2 26-1/4 46-3/8 RGB745BEA 46-1/2 26-1/4 46-3/8 RGB744WEA 46-1/2 26-1/4 46-3/8 RGB744BEA 46-1/2 26-1/4 46-3/8 RGB628BEA 46-1/2 26-1/4 46-3/8 RGB535BEA 46-1/2 26-1/4 46-3/8 RGB533WEA 46-1/2 26-1/4 46-3/8 RGB532BEA 46-1/2 26-1/4 46-3/8 RGB530BEA 46-1/2 26-1/4 46-3/8 RGB528BEA 46-1/2 26-1/4 46-3/8 RGB528PEA 46-1/2 26-1/2 46-3/8 RGB526PEA 46-1/2 26-1/2 46-3/8 RGB525PEA/PPA 44 26-1/2 46-3/8 RGB524PEA/PPA 44 26-1/2 46-3/8 RGB508PEA/PPA 39-7/8 26-1/2 46-3/8 RGB501PPA 36 26-1/2 45-1/4

*Depth from wall to front of closed oven door.

Installation information: Before installing, consult installation instructions packed with product for current dimensional data.

Optional gas range accessory drip pans

(Available at additional cost)

To order these accessory drip pans, call toll-free 800-626-2002.

36±1/4

Models RGB745WEA RGB745BEA RGB744WEA RGB744BEA RGB628BEA RGB535BEA RGB533WEA RGB532BEA Features

Self- Self- Self- Self- Continuous Standard Standard Standard

Extra-large oven cleaning cleaning cleaning cleaning Cleaning Clean Clean Clean Cooktop burners Sealed Sealed Twin Twin Twin Sealed Sealed Sealed Performance Plus (1) 12,000/ (1) 12,000/ (1) 12,000/ (1) 12,000/ (1) 12,000/

burner (Nat.) 2,200 BTU 2,200 BTU 1,000 BTU 1,000 BTU 1,000 BTU Simmer 600 (1) 5,000/ (1) 5,000/ (1) 5,000/ (1) 5,000/ (1) 5,000/

burner (Nat.) 600 BTU 600 BTU 600 BTU 600 BTU 600 BTU All purpose sealed (2) 9,500/ (2) 9,500/ (2) 9,500/ (2) 9,500/ (2) 9,500/

burners (Nat.) 850 BTU 850 BTU 850 BTU 850 BTU 850 BTU Clock and minute timer EasySet III EasySet III EasySet II EasySet II Electronic Electronic Electronic Electronic Automatic oven timer Electronic Electronic ■■ Porcelain-enameled cooktop Upswept Upswept Upswept Upswept Upswept Upswept Upswept Upswept Lift-up cooktop ■■ ■ Easy clean subtop ■■ ■ Valves (degree of turn) 270° 270° 270° 270° 140° 270° 270° 270°

Black Black Black

Removable drip pans Chrome Porc.-Enam. Chrome Porc.-Enam. Opt. Access. Porc.-Enam. Opt. Access. Opt. Access.

Grey Black Black

Removable square grates Heavy-steel Heavy-steel Grey Black Black Heavy-steel Grey Black Ignition system Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Oven shelves 2 2 2 2 2 2 2 2 Six embossed rack positions ■■ ■■■■■■ Interior oven light ■■ ■■■■■■ In-oven broiling ■■■■ Slide-out broiler drawer ■■■■ Removable storage drawer ■■ ■■

Appearance

Color appearance* WW WH/AD WW WH/AD WH/AD WH/AD WW WH/AD

Solid Solid

Frameless oven door White Glass Black Glass White Glass Black Glass Black Glass Black Glass White Glass Black Glass Oven door with window ■■ ■■■■ Handle style Designer-style Designer-style Designer-style Designer-style Designer-style Designer-style Designer-style Designer-style Removable oven door ■■ ■■■■■■

Weights and Dimensions

Overall oven interior dimensions (WxHxD in inches)

Approx. shipping weight (lbs.) 185 185 185 185 165 185 185 185

Power/Ratings

Gas range electrical rating**

Top burners† (1)-12.0/9.5 (1)-12.0/9.5 (000’s BTU’s) (1)-5.0/3.5 (1)-5.0/3.5 9.0/8.0 NAT/LP (2)-9.5/7.0 (2)-9.5/7.0

Oven/broiler burners† (000’s BTU’s) NAT/LP

Accessories

LP conversion kit ■■ ■■■■■■

**WW=White on white WH/AD=White or Almond CM=Indicates color of oven door matches range cooktop (either White or Almond)

**Electrical rating not applicable to standing pilot models RGB525PPA/RGB524PPA/RGB508PPA/RGB501PPA

*†Factory set for natural gas.

24x17x19

120V, 60 Hz, 5A

16.0/16.0 - Oven

13.5/12.0 - Broil

18.0/16.5

30" CAPACITY PLUS™gas ranges

(1)-12.0/9.5

(1)-5.0/3.5 (2)-9.5/7.0

See page 87 for warranty information.

Page 41

Gas range specifications

Listed by Underwriters Laboratories

All ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for 120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area for gas outlet and electrical outlet

30" gas range installation information (in inches)

RGB525PEA RGB524PEA RGB508PEA

RGB530BEA RGB528BEA RGB528PEA RGB526PEA RGB525PPA RGB524PPA RGB508PPA RGB501PPA

Standard Standard Standard Standard Standard Standard Standard Standard

Clean Clean Clean Clean Clean Clean Clean Clean

Sealed Twin Twin Twin Twin Twin Twin Twin

(4) 9,500/

850 BTU

Electronic Electronic Electronic

Upswept Upswept Upswept Upswept ■■■ ■

■■■ ■■■ ■

■■■■ ■■■ ■

140° 140° 140° 140° 140° 140° 140° 140°

Opt. Access. Opt. Access. Opt. Access. Opt. Access. Opt. Access. Opt. Access. Opt. Access.

Black Black Grey Black Grey Black Black Black Wire

Electronic Electronic Electronic Electronic Elec./Pilot Elec./Pilot Elec./Pilot Pilot

2222 222 1

■■■■ ■■■ ■

■■■■

■■■■ ■■Drop down door Drop down door

WH/AD WH/AD WW WH/AD WW WH/AD WH/AD WH

White CM Solid White Solid CM Solid CM Solid White

Black Glass Black Glass Porc.-Enam. Porc.-Enam. Porc.-Enam. Porc.-Enam. Porc.-Enam. Porc.-Enam.

■■■■

Designer-style Designer-style Visor Visor Visor Visor Visor Visor

■■■■ ■■■ ■

185 165 165 165 165 147 165 156

9.5/7.0

■■■■ ■■■ ■

120V, 60 Hz, 5A

9.0/8.0

18.0/16.5

24x17x19

See page 87 for warranty information.

CANADIAN GAS ASSOCIATION

APPROVED

Page 42

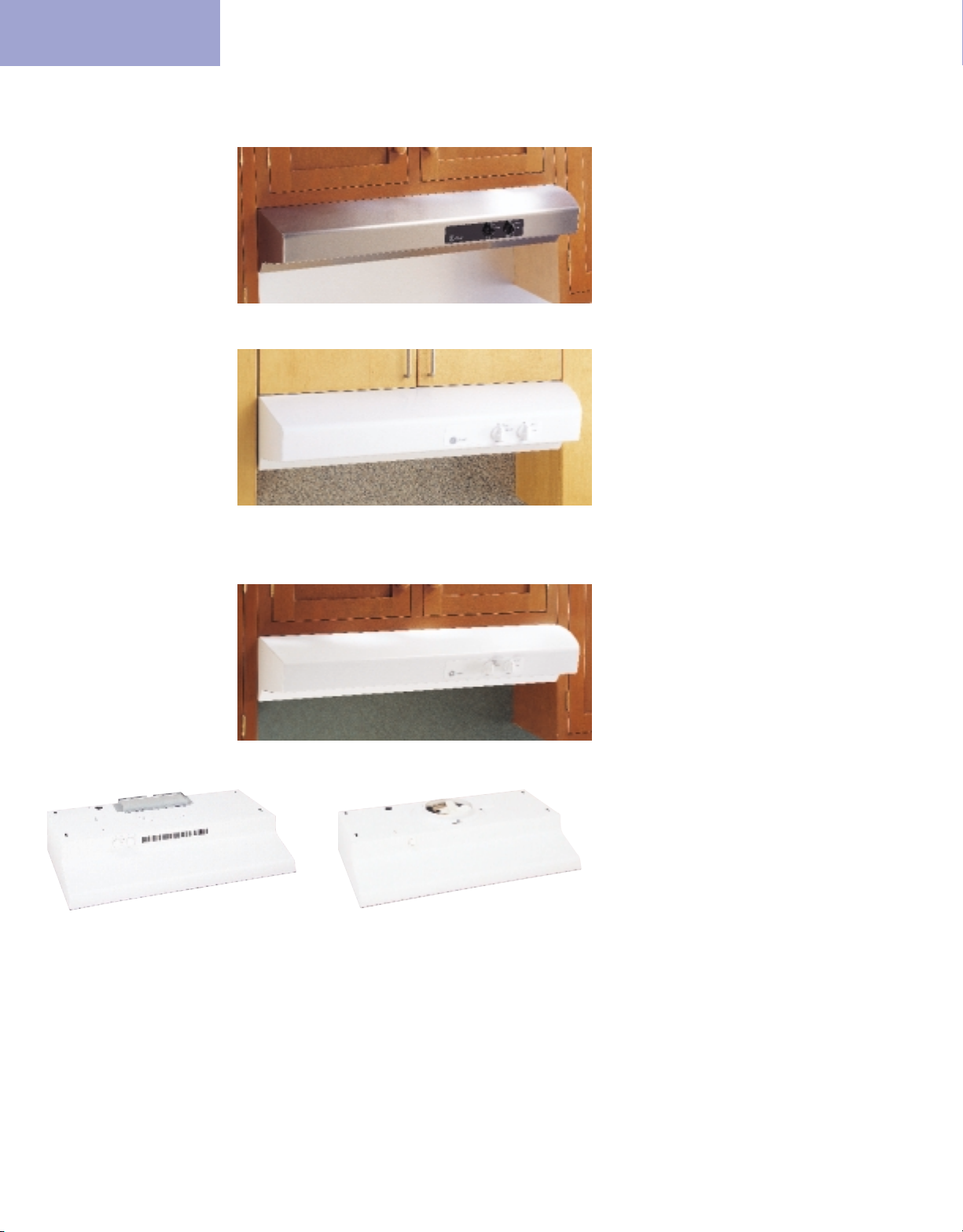

GE Hoods

JV347X

■

30" width

■

Available in White on white, Black on black or

Almond on almond

■

Rotary control

■

Three-speed fan

■

Cooktop light with Night Light setting

■

Light cover

■

Convertible exhaust (Shipped in non-vented

configuration, convertible to round or rectangular exhaust.)

■

Rectangular damper included

JXDA22 round damper accessory, available at additional cost. (Models JV347/337/327 and JN327X)

JV327X

■

30" width

■

Available in White or Almond

■

7" round duct

■

Easy-to-use rocker switches

■

Two-speed fan

■

Cooktop light

JV337X (not shown)

■

3-1/4" x 10" rectangular duct

■

Rectangular damper included

JN327X (not shown)

■

Non-vented

Deluxe

GE High Performance and Performance Hoods are designed with an easy-toclean continuous surface and two large filters that can be cleaned at the sink or dishwasher.

The High Performance hoods are recommended for use with grill/griddle cooktops. Powerful CFM performance draws smoke and odors up and out of the kitchen.

Standard

Performance

JV666C

■

36" vented hood

■

Available in Stainless steel

■

2 halogen cooktop lights

■

Night light setting

■

3 speed fan control with boost

■

Vertical or rear exhaust (350/400 CFM)

■

3-1/4" x 10" rectangular duct

■

7" round duct

JV665C (not shown)

■

Same features and appearance as JV666C except

available in White on white or Black on black.

JV635C

■

30" vented hood

■

Available in White on white or Black on black

■

2 halogen cooktop lights

■

Night light setting

■

3 speed fan control with boost

■

Vertical or rear exhaust (350/400 CFM)

■

3-1/4" x 10" rectangular duct

■

7" round duct

JV636C (not shown)

■

Same features and appearance as JV635C

except available in Stainless steel.

JV565C

■

36" width

■

Available in White on white, Bisque or

Black on black

■

2 speed fan control

■

200 CFM (max.)

■

2 halogen cooktop lights

■

Convertible exhaust options (7" round,

rectangular or non-vented)

■

Rectangular damper included

JV566C (not shown)

■

Same features and appearance as JV565C except available in Stainless steel.

JV535C (not shown)

■

30" width

■

Same features and appearance as JV565C except available in 30" width.

JV536C (not shown)

■

Same features and appearance as JV566C except available in 30" width.

JXDA23 Round damper accessory. Available at

additional cost. (Models JV666/665/636/635/566/ 565/536/535)

Optional charcoal filter access.

High performance

For detailed specifications, installation information and color availability, refer to page 43. For warranty information, refer to page 87.

Page 43

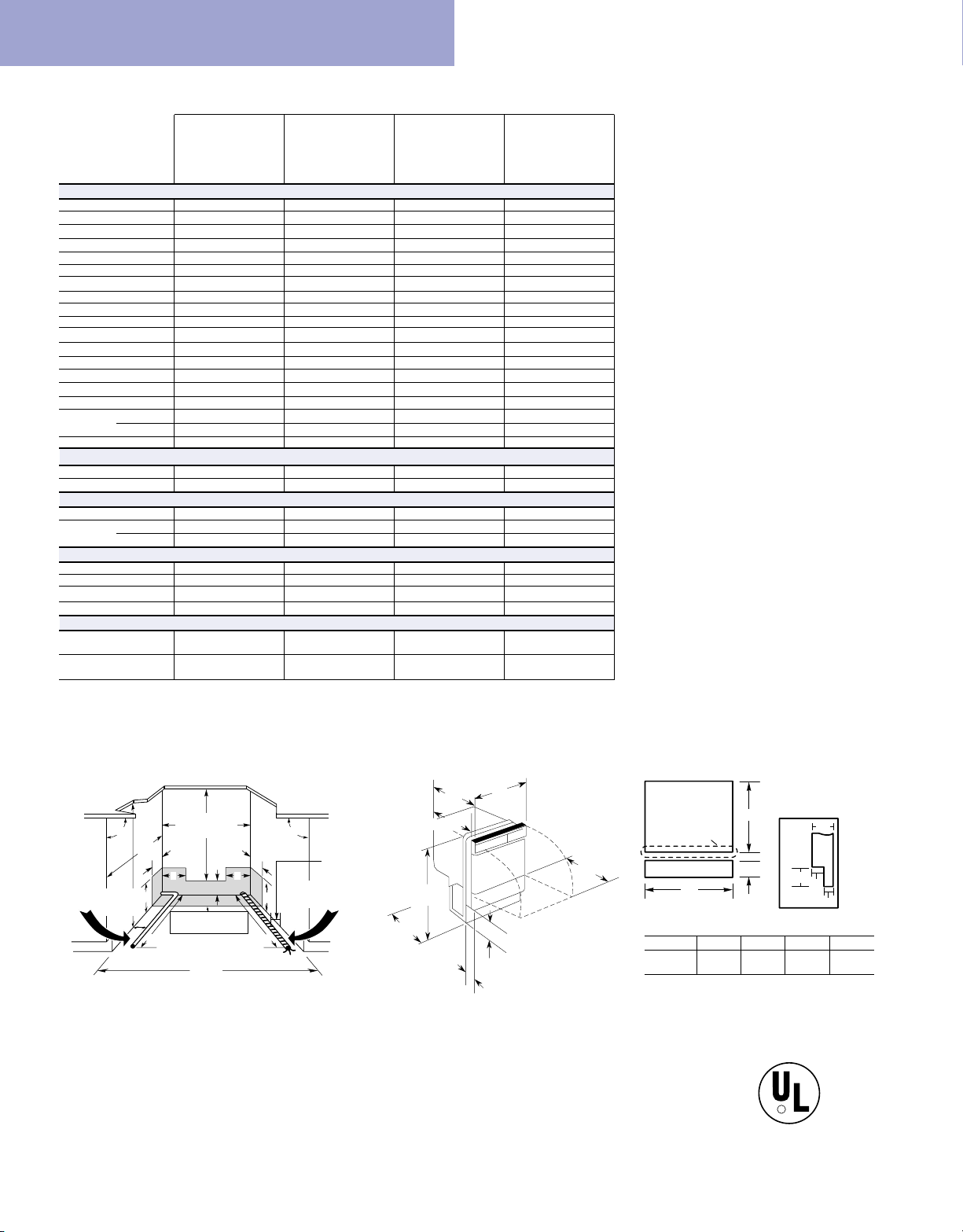

GE Hoods specifications

Model A B C D JV666C/JV665C 7-1/4 35-7/8 20 12 JV636C/JV635C 7-1/4 29-7/8 20 12 JV536C/JV535C 7-1/4 29-7/8 20 12 JV566C/JV565C 7-1/4 35-7/8 20 12 JV347X 5-1/2 29-7/8 17-1/2 12 JV337X 5-1/2 29-7/8 17-1/2 12 JV327X 5-1/2 29-7/8 17-1/2 12 JN327X 5-1/2 29-7/8 17-1/2 12

Dimensions (in inches)

Hood dimensions (in inches)

Models: JV347X* and JV327X

Models: JV347X* and JV337X

Model: JN327X

Note: Before installing, consult installation instructions [Pub. No. 49-8646

(JV665/JV635/JV535/JV565); Pub. No. 49-8809 (JV337/327/347/JN327); packed with product for current dimensional data.

*JV347X—Refer to this drawing for round exhaust option. Refer to drawing 2 for rectangular exhaust option.

Exhaust outlet connects to 7" diameter duct. Vent top only. Round damper accessory, JXDA22, available at additional cost.

Exhaust outlet connects to 3-1/4" x 10" duct (vertically or horizontally) and 7" round (vertically). Includes rectangular damper and 7" round damper adapter.

*JV347X—Refer to this drawing for rectangular exhaust option. Refer to drawing 3 for round exhaust option.

Exhaust outlet connects to 3-1/4" x 10" rectangular duct. Vent top or rear. Includes rectangular damper.

1-3/8" Typ.

8-5/16" Typ.

Center line of hood

1-1/4

Optional power supply connection

1-1/8" Typ.

7-3/4

5-3/4

Note: Exha to 7" diame

1-3/8" Typ.

8-5/16" Typ.

Center line of hood

1-1/4

Optional top power supply connection

1-1/8" Typ.

7-3/4

3-1/4

1/2

Rear power supply connection

1-3/8" Typ.

8-5/16" Typ.

Center line of hood

1-1/4

Optional power supply connection

Exhaust outlet

1-1/8" Typ.

7-3/4

Models: JV666C, JV665C, JV636C, JV635C, JV536C, JV535C,JV566C, and JV565C

See page 87 for warranty information.

*36" for models JV665C and JV565C.

Listed by Underwriters Laboratories

7-1/4

1-1/2

3/4

3/8

30*

Hoods

Width

High Performance

Performance Deluxe Standard

30" JV636C JV635C JV536C JV535C JV347X JV327X JV337X JN327X 36" JV666C JV665C JV566C JV565C

Features

Two-speed fan control ■■ ■■ ■ Three-speed fan control with boost with boost with boost with boost ■ Vertical exhaust (CFM) 350 350 350 350 190 190 180 160 160 Rear exhaust (CFM) 400 400 400 400 200 200 160 150 Damper included (rectangular) ■■■■■■■ ■ Optional damper accessory (round) JXDA23 JXDA23 JXDA23 JXDA23 JXDA23 JXDA23 JXDA22 JXDA22 Sones rating:

Top exhaust 4.0/7.0* 4.0/7.0* 4.0/7.0* 4.0/7.0* 4.0 4.0 8.0 8.0 8.0

Rear exhaust 4.0/7.0* 4.0/7.0* 4.0/7.7* 4.0/7.7* 4.0 4.0 8.0 8.0

Disposable Disposable

Removable grease filters 2 2 2 2 2 2 1-Pc. Filter 1 1 1-Pc. Filter Filter size (sq. in.) 207 207 171 171 171/207 171/207 90 90 90 90 Cooktop light(s)** 2 2 2 2 2 2 1 1 1 1 Night light position on light switch ■■■■■■■ 3-1/4" x 10" rectangular duct ■ ■■■■■Option ■ 7" round duct ■ ■■■■■Option ■ Non-vented ■■Option ■

Appearance

Color appearance† SS WW/BB SS WW/BB SS WW/CC/BB WW/AA/BB W or A W or A W or A

Weights & Dimensions

Approximate shipping weight (lbs.) 35 35 30 30 30 30 20 14 17 19

Power/Ratings

Current rating amps @ 120V 2.5 2.5 2.5 2.5 1.4 1.4 2.5 2.5 2.5 2.5

*Top exhaust sones rating when in boost mode. **Light bulbs not furnished.

*†SS = Stainless steel, W = White, WW = White on white, CC = Bisque, A = Almond, AA = Almond on almond, BB = Black on black

Page 44

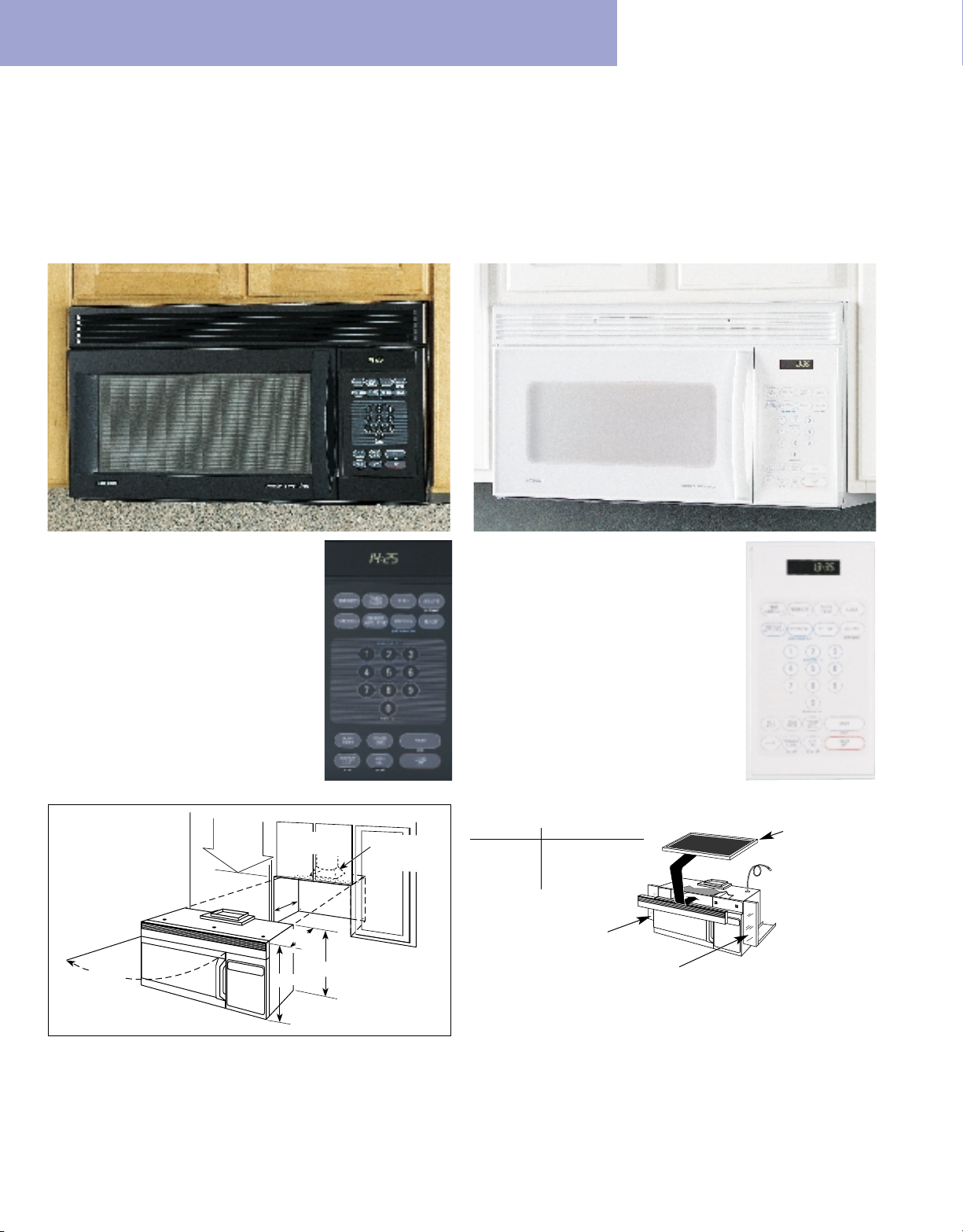

Counter Saver Plus™microwave ovens

21-3/4"

Door open

16-1/2

66" MIN.

Mounting

height

from floor

30" MIN.

width required

MAX.

Exhaust outlet

connects to

3-1/4" X 10" duct

12"

15-3/4

When replacing a 36" or 42" range hood, this kit fills in the additional width to provide a custom, built-in appearance. For installation between cabinets only; not for end-of-cabinet installation. Each kit contains two, 3"-wide filler panels. Two kits are needed for a 42" opening.

RVM1425BA (Black on black) RVM1425WA (White on white, not shown)

RVM1335WC (White on white) RVM1335BC (Black on black, not shown)

JX81A–Recirculating Charcoal Filter Kit

To be used when the Counter Saver Plus

™

microwave oven cannot be vented to the outside.

Important: When installing the Counter Saver Plus™ microwave oven over a range, allow minimum of 2" from bottom of Counter Saver Plus™ microwave oven to top of range backguard to allow for removal of light covers.

Dimensions (in inches)

Microwave convenience with no loss of usable space

Installs in the same space as a range hood. Counter Saver Plus™microwave ovens are equipped with a built-in venting system, an enhanced two-speed, high-capacity exhaust fan plus Full-View cooktop lighting which illuminates the entire range cooking surface. The addition of a Counter Saver Plus™microwave oven over your range creates a complete cooking center!

Optional accessories (Available at additional cost)

Ventilation options

The Counter Saver Plus™microwave oven is designed for adaptation to the following three types of ventilation:

Outside Exhaust (Vertical) Outside Exhaust (Horizontal) Recirculating (Non-vented ductless—see Filter Kit Drawing)

Note: Before installing, consult installation instructions for current dimensional data on these

three types of ventilation. Important: When installing the Counter Saver Plus™microwave oven over a range, allow

minimum of 2" from bottom of the Counter Saver Plus

™

microwave oven to top of range

backguard to allow for removal of light covers.

Filler Panel Kit

RVM1335WC JX40WH RVM1335BC JX41 RVM1425WA JX40WH or JX46WH RVM1425BA JX41 or JX46BL

14-5/16*

*14" for RVM1335

Page 45

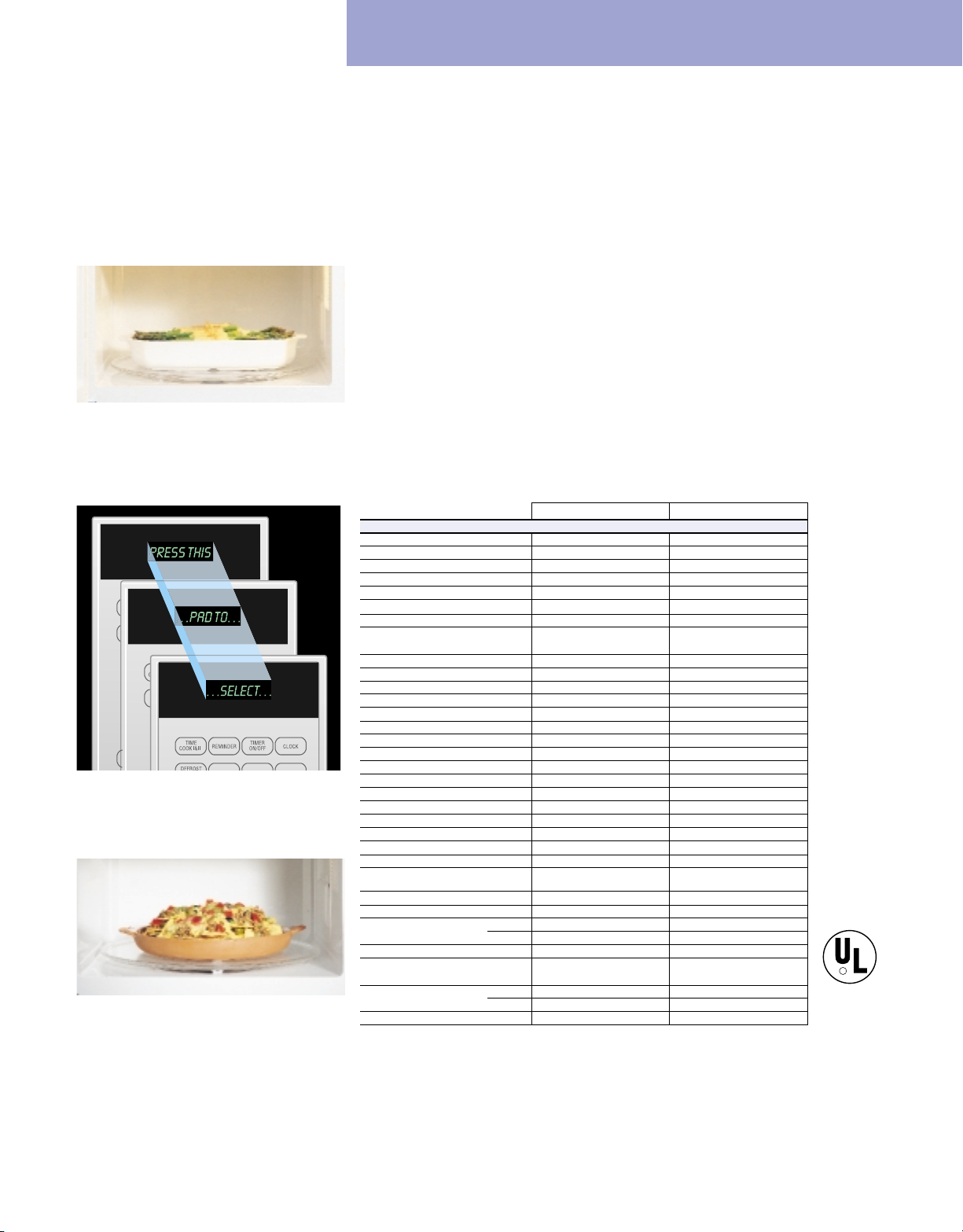

Counter Saver Plus™microwave ovens

See page 87 for warranty information.

Counter Saver Plus

™

microwave ovens

The design of the Counter Saver Plus™microwave ovens complements any kitchen. Available in Black on black or White on white styling. Enjoy the convenience of microwave cooking with eye-level controls, directly above your range or cooktop in the space of a range hood.

1.4 cu. ft. oven cavity

The 1.4 cu. ft. oven cavity is Hotpoint’s largest over-the-range microwave oven ever. It accommodates large casserole dishes for your cooking convenience.

Interactive Display System

Easy-to-read horizontal scrolling display is designed to make cooking easier, and give you the flexibility of programming several functions at once.

900 watts

Powerful 900 watts†of microwave output for fast cooking and reheating.

Auto/Time Defrost

Permits defrosting a variety of foods in minutes instead of hours. Automatically sets defrosting time and power level. Enter food weight and the oven does the rest.

Time Cook I & II

Allows you to set two time controlled cooking functions within one program.

Express Cook Pads

A shortcut to set cook times from 1 to 6 minutes. Automatically cooks at full power with the touch of one pad.

10 power levels

A choice of 10 power levels for maximum cooking flexibility, from warming and reheating, to the full speed of microwave cooking at high power.

Reheat

Offers the flexibility of automatically reheating a variety of popular foods from a cup of coffee to a plate of leftovers.

Popcorn

Designed for today’s popular pre-packaged popcorn. Now for use with three sizes, 3.5, 3.0 and

1.75 oz., maximizes popping without scorching.

Instant On controls

Easy, one-step features. Simply press the desired function and the oven automatically begins to cook. No need to press START.

Full-View cooktop lighting

Provides better distribution of light over the entire cooking surface.

RVM1425WA/BA RVM1335WC/BC

Features

Watts (IEC-705 Test Procedure) 900 900 Oven cavity (cu. ft.) 1.4 1.3 Door color White/Black White/Black Case color White/Black White/Black Power levels 10 10 Electronic touch controls ■■ Interactive display system ■■

Electronic scrolling digital display w/Clock and AM/PM Pad ■■ Variable Scroll Speed ■■

Concurrent programming ■■ Display On/Off ■■ Turntable ■■ Time Cook I & II I & II Auto Defrost/Time Defrost ■■ Popcorn Pad ■■ Reheat Pad ■■ Express Cook Pads (1-6 minutes) ■■ Instant on controls ■■ Cooking complete reminder ■■ Delay Start ■■ Timer On/Off ■■ Reminder ■■ Child lock-out ■■ Full-View cooktop lighting ■■ High-capacity

exhaust fan 300 CFM 300 CFM Easy Mount installation ■■ Frequency (MHz) 2450 2450

Watts 1480 1480 Electrical input@120V Amps 15 15 Warranty* 1-Yr. In-Home 1-Yr. In-Home Limited four-year magnetron warranty* (5 years total) ■■

Dimensions

Cavity 19-5/16 x 9-5/16 x 13-3/16 19 x 9-1/8 x 12-1/2 WxHxD (in inches) Exterior 29-7/8 x 16-1/2 x 14-5/16 29-7/8 x 16-1/2 x 14 Approx. shipping weight (lbs.) 70 73

Listed by Underwriters Laboratories

*Full One-Year Warranty

In-home parts and labor included. Plus additional four-year limited warranty on magnetron tube (parts only). See written warranty for details.

†

IEC-705 Test Procedure

Turntable

The turntable rotates the dish constantly for even and thorough cooking.

Page 46

Not all features available on all models.

GE Spacemaker™over-the-range microwave ovens

The Scrolling Display

Easy to read and a helpful cooking guide.

Sensor Controls

Take the guesswork out of cooking.

Auto Defrost/Time Defrost

Automatically sets defrosting time and power level.

Convenience Cooking Controls

Allow you to defrost, cook or reheat at the touch of a pad.

Add 30 Seconds

Extends cooking time without the hassle of reprogramming.

300 CFM venting system

This powerful 300 CFM venting system quickly removes smoke and steam from your cooktop.

GE — The original Spacemaker

™

In 1979, GE invented the Spacemaker™over-the-range microwave. With 20 plus years of experience and the many innovative features on GE Spacemakers™, it is easy to see why so many people are making the Spacemaker™their microwave of choice. When paired with a GE range, you now have a great cooking center with more flexibility and space saving design. A powerful, two-speed exhaust fan, with 300 CFM, and cooktop light are integrated into the base of the microwave oven eliminating the need for a range hood. The Easy Mount system makes GE over-the-range microwave ovens simple to install. When installed above a GE range, you’ve increased valuable counter-top space in the kitchen.

Page 47

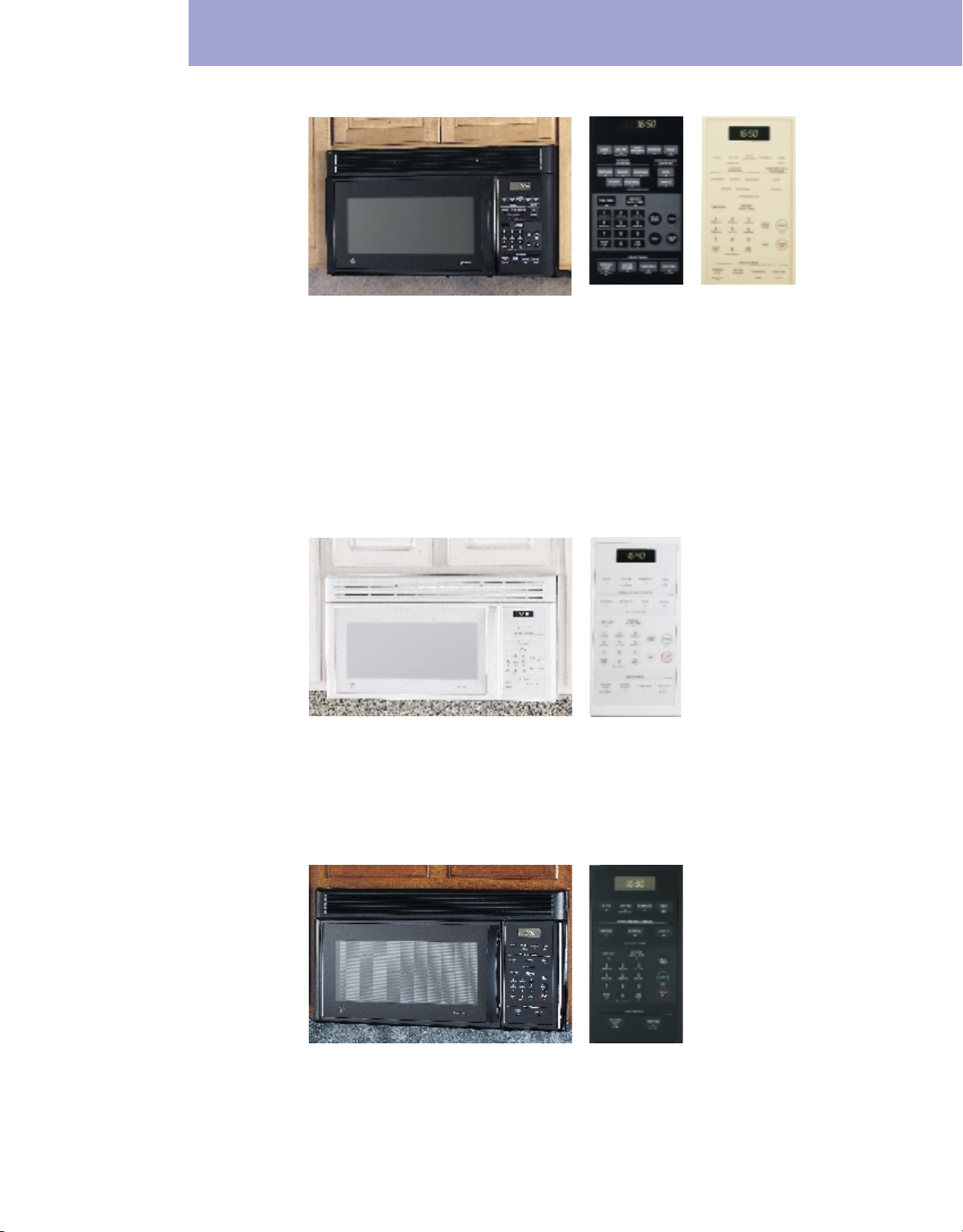

JVM1630BB

■

Convenience Cooking Controls for Popcorn, Beverage and Reheat ■CircuWave™1000 Cooking System ■Turntable

JVM1630WB (not shown)

■

White on white

JVM1631WB (not shown)

■

Non-vented model

*IEC-705 Test Procedure For detailed specifications, installation

information and color availability, refer to page 50. For warranty information, refer to page 87.

JVM1650BB

■

Sensor cooking controls for Beverage, Potatoes,

Vegetables, Popcorn and Reheat ■Convenience Cooking Controls for Cook and Snack Pads

■

CircuWave™1000 Cooking System ■Turntable

On/Off ■Delay Start ■Reminder ■Auto/Time Defrost

■

10 power levels ■Beeper volume control ■Cooking

Complete Reminder ■Removable Dual Rack

■

Programmable night light ■Time On/Off

GE Spacemaker™over-the-range microwave ovens

JVM1640WB

■

CircuWave™ 1000 Cooking System ■Turntable On/Off ■Help Pad ■Convenience Cooking controls for Popcorn, Reheat and Cook Pads ■Removable Dual Rack ■Beeper volume control

1.6 cu. ft. Oven Cavity, 1000 Watts*, Turntable On/Off, Help Pad, Time Cook I & II, Express Cook, Add 30 Seconds, Instant On Controls, Child Lock-Out, Night Light, Two-Speed, High-Capacity Exhaust Fan

1.6 cu. ft. Oven Cavity, 1000 Watts*, SmartControl System with Interactive Display, Convenience Cooking Controls for Beverage, Time Cook I & II, Auto Defrost/Time Defrost, Express Cook, Timer On/Off, Child Lock-Out, Full-View Cooktop Lighting, Easy Mount Installation, Two-Speed, High-Capacity Exhaust Fan

JVM1650AB

■

Almond on almond

JVM1651AB (not shown)

■

Non-vented model

JVM1650WB (not shown)

■

White on white

JVM1651WB (not shown)

■

Non-vented model

JVM1650CB (not shown)

■

Bisque

JVM1651CB (not shown)

■

Non-vented model

JVM1640BB (not shown)

■

Black on black

JVM1640AB (not shown)

■

Almond on almond

GE Spacemaker

™

microwave ovens with Sensor Cooking Controls provide

GE Spacemaker

™

microwave ovens with Convenience Cooking Controls provide

JVM1651BB

(not shown)

■

Non-vented model

JVM1631BB

(not shown)

■

Non-vented model

Page 48

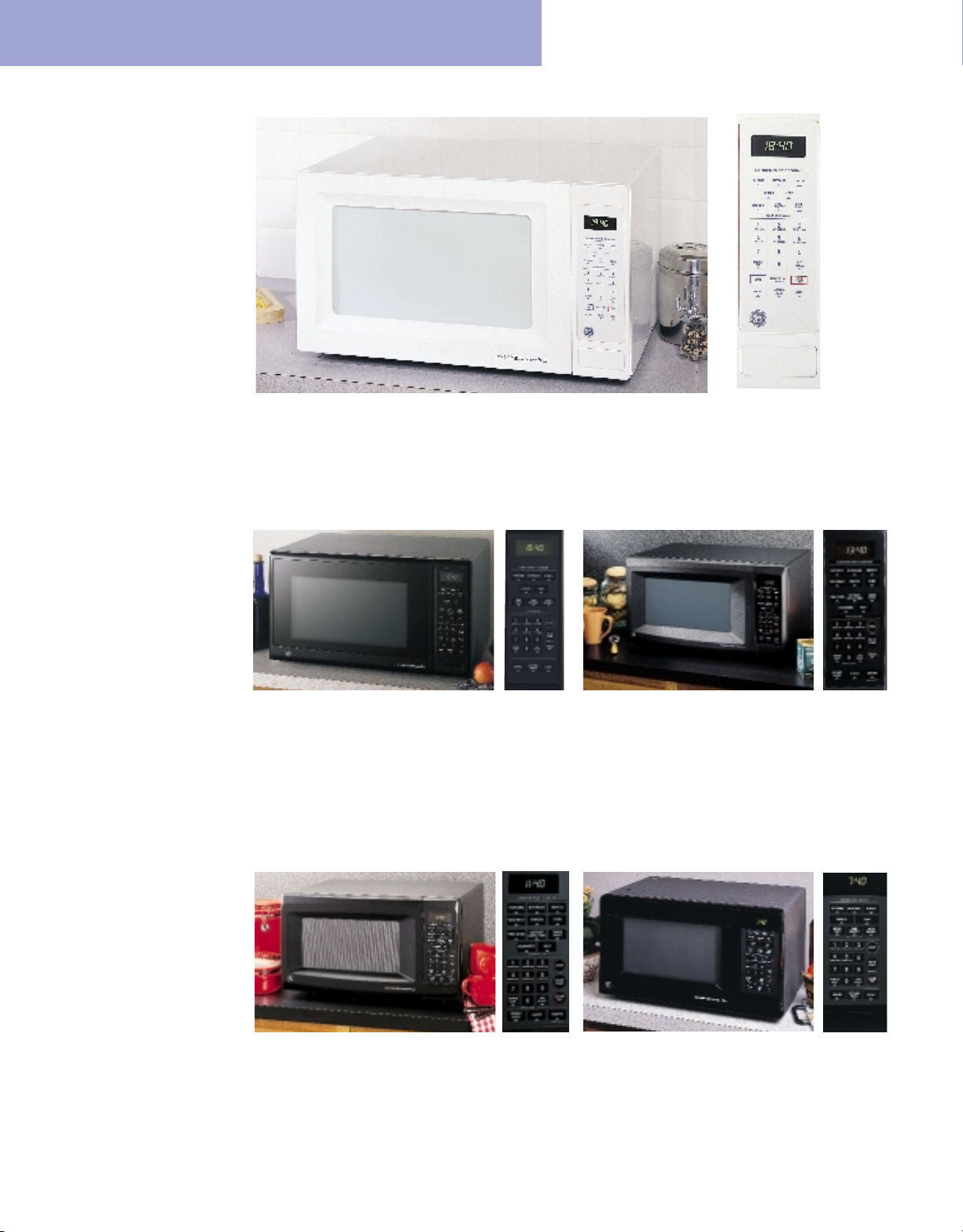

GE Countertop microwave ovens

*IEC-705 Test Procedure

For detailed specifications, installation information and color availability, refer to page 51. For warranty information, refer to page 87.

JE1140BC

■

Mid-size 1.1 cu. ft. oven cavity ■1100 Watts*

JE1140WC (not shown)

■

White on white

JE740GY

■

Compact .7 cu. ft. oven cavity ■700 Watts*

■

Undercabinet hanging kit (available at additional cost)

JE740WY (not shown)

■

White on white

JE1640GB

■

Full-size 1.6 cu. ft. oven cavity ■1100 Watts*

■

Built-in kit (available at additional cost)

JE1340BC

■

Family-size 1.3 cu. ft. oven cavity ■1100 Watts*

Convenience Cooking Controls for Beverage, Popcorn, Cook, Reheat and Snacks Pads, Time Cook I & II, Delay Start/Reminder, Time Defrost, Auto Defrost, Express Cook, Add 30 Seconds, 10 Power Levels, Instant On Controls, Kitchen Timer, Child Lock-Out, Cooking Complete Reminder, Sound On/Off

JE1640WB (not shown)

■

White on white

JE1640AB (not shown)

■

Almond on almond

JE1340WC (not shown)

■

White on white

GE Countertop microwave ovens with Convenience Cooking Controls provide

JE1840WB

■

Extra-Large 1.8 cu. ft. oven cavity ■1100 Watts*

■

Turntable ■Built-In kit (available at additional cost)

JE1840GB (not shown)

■

Black with Greystone case

Page 49

JE835WW

■

Mid-size .8 cu. ft. oven cavity ■800 watts*

■

Convenience Controls for Beverage, Popcorn, Frozen Pizza,

Dinner Plate, Baked Potato, Vegetables and Soup Pads

■

Electronic Digital Display with Clock ■Time Preference

■

Turntable ■Instant On Controls ■Auto Start ■Auto Defrost

JE710BA

■

Compact .7 cu. ft. oven cavity ■600 watts* ■Turntable

■

Mechanical Dial ■Undercabinet hanging kit (available at additional cost)

JE510BW (not shown)

■

Black with Greystone case ■Subcompact .5 cu. ft. oven cavity

■

600 watts* ■Turntable ■15-minute timer ■Undercabinet hanging kit

(available at additional cost) JE510WC (not shown)

■

White on white

GE Countertop mid-size, compact and subcompact

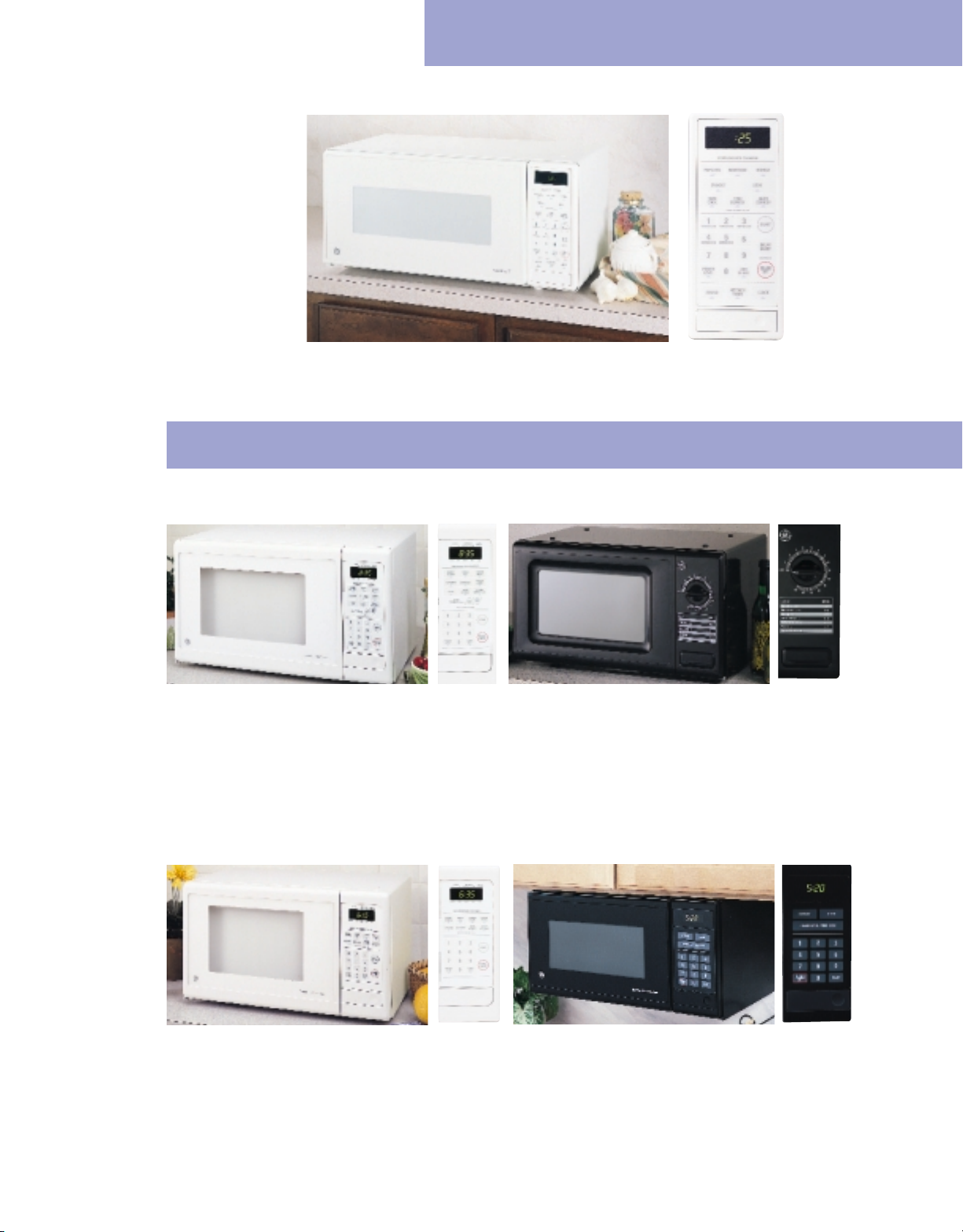

GE Countertop microwave ovens

*IEC-705 Test Procedure For detailed specifications, installation information and color availability,

refer to pages 52-53. For warranty information, refer to page 87.

JE520BW

■

Subcompact .5 cu. ft. oven cavity ■600 watts* ■Turntable

■

Electronic touch controls with electronic digital display and clock

■

Time Cook ■Time Defrost ■10 power levels ■Undercabinet

hanging kit (available at additional cost) JE520WC (not shown)

■

White on white

JE635WW

■

Compact .6 cu. ft. oven cavity ■600 watts*

■

Convenience Cooking Controls for Beverage, Popcorn, Frozen

Pizza, Dinner Plate, Baked Potato and Vegetables Pads

■

Turntable ■Electronic Digital Display with Clock

■

Instant On Controls ■Auto Start ■Auto Defrost

JEM25WY

■

Convenience Cooking Controls for Popcorn, Beverage,

Reheat, Snacks and Cook Pads

JEM25GY (not shown)

■

Black with Greystone case

.9 cu. ft. Oven Cavity, 800 Watts*, Delay Start/Reminder, Time Defrost, Auto Defrost, Time Cook I & II, Express Cook, Instant On Controls, Sound On/Off, Built-in or undercabinet hanging kit (available at additional cost)

GE Spacemaker II

™

microwave ovens provide

Page 50

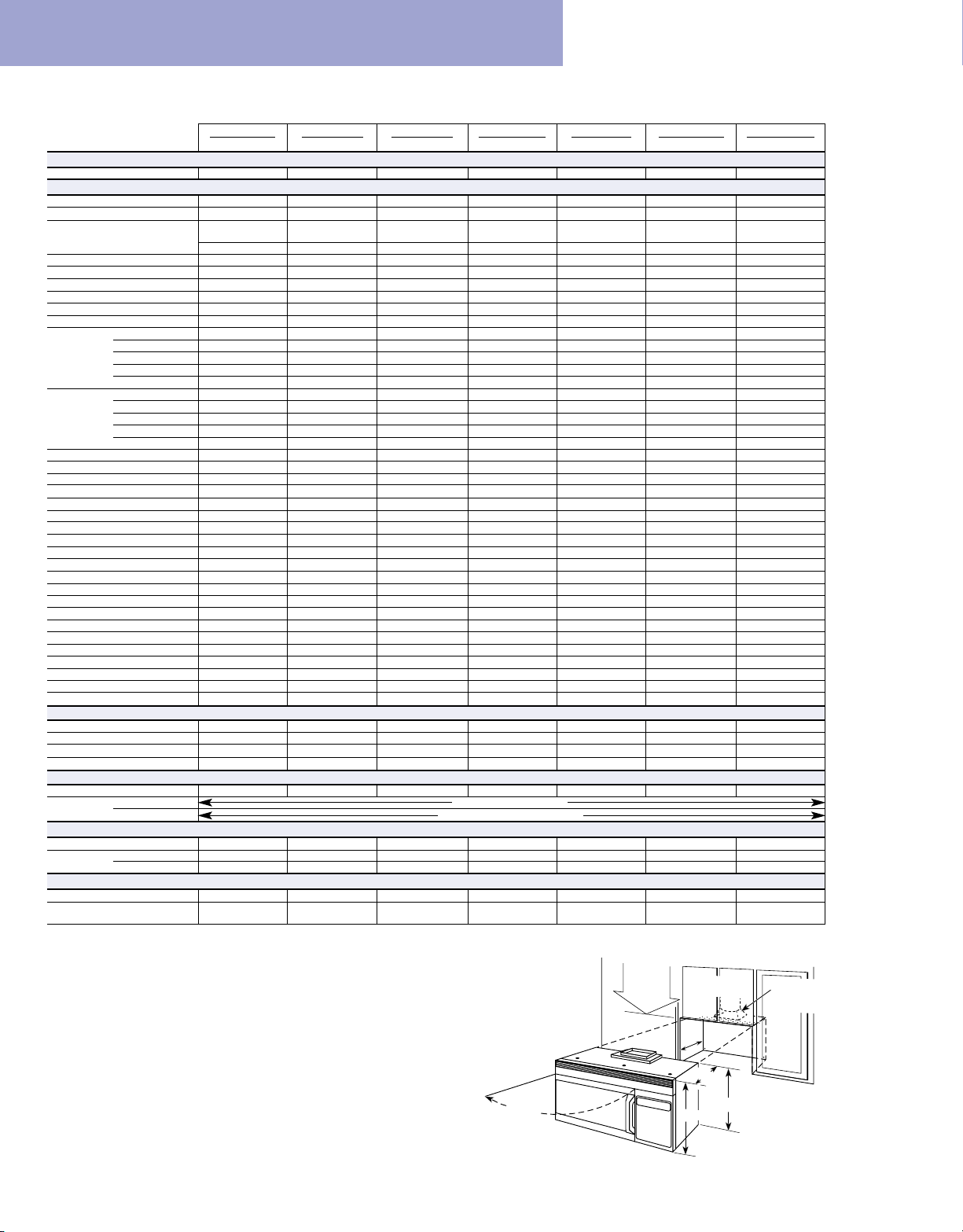

GE Microwave oven specifications

See page 87 for warranty information.

JVM1651AB* JVM1651BB* JVM1651CB* JVM1651WB* JVM1640BB JVM1631BB* JVM1631WB*

JVM1650AB JVM1650BB JVM1650CB JVM1650WB JVM1640WB/AB JVM1630BB JVM1630WB

Capacity

Oven cavity (cu. ft.)1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6

Features

Watts (IEC-705 Test Procedure) 1000 1000 1000 1000 1000 1000 1000 Electronic touch controls ■■■■■■■ SmartControl System

w/Interactive Display ■■■■■■■ Electronic scrolling digital display ■■■■■■■ Demo Mode ■■■■■ Clock and AM/PM Pad ■■■■■■■ Variable Scroll Speed ■■■■■■■ Help Pad ■■■■■

Concurrent programming ■■■■■■■ Display On/Off ■■■■■■■ Sensor Controls Beverage ■■■■

Popcorn ■■■■ Potatoes ■■■■ Reheat ■■■■ Vegetables ■■■■

Convenience Beverage Pad ■■■ Controls

Cook Pad

■■■■■

Popcorn Pad ■■■ Reheat Pad ■■■

Snacks Pad ■■■■ Express Cook (1-6 min.) ■■■■■■■ Instant On Controls ■■■■■■■ Time Cook I & II I & II I & II I & II I & II I & II I & II Add 30 Seconds ■■■■■■■ Auto Defrost/Time Defrost ■■■■■■■ Power levels 10 10 10 10 10 10 10 Delay Start ■■■■■■■ Reminder ■■■■■■■ CircuWave™ 1000 Cooking System ■■■■■■■ Dual Rack ■■■■■ Turntable On/Off ■■■■■ Turntable On only ■■ Full-View cooktop lighting ■■■■■■■ Night light ■■■■■ Programmable nite light ■■■■ Timer On/Off ■■■■■■■ Beeper sound level control ■■■■■ Cooking Complete Reminder ■■■■■■■ Child lock out ■■■■■■■ Two-speed high-capacity exhaust fan

300 CFM 300 CFM 300 CFM 300 CFM 300 CFM 300 CFM 300 CFM

Easy Mount Installation ■■■■■■■

Appearance

Color appearance** AA BB BB WW BB/WW/AA BB WW Case color Almond Black Bisque White Black/White/Almond Black White Designer-style handle ■■■■■■■ Big View window ■■■■■■■

Weights & Dimensions

Approx. shipping weight (lbs.) 67 67 67 67 67 67 67 WxHxD

Cavity 20-1/4 x 9-9/32 x 14-13/32 (in inches) Exterior† 29-7/8 x 16-15/32 (rear) x 15-1/16

Power/Ratings

2450 Frequency (MHz) ■■■■■■■ Electrical input

Watts 1480 1480 1480 1480 1480 1480 1480 @ 120V Amperage 15 15 15 15 15 15 15

Warranty

Full One-Year In-Home Warranty†† ■■■■■■■ Limited Nine-Year Magnetron

Warranty‡ (10 years total) ■■■■■■■

*Non-vented model.

**SS = Stainless steel, AA = Almond on almond, BB = Black on black, WW = White on white, CC = Bisque.

†Exterior dimensions: depth excludes handle.

††See warranty for details.

NOTE: Popcorn Pad designed for use with 3 packages sizes—3.5, 3.0 and 1.75 oz.

Dimensions (in inches)

21-3/4"

Door open

16-1/2

66" MIN.

Mounting

height

from floor

30" MIN.

width required

MAX.

Exhaust outlet

connects to

3-1/4" X 10" duct

12"

15-3/4

This information is not intended to be used for installing unit described. Before installing, consult installation instructions packed with product/kit for current dimensional data.

GE Spacemaker

™

over-the-range microwave ovens

Page 51

GE Microwave oven specifications

GE Countertop microwave ovens

See page 87 for warranty information.

Compact

JE1640AB

JE1840WB JE1640WB JE1340WC JE1140WC JE740WY

JE1840GB JE1640GB JE1340BC JE1140BC JE740GY

Capacity

Oven cavity (cu. ft.) 1.8 1.6 1.3 1.1 .7

Features

Watts (IEC-705 Test Procedure)

1100 1100 1100 1100 700 Electronic Touch Controls ■■■■■ Electronic digital display w/clock

■■■■■

Beverage Pad ■■■■■ Cook Pad ■■■■■ Popcorn Pad ■■■■■ Reheat Pad ■■■■■ Snacks Pad ■■■■■ Express Cook ■■■■■ Instant On Controls ■■■■■ Time Cook I & II I & II I & II I & II I & II Add 30 Seconds ■■■■■ Auto Defrost ■■■■■ Time Defrost ■■■■■ Power levels 10 10 10 10 10 Turntable ■■■■■ Kitchen timer 99-M./99-S. 99-M./99-S. 99-M./99-S. 99-M./99-S. 99-M./99-S. Delay Start/Reminder ■■■■■ Sound On/Off ■■■■■ Cooking Complete Reminder ■■■■■ Child lock out ■■■■■

Appearance

WW WW WW WW WW

Color appearance* BB BB BB BB BB

Almond

White White White White White

Case color Greystone Greystone Black Black Greystone

Almond

White White

White White White

Door color Black Black Black Black Black

Weights & Dimensions

Approx. shipping wt. (lbs.) 48 50 42 40 33

Cavity

16-3/4 x 10-3/4 x 17-5/8 16-1/2 x 9-23/32 x 16-27/32 14-3/4 x 9-1/4 x 16 14-3/4 x 8-23/32 x 15-23/32 12-1/16 x 7-11/16 x 12-1/16

WxHxD (in inches) Exterior†

23-7/8 x 13-1/2 x 19-1/4 23-21/32 x 13-5/16 x 18-5/16 21-7/8 x 12-5/8 x 17-1/4 20-1/2 x 11-7/8 x 16-15/16 19-1/4 x 10-13/16 x 13-9/16

Power/Ratings

2450 Frequency (MHz) ■■■■■ Electric input Watts 1550 1500 1530 1500 1150 @ 120V Amperage 13.6 13.0 13.3 13.0 10.5

Accessories

JX1530MAW/

JX1527MA

JX1830WB/ JX1530MWW/

JX1827WB

JX1527MWW

JX1830BB/ JX1530MBW/

Optional built-in kit JX1827BB JX1527MBW Optional hanging kit Pub. No. 4-A019

Warranty

Full One-Year Warranty** In-Home In-Home Carry-In Carry-In Carry-In Limited Nine-Year Magnetron

Warranty** (10 years total) ■■■■■

*BB = Black on black, WW = White on white, AA = Almond on almond.

**See written warranty for details.

†Exterior dimensions: height includes feet.

Extra-large Full-size Family-size Mid-size

Page 52

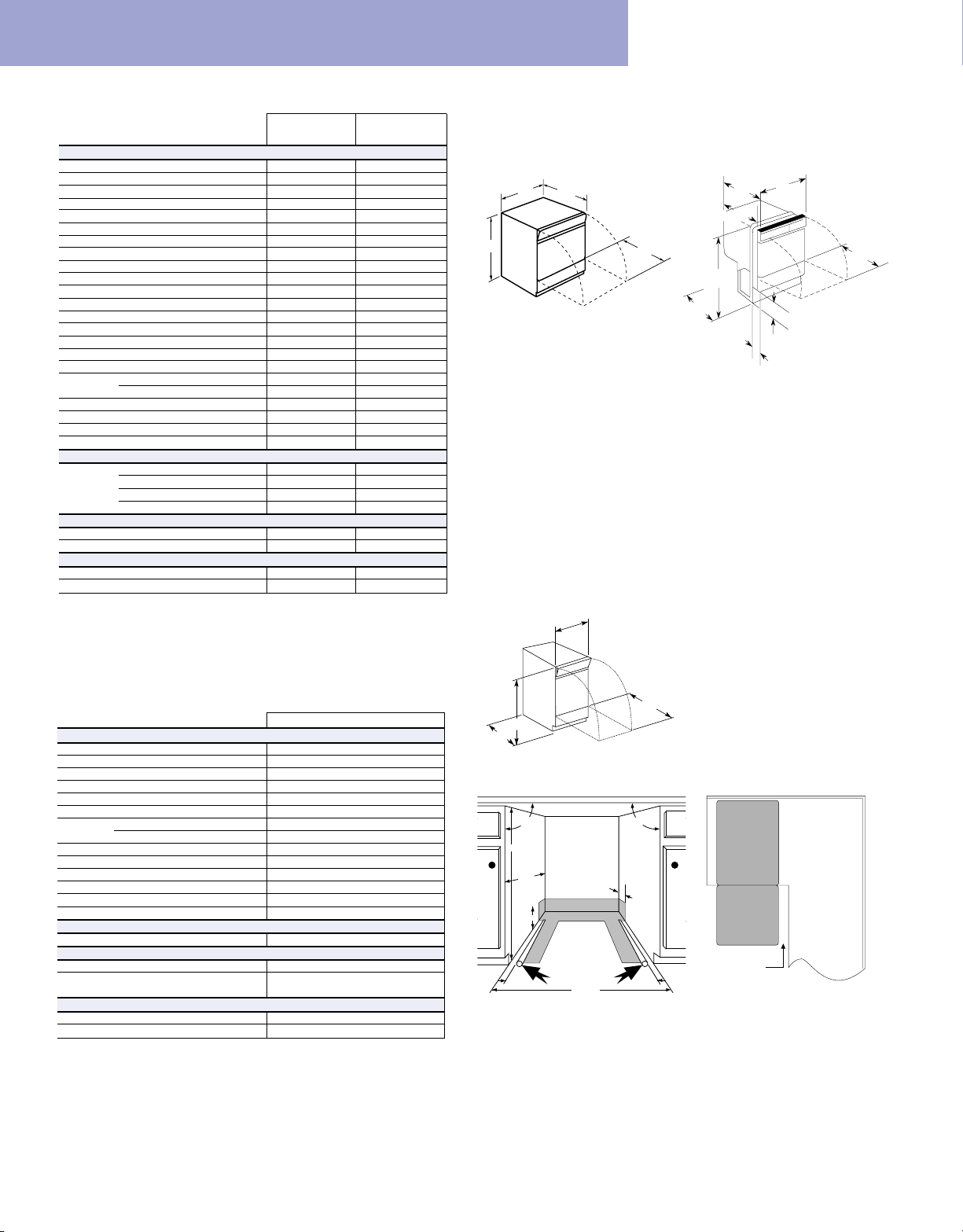

GE Microwave oven specifications

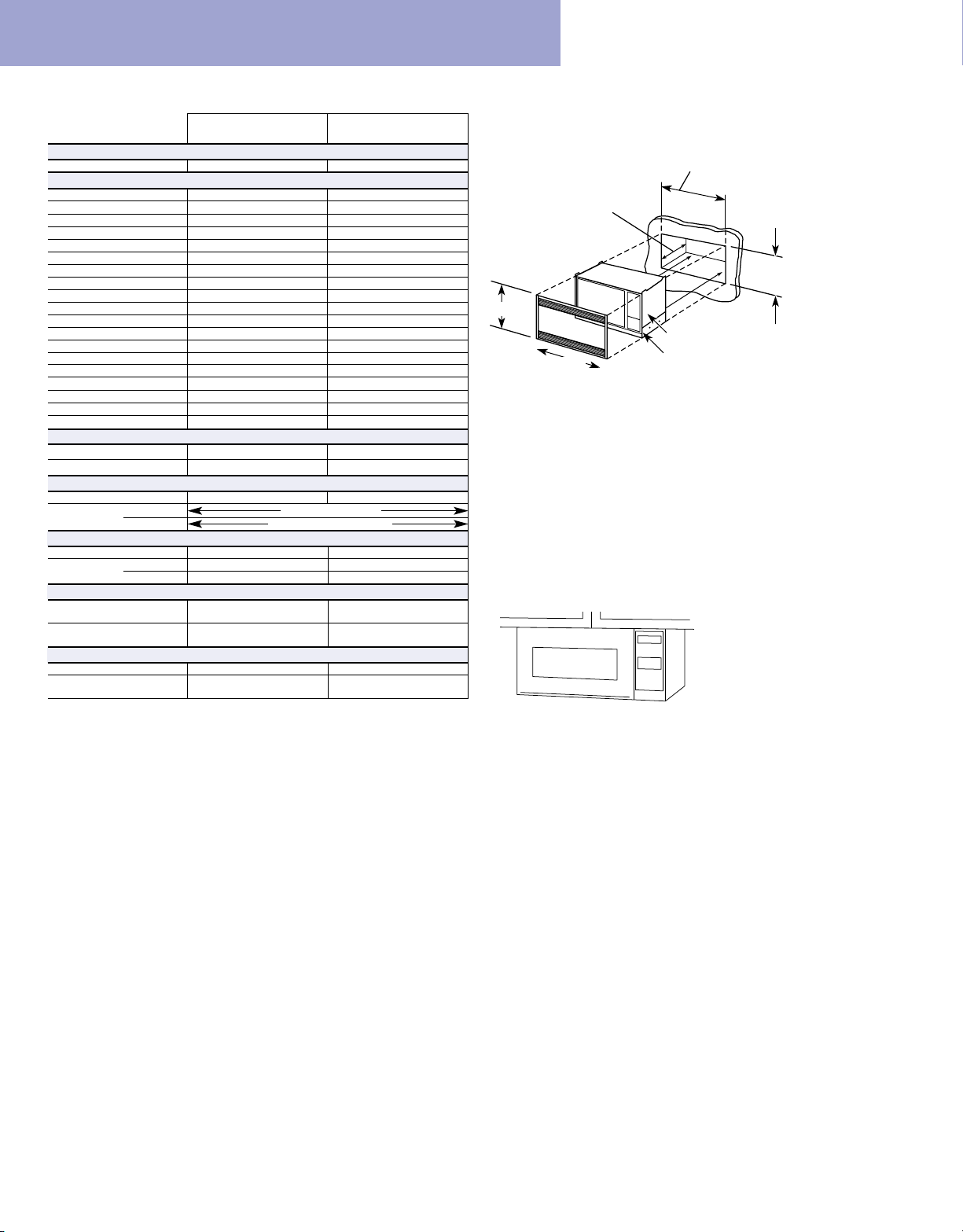

Accessory Trim Kits for .9 Microwave Ovens (Available at additional cost)

For a custom built-in appearance, this kit allows built-in installation of the Spacemaker II

™

microwave oven into a wall or cabinet alone, and is U.L.-approved for installation over a GE single electric wall oven. This kit should not be installed over a gas wall oven.

JX827BN—JEM25GY, JX827WN—JEM25WY JX827SS—JEM25GY

26-1/8

15-1/16" MAX. 14-15/16" MIN.

24-15/16" MAX. 24-13/16" MIN.

16" for flush receptacle

18" for in-cabinet receptacle

Bottom duct

Side cover

16-1/4

Cut-Out Dimensions (in inches)

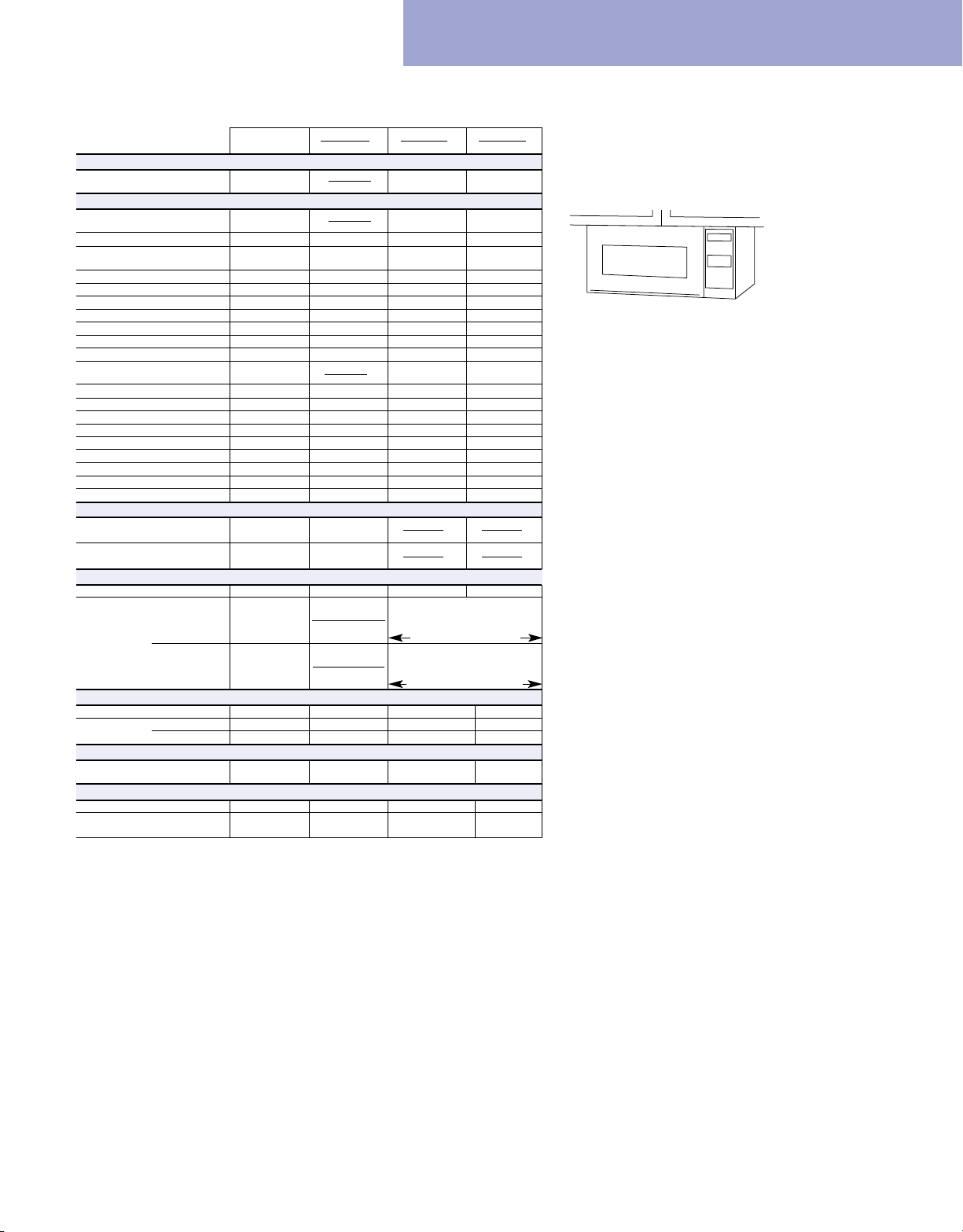

GE Spacemaker II

™

microwave ovens

JEM25WY JEM25GY

Capacity

Oven cavity (cu. ft.) .9 .9

Features

Watts (IEC-705 Test Procedure) 800 800 Electronic Touch Controls ■■ Electronic digital display w/clock ■■ Beverage ■■ Cook ■■ Popcorn ■■ Reheat ■■ Snacks ■■ Express Cook ■■ Instant On Controls ■■ Time Cook I & II ■■ Add 30 Seconds ■■ Auto Defrost/Time Defrost ■■ Power levels 10 10 Kitchen timer 99-M./99-S. 99-M./99-S. Sound On/Off ■■ Cooking Complete Reminder ■■ Delay Start/Reminder ■■ Child Lock Out ■■

Appearance

Door color White Black Case color White Greystone

Weights & Dimensions

Approx. shipping wt. (lbs.) 41 41 WxHxD Cavity 16-1/2 x 7-7/16 x 11-1/4

(in inches) Exterior† 23-25/32 x 11-3/16 x 12-9/32

Power/Ratings

Frequency (MHz) 2450 2450 Electrical input Watts 1300 1300 @ 120V Amperage 11.5 11.5

Accessories

Hanging kit (Pub. No. 4-A019)* Optional Optional

JX827BN/

Optional built-in kit JX827WN JX827SS

Warranty

Full One-Year Warranty** Carry-In Carry-In Nine-Year Magnetron Warranty**

(10 years total) Limited Limited

*Pub. No. 4-A019 is available at additional cost. **See written warranty for details.

††Exterior dimensions: height includes feet.

See page 87 for warranty information.

Undercabinet Mounting Kit Pub. No. 4-A019 For Spacemaker II,™Compact and Subcompact Microwave Oven Models (Available at additional cost)

Undercabinet Installation

Install Spacemaker II™, Compact and Subcompact microwave ovens in just a few easy steps with the mounting template, which provides all the necessary measurements.* These microwave ovens can be installed on practically any wood or metal cabinets.

*Installation may vary depending on cabinets.

Not to be used over a thermal oven.

Note: 120V, 60-cycle, grounded power receptacle location optional on back

within cabinet opening.

This information is not intended to be used for installing unit described. Before installing, consult installation instructions packed with product/kit for current dimensional data.

Page 53

GE Countertop: compact/subcompact microwave ovens

Undercabinet Mounting Kit Pub. No. 4-A019 For Spacemaker II,™Compact and Subcompact Microwave Oven Models (Available at additional cost)

Undercabinet Installation

*Installation may vary depending on cabinets.

Not to be used over a thermal oven.

Note: 120V, 60-cycle, grounded power receptacle location optional on back

within cabinet opening.

This information is not intended to be used for installing unit described. Before installing, consult installation instructions packed with product/kit for current dimensional data.

GE Microwave oven specifications

JE835WW JE520WC

JE510WC

JE710BA JE635WW JE520BW JE510BW

Capacity

Oven cavity (cu. ft.) .7 .6 .5 .5

Features

800

Watts (IEC-705 Test Procedure) 600 600 600 600 Electronic Touch Controls ■ Electronic digital display

w/clock (LED) ■■ Mechanical Dial ■■ Beverage Pad ■ Popcorn Pad ■ Frozen Pizza Pad ■ Dinner Plate Pad ■ Baked Potato Pad ■ Vegetables Pad ■

■

Soup Pad – Instant On Controls ■ Time Cook 15 Min. ■ 15 Min. Auto Defrost ■ Time Defrost ■ Power levels 1 10 10 1 Turntable ■■■■ Quick Set ■ Auto Start ■ Child Lock Out ■

Appearance

White White

Door color Black White Black Black

White White

Case color Black White Black Black

Weights & Dimensions

Approx. shipping wt. (lbs.) 28 33 29 29

12-5/8 x 8-1/2

x 13-3/16

11-7/8 x 7-5/8 11-3/8 x 7-7/8

Cavity x 12-1/2 x 11-5/8 11-3/32 x 6-11/16 x 11-7/32

19-1/2 x 11-3/8

x 15-1/8 WxHxD 18-5/16 x 10-13/16 (in inches) Exterior † 19 x 11 x 12-7/8 13-7/8 18-5/32 x 9-19/32 x 12-11/16

Power/Ratings

Frequency (MHz) 2450 2450 2450 2450 Electrical input Watts 910 1200/ 920 950 950 @ 120V Amperage 8.5 10.5/8.0 8.5 8.5

Accessory

Hanging kit (Pub. No. 4-A019)* Optional Optional Optional

Warranty

Full One-Year warranty** Carry-In Carry-In Carry-In Carry-In Four-year Magnetron warranty**

(Five years total) ■■■■

*Pub. No. 4-A019 is available at additional cost.

**See written warranty for details.

†Exterior dimensions: height includes feet.

See page 87 for warranty information.

Page 54

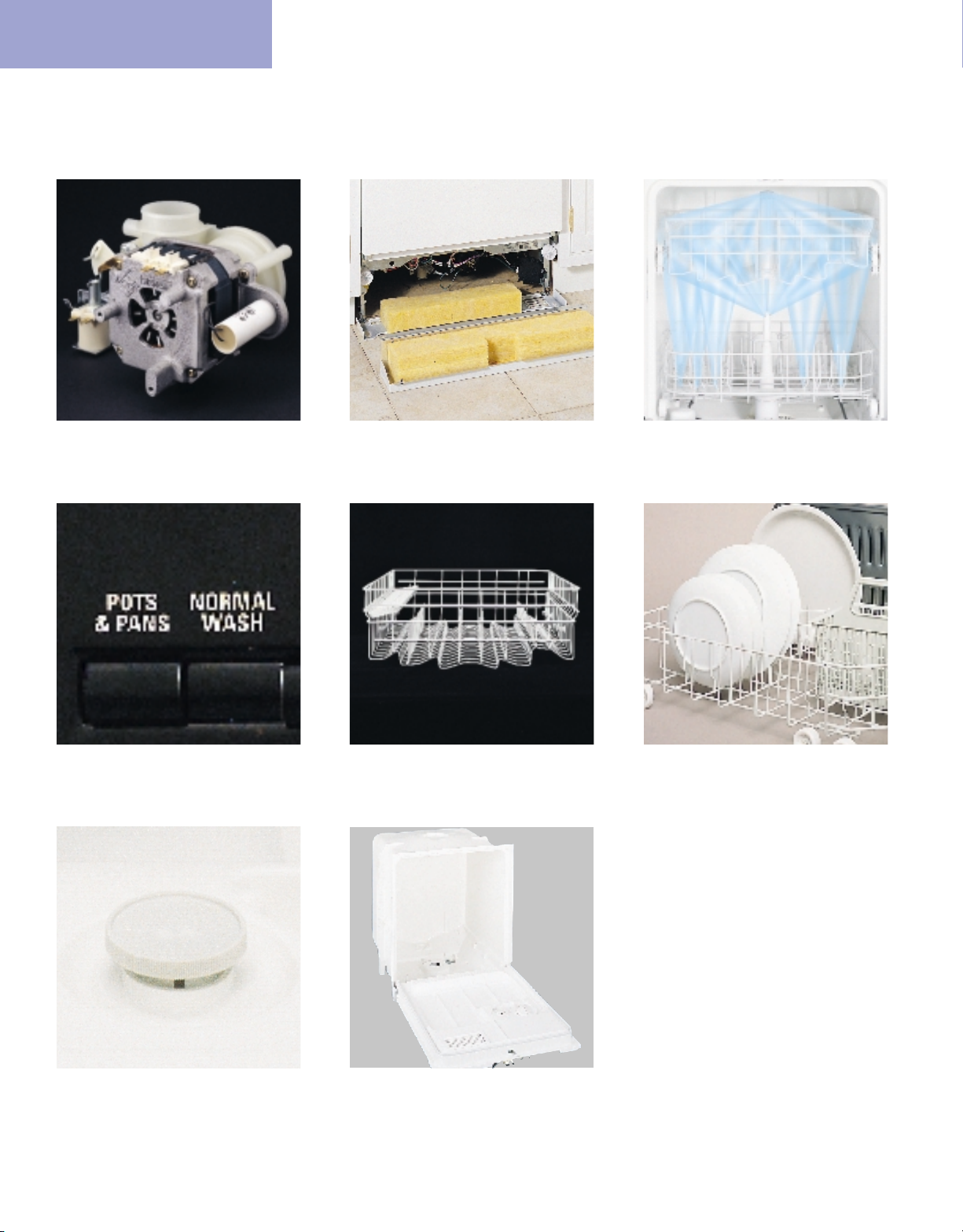

Dishwashers

New QuietPower™motor

A quieter, cooler, more energy efficient motor than previous motor.

Pots & Pans cycle

Removes dried-on and baked-on (but not burned-on) food from pots, pans and dishes.

New Power Wash II System

Three-level wash action with powerful jet action for effective food soil removal and great wash performance.

Deluxe lower rack

The rack has curved tines to accommodate stoneware and large plates or broiler pans.

Crystal Clear™rinse aid dispenser

Container automatically releases a small amount of rinse agent, which speeds drying and lessens water spotting and streaking.

Hotpoint dishwashers offer quiet, performance, capacity and quality for today’s customers

Not all features available on all models.

Toe kick & access panel insulation

Fiberglass insulation in toe kick and access panel minimizes operating noise.

Deluxe Plus upper rack

Extra-deep upper rack. Extra fold-up cup shelves allow for double-stacking of dishes.

Durable tub and door liner

Guaranteed against leakage from cracking, peeling, chipping or rusting for ten years.

Page 55

Dishwashers

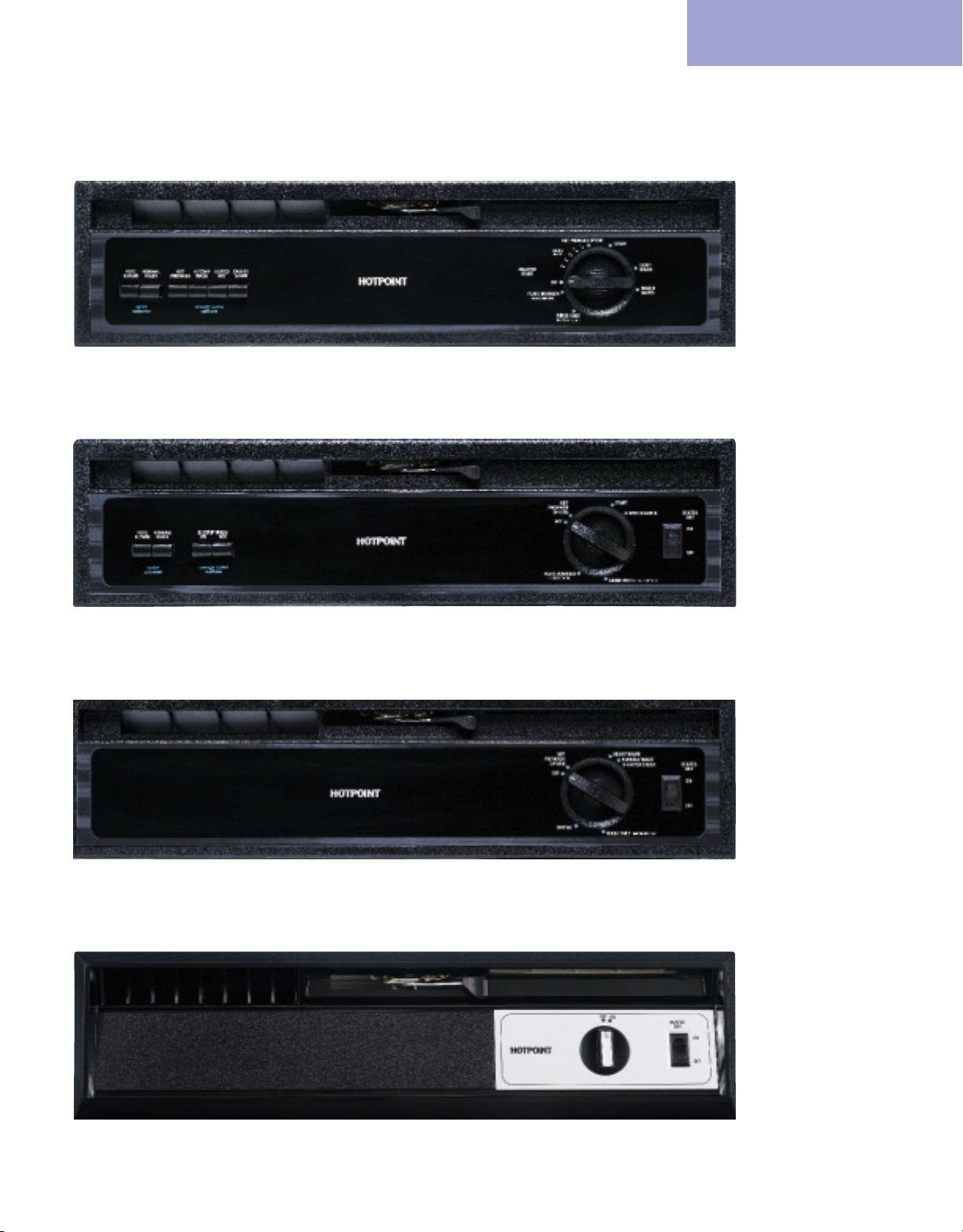

HDA3200FBB

■

5 cycles/22 options

■

Pots & Pans cycle

■

Water Saver cycle (on dial)

■

Plate Warmer cycle (on dial)

■

Hi-Temp Wash

■

Hot Prewash option (on dial)

■

Deluxe Plus upper rack

■

Deluxe silverware basket

■

QuietPower™Motor

HDA3200FWW – White on white HDA3200FAA – Almond on almond

HDA2000FBB/HDA2000FAD HDA2000FWH

■

4 cycles/9 options

■

Water Saver cycle (on dial)

■

Rinse Only cycle (on dial)

■

Heavy Wash cycle (on dial)

■

Heated Dry On/Off (on rocker)

■

Hot Prewash option (on dial)

■

Standard upper rack

■

Deluxe silverware basket

Available for contract sales only.

HDA2100FWW – White on white

HDA1000ZWH

■

1 cycle/2 options

■

Normal Wash cycle (on dial)

■

Heated Dry On/Off (on rocker)

■

Standard upper rack

■

Deluxe silverware basket

High quality features for performance and convenience

HDA3400FBB

■

6 cycles/27 options

■

Pots & Pans cycle

■

Water Saver cycle (on dial)

■

Plate Warmer cycle (on dial)

■

5-Hour Delay Start

■

Light Wash (on dial)

■

Hi-Temp Wash

■

Hot Prewash option

■

Deluxe Plus upper rack

■

Deluxe insulation package

■

Deluxe silverware basket

■

QuietPower™Motor

HDA3400FWW – White on white HDA3400FAA – Almond on almond

HDA3400FBB

HDA3200FBB

HDA2000FBB/HDA2000FAD/HDA2000FWH (Available for Contract Sales only)

HDA1000ZWH

For detailed specifications, installation information and color availability, refer to page 58. For warranty information, refer to page 87.

Page 56

■

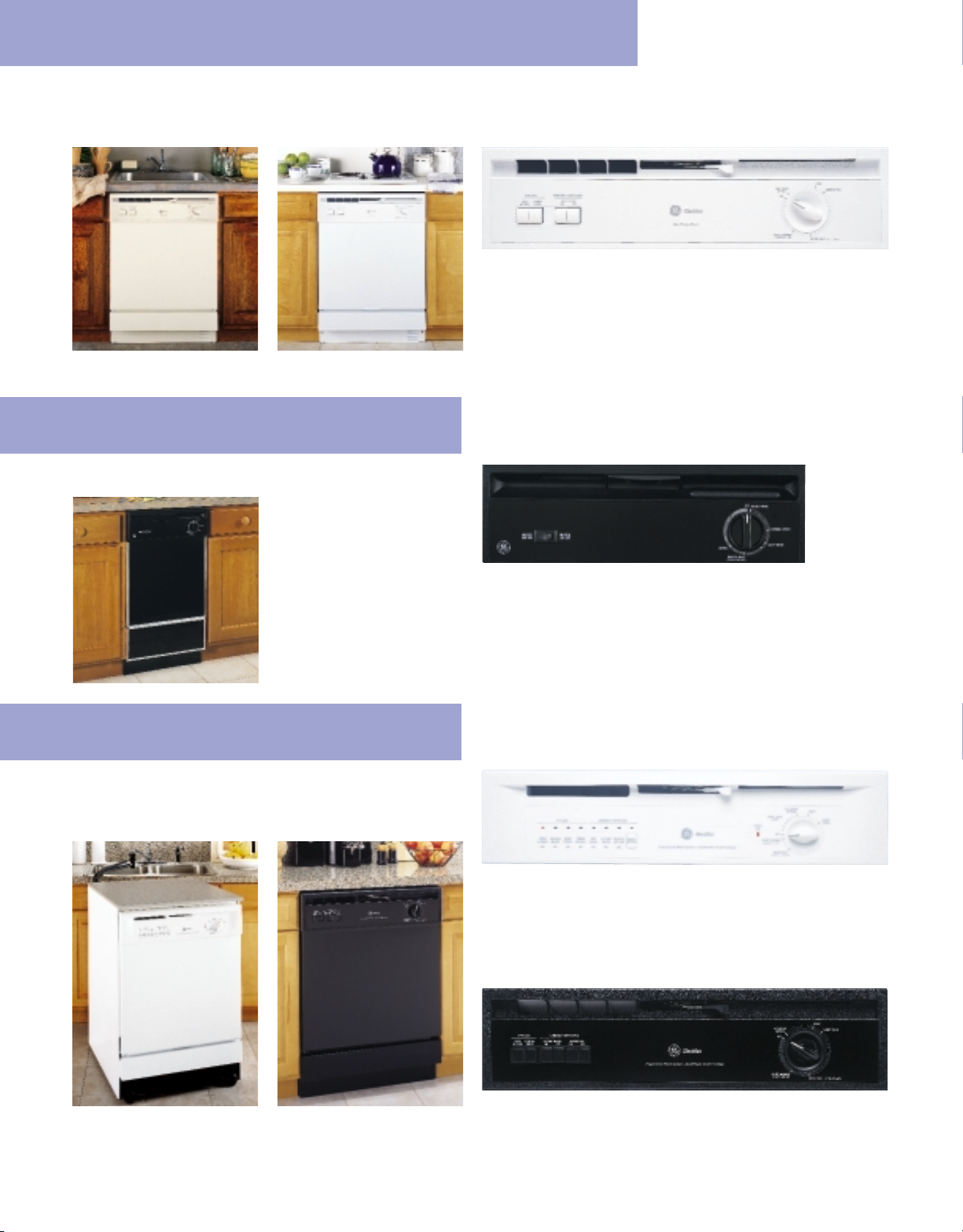

New PowerScrub™Wash System ■Pots & Pans cycle ■Normal Wash cycle

■

Short Wash cycle (on dial)■Plate Warmer cycle (on dial) ■Rinse Only cycle

(on dial) ■HotStart™option ■Heated Dry On/Off option ■Hi-Temp Wash option

■

3 wash levels ■Rinse Aid dispenser ■Standard insulation package

GSC3430FWW

■

7 cycles/39 options ■New PowerScrub™Wash System ■TouchTap™Control

pads ■China/Crystal cycle* ■6-hour delay start option ■HotStart™option

■

Deluxe upper rack ■Deluxe lower rack ■Split silverware basket ■Rinse Aid

dispenser w/indicator ■White on white with white cabinet ■QuietPower™motor

Also available in Black on black with almond cabinet as Model GSC3400FBL. *Developed in consultation with Lenox

, the leading manufacturer of fine china.

GSC3200FBL

■

5 cycles/22 options ■New PowerScrub™Wash System ■HotStart™option

■

Deluxe upper rack ■Deluxe lower rack ■Deluxe silverware basket ■Black

on black with almond cabinet ■QuietPower™motor

Also available in White on white with white cabinet as Model GSC3230FWW.

Portable now Built-in later

GSM2130FWW/GSM2110FAA

■

5 cycles/12 options ■Pots & Pans cycle ■Normal Wash cycle

■

Short Wash cycle (on dial) ■Rinse Only/Hold cycle (on dial)

■

Plate Warmer cycle (on dial) ■ HotStart™option ■PermaTuf®interior

■

Spacemaker®upper rack ■Deluxe lower rack ■Deluxe silverware basket

■

2 wash levels ■QuietPower™motor

Note: Undersink dishwashers can be installed under GE cooktop models JP200V and JP201CV. Refer to cooktop installation instructions.

Under a single sink bowl

Works under a single sink or cooktop

Under a cooktop

GE Spacemaker®undersink dishwashers

GE Convertible dishwashers

GE Built-in 18" dishwasher

For detailed specifications, installation information and color availability, refer to pages 59-60. For warranty information, refer to page 87.

GSS1800Z

■

4 cycles/6 options ■Pots and Pans cycle (on dial)

■

Light Wash cycle (on dial) ■Rinse Only/Hold cycle (on dial)

■

Heated Dry On/Off option (rocker) ■3-color panel pack

■

Available with black control panel only

New 18" space-saving model

Page 57

GFC1000Y

■

Rugged 3/4-horsepower motor ■8000 RPM grinding action ■Super Deluxe sound insulation ■Power Boost feature for heavy loads ■Fast Mount installation

■

Removable splash guard

GFC800Y

■

1/2-horsepower motor ■8000 RPM grinding action

■

Deluxe sound insulation ■Fast Mount installation

■

Removable splash guard

GFC700Y

■

1/2-horsepower motor ■8000 RPM grinding action

■

Standard sound insulation ■Fast Mount installation

■

Removable splash guard

GFC705Y

■

Similar to GFC700Y but has attached line cord.

GFC300Y

■

1/2-horsepower motor ■8000 RPM grinding action

■

Fast Mount installation ■Removable splash guard

GFC305Y

■

Similar to GFC300Y but has attached line cord.

GFC290Y

■

1/3-horsepower motor ■8000 RPM grinding action

■

Fast Mount installation ■Removable splash guard

GFC295Y

■

Similar to GFC290Y but has attached line cord.

GFB1050V

■

Rugged 3/4-horsepower motor ■2700 RPM grinding action

■

Super Deluxe sound insulation ■Twist Mount installation

Where local codes permit, any GE Dishwasher and any GE Disposer may be connected to a single 20-amp circuit.

White and Almond flanges are available: GPF71 (White) and GPF72 (Almond).

GCG1540FSS Stainless steel

■

1.4 cu. ft. capacity ■1/3-horsepower

■

Removable key lock ■Toe pedal opener

■

Rear wheels allow easy movement and

installation ■Heave-gauge steel construction

GCG1550FCC Bisque (not shown) GCG1520FBB Black on black (not shown) GCG1530FWW White on white (not shown)

GFB1050V

GFC1000Y GFC800Y GFC700Y/GFC705Y

GFC300Y/GFC305Y GFC290Y/GFC295Y

Continuous feed models

Batch feed model

■

Stainless steel flange ■Manual reset protector

■

Polyester drain housing ■Dishwasher drain connector

■

Dual swivel stainless impellers ■Precutter ■Sink stopper

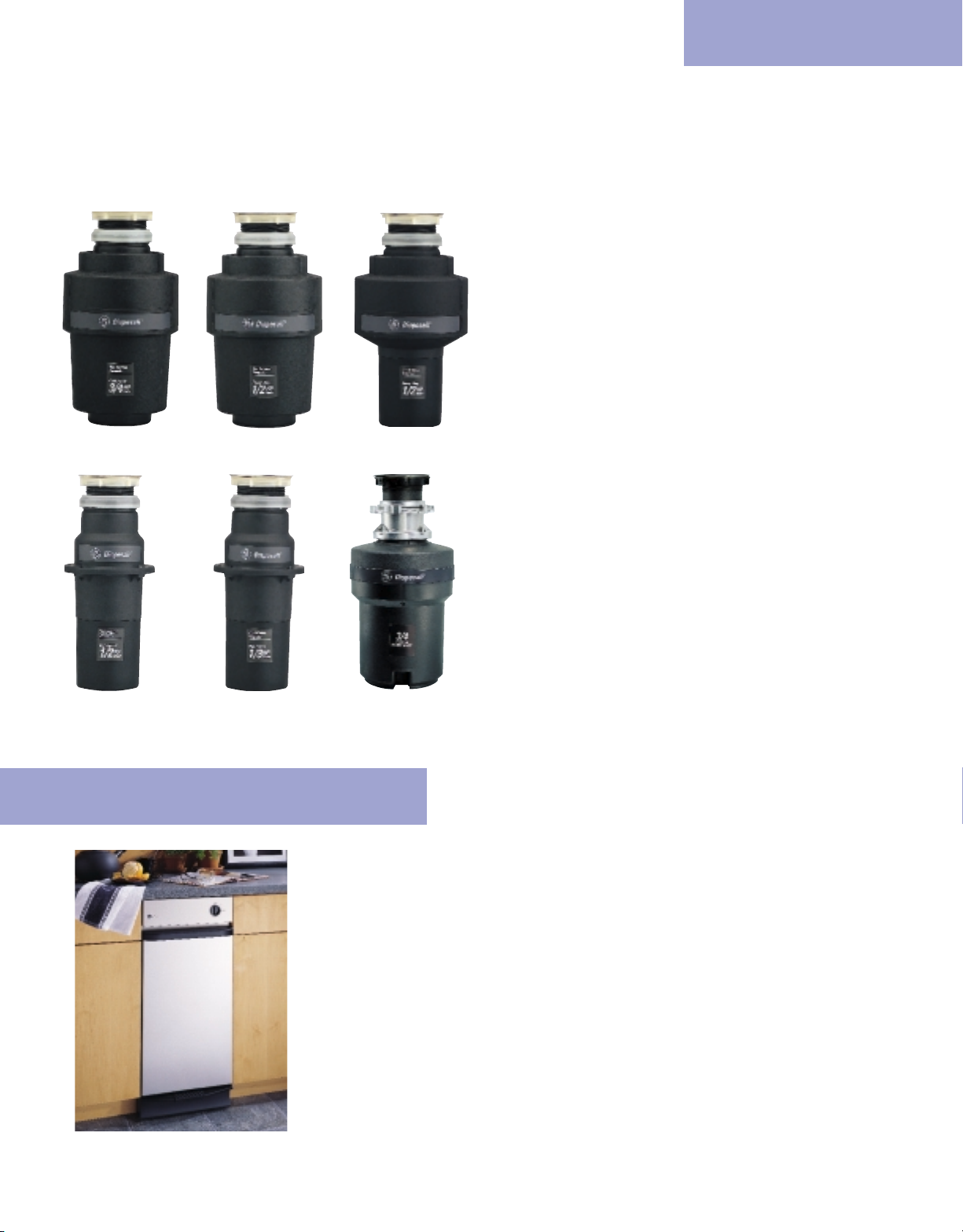

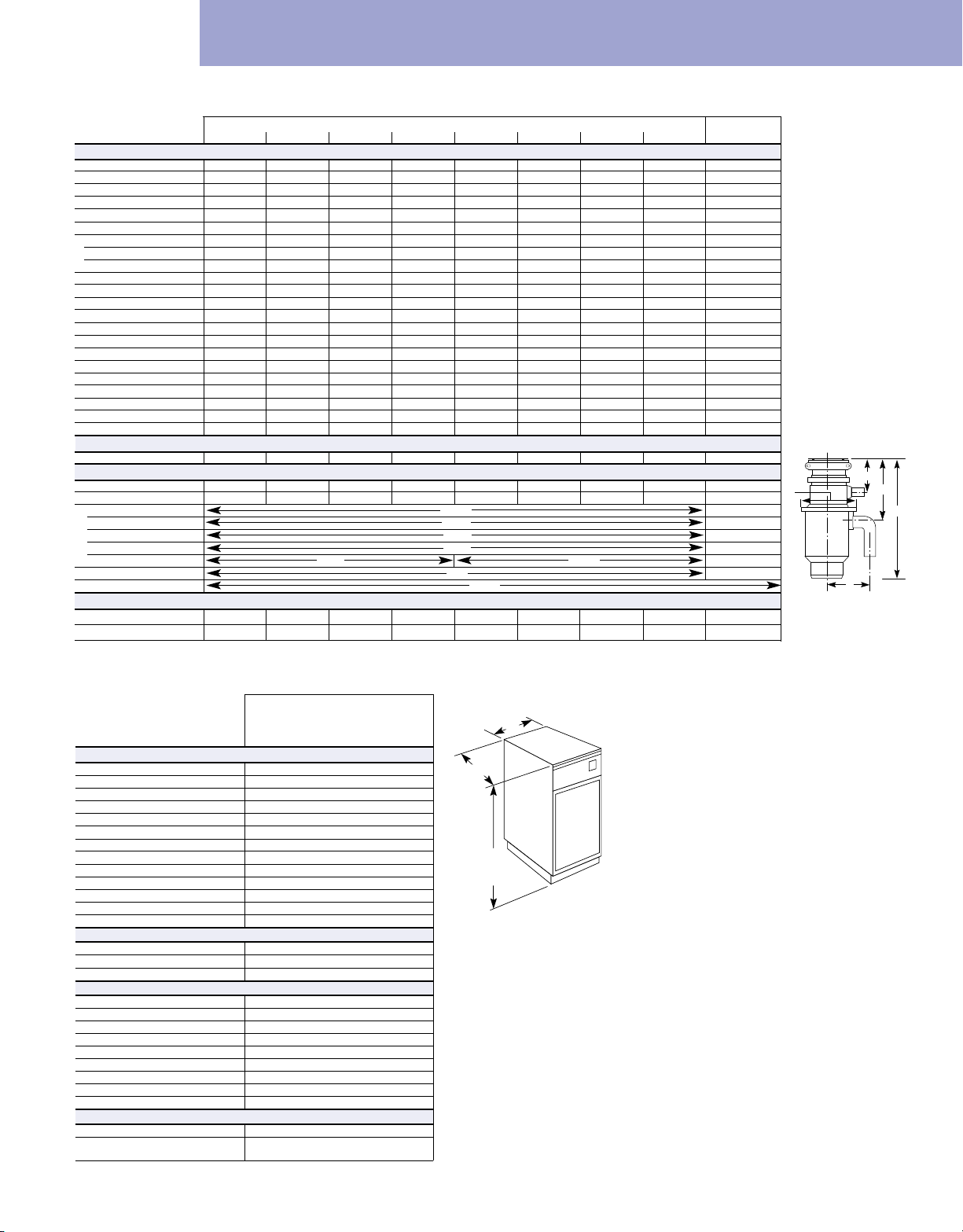

GE Disposers

GE Built-in compactors

For detailed specifications, installation information and color availability, refer to page 61. For warranty information, refer to page 87.

Page 58

Listed by Underwriters Laboratories

Dishwasher specifications

See page 87 for warranty information.

Specifications and electrical rating

120 Volts AC, 60 Hertz, 8.6 Amps total connected load 500 Watt Calrod®heater. For use on adequately wired 120 volt, 15 amp circuit having two-wire service with a separate ground wire. This appliance must be grounded for safe operation.

Dishwasher must not be installed more than 10 feet from sink for proper drainage. All plumbing and electrical work must be in accordance with local codes. Dishwasher includes drain hose and leveling legs.

Note: Before installing, consult installation instructions packed with product for current dimensional data.

Dishwasher rough-in information (in inches) Dishwasher dimensions (in inches)

25-1/8*

21-1/2*

3-1/4

4 (Adjustable)

34" MIN. adj. to 35"

*Add 1/4" for

*rear insulation

23-3/8*

24-3/4

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34-1/2±1/4"

Underside

of countertop

to floor

90°

Electrical wiring on

right

Electrical

wiring is

3" from cabinet

Contract Only

HDA2100FWW/

HDA3400FWW/ HDA3200FWW/ HDA2000FBB/

HDA3400FBB/ HDA3200FBB/ HDA2000FWH/

HDA3400FAA HDA3200FAA HDA2000FAD HDA1000ZWH

Features

Power Wash II System

■■

Self-cleaning filter

■■

Wash levels 3 3 2 2 Cycles/Options 6/27 5/22 4/9 1/2 Pots & Pans cycle

■

Heavy Wash cycle Dial Normal Wash cycle

■

Dial Dial

Water Saver cycle Dial Dial Dial Plate Warmer cycle Dial Dial

Rinse Only cycle Dial Dial Dial Delay Start

■

Heated Dry

■

Rocker Rocker Rocker

Hi-Temp Wash

■■

Hot Prewash option

■

Dial Dial Pushbuttons 6 4 Rinse Aid dispenser

■■ ■ ■

Upper Deluxe Plus Deluxe Plus Standard Standard

Rack System

Lower Deluxe Deluxe Deluxe Deluxe

Silverware Basket Deluxe Deluxe Deluxe Deluxe

Economical/Quiet

Sound insulation package Deluxe Standard Plus Standard QuietPower™motor

■■

Appearance

Colors available* WW, BB, AA WW, BB, AA WW, BB, WH, AD WH

Door Trimless Trimless Trimless Trimless

Color panels

Access Trimless Trimless Textured Textured

Weights & Dimensions

Approx. shipping wt. (lbs.) 81 81 81 81 Height w/legs Retracted (in.) 34 34 34 34 Overall width (in.) 24 24 24 24 Overall depth (in.) 25-1/8 25-1/8 25-1/8 25-1/8

Accessories

Requires kit for 1/4" panel capability (w/trim) GPF325W/B/A GPF325W/B/A GPF325W/B/A GPF325W

Requires kit for 3/4" panel capability (trimless) GPF375 GPF375 GPF375 GPF375

*WW = White on white, BB = Black on black, AA = Almond on almond, WH = White/Black, AD = Almond/Black

**Certificate enclosed in Use and Care Book for ordering information.

***See written warranty for details.

†For the 1/4" panel capability with trim order GPF325A/W/B. For the 3/4" trimless panel capability order GPF375.

Built-in dishwashers

D – Panel

Models/Kit A B C Thickness GPF325 Kit 18-7/8" 23-9/16" 3-11/16" 1/4"

4-1/4" to

GPF375 Kit 18-15/16" 23-5/8"* 3-3/4"** 3/4"

*Bottom of panel must be notched 1-1/2" x 1/2" to clear

access panel. (See illustration above)

**Adjustment required to match adjacent cabinet fronts

due to leveling adjustment, 4" nominal.

Wood insert cut-out dimensions

Access insert

Detail D

Panel Thickness

Door insert

Front

Panel

1-1/2

1/2

1/4

3/4

Detail D

Side View GPF375 only:

Dishwasher accessories

Side panel for all models:

Contains one panel and adjustable toe-kick for end cabinet installation of built-in model. Does not attach to dishwasher. Specify color: GPS5AD—Almond GPS5WH—White

Optional dishwasher accessories:

GPF53—Brackets for under non-wood countertop

installation

GPF95—Stainless sink for Spacemaker®dishwasher–

single bowl 21-1/4" x 25" Drain hole on right; elbow and strainer included

GPF96—Stainless sink for Spacemaker®dishwasher–

single bowl 21-1/4" x 25" Drain hole on left; elbow and strainer included

GPF97—Stainless sink for Spacemaker®dishwasher–

double bowl 21-1/4" x 33" Elbow and strainer included

GPF100—Heavy spring kit for custom door panel

weighing more than 4 lbs.

GPF200—Almond/Black/White side tub flange gasket kit

Wood panel capability:

GPF325A/B/W—GE 1/4" panel trim kit

(door and access)

GPF375—GE 3/4" trimless panel trim kit

(door and access)

Page 59

Dishwasher specifications

See page 87 for warranty information.

GE Spacemaker

undersink dishwasher

Either single- or double-bowl sink may be used, centered or offset, as shown in the front illustration above. The 20-1/2" max. dimension from wall to front of sink bowl must be accurate if dishwasher is to fit properly under sink. Water lines to sink faucet and drain from sink can be run through area “A.” HOT WATER line to dishwasher is installed in area “B.” Garbage disposer, water lines to faucet, trap, waste air gap and water cut-off valve are installed in 12" wide cabinet shown in area “C.” Sink opening for garbage disposer must be dimensioned as shown in front view, area “C” above (7-1/2"). This will provide clearance for disposer and plumbing in cabinet “C” when using double bowl sink. If the sink bowl is more than 20-1/2" max. specified distance from the wall, or if the base cabinet is less than the 24" min. depth from the wall, a gap between the tub front flange and the front of the base cabinet may result.

Cabinet rough-inPlumbing/electrical rough-in

Plumbing: Hot Water Only. Use 3/8" O.D. copper

tubing or 1/2" O.D. plastic tubing min. inlet line. Water valve has 3/8" internal threads. Hand cut-off valve is recommended.

Electrical: Fuse circuit with 15 amp or 20 amp standard fuse or circuit breaker. Total amp load is 8.6. Dishwasher operates on 120V, 60 Hz power. Two-wire cable (14 Ga. Min.) with ground must be installed.

Note: All rough-in, both plumbing and electrical, must be completed before the dishwasher is installed. All plumbing and electrical work must be in accordance with local codes.

Specifications: Inlet Water Temperature Recommended: Minimum 120°F. at dishwasher. Inlet Water Pressure Required: 15 to 120 lbs./sq. in.

Undersink dishwasher wood insert dimensions (in inches)

Inserts must not exceed 1/4" thickness within 5/16" of edge around full circumference.

Order GPF325 Kit.

Cabinet cutout for sink

Cabinet cutouts for offset single and double bowl sinks. Dishwasher not provided with complete enclosure. Enclosures for sides, top, bottom, and back must be provided by installer at time of installation.

Stainless steel sinks single and double compartment models (dimensions in inches)

Cutout In

Countertop

1-1/2" Radius

Model Number Corners

GPF95 (Single Bowl, R)* 24-3/8 20 -5/8 3 or 4** 10 GPF96 (Single Bowl, L)* 24 -3/8 20 -5/8 3 or 4** 10 GPF97 (Double Bowl) 32-3/8 20 -5/8 3 or 4** 12 -1/2

Note: Drain opening size is 3 -1/2". Above models are fully sound deadened.

*Suffix “L” or “R” means drain outlet is located in upper left

or right corner of sink compartment.

**All have four holes, but one hole has a removable plug.

No. Of 1 -1/2"

Dia.

Faucet

Holes

Ship.

Wt.

Lbs.

A close-fitting elbow or special shallow sink strainer is necessary to provide clearance between sink drain and dishwasher. Dishwasher is furnished with a 1/2" I.D. drain hose, 78" long. If using copper tubing, a 2" length of 1/2" I.D. rubber hose must be provided to connect copper tubing to pump outlet. Disposer should have 7/8" I.D. dishwasher drain connector.

Rough-in for installation with disposer

Rear view plumbing arrangement

3-1/4

12-1/2

Sink

installation

cutout

8" x 20" Adjacent

cabinet rear cutout

Cabinet side

adjacent to D/W

FRONT VIEW

11-3/4

Access insert

Detail D

Door insert

2" From

cabinet

2" From

floor

19" From

wall

Cable 24"

from wall

White (neutral)

Black (line)

Ground

Plumbing and

wiring must enter

within this area

from either side,

rear or bottom

FRONT VIEW

Hot

Cold

Countertop 1-1/2" MIN. thick

FRONT VIEW

7-1/2

6" MAX.

24 12"

MIN.

Floor

Toe kick

area

10-1/4" MAX.

Front of cabinet

Flange

4" MAX.

11-3/4"

MAX. Plumbing

1-1/4"

MIN. I.R.

34-1/4

± 1/4

3/4" MIN.

Wall

Floor

6" MAX.

11" MIN

Drain

20-1/2" MAX.

Sink bowl

1" MAX. to sink flange

10-1/4" MAX.

Plumbing depth

SIDE VIEW

Dishwasher

24"

min. cabinet

10"

from

cabinet

Allow a 5" radius to prevent kinking

1-1/2" MAX. dia. hole

Directional flow tee

12" From wall

Waste tee

or disposer

Remove hopper plug before connecting dishwasher drain

FRONT VIEW

Drain

connection

air

gap

Cold water

Hot water

Valve to shut off

water to dishwasher

Hot water supply

to dishwasher

1-1/2"

Directional

flow tee

Dishwasher

drain hose

Electrical

junction box

(on dishwasher)

Dishwasher

water inlet

valve

1-1/2" Close

elbow

GFC290/300/700

Disposall

unit

Spacemaker

dishwasher

Inside

Overall Each

Model Number Size Compartment

LW L W D

GPF95 (Single Bowl, R)* 25 21-1/4 21 15-3/4 5 -3/8 GPF96 (Single Bowl, L)* 25 21-1/4 21 15-3/4 5 -3/8 GPF97 (Double Bowl) 33 21-1/4 14 15-3/4 5 -3/8

GSM2130FWW

GSM2110FAA

Features

Wash levels 2 Cycles/Options 5/12 Pots & Pans cycle ■ Normal Wash cycle ■ Short Wash cycle Dial Plate Warmer cycle Dial Rinse Only/Hold cycle Dial Heated Dry On/Off option ■ HotStart™option ■

Upper Spacemaker

Rack system

Lower Deluxe Silverware basket Deluxe Control type Turn-To-Start Cycle Progress Indicators Dial Pushbuttons 4 Rinse aid dispenser ■

Economical/Quiet

PermaTuf®tub and door liner ■ QuietPower™Motor ■

Appearance

Colors Available** WW, AA

Door Trimless Color Panels Access Trimless

Miscellaneous

Approx. shipping weight (lbs.) 72 1, 2, 10-yr. warranty* ■

***See written warranty for details. ***WW = White on white

AA = Almond on almond

Note: Undersink dishwashers can be installed under GE cooktop models JP200V

and JP201CV. Refer to cooktop installation instructions.

Page 60

GE Convertible/portable specifications

Convertible/por table dishwashers

Important Note: GE Kit number WD35M34 needed when adapting GE Convertible Dishwasher to a built-in installation. Contains built-in dishwasher water valve, hardware and complete instructions for changing a GE Convertible Dishwasher to an under-the-counter installation.

Most of the installation work should be done before the dishwasher is moved into place. First, select a location as close to the sink as possible for ready access to water and drain lines. For proper operation and appearance of the dishwasher, the cabinet opening should be square and have dimensions as shown in Figure 1. If the dishwasher is to be installed in a corner, there must be sufficient clearance to open the door as shown in Figure 2. A

minimum clearance of 2" is recommended.

Rough-in the water, electrical, and drain lines before proceeding with the installation. The lines should run straight to their connections on the dishwasher.

Note: Make sure that the lines do not cross in front of the dishwasher motor or its legs.

Dimensions (in inches) GSC3430FWW, GSC3400FBL, GSC3230FWW and GSC3200FBL

25-1/8*

21-1/2*

3-1/4

4 (Adjustable)

34" MIN. adj. to 35"

*Add 1/4" for

*rear insulation

23-3/8*

24-3/4

Portable Built-In

24-3/4

36-1/8*

Includes top

*Includes top

and wheels

See page 87 for warranty information.

18" Compact dishwasher

Figure 1 Figure 2

17-13/16

34-1/8

23-3/4*

*(rear of tub to front face of access panel)

GSC3430FWW/ GSC3230FWW/

GSC3400FBL GSC3200FBL

Features

PowerScrub™Wash System ■■ Filtration System Dual Dual Piranha™hard food disposer ■■ Cycles/Options 7/39 5/22 Pots & Pans cycle

■■

Normal Wash

cycle

■■

Short Wash

cycle

Dial Dial

Light Wash

cycle

■

Rinse Only cycle Dial Dial Plate Warmer

cycle

Dial Dial China/Crystal option ■ Hi-Temp Wash ■■ 6-Hour Delay Start Dial Heated Dry ■■ HotStart™option ■■ Wash levels 3 3 Cycle progress indicators Dial Dial

Upper Deluxe Deluxe

Rack system

Lower Deluxe Deluxe Silverware Basket Split Deluxe TouchTap™Control pads 8 Pushbuttons 6 Rinse Aid dispenser with Indicator ■

Economical/Quiet

Sound insulation package QuietPower™I QuietDesign

™

PermaTuf™ Tub and door liner ■■

QuietPower™motor ■■

Sealed toekick ■■

Appearance

Colors available* WW, BL WW, BL Color panels—Door & Access Trimless Trimless

Miscellaneous

Approx. shipping weight (lbs.) 147 147 1, 2, 10 Warranty* ■■

*See written warranty for details. † WW=White on white, BL=Black control panels and front panels with almond side panels

GSS1800Z

Features

Cycles/Options 4/6 Pots & Pans cycle

Dial

Normal Wash

cycle

Dial

Light Wash

cycle

Dial

Rinse Only/Hold

cycle

Dial

Heated Dry On/Off option Rocker

Upper Standard

Rack system

Lower Standard Silverware Basket Standard Control type Turn-To-Start Wash levels 2 Cycle progress indicators Dial 120° F.@ inlet water capability ■ Rinse Aid dispenser ■

Economical/Quiet

Sound insulation package Standard

Appearance

Colors available Black, Almond, White Color panels 2 Reversible:

Door & Access Black/Harvest; Almond/White

Miscellaneous

Approx. shipping weight (lbs.) 77 1, 10 Yr. Warranty* ■

*See written warranty for details. Note: Does not accept GPF kits. For trim kit to install wood panel up to 3/16" thick on GSS1800Z model only, order pub. no. 5-A007.

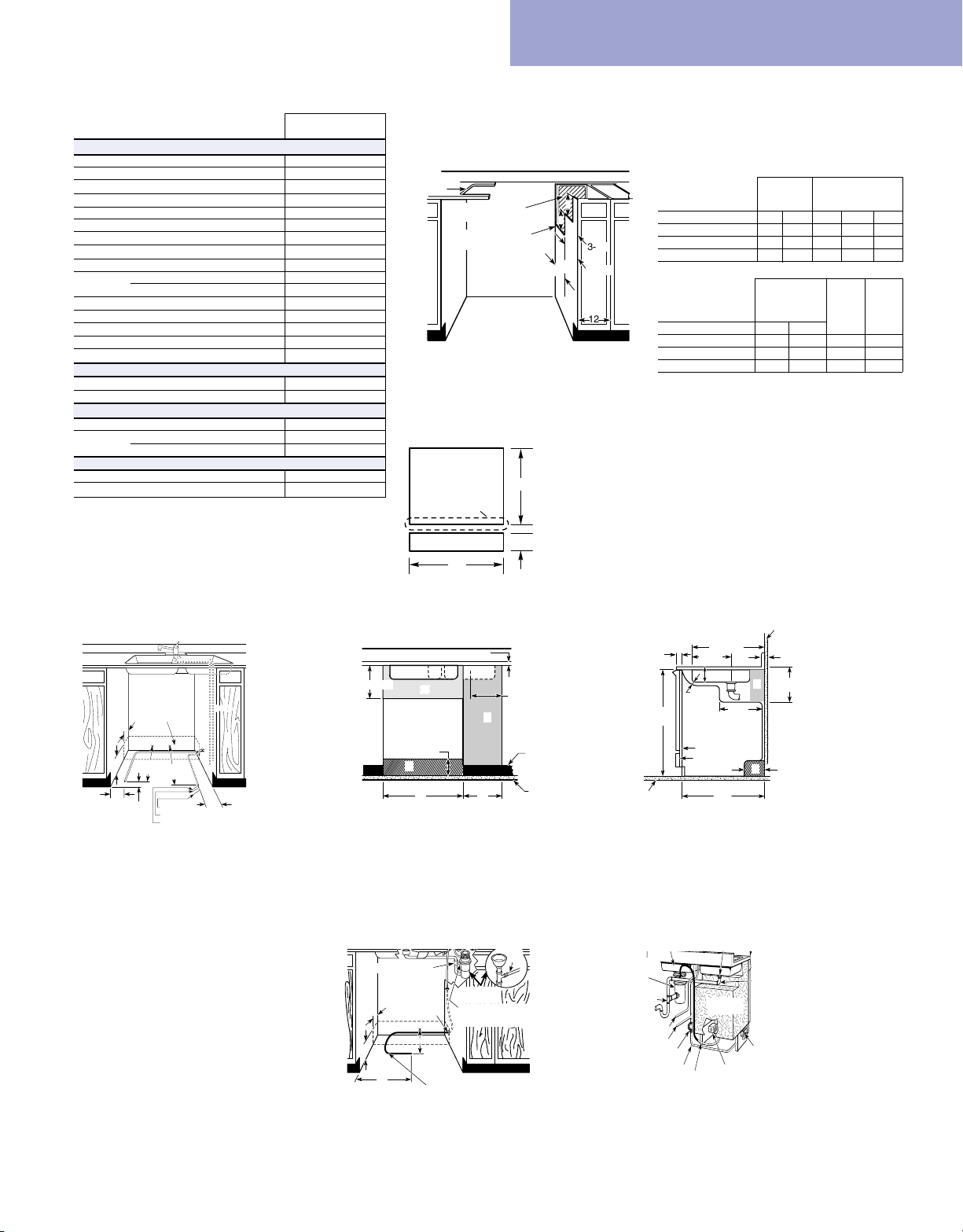

Dishwasher Rough-in information Note:

Dishwasher must not be installed more than 10 feet from sink for proper drainage. All plumbing and electrical work must be in accordance with local codes.

Dimensions (in inches)

Electrical Wiring

From back of rear frame to wall

90°

Dishwasher Countertop

Dishwasher

Door

1-1/2"

2" Minimum

90°

Electrical, drain and water supply line

34-1/4" Min.

entrances must be confined to shaded areas to avoid interference

24"

with components

Bottom

of tub to floor

1-1/2"

Hot Water Line

18" Min.

Page 61

See page 87 for warranty information.

GE Disposall®food waste disposers

GE Built-In Compactors

Disposer Accessories:

GPF75 Clamp nut kit

Dimensions (in inches)

34-1/8

34-1/2

24-1/4

Disposers

GE Disposer and built-in compactor specifications

Continuous Feed Models Batch Feed Model

GFC1000Y GFC800Y GFC705Y GFC700Y GFC305Y GFC300Y GFC295Y GFC290Y GFB1050V

Features

Motor horsepower 3/4 1/2 1/2 1/2 1/2 1/2 1/3 1/3 3/4 Control method Wall Switch Wall Switch Wall Switch Wall Switch Wall Switch Wall Switch Wall Switch Wall Switch Stopper Feed type Continuous Continuous Continuous Continuous Continuous Continuous Continuous Continuous Batch Power connection Direct Wire Direct Wire Line Cord Direct Wire Line Cord Direct Wire Line Cord Direct Wire Direct Wire Power Boost ■ Dual swivel impellers ■■ ■■ ■■ ■ ■ ■

Jam resistant ■■ ■■ ■ ■■ ■ ■

Stainless steel ■■ ■■ ■■ ■ ■ ■ Stainless steel sink flange ■■ ■■ ■■ ■ ■ ■ Mounting type Fast Mount Fast Mount Fast Mount Fast Mount Fast Mount Fast Mount Fast Mount Fast Mount Twist Top Precutter ■■ ■■ ■ ■■ ■ ■ Splash guard Removable Removable Removable Removable Removable Removable Removable Removable Non-Removable Sink stopper ■■ ■ ■■ ■ ■■ ■ Dishwasher drain connector ■■ ■ ■■ ■ ■■ ■ Manual reset overload protector ■■ ■■ ■■ ■■ ■ Permanently lubricated bearing ■■ ■■ ■■ ■ ■ ■ Plastic drain elbow ■■ ■■ ■ ■■ ■ ■ Turntable Stainless Steel Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Stainless Steel Polyester drain housing ■■ ■■ ■■ ■ ■ ■ Grinding speed (RPM’s) 8000 8000 8000 8000 8000 8000 8000 8000 2700 Hopper liner/grinding ring Stainless Steel Stainless Steel Stainless Steel Stainless Steel Galvanized Galvanized Galvanized Galvanized Stainless Steel Hopper Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Nylon

Economical/Quiet

Sound insulation wrapper Super Deluxe Deluxe Standard Standard ––––Super Deluxe

Weights & Dimensions

Approx. shipping weight (lbs.) 12.5 10.0 9.8 9.8 8.4 8.4 8.4 8.4 14.0 Net weight (lbs.) 11 8.8 8.6 8.6 7.6 7.6 7.6 7.6 12.5

(A) 14-5/8 16-9/16 (B) 6-1/4 5-1/2 (C) 3-1/4 6-1/2 (D) 8-1/4 9-5/16 (E) 8-1/8 6-3/8 8-5/8

Dishwasher inlet diameter (in.) 7/8 1 Drain outlet diameter (in.) 1-1/2

Accessories

GPF71 White sink flange & stopper ■■■ ■ ■■ ■■ ■ GPF72 Almond sink flange & stopper ■■ ■■ ■ ■■ ■ ■

GCG1550FCC/ GCG1540FSS/

GCG1530FWW/

GCG1520FBB

Features

Cycle time 27 seconds max., 14 seconds min. Drive System 2-Point Motor horsepower 1/ 3 Compression ratio (average) 75% reduction of volume Ram force (lb.) (max.) 2,300 Front level legs and rear wheels ■ Capacity 1.4 cu. ft. Side release bin ■ Toe/foot pedal drawer opener ■ Lock/start control w/removable key ■ Automatic anti-jam ■ Slide-out drawer ■ Full 1-year warranty ■

Appearance

Color appearance Bisque/Stainless Steel/White/Black Heavy gauge steel construction ■ 1/4” panel capability ■

Weights & Dimensions

Total shipping weight (lbs.) 152 Total appliance weight (lbs.) 141 Overall height (in.) 34-1/8 to 34-1/2 Overall width (in.) 15 Overall depth (in.) 24-1/4 Cutout dimensions H x W x D (in.) 34-1/4 x 15-1/8 x 24-3/4 Clearance for drop-down drawer side 6" or more on right side Drawer extension for removal 23" or more in front of appliance Custom panel size H x W (in.) 22-15/16 x 14-5/8

Accessories

Compactor bags (5 included) WC60X5017

GPF82C—Bisque, GPF82S—Stainless Steel,

New 1/4" Panel Trim Kits (color matched) GPF82W—White, GPF82B—Black

Page 62

All features may not be available on all models. For detailed specifications, installation information and color availability, refer to pages 66 and 69. For warranty information, refer to page 87.

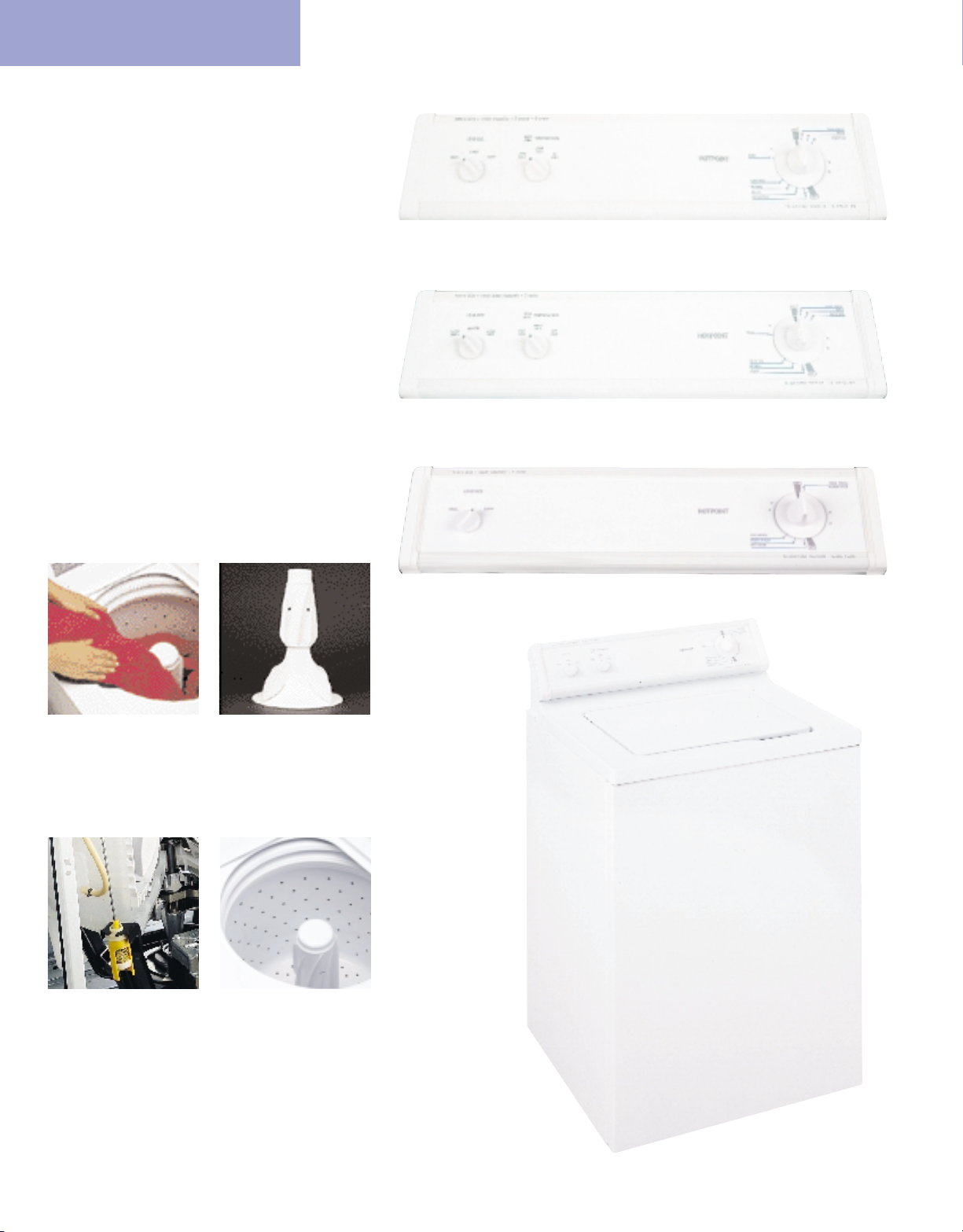

VBSR2080W

Super capacity

The 3.2 cu. ft. super capacity washer provides added space for extra-large loads.

Tuf Tub™basket

The basket resists peeling, chipping, rusting or flaking for long term durability.

FlexCare™agitator

Delivers excellent wash performance, and the innovative “Flexible Fins,” care for delicate wash loads.

Balance Pro

™

suspension system

An innovative rod and spring floating suspension system designed to handle off-balanced loads on any type of floor.

VBSR2080W

■

Super capacity washer

■

3 water levels

■

8 cycles

■

2 wash/spin speed combinations

■

Bleach dispenser

■

Self-cleaning filter

■

Fabric softener dispenser

■

Front lid opening

VBXR1070W

■

Extra-large capacity washer

■

3 water levels

■

6 cycles

■

1 wash/spin speed combination

■

3 wash/rinse temperature settings

■

Self-cleaning filter

■

Front lid opening

VVSR1040V

■

Super capacity washer

■

2 water levels

■

4 cycles

■

1 wash/spin speed

combination

■

3 wash/rinse

temperature settings

■

Front lid opening

Super and Extra-large capacity washers

Washer models

VBSR2080W

VBXR1070W

VVSR1040V

Page 63

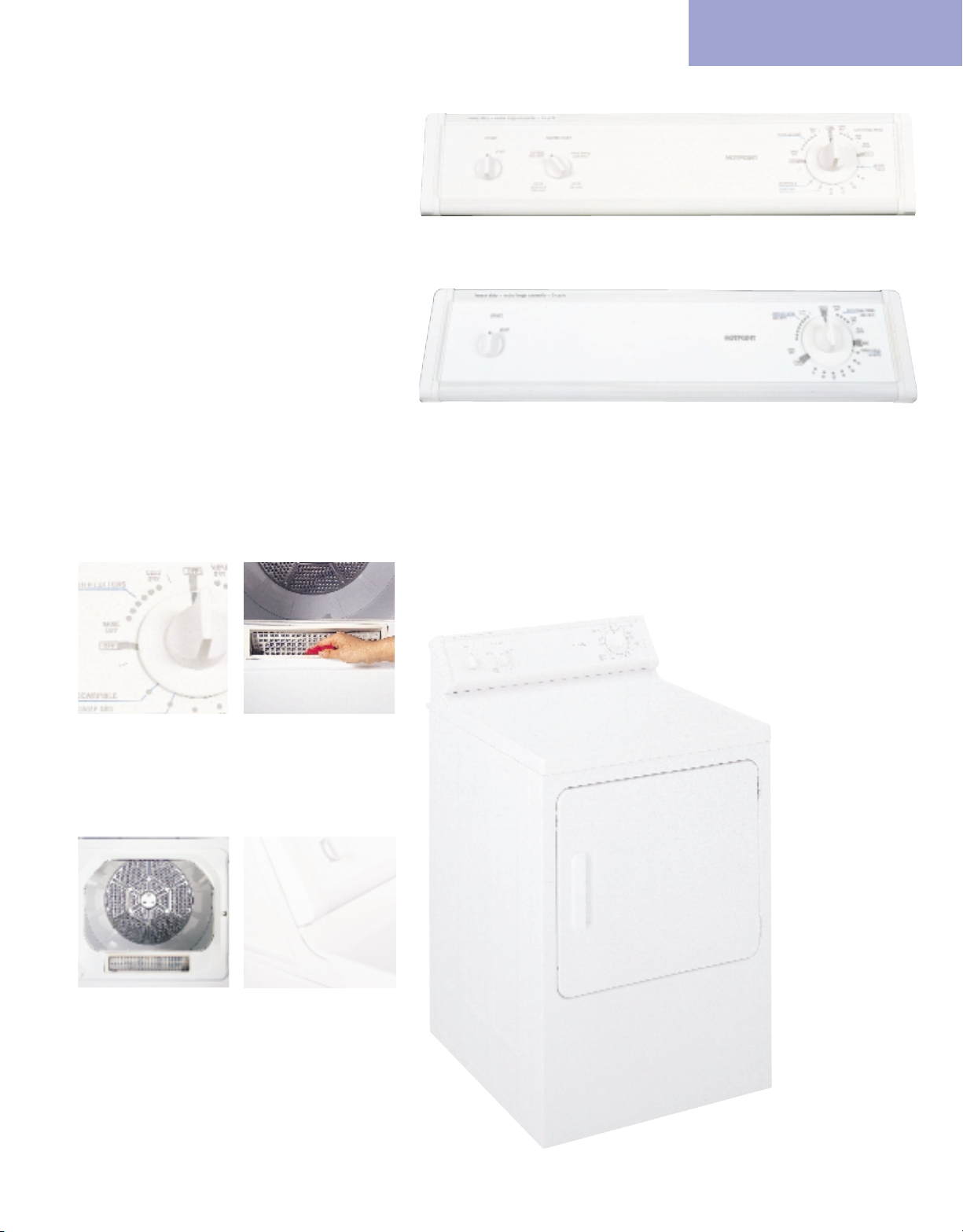

Automatic dry control

Monitors moisture level with an automatic thermostat and ends the cycle when clothes are properly dried. Optional press guard provides extra care to help prevent wrinkles.

Up-front lint filter

Convenient, up-front removable lint filter is easy to reach, easy to clean.

Double-coated drum interior

Provides long-lasting dependability and durability.

Off-set appearance

A contemporary design that makes cleaning easy.

NBXR453E/GV

All features may not be available on all models. For detailed specifications, installation information and color availability, refer to pages 66 and 69. For warranty information, refer to page 87.

NBXR453EV (Electric) NBXR453GV (Gas)

■

Extra-large capacity dryer

■

Automatic dry control

■

5 cycles

■

4 heat selections

■

Up-front lint filter

■

Reversible door

NVL333EY (Electric) NVL333GY (Gas)

■

Extra-large capacity dryer

■

Automatic dry control

■

3 cycles

■

3 heat selections

■

Up-front lint filter

NVL333EY (Electric), NVL333GY (Gas)

NBXR453EV (Electric), NBXR453GV (Gas)

Extra-large capacity dryers

Dryer models

Page 64

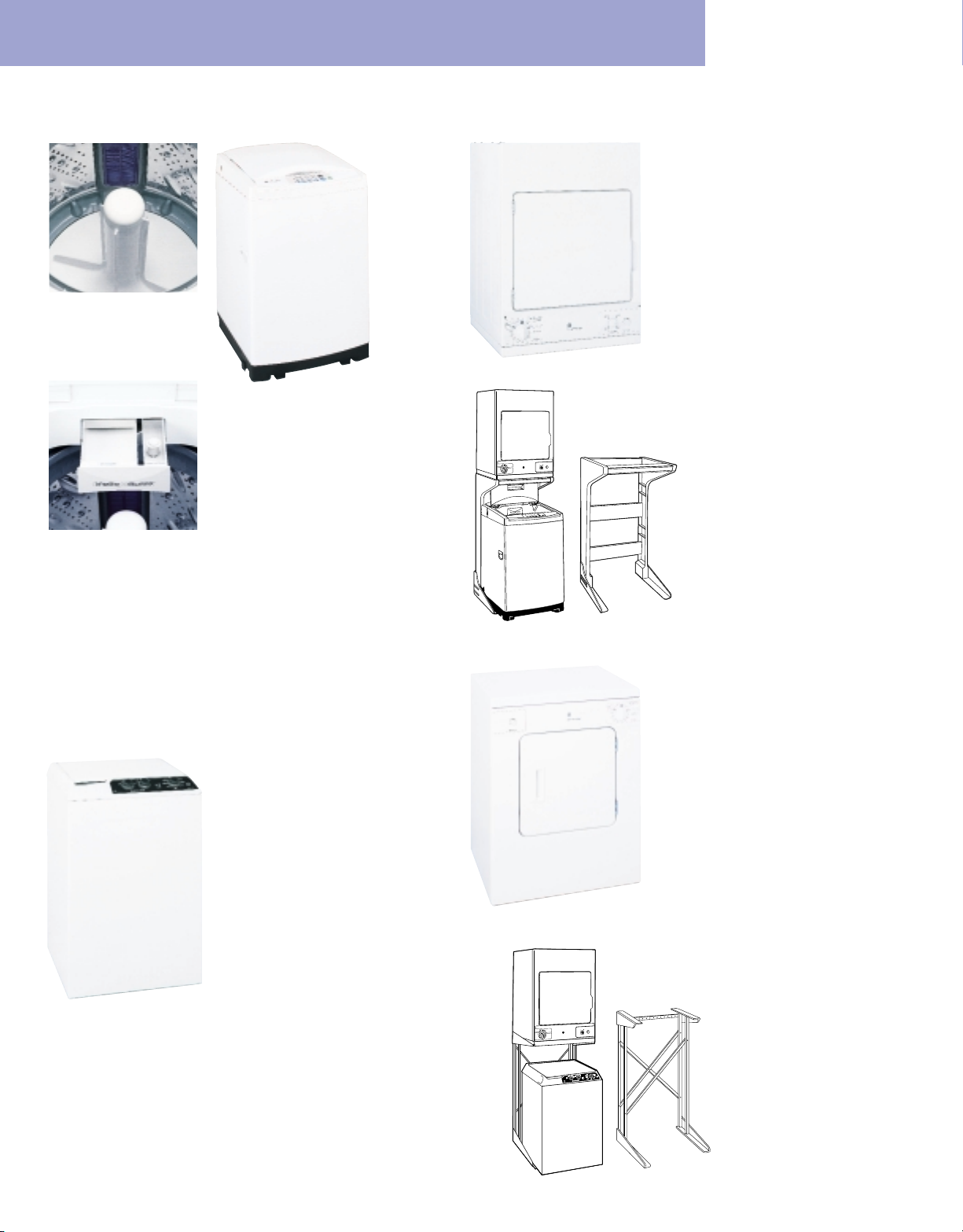

GE Spacemaker®: portable/stationary models

GE portable/stationary models

DSLR24AW Stack rack with light

(Available at additional cost)

■ For use with Portable or Stationary

Washers and Dryers

■ Available in White on white and

Almond on almond

RIC

Push To Start Tem

perature

to R

s &

L W

E R

OTHE

S CARE

CYC

LE SEL

ECTION

H O

H C

T P

DSLR24AW shown with WSLP1100A Washer and DSKS433EA Dryer

DSKS433EA

240V Stationary Dryer

■ 3 drying cycles

■ 4 Heat selections

■ Available in White on white and

Almond on almond

DSR24RW Stack Rack

(Available at additional Cost)

■ For use with Portable or Stationary

Washers and Dryers

■ Available in White only

DSR24RW shown with WSKS2060W Washer and DSKS433EA Dryer

DSKP233EA

120V Portable/Stationary dryer

■ 3 drying cycles

■ 2 Heat selections

■ 15-amp dryer cord attached

■ Available in White on white

control panel

WSLP1100A

120V Portable/topload washer

■ 24" extra-large capacity

■ 1 wash/spin speeds

■ 10 cycles

■ 4 wash/rinse temperatures

■ 4 water levels

■ Load sensing

■ ColorLogic

™

2000

■ Lint filter

■ Easy roll rollers

■ Available in White on white

and Almond on almond

WSLS1100A

120V Stationary/topload washer

■ 24" extra-large capacity

■ 1 wash/spin speeds

■ 10 cycles

■ 4 wash/rinse temperatures

■ 4 water levels

■ Load sensing

■ Lint filter

■ Available in White on white

and Almond on almond

WSKP2060W

120V Portable washer

■ 2 wash/spin speeds

■ 6 cycles

■ 3 wash/rinse temperatures

■ 4 water levels

■ Unicouple connector quickly

attaches to a faucet adapter

■ Available in White with

granite-look top

120V Stationary Washer

WSKS2060W (not shown)

Stainless steel tub

Extra-Large 2.7 cu. ft. stainless steel tub with lint filter.

Fabric softener dispenser

Easily accessible detergent/ fabric softener dispenser.

All features may not be available on all models.For detailed specifications, installation information and color availability, refer to pages 67 and 68. For warranty information, refer to page 87.

E R U T R

T E R

U T R A

e r

E T

m r

e P o t

K N A N

T E

K N A L B

N A E L C

s e t a c i

l e D

& o t u A

a l u g e R

F F

rye

E R U T

r D

R P

M E

a m e

E R

U A

E P

M E T

E O O K N N A L

l c y C

E L

K N

N F A L C

t r a

t S o T h

s u

P e r

u t a r e

0 4

m e T

0 4 1

0 6

0 2

1 0 8

0 0 1

Page 65

WSM2700W Electric WSM2780W Gas

■

Full size 27" wide

■

Extra-Large Capacity Washer features 3 cycles (Regular, Permanent Press and Delicate), 3 wash temperature options, 3 water level selections

■

Dryer features Automatic Dry Control, 4 cycles: Automatic Dry (Medium Heat),Timed Dry (High Heat), Delicate (Low Heat), Air Fluff (No-Heat)

■

Available in White on white and Almond on almond

WSM2420T Electric WSM2480T Gas

■

24" wide

■

Washer features 3 cycles: Regular, Permanent Press and Delicates, 3 wash/rinse temperatures, 3 water levels

■

Dryer features Automatic Dry Control, 4 cycles: Automatic Regular, Automatic Permanent Press, Timed Dry, and Air Fluff

■

Available in White on white

■

Electric model also available in Almond on almond

GE Unitized washer/dryer models

All features may not be available on all models.For detailed specifications, installation information and color availability, refer to pages 67 and 68. For warranty information, refer to page 87.

GE unitized washer/dryer

Page 66

See page 87 for warranty information.

Washer Dimensions (in inches)

25-1/2

Side View Rear View

Washer specifications Electrical rating:

115V, 60 Hz, 10 Amps Circuit requirements: An individual properly-grounded branch circuit, with a three-prong grounding-type receptacle protected by a 15 or 20 amp circuit breaker or time-delay fuse, is required.

Circuit requirements: Electric:

An individual properly-grounded branch circuit protected by a 30 amp circuit breaker or time-delay fuse, is required. Gas: An individual, properly-grounded branch circuit with a three-prong grounding-type receptacle, protected by a 15 or 20 amp circuit breaker or time-delay fuse, is required. Gas (BTU/HR): 22,000. Factory-equipped for natural gas. Tested for LP gas. LP gas supply requires an optional conversion kit, 5.7 cu. ft. model kit is WE25X10003,

6.0 and 7.0 cu. ft. model kit is WE25X0217. Have a qualified gas technician install a conversion kit. See dryer ducting information for proper installation.

Electric dryer rating: 208/240V, 5600W, 60 Hz, 24 Amp Gas dryer electric rating: 120V, 60 Hz, 6 Amp

Dryer specifications Exhaust options: Electric:

4-way via rear, right, left and bottom. Gas: 3-way via rear, left and bottom. Dryer is shipped exhausted to the rear. Alternate exhausting knockouts are supplied.

See installation instructions for venting specifications.

Dryer dimensions (in inches)

Side View

Rear View

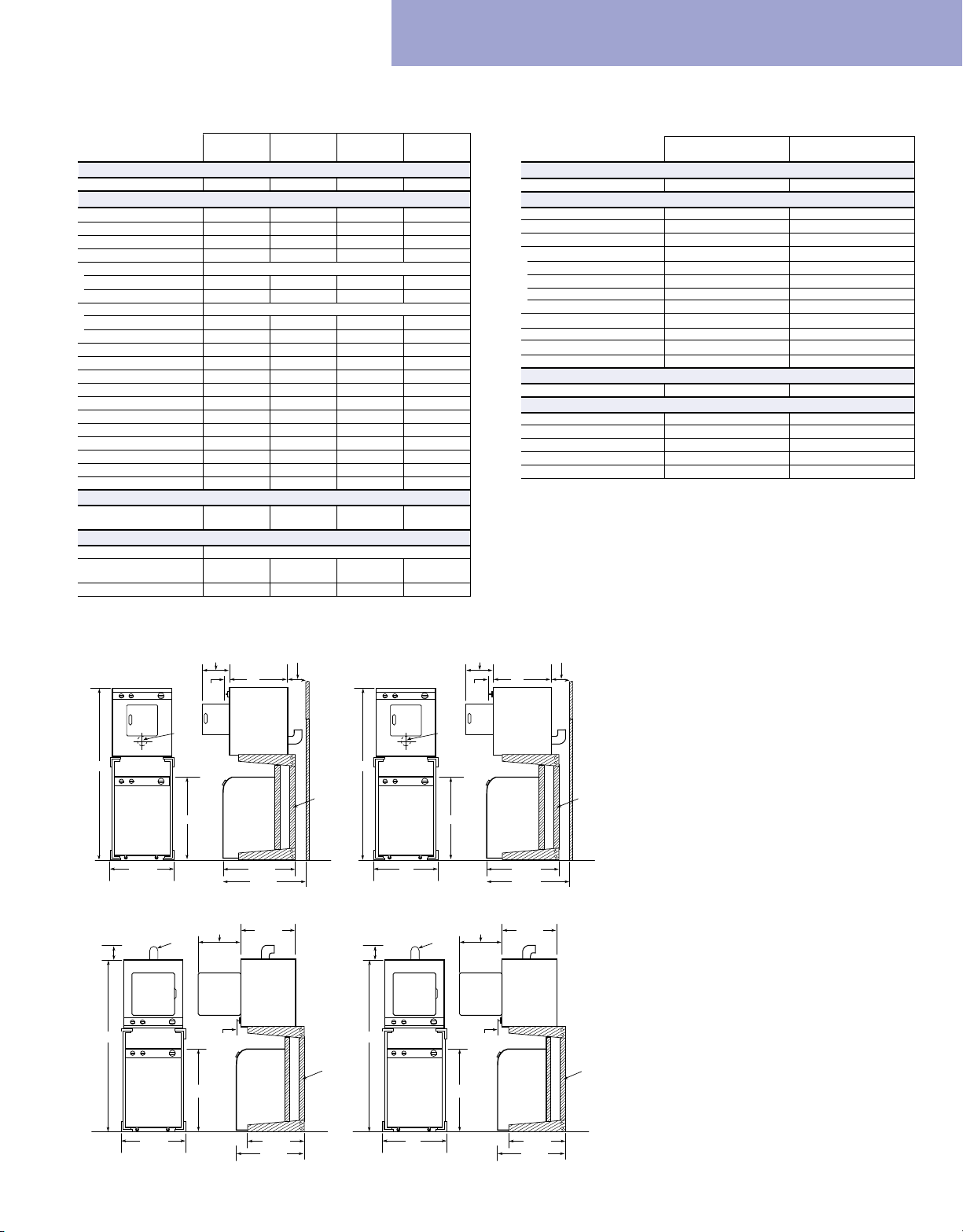

Washer and dryer specifications

Listed by Underwriters Laboratories

Washer Note: Washer wall outlet must be located within 36" of service cord entry. Wall outlet must not be located behind dryer.

Dryer Note: Dryer wall outlet must be located within 36" of service cord entry and accessible when dryer is mounted in position.

Washers

Models VBSR2080W VVSR1040V VBXR1070W Features

Capacity/Cubic feet Super/3.2 Super/3.2 Extra-Large/2.7 Wash/spin speed combination(s) 2 (timer) 1 1 Wash/rinse temperatures 3 3 (timer) 3 Water levels 3 2 3 Fabric softener dispenser ■ Bleach dispenser ■ FlexCare™agitator ■■■ Front lid opening ■■■ New lid instructions ■■■ Tuf Tub™basket ■■■ Self-cleaning filter ■■■ Number of wash cycles 8 4 7 Perm press ■ Warm cycle only ■ Knits ■ ■ Delicates ■ ■ Heavy soil ■ Hot cycle only ■ Normal soil ■ Warm cycle only ■ Light soil ■ Cold cycle only ■ Auto soak (15 min.) ■ ■ Supercycle

™

■

Front serviceable ■■■ Colors available* WW/AA WW WW/AA Approx. shipping weight (lbs.) 160 160 152 *Colors available: White on White or Almond on Almond

Dryers

Features Electric NBXR453EV NVL333EY

Models Gas NBXR453GV NVL333GY Features

Capacity/Cubic feet Extra-large/6.0 Extra-large/5.7 Automatic dry control ■■ Double-coated drum ■ Porcelain drum interior ■ Removable upfront lint filter ■■ Heat selections 4 3 (timer) Number of dry cycles 5 3 Auto cotton

Cottons cycle ■■

Auto perm press

Perm press cycle ■■

Timed dry

Actual minutes on timer 80 70 Damp dry ■ De-wrinkle ■

Timed (no-heat) ■ Front serviceable ■■ Reversible door ■ Colors available* WW/AA WW/AA

Approx. shipping

Elec. 110 118

weight (lbs.) Gas 115 136

*Colors available: White on white or Almond on almond Note: Before installing, consult installation instructions packed with product for current dimensional data. Hotpoint electric dryers are available with long ducting capability.

Extra-Large Extra-Large Super

5.7 Capacity 6.0 Capacity Capacity

A 27 27 27 B 25-1/2* 25-1/2* 25-1/2* C 42 42 42 D 25-3/4 25-3/4 28-1/4 E 23 -1/2 23-1/2 23 -1/2 F 11 -3/4 11-1/2 11 -1/2 G 5 -1/2 3-1/2 3 -1/2 H 22 2 J 2 -1/2 2-1/2 2 -1/2 K 36 36 36 L 4-3/4 5-1/4 8-1/2

*24-1/2" from the edge of the side panel to the

front. 25-1/2" from front to edge of end caps.

Page 67

GE Washer and dryer specifications

Individual Stationary Portable/Stationary* Spacemaker®Dryers DSKS433EA DSKP233EA

Capacity

Capacity Compact Compact

Features

Dry control Automatic Automatic Heat selections 4 2 (timer) Number of dry cycles 3 3

Auto. Reg.— Perm. Press ■ Auto. Perm. Press & Delicate ■ Auto. Reg. (min) ■ Timed Regular (min.) 140 105

Air Fluff (min.) (Heat selection) 10 Separate start switch ■■ Control location Mid-Band Top End-of-cycle signal ■ Lint filter Up-Front Back of Drum

Appearance

Colors available WW, AA WW

Weight and Dimensions

Exhaust options** 4-Way Rear Circuit requirements 240/208V†, 60 Hertz, 30 Amp 120V, 60 Hertz, 30 Amp Power cord No Cord 6 feet Dimensions (HxWxD in inches) 33 -1/4 x 23-7/8 x 24-1/2 32 x 23-7/8 x 23-5/8 Approx. shipping wt. (lbs.) 108 100

*Dryer comes equipped with casters and stationary leveling legs.

DSKP233EA approved for DSR24RW only.

**DSKS433EA shipped exhausted through the top. DSKP233EA exhausted

to rear only.

†240/208 volt outlet: Rear-mounted outlet on DSKS433EA approved for use with Washer/Dryer

Stack Rack DSR24RW or DSLR24AW. Circuit Requirements: An individual, properly-grounded branch circuit of the proper voltage and frequency as specified on the rating plate, with no other appliances or fixtures in circuit, is required.

GE Spacemaker®Portable/Stationary Models

Individual Stationary Portable Stationary Portable Spacemaker®Washers WSKS2060W WSKP2060W WSLS1100A WSLP1100A

Capacity

Capacity Compact Compact Extra-Large Extra-Large

Features

Wash/spin speed combinations 2 2 1 1 Wash/rinse temperatures 3 3 4 4 Water levels 4 4 4 4 Number of cycles 6 6 10 10 Regular

Heavy Soil ■■■ ■ Medium Soil ■■■ ■

Perm. Press

Medium Soil ■■■ ■

Light Soil ■■■ ■ Delicates ■■■ ■ Spin only ■■■ ■ One touch load sensing ■■■ ■

Automatic cool down ■■■ ■ Bleach dispenser ■■■ ■ Fabric softener dispenser ■■■ ■ Automatic detergent dispenser ■■ Lint filter ■■2 Removable 2 Removable Quiet pump ■■■ ■ Easy-roll rollers ■■ Basket material PermaTuf II PermaTuf II Stainless Steel Stainless Steel

Appearance

White with White with

Colors available granite-look top granite-look top WW, AA WW, AA

Weights & Dimensions

Circuit requirements 120V, 60 Hertz, 15 or 20 Amps Dimensions 34-1/4 x 22-1/4 34 x 22-1/4 37-1/2**x 23-5/8 38 x 23-5/8

(HxWxD in inches)* x 24 x 24 x 26 x 26 Approx. shipping wt. (lbs.) 109 109 114 116

*Depth measured from front of control knob.

**With leveling legs extended.

WSKP2060W

Portable

Washer

DSKP233EA

Dryer

Stack Rack

DSR24RW

1-1/2

5-1/2

15-1/2

Rear Vent

24-1/2

28-1/2

30-3/4

34-1/4

WSLP1100A

Portable Washer

DSKP233EA

Dryer

Stack Rack DSR24RW

1-1/2

5-1/2

15-1/2

Rear Vent

32-3/4

34-1/4

WSKP2060W

Portable Washer

DSKS433EA

Dryer

Stack Rack

DSR24RW

22-7/8

1-5/8

5-1/2

34-1/4

24-1/2

25-1/2

28-1/2

Top

Vent

WSLP1100A

Portable

Washer

DSKS433EA

Dryer

Stack Rack

DSLR24AW

22-7/8

1-5/8

5-1/2

29-5/8

Top

Vent

32-3/4

PortablePortable

Portable

Top vent installation:

Rear vent installation

See page 87 for warranty information.

Page 68

See page 87 for warranty information.

Models WSM2700W and WSM2780W Dimensions (in inches)

Electrical requirements

WSM2700W: Electric dryer

—This appliance should be connected to an individual, properly-grounded branch circuit with 120/240V or 120/208V single-phase 60 Hz electrical service and should be protected by 30-amp time-delay fuses or circuit breakers. This appliance is manufactured with neutral connected to the frame. Power cord should be purchased separately.

WSM2420T: Electric dryer—This appliance should be con- nected to an individual, properly-grounded branch circuit with 120/240V or 120/208V single-phase 60 Hz electrical service and should be protected by 30-amp time-delay fuses or circuit breakers. This appliance is manufactured with neutral connected to the frame. Power cord should be purchased separately.

NOTE: THESE APPLIANCES ARE NOT APPROVED FOR 120-VOLT OPERATION.

Models WSM2420T and WSM2480T Dimensions (in inches)

GE Unitized Spacemaker®washers and dryers

Electric WSM2700W WSM2420T Gas WSM2780W WSM2480T

Washer Features Washer Dryer Washer Dryer

Capacity

Capacity X-Large X-Large Compact Compact

Features

Wash/spin speed combinations 1 2

Wash/rinse temperatures 3 3 Water levels 3 3 Number of wash cycles 3 3

Regular ■■ Perm. Press ■■

Delicates ■■ Unbalanced load control ■■ Lint filter ■■

Dryer Features

Features

Automatic dry control ■■ Number of dry cycles 4 4

Auto Regular ■■

Auto Perm Press ■

Delicates ■

Tim ed ■■

Air Fluff ■■

Mid- Mid-

Control location Band Band

Rear/

Exhaust options Rear Sides

Appearance

Colors available† WW/AA WW**

Weights and Dimensions

Dimensions 75-1/2 x 27 71-3/4 x 23-7/8 (HxWxD in inches) x 30 -13/16* x 27 -1/4*

Approx. shipping wt. (lbs.) 300 238

**Depth dimension assumes water hook-up is recessed in the wall.

**Electrical model is also available in Almond on almond.

*†Colors available: White on white or Almond on almond

Note: The third prong on the WSM2780T plug configuration is a flat spade type rather than a typical round probe. It requires a matching wall outlet.

d t

e t

d 3

Floor line

Distance from vent to back 4-1/2

28-5/8 Water inletcold

1" For leveling legs

32-1/8

27-1/4

23-7/8

27-5/8

71-3/4

32-1/2

23-7/8

27-5/8

27-1/4

71-3/4

1-1/2

21-5/16

Drain

27-1/2

Gas supply pipe (rear)

GE Washer and dryer specifications

WSM2480T: Gas dryer—This appliance should be connected to an individual, properly-grounded branch circuit with a three-prong grounding- type receptacle and 120-volt single-phase 60 Hz electrical service and should be protected by 15 or 20-amp time-delay fuses or circuit breakers. This appliance is equipped with a 6-foot long flexible U.L. listed 20-amp power cord to match a 15-amp receptacle.

Gas rated input 10,500 BTU/HR. Factory equipped for natural gas. Tested for LP gas.

WSM2780W: Gas dryer—This appliance should be connected to an individual branch circuit with 120-volt single-phase 60 Hz electrical service

and should be protected by 20-amp time-delay fuses or circuit breakers. This appliance is equipped with a 4-foot long flexible U.L. listed 20-amp power cord to match a 20-amp receptacle.

WSM2780W Gas Rated input 20,000 BTU/HR. Factory equipped for natural gas.

LP gas supply requires a conversion kit.

Kits: WSM2780W-WE25X206

WSM2480T-WE25X0219

Have a qualified gas technician install a conversion kit before use.

Exhaust information

See “Dryer Exhausting Information” on page 69.

For complete information see installation instructions packed with the product.

75-1/2

54-5/16

29-7/16

Vent (rear only)

Water inlets (rear)

Drain outlet (rear)

3-3/4

9-3/8

5-1/4

41-1/4

Gas sup pipe (re

16-1/4

36-1/16

30-13/16

25-1/4

2-1/2

4-13/16

11-7/16

Page 69

For complete information see installation instructions packed with dryer.

Important note:

GE Kit Number 14-A018 needed when converting rear exhaust to bottom or side. (On Extra-large (5.7) capacity models only.)

Ducting materials

For best performance, this dryer should be vented with 4" diameter all rigid metal exhaust duct. If “all rigid metal” duct cannot be used, then “flexible all metal” venting can be used, but it will reduce the maximum recommended duct length. The following kit or parts are available from your local service organization. Kit WX8X75—7' aluminum duct and 4' hood, short tail. (OR individual parts): WX8X65 7' aluminum flex duct

only WX8X58 4' clamps (2) WX8X67 4' exhaust hood See installation instructions for complete information.

Exhaust length calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or bottom of dryer, add one turn.

2. The maximum length of 4' rigid (aluminum or galvanized) duct which can be tolerated is shown

in the table. The maximum lengths for flexible ducts are less than for rigid duct. See table in installation instructions.A turn of 45° or less may be ignored. Two 45° turns within the duct length should be treated as a 90° elbow. A turn over 45° should be treated as a 90° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent

large amounts of moisture and lint from being blown into the room. Gas dryers or any dryer located in a closet must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard or moisture could cause damage. Never terminate the exhaust into a common duct or plenum with a kitchen exhaust, since the combination of lint and grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc. The wall cap must also be located at least 12" above the ground or any other obstruction with the opening pointed down. Other terminations, such as louvered wall boxes, are acceptable provided they are equivalent to a 4" opening dampered wall cap.

Listed by Underwriters Laboratories

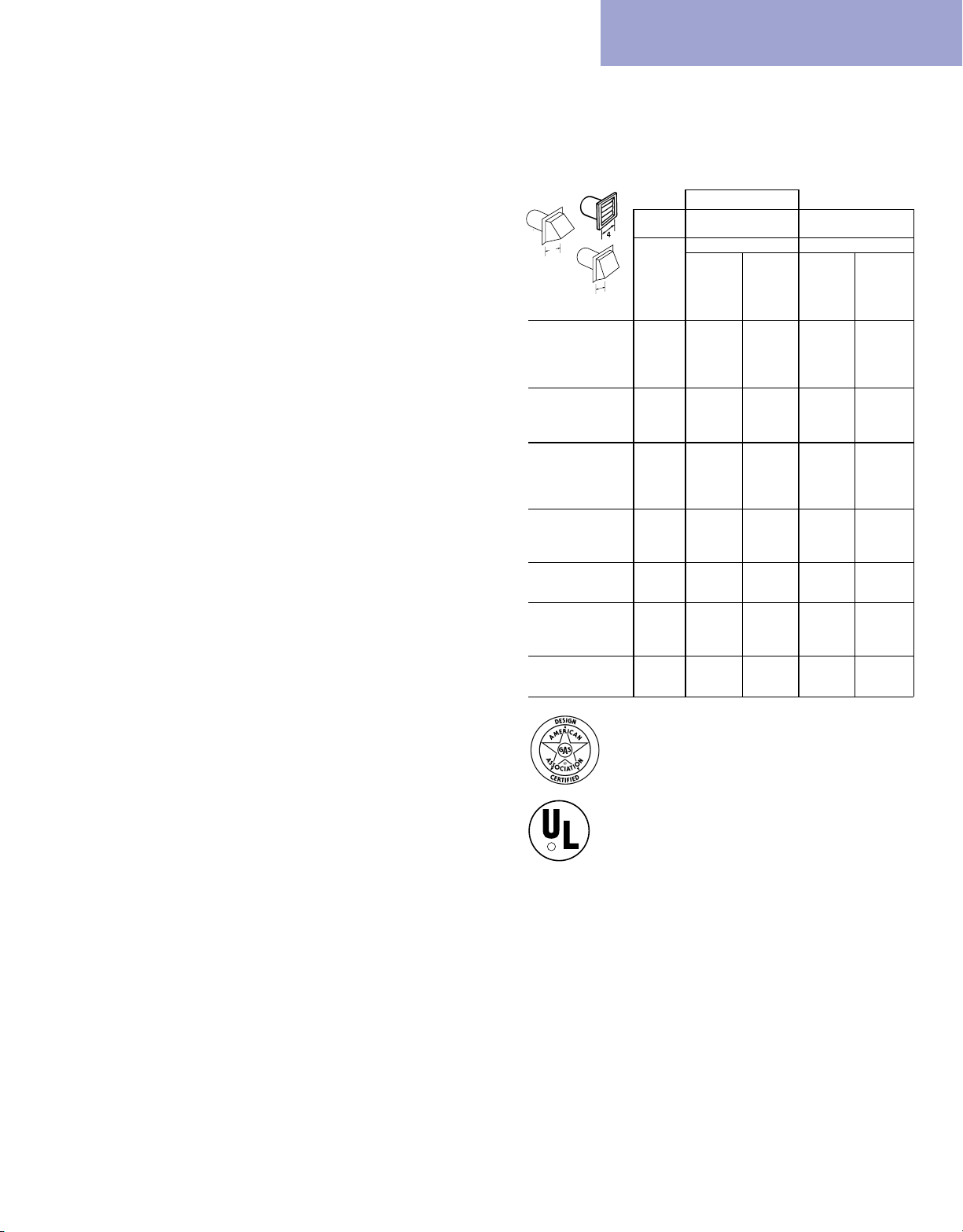

Dryer exhausting information—Use metal duct only Vertical and horizontal ducting

Dryer specifications

See page 87 for warranty information.

Dryer exhausting information

Special installation requirements

Alcove or closet Installation:

■ If your dryer is approved for installation in an

alcove or closet, it will be stated on a label on the dryer back.

■ The dryer MUST be exhausted to the outdoors.

See EXHAUST INFORMATION above.

■ Minimum clearances between dryer cabinet and

adjacent walls or other surfaces are:

0" either side 3" front and rear

■ Minimum vertical space from floor to overhead

cabinets, ceilings, etc. is 52".

■ Closet doors must be louvered or otherwise

ventilated and must contain a minimum of 60 sq. in. of open area equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.

■ The closet should be vented to the outdoors to

prevent gas pocketing in case of a gas leak in the supply line.

■ No other fuel-burning appliance shall be installed

in the same closet with the dryer.

Bathroom or bedroom installation:

■ The dryer MUST be exhausted to the outdoors.

See EXHAUST INFORMATION above.

■ The installation must conform with the local codes,

or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.

Minimum clearances other than alcove or closet installations

■ Minimum clearances to combustible surfaces:

0" both sides 3" rear

For more information on venting kits and accessories, please call 1-800-GE-CARES.

0 90 ft. 60 ft. 55 ft. 45 ft. 1 60 ft. 45 ft. 40 ft. 30 ft.

Super & Extra-Large 2 45 ft. 35 ft. 30 ft. 20 ft.

6.0 Capacity Models 3 35 ft. 25 ft. 20 ft. 15 ft. All Electric Dryers 4 25 ft. 15 ft. 15 ft. 10 ft.

0 45 ft. 30 ft. 30 ft. 15 ft.

Super & Extra-Large 1 35 ft. 20 ft. 20 ft. 10 ft.

6.0 Capacity Models 2 25 ft. 10 ft. 10 ft. — All Gas Dryers 3 15 ft. ———

0 60 ft. 48 ft. 30 ft. 18 ft.

1 52 ft. 40 ft. 22 ft. 14 ft. Extra-Large 5.7 2 44 ft. 32 ft. 14 ft. 10 ft. Capacity Electric 3 32 ft. 24 ft. —— and Gas Dryers 4 28 ft. 16 ft. ——

0 46 ft. 37 ft. 30 ft. 24 ft. Spacemaker

Models 1 38 ft. 30 ft. 25 ft. 20 ft. DSKS433EA 2 31 ft. 22 ft. 20 ft. 14 ft. WSM2780W 3 24 ft. 15 ft. 16 ft. 10 ft.

0 43 ft. 36 ft. 30 ft. 24 ft.

Spacemaker

Model 1 33 ft. 26 ft. 24 ft. 18 ft. DSKP233EA 3 23 ft. 16 ft. 16 ft. 10 ft.

0 56 ft. 42 ft. 30 ft. 22 ft. 1 46 ft. 36 ft. 22 ft. 14 ft.

Spacemaker

Model 2 34 ft. 28 ft. 16 ft. 10 ft. WSM2700W 3 32 ft. 18 ft. 10 ft. 5 ft.

Spacemaker

Models 0 43 ft. 36 ft. 30 ft. 24 ft. WSM2420T 1 33 ft. 26 ft. 24 ft. 18 ft. WSM2480T 2 23 ft. 16 ft. 16 ft. 10 ft.

Number

90°

Tur n s

Maximum Length of 4" Dia.

Rigid Metal Duct

Maximum Length of 4" Dia. Flexible Metal Duct

Exhaust Hood Type

Domestic Dryer Models

Cat. No. WX8X59

(Preferred)

4" Opening

2-1/2"

Opening

Cat. No.

WX8X59

(Preferred)

4" Opening

2-1/2"

Opening

2-1/2

Page 70

GE SmartWater™filtration systems

Water that’s good for you.

Great for cooking

Cooking with filtered water provides great tasting foods.

Healthy water

Provides added assurance of healthy drinking water.

Better tasting water

Healthy water for drinking and making beverages such as coffee, tea and juice.

Enjoy all the benefits of filtered drinking water

NSF certified

All GE SmartWater™drinking water filtration products are certified by NSF, the most highly recognized independent testing institution for water treatment products.

Drinking water filtration

If you’re one of the 75% of Americans concerned about the quality of your water,* GE SmartWater offers several ways to improve the quality of your water for drinking and cooking. Whether you choose our Premium Filtration— Reverse Osmosis, Carbon Filtration System, or a Refrigerator Icemaker filter, GE SmartWater has the system to meet your specific needs. These products can reduce such contaminants as lead, cysts, certain chemicals and undesirable taste and odors in your water, while providing several options for easy installation. So enjoy quality, healthy water in your home today with a GE SmartWater drinking water filtration system.

Eliminates the expense and inconvenience of purchasing bottled water at a store or scheduling home delivery of bottled water.

GE SmartWater™filtration systems vs. bottled Water: a cost comparison

A GE SmartWater™filtration system saves money!

Cost per gallon comparison

Delivered

Bottled Water**

Premium

Bottled Water*

GE SmartWater

™

Carbon Filtration

†

GE SmartWater

™

Reverse Osmosis

†

$1.60

$4.10

$1.60

$.26-$.28

$.08-$.13

$4.10

*National average price of “Premium” bottled water.

**Average cost per gallon for delivered bottled water.

†GE SmartWater

™

estimate is calculated by dividing the number of gallons by consumer cost of product, installation and replacement filters.

*WQA Consumer survey, 1997.

Page 71

GNSV25C

■ Long-reach black on chrome faucet with electronic monitor.

Amber filter light indicates when to replace filters to ensure highest quality water.

■ Chemicals/VOC, lead and cysts reduction

filters included (FXSVC dual pack)

■ System rated for 540 gallons of water

GE SmartWater™filtration systems

For additional features, specifications and color availability, refer to page 76. For warranty information, refer to page 87.

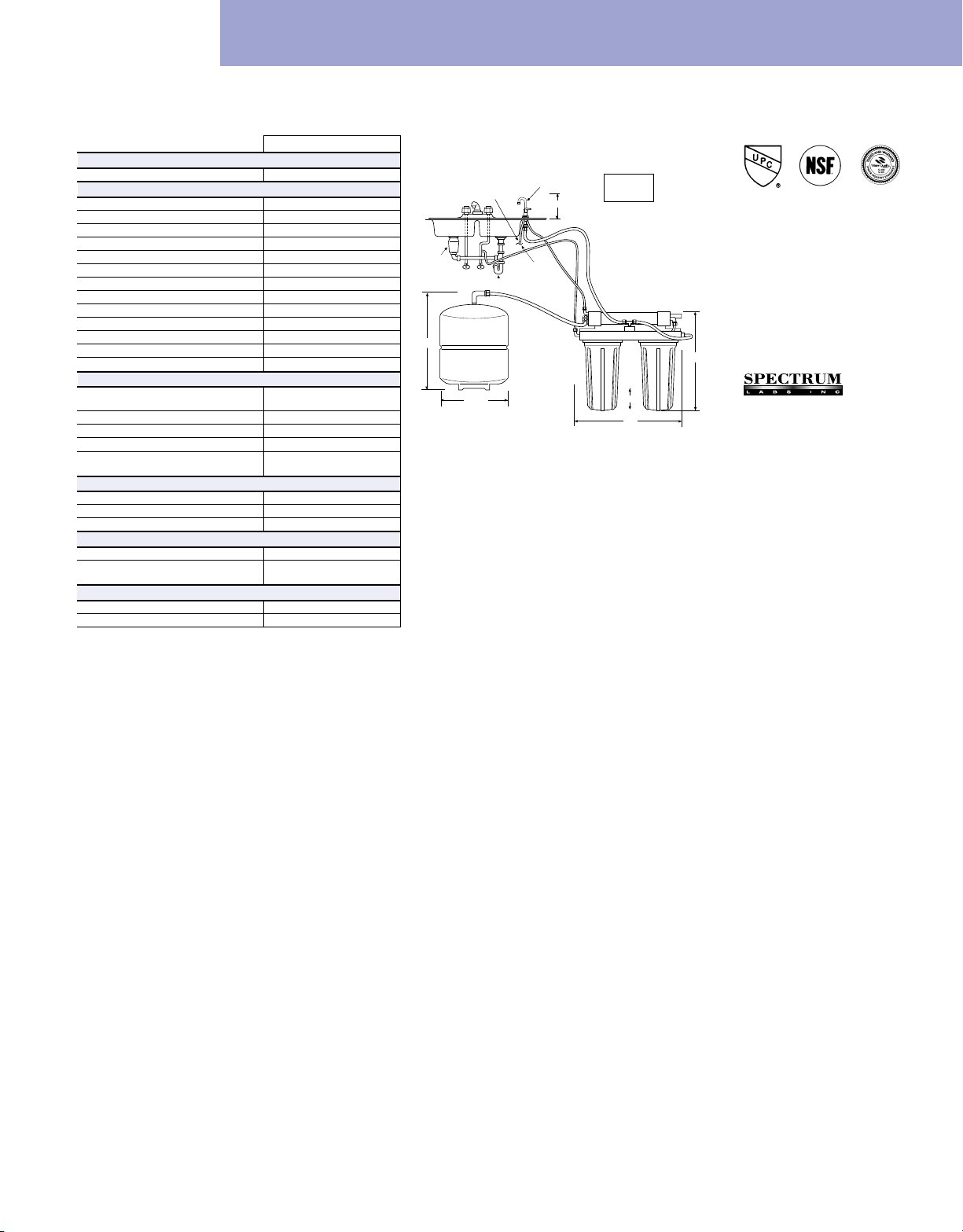

Premium drinking water filtration—reverse osmosis: GE system

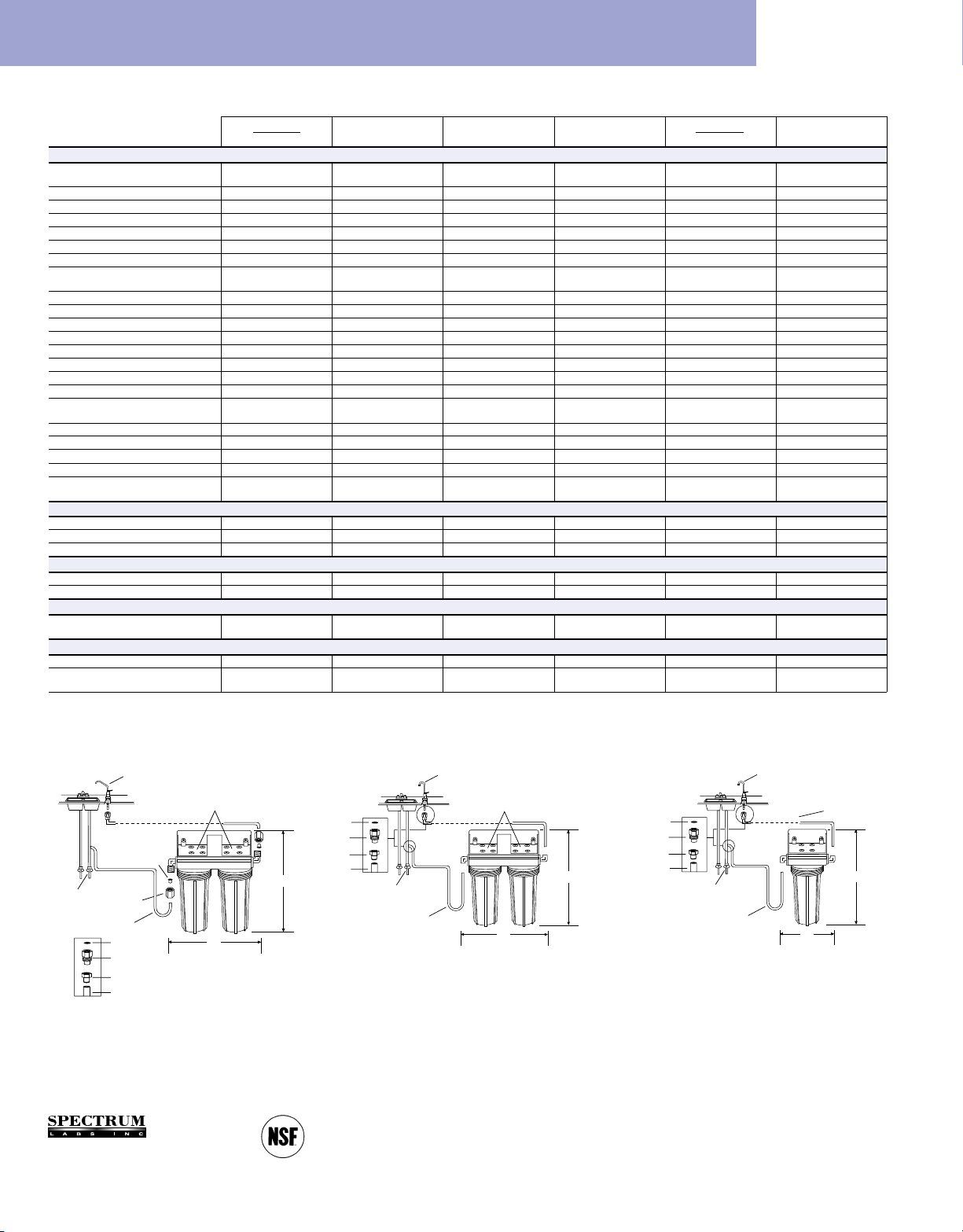

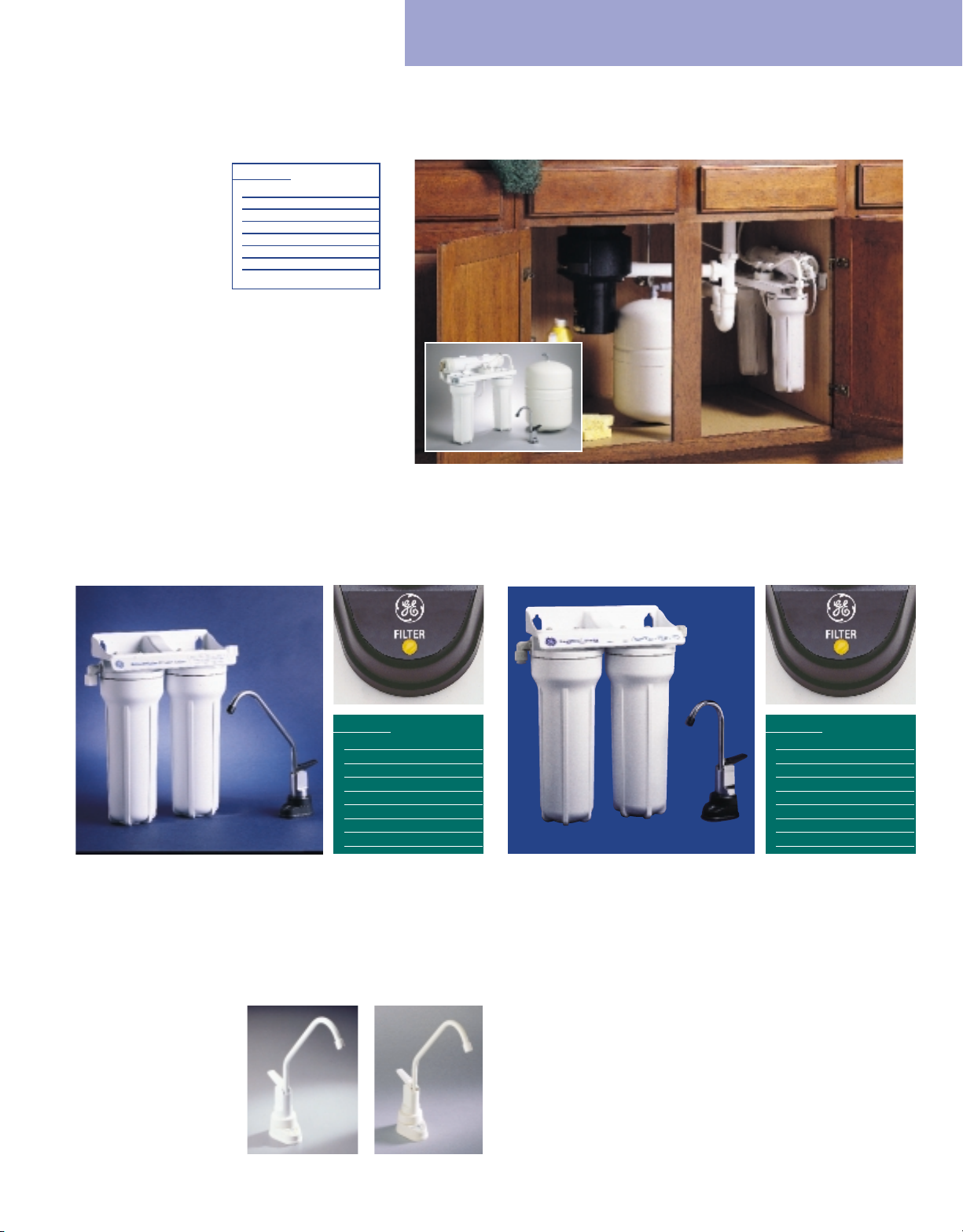

Under sink dual stage carbon drinking water filtration: GE systems

GE’s best filtration process Works to reduce up to 99%* of the following elements:

Large capacity provides up to 10 gallons** of highquality filtered water per day.

SmartWater™faucet— Separate black on chrome short-reach faucet is used only when filtered water is needed, extending filter life.

Simple installation—Can be installed easily undercounter, in basement or other convenient location.

NSF certified—NSF is the most highly recognized independent testing institution in the water treatment industry. NSF inspects, tests and certifies our product performance.

GXRV10ABL

Reverse osmosis filtration system (includes tank) with short-reach chrome on black faucet

Reduces

Lead Mercury Cysts Copper Taste & Odor Sodium Chlorine Magnesium Sediment Sulfate Rust Ammonia Nitrate/Nitrite Tannins

And More!

GNSV30C

Customize to match your kitchen with a choice of faucet colors.

Reduces

Chemicals/VOC Lead Cysts Asbestos Taste & Odor Chlorine Sediment Rust

GXSV10C

■ Short-reach faucet with electronic monitor.

Amber filter light indicates when to replace filters to ensure highest quality water.

■ Quick connect installation fittings.

■ Chemicals/VOC, lead and cysts reduction

filters included (FXSVC dual pack)

■ System rated for 540 gallons of water

GNSV30CWW GNSV30CCC

Reduces

Chemicals/VOC Lead Cysts Asbestos Taste & Odor Chlorine Sediment Rust

*Elements reduced are not necessarily present in your water. See product

specification sheet, packed with product, for specific elements reduced by model, or call the GE Answer Center

toll-free, 800.626.2000. **As tested and validated by the Water Quality Association using Standard S-300. Note: Depends on water pressure, temperature and total dissolved solids.

Page 72

GE SmartWater™filtration system

For additional features, specifications and color availability, refer to page 76. For warranty information, refer to page 87.

Under sink dual stage carbon drinking water filtration: GE systems (cont.)

Under sink single stage carbon drinking water filtration: GE systems

GNSL05C

■ Long-reach faucet with electronic

monitor.

■ Lead and cysts reduction filters

included (FXSLC dual pack)

■ System rated for 1250 gallons of water

Reduces

Lead Cysts Taste & Odor Chlorine Sediment Rust

GXSL03C

■ Short-reach faucet without electronic

monitor.

■ Quick connect installation fittings.

■ Lead and cysts reduction filters

included (FXSLC dual pack)

■ System rated for 1250 gallons of water

Reduces

Lead Cysts Taste & Odor Chlorine Sediment Rust

GX1S15C/GN1S15C

■ Short-reach faucet without electronic

monitor

■ Quick connect installation fittings

■ Lead and cyst reduction filter

included (FXUSC)

■ System rated for 1250 gallons of water

Reduces

Lead Cysts Taste & Odor Chlorine Sediment Rust

GX1S01C

■ Flexible installation options—install

directly on kitchen faucet or use accessory faucet (sold separately). For filtered water only on demand (UNFCTBL, UNFCTWW).

■ System rated for 3000 gallons of

water when used with FXUTC filter (sold separately)

Reduces

Taste & Odor Chlorine Sediment Rust

When used with FXUTC Filter

Page 73

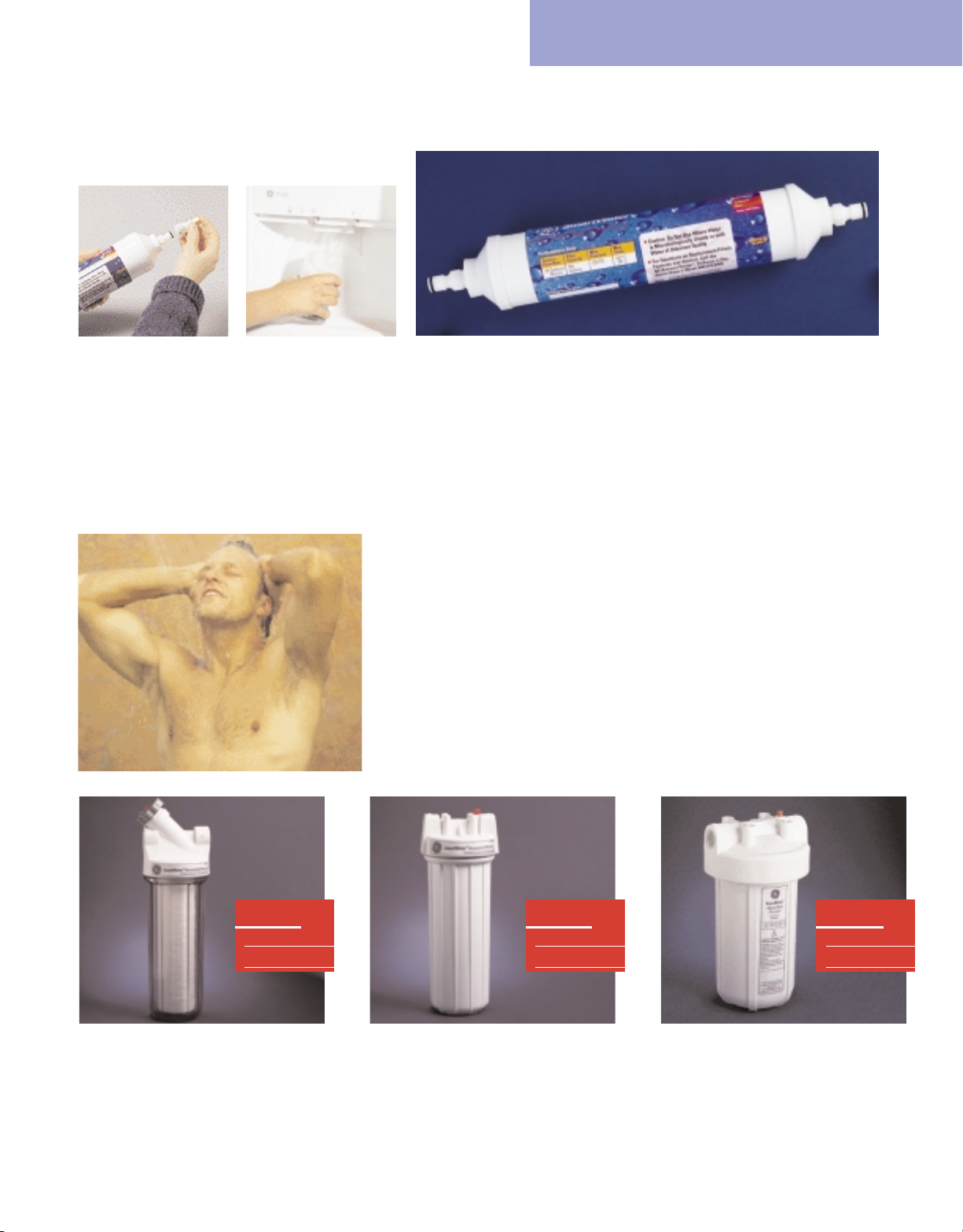

GE Refrigerator and icemaker drinking water filtration: GE systems

GE SmartWater™systems

Quick connect auto shutoff fittings

Allow for easy installation and replacement of filter.

GXITQ

■ Quick connect auto shut off fittings ■ Filter reduces Chlorine, Bad Taste & Odor and

Sediment ■ System rated for 2000 gallons of water

GXILQ (not shown)

■ Quick connect auto shut off fittings ■ Filter reduces lead, cyst, chlorine, bad taste & odor

and sediment ■ System rated for 750 gallons of water

GXITQR (not shown)

■ Replacement filter only for GXITQ

GE SmartWater filters

Work on any brand side-by-side and top-freezer refrigerators with or without dispensers.

Note: bold = feature upgrade from previous model

GE Household filtration system

Household filtration

Household filtration systems work to filter all the water that enters your home. This process works to improve your water by reducing sand, sediment and rust—a perfect complement for your water softener and drinking water filtration system.

GXWH30C

■ Heavy-Duty filtration system

■ Attaches to 1" and 3/4" water lines

■ Pressure relief valve—makes changing

filter easy

■ Installation kit Included for easy installation

■ Filters sold separately (FXHTC or FXHSC)

GXWH01C

■ Opaque sump

■ Installation kit sold separately

■ Filter sold separately

■ Pressure relief valve—makes changing

filter easy

Reduces

Sediment

Rust

Reduces

Sediment

Rust

Reduces

Sediment

Rust

GXWH08C/GNWH08C

■ Built-In valve-on and bypass positions

■ Easy turn bypass valve design and pressure

relief valve—makes changing filter easy

■ Reduces sediment and rust for up to

16,000 gallons or 3 months (filter included)

■ Installation kit included for easy installation

■ Clear sump

■ Easy to install 3/4" inlet/outlet for

installation on main cold water line

For additional features, specifications and color availability, refer to page 77. For warranty information, refer to page 87.

Page 74

GE SmartWater™softening systems

Reduces energy costs

Helps reduce build-up in pipes and waterusing appliances, providing cost savings.

Whiter towels

Towels are 45% whiter while using 1/3 less detergent. Clothes are softer, cleaner, brighter and last longer.

Feels smoother

Soft water feels noticeably smoother to your skin.

Easier to clean

Reduces hard water build-up, making tubs, showers and sinks easier to clean.

Cleaner dishes

Gives you cleaner dishes by reducing soap and hard water spotting.

There is no doubt that water hardness is one of the most common of all water problems. A U.S. Geological Study shows that hard water is found in 85% of the United States. GE SmartWater softening systems reduce the hardness in your water, providing your family with quality water throughout your home.

Softening systems

GE Softening system

GXSF27B

■ Large capacity means less

maintenance— 27,000 grain capacity helps assure an ample supply of soft water and provides for lifestyle changes.

■ 200 lb. salt storage reduces the need

for frequent salt replacement.

■ 6 Hour program and time memory

permanent memory maintains hardness and regeneration time settings even if power is off or unit is unplugged for extended periods. No batteries needed, unit recharges itself when power is restored.

■ 24-Volt electronic system simplifies

installation and maintenance.

GNSF18Z

■ Compact size means installation

flexibility—The compact housing provides installation flexibility; installs in many areas other softeners may not.

■ 18,000 grain capacity assures an

ample supply of soft water.

■ 140 lb. salt storage combined with

the compact size means easier salt loading.

■ 6 Hour program and time memory—

Permanent memory maintains hardness and regeneration time settings even if power is off or unit is unplugged for extended periods. No batteries needed, unit recharges itself when power is restored.

■ 24-Volt Electronic System simplifies

installation and maintenance.

For Families of 2 or Less

For Families

of 2 or Less

For Condos

and Small

Spaces

For Condos

and Small

Spaces

For additional features, specifications and color availability, refer to page 77. For warranty information, refer to page 87.

Page 75

GE SmartWater

™

reverse osmosis filtration systems

GXRV10ABL

Capacity

Storage Tank Capacity (gals.) 1.3

Features

SmartWater™Faucet Short-Reach Faucet Color Chrome with black Output Per Day (gals.)–Production Rate 10 (gpd) as tested by WQA Standard S-300 Process Water Used (per gal.) 4 Working Pressure (psi) 40 min. - 125 max. Max. TDS Removal (ppm) 2000 Percent TDS Removal** (ppm) 75-92 Percent Cysts Reduction 99.95 effective Max. Hardness 10 grains Feed Water pH limits 4-10 Operation and Storage Water Temperature 40-100° F Auto Shut-Off ■

Filters & Membrane

FX12M

RO Membrane Thin Film Polyamid (TFP) Pre-Filter (Sediment) FX12PA-Carbon Block

Post-Filter (Taste/Odor) FX12PA-Carbon Block Under counter Installation (kit included) ■ Optional Basement Installation

(hardware not included) ■

Appearance

Style Bracket Unit Color White Filter Housing Opaque

Weights & Dimensions

Approximate Shipping Weight (lbs.) 20

17 x 16 x 5-3/4 (unit) Overall W x H x D (in.) 9 x 15 x 9 (tank)

Accessories (available at additional cost)

Supplemental Tank RVTNK1 Icemaker Connection Kit RVKIT

*Output according to ANSI/NSF Standard 58 as tested by Spectrum Labs, Inc. is

14 gals. per day. Feed water over 10 grains of hardness may affect performance

of the filtration system. **Feed water = 50 psig, 77°F ,pH = 7.5 ± 5 and 750 ppm TDS as sodium chloride.

Product water produced, amount of waste and percent rejection will vary with

changes in pressure, temperature and total dissolved solids. Feed water over 10

grains of hardness may affect performance of the filtration system.

See page 87 for warranty information

GE SmartWater™filtration systems specifications

GE Reverse Osmosis Model GXRV10ABL Series are tested and certified to ANSI/NSF Standard 58 for TDS and cyst reduction.

NSF Approved

NSF is the most highly recognized independent testing institution in the water treatment industry. NSF inspects our manufacturing facilities, structurally tests our product, tests our product to make sure nothing harmful is added to the water and certifies our product performance as specified on the performance data sheet (inside the product box).

The GE Reverse Osmosis models GXRV10ABL Series have been quality tested by an independent laboratory, Spectrum Labs, Inc.

Caution: Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. This reverse osmosis unit contains a replaceable membrane cartridge treatment component critical for effective removal of Total Dissolved Solids. The water should be tested periodically to verify that the system is performing satisfactorily.

Model GXRV10ABL Installation Information (in inches)

3/8"

Drain Tubing

Drain line

Hot Cold

Sink P-Trap

9" Dia.

RO Product Water

Faucet Mounted

Through Sink

Reverse Osmosis System

5-1/2

Depth

Tools Needed:

• Screwdriver

• Pliers

• Drill

Disposer

Installation and Parts Information

Note: R.O. System can be installed up to 30 feet from point-of-

use/faucet. Note: Can be installed under counter (as shown), in basement,

or other convenient location. Before installing, see installation instructions packed with product for complete details.

Replacement Membranes, Pre- and Post-Filters

Call GE SmartWater Services, toll-free 800.952.5039 for convenient ordering.

Water Test Kit

To order a water test kit, call 800.626.2000.

Page 76

GE SmartWater™filtration systems specifications

See page 87 for warranty information.

GNSV30C GN1S15C GNSV25C GXSV10C GNSL05C GXSL03C GX1S15C GX1S01C

Features

Short-Reach Long-Reach

SmartWater™Faucet Long-Reach Electronic Monitor Monitor Short-Reach Short-Reach Sold Separately Faucet Color White on white Chrome w/black Chrome w/black Chrome w/black Chrome w/black N/A Feed Water Pressure (psi) 440 min.-125 max. 40 min.-125 max. 40 min.-125 max. 40 min.-125 max 40 min.-125 max. 40 min.-125 max. Feed Water Temperature 40-100°F 40-100°F 40-100°F 40-100°F 40-100°F 40-100°F Filtered Water Flow (gpm) 0.5 0.5 0.6 0.6 0.6 Filter I (Sediment) Filter Set–FXSVC Filter Set–FXSVC Filter Set–FXSLC Filter Set–FXSLC FXULC Sold Separately

Filter Cartridge Block Act. Carbon Block Act. Carbon Polyspun Depth Filter Polyspun Depth Filter Spiral Wound Act. Carbon Filter Set–FXSVC FXULB Filter Set–FXSLC FXUTB

Filter II (Carbon block) (VOC) (VOC) (Lead,Cysts) (Lead,Cysts) N/A N/A

Filter Cartridge Block Act. Carbon Block Act. Carbon Spiral Wound Act. Car. Spiral Wound Act. Car. N/A Particulate Removal Absolute 1 micron Absolute 1 micron Nominal .5 micron Nominal .5 micron Nominal .5 micron Chlorine Reduction (percent / gals.) 98/540 98/540 98/1250 98/1250 98/1250 Filter Life 6 months 6 months 6 months 6 months 6 months 6 months Lead Reduction (percent / gals.) 99/540 99/540 99/1250 99/1250 99/1250 Cysts Reduction (percent) 99.99 99.99 99.99 99.99 99.99 Turbidity Reduction (percent) 99 99 99 99 99 VOC Reduction (percent / gals.) 99/540 99/540 Lindane Reduction (percent / gals.)

(A Pesticide) ■■91/1250 91/1250 91/1250

Asbestos Reduction (percent) 99 99 99 99 99 Filter Change Indicator Electronic Electronic Sticker Sticker Sticker Sticker Installation Kit ■■■■ ■SSKIT (sold separately)

Fittings ■■■■ ■SSKIT (sold separately) Optional Basement Installation

(hardware not included) ■ ■■■ ■■

Appearance

Style Bracket Bracket Bracket Bracket Bracket Bracket Unit Color White White White White White White Filter Housing White White White White White White

Weights & Dimensions

Approximate Shipping Weight (lbs.) 7 7 7 7 3.8 1.5 Overall W x H x D (in.) 12 x 13 x 4-5/8 12 x 13 x 4-5/8 12 x 13 x 4-5/8 12 x 13 x 4-5/8 5-1/2 x 13 x 4-3/4 4-3/4 x 13 x 4-3/4

Power/Ratings

Faucet Monitor 2 AA batteries 2 AA batteries Power Requirement (included) (included) N/A N/A N/A N/A

Accessories (available at additional cost)

Icemaker Connection Kit UCKIT UCKIT UCKIT UCKIT UCKIT UCKIT

UCFCTWW UNFCTWW UNFCTWW UNFCTWW/UNFCTBL

Faucet WOW WOW WOW WOW/BOC

*Models GXSV10C, GXSL03C, GXUT03B, GXIS15C, GXIS01C have retail packaging Caution: Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before

WOW=White on white, BOC=Black on chrome or after the system. Systems certified for cysts reduction may be used on disinfected water that may contain filterable cysts.

GE SmartWater

™

water filtration systems

The GE SmartWater™ Filtration System (GNUL30B) have been quality tested by an independent laboratory, Spectrum Labs, Inc.

Installation and Parts Information

Note: Can be installed under counter (as shown), in basement,

or other convenient location. Before installing, see installation instructions packed with product for complete details.

Replacement Filters

Call GE SmartWater Services toll-free 800.952.5039 to order replacement filters.

Water Test Kit

To order a water test kit, call 800.626.2000.

COLD WATER LINE

MOUNTING SCREWS

FILTERED WATER FAUCET*

INSERT

TUBING

WASHER

ADAPTOR

NUT

TUBING

NUT

Filter

* FAUCET VARIES WITH MODELS

Models GNSV30C/GNSV25C/GNSL05C Installation Information (in inches)

Models GXSV10C/GXSL03C Installation Information (in inches)

Models GX1S15C/GN1S15C/GX1S01C Installation Information (in inches)

GNSV30C, GNSV25C, GN1S15C, GNSL05C, GX1S15C, GXSV10C, GXSL03C are Tested and Certified by NSF International against ANSI/NSF Standard 42 for Particulate Reduction Class I, Chlorine Reduction Class I and Taste and Odor Reduction.

GNSL05C, GXSL03C and GX1S15C are Tested and GN1S15C Certified by NSF International against ANSI/NSF Standard 53 for Lead, Cysts, Turbidity, Asbestos and Lindane Reduction.

GNSV30C, GNSV25C and GXSV10C are are Tested and Certified by NSF International against ANSI/NSF Standard 53 for Lead, Cysts, Turbidity, Asbestos and VOC Reduction.

COLD WATER LINE

MOUNTING SCREWS

FILTERED WATER FAUCET

TUBING

WASHER

ADAPTOR

NUT

TUBING

Filter

NSF Approved

COLD WATER LINE

MOUNTING SCREWS

FILTERED WATER FAUCET

TUBING

WASHER

ADAPTOR

NUT

TUBING

Filter

Page 77

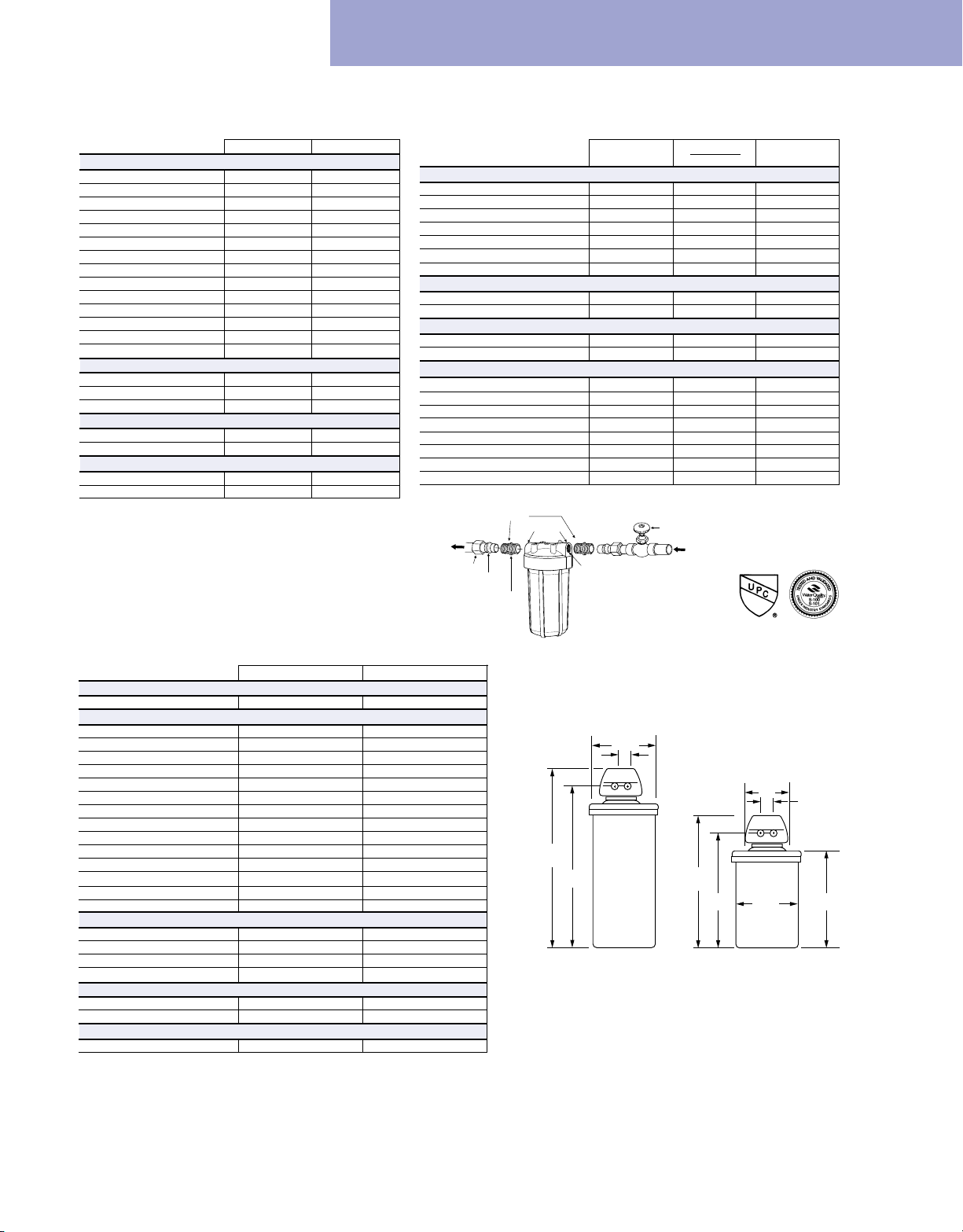

GE Smartwater filtration systemsGE SmartWater™systems specifications

See page 87 for warranty information.

GXSF27B GNSF18Z

Capacity

Capacity (grains) Large-27,000* Compact-18,000*

Features

Efficiency (grains per lb.-salt) 5200** 5000** Max. Hardness Removal (gpg) 95 25 Max. Clear Water Iron Reduction (ppm) 5 3 Resin Filter Type Std. mesh Std. mesh Resin Weight (lbs.) 36.9 38 Resin Quantity (cu. ft.) .71 .73 Resin Tank Size (in inches) 8 x 40 10 x 21 Salt Capacity (lbs.) 200 140 Water Used for Regeneration (gals.) 40-50 25-30 Regeneration Time (min.) Approx. 118 Approx. 120 Service Flow Rate (at 15 psi drop) 8 7 Electronic Controls ■■ Permanent Settings Memory ■■ Plumbing Connection 1"-NPT 1"-NPT

Appearance

Spacesaver Design Style Round Round Unit Color Grey Grey Electronic-Demand Driven ■■

Weights & Dimensions

Approximate Shipping Wt. (lbs.) 94 66 Overall W x H x D (in.) 18-1/4 x 48-3/4 x 18-1/4 18-5/8 x 29-1/2 x 18-5/8

Power/Ratings

Electronic Rating 24V, 60Hz 24V, 60Hz

*GXSF27B-Test protocol @ 11.4 lbs. of salt. GNSF18Z-Test protocol @ 6.3 lbs. of salt.

**GXSF27B-Test protocol @ 2.0 lbs. of salt. GNSF18Z-Test protocol @ 1.6 lbs. of salt.

Important: All units must be installed according to local codes.

Note: Before installing, see installation instructions packed with product for complete details, or call GE

QuickSpecs 800-432-3729.

48-3/4

41-1/4

Front View

IN-OUT

18-1/4

Dia.

3-3/8

Salt Capacity – 200 lbs.

Model GXSF27B

Model GNSF18Z

29-1/2

22-1/4

18-5/8

Front View

IN-OUT

21-1/2

11-1/2

Dia.

3-3/8

Important: All units must be installed according to local codes. Caution: Do not use with water that is microbiologically unsafe or of unknown quality,

without adequate disinfection before or after the system. Systems certified for cysts reduction may be used on disinfected water that may contain filterable cysts.

Replacement Filters

Call GE SmartWater Services toll-free 800.952.5039 to order replacement filters.

GXILQ GXITQ

Features

Feed Water Pressure (psi) 25 min.-125 max. 25 min.-125 max. Feed Water Temperature 40-100°F 40-100°F Filtered Water Flow (gpm) 0.5 0.5 Filter Life 6 months 6 months Filter Cartridge Act. Carbon Act. Carbon Particulate Removal Nominal 1 micron Nominal 5 micron Chlorine Reduction (gals.) 750 93% per 2000 Filter Life 6 months 6 months Lead Reduction (percent/gals.) 99/750 Cysts Reduction (percent/gals.) 99.95/750 Filter Change Indicator Sticker Sticker Fittings Quick Connect Quick Connect Plumbing connections 1/4" 1/4" Auto Shut-Off Valve ■■

Appearance

Style Bracket Unit Color White White Filter Housing White White

Weights & Dimensions

Approximate Shipping Weight (lbs.) 2 2 Overall W x H x D (in.) 16 x 2-1/2 x 2-1/2 14 x 2 x 2

Accessories (■ = included)

Installation Kit ■■ Replacement Filter GXITQR

GNWH08C

GXWH30C GXWH08C GXWH01C

Features

Feed Water Pressure (psi) 40 min.-100 max. 40 min.-125 max. 40 min.-125 max. Feed Water Temperature 40-100°F 40-100°F 40-100°F Filtered Water Flow (gpm) 4-20 4-12 4-12 Filter Life 3 months 3 months 3 months Filter Change Indicator Sticker Sticker Sticker Suitable for 1" Plumbing Connections ■ Bypass Valve 2-Position

Appearance

Unit Color White White White Filter Housing White Clear White

Weights & Dimensions

Approximate Shipping Weight (lbs.) 8 4 2 Overall W x H x D (in.) 15 x 15 x 15 5-1/2 x 14-1/2 x 5 5-1/2 x 14-1/2 x 5

Accessories (■ = included at additional cost)

Installation Kit ■■WHKIT Wrench HDWRNCH ■ WHWRNCH Replacement Filter

Polyspun ■ FXUSC String Wound FXWSC FXWSC Pleated FXWPC FXWPC Carbon Paper FXHSC FXWTS FXWTC Heavy Duty Carbon FXHTC

Water In

Inlet 1" NPT

Apply Several Wraps of Teflon Tape

Compression

Adaptor

Brass

Ferrule

Nut

Optional Shut Off Valve

Filtered

Water

InOut

Typical Installation

Installation Information (in inches)

Salt Capacity – 140 lbs.

GE SmartWater

™

softening systems

GE SmartWater

™

refrigerator/ icemaker water filtration systems

GE SmartWater

™

household water filtration system

Page 78

GE Built-In “J” series air conditioning

For additional features, specifications and color availability, refer to page 84.

For warranty information, refer to page 87.

Cool Only Units

Offer a variety of capacities to cool many applications.

Heat/Cool Units

Provide a variety of capacities for summer cooling, plus supplemental heat for cold weather—units combine air conditioning with electric resistance heat.

Heat Pump Units

Heat pump units offer efficient summer cooling with reverse cycle heating and back-up resistance heat for cold weather.

Units include attractive room-side grille of highimpact polystyrene.

These units are chassis-only models and require a separately purchased solid-sided wall case (RAB46, RAB47 or RAB48) and exterior grille (RAG13 or RAG14) for installation.

Fan Cycle switch

Helps reduce power consumption and operating costs.

E.E.R. (Energy Efficiency Ratio)

Shown on the tag of each new unit, compares the air conditioner’s cooling output with the electricity it requires for power. The higher the E.E.R. number, the more efficient the unit, and the less costly to operate.

■ Variable setting thermostat ■ Fan Cycle switch ■ Four-way air direction

■ Up-front, washable air filter ■ “Fan Only” setting for air circulation

GE Slope-Top chassis only models

Cool Only Units

BTUH

Electric

BTUH Resistance Wall

Models Cooling Volts EER Heating Case AJCS06LC 6000 115 9.5 – RAB46/47/48 AJCS08AC 8000 115 9.2 – RAB46/47/48 AJCS10AC 9900 115 9.2 – RAB46/47/48 AJCS09DC 8900/8700 230/208 9.5/9.5 – RAB46/47/48 AJCS10DC 9900/9700 230/208 9.2/9.2 – RAB46/47/48 AJCS12DC 11,600/11,400 230/208 9.0/9.0 – RAB46/47/48

Heat/Cool Units

BTUH

Electric

BTUH Resistance Wall

Models Cooling Volts EER Heating Case AJES09DC 8900/8700 230/208 9.5/9.5 11,600/9,480 RAB46/47/48 AJES10DC 9900/9700 230/208 9.2/9.2 11,600/9,480 RAB46/47/48 AJES12DC 11,600/11,400 230/208 9.0/9.0 11,600/9,480 RAB46/47/48

Heat Pump Units

BTUH BTUH

Electric Reverse

BTUH Resistance Cycle Wall

Models Cooling Volts EER Heating Heating† Case

AJHS08DC* 8000/7800 230/208 9.2/9.2 11,600/9500 7700/7500 RAB46/47/48

AJHS10DC* 9800/9600 230/208 9.2/9.2 11,600/9500 9700/9500 RAB46/47/48

*Model includes two-stage heating thermostat. †At 47°F.

Note: If any “J” Series unit is a replacement unit, the existing rear grille should be replaced for better performance with either stamped aluminum (RAG13) grille or architectural louvered extruded aluminum (RAG14).

Page 79

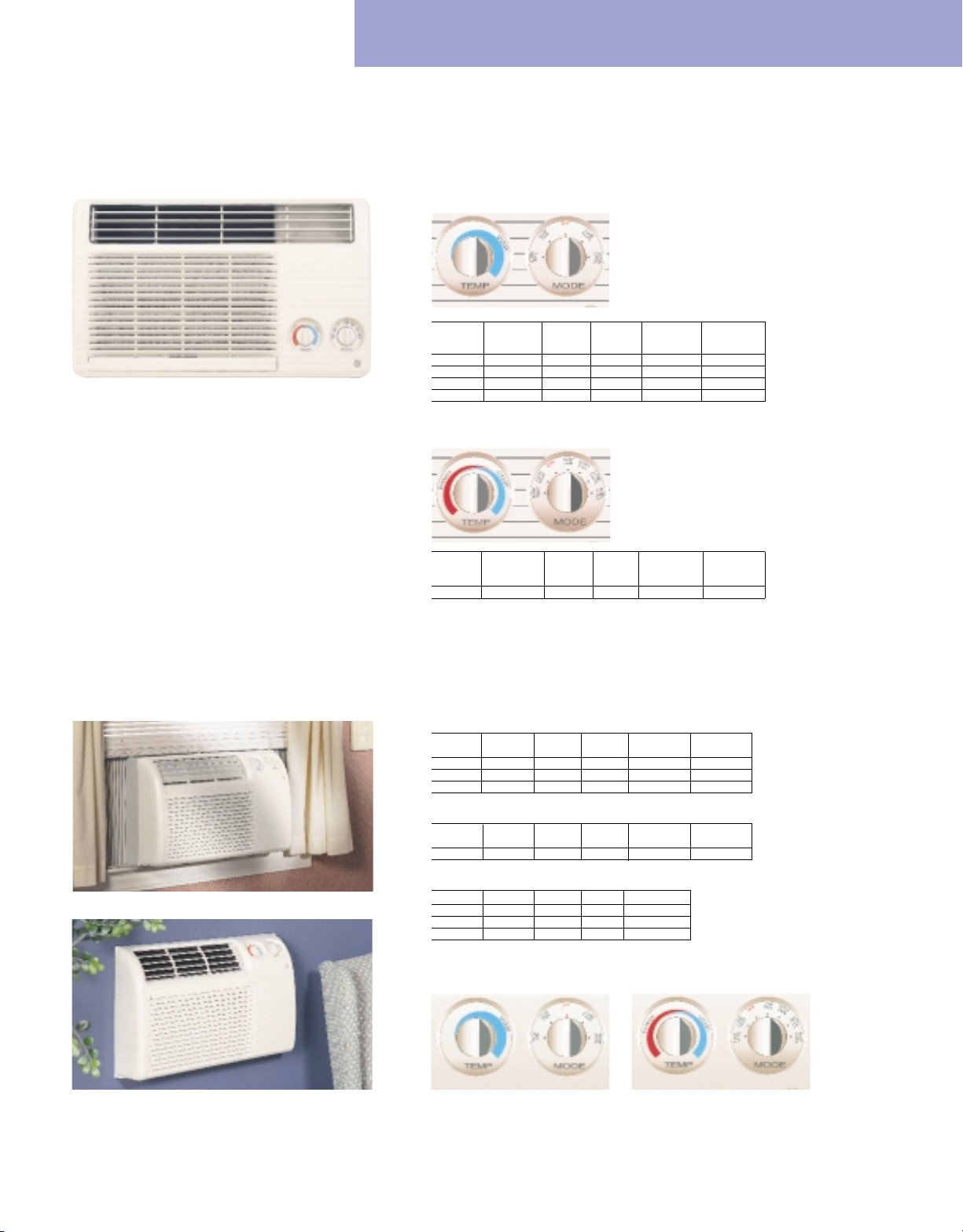

GE Built-In “J” series air conditioning

For high-mount installations where control accessibility is difficult, GE offers five “J” Series models with controls located in the lower corner of the room-side cabinet. There are two 115V and two 230V cooling only models, and one 230V model with electric heat.

Units include attractive room-side grille of high-impact polystyrene.

Each unit requires a solid-sided wall case (RAB46, RAB47 or RAB48) and exterior grille (RAG13 or RAG14) for installation.

■ Variable setting thermostat ■ Fan Cycle switch ■ Four-way air direction

■ Up-front, washable air filter ■ Multiple fan speeds

GE Hi-Mount chassis only models

GE Window/Wall mount models

■ Multiple cooling/heating speeds ■ Vent/Exhaust ■ Multi-position thermostat ■ Fan Cycle switch ■ Easy access filter

■ Slide-out chassis ■ EZ Mount window kit (for Cooling Only models)

Cooling Only Heat/Cool, Heat Pump

For convenience and efficiency, GE offers a unique line of units that provide cooling only, cooling with electric heat, and cooling with heat pumps, for use in window or through-the-wall application.

All units include solid-sided sleeve with a slide-out chassis.

BTUH Electric

BTUH Resistance Wall

Model Cooling Volts EER Heating Case AJEH12DC 11,600/11,400 230/208 9.0/9.0 11,600/9480 RAB46/47/48

BTUH Electric

BTUH Resistance Wall

Models Cooling Volts EER Heating Case AJCH08AC 8000 115 9.2 – RAB46/47/48 AJCH10AC 9900 115 9.2 – RAB46/47/48 AJCH10DC 9900/9700 230/208 9.2/9.2 – RAB46/47/48 AJCH12DC 11,600/11,400 230/208 9.0/9.0 – RAB46/47/48

Heat/Cool Units

Heater

Model BTU EER Volts Cools (sq. ft.) Wattage AJES10DS 9,900/9,700 9.2/9.2 230/208 425-525 3.4/2.8 (kw) AJES08AS 8,000 9.2 115 250-350 1.2 (kw) AJES06LS 6,000 9.5 115 170-210 1.2 (kw)

Heat Pump Unit

Heater

Model BTU EER Volts Cools (sq. ft.) Wattage AJHSO8AS 8,000 9.2 115 250-350 1.2 (kw)

Cooling Only Units

Model BTU EER Volts Cools (sq. ft.) AJCS10AZ 9,900 9.2 115 425-525 AJCS08AZ 8,000 9.2 115 250-350 AJCS06LZ 6,000 9.5 115 170-210

Cool Only Units

Heat/Cool Unit

For additional features, specifications and color availability, refer to page 84.

For warranty information, refer to page 87.

Page 80

Model BTU EER Volts Cools (sq. ft.) AGV18DC 17,800/17,300 9.7/9.7 230/208 1050-1150

Models BTU EER Volts Cools (sq. ft.) ASM24DA 23,700/23,100 8.8/8.8 230/208 1480-1620 ASM22DA 22,000/21,500 8.8/8.8 230/208 1330-1450 ASM18DA 18,000/17,500 10.0/10.0 230/208 1050-1150 ASM16DA 15,600/15,200 9.7/9.7 230/208 890-990 ASM14AA 14,000 10.0 115 750-850 ASM12DA 12,500/12,200 10.0/10.0 230/208 625-700 ASM12AA 12,500 10.0 115 625-700 ASM10AA 10,000 10.0 115 425-525

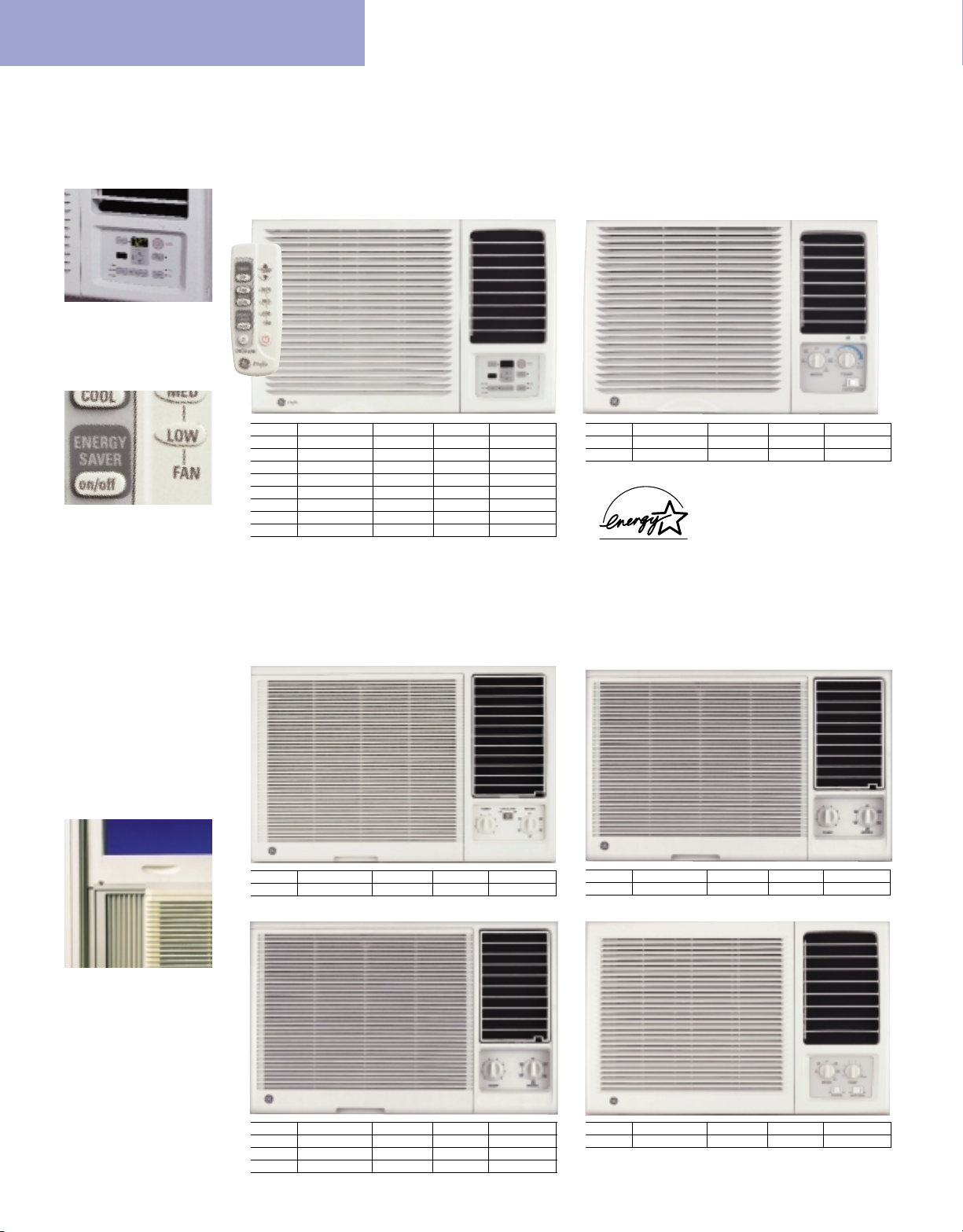

GE Profile™and Deluxe series

■ Energy Saver feature ■ Multiple cooling speeds ■ Vent/Exhaust ■ Adjustable thermostat

■ EZ Mount window kit ■ Four-way adjustable air discharge ■ One Touch Lift-Out filter ■ Slide-out chassis

Electronic thermostat with remote control

Allows you to set and adjust exact temperatures for total comfort.

GE Value series

■ Multiple cooling speeds

■ 8-Position thermostat

■ Rigid slide-out filter

■ EZ Mount window kit

■ Vent exhaust

Easy Mount Installation

Designed for ease of placement, this unit can be installed by most people and requires no prior experience or special tools.

As an ENERGY STAR® Partner,

GE has determined that this product

meets the ENERGY STAR®

guidelines for energy efficiency.

Energy Saver feature

Once the room is cool enough, the thermostat will shut down the compressor and fan, saving energy and reducing your energy bill.

Models BTU EER Volts Cools (sq. ft.) ASM08FA 8,000 10.0 115 250-350 ASM06LB* 6,000 10.0 115 170-210

*Energy Star Compliant

GE Profile™Series GE Deluxe Series

Models BTU EER Volts Cools (sq. ft.) AGV12DB 12,000/11,500 9.8/9.8 230/208 575-650 AGV12AB 12,000 9.8 115 575-650 AGV10AB 10,000 9.8 115 425-525

Model BTU EER Volts Cools (sq. ft.) AGV07LA 7,000 9.7 115 210-280

Model BTU EER Volts Cools (sq. ft.) ASV24DA 23,700/23,100 8.5/8.5 230/208 1480-1620

GE air conditioning

For additional features, specifications and color availability, refer to page 83.

For warranty information, refer to page 87.

Page 81

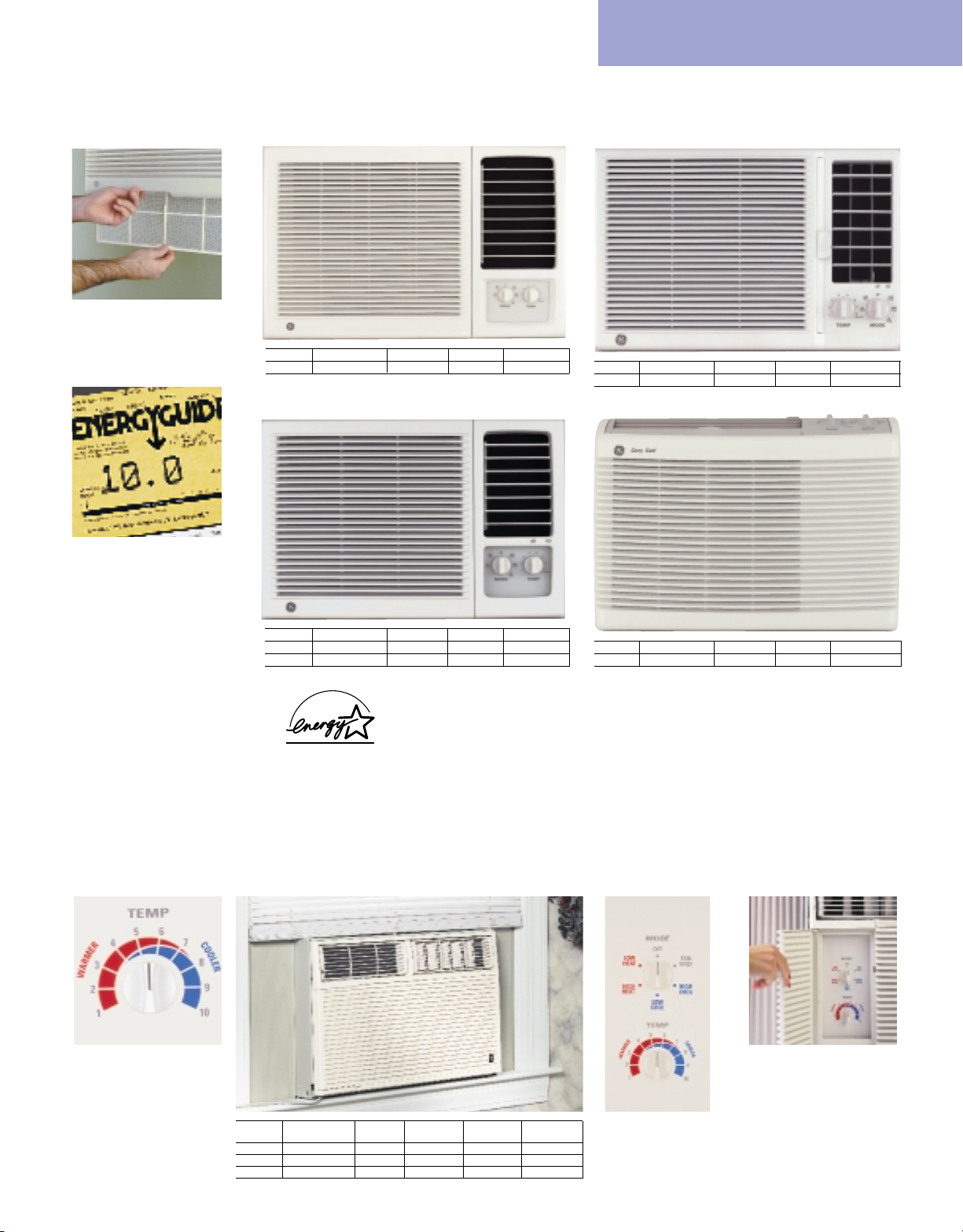

GE air conditioning

Energy Efficiency Ratio (E.E.R.)

Higher E.E.R. numbers indicate greater efficiency and lower operating costs. An E.E.R. of 10.0 compared to an E.E.R. of 9.0 can provide an annual energy savings of more than 10% while still providing the same amount of cooling BTU’s.

GE Value series (continued)

Quick Clean Filters

Keep unit running efficiently and save money. Simply slide out the filter, wash and replace.

GE Heat/Cool series

■ Multiple cooling/heating speeds ■ Vent/Exhaust ■ 10-Position thermostat ■ Four-way adjustable air discharge

■ Easy access filter ■ Slide-out chassis ■ Rigid panel window kit

Concealed Controls

Hidden from view to provide a clean, contemporary appearance.

Cooling and Electric Heat

Along with comfortable cooling capabilities, our new series also provides supplemental heat during winter months and can even be used as the primary heat source in temperate zones.

Cools Heater

Models BTU EER Volts (sq. ft.) Wattage AVE22DA 22,000/21,300 8.2/8.2 230/208 1,330-1,450 5.0/4.0 (kw) AVE18DA 18,000/17,500 9.5/9.5 230/208 1,050-1,150 3.0/2.6 (kw) AVE15DA 15,000/14,500 9.0/9.0 230/208 850-950 3.0/2.6 (kw)

As an ENERGY STAR® Partner,

GE has determined that this product

meets the ENERGY STAR®

guidelines for energy efficiency.

Model BTU EER Volts Cools (sq. ft.) ASV05LA* 5,000 9.7 115 100-150

*Energy Star Compliant

Model BTU EER Volts Cools (sq. ft.) ASC05LA 5,000 8.5 115 100-150

■ Carry-Cool

Model

Model BTU EER Volts Cools (sq. ft.) ASV14AA 14,000 10.0 115 750-850

Models BTU EER Volts Cools (sq. ft.) ASV08FA 8,000 9.8 115 250-350 ASV06LB* 6,000 9.8 115 170-210

*Energy Star Compliant

For additional features, specifications and color availability, refer to pages 83 and 85.

For warranty information, refer to page 87.

Page 82

GE air conditioning

For additional features, specifications and color availability, refer to pages 83 and 86. For warranty information, refer to page 87.

GE Slide-Aire

The GE Quiet-Aire™–Split System air conditioner provides virtually silent cooling comfort. With a design that includes outside air compressor placement, disturbing sounds are kept out of doors and out of earshot. This design also eliminates annoyances like rattling windows. So rest easily and peacefully. Available in heat pump and cooling only models in 9,000, 12,000 and 18,000 BTU sizes.

GE Quiet-Aire™–Split System

For more information, see Pub. No. 20-S008, or call the GE Answer Center®at 800.626.2000.

Indoor unit Outdoor unit

Slide-Aire models

Accommodate the special installation needs of sliding and casement windows (those with side hinges that open in or out).

Contemporary styling

Sleek new contemporary styling blends quietly with most decor.

■ 10-Position thermostat

■ Vertical Slider Kit Panel

■ Multiple cooling and fan speeds

■ Two-way adjustable air discharge

Model Pints Per Day AHG20LA 19

■ Electronic Micro Computer Control

■ Overflow protection

■ Water Full indicator

■ Automatic defrost

■ 6-Pint bucket capacity

■ External drain connector

Model Pints Per Day AHG50LA 50 AHG40LA 40 AHG25LA 25

■ Compact and contemporary design

■ Automatic Humidistat control

■ Automatic Shut-Off system with

Bucket Full indicator

■ Easy roll casters

■ External drain connector

■ Automatic defrost control

■ Removable condensate container

■ Washable air filter

Model BTU EER Volts Cools (sq. ft.) AVX10AC 10,000 9.0 115 425-525 AVX07FB 7,000 8.5 115 210-280

GE Profile™and GE dehumidifiers

Page 83

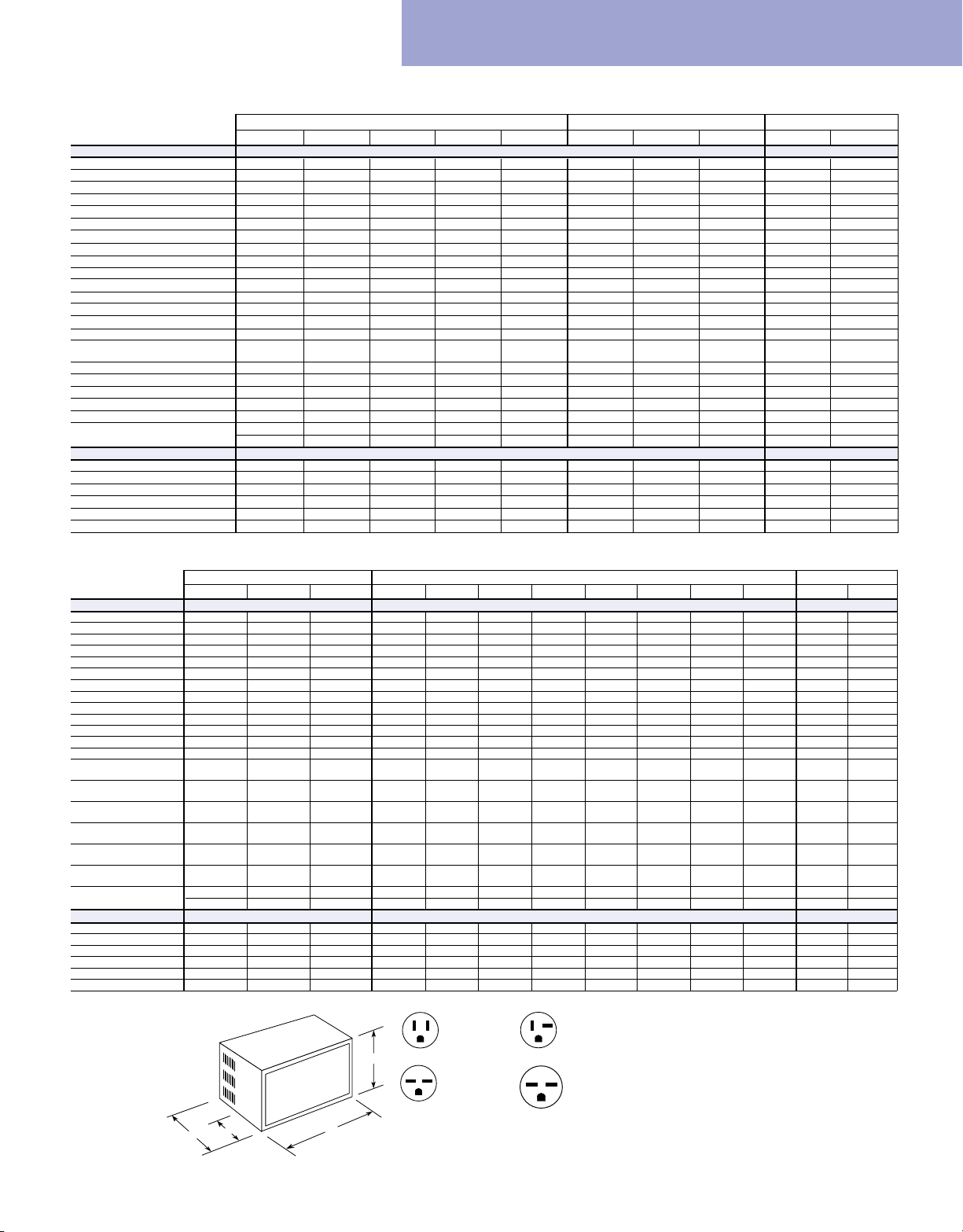

GE air conditioning specifications

See page 87 for warranty information.

*Distance from front of case to

side louvers (excluding grille).

GE Profile,™Deluxe and Value Models Wall Case Dimensions

GE Profile™230 Volt GE Profile™115 Volt GE Deluxe 115 Volt

Wall Outlets

All wiring, including installation of receptacle, must be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.

Note: Aluminum wiring may pose special problems—consult a qualified electrician.

Note: When installing units in through-the-wall applications, keep louvers free. Do not restrict air flow areas. Carry-Cool units are not designed for through-the-wall applications. Note: Some models may not be available in your area due to local legislation. Contact your local dealer.

Parallel

115V. 15 Amp.

Tandem

230/208V. 15 Amp.

Perpendicular

230/208V. 20 Amp.

Large Tandem

230/208V. 30 Amp.

GE Value 230 Volt GE Value 115 Volt GE Slide-Aire ASV24DA AGV18DC AGV12DB ASV14AA AGV12AB AGV10AB ASV08FA AGV07LA ASV06LB ASV05LA ASC05LA AVX10AC AVX07FB

Features

BTUH 23,700/23,100 17,800/17,300 12,000/11,500 14,000 12,000 10,000 8,000 7,000 6,000 5,000 5,000 10,000 7,000 Voltage 230/208 230/208 230/208 115 115 115 115 115 115 115 115 115 115 E.E.R. (BTUH/Watt) 8.5/8.5 9.7/9.7 9.8/9.8 10.0 9.8 9.8 9.8 9.7 9.8 9.7 8.5 9.0 8.5 Amps 12.5/13.4 8.2/8.9 5.5/5.8 12.0 11.0 9.2 7.4 6.6 5.6 4.8 5.5 11.0 7.5 Watts 2,790/2,715 1,835/1,780 1,220/1,170 1,400 1,220 1,020 815 720 610 515 590 1,110 820 Plug type Perpendicular Tandem Tandem Parallel Parallel Parallel Parallel Parallel Parallel Parallel Parallel Parallel Parallel Energy Saver feature (speeds) ■ Dehumidification (pints/hr.) 6.5 5.5 3.5 3.5 3.3 3.0 2.5 1.8 1.6 1.5 1.5 3.1 2.5 Circulaire

™

■■

Fan speeds (Cool/ Fan Only) 3/2 3/2 3/2 3/2 3/2 3/2 3/2 3/2 3/2 3/2 3/2 3/2 3/2 CFM (High Shown) (Indoor) 510 440 280 430 280 265 240 204 190 140 140 260 210 Vent/exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust No Exhaust Exhaust Thermostat 8-Position 8-Position 8-Position 8-Position 8-Position 8-Position 8-Position 8-Position 8-Position 8-Position 8-Position 10-Position 10-Position

One Touch Rigid Frame/ Rigid Frame/ One Touch Rigid Frame/ Rigid Frame/ One Touch Rigid Frame/ One Touch Rigid Frame/ Rigid Frame/ Filter type Lift-Out Slide-Out Slide-Out Lift-Out Slide-Out Slide-Out Lift-Out Slide-Out Lift-Out Slide-Out Slide-Out Foam Foam Chassis Plastic

Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Fixed Portable Fixed Fixed

Window mounting V-Std. V-Std.

EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount Mount Mount Window opening height (min. in inches) 17-3/8 18 16 17-3/8 16 16 14-3/4 14 14-3/4 12-7/8 13-3/16 21 - 40-1/2 21 - 40-1/2 Window opening width (min. in inches) 30 29 27 30 27 27 25-1/2 22 25-1/2 22 23 15-1/2 15-1/2 Window opening width (max. in inches) 41 41 39 41 39 39 37 36 37 36 35 ——

Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr.

Warranty* Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr.

Case Dimensions (in inches) Height—A 16-3/4 16-27/32 15 16-3/4 15 15 13-19/32 13-7/8 13-19/32 12-3/8 13-1/8 20-1/2 20-1/2 Width—B 26 26 23-5/8 26 23-5/8 23-5/8 20-1/2 18-9/16 20-1/2 17-13/16 18-3/4 14-1/2 14-1/2 Depth—C 27-3/16 24-15/16 20-9/32 25-13/16 20-9/32 20-9/32 17-17/32 19-5/32 17-17/32 12-7/16 7-3/32 22-9/16 22-9/16 Depth to louvers—D 9-1/4 10-5/16 8-5/8 9-1/4 8-5/8 8-5/8 7-5/32 8-1/2 7-5/32 4-31/32 1 6 6

Net weight (lbs.) 146 120 95 118 95 90 64 64 61 45 47 102 84 Approx. ship. weight (lbs.) 165 133 101 137 101 96 71 70 68 50 52 106 88 *See written warranty for details.

ASM24DA ASM22DA ASM18DA ASM16DA ASM12DA ASM14AA ASM12AA ASM10AA ASM08FA ASM06LB

Features

BTUH 23,700/23,100 22,000/21,500 18,000/17,500 15,600/15,200 12,500/12,200 14,000 12,500 10,000 8,000 6,000 Voltage 230/208 230/208 230/208 230/208 230/208 115 115 115 115 115 E.E.R. (BTUH/Watt) 8.8/8.8 8.8/8.8 10.0/10.0 9.7/9.7 10.0/10.0 10.0 10.0 10.0 10.0 10.0 Amps 12.5/13.4 11.6/12.6 8.5/9.1 7.4/7.9 5.8/6.4 12.0 11.7 9.2 7.4 5.6 Watts 2,695/2,625 2,500/2,440 1,800/1,750 1,610/1,570 1,250/1,220 1,400 1,250 1,000 800 600 Plug type Perpendicular Perpendicular Tandem Tandem Tandem Parallel Parallel Parallel Parallel Parallel Energy Saver feature (speeds) ■ ■■ ■■ ■ ■■ ■■ Electronic Control ■■■■■■■■ 24-hour timer ■■■■■ ■■■ Dehumidification (pints/hr.) 7.2 7.0 5.5 3.6 3.4 3.5 3.4 3.0 2.5 1.6 Circulaire

™

■■■■■ ■■■

Fan Speeds (Cool/Fan Only) 3/3 3/3 3/3 3/3 3/3 3/3 3/3 3/3 3/2 3/2 CFM (High Shown) (Indoor) 510 510 510 490 350 430 350 240 240 190 Vent/exhaust ■ ■■ ■■ ■ ■■ ■■ Thermostat Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic 10-Position 10-Position

One Touch One Touch One Touch One Touch One Touch One Touch One Touch One Touch One Touch One Touch

Filter type Lift-Out Lift-Out Lift-Out Lift-Out Lift-Out Lift-Out Lift-Out Lift-Out Lift-Out Lift-Out Chassis Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Window mounting EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount EZ Mount Window opening height (min. in inches) 17-3/8 17-3/8 17-3/8 17-3/8 17-3/8 17-3/8 17-3/8 16-1/8 14-3/4 14-3/4 Window opening width (min. in inches) 30 30 30 30 30 30 30 27-5/8 25-1/2 25-1/2 Window opening width (max. in inches) 41 41 41 41 41 41 41 41 37 37

Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr.

Warranty* Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr.

Case Dimensions Height (in inches) A 16-3/4 16-3/4 16-3/4 16-3/4 16-3/4 16-3/4 16-3/4 15-1/2 13-19/32 13-19/32 Width (in inches) B 26 26 26 26 26 26 26 23-5/8 20-1/2 20-1/2 Depth (in inches) C 27-3/16 27-3/16 27-3/16 25-13/16 25-13/16 25-13/16 25-13/16 21-27/32 17-17/32 17-17/32 Depth to louvers (in inches) D 9-1/4 9-1/4 9-1/4 9-1/4 9-1/4 9-1/4 9-1/4 8-21/32 7-5/32 7-5/32

Net weight (lbs.) 146 137 128 118 110 118 110 90 64 61 Approx. shipping weight (lbs.) 165 156 147 137 129 137 129 102 71 68 *See written warranty for details.

Models

Page 84

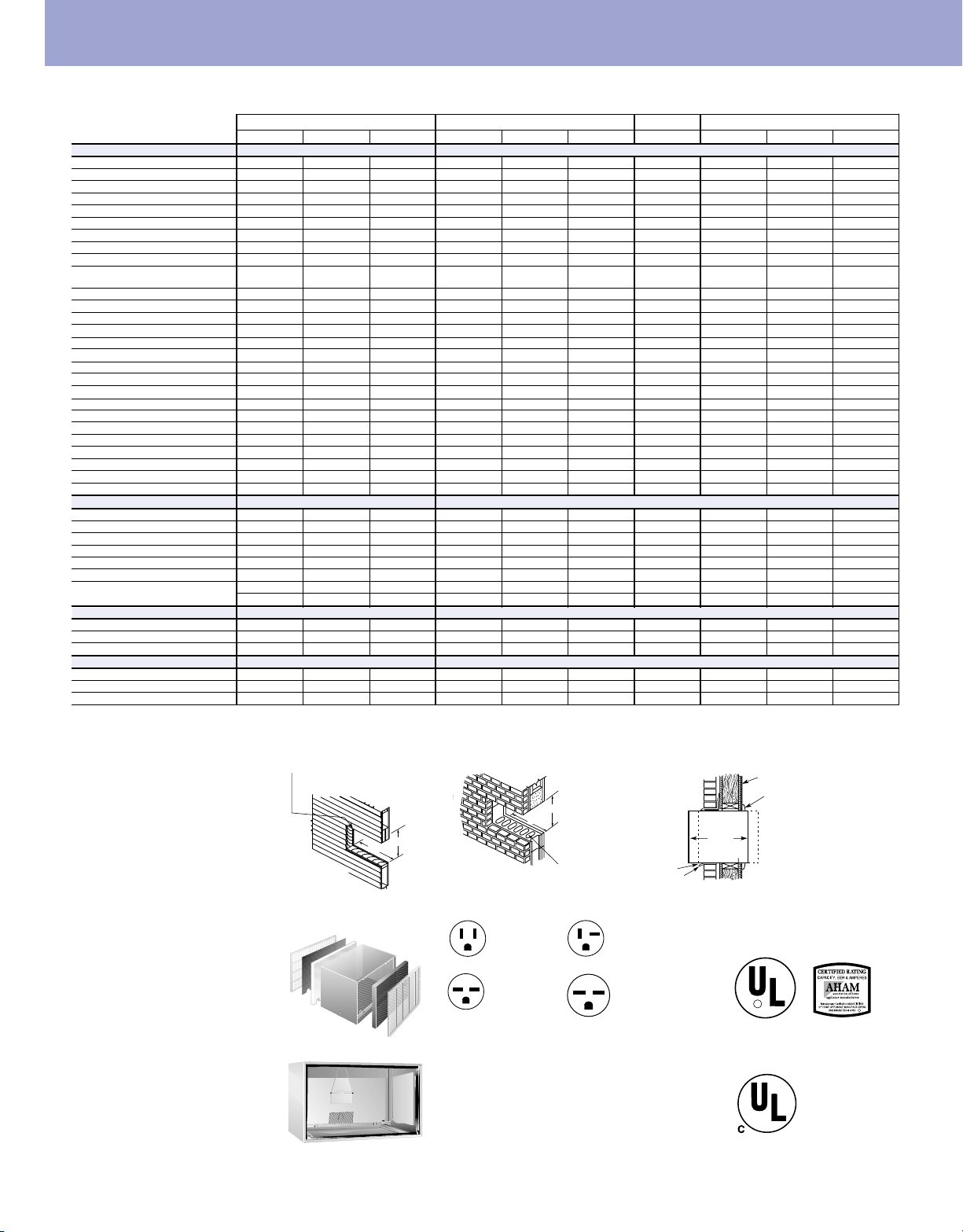

GE Built-In “J” series and heat pumps

See page 87 for warranty information.

Chassis/Cool Chassis/Cool High-Mount

Models AJES09DC AJES10DC AJES12DC AJEH12DC AJHS08DC AJHS10DC

Capacity

BTUH-AHAM 8900/8700 9900/9700 11,600/11,400 11,600/11,400 8000/7800 9800/9600 E.E.R. 9.5/9.5 9.2/9.2 9.0/9.0 9.0/9.0 9.2/9.2 9.2/9.2 Dehumidification (pints/hr.) 2.5 2.6 3.2 3.2 2.0 2.6

Features

Fan speeds (Heating/Cooling) 2/2 2/2 2/2 2/2 2/2 2/2 Fan Only speeds 2 2 2 2 2 2 Airflow (cfm) roomside hi/low 250/210 250/210 265/230 265/230 250/210 250/210 Air exchange exhaust ■■■■■■ Variable setting thermostat ■■■■■■ Filter type Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Rotary compressor ■■■■■■

Economical/Quiet

Fan cycle switch ■■■■■■

Appearance

Slide-out chassis ■■■■■■ Wall case required RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 Installation Wall Wall Wall Wall Wall Wall Window installation kit Optional Optional Optional Optional Optional Optional

Weights & Dimensions Height (in inches) A 15-5/8 Width (in inches) B 26 Depth (in inches) C 16-7/8

Approx. net weight (lbs.) 77 84 84 86 75 84 Approx. shipping weight (lbs.) 86 93 93 95 84 93

Power/Ratings

Voltage 230/208 230/208 230/208 230/208 230/208 230/208 Amps-AHAM 4.2/4.6 4.9/5.3 5.8/6.3 5.8/6.3 4.0/4.3 4.9/5.3 Watts input 935/915 1075/1055 1290/1265 1290/1265 870/850 1065/1045 Line cord plug Perpendicular Perpendicular Perpendicular Perpendicular Perpendicular Perpendicular Recommended circuit protection (time delay) 20 Amps 20 Amps 20 Amps 20 Amps 20 Amps 20 Amps

Reverse Cycle Heating

BTUH-AHAM 7700/7500 9700/9500 C.O.P. @ 47°F. 3.0 3.0 Amps-AHAM 3.4/3.7 4.3/4.7 Watts input 750/730 950/930

Electric Resistance Heating

BTUH-AHAM 11,600/9480 11,600/9480 11,600/9480 11,600/9480 11,600/9500 11,600/9500 Amps (Max. connected load) 16.0 16.0 16.0 16.0 16.0 16.0 Watts output 3400/2780 3400/2780 3400/2780 3400/2780 3400/2780 3400/2780 All cooling with electric heat models and heat pumps are corrosion treated. Specifications and design subject to change without notice.

Chassis/Heat/Cool

Chassis/Heat/Cool High-Mount

Chassis/Heat Pumps

Models AJCS06LC AJCS08AC AJCS10AC AJCS09DC AJCS10DC AJCS12DC AJCH08AC AJCH10AC AJCH10DC AJCH12DC

Capacity

BTUH-AHAM 6000 8000 9900 8900/8700 9900/9700 11,600/11,400 8000 9900 9900/9700 11,600/11,400 E.E.R. 9.5 9.2 9.2 9.5/9.5 9.2/9.2 9.0/9.0 9.2 9.2 9.2/9.2 9.0/9.0 Dehumidification (pints/hr.) 1.4 2.0 2.7 2.5 2.6 3.2 2.0 2.7 2.6 3.2

Features

Fan speeds (Cool/Fan Only) 2/2 2/2 2/2 2/2 2/2 2/2 2/2 2/2 2/2 2/2 Airflow (cfm) roomside hi/low 210/180 250/210 250/210 250/210 250/210 265/230 250/210 250/210 250/210 265/230 Air exchange exhaust ■■■■■■■■■■ Variable setting thermostat ■■■■■■■■■■ Filter type Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Rotary compressor ■■■■■■■■■■

Economical/Quiet

Fan cycle switch ■■■■■■■■■■

Appearance

Slide-out chassis ■■■■■■■■■■ Installation Wall Wall Wall Wall Wall Wall Wall Wall Wall Wall Wall case required RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48 RAB46/47/48

Weights & Dimensions Height (in inches) A 15-5/8 Width (in inches) B 26 Depth (in inches) C 16-7/8

Approx. net weight (lbs.) 66 73 82 75 82 84 75 82 84 84 Approx. shipping weight (lbs.) 75 82 90 84 90 93 84 90 93 93

Power/Ratings

Voltage 115 115 115 230/208 230/208 230/208 115 115 230/208 230/208 Amps-AHAM 5.7 7.9 9.7 4.2/4.6 4.9/5.3 5.8/5.3 7.9 9.7 4.9/5.3 5.8/6.3 Watts input 630 870 1075 935/915 1075/1055 1290/1265 870 1075 1075/1055 1290/1265 Line cord plug Parallel Parallel Parallel Tandem Tandem Tandem Parallel Parallel Tandem Tandem Recommended circuit protection (time delay) 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps

Page 85

GE Heat/Cool and Window/Built-In “J” series and heat pumps

See page 87 for warranty information.

A finished opening of 26-1/8" x 15-3/4", clear of intrusions, is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.

Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.

Built-In room air conditioners wall opening for RAB46/47/48 cases

Make frame if desired or caulk between case and siding

15-3/4

26-1/8

Frame Construction

Standard Wall Case RAB46

Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis.

Two Wall Cases for Tenant Option Installation

When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements.

RAB47—includes wall case, exterior grille, weather panel and steel closure panels.

RAB48—includes wall case, exterior grille, steel closure panel and two layers of insulation.

Wall Outlets

All wiring, including installation of receptacle, must be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.

Note: Aluminum wiring may pose special problems— consult a qualified electrician.

Note: Some models may not be available in your area due to local legislation. Contact your local dealer.

Note: When installing slide-out chassis units in throughthe-wall applications, keep louvers free. Do not restrict air flow areas. Fixed chassis units are not suitable for throughthe-wall applications.

Listed by Underwriters Laboratories

Total capacity and E.E.R. ratings are calculated based on the Association of Home Appliance Manufacturers’ standards.

Parallel

115V. 15 Amp.

Tandem

230/208V. 15 Amp.

Perpendicular

230/208V. 20 Amp.

Large Tandem

230/208V. 30 Amp.

Cooling Only UnitsHeat/Cool Units Heat/Cool Units

Heat Pump

AVE22DA** AVE18DA** AVE15DA** AJES10DS** AJES08AS** AJES06LS** AJHS08AS** AJCS10AZ AJCS08AZ AJCS06LZ

Features

Cooling BTUH-AHAM 22,000/21,300 18,000/17,500 15,000/14,500 9,900/9,700 8,000 6,000 8,000 9,900 8,000 6,000 Heating BTUH-AHAM 16,000/13,400 10,200/8,700 10,200/8,700 11,600/9,400 4100 4100 4100 Voltage 230/208 230/208 230/208 230/208 115 115 115 115 115 115 E.E.R. (BTUH/Watt) 8.2/8.2 9.5/9.5 9.0/9.0 9.2/9.2 9.2 9.5 9.2 9.2 9.2 9.5 Rated cooling amps - AHAM 13.0/14.2 7.9/8.5 7.5/8.1 4.9/5.3 7.9 5.7 7.9 9.7 7.9 5.7 Cooling watts 2,680/2,600 1,890/1,840 1,670/1,610 1,075/1,055 870 630 870 1,075 870 630 Rated heating amps - AHAM 22.8/20.9 15.0/13.5 15.0/13.5 15.5/14.0 12.0 12.0 12.0 Circuit size, amps 30 20 20 20 15 15 15 15 15 15 Plug type (see below) Tandem Perpendicular Perpendicular Perpendicular Parallel Parallel Parallel Parallel Parallel Parallel Line cord plug recommended

circuit protection (time delay) 20 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps Line cord length 55" left 55" left 55" left Dehumidification (pints/hr.) 8.2 5.5 4.3 2.6 2.0 1.4 2.0 2.7 2.0 1.4 CFM (high shown) 500 450 420 250 250 210 230 250 250 210 Air exchange exhaust ■■■■ ■■ ■■ ■■ Variable air discharge 4-Way 4-Way 4-Way 4-Way 4-Way 4-Way 4-Way 4-Way 4-Way 4-Way Control Door ■■ ■ Fan speeds: Cooling/Heating 2/2 2/2 2/2 2/2 2/2 2/2 2/2 2 2 2 Fan Only position 1 1 1 2 2 2 2 2 2 2 Fan cycle switch ■■■■■ ■■ Thermostat

10-Position 10-Position 10-Position Variable Setting Variable Setting Variable Setting Variable Setting Variable Setting Variable Setting Variable Setting

Filter type

Rigid/Slide-Out Rigid/Slide-Out Rigid/Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out

Chassis

Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out Slide-Out

Compressor type

Recip. Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary

Window mounting

Rigid Panel Rigid Panel Rigid Panel Standard Standard Standard Standard EZ Mount EZ Mount EZ Mount Window opening height (min. in inches) 18-5/8 18-5/8 18-5/8 17 17 17 17 17 17 17 Window opening width (min. in inches) 26-3/4 26-3/4 26-3/4 31 31 31 31 31 31 31 Window opening width (max. in inches) 40 40 40 42 42 42 42 41 41 41

Case Dimensions Height (in inches) A 17-1/4 17-1/4 17-1/4 15-5/8 15-5/8 15-5/8 15-5/8 15-5/8 15-5/8 15-5/8 Width (in inches) B 26-1/2 26-1/2 26-1/2 26 26 26 26 26 26 26 Depth (in inches) C 27-5/8 23-5/8 23-5/8 16-7/8 16-7/8 16-7/8 16-7/8 16-7/8 16-7/8 16-7/8 Depth to louvers (in inches) D 10-3/4 9-1/8 9-1/8 None None None None None None None

Net weight (lbs.) 172 123 120 108 96 89 98 105 93 86 Approx. shipping weight (lbs.) 185 130 127 117 105 98 107 114 102 95

Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr.

Warranty* Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr.

Heating Capacity - Reverse Cycle

BTUH - AHAM - H.P. 7,700 Rated Heating Amps - AHAM 6.8 COP @ 47° 3.0

Heating Capacity - Electric

BTUH - AHAM - I2R 16,000/13,400 10,200/8,700 10,200/8,700 11,600/9,480 4,100 4,100 4,100 Rating Heating Amps - AHAM 22.8/20.9 15.0/13.5 15.0/13.5 15.5/14.0 12.0 12.0 12.0 Total Heating Load Watts 5,200/4,280 3,320/2,690 3,320/2,690 3,400/2,780 1,200 1,200 1,200

*See written warranty for details. **These units are not intended to be the primary source of heat.

Models

Plaster Line

Trim Molding (if desired)

26-1/8

Brick Block and Brick Frame Construction

Lintel

15-3/4

Fill open cells with mortar or insulation

Lintel

OUTSIDE INSIDE

16-7/8

aulking

Drip Rail

Flexible Mounting Position

L L

V E

N EL

CAUTION

SIS

H C G

LLIN

ST E IN R

EFO

E W

O EM R

TIO

EC IR D

LL PU

N PA

E W

TIR

E EN

TED

N RE E

( SH

CE N A

IT PER

PER

E PR

EA) T R A

D E

Page 86

See page 87 for warranty information.

GE Profile

™

AHG20LA AHG50LA AHG40LA AHG25LA

Features

Dehumidification (pints/day) 19 50 40 25 Dry Airflow (CFM) 63 113 131 134 Color Gray Cameo White Cameo White Cameo White Electronic Control ■ Auto Shut Off ■■■■ Automatic Defrost ■■■■ Water Full indicator ■■■■ Fan speeds 1 2 2 2 Removable bucket with handle ■■■■ Bucket capacity (pints) 6 24 24 24 External drain connector ■■■■ Casters - 4 movable ■■■■ Voltage 115 115 115 115 Watts 450 580 550 450 Amps 5.3 5.3 5.1 5.3 Circuit size (Amps) 15 15 15 15 Plug type Parallel Parallel Parallel Parallel

Case Dimensions Height (in inches) 22-5/8 20-7/8 20-7/8 20-7/8 Width (in inches) 12-1/4 12-5/8 12-5/8 12-5/8 Depth (in inches) 10-5/8 17-1/8 17-1/8 17-1/8

Shipping weight (lbs.) 42 48 48 54 Net weight (lbs.) 38 43 43 50

Full 1-Yr. Full 1-Yr. Full 1-Yr. Full 1-Yr. Warranty* Full 5-Yr. Full 5-Yr. Full 5-Yr. Full 5-Yr. *See written warranty for details.

Cooling Only Heat Pumps Indoor AS1CD09AA0 AS1CD12AA0 AS1CD18DA0 AS1RD09AA0 AS1RD12AA0 AS1RD18DA0 Outdoor AS0CD09AA0 AS0CD12AA0 AS0CD18DA0 AS0RD09AA0 AS0RD12AA0 AS0RD18DA0

Cooling capacity (BTU/hr) 9,000 12,000 18,000/17,800 9,000 12,000 18,000/17,800 Heating capacity (BTU/hr) N/A N/A N/A 9,000 12,000 19,000/18,700 Auto operation ■■■■■■ Cooling fan speeds/fan only 3/3 3/3 3/3 3/3/3 3/3/3 3/3/3 LCD wireless remote ■■■■■■ “Sleep Mode” ■■■■ ■■ 24 Hr. Timer

(Delay Start/Pre-Set Stop) ■■■■■■ Air flow, up & down–auto ■■■■ ■■ Air flow, left/right–manual ■■■■■■ EER, cooling 9.6 9.3 9.5/9.5 10.0 9.3 9.5/9.5 SEER, cooling 10.0 10.0 10.0/10.0 10.0 10.0 10.0/10.0 COP, heating N/A N/A N/A 3.1 2.75 2.9/2.9 Watts, cooling 940 1290 1900/1870 900 1290 1900/1870 Watts, heating N/A N/A N/A 860 1290 1900/1870 Voltage/Phase/Hz 115/60/1 115/60/1 230-208/60/1 115/60/1 115/60/1 230-208/60/1 Amperes, cooling 8.5 11.7 8.5/9.0 8.0 11.7 8.5/9.0 Amperes, heating N/A N/A N/A 7.7 11.7 8.5/9.0 Temperature range–cool (°F) 64-86 64-86 64-86 64-86 64-86 64-86 Temperature range–heat (°F) N/A N/A N/A 60-86 60-86 60-86 Temperature increments (°F) 222222 Dehumidification (pints/hr.) 2.6 3.5 5.3 2.6 3.5 5.3 CFM (Indoor/Outdoor) 280/882 330/882 460/1835 280/882 330/882 460/1835 Washable air filter ■■■■■ ■ Tube kit Optional Optional Optional Optional Optional Optional

Weights & Dimensions Indoor (H x W x D inches) 11.4 x 35.4 x 7.2 11.4 x 35.4 x 7.2 11.4 x 42.6 x 7.2 11.4 x 35.4 x 7.2 11.4 x 35.4 x 7.2 11.4 x 42.6 x 7.2

Weight (lbs.) shipping/net 28.7/19.8 28.7/19.8 33.0/24.2 28.7/19.8 28.7/19.8 33.0/24.2 Color Dove White Dove White Dove White Dove White Dove White Dove White Carton (H x W x D inches) 14.6 x 38.2 x 9.9 14.6 x 38.2 x 9.9 14.6 x 45.6 x 9.9 14.6 x 38.2 x 9.9 14.6 x 38.2 x 9.9 14.6 x 45.6 x 9.9 Outdoor (H x W x D inches) 21.9 x 31.6 x 10.3 21.9 x 31.6 x 10.3 25.8 x 34.3 x 12.6 21.9 x 31.6 x 10.3 21.9 x 31.6 x 10.3 25.8 x 34.3 x 12.6 Weight (lbs.) shipping/net 83.8/77.2 83.8/77.2 130/121 83.8/77.2 83.8/77.2 130/121 Color Pigeon Grey Pigeon Grey Pigeon Grey Pigeon Grey Pigeon Grey Pigeon Grey Carton (H x W x D inches) 23.9 x 37.8 x 15.1 23.9 x 37.8 x 15.1 28.1 x 40.3 x 17.4 23.9 x 37.8 x 15.1 23.9 x 37.8 x 15.1 28.1 x 40.3 x 17.4

9,000 BTU/Hr. Models TUS1542 TUS2542

Insulated Tubing 15' 25' Wiring 30' 30' Wall Hole Sleeve Standard Standard Suction Line 0.5" 0.5" Liquid Line 0.25" 0.25"

Optional Tube Kits

12,000 BTU/Hr. Models

TUS1542 TUS2542

Insulated Tubing 15' 25' Wiring 30' 30' Wall Hole Sleeve Standard Standard Suction Line 0.5" 0.5" Liquid Line 0.25" 0.25"

18,000 BTU/Hr. Models

TUS1553 TUS2553

Insulated Tubing 15' 25' Wiring 30' 30' Wall Hole Sleeve Standard Standard Suction Line 0.625" 0.625" Liquid Line 0.375" 0.375"

GE Quiet-Aire™—Split System air conditioners/heat pumps

GE dehumidifiers

Models

Page 87

Warranties at a glance

The condensed list below is a convenient overview of the written warranties offered on various Hotpoint and GE appliances described in this catalog. For complete warranty details on a specific appliance model, contact your nearest Hotpoint/GE appliance dealer, or call GE Factory Service, toll-free, 800-GE-CARES (800-432-2737).

Appliance Length Type Warranty Covers Parts Or Labor Where Serviced*

Refrigerators (All models except TAX2BNCBL, TAX2SNCWH, 1-Year Full Entire Appliance Both In-Home TAX4BNCBL, TAX4SNCWH, TAX6SNXWH/WN)

Sealed Refrigeration

Additional 4-Year (5 years total) Full System, Compressor Both In-Home

See-thru

Lifetime Limited Vegetable/fruit crispers Parts Carry-In**

Refrigerators (Models TAX2BNCBL, TAX2SNCWH, 1-Year Limited Entire Appliance Both Carry-In** TAX4BNCBL, TAX6SNXWH/WN)

Additional 4-Year (5 years total) Limited Compressor Part Carry-In**

Freezers (Upright and Chest) 1-Year Full Entire Appliance Both In-Home

Additional 4-Year (5 years total) Full Sealed Refrig. Sys. Both In-Home

1-Year/5-Year†† Full Food Spoilage† N/A N/A

GE SmartWater

™

Filtration Systems Entire Appliance

(Models GNSV25C, GNSL05C) 1-Year Full (excludes filters) Both In-Home GE SmartWater

™

Filtration Systems (Models GXRV10ABL, GXSV10C, GXSL03C, GX1S15C, GN1S15C, GX1S01C, GXITQ, Entire Appliance GXILQ, GXWH08C, GNWH08C, GXWH01C, GXWH30C) 1-Year Limited (excludes filters) Both Carry-In**

GE SmartWater™Softening Systems 1-Year Full Entire Appliance Both In-Home (Models GXSF27B, GNSF18Z)

3-Year Limited Electronic Monitor Parts In-Home

Replacement Brine tank or

10-Year Limited cabinet Parts In-Home

Washers 1-Year Full Entire Appliance Both In-Home

Additional 4-Year (5 years total) Limited Transmission Parts In-Home***

Additional 19-Year (20 years total) Limited Tuf Tub™basket Parts In-Home***

GE Spacemaker®Washers 1-Year Full Entire Appliance Both In-Home

Additional 4-Year (5 years total) Limited Transmission Parts In-Home***

Dryers (Extra-Large Capacity) 1-Year Full Entire Appliance Both In-Home

Extra-Large

Additional 4-Year (5 years total) Limited Capacity Drum Parts In-Home*** Dryers (Large Capacity) and GE Spacemaker®Dryers 1-Year Full Entire Appliance Both In-Home Ranges 1-Year Full Entire Appliance Both In-Home Hoods 1-Year Full Entire Appliance Both In-Home Over-The-Range Microwave Oven Models JVM1651AB/BB/WB, 1-Year Full Entire Appliance Both In-Home

JVM1650AB/BB/WB, JVM1640BB,WB,AB, JVM1631BB/WB, JVM1630BB/WB

Additional 9-Year (10 years total) Limited Magnetron Tube Part In-Home

Over-The-Range Microwave Oven Models RVM1425BA/WA, 1-Year Full Entire Appliance Both In-Home RVM1325BW/WW

Additional 4-Year (5 years total) Limited Magnetron Tube Part In-Home*** Microwave Oven Models JE1840WB/GB, JE1640AB/WB/GB 1-Year Full Entire Appliance Both In-Home

Additional 9-Year (10 years total) Limited Magnetron Tube Part In-Home***

Microwave Oven Models JE1340WC/BC, JE1140WC/BC, 1-Year Limited Entire Appliance Both Carry-In** JE740WY/GY, JEM25WY/GY

Additional 9-Year (10 years total) Limited Magnetron Tube Part Carry-In**

Microwave Oven Models JE510BW, JE520BW, 1-Year Limited Entire Appliance Both Carry-In** JE835WW, JE635WW, JE710BA

Additional 4-Year (5 years total) Limited Magnetron Tube Part Carry-In** Dishwashers (Models HDA3400FWW, HDA3400FBB,

HDA3400FAA, HDA3200FWW, HDA3200FBB, HDA3200FAA, 1-Year Full Entire Appliance Both In-Home HDA2100FWW, HDA2000FBB, HDA2000FWH, HDA2000FAD)

Polypropylene Tub

Additional 9-Year (10 years total) Full and Door Liner Both In-Home Dishwasher Model HDA1000ZWH 1-Year Full Entire Appliance Both In-Home Dishwasher (Models GSC3400F, GSC3430F, GSC3200F, 1 Year Full Entire Appliance Both In-Home

GSC3230F, GSM2130FWW, GSM2110FAA, GSS1800Z)

Additional 1-Year (2 years total) Limited Water Distrib. Sys. Parts In-Home***

PermaTuf

Tub

Additional 9-Year (10 years total) Full and Door Liner Both In-Home Disposer Models GFC1050V, GFC1000Y 5-Years Full Entire Appliance Both In-Home Disposer Model GFC800Y 4-Years Full Entire Appliance Both In-Home Disposer Models GFC705Y, GFC700Y 2-Year Full Entire Appliance Both In-Home Disposer Models GFC305Y, GFC300Y, GFC295Y, GFC290Y 1-Year Full Entire Appliance Both In-Home Compactors 1-Year Full Entire Appliance Both In-Home Room Air Conditioners 1-Year Full Entire Appliance Both In-Home

(Window, Window Built-In)

Additional 4-Year (5 years total) Full Sealed Refrig. Sys. Both In-Home

Dehumidifiers 1-Year Limited Entire Appliance Both In-Home

Sealed Refrigeration

Additional 4-Year (5 years total) Limited System Both In-Home

*See warranty for details. †Cumulative limits: $100—14.9 cu. ft. and smaller; $150—15.0 cu. ft. and larger.

**In-Home service available at additional cost.

†† One year on spoilage from any part failure. Five years on spoilage from sealed refrigerant system failure.

***Does not include service trip and labor charges.
