GE GSS20DBM Specification
GSS20DBM - GE 19.8 Cu. Ft. Side-By-Side Refrigerator
GE Appliances
Specification Revised 3/01

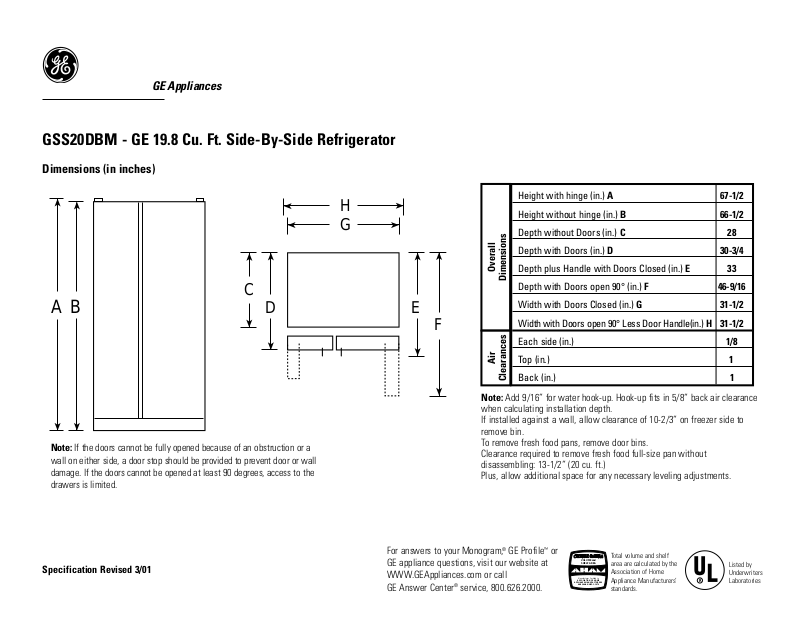

Dimensions (in inches)
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 67-1/2
Height without hinge (in.) B 66-1/2
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-3/4
Depth plus Handle with Doors Closed (in.) E33
Depth with Doors open 90° (in.) F 46-9/16
Width with Doors Closed (in.) G 31-1/2
Width with Doors open 90° Less Door Handle(in.) H 31-1/2
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
WWW.GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
Note: Add 9/16” for water hook-up. Hook-up fits in 5/8” back air clearance
when calculating installation depth.
If installed against a wall, allow clearance of 10-2/3” on freezer side to
remove bin.
To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without
disassembling: 13-1/2” (20 cu. ft.)
Plus, allow additional space for any necessary leveling adjustments.
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
R
Specification Revised 3/01
GE Appliances
GSS20DBM - GE 19.8 Cu. Ft. Side-By-Side Refrigerator
Features and Benefits
• 19.8 cu. ft. Capacity (Fresh Food 12.75 cu. ft. / Freezer 7.04 cu. ft.)
• Upfront Electronic Temperature Controls
• FrostGuard™Technology
• NeverClean™Condensor
• 3 Adjustable Glass Fresh Food Cabinet Shelves
• Sealed Deli Pan
• Sealed Vegetable/Fruit Crisper
• 4 Modular Fixed Fresh Food Door Shelves (2 with Gallon Storage)
• Equipped for Optional Automatic Icemaker
• Deluxe Quiet Design
• Model GSS20DBMWW - White on white
• Model GSS20DBMCC - Bisque
