Spacemaker Dishwasher Dimensions
(Pub. 1-G003 pg. 132B) May 12, 1993
DW PLUMBING/ELECTRICAL
ROUGH-IN (IN INCHES)
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher

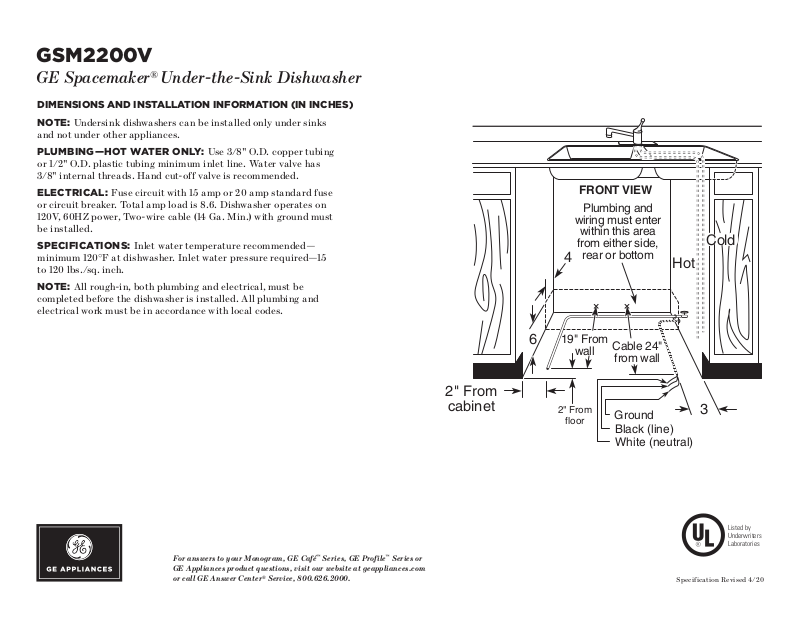

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Undersink dishwashers can be installed only under sinks
and not under other appliances.
PLUMBING—HOT WATER ONLY: Use 3/8" O.D. copper tubing
or 1/2" O.D. plastic tubing minimum inlet line. Water valve has
3/8" internal threads. Hand cut-off valve is recommended.
ELECTRICAL: Fuse circuit with 15 amp or 20 amp standard fuse
or circuit breaker. Total amp load is 8.6. Dishwasher operates on
120V, 60HZ power, Two-wire cable (14 Ga. Min.) with ground must
be installed.
SPECIFICATIONS: Inlet water temperature recommended—
minimum 120°F at dishwasher. Inlet water pressure required—15
to 120 lbs./sq. inch.
NOTE: All rough-in, both plumbing and electrical, must be
completed before the dishwasher is installed. All plumbing and
electrical work must be in accordance with local codes.
FRONT VIEW
Plumbing and
wiring must enter
within this area
from either side,
rear or bottom
4
Cold
Hot
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
2" From
cabinet
6
19" From
wall
2" From
floor
Cable 24"
from wall
Ground
Black (line)
White (neutral)
Speci fication Revised 4/20
3
Listed by
Underwriters
Laboratories
Page 2
GSM2200V
6
4
10"
from
cabinet
Allow a 5"
radius to
prevent kinking
1-1/2" MAX.
dia. hole
Directional flow tee
Waste air gap
12" From wall
Waste tee
or disposer
Remove hopper plug
before connecting
dishwasher drain
FRONT VIEW
Drain
connection
To
air
gap
GE Spacemaker® Under-the-Sink Dishwasher
NOTE: A close-fitting elbow or special
shallow sink strainer is necessary to
provide clearance between sink drain
and dishwasher. Dishwasher furnished
with 1/2" I.D. drain hose, 78" long. If
using copper tubing, 2" length of 1/2"
I.D. rubber hose must be provided
to connect copper tubing to pump
outlet. Disposer should have 7/8" I.D.
dishwasher drain connector.
ROUGH-IN FOR INSTALLATION WITH
DISPOSER DIMENSIONS (IN INCHES)
Directional flow tee
FRONT VIEW
Drain
connection
4
1-1/2" MAX.
dia. hole
12" From wall
Waste tee
or disposer
Remove hopper plug
before connecting
dishwasher drain
6
10"
from
cabinet
Allow a 5"
radius to
prevent kinking
Waste air gap
To
air
gap
REAR VIEW PLUMBING ARRANGEMENT
DIMENSIONS (IN INCHES)
6" Double-bowl
stainless steel sink
1-1/2"
Directional
flow tee
Cold water
Hot water
Valve to shut off
water to dishwasher
Hot water supply
to dishwasher
Dishwasher
drain hose
Sink
strainer
assembly
Spacemaker
dishwasher
Electrical
junction box
(on dishwasher)
®
Countertop
25" deep
1-1/2" thick
1-1/2" Close
elbow
Dishwasher
water inlet
valve
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 4/20
Page 3
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher

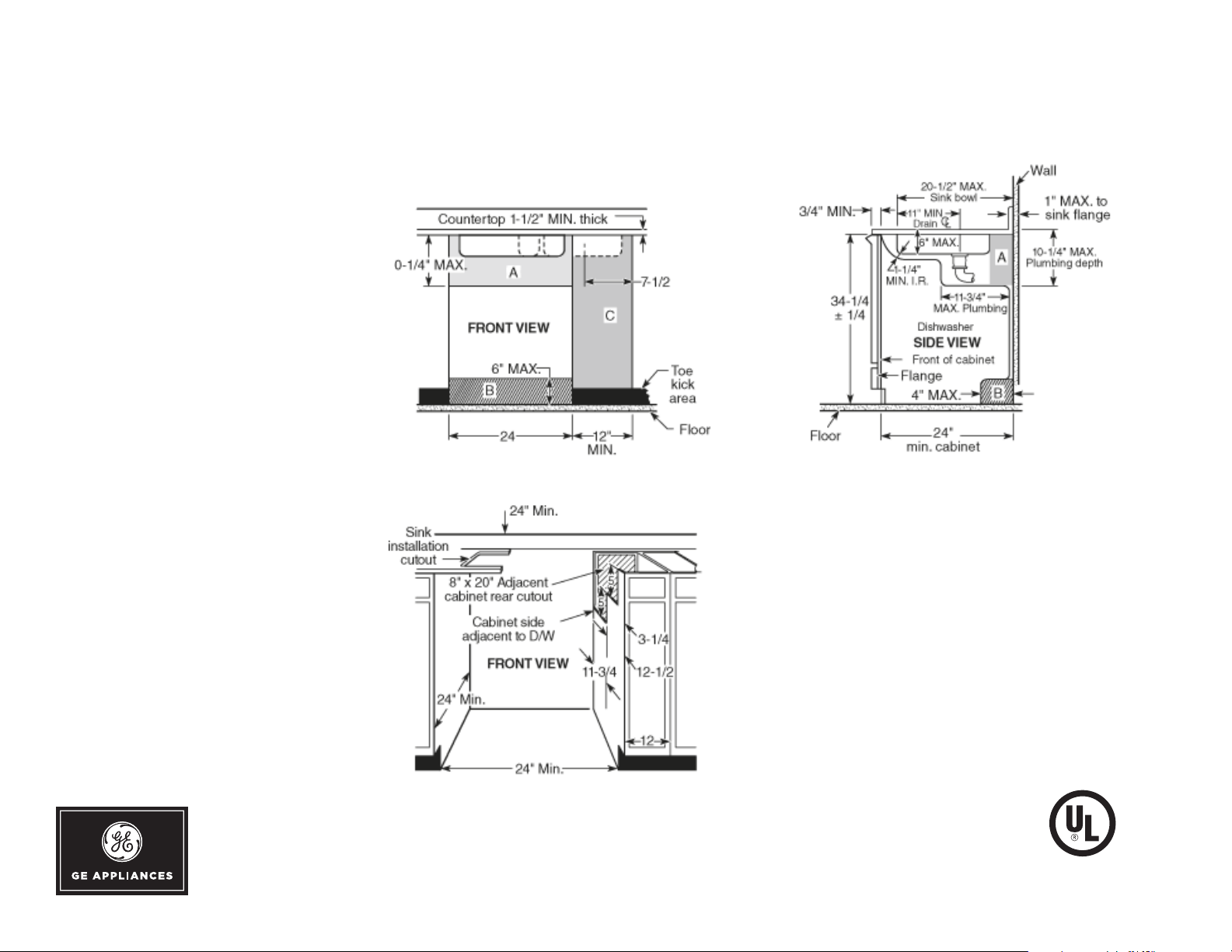

CABINET ROUGH-IN DIMENSIONS
CABINET ROUGH-IN NOTE: Either
single- or double-bowl sink may be used,
centered or offset, as shown in the front
view illustration.
The 20-1/2" maximum dimension
from wall to front of sink bowl must be
accurate if dishwasher is to fit properly
under sink. Water lines to sink faucet
and drain from sink can be run through
area “A.”
HOT WATER line to dishwasher is
installed in area “B.”
Garbage disposer, water lines to faucet,
trap, waste air gap and water cutoff valve
are installed in 12" wide cabinet shown
in area “C.” Sink opening for garbage
disposer must be dimensioned as shown
in front view, area “C” (7-1/2"). This will
provide clearance for the disposer and
plumbing in cabinet “C” when using
double bowl sink.
If the sink bowl is more than 20-1/2"
maximum specified distance form the
wall, or if the base cabinet is less than
the 24" minimum depth from the wall, a
gap between the tub front flange and the
front of the base cabinet may result.
(IN INCHES)
CABINET CUT-OUT FOR SINK DIMENSIONS
(IN INCHES)
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 4/20
Page 4
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
FEATURES AND BENEFITS
Spacemaker® upper rack – Maximizes space without losing cabinets
Two-stage filtration with Extra Fine filter – Extra filtration keeps water clean
Piranha™ hard-food disposer – Grinds food into small particles that are washed away
Hot Start option – Provides optimal water temperature for dependable performance
64 dBA – Motor runs quietly to keep kitchen peaceful
Model GSM2200VWW – White on white
Model GSM2200VBB – Black on black
Model: GSM2260VSS – Stainless steel
