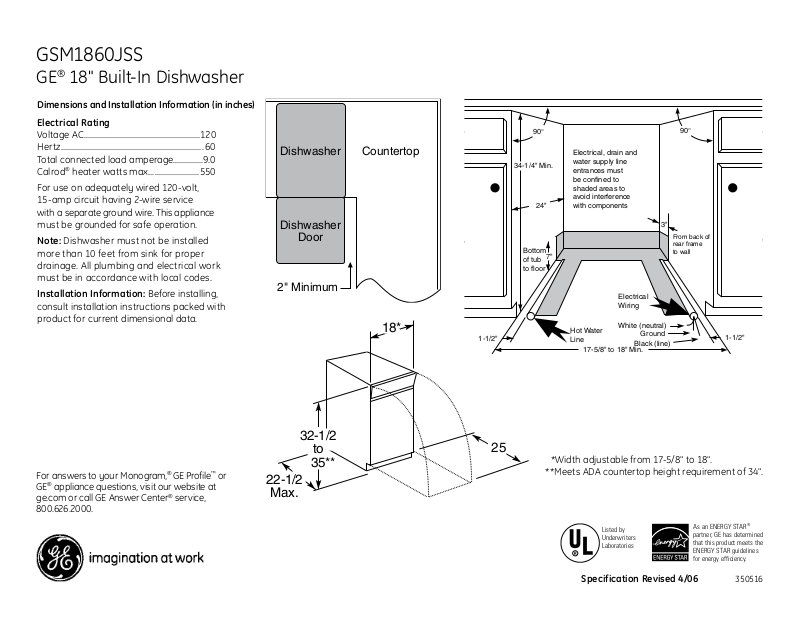

GSM1860JSS
GE® 18" Built-In Dishwasher
Dimensions and Installation Information (in inches)
Electrical Rating |
|
Voltage AC.......................................................... |
120 |
Hertz....................................................................... |
60 |
Total connected load amperage............... |
9.0 |
Calrod® heater watts max......................... |
550 |
For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire. This appliance must be grounded for safe operation.
Note: Dishwasher must not be installed more than 10 feet from sink for proper drainage. All plumbing and electrical work must be in accordance with local codes.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
Dishwasher Countertop
Dishwasher
Door
2" Minimum
18*
90° |
90° |
Electrical, drain and
34-1/4" Min. water supply line entrances must
be confined to shaded areas to avoid interference
24" with components
3"
From back of
rear frame
Bottom to wall of tub 7"
to floor
|
|
Electrical |
|
|
|
|
Wiring |
|
|
|
Hot Water |
White (neutral) |
|
|
1-1/2" |
Ground |
1-1/2" |
||
Line |
||||
Black (line) |
||||
|
|
|
||
|
17-5/8" to 18" Min. |
|
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
32-1/2 |
25 |
to |
|
35** |
|
22-1/2 Max.
*Width adjustable from 17-5/8" to 18".
**Meets ADA countertop height requirement of 34".
Listed by |
|
As an Energy Star® |
|
partner, GE has determined |
|
Underwriters |
|
|
|
that this product meets the |
|
Laboratories |
|
|
|
Energy Star guidelines |
|
|
|
|
|
|
for energy efficiency. |
Specification Revised 4/06 |
350516 |
GSM1860JSS
GE® 18" Built-In Dishwasher
Features and Benefits
•Bright Annealed Stainless Steel Interior – A lustrous finish and lasting beauty that resists stains and corrosion
•Full-Length Flat Door – Blends almost seamlessly with adjacent cabinetry
•Nylon Racks – Heavy-duty design secures and protects dishes during each cycle
•Removable Upper Rack – Pulls out completely to allow for washing large items
•China/Crystal Selection – Protects delicate glassware and dishes by lowering the water temperature during the cycle
•Pots and Pans Cycle – Scours off burned-on food with hot water and maximum water pressure
•ADA-Compliant for Height – Designed for easy access and operation
•Model GSM1860JSS -Stainless steel
|
|
POTS &ANSP |
|
OFF |
START |
|
|
HEAVY ASHW |
|
|
NORMAL WASH |
|
|
LIGHT WASH |
HEATED DRY |
PLATE WARME |
CHINA CRYSTAL |
HEATED DRY ON |
||
ON |
OFF |
|
|
RINSE ONL |
|
|
HEATED DRY OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
