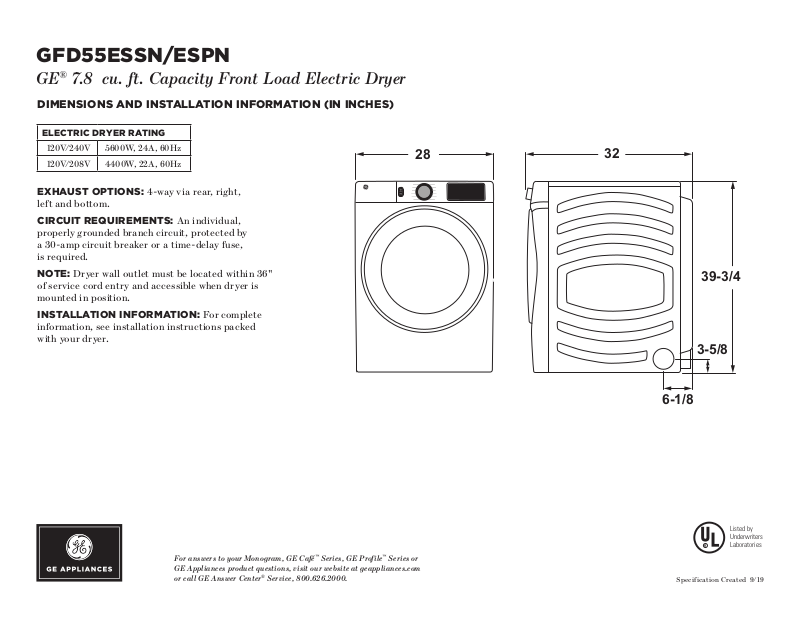

GFD55ESSN/ESPN
GE® 7.8 cu. ft. Capacity Front Load Electric Dryer
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRIC DRYER RATING
120V/2 40V 5600W, 24A, 60Hz
120V/208V 4400W, 22A, 60Hz
EXHAUST OPTIONS: 4-way via rear, right,
left and bottom.
CIRCUIT REQUIREMENTS: An individual,
properly grounded branch circuit, protected by
a 30-amp circuit breaker or a time-delay fuse,
is required.
NOTE: Dryer wall outlet must be located within 36"
of service cord entry and accessible when dryer is
mounted in position.
INSTALLATION INFORMATION : For complete
information, see installation instructions packed
with your dryer.
28
32
39-3/4
3-5/8
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
6-1/8
R
Speci fication Created 9/19
Listed by
Underwriters
Laboratories
GFD55ESSN/ESPN
GE® 7.8 cu. ft. Capacity Front Load Electric Dryer
SPECIAL INSTALLATION REQUIREMENTS:
STAC K E D I N STALLATION:
Brackets for stacking dryer over washer are not included with
the dryer. Order part no. GEFLSTACK or part no. WE25X10018.
ALCOVE OR CLOSET INSTALLATION:
If your dryer is approved for installation in an alcove or closet, it
will be label on the dryer back.
The dryer MUST be exhausted to the outside.
Minimum clearances between dryer cabinet and adjacent walls or other
surfaces are: 0" either side, 1" top, front and rear.
Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".
Closet doors must be louvered or otherwise ventilated and must contain
a minimum of 60 sq. in. of open area equally distributed. If this closet
contains both a washer and a dryer, doors must contain a minimum
of120 sq. in. of open area equally distributed.
No other fuel-burning appliance shall be installed in the same closet
with a gas dryer.
BATHROOM OR BEDROOM INSTALLATION:
The dryer MUST be exhausted to the outdoors.
The installation must conform with the local codes, or in the absence
of local codes, with the National Electric Code and National Fuel
Gas Code, ANSI Z223 for gas dryers.
MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET
INSTALLATIONS:
Minimum clearances to combustible surfaces 0" both sides, 3" rear.
FOR MORE INFORMATION ON VENTING KITS AND
ACCESSORIES,
PLEASE CALL 1-800-GE-CARES.
STACKED DIMENSIONS
(IN INCHES)
54-1/2
"
PEDESTAL DIMENSIONS
(IN INCHES)
GFP1528PNDG - DIAMOND GRAY
GFP1528PNRS - SAPPHIRE BLUE
GFP1528PNSN - SATIN NICKEL
GFP1528SNWW - WHITE
This optional 16" pedestal raises
the door opening and height of the
washer or dryer.
79-5/8
28"
16"
28-7/8"
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
R
Laboratories
Speci fication Created 9/19
GFD55ESSN/ESPN
GE Dryer Vent
GE® 7.8 cu. ft. Capacity Front Load Electric Dryer
DRYER EXHAUSTING INFORMATION –METAL DUCT ONLY
For complete information, see installation instructions packed with your dryer.
DUCTING MATERIALS: For best performance, this dryer should be vented with 4" diameter
all rigid metal exhaust duct. If rigid metal duct cannot be used, then UL-listed f lexible
metal (semi-rigid) ducting can be used (Kit WX08X10077). In special installations, it may
be necessary to connect the dryer to the house vent using a f lexible metal (foil-type) duct. A
UL-listed flexible metal (foil-type) duct may be used ONLY in installations where rigid metal or
flexible metal (semi-rigid) ducting cannot be used AND where a 4" diameter can be maintained
throughout the entire length of the transition duct. Please see installation instruction packed
with your dryer for complete instructions when using flexible metal (foil type) ducting.
EXHAUST LENGTH CALCULATION:
1. Determine the number of 90° turns needed for your installation. If you exhaust
to the side or bottom of dryer, add one turn.
2. The maximum length of 4' rigid (aluminum or galvanized) duct which can be tolerated
is shown in the table.
A turn of 45° or less may be ignored. Two 45° turns within the duct length
should be treated as a 90° elbow.
A turn over 45° should be treated as a 90° elbow.
Dryers must be exhausted to the outside.
CAUTION: For personal safety do not terminate exhaust into a chimney, under any enclosed
house floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard
or moisture could cause damage. Never terminate the exhaust into a common duct or plenum
with a kitchen exhaust, since the combination of lint and grease could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird
nesting, etc. The wall cap must also be located at least 12" above the ground or any other
obstruction with the opening pointed down.
FOR MORE INFORMATION ON VENTING KITS AND ACCESSORIES,
PLEASE CALL 1-800-GE-CARES.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
A
Domestic
dryer models
7.5 cu. ft.
capacity models
electric dryers
5-3/8
4
B
1-5/8
11
A
2-1/2
Number
of
90°
turns
0
1
2
3
4
Best performance
Maximum length of 4"
dia. rigid metal duct
Exhaust hood type
A
4"
opening
90 ft.
60 ft.
45 ft.
35 ft.
25 ft.
B
2-1/2"
opening
60 ft.
45 ft.
35 ft.
25 ft.
15 ft.
3-5/8
Listed by
Underwriters
R
Laboratories
Speci fication Created 9/19
GFD55ESSN/ESPN
ADA
GE® 7.8 cu. ft. Capacity Front Load Electric Dryer
FEATURES AND BENEFITS
Built-in WiFi – Enjoy the ultimate convenience of monitoring and
controlling your laundry from anywhere and receiving real-time
notifications and updates.
Quick Dry – Quickly dries items and small loads for families on the go
Sanitize Cycle – Elevated temperatures designed to kill common household
bacteria for a deeper clean
Wrinkle Care – Prevents wrinkles by extending the tumble without heat
HE Sensor Dry – Prevent over-drying and protect your clothing thanks
to innovative dual thermistor technology, that continually monitors
temperature and moisture.
Damp Alert – Signals you when delicate clothes reach the ideal dampness
level for ironing or final air drying.
Vent Sensor – To ensure optimal performance we alert you when a
restriction is detected in your dryer vent.
4 Way Venting – Easy-to-change venting options provide the ultimate
installation flexibility to fit in your home.
Reversible Door – For superior installation flexibility, both our washer and
dryer doors can be easily reversed.
Model GFD55ESSNWW – White
Model GFD55ESPNDG – Diamond Gray
COMPLIANT
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Created 9/19
