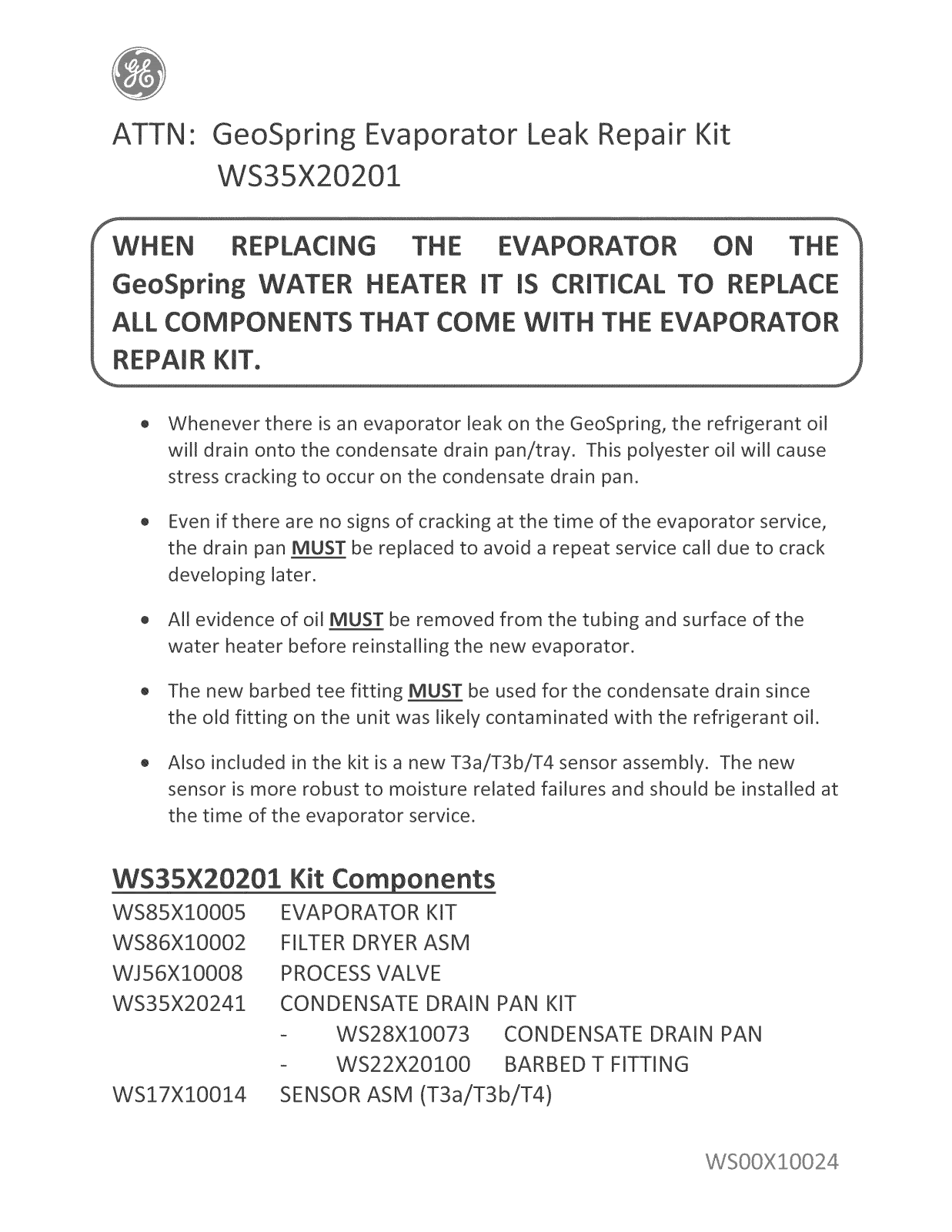

ATTN'.

GeoSpring Evaporator Leak Repair Kit

WS35X20201

f

WHEN REPLACING THE EVAPORATOR ON THE
GeoSpring WATER IT IS CRITICAL TO REPLACE

ALL COMPONENTS THAT COME WITH THE EVAPORATOR

REPAIR KIT.

Whenever there is an evaporator leak on the GeoSpring, the refrigerant oil
will drain onto the condensate drain pan/tray. This polyester oil will cause

stress cracking to occur on the condensate drain pan.

Even if there are no signs of cracking at the time of the evaporator service,

the drain pan MUST be replaced to avoid a repeat service call due to crack
developing later.

All evidence of oil MUST be removed from the tubing and surface of the
water heater before reinstalling the new evaporator.

The new barbed tee fitting MUST be used for the condensate drain since
the old fitting on the unit was likely contaminated with the refrigerant oil.

Also included in the kit is a new T3a/T3b/T4 sensor assembly. The new
sensor is more robust to moisture related failures and should be installed at

the time of the evaporator service.

WS35X20201 Kit Components

WS85X10005
WS86X10002
WJ56X10008

WSB5X20241

EVAPORATOR KIT
FILTER DRYER ASM
PROCESSVALVE

CONDENSATE DRAIN PAN KIT

WS28X10073 CONDENSATE DRAIN PAN
WS22X20100 BARBED T FITTING

WS17X10014

SENSOR ASM (T3a/T3b/T4)

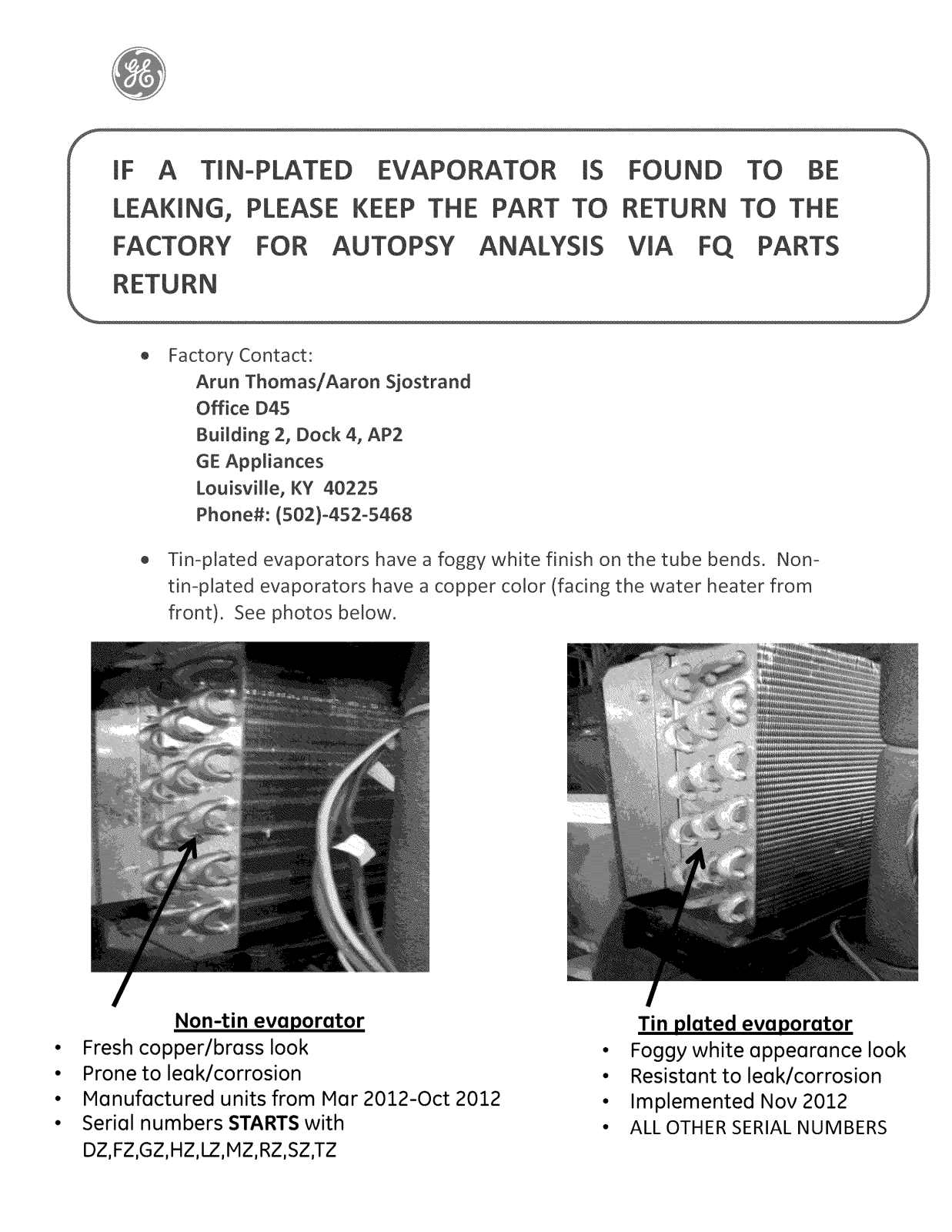

IF A TmNoPLATED EVAPORATOR mS FOUND TO
LEAKmNG, PLEASE KEEP THE PART TO TO THE

FACTORY FOR AUTOPSY VmA FQ PARTS
RETURN

Factory Contact:

Arun Thomas!Aaron Sjostrand
Office D45

Building 2, Dock 4, AP2
GE Appliances
Louisville, KY 40225
Phone#: (502}o452o5458

Tin-plated evaporators have a foggy white finish on the tube bends. Non-
tin-plated evaporators have a copper color (facing the water heater from
front). See photos below.

Non-tin evaporator

• Fresh copper/brass look

• Proneto leak/corrosion

• Manufactured units from Mar 2012-Oct 2012

• Serial numbers STARTS with
DZ,FZ,GZ,HZ,LZ,MZ,RZ,SZ,TZ

Tin plated evaporator

• Foggywhite appearance look

• Resistant to leak/corrosion

• Implemented Nov 2012

• ALL OTHER SERIAL NUMBERS
