GE DVMRe CT II User Manual

Page 1

Page 2

This document may not be copied in whole or in part, or otherwise reproduced except as specifically permitted under US copyright law, without the prior written consent from GE.

Document number/revision:

Disclaimer THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. GE

ASSUMES NO RESPONSIBILITY FOR INACCURACIES OR OMISSIONS AND SPECIFICALLY DISCLAIMS ANY LIABILITIES, LOSSES, OR RISKS, PERSONAL OR OTHERWISE, INCURRED AS A CONSEQUENCE, DIRECTLY OR INDIRECTLY, OF THE USE OR APPLICATION OF ANY OF THE CONTENTS OF THIS DOCUMENT. FOR THE LATEST DOCUMENTATION, CONTACT YOUR LOCAL SUPPLIER OR VISIT US ONLINE AT

This publication may contain examples of screen captures and reports used in daily operations. Examples may include fictitious names of individuals and companies. Any similarity to names and addresses of actual businesses or persons is entirely coincidental.

Trademarks and patents GE and the GE monogram are registered trademarks of General Electric.

The DVMRe CT II product and logo are registered trademarks of GE Security.

Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

Software license agreement GE software supplied with GE products is proprietary and furnished under license and can be

Intended use Use this product only for the purpose it was designed for; refer to the data sheet and user

FCC compliance

Regulatory Operation of this equipment in a residential area may cause interference, in which case the

used or copied only in accordance with the license terms.

THE ENCLOSED PROGRAM IS FURNISHED SUBJECT TO THE TERMS AND CONDITIONS OF THIS AGREEMENT. RETENTION OF THE PROGRAM FOR MORE THAN 30 DAYS, OPENING OF THE SEALED WRAPPER, IF ANY, SURROUNDING THE PROGRAM, OR USE OF THE PROGRAM IN ANY MANNER WILL BE CONSIDERED ACCEPTANCE OF THE AGREEMENT TERMS. IF THESE TERMS ARE NOT ACCEPTABLE, RETURN THE UNUSED PROGRAM AND ANY ACCOMPANYING DOCUMENTATION TO GE FOR A FULL REFUND OF THE LICENSE FEE PAID. (FOR INFORMATION REGARDING THE RETURN OF PROGRAMS ENCODED OR INCORPORATED WITHIN EQUIPMENT, CONTACT THE NEAREST GE SALES OFFICE.)

documentation. For the latest product information, contact your local supplier or visit us online at

www.gesecurity.com.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

user is required to take all measures that are necessary, at the user's expense, to correct the interference

0150-0313/B. (March 2006)

WWW.GESECURITY.COM.

commercial

0150-0313B 2 DVMRe CT II

Page 3

Contents

1 DVMRe CT II Overview.......................................................................................... 6

1.1 Products Featured In This Manual.......................................................................................6

1.2 Product Description..............................................................................................................6

1.3 Passwords..............................................................................................................................7

1.4 Unpacking..............................................................................................................................8

1.5 Installation Environment ......................................................................................................8

1.6 Associated Equipment.......................................................................................................... 9

1.7 The Back Panel...................................................................................................................... 9

1.8 Power-Up..............................................................................................................................15

1.9 Minimum Recommended Menu Setup ..............................................................................16

2 DVMRe CT II Basic Operations .......................................................................... 17

2.1 Principal Operating Modes.................................................................................................17

2.2 The Front Panel ...................................................................................................................17

2.3 Live Viewing.........................................................................................................................18

2.4 Playback............................................................................................................................... 19

2.5 Recording.............................................................................................................................21

2.6 Display Options...................................................................................................................22

2.7 Active Cameos.....................................................................................................................22

2.8 Sequencing..........................................................................................................................23

2.9 On-screen Indicators ..........................................................................................................24

2.10 Triplex Mode........................................................................................................................26

3 Menu System Overview...................................................................................... 28

3.1 Menu Notation In This Manual ........................................................................................... 28

3.2 Accessing The Menu System............................................................................................. 28

3.3 Available Menus ..................................................................................................................28

3.4 Menus In This Manual.........................................................................................................29

3.5 Navigating The Menu System ............................................................................................ 29

3.6 Menu Shortcuts ...................................................................................................................29

3.7 The Main Menu.....................................................................................................................30

3.8 Time/Date ............................................................................................................................. 30

3.9 Sequencing..........................................................................................................................33

3.10 Record.................................................................................................................................. 34

3.11 Alarms..................................................................................................................................41

3.12 Macro....................................................................................................................................47

3.13 Motion Detection.................................................................................................................49

3.14 Camera Setup......................................................................................................................52

3.15 Archive Setup......................................................................................................................56

3.16 Audio Setup.........................................................................................................................57

3.17 Communications.................................................................................................................57

0150-0313B 3 DVMRe CT II

Page 4

3.18 Front Panel Lock.................................................................................................................61

3.19 Factory Settings..................................................................................................................61

3.20 Passwords ........................................................................................................................... 61

3.21 The QuickInstall Menu........................................................................................................63

3.22 The Operator Menu ............................................................................................................. 64

3.23 The SystemView Menu .......................................................................................................64

4 Alarms..................................................................................................................69

4.1 Alarm Input...........................................................................................................................69

4.2 Alarm Output........................................................................................................................69

4.3 Alarm Acknowledge............................................................................................................69

4.4 On-screen Displays During Alarms...................................................................................69

4.5 Alarm Operations During Playback................................................................................... 70

4.6 Alarm History Box...............................................................................................................71

4.7 Searching For Recorded Alarms ....................................................................................... 71

5 Searching............................................................................................................. 72

5.1 Disk Analysis Screen.......................................................................................................... 73

5.2 Motion Search...................................................................................................................... 74

5.3 Search Filters....................................................................................................................... 75

5.4 Retail Search........................................................................................................................ 76

5.5 Search Results.....................................................................................................................79

6 WebBrowser........................................................................................................ 81

6.1 WaveBrowser Overview and Controls .............................................................................. 82

6.2 DVMRe CT II WaveLink.......................................................................................................84

7 Technical Specifications ....................................................................................86

8 RS232 Alarm/Event Generation/Text Insertion Protocol.................................. 88

8.1 Message Structure ..............................................................................................................88

8.2 Message Type......................................................................................................................88

8.3 Alarm/Event Fields..............................................................................................................89

8.4 Alarm Actions......................................................................................................................89

8.5 Event Actions.......................................................................................................................90

9 RS232 Remote Control Protocol........................................................................ 91

9.1 Front Panel Button Emulation............................................................................................91

9.2 Configuration and Status ................................................................................................... 92

0150-0313B 4 DVMRe CT II

Page 5

10 Macro Tables....................................................................................................... 93

10.1 Macro Functions Table....................................................................................................93

10.2 Scheduled Macro Table...................................................................................................94

10.3 Contacting technical support......................................................................................... 95

10.4 Online publication library ............................................................................................... 95

0150-0313B 5 DVMRe CT II

Page 6

1 DVMRe CT II Overview

1.1 Products Featured In This Manual

DVMRe -4CT II: Digital Video Multiplexer Recorder, Four-Channel, Color, Triplex. DVMRe -10CT II: Digital Video Multiplexer Recorder, Ten-Channel, Color, Triplex. DVMRe -16CT II: Digital Video Multiplexer Recorder, Sixteen-Channel, Color, Triplex.

Key To Model Numbers

1. DVMRe: Digital Video Multiplexer Recorder, Ethernet capable.

DVMRe 16 C T

2. 4, 10, or 16: Maximum number of camera inputs.

3. C: Color.

4. T: Triplex.

1 2 3 4

1.2 Product Description

The DVMRe CT II is a video multiplexer capable of recording from multiple cameras to one or more internal hard drives while simultaneously providing playback. Unlike outdated time-lapse VCRs, the DVMRe CT II records high-resolution pictures. Digital recording improves playback quality over VCRs, and eliminates the hassle of cleaning heads, changing tapes or servicing motors. The unit can also be programmed to record continuously by overwriting the oldest recorded data. Dep ending on the setup, the DVMRe CT II can store from a few hours to more than 3 years of color images.

Programmable search features eliminate time consuming Fast Forwarding or Rewinding of tapes, searching for critical data. Search for recorded images or events by alarm, time, date, motion, video loss, camera number and ASCII cash register or ATM text.

Caution! This products primary purpose is to furnish video multiplexing and recording. Although the unit has alarm handling and motion detection functions, they are considered secondary features. This unit should not be the only alarm device on site.

Features

• Multiplexer functionality with built-in digital recording.

• Triplex simultaneous recording, playback, and live multiscreen viewing.

• Remote programming and control through the RS232, RS485 and Ethernet ports.

• View live or recorded images remotely using WaveReader software.

• Dual multiscreen monitor displays.

• Auto-detect video mode on startup (NTSC or PAL).

• Video motion detection (intrusion and activity).

• Retail and motion search.

• Preview search results with thumbnail images.

• Record speed selectable per camera.

• Displays include full screen, sequenced, picture-in-picture, and multiscreens.

• Alarm Handling with History Log. Pre- and post alarm recording, selectable per camera.

• Archive onto GE Security DVSe

• IEEE 1394 Firewire interface for GE Security DVSe

• Continuous recording with simultaneous archiving.

• PTZ control via ethernet or POTS, using CBR-KB3/J or KTD-405 keypad.

• Covert camera recording (recording without display).

Disk Array, or RAID, DAT, AIT, or CD-Rs.

Disk Array or Firewire Disk Drives.

0150-0313B 6 DVMRe CT II

Page 7

• Auto-daylight savings time change function.

• Clock synchronization with Network Server.

• Alarm notification via email and/or TCP/IP.

• Integrated WaveBrowser Software.

• Dynamic IP addressing (DHCP).

• Support for Dynamic Domain Name Server (DDNS).

• Support for over a dozen languages.

• Hard disk monitoring and testing features.

• Playback and live audio via WaveReader on audio supported models.

1.3 Passwords

Passwords are provided to limit access to menus and certain functions. Two levels of password security are provided:

• Operator: Limited menu access, only Operator and System View menus are available.

• Installer: Complete menu access.

As a security measure, it is recommended that the Operator and Installer passwords be changed after installation is complete (see section 3.20). Store the passwords in the administrator’s secure files.

Default Passwords

Four-Channel Units

Password

Type

Operator

Installer

Factory

Defaults

Language

Ethernet

Access

Reset

Access

Level Function

Operator

Installer

Provides access to the Operator

and SystemView menus.

Provides access to all on-screen

menus.

Resets the multiplexer to the

factory defaults (except the time,

date, email addresses, and email

IP address).

Provides access to the On-screen

Language menu.

Deactivates the ethernet

password, so that the unit may be

accessed by any PC equipped with

WaveReader.

Changeable

by user?

Yes

Default

Password

Press ‘ENTER’

4 Times

3 4 4 4

4 1 1 1

1 4 1 4

1 1 1 1

0150-0313B 7 DVMRe CT II

Page 8

Ten and Sixteen-Channel Units

Password

Type

Operator

Installer

Factory

Defaults

Language

Ethernet

Access

Reset

Access

Level Function

Operator

Installer

Provides access to the Operator

and SystemView menus.

Provides access to all on-screen

menus.

Resets the multiplexer to the

factory defaults (except the time,

date, email addresses, and email

IP address).

Provides access to the On-screen

Language menu.

Deactivates the ethernet

password, so that the unit may be

accessed by any PC equipped with

WaveReader.

Changeable

by user?

Yes

Default

Password

Press ‘ENTER’

4 Times

3 4 7 7

8 1 1 1

5 4 1 5

1 1 1 1

1.4 Unpacking

Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit, contact the supplier immediately. If the unit must be returned, it must be shipped in the original packing box.

Package Contents

• The DVMRe CT II unit.

• The Alarm Interface Circuit Board (P/N 0090-0077).

• Accessory PCB (P/N 0900-0127). Audio equipped models only.

• The User Manual (P/N 0150-0193).

• A WaveReader Software CD (P/N 0151-0005-25W11).

• The WaveReader Software Manual (P/N 0150-0143).

• The Archiving Addendum (P/N 0150-0194).

• WaveWatch User Manual (P/N 0150-0189).

• Power Supply (P/N 4310-0020).

• Power Cords (120 VAC P/N 4310-0002) and (220 VAC P/N 4310-0001).

1.5 Installation Environment

Power: Ensure that the installation site’s AC power is stable and within the rated voltage of the 12

Volt DC power supply. If the site’s AC power is likely to have spikes or power dips, use power line conditioning or an Uninterruptable Power Supply (UPS).

Ventilation: Ensure that the location planned for the installation of the unit is well ventilated. Take note of the locations of the cooling vents in the unit’s enclosure, and ensure that they are not obstructed.

Temperature: Consider the unit’s operating temperature (0 to 40 °C) and non-condensing humidity specifications (10% to 80%) before choosing an installation location. Extremes of heat or cold beyond

0150-0313B 8 DVMRe CT II

Page 9

the specified operating temperature limits may cause the unit to fail. Do not install the unit on top of other hot equipment. Leave space between rack mounted units.

Moisture: Do not expose the unit to rain or moisture. Moisture can damage the internal components. Do not install the unit near sources of water.

Chassis: Other equipment may be placed on top of the unit if it weighs less than 35 pounds (16 kilograms).

1.6 Associated Equipment

Associated equipment in a typical security system could contain the following items:

• Two monitors

• A Keyboard (KB3 or KTD405).

• Video cameras: Composite video, 1 volt peak-to-peak.

• Alarm input devices: Pressure sensors, motion detectors, etc.

• Alarm output devices: Buzzers, Sirens, Flashing Lights, etc.

• A PC connected via ethernet cable.

• An external archive device, such as a DVSe, RAID, CD-R, DAT, or AIT drive.

For instructions regarding the connection of the associated security equipment in your system, please consult the instruction manual of the associated equipment.

1.7 The Back Panel

1 2 3 4 5 6

12345678910111213141516

1. Camera Inputs: BNC connector, looping. Auto Terminating.

2. Composite Monitor-A Output: Composite video output with BNC style connector.

3. Y/C Monitor-A Output: Y/C video output with 4-pin mini-DIN style connector.

4. Alarm I/O: For connecting alarm inputs, and alarm output relays.

5. Power Input: For connecting the power supply.

6. Aux Port: For connecting the Accessory PCB for Audio inputs and outputs.

7. RS485 Port 1 Connector: For connecting to keyboard and other RS485 devic es.

8. 10/100 Ethernet Port: For connecting to remote PC via ethernet network.

9. Composite Monitor-B Output: Composite video output with BNC style connector.

10. Y/C Monitor-B Output: Y/C video output with 4-pin mini-DIN style connector.

SVHS

9 10 11 12 13 14 15

SCSI

12V DC

IEEE-1394

AUX

RS-232/1

7 8

ETHERNET

RS-485/1 10/100

RS-485/2 RS-232/2

11. SCSI Port: For connecting SCSI compatible archive devices.

12. IEEE 1394 Firewire Port: For connecting Firewire compatible archive devices.

13. RS232 Port 1: For modem connection and external control of the unit.

14. RS485 Port 2 Connector: For connecting to keyboard and other RS485 devices.

0150-0313B 9 DVMRe CT II

Page 10

15. RS232 Port 2: For Event Generation and ASCII Text insertion.

Camera Inputs

There are two BNC jacks for each camera. Either jack can receive a camera signal. The signal is looped (directly connected to the other jack), making the camera signal available to other equipment.

The camera input connectors are Auto Terminating.

This means that the input signal will automatically be terminated with 75-Ohms unless a 2nd cable is connected to the 2

BNC connector of the same camera input. Make sure there is 75-Ohm

termination at the end of the video line if the signal is looped through the DVMRe CT II. Time base correction is performed during digital capture. As a result, cameras do not require

synchronization.

Cable: 75-Ohm Coaxial Connectors: BNC Auto Terminating: Yes Passive Looping: Yes

See section

3.14 for information about disabling unused camera jacks in the menu syst em.

Composite Monitor Output

When connecting directly from the DVMRe CT II to the monitor, select the 75-Ohm impedance setting on the monitor.

If an additional device is connected to the monitor’s looping output, set the termination of the additional device as 75-Ohm, and set the termination of the monitor as Hi-Z (High Impedance).

Cable: 75-Ohm Coaxial Connectors: BNC

Y/C Monitor Output

Y/C video output has a 4-pin mini-DIN style connector. This style of connection is also referred to as SVHS and S-Video.

Cable: 75-Ohm Coaxial Connectors: BNC

Alarm I/O Port

The back panel of the unit is equipped with an Alarm

Port (DB-25 style connector).

Do not attempt to wire directly to the DB-25

connector on the back panel.

DB-25 Connector on Back Panel

Connect the Alarm PCB (supplied with the unit) to the Alarm Port. Wire all alarm inputs to the Alarm PCB per the pin out specifications shown below.

0150-0313B 10 DVMRe CT II

Page 11

Pin 1: Alarm Input 1.

Pin 13: Alarm Input 13. Pin 2: Alarm Input 2. Pin 3: Alarm Input 3. Pin 4: Alarm Input 4. Pin 5: Alarm Input 5. Pin 6: Alarm Input 6. Pin 7: Alarm Input 7. Pin 8: Alarm Input 8. Pin 9: Alarm Input 9. Pin 10: Alarm Input 10. Pin 11: Alarm Input 11. Pin 12: Alarm Input 12.

Pin 14: Alarm Input 14.

Pin 15: Alarm Input 15.

Pin 16: Alarm Input 16.

Pin 17: Alarm Output Relay #1.

Pin 18: Ground.

Pin 19: Ground.

Pin 20: Ground.

Pin 21: Alarm Output Relay #1 Common.

Pin 22: Alarm Output Relay #2.

Pin 23: External Alarm Silence and Acknowledge Input.

Pin 25: Alarm Output Relay #2 Common.

Signal

NO1A1 A2A14 A15 A16A3 A4 A5 GND

7GNDA6

171214 15 1634518 7196

Alarm PCB

Active alarm inputs vary by DVMRe model. 4 channel units (4CT) have 4 active alarm inputs. 10 channel units (10CT) have 10 active alarm inputs.

Alarm Input

An alarm condition can be activated by devices such as pressure pads, passive infrared detectors, door switches, or other similar devices.

Signal

NO2 COM1 GNDA8A9A10 GNDACKA11VextA12A13 COM2

22 21 208910 202311241213 25

See section 3.11 for information about configuring the contacts as Normally Open or Normally Closed in the menu system.

Normally Open, Zero Potential Relay Contact: Configure in menu as Normally Open. Normally Closed, Zero Potential Relay Contact: Configure in menu as Normally Closed

TTL Active High: Configure in menu as Normally Closed. TTL Active Low: Configure in menu as Normally Open. Open Collector Active On: Configure in menu as Normally Open.

High: 5V (12V Tolerant) Low: Ground Inputs: 1 per channel.

Open Collector Active Off: Configure in menu as Normally Closed.

DVMRe Triplex DB25 Connector

Alarm Input No. 1

Alarm Input No. 2 - 15

pin 1

pins 2-15

Normally Open

(Closes During Alarm)

Typical Alarm Device

Alarm Input No. 16

Ground

pin 16

pins 18-20

Refer to each alarm device's manual for specific wiring details.

Normally Closed

(Opens During Alarm)

Typical wiring for Alarm #1 as Normally Open and Alarm #16 as Normally Closed.

Typical Alarm Device

Normally Open and Normally Closed Connections

0150-0313B 11 DVMRe CT II

Page 12

Alarm Relay Output

The alarm relay output is activated when an alarm condition exists. The alarm output is only active for the duration of the alarm.

Output: Zero potential relay contacts, programmable in menu system as Normally Open or Normally Closed.

Alarm relays can be programmed in the menu system to respond to macros, and video loss. See section 3.11 for information about configuring the alarms in the menu system.

Voltage: 30V (Max) Current: 500mA (Max)

External Alarm Acknowledge Input

Connect a switch or similar device to ground this pin in order to acknowledge an alarm condition, and silence associated buzzers and relays. Connect from pin 23 to either pin 18, 19, or 20 (ground pins).

NOTE

All specifications subject to change without notice. GE Security believes all specifications to be correct at time of printing, but no liability is assumed for omissions or errors.

External Device: Normally Open Zero potential relay contact.

AUX Port

The back panel of the unit is equipped with an Aux Port (DB-9 style connector).

Do not attempt to wire directly to the DB-9 connector on the back panel.

DB-9 Connector on Back Panel

Connect the Accessory PCB (supplied with the audio equipped models) to the AUX port to access the Audio features. Wire the audio input and output to the Accessory PCB per the pin out specifications shown below.

Warning! The use of clandestine listening and recording devices is forbidden by

Federal Law as well as other State and Municipal Jurisdictions. Please review local and Federal Law prior to the installation or operation of this equipment to ensure that you are in legal compliance with the Authorities having Jurisdiction.

Pin 1: Not Used. Pin 2: Audio Out. Pin 3: Ground. Pin 4: Audio In.

Pin 5: Ground. Pin 6: Not Used. Pin 7: Ground. Pin 8: Not Used. Pin 9: Ground. GND: Ground.

Accessory PCB

GND

0150-0313B 12 DVMRe CT II

Page 13

RS485 Connector

Shields are grounded at one end, preferably at the DVMRe CT II.

Wire Type: #24 AWG, twisted pair with shield

(2-wire)

See section 3.17 for information about configuring the RS485 network address settings in the menu system.

Connector Type: RJ-45 Max. Cable Length: 3200 feet / 1000 meters

RJ-45 Pin Configuration For RS485 Port

Pin Use

1 Ground (Shield) 5 Not Connected 2 Not Connected 6 Network -VE 3 Network +VE 7 Ground (Shield) 4 Not Connected 8 Not Connected

Pin Use

Ethernet Port

The cable connection configuration depends on your network configuration:

• For a DVMRe CT II that connects directly to a

Hub or Switch, use a straight through connection.

• For a DVMRe CT II that connects directly to a

PC, use a cross over connection.

Consult with your MIS personnel for the specific type of configuration. See section 3.17 for information about configuring the ethernet settings in the menu system.

Wire Type: Cat 5 Connector Type: RJ-45 Max. Cable Length: 100 meters / 328 ft. Min. Cable Length: 6 feet / 1.8 meters Hub Wiring Configuration: Straight Through PC Wiring Configuration: Cross Over

82345671

RJ-45 socket on

back panel.

RJ-45 Pin Configuration For Ethernet Port

Pin Use

1 TX+ 5 Not Connected 2 TX- 6 RX- 3 RX+ 7 Not Connected 4 Not Connected 8 Not Connected

SCSI and IEEE 1394 archiving devices should not be connected to the DVMRe CT II

NOTE

0150-0313B 13 DVMRe CT II

simultaneously. Archiving support is only available for one or the other type of interface at a time.

Pin Use

82345671

RJ-45 socket on

back panel.

Page 14

SCSI Port

The unit is equipped with a SCSI port for connecting external archive devices. The unit only supports a single SCSI device. The SCSI ID of the archive device must be set to 0.

The SCSI bus must be terminated, otherwise the system will not operate properly.

Additional menu setup may be necessary to configure archive device. See section 3.15.

IEEE 1394 Firewire Port

The unit is equipped with an IEEE 1394 Firewire port

for connecting Firewire compatible external archive devices. For information on the approved devices, please refer to the Archiving Addendum manual that is supplied with this unit.

Caution! Ensure the power to DVMRe CT II is OFF BEFORE connecting any SCSI or 1394 devices. Do not attempt to use the SCSI and 1394 ports simultaneously.

Connector: 50 Pin, High Density SCSI-2. Gender (on unit) : Female Compatible devices : DVSe, RAID, DAT, AIT,

CD-R, CD-RW

SCSI ID : 0

Cable: 6 position Firewire Connectors: 6 position DIP

RS232 Port 1

For a Modem connection or remote control of unit. See section 3.17 for information about configuring the modem settings in the menu system. See section 9 for RS232 Remote Control Protocol s.

DB-9 Pin Configuration For Port 1

Pin Use

1 DCD 4 DTR 7 RTS 2 RX 5 Ground 8 CTS 3 TX 6 Not Connected 9 Not Connected

Pin Use

DB-9 on back panel.

RS232 Port 2

For Event Generation and ASCII Text Insertion.

RJ-45 Pin Configuration For RS232 Port 2

Pin Use

1 Ground 5 TXD

Pin Use

82345671

2 Reserved 6 Not Connected 3 Not Connected 7 Ground 4 RXD 8 Reserved

0150-0313B 14 DVMRe CT II

RJ-45 socket on

back panel.

Page 15

1.8 Power-Up

Use the diagram below to secure the power cord to the back panel.

Slide approximately 6 inches of the power cord through the pre-installe

cable tie (approximately 1 inch after the ferrite core).

Tighten the cable tie until the cord is secure. Do not over tighten.

Loop the power cord end around and insert into the power receptacle on

the back panel.

It is important that the power-up procedures be followed carefully. The unit uses its auto-detect feature to detect camera signals during power-up, and configure itself automati cally.

Power-up procedure

Once the system installation is complete, apply power in the following order:

Voltage: 12 Volt DC

1. Energize the monitors and all of the cameras. Power: 60 Watt (5 Amp)

2. Energize the DVMRe CT II. Connector: 2.1mm barrel, center positive

Once power is applied to the unit, it will begin its power-up procedure. The unit will begin by displaying the software version on Monitor-A, then the unit will begin recording automatically.

Power Supply Input

Check Video Input Quality

Check the picture quality by selecting each camera for full screen display. If the picture quality is poor, check the following items:

• The BNC connections.

• The loop-through terminations.

• The video levels of incoming signals.

• The possibility of ground loops.

• Consult the camera’s installation instructions for additional information about proper camera setup.

0150-0313B 15 DVMRe CT II

Page 16

Check Record And Playback Quality

Record for at least three minutes at the default record rate. Then play back the recording, selecting each camera for full screen display. Check the playback picture quality.

1.9 Minimum Recommended Menu Setup

After installation is complete, it is strongly recommended that, as a minimum, the items in the QuickInstall menu be configured before the unit is used. All the features located in the QuickInstall menu are also found in the Main menu. These items are provided in the separate QuickInstall menu as a convenience for the installer.

For information about accessing and configuring the menu system, see Section 3. To find detailed information in this manual about configuring each item in the QuickInstall menu, use

the following table to locate the main menu location of each item in the QuickInstall menu.

QuickInstall

Menu Item

Change the time Change the date Edit Camera

Titles Camera Disable Record Quality Installer

Password Auto Disable

Now

Main Menu Location Section in

Main Menu → Time/Date → Set Time Main Menu → Time/Date → Set Date Main Menu → Camera Setup → Camera Titles → Edit Titles

Main Menu → Camera Setup → Camera Disable Main Menu → Record → Record Quality Main Menu → Passwords → Installer Password

Main Menu → Camera Setup → Camera Disable → Auto Disable Now

Manual

3.8

3.14

3.10

3.20

3.14

0150-0313B 16 DVMRe CT II

Page 17

2 DVMRe CT II Basic Operations

2.1 Principal Operating Modes

The DVMRe CT II has three principal modes of operation:

• Live Viewing.

• Playback.

• Recording.

All three of these modes can operate simultaneously. Each mode is discussed in detail later in this section.

2.2 The Front Panel

1. Multiscreen Selection Buttons: 16, 10, 7, and 4 way.

2. Monitor Selection Button: Monitor A or Monitor B.

3. Multiscreen Selection Buttons: 13, 9, 6 way, and Picture-in-Picture.

4. Camera Selection Number buttons: Camera numbers 1 through 16.

5. Reverse Play Button: Playback in Reverse.

6. Freeze Button: Freezes camera images on-screen in Live mode. Pauses Playback.

7. Play Forward Button: Begins Playback.

8. Jog/Shuttle: Controls Playback speed and Menu selections.

9. Menu Button: Provides access to on-screen menus.

10. Power Indicator: Indicates power on/off condition.

11. Alarm button: Allows use r to ackno wle dge and silence alarms.

12. Sequence Button: Sequences camera views.

13. Zoom Button: Provides a 2X digital zoom.

14. Function Button: Used in conjunction with Camera Buttons to run Macros.

15. Record Button: Used to Start and Stop Recording.

16. Stop Button: To stop Playback and return to Live mode.

17. Search Button: Access t o stored video data.

18. Enter Button: Confirms selection in menus.

0150-0313B 17 DVMRe CT II

Page 18

2.3 Live Viewing

Multiscreen Display

In Live Multiscreen mode, press one of the Multiscreen buttons to activate the multiscreen display on Monitor-A or Monitor-B. Live Multiscreens are displayed with gray borders. For detailed information about Multiscreen displays, see section 2.6.

Multiscreen Display With Sequencing

If a multiscreen display does not include all of the cameras, the remaining cameras can be sequenced in the bottom right cameo. While in a multiscreen display, press the Sequence button to begin sequencing. For detailed information about sequencing, see section

Full Screen Display

Select any camera for Full Screen display by pressing the Number button of the desired camera. Pressing the Camera number button again displays the Status Display Box. Pressing the same button a third time displays any associated ATM or cash register ASCII text, see section 2.9.

Sequenced Full Screen Display

While in a Full Screen display, press the Sequence button to begin full screen sequencing. The sequence list and dwell times are programmable. For detailed information about programming the sequence list see section

2.8. For detailed information about configuring the dwell times in the menu system, see section 3.9.

2.8.

Multiscreen Buttons

Sequence Button

Number Button

Sequence Button

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the primary monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, rotate the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Press the Zoom button again to cancel the Zoom operations.

If the Zoom button is pressed while in a multiscreen display, the camera from the last active

NOTE

cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

Freezing

Pressing the Freeze button freezes all camera images on-screen. Full Screen freezing is indicated as FRZ on-screen. Multiscreen freezing is indicated as

Individual cameos can be frozen in Active Cameo mode (see section

(a flashing asterisk) in each frozen cameo.

2.7).

Zoom Button

with LED

Freeze Button

Press the Freeze button again or any camera button to cancel Freeze operations.

0150-0313B 18 DVMRe CT II

Page 19

Selecting Monitor-B

To control Monitor-B, press the lower part of the Monitor button. The Monitor-B LED will light to indicate that the number keypad now controls Monitor-B. Press the upper part of the Monitor button again to return the keypad control to Monitor-A.

Monitor Button

2.4 Playback

Playback always displays on Monitor A. Playback multiscreen borders are black, as opposed to the gray borders of the live multiscreens. Monitor B continues to display full or multiscreen live images in playback mode. To begin playback, press the Play Forward or Reverse Play button.

Play Forward

When the Play Forward button is pressed, the unit will play forward at the rate the data was recorded. While in Playback mode, the user may change the playback direction, playback speed, etc. To return to Play Forward operations, press the Play Forward button.

Reverse Play

To begin reverse playback, press the Reverse Play button.

Fast Forward

During playback, rotate the Shuttle (the outer dial) clockwise to view data at a higher than normal rate. Increasing the amount of rotation increases the rate of playback.

Play Forward

Button

Reverse Play

Button

Jog / Shuttle

AutoPause

During playback, moving the Jog (the inner dial) in any direction will freeze playback. Depress the Freeze or any Play button to continue playback.

Rewind

During playback, rotate the Shuttle counter-clockwise to view data (in reverse) at a higher than normal rate. Increasing the amount of rotation increases the rate of playback.

Freeze

During playback, press the Freeze button. This feature pauses all full screen and multiscreen images

Freeze Button

Single Frame Advance & Single Frame Rewind

During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame directly before or after the frame displayed on-screen.

0150-0313B 19 DVMRe CT II

Page 20

Stop Playback

To stop playback and return to Live Multiscreen mode on Monitor A, press the

Stop button.

Multiscreen Display

During Playback, press one of the Multiscreen buttons to activate a multiscreen display. The 6-way and PIP multiscreen displays are not available in Playback mode. For detailed information about Multiscreen displays, see section 2.6.

Multiscreen Display With Sequencing

2.8.

Full Screen Display

Sequenced Full Screen Display

2.8. For detailed information about configuring the dwell times in the menu system, see section 3.9.

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, use the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Stop Button

Multiscreen Buttons

Sequence Button

Number Button

Sequence Button

Zoom Button

with LED

Press the Zoom button again, or another camera button to cancel the Zoom operations.

If the Zoom button is pressed while in a multiscreen display, the camera from the last active cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

Searching Recorded Data

The DVMRe CT II has a powerful search interface feature that allows the user to search for data on the internal hard disk or an external archive device. The user may search the data for previous recording sessions, retail data, text insertion, alarm conditions, or for motion in a selectable area of the

0150-0313B 20 DVMRe CT II

Page 21

scene. Because the search interface is so dynamic, the search interface is covered in detail in a

Monitor A

Monitor B

separate section of this manual. See section

2.5 Recording

To begin recording, press the Record button. Recording will be indicated by the LED located directly above the Record button. The unit always starts recording at the end of previously recorded data.

The unit will continue recording until the record button is pressed again.

Monitor Displays During Recording

Multiscreen Live and Playback displays on Monitor A and Monitor B are not affected by recording operations.

Record Button

LIVE

PLAY

BACK

LIVE

PLAY

LIVE

BACK

0150-0313B 21 DVMRe CT II

Page 22

2.6 Display Options

Available Multiscreen Displays

Press the Multiscreen buttons to activate the multiscreen display. Pressing the individual multiscreen button will display the corresponding multiscreen.

16-Way

7-Way

10-Way

Monitor A

Monitor B

4-Way

9-Way

6-Way

PIP

13-Way

The multiscreen display is limited to the number of camera inputs on the unit.

Sixteen-Channel unit: Capable of displaying all multiscreens. Ten-Channel unit: Only capable of displaying 10-way through 4-way multiscreen and PIP. Four-Channel unit: Only capable of displaying 4-way multiscreen and PIP.

The camera assignments for each multiscreen is retained (in non-volatile memory) for both Live and Playback multiscreen mode on Monitor A, as well as Live multiscreen mode on Monitor B.

PIP: Use the Jog/Shuttle to adjust the location and size of the PIP display. Please note that the PIP display is only available on Monitor A in Live mode, when Monitor B is in fullscreen display mode. PIP is disabled when SVHS is enabled on Monitor B (See Camera Setup).

2.7 Active Cameos

A cameo is defined as any cell within a multiscreen display. Active Cameo mode allows the user to access and edit each cameo individually.

Entering Active Cameo Mode

While viewing a multiscreen, enter Active Cameo mode by pressing the Enter button. Active Cameo mode is indicated on-screen by flashing the number and titles of the active cameo and the LED above the Enter button is lit. By default, the top left cameo is activated.

0150-0313B 22 DVMRe CT II

Enter Button

Page 23

Selecting Cameos

Select a cameo using the Jog/Shuttle to navigate the multiscreen. Rotating the Jog selects the next screen up or down a row. Rotating the shuttle selects the next screen in numerical order. The active cameo will always be indicated by the flashing camera number and titles.

Jog/Shuttle

Selecting Cameras

Display any camera in the active cameo by pressing the Number button of the desired camera. Once a camera has been selected, the active cameo advances to the next cameo on the right.

Number Button

The camera selection only changes the multiscreen currently being displayed. Each multiscreen must be configured separately. Changes to the multiscreen display are saved in non-volatile memory, and will be retained even if power is removed from the unit.

Freezing

Press the Freeze button to freeze the image in the selected cameo. Each frozen cameo is indicated as

Press the Freeze button again to cancel Freeze operations.

(a flashing asterisk) on-screen.

Freeze Button

2.8 Sequencing

The sequencing feature allows a camera to be displayed briefly on-screen, before advancing to the next camera in the sequence list. The default sequence list displays each camera in numerical order.

Sequence Button

Dwell Time

The dwell time is the amount of time each camera is displayed on-screen before advancing to the next camera. The Full Screen and Multiscreen Dwell Times are separately programmable in the menu system. For detailed information about configuring the dwell times in the menu system, see section

3.9.

Autolist™ Custom Sequence List

The Autolist™ feature allows the user to create a custom sequence list, controlling the order the cameras are displayed and the dwell time. Separate Autolists may be created for Monitor A (Live and Playback mode) and Monitor B (Live mode). Using the Monitor button, select the monitor to be programmed. Then, using a Number button, select any camera for full screen display.

The unit must be in Full Screen Display mode before starting to create the sequence list.

NOTE

To begin recording the Autolist™ sequence: Press the Alarm button and Sequence button simultaneously. Autolist Program mode is indicated as PGM on-screen. Recording starts when the first camera number is pressed.

Press the camera numbers in the order you wish them to appear on-screen. The amount of time between button presses determines the Dwell Time. During sequence list programming, pressing any button other than a Number button or the Sequence button voids the sequence list.

This initial camera is not part the sequence list.

Alarm Button and

Sequence Button

0150-0313B 23 DVMRe CT II

Page 24

To end the recording: Press the Sequence button. The amount of time between pressing the last Number button and the Sequence button determines the dwell time for the final camera in the

sequence list.

Returning To The Default Sequence List

The default sequence list is all cameras in numeric order with a three second dwell time. To return the unit to the default sequence list, go to the Main Menu → Sequencing → Full Screen

Dwell menu. Select 03 seconds by rotating the Jog, then press the Enter button. Note: Any alteration of the dwell time from this menu will cancel the sequence list and return to the

default (numeric) order.

Sequencing In Cameos

While viewing a multiscreen display, additional cameras (cameras not shown in the multiscreen display) can be sequenced in the lower right hand cameo by pressing the Sequence button. The sequence list is not programmable, but the dwell time can be adjusted in the menu system. Press the

Sequence button again to cancel sequencing.

2.9 On-screen Indicators

There are five types of on-screen indicators.

Camera Titles: Displays the camera number and the camera title. Status Indicators: Displays Time, Date, and Hard Disk record time left. Conditional Indicators: Displays indicators for Freeze, Zoom, Alarm, Motion Detection, Videoloss,

Autolist™ Program mode, Macro Record and Macro Playback mode. Status Display Box: Displays Archive Device, Network status and Image Quality Setting (Playback

mode only).

Text Display Box: Displays ATM/POS Text data.

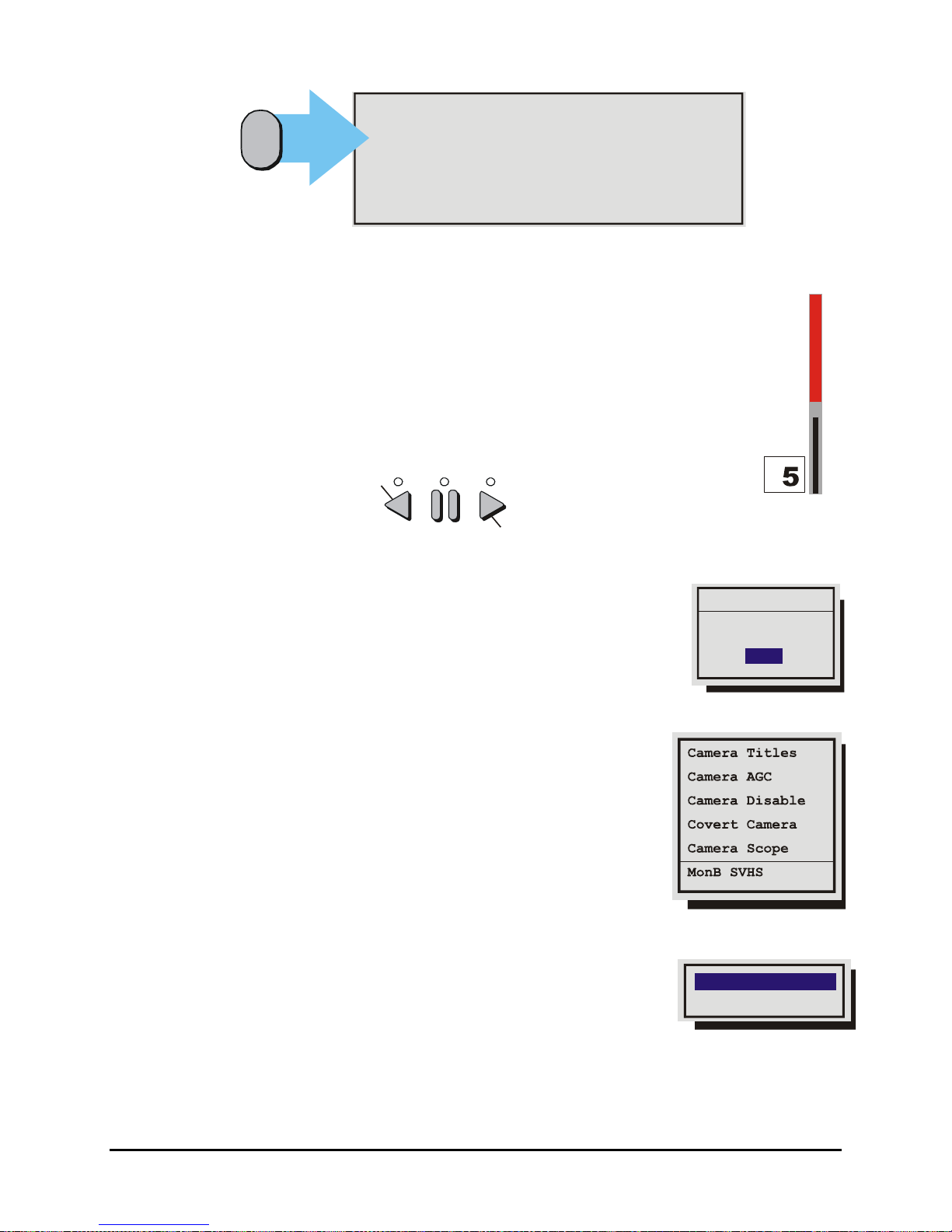

Camera Titles

Camera Titles are displayed on either the upper or lower corner of the left hand side of the screen. The camera title can be changed in the menu system (see section position and color. See below.

3.14). The user can change display

Changing Position And Color Of Title And Status Indicators

Camera Titles: To change the color and position of the camera

titles, select a camera for full screen display, then press the Enter button to advance to the next display setting. Repeatedly pressing the Enter button advances the display settings through the sequence show in the table on the right.

Example: Select Camera 1 for full screen display. Using the Enter button, cycle through the sequence shown on the right.

Each time the position cycle is completed, the unit advances the Status Indicator color. Choose Black, White or Gray.

Position Color

Top Left Black Top Left White Top Left Gray Bottom Left Black Bottom Left White Bottom Left Gray

0150-0313B 24 DVMRe CT II

Title not displayed

Page 25

Status Indicators

Status indicators are displayed on the upper right hand corner of the screen.

Status indicators include:

• Time and Date (these can be turned off in the menu system, see section 3.8). The Time and Date format can also be changed in the menu system.

• Time remaining on Hard Disk(s).

Small Cameo

Conditional Indicators

Condition Full Screen Indicator Multiscreen Indicator

Alarm

Autolist™ Program

mode

Freeze

Macro Record mode F followed by macro number F followed by macro number

Motion Detection

Videoloss

Zoom

ALM PGM PGM

FRZ

VDL

ZOOM ZOOM

A in cameo of camera in alarm

(Asterisk) in frozen cameo

M in cameo w/ motion detection

V in cameo with videoloss

Status Display Box

A Status Display Box can be viewed by pressing the Camera Number button twice. Status Indicators include:

On Live Fullscreen:

• Archive Status: Not Connected, Not Ready, Ready, Ejecting, Play, and timeleft. Timeleft indicates the amount of time before the archive medium is full (Only available if the unit has Background Archiving turned On).

• Network: Displays all current Network connections. Normal connection is displayed as ip.ip or --- if there is no connection. Live connections are displayed as E1: ip.ip, E2: ip.ip, etc. (where ip.ip represents the last 2 bytes of the IP Address). POTS connection is displayed as IP 1.1.

On Playback Fullscreen:

• All the above, including Image Quality Setting: High, Medium, Standard.

ATM/POS Text Display

Pressing the Camera Number a third time displays an ATM/POS text display. This feature can be used during live viewing mode to verify that the DVMRe CT II is receiving ATM/POS text, or in Playback mode to review recorded text and video.

0150-0313B 25 DVMRe CT II

Page 26

2.10 Triplex Mode

Triplex mode allows the display of both live and playback images to appear on Monitor A simultaneously. Live images have gray borders, while playback images have black borders.

To enter Triplex mode, press the Play Forward button while in Play Forward mode. Alternatively, press the Play Reverse button while in Play Reverse mode. Both the Play Forward LED and the Stop LED turn on to indicate that the unit is in Triplex mode.

Monitor B always switches to a fullscreen live display whenever Triplex mode is entered.

Play Forward

When in Play Forward mode and the Play Forward button is pressed, the unit will enter the Triplex mode of operation. When Play Forward is pressed again, the unit will revert back into the normal Playback mode. While in the Triplex mode, if reverse play is in progress, the Play Forward button will change the playback direction.

Reverse Play

When in Reverse Play mode and the Reverse Play button is pressed, the unit will enter the Triplex mode of operation. When Reverse Play is pressed again, the unit will revert back into the normal Playback mode. While in the Triplex mode, if forward play is in progress, the Reverse Play button will change the playback direction.

Fast Forward

During Triplex mode, rotate the Shuttle (the outer dial) clockwise to view playback images at a higher than normal rate. Increasing the amount of rotation increases the rate of playback. Live images are not affected.

Play Forward

Button

Reverse Play

Button

Rewind

During Triplex mode, rotate the Shuttle counter-clockwise to view playback images (in reverse) at a higher than normal rate. Increasing the amount of rotation increases the rate of playback. Live images are not affected.

Freeze

During Triplex mode, pressing the Freeze button pauses all multiscreen images, both Live and Playback.

Single Frame Advance & Single Frame Rewind

During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame directly before or after the frame displayed on-screen. Only the playback images are affected.

Stop

To stop Triplex mode and return to Live mode on Monitor A, press the Stop button.

Jog / Shuttle

Freeze Button

Stop Button

0150-0313B 26 DVMRe CT II

Page 27

Multiscreen Display

During Triplex mode, press one of the Multiscreen buttons to activate a multiscreen display. The 6-way and PIP multiscreen displays are not available in Triplex mode. For detailed information about Multiscreen displays, see section 2.6. The Live and Playback images in a multiscreen display may be transposed by pressing the multiscreen button that corresponds with the current multiscreen display.

E.g. If the current display is a 13-way multiscreen with the center cameo being a playback image and the rest of the cameos being live images, pressing the 13-way multiscreen button will result in the center cameo being live and the rest of the cameos being playback images.

Multiscreen Buttons

Multiscreen Display With Sequencing

The bottom right cameo of any multiscreen will start sequencing when the Sequence button is pressed. If this camera is a playback image, the sequencing will include all the non-displayed playback cameras, and vice versa for a live image.

Sequence Button

Full Screen Display

Number Button

Sequenced Full Screen Display

2.8. For detailed information about configuring the dwell times in the menu system, see section 3.9.

Sequence Button

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, use the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Zoom Button

with LED

Press the Zoom button again, or another camera button to cancel the Zoom operations.

If the Zoom button is pressed while in a multiscreen display, the camera from the last active

NOTE

cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

0150-0313B 27 DVMRe CT II

Page 28

3 Menu System Overview

3.1 Menu Notation In This Manual

In the following sections, there are headings like this:

 Main Menu → Time/Date → Set Time

Meaning: From the Main Menu, select Time/Date, then press the Enter button. The Time/Date menu

will appear. From the Time/Date menu, select Set Time, then press the Enter button. A pop-up or pull-down menu will appear.

Selected Items

Items selected in the menu system are represented in the manual as follows:

Selected Not Selected

Time/Date Time/Date

3.2 Accessing The Menu System

Enter the menu system by pressing the Menu button. A Password Box will appear on the primary monitor. Enter either the:

• Operator Password: Providing limited access to the menu system. Only the Operator and System View menus are available.

Menu Button

• Installer Password: Providing complete menu access. Use the Number buttons to enter the appropriate password. Default passwords are provided in the beginning of this manual, in section 1.

3.3 Available Menus

0150-0313B 28 DVMRe CT II

Page 29

3.4 Menus In This Manual

Each menu is covered in detail in this chapter of this manual. Menus and Menu Items appear in the manual in the same order they appear on-screen.

• Main Menu

• QuickInstall Menu

• Operator menu

• SystemView Menus

3.5 Navigating The Menu System

Selecting a Menu from the Menu Bar: When the menu system is first accessed, only the menu bar is displayed. Use the Shuttle to select the desired menu.

Opening the Drop Down Menus: Rotate the Jog. Navigating in Menus: Rotate the Jog to highlight items in the drop-down menus. Selecting Menu Items: Hit the ENTER button to select the highlighted menu item. Exiting Menus: Press the Menu button to exit a menu. From the menu bar, press the Menu button

to exit the menu system completely.

3.6 Menu Shortcuts

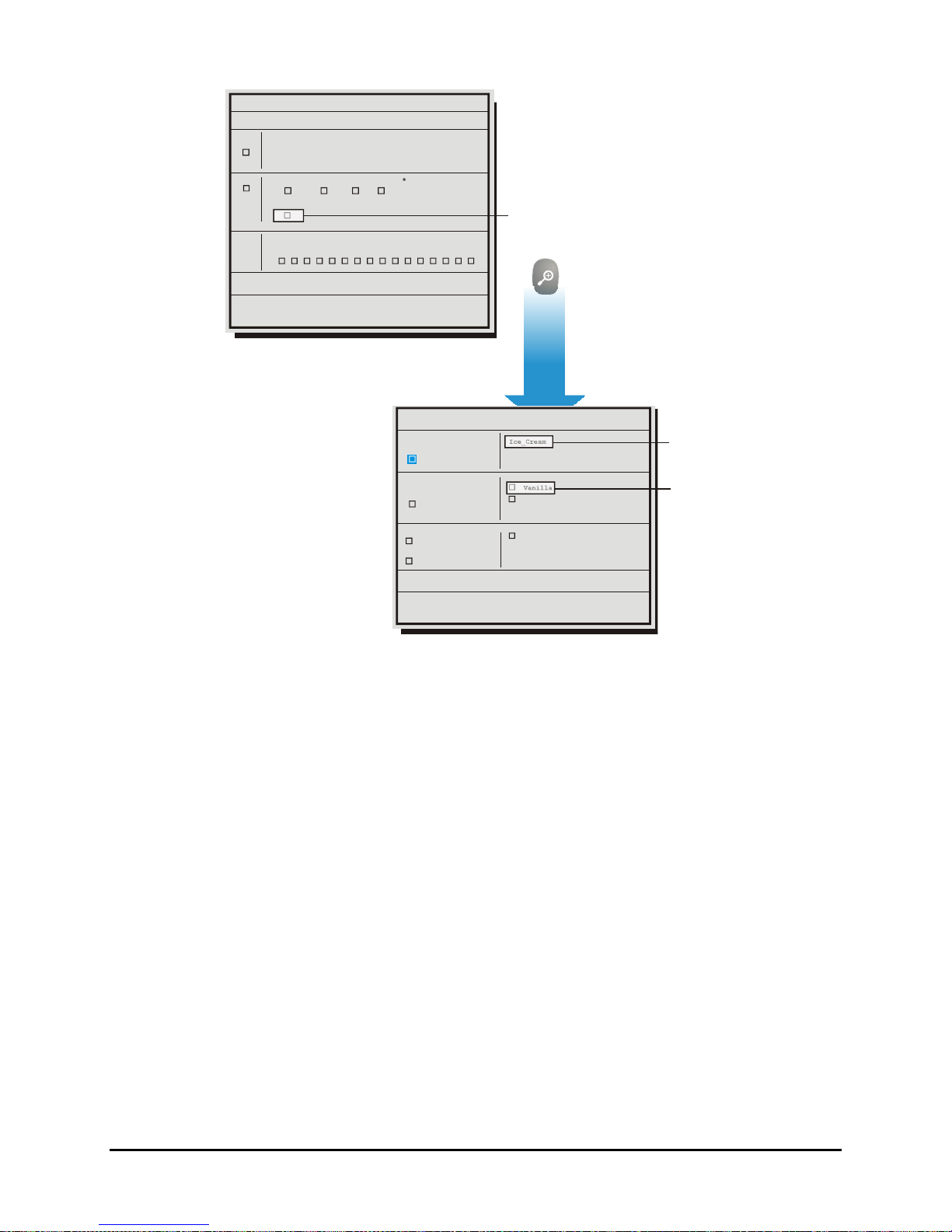

Zoom Button: In menu lists that have 2 settings per camera, the Zoom button will toggle all

selections. This provides a quick and easy way to enable or disable all cameras for a particular feature.

Camera Button: In menu lists that provide settings per camera, a particular camera may be

accessed directly by pressing on the associated camera button. Rotate the Shuttle to modify the setting.

0150-0313B 29 DVMRe CT II

Page 30

3.7 The Main Menu

Main Menu Overview

The Main menu contains the majority of programmable options for the DVMRe CT II. Each item in the Main menu is described in detail in this section of the manual.

Main menu items appear in this section in the same order they appear in the menu.

3.8 Time/Date

Use this menu to specify:

• Which monitors will display the time and date.

• The time format: 12 or 24 hours.

• The date format: MM/DD/YY, YY/MM/DD, or DD/MM/YY.

• The time and date.

• Whether the unit’s clock is a master or slave.

• Set Regional Daylight Savings Time.

• Setup clock synchronization between Triplex and Network Server.

Time/Date Display Set Time Format Set Date Format Set Time Set Date Set Master/Slave Set Region

etwork Time Setup

 Main Menu → Time/Date → Time / Date Display

Use this menu to specify if the time and date will be displayed on:

• Monitor-A.

• Monitor-B.

• Both Monitors.

• Not Displayed

Rotate the Jog to navigate, then rotate the Shuttle to change the values. Save changes and exit the menu: Select [OK], then press the Enter button. Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press

the Enter button.

Time/Date Display

Monitor A : Monitor B : ON

[CANCEL] [OK]

 Main Menu → Time/Date → Set Time Format

Rotate the Jog to set the desired time format. Select from either:

• 12 Hour

• 24 Hour

Press the Enter button to confirm the selection and exit the menu.

Time Format Setup

Select Format

12 HOUR

Press the Menu button to exit the menu without making changes.

0150-0313B 30 DVMRe CT II

Page 31

 Main Menu → Time/Date → Set Date Format

Rotate the Jog to set the desired date format. Select from either:

Date Format Setup

• MM/DD/YY

• DD/MM/YY

• YY/MM/DD

Press the Enter button to confirm the selection and exit the menu. Press the Menu button to exit the menu without making changes.

 Main Menu → Time/Date → Set Time

1. Rotate the Shuttle to navigate, highlight HH MM SS.

2. Press the Enter button, the highlighting will move to the row of numbers.

3. Enter the time in Hours, Minutes, and Seconds. Rotate the Jog to change the values and the Shuttle to navigate.

4. Press the Enter button to confirm the selection and exit the edit mode.

5. To save the changes and exit the menu: Rotate the Jog to sele ct [OK], then press the Enter button.

6. To exit the menu without making changes: Rot ate the Jog to select [CANCEL], then press the Enter button.

Select Format

MM/DD/YY

Time Setup

HH MM SS

03 05 53

[CANCEL] [OK]

 Main Menu → Time/Date → Set Date

1. Press the Enter button, the highlighting will move to the row of

numbers.

2. Enter the date in Months, Days, Years. The day of the week is calculated automatically. Rotate the Jog to change the values

Date Setup

MM DD YY Day

01 25 60 MON

[CANCEL] [OK]

and the Shuttle to navigate.

3. Press the Enter button to confirm the selection and exit the edit mode.

4. To save the changes and exit the menu: Rotate the Jog to sele ct [OK], then press the Enter

button.

5. To exit the menu without making changes: Rot ate the Jog to select [CANCEL], then press the Enter button.

 Main Menu → Time/Date → Set Master / Slave

If several multiplexers are installed and connected via RS485 network, one of the multiplexers may be set as the master clock. This unit will control the date and time (including daylight savings time) for all of the other units.

Select One unit from the RS485 network as the master clock by selecting YES in this menu. All other units must be set as NO (Default).

Master/Slave Select

Master Clock

0150-0313B 31 DVMRe CT II

Page 32

 Main Menu → Time/Date → Set Region

Use this menu to set the region for the Auto Daylight Savings Time feature. Choices are:

• OFF: Clock will not be changed automatically, but can still be adjusted by one hour using the daylight saving macros.

Regional Settings

Daylight Saving : Time Zone :

USA

GMT+00:00

• USA: DST starts at 02:00 on the first Sunday in April. DST ends at 02:00 on the last Sunday in October.

SUN, 7 APR 2002 02:00 (+1) SUN, 27 OCT 2002 02:00 (-1)

Includes: United States (except Hawaii, American Samoa, Guam, Puerto Rico, Virgin Islands, parts of Indiana and Arizona) and Canada (except Saskatchewan).

[CANCEL] [OK]

• EUR: DST starts at 01:00 GMT on the last Sunday in March. DST ends at 01:00 GMT on the last Sunday in October. Includes: European Union Countries.

• AUS: DST starts at 02:00 on the last Sunday in October. DST ends at 03:00 on the last Sunday in March. Includes: South Australia, Victoria, ACT, NSW. Excludes: Tasmania.

• NZ: DST ends at 03:00 on the third Sunday in March. DST starts at 02:00 on the first Sunday in October. Includes: Includes New Zealand.

• RUS: DST starts at 02:00 on the last Sunday in March. DST ends at 03:00 on the last Sunday in October. Includes: Includes Russia.

The Time Zone must be set correctly to ensure that the DST adjustments are made at the right time. It is also required for accurate email time stamping.

The clock will only be automatically adjusted once on a given time and date. If you manually

NOTE

set the clock back before the last DST change, the time will not get automatically adjusted again for that same time change.

 Main Menu → Time/Date → Network Time Setup

Use this menu to enable/disable and specify how often time synchronization should occur between the Triplex and the Network Server. The Region /Time Zone must be setup prior to enabling the option.

Update Interval, Select from: Enable, Disable, Once per Day, Twice per Day, and Once per Hour NTP Primary Server: Enter IP Address of Primary Server. NTP Backup Server: Enter IP Address of Backup Server.

1. To save changes and exit the menu: Select [OK], then press the Enter button.

2. To exit the menu without making changes: Press the Menu button, or select [CANCEL], and then press the Enter button.

0150-0313B 32 DVMRe CT II

Page 33

Network Time Protocol Setup

Update Interval : NTP Primary Server : 3. 37. 8. 26 NTP Backup Server : 0. 0. 0. 0

[CANCEL] [OK] Last Update: Never Since Power-up Warning: Region/Time Zone must be set correctly!

DISABLE

3.9 Sequencing

Use this menu to specify:

• The multiscreen dwell time.

• The full screen dwell time.

The dwell time is the amount of time each camera is displayed on-screen (while sequencing) before advancing to the next camera.

Multiscreen Dwell

Fullscreen Dwell

 Main Menu → Sequencing → Multiscreen Dwell

Rotate the Jog to change the desired dwell time (from 1 to 30 seconds). The default is 3 seconds.

1. Press the Enter button to confirm the selection and exit the menu.

2. Press the Menu button to exit the menu without making changes.

 Main Menu → Sequencing → Fullscreen Dwell

Rotate the Jog to change the desired dwell time (from 1 to 30 seconds). The default is 3 seconds.

1. Press the Enter button to confirm the selection and exit the menu.

2. Press the Menu button to exit the menu without making changes.

Multiscreen Dwell

(Time in Seconds)

Fullscreen Dwell

(Time in Seconds)

0150-0313B 33 DVMRe CT II

Page 34

3.10 Record

Use this menu to:

• Specify the record quality: High, Medium, or Standard.

• Specify if a camera is to be used for event recording,

time-lapse recording, or both.

• Specify the time-lapse record rate per camera.

• Specify the event record rate per camera.

• Specify the activity record rate per camera.

• Specify the alarm record rate.

• Set the Record Lock feature.

• Perform disk maintenance by performing a Disk Test,

Deleting, Un-deleting, or Destroying previously recorded video.

• Specify how the unit will handle data overwrite issues once the hard disk becomes full.

Record Timer

ecord Quality

vent Settings Timelapse Record Rate Event Record Rate Activity Record Rate Alarm Record Rate Record Mode Disk Maintenance Record Lock Auto Delete Mode

 Main Menu → Record → Record Timer

Use this menu to setup Preset Record Timer Events.

1. Rotate the Shuttle to select a timed event from the list.

2. Press the ENTER button to enter the Edit mode.

3. Rotate the Shuttle to navigate to the desired field.

4. Rotate the Jog to change the values of the selected field.

5. Press the Enter button to exit the Edit mode.

6. Rotate the Jog to highlight the [OK] field and press the ENTER button to save the changes.

 Main Menu → Record → Record Quality

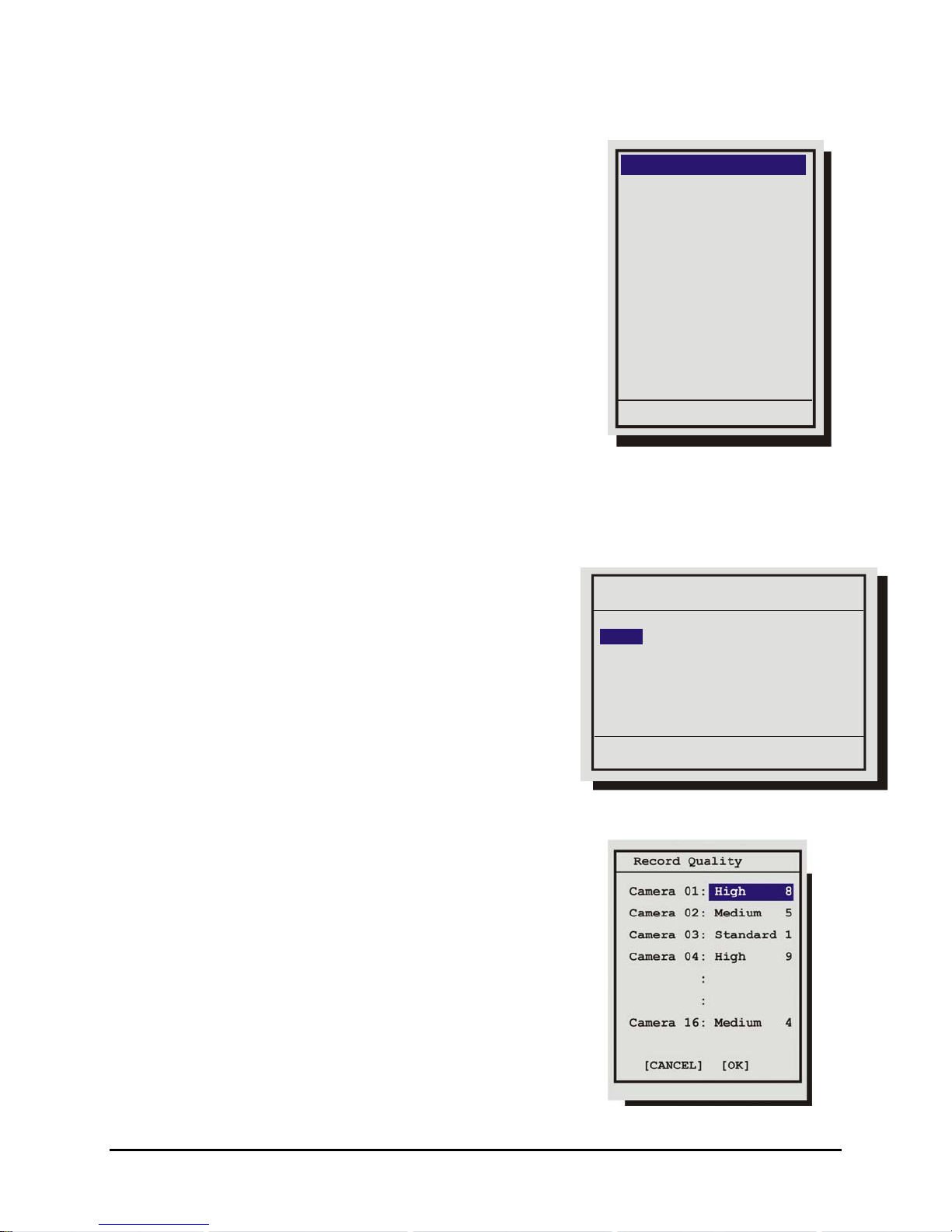

Use this menu to specify the record quality for each camera. Decreasing the record quality decreases the amount of disk space required to store the images, due to a higher compression scheme. There are 3 levels for each quality level. Standard 1 being the lowest and High 9 the highest.

Day Start Stop Macro ON/OFF

22:59 01:59 NONE ON

MON-FRI 05:56 04:06 10 ON

-- --:-- --:-- -- --

[OK]

Hit ‘ENTER’ to toggle EDIT Mode

0150-0313B 34 DVMRe CT II

Page 35

Record Quality Picture Quality PAL* NTSC*

Standard 1 Fair 5.2 4.4 Standard 2 Fair 7.6 6.4 Standard 3 Fair 10 8.4 Medium 4 Good 12.4 10.4 Medium 5 Good 15 12.5 Medium 6 Good 17.2 14.5 High 7 Excellent 20 16.5 High 8 Excellent 26.2 18.5 High 9 Excellent 32.6 20.5

* These numbers represent the file sizes in kilobytes per image.

1. Rotate the Jog to navigate, and the Shuttle to change the

values.

2. To save changes and exit the menu: Select [OK], then press

the Enter button.

3. Exit the menu without making changes: Press the Menu button, or select [CANCEL], and

then press the Enter button.

 Main Menu → Record → Event Settings

Use this menu to specify how each camera will record during normal and event conditions.

TL: Records at the Time-lapse Record Rate under normal conditions. Does not change record rate during an event.

Event: Records during events at the Event Record Rate. Camera does not record under normal conditions.

Event + TL: Records at the Time-lapse Record Rate under normal conditions. Records at the Event Record Rate during events.

About Events: An Event is an action that the unit acknowledges by recording at the

NOTE

Event Record Rate, yet it is not cause for an Alarm. Events may be created two ways, via RS232 text insertion and Activity detection.

Example of an Event: A camera is pointed at the front door inside the lobby during business hours. With the Event Camera Settings Type set to Event, the unit does not record while the doorway is empty. When activity motion detection senses that someone is entering or leaving the doorway, the unit begins recording at the Event Record Rate and stops recording when the motion ceases.

Event Camera Settings

Camera : Type : Event + TL Pre Event Duration : 00 Post Event Duration : 000 Event Associated Cameras: -- -- --

[CANCEL] [OK]

RS232 Event: See section 9 for information about generating an Event via RS232, and optionally inserting ASCII text to mark the Event.

Activity Detection Event: See Setup Parameters in section 3.13 for detailed information about configuring activity detection as an event in the menu system.

0150-0313B 35 DVMRe CT II

Page 36

Pre Event Duration: The unit will record up to 5 seconds of data ahead of the event trigger, at the Event Record Rate. Select from 0 to 5 seconds.

Post Event Duration: The unit will record up to 200 seconds after the completion of the Event, at the Event Record Rate. Select from 0 to 200 seconds.

Event Associated Cameras: Enter up to three camera numbers to be associated with this e v ent.

 Main Menu → Record → Timelapse Record Rate

The unit records at the Timelapse Record Rate under normal conditions, when there are no alarms, events, or activity present. Record rates are measured in both Pictures Per Second (pps) and Seconds Per Picture (spp).

The maximum record rate per camera is inversely proportional to the number of cameras connected to the unit. The fewer cameras connected, the higher the maximum record rate for each camera, and vice versa. The maximum record rate for multiple cameras is 48pps (NTSC)(40pps PAL). The maximum record rate for a single camera is 30pps (NTSC)(25pps PAL).

The bottom right corner of the menu contains a record duration calculator. The top line indicates the estimated recording time for the unit in Time-lapse record mode only. The bottom line indicates the estimated recording time, taking into consideration the amount of time the unit will spend in Activity, Event, and/or Alarm record mode.

Timelapse Record Rate

Camera 1 : Camera 2 : 0.29 pps 3.5 spp Camera 3 : 0.34 pps 2.9 spp Camera 4 : 0.57 pps 1.8 spp : : : Camera 15 : 0.40 pps 2.5 spp Camera 16 : 0.40 pps 2.5 spp

0.40 pps 2.5 spp

8 days 5 h (TL)

[CANCEL] [OK]

8 days 5 h (Total)

1. Rotate the Jog to navigate, and the Shuttle to change the values.

2. To save changes and exit the menu: Select [OK], and then press the Enter button.

3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

 Main Menu → Record → Event Record Rate

The unit will record at the Event Record Rate when an Event is activated. Events can be activated by RS232 event generation or activity detection. See Event Settings on page 35.

Record rates are measured in both Pictures Per Second (pps) and Seconds Per Picture (spp).

0150-0313B 36 DVMRe CT II

Page 37

The maximum record rate per camera is inversely proportional to the number of cameras connected to

the unit. The fewer cameras connected, the higher the maximum record rate for each camera, and vice versa. The maximum record rate for multiple cameras is 48pps (NTSC)(40pps PAL). The maximum record rate for a single camera is 30pps (NTSC)(25pps PAL).

The bottom right corner of the menu contains a record duration calculator. The top line indicates the estimated recording time of the cameras in Event record mode only. The bottom line indicates the estimated recording time, taking into consideration the amount of time the unit will spend in Time-lapse, Activity, Event, and/or Alarm record mode.

Event Record Rate

Camera 1 : Camera 2 : 0.29 pps 3.5 spp Camera 3 : 0.34 pps 2.9 spp Camera 4 : 0.57 pps 1.8 spp : : : Camera 15 : 0.40 pps 2.5 spp Camera 16 : 0.40 pps 2.5 spp

0.40 pps 2.5 spp

[CANCEL] [OK]

% Time: 4%

125 days 8 h (EVENT) 10 days 7 h (Total)

Estimate of the % of time each camera will typically spend in Event mode. For example if yo expect to have about 20 total events each day, each lasting 3 minutes on average, then the % of the time will be (1 hour/24 hours)

4%.

1. Rotate the Jog to navigate, and the Shuttle to change the values.

2. To save changes and exit the menu: Select [OK], and then press the Enter button.

3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

 Main Menu → Record → Activity Record Rate

The unit will record at the Activity Record Rate when the camera is in normal Timelapse Record Mode and activity is detected in the camera scene. Activity should not be linked to Event, in which case the Event Record Rate will be used.

Record rates are measured in both Pictures Per Second (pps) and Seconds Per Picture (spp). The maximum record rate per camera is inversely proportional to the number of cameras connected to

The bottom right corner of the menu contains a record duration calculator. The top line indicates the estimated recording time of the cameras in Activity record mode only. The bottom line indicates the estimated recording time, taking into consideration the amount of time the unit will spend in Time-lapse, Activity, Event, and/or Alarm record mode.

0150-0313B 37 DVMRe CT II

Page 38

Activity Record Rate

Camera 1 : Camera 2 : 0.29 pps 3.5 spp Camera 3 : 0.34 pps 2.9 spp Camera 4 : 0.57 pps 1.8 spp : : : Camera 15 : 0.40 pps 2.5 spp Camera 16 : 0.40 pps 2.5 spp

0.40 pps 2.5 spp

[CANCEL] [OK]

% Time: 4%

68 days 11 h (ACTIVITY) 9 days 16 h (Total)

Estimate of the % of time each camera will typically spend in periods of activity. For example if you expect to have about 20 total periods of activity each day, each lasting 3 minutes on average then the % of the time will be 4%. (1 hour/24 hours)

1. Rotate the Jog to navigate, and the Shuttle to change the values.

2. To save changes and exit the menu: Select [OK], and then press the Enter button.

3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

 Main Menu → Record → Alarm Record Rate

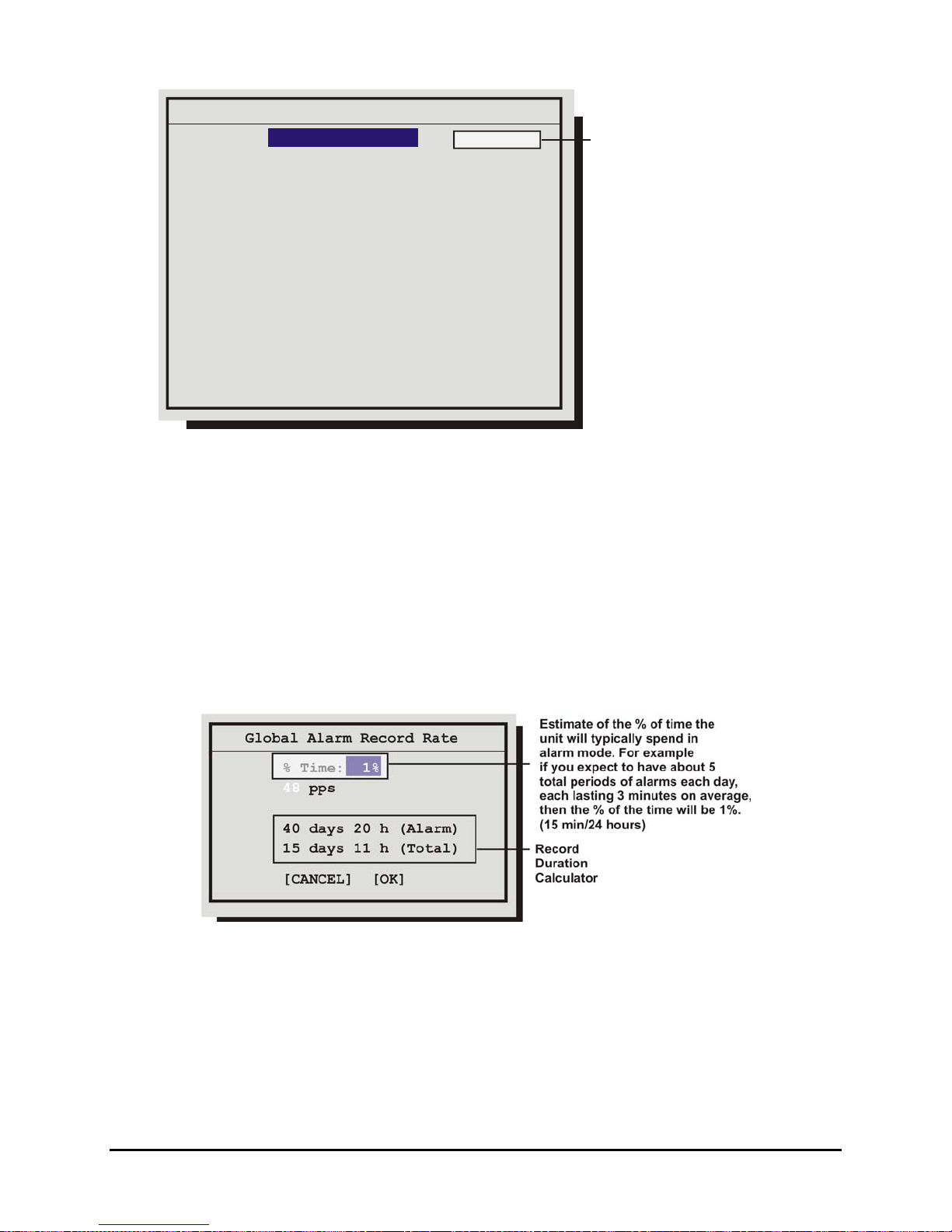

During an alarm, the unit records at the alarm record rate. The bottom of the menu contains a record duration calculator. The top line indicates the estimated recording time of the cameras in Alarm record mode only. The bottom line indicates the estimated recording time, taking into consideration the amount of time the unit will spend in Time-lapse, Activity, Event, and/or Alarm record mode.

The configuration of the Alarm Record Rate is closely associated with the Alarm Record Mode . For detailed information about configuring the Alarm Record Mode, see Alarm Record mode in section 3.11.

1. Rotate the Jog to navigate, and the Shuttle to change the values.

2. To save changes and exit the menu: Select [OK], and then press the Enter button.

3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

0150-0313B 38 DVMRe CT II

Page 39

 Main Menu → Record → Record Mode

Use this menu to specify how the unit will handle data overwrite issues once the hard disk becomes full.

No overwrite Write once

Continuous

No Overwrite:

• Recording starts at the end of the last recording.

• Recording stops when disk becomes full.

• When the hard disk becomes full, the unit displays an on-screen message indicating that the

device is full and that the archive device has stopped recording. The user must acknowledge the message by pressing the Enter button.

Write Once:

• Recording starts at the end of the last recording.

• Recording stops when disk becomes full.

• The user is prompted to authorize overwriting old data.

Continuous:

• Recording starts at the end of the last recording.

• Unit overwrites all previously recorded data, overwriting the oldest data first.

• The unit does not stop recording when disk becomes full.

 Main Menu → Record → Disk Maintenance

Use the Jog to select from the following options, then press the

Enter button to begin. Delete: Delete all data from the hard disk (with the possibility of restoring it). Undelete: Restore data that has been deleted, but not yet overwritten. Destroy: Erase all data from the hard disk permanently, without the possibility

of restoring it. Selecting this option brings up a confirmation dialog box. Test: Provides access to the Disk Test Setup menu which features disk test and

monitoring options.

Delete

UnDelete Destroy Test

Disk Test Setup Menu

The Disk Test Setup menu provides several testing options including the test time, frequency, and duration.

Disk Test: Options include Disable, Test Now, Test Periodically. The Test Periodically option runs the Disk Test at the specified frequency. The Disk Tests run in the background and will not interfere with normal operations.

Test Frequency in hours: From 0 to 1000 hours between tests. Test Duration: This option is for the type of test to run; Fast or Thorough. The Thorough test will

test significantly more sectors than the Fast test. GE recommends using the Thorough test. The Fast test can miss some disk failures.

0150-0313B 39 DVMRe CT II

Page 40

Disk Test Setup

Disk Test: Test Frequency in hours: 0 Test Duration: Fast

[CANCEL] [OK]

Disk Test Result: Disk Failed Disk 1: Write Error Disk 2: Write Error

DISABLE

Use the Jog to move between the menu fields and the Shuttle for the selections within the fields. When satisfied with the selections select OK and press the Enter button to execute.

The Disk Test will run in the background and will not interfere with normal operations. Once the disk test is done, a message will appear on the screen indicating the test result.

Disk Test Result

isk Test Result

Disk Failure

Disk Test Success

isk 1:Write Error isk 2:Write Error

[OK] [OK]

PASSED FAILED

Should a disk test fail, several actions will performed:

• An icon will be displayed indicating disk failure.

It is displayed on Monitor A on the bottom of the

screen in the middle. This icon will only disappear when the disk is replaced.

• If the Notify Alarm or Notify Record email option is enabled in the Email Notification Setup Screen, an email will be sent indicating that a disk failure occurred.

 Main Menu → Record → Record Lock

Use this menu to set the Record Lock feature. This feature disables the front panel record button. Setting Record Lock to ON will start the unit recording if it is not currently

OFF

in the Record mode.

0150-0313B 40 DVMRe CT II

Page 41

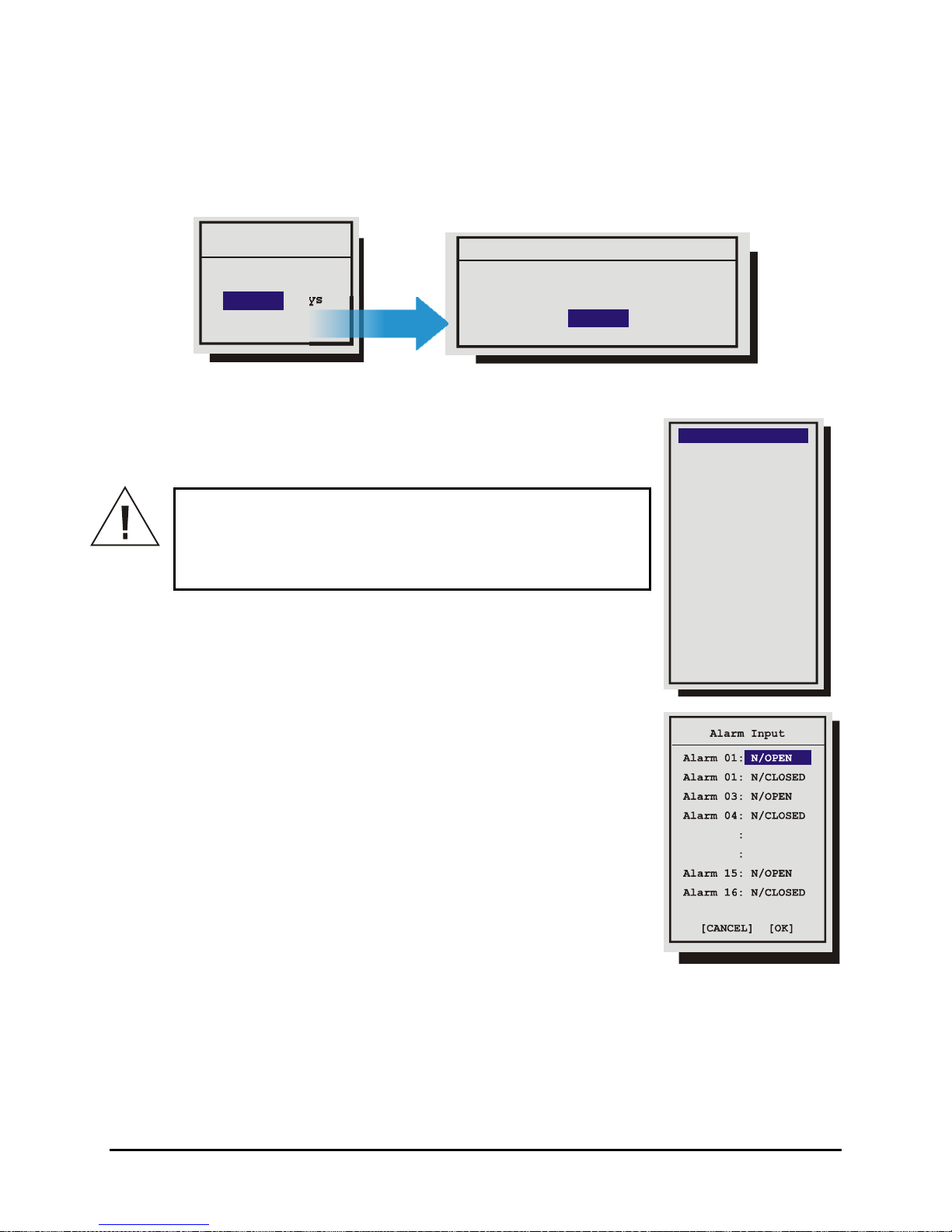

 Main Menu → Record → Auto Delete Mode

The ADM feature prevents the unit from displaying or archiving any search results that are more than thirty days old. This feature may be required by law in some jurisdictions. Choose from 1 to 99 days or Off. The default setting is Off.

ADM Setting

Message

ADM will change. Are you sure?

99 Days

3.11 Alarms

Use this menu to configure the alarm handling features of the unit.

Caution! The DVMRe CT II’s primary function is to furnish video multiplexing and recording with a multiscreen display. Although the unit has alarm handling and motion detection functions, these are considered secondary features. This unit should not be the only alarm device on site.

 Main Menu → Alarms → Input Configuration

Configure the alarm inputs as either Normally Open or Normally Closed.

Input Configuration

Alarm Latch Alarm Action Alarm Record Mode Enable / Disable Alarm History Link to a Macro Fullscreen Alarm Relay Configuration Buzzer Setup Videoloss Action Pre Alarm Duration Notification Archive Alarms

Configure inputs as follows. Normally Open Zero Potential Relay Contact: Configure in menu as

Normally Open. Normally Closed Zero Potential Relay Contact: Configure in menu

as Normally Closed

TTL Active High: Configure in menu as Normally Closed.

TTL Active Low: Configure in menu as Normally Open. Open Collector Active On: Configure in menu as Normally Open. Open Collector Active Off: Configure in menu as Normally Closed.

0150-0313B 41 DVMRe CT II

Page 42

 Main Menu → Alarms → Alarm Latch

This feature determines how the unit latches alarm conditions. Select from the following options: Latched: The alarm is activated until it is silenced and acknowledged

Latched

Transparent Timed Out

by the user. Transparent: The alarm is active only while receiving alarm input.

The alarm condition is canceled when the alarm input ceases. Timed Out: The alarm condition is latched for the amount of time selected in this menu, then it is

automatically silenced and acknowledged. If the alarm input exceeds the duration specified in this menu, the unit silences and acknowledges the alarm when the alarm input ceases. Select the timeout duration, the range is from 1 to 250 seconds.

Transparent alarms cannot be silenced and acknowledged. If transparent mode is preferred, b ut the ability to silence and acknowledge alarms is desired, select Timed Out and set the Alarm Timeout to two seconds.

 Main Menu → Alarms → Alarm Action

This menu is not available on 4-channel units. Only the full screen alarm display is available on the 4-channel unit. Therefore, a 4 channel unit will always be limited to the default values in this menu, i.e. no presets linked to alarms and alarm relay is always Relay 1.

Input: Select the input you wish to configure. Freeze: Selecting Yes will freeze the alarm camera display

(quadrant 1) at the time the alarm is activated.

nput : Freeze : Yes Cameras : 01 16 02 03 Presets : 01 -- 09 -Relay : 1 Intrusion AND/OR: OR

larm Action Setup

Cameras: This setting determines the four cameras displayed

[CANCEL] [OK]

on-screen when an alarm is received. The camera group contains the camera in alarm and three associated cameras.

Default Settings: The first camera in the list is the camera in alarm. The second camera in the list is the camera that precedes the alarm camera numerically. The third and fourth cameras in the list are the two cameras following the alarm camera numerically.

Preset: Use this feature to send a camera to a preset when an alarm is activated. The preset number corresponds directly with the camera number located directly above it in this menu. Select from 1 through 16. If this field is left blank, the camera will not respond. In the example above, Camera 1 will go to Preset 1, while Camera 2 will go to Preset 9.

Relay: Configure which relay will be triggered when an alarm is activated per camera. Select from:

• 1

• 2

• 1 + 2

• None

Intrusion AND/OR: Use this feature to activate alarms by hardwired alarm inputs AND/OR Intrusion detection. Select from AND or OR. Motion Detection must be set to Intrusion and linked to the Alarm number.

Rotate the Jog to navigate and the Shuttle to change the values.

0150-0313B 42 DVMRe CT II

Page 43

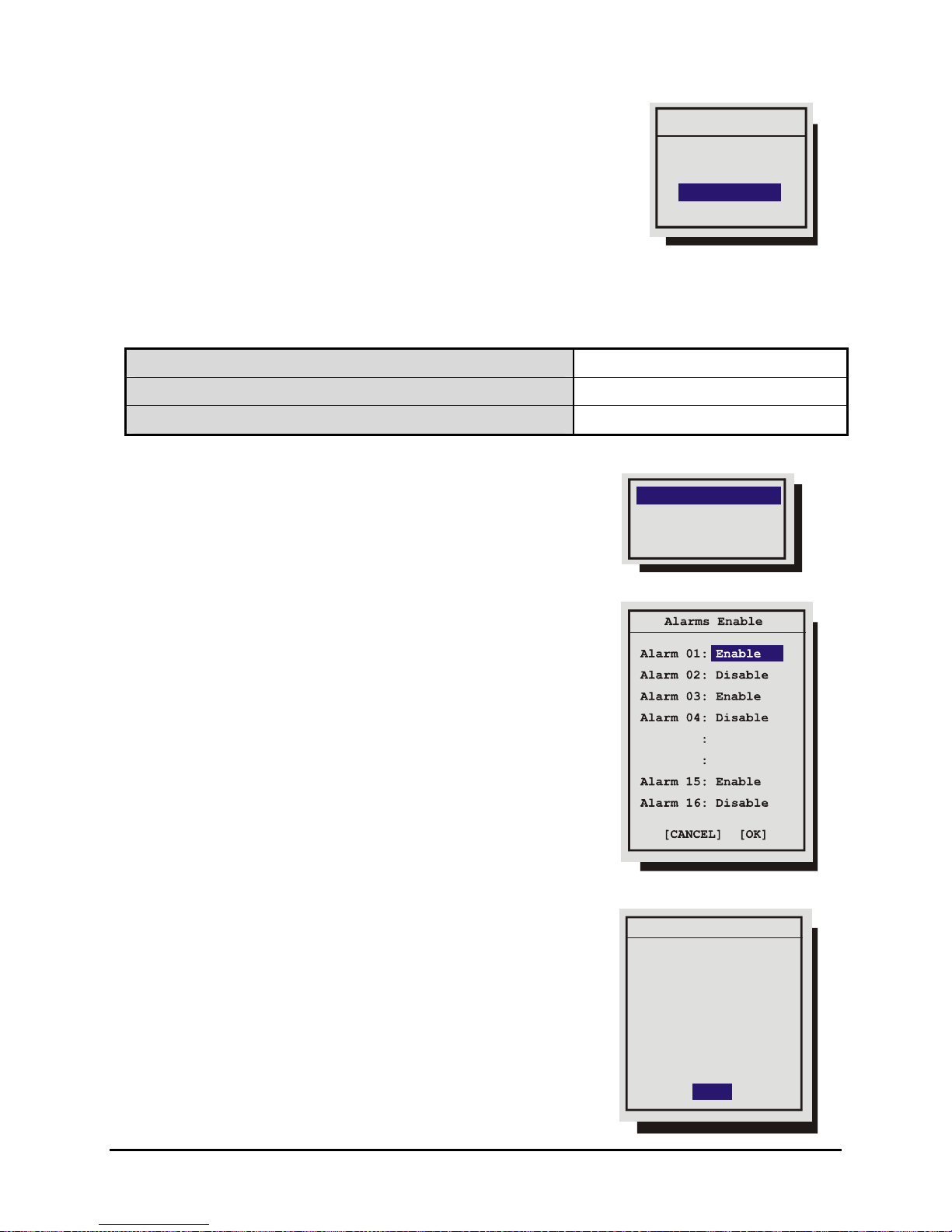

 Main Menu → Alarms → Alarm Record Mode

Alarm Record Mode

Use this menu to determine how the unit will record cameras in alarm. No Change: Unit changes to the Alarm Record Rate, but it does not

give priority to the camera in alarm.

Select Mode

Interleaved

Exclusive: The unit records only the camera (or cameras) in alarm. The unit records in the normal record mode when alarms are not active.

Interleaved: Alarmed cameras are recorded at a higher rate than non-alarm cameras. The unit accomplishes this by interleaving images of alarmed cameras between images from non-alarmed cameras i n the record list. Interleaved is the

recommended mode of operation. Example of Record Lists:

No Change record list for 8 cameras, Camera-4 in alarm.

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Exclusive record list for 8 cameras, Camera-4 in alarm. 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Interleaved record list for 8 cameras, Camera-4 in alarm.

1 4 2 4 3 4 5 4 6 4 7 4 8 4 1 4

 Main Menu → Alarms → Enable / Disable

Use this menu to Enable or Disable the alarm inputs. Select from the following:

• Individual Enable: Allow the user to access the Alarm Enable submenu, and enable or disable alarm inputs on a per camera basis.

• Enable All

• Disable All

Rotate the Jog to navigate, and the Shuttle to change the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Individual Enable

Enable All Disable All

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

 Main Menu → Alarms → Alarm History

Use this window to view a list of the 100 most recent alarms. Alarms are displayed 10 at a time. Rotate the Jog to scroll through the alarms.

Information displayed in this window is:

• The alarms number in the list.

• The date of the alarm (month and day).

• The time of the alarm (hours, minutes, and seconds).

• The number of the camera input in alarm.

0150-0313B 43 DVMRe CT II

Alarm History Box

001- 02/04 18:40:32 16 002- 02/15 12:00:10 11 003- 02/28 10:10:20 08 : : 010- 03/15 05:12:16 04

[OK]

Page 44

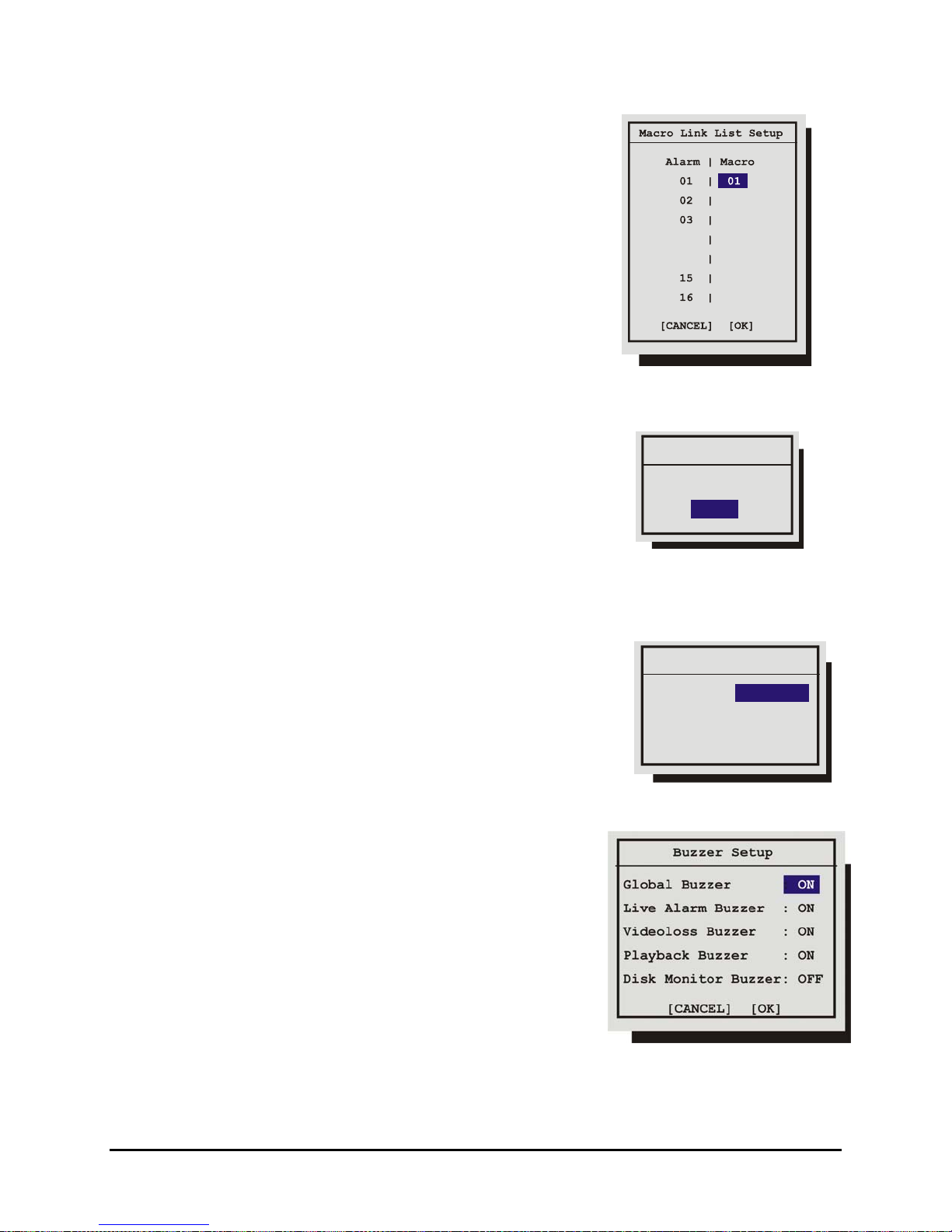

 Main Menu → Alarms → Link To A Macro

Use this menu to link an alarm input to a macro. If a link is created, a macro will run each time that alarm is activated.

Alarm: Select the alarm input you would like to link.

Macro: Select the macro number you wish to link to. Leave this

setting blank if you do not wish to link to a macro. Rotate the Jog to navigate, and the Shuttle to change

the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

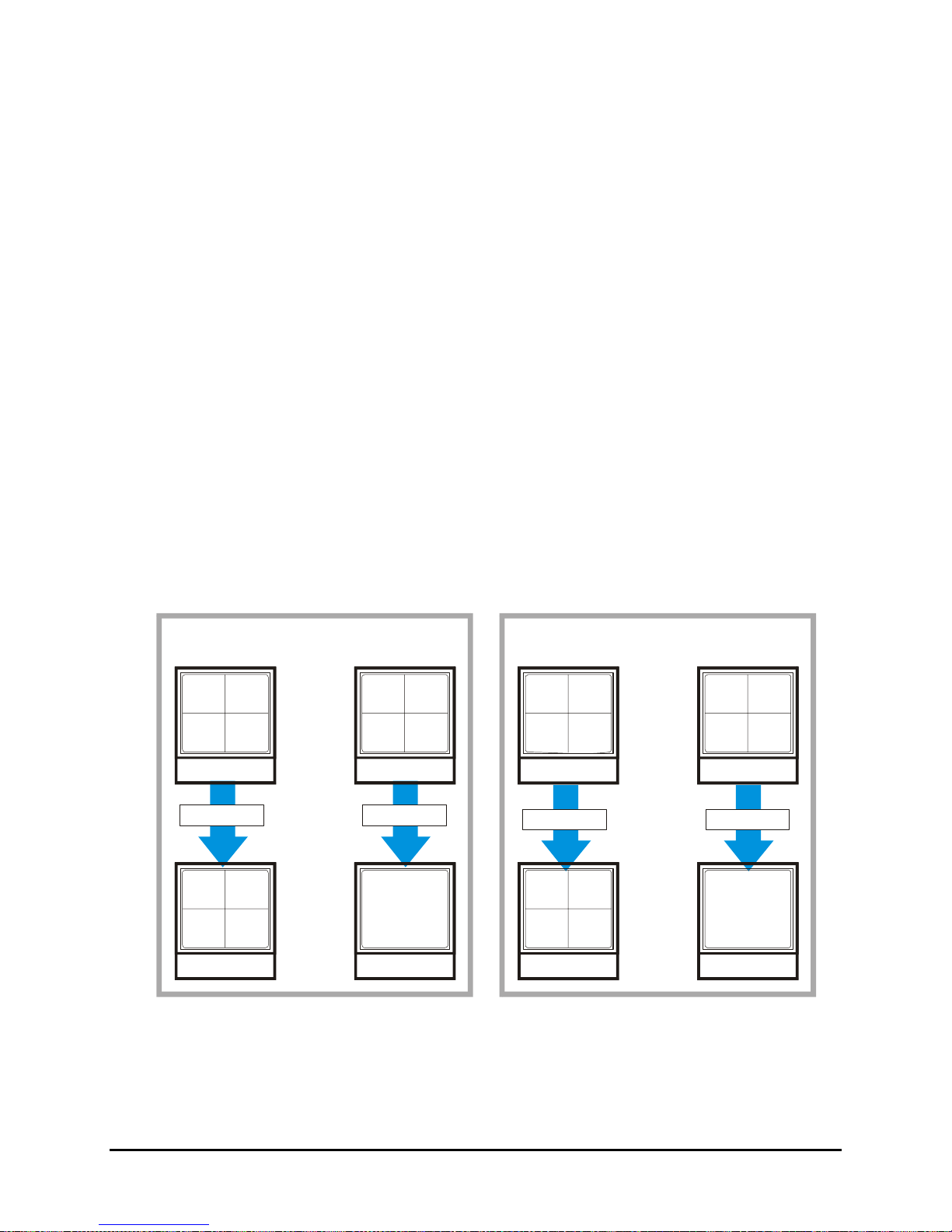

 Main Menu → Alarms → Fullscreen Alarm

ullscreen Alarm

Selecting Yes from this menu will cause the unit to always display the alarm camera fullscreen.

Selecting No from this menu will cause the unit to display the 4-way

Fullscreen

display configured in the Main Menu → Alarms → Alarm Action Setup menu.

This menu selection is not available on 4-channel DVMRe CT II units, since Fullscreen Alarm Mode is the only alarm mode available.

 Main Menu → Alarms → Relay Configuration

Relay Configuration

Use this menu to configure each relay output as either:

• Normally Open

• Normally Closed

Relay 01: Relay 02: N/CLOSED

[CANCEL] [OK]

N/OPEN

 Main Menu → Alarms → Buzzer Setup

Use this menu to configure the internal buzzer. Global Buzzer: The Global Buzzer setting acts as a master On/Off

switch. Setting the Global Buzzer to OFF deactivates all buzzer activity.

Live Alarm Buzzer: Activates while receiving alarm input. Videoloss Buzzer: Activates when video loss is detected.

Disabling the Videoloss buzzer disables all videoloss buzzer activity. Videoloss buzzers may be disabled on a per camera basis in the

Alarms → Videoloss Action menu. Playback Buzzer: Activates during playback of recorded alarms. Disk Monitor Buzzer: Activates if a disk test has failed.

0150-0313B 44 DVMRe CT II

Page 45

 Main Menu → Alarms → Videoloss Action

Use this menu to configure how the unit responds to videoloss.

Camera: Select the camera you wish to configure. Relay 1: If enabled, the unit will activate Relay 1 when videoloss

is detected. Relay 2: If enabled, the unit will activate Relay 2 when videoloss is

detected. Buzzer: Use this setting to disable the videoloss buzzer activation

on a per camera basis. To disable videoloss buzzer activation on all cameras go to the Main Menu → Alarms → Buzzer Setup menu, described in the previous section.

ideoloss Action

Camera : Relay 1: Disable Relay 2: Enable Buzzer : Enable

[CANCEL] [OK]

 Main Menu → Alarms → Pre Alarm Duration

Pre Alarm Duration

During recording, the unit stores up to 5 seconds of recorded information in a buffer. This data can be automatically retrieved when an alarm is activated. Select the amount of time just previous to the activation of an alarm you wish to retrieve.

(Time in Seconds)

 Main Menu → Alarms → Notification

Use this menu to select:

• Email Alarm Notification.

• TCP/IP Notification.

TCP/IP

Email Notification Setup

This screen allows the user to setup the types of events to be notified of, and the email addresses (up to three) to be notified. Follow the context sensitive on-screen instructions to setup the individual fields. Also, please note that the Region/Time Zone setting must be set correctly for Email notification to time stamp messages accurately. If the Notify Alarm or Notify Record fields are enabled you will be notified of the results of the Disk Test.

0150-0313B 45 DVMRe CT II

Page 46

[

One or more of these

fields must be set to

ENABLE to receive an

email notification of

the selected event.

Email Notification Setup

Notify Vidloss: Notify Record: Notify Menu Access: Notify Connection: Email User 1: Email Domain 1: Email User 2: Email Domain 2: Local User: Local Domain: SMTP Server:

Format of email address: user@domain Warning: Region/Time Zone must be set correctly!

ENABLE

DISABLE DISABLE DISABLE john.doe somecompany.com jane.doe somecompany.com jim.doe somecompany.com

0. 0. 0. 0

CANCEL] [OK]

Notify Alarm: Notify Archive: Notify Power Up SMTP Port:

DISABLE DISABLE DISABLE 25

NOTE

Only if Notify Alarm is set to enable will the email include a link to the video on the disk. The link pertains only to the alarm start. For more information see section 6.2.

Email Address Format

The format of the email addresses should be entered as follows. If the email address to be notified is

john.doe@somecompany.com, then john.doe should be entered in one of the Email User fields and

somecompany.com should be entered in the subsequent Email Domain field.

TCP/IP Notification Setup

This screen allows the user to setup the types of events to be notified of, and the IP addresses (up to two) of the PC(s) where the WaveReader software resides.

WaveReader must be running on the receiving PC(s) and Alarm Monitoring must be setup. See Alarm Monitoring in the WaveReader Manual for details.

0150-0313B 46 DVMRe CT II

Page 47

TCP/IP Notification Setup

One or more of these

fields must be set to

ENABLE to receive an

email notification of

the selected event.

The IP Addresses

of the PC on which

the WaveReader

Software resides

Notify Vidloss: Notify Alarm: Notify Record: Notify Archive: Notify Menu Access: Notify Power Up: Notify Connection: Primary Host: Backup Host: Port: Notification Interval (minutes):

[CANCEL] [OK]

DISABLE

DISABLE DISABLE DISABLE DISABLE DISABLE DISABLE

0. 0. 0. 0

0. 0. 0. 0 27

10 Immediate

The Notification Interval can be set from 1 minute to 60 minutes, or immediately upon the event.

 Main Menu → Alarms → Archive Alarms

Selecting Enable from this menu will cause the unit to activate Relay 2 if a malfunction occurs while archiving.

Archive Alarm

Relay 2

ENABLE

3.12 Macro

A macro is a recorded sequence of keystrokes. The number of macros depends on the number of camera inputs (4, 10 or 16). Each macro can have up to 32 keystrokes.

Use this menu to:

• Enter Macro Record mode.

• Program a scheduled start time for a macro.

• Edit the RS232 command string for each submacro.

 Main Menu → Macro → Macro Record

Note: Do not attempt macro programming while the front panel is locked.

To begin recording a macro:

1. Select the macro number you wish to record, then press the Enter button. The unit will automatically exit the menu system and go to a starting point. Macro Record mode is indicated as F and the Macro Number on-screen.

2. From this point, begin recording the desired keystroke sequence. Record up to 32 keystrokes. If 32 keystrokes are exceeded, the unit will end the macro recording automatically.

3. When finished programming, press the Function button then the Enter button to end the macro recording. A form is provided in section

10 to keep track of recorded macro functions.

Macro Record

Timed Macro Start Edit Submacro

Macro Record

Select Macro

0150-0313B 47 DVMRe CT II

Page 48

Keystroke count while in the menu system: While recording a macro, entering the

NOTE

During macro recording, the following button combinations perform special functions.

Button Sequence Resulting Action

Function then 1. Activate Relay 1 output. Function then 2. Reset Relay 1 output. Function then 3. Pause macro for 1 second. Function then 4. Pause macro for 5 seconds. Function then 5. Activate Relay 2 output. Function then 6. Reset Relay 2 output.

menu system, changing multiple menu items, and exiting the menu system are only counted as one keystroke. Using the Jog to navigate the menu system does not count as keystrokes. Once the menu system has been exited, re-entering the menu system will count as a second keystroke.

Not all menu items can be programmed using macros. For a complete list of macro programmable menu items, see the table below.

Function, Function, then Submacro number.

Function then Enter. End macro recording

Program a specific submacro to activate when the macro is run.

Macro Excluded Features

The following core features or settings cannot be programmed by Macro.

• Disk Maintenance.

• Erase Archive Medium.

• POTS Setting.

• Ethernet Setting.

• RS485 Network Address.

• Front Panel Lock/Unlock.

• Record Timer.

 Main Menu → Macro → Timed Macro Start

Use this menu to program scheduled start times for macros. Up to 20-scheduled start times can be programmed in this menu.

Event: Select the scheduled start event you wish to edit. Day: Select the start day (Monday – Sunday) of the macro.

Select ** (double asterisks) to run the macro every day. Select None to cancel the scheduled start time.

Time: Select the start time for the macro. Macro: Select the desired macro number.

Timed Macro Setup

Event : Day : Monday Time : 00:00 Macro : 01

[CANCEL] [OK]

A form is provided in section

0150-0313B 48 DVMRe CT II

10 to keep track of scheduled macros.

Page 49

 Main Menu → Macro → Edit Submacro

A submacro is an RS232 command string that is used to control a peripheral device. Submacros are activated during macros. See the table above for information about programming a macro to activate a submacro.

Select the submacro you wish to edit from the menu system. This menu will appear.

Edit Submacro 01

080 066 066 010 --- --- --- --- --- ---

[P] [B] [B] [0]

[CANCEL] [OK]

ENTER key starts Submacro edit

Use this menu to create the RS232 command string. Press the Enter button to Enter and Exit the submacro edit mode. Rotate the Jog/Shuttle to navigate among the fields and change the values. Each byte value can be set from 0 to 255.

Running A Macro

A macro is a recorded sequence of up to 32 keystrokes. To activate a macro, press the Function button followed by the Number button of the desired macro. While running, the macro is indicated on-screen as the letter F and the macro number.

The user can cancel the macro at any time by pressing the Function button.

{F}

Function and

Number Buttons

Daylight Savings Time (Alternate Method)

To adjust the time one hour for daylight savings time, press the Function button, then the Sequence button. If this function is activated during April, one hour is added to the time. If this function is activated in October, one hour is subtracted from the time. This function will only operate once per time period.

{F}

Function and

Sequence Buttons

3.13 Motion Detection

Use this menu to:

• Enable motion detection on a per camera basis.

• Activate individual zones in a scene to respond to motion

detection.

• Activate the on-screen motion detection indicator.

• Set motion detection as Activity detection or Intrusion Detection.

• Configure the motion detection parameters on a per camera basis.

0150-0313B 49 DVMRe CT II

Enable/Disable Detection

etup Parameters etup Active Zones ndicate Detection

Page 50

 Main Menu → Motio n Detection → Enable/Disable Detection

Selecting Enable All or Disable All from this menu will activate or deactivate motion detection on all cameras.

Selecting Individual Enable from this menu will bring up the following menu.

Individual Enable

Enable All Disable All

Individual Enable Menu

Use this menu to enable or disable motion detection on a per camera basis. Rotate the Jog to navigate, and the Shuttle to change the values.

Detection Enable

Camera 01: Camera 02: Disable Camera 03: Enable : : Camera 16: Enable

[CANCEL] [OK]

Enable

 Main Menu → Motio n Detection → Setup Parameters

Use this menu to select the Camera, Motion Detection Type, and Sensitivity of the Motion Detection you wish to configure.

Motion Detection Parameters Setup

Camera Motion Detection Type Sensitivity Relay Output Link to Event

Rejection Target Size Link to Alarm

ACTIVITY 06 2

---

LOW 01 NONE

Navigate in this menu using the Jog to select the field and the Shuttle to change the parameters.

Activity Vs. Intrusion

Activity Detection is a simple type of motion detection having only a sensitivity setting and a relay output. Intrusion Detection is a more sophisticated type of motion detection, with additional features such as false alarm rejection levels, minimum target size, and an alarm output.

Activity Detection Setup

If Activity is selected in Motion Detection Type field, the following parameters are enabled: Relay Output: The unit may be configured to activate a relay output when motion detection is

present. Select either 1, 2, 1+2 (both relays), or None.

0150-0313B 50 DVMRe CT II

[CANCEL] [OK]

Page 51

Link to Event: Selecting Yes in this menu will activate the event record speed when activity detection is present.

Intrusion Detection Setup

If Intrusion is selected in Motion Detection Type field, the following parameters are enabled: Sensitivity: Rotate the Shuttle to change the motion detection sensitivity, 10 being the most

sensitive. Rejection: Configure the unit’s false alarm rejection feature by selecting Low, Medium, or High.

These settings are based on the number of simultaneously triggered zones and the persistence of motion in a scene. The Low setting is the most sensitive to motion. The Medium setting will filter out most false alarm situations due to sudden luminance changes over the whole scene (clouds passing over). The High setting will filter out sudden luminance changes as well as spurious motion events that do not persist for a number of frames (a bird flying past the lens).

Target Size: This setting is the minimum number of zones (from the 16 x 16 grid) that must be activated simultaneously before it is considered to be valid motion.

Link To Alarm: Select the alarm number that you wish to activate when motion detection is activated.

 Main Menu → Motio n Detection → Setup Active Zones

Use this menu to setup the Active Zones for motion detection. The screen shown below will overlay the current video image allowing for precise activity zone setup. The disabled zones will be tinted. The enabled zones will be clear.

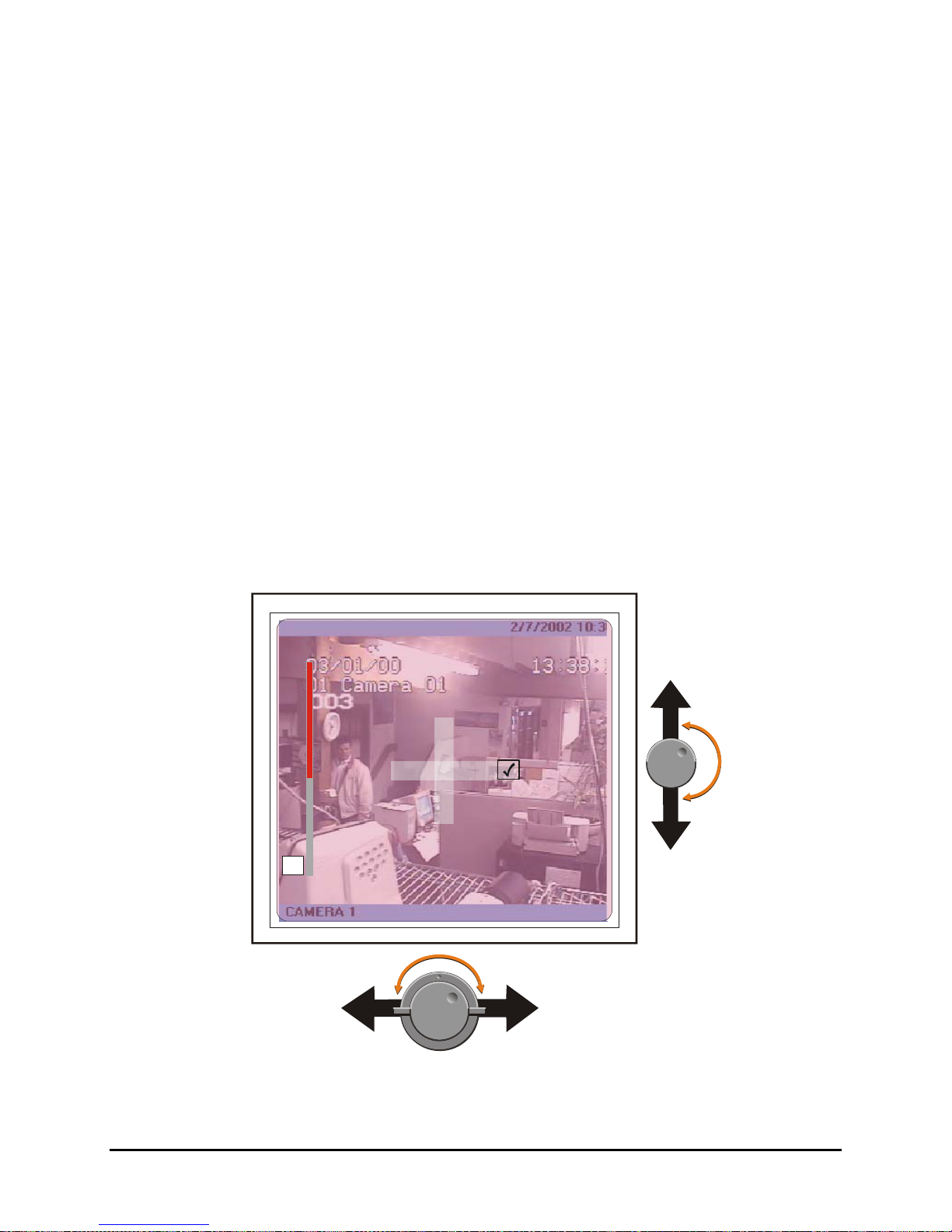

Activity Grid Setup Screen

Pressing the Function button will bring up the Help screen shown on the next page. This screen will overlay the current video image.

0150-0313B 51 DVMRe CT II

Page 52

‘

MENU’ : Exit Activity Setup

‘

“

{F}

Function

Button

ENTER’: Save and Exit Activity Setup PAUSE’: Toggle between Enable and Neutral STOP’ : Toggle between Disable and Neutral

‘ZOOM’ : Disable/Enable all zones

PLAY FORWARD’: Increase the Sensitivity level PLAY REVERSE’: Decrease the Sensitivity level

Sensitivity Scope

Use the sensitivity scope to adjust the motion detection sensitivity for the scene. The sensitivity scope is the bar located near the left-hand corner of the screen.

The black bar raises and lowers to indicate the degree of motion detected. When the black bar reaches the red bar, a motion detection alarm is activated.

Adjusting Motion Detection Sensitivity: Raise and lower the red bar to change the motion detection sensitivity. Use the Play Forward button to increase the sensitivity level and the Play Reverse button to decrease the sensitivity level. The sensitivity level is also displayed as a numeric value.

Play Reverse to decrease the Sensitivit

Play Forward to increase the Sensitivit

 Main Menu → Motio n Detection → Indicate Detection

Motion Detection may be indicated on-screen by displaying the letter M. Use this menu to turn this feature On or Off.

3.14 Camera Setup

Use this menu to:

• Edit the title for each camera.

• Adjust the Automatic Gain Control.

• Disable or Enable camera inputs.

• Specify cameras as covert (recorded but not displayed).

• View the Camera Scope (Histogram)

• Enable or Disable SVHS output on Monitor B.

 Main Menu → Camera Setup → Camera Titles

Use this menu to:

• Specify if the camera titles will be displayed on the monitors. Edit the title for each camera.

Indicate Detection

Detection

Titles Display

Edit Titles

0150-0313B 52 DVMRe CT II

Page 53

Titles Display

Camera titles may be displayed on either monitor. Use this menu to turn this feature On or Off.

Rotate the Jog buttons to navigate and the Shuttle to change the values.

Titles Display

Monitor A: Monitor B: OFF

[CANCEL] [OK]

Edit Titles

Rotate the Shuttle to select the camera whose title you wish to configure, and then press the Enter button. The Camera Title Edit menu will appear.

Camera Title Edit

Camera Title : Camera 01

@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^

SEQ key selects character bank ‘1’ key inserts blank character ‘2’ key inserts selected character

[CANCEL] [OK]

Camera Title Edit Menu

1. With the camera title selected, press the Enter button. The menu will enter the Edit mode and the

character bank will appear in the center of the menu.

2. Press the Sequence button to select the desired characte r set.

3. Rotate the Shuttle to navigate the cursor in the camera title.

4. Rotate the Jog to navigate the cursor in the character bank.

5. Press the Number 1 button to insert a blank character or press the Number 2 button to insert the

selected character.

6. When finished editing the title, press the Enter button to exit the edit mode.

7. Save changes and exit the menu: Select [OK], then press the Enter button.

8. Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press

the Enter button.

 Main Menu → Camera Setup → AGC

Use the Automatic Gain Control (AGC) to adjust the video input signal level for cameras whose level is outside the normal range. The default gain setting is 100%.

Rotate the Jog to navigate and the Shuttle to change the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Exit the menu without making changes: Press the Menu button,

or select [CANCEL], then press the Enter button.

0150-0313B 53 DVMRe CT II

Signal Gain Setup

Camera 01 Signal Gain 100%

[CANCEL] [OK]

Page 54

[

Main Menu → Camera Setup → Camera Disable

Use this menu to:

• Enable or Disable cameras individually

• Configure the unit to disable cameras automatically at power-up

if video loss is detected.

• Automatically disable all inputs detecting videoloss.

Individual Disable

Use this menu to Disable or Enable each camera input individually.

Use the Jog to navigate and the Shuttle to change the values. Save changes and exit the menu: Select [OK], then press

the Enter button. Exit the menu without making changes: Press the Menu

button, or select [CANCEL], then press the Enter button.

Power Up Disable

With this feature turned On (Enabled), the unit will automatically detect which inputs are experiencing videoloss at power-up, and disable them.

Rotate the Jog to navigate and the Shuttle to change the values.

ndividual Disable

ower Up Disable

Auto Disable Now

amera Disable

Camera 01: Camera 02: Enable

amera 03: Disable Camera 04: Enable : : Camera 16: Enable

CANCEL] [OK]

ower Up Disable

Disable

OFF

Auto Disable Now

This feature detects which inputs have video signals and which are experiencing videoloss. When this feature is activated, the unit will automatically disable the inputs experiencing videoloss. The DVMRe CT II will also re-enable video inputs that were previously disabled if a video input signal is detected.

 Main Menu → Camera Setup → Covert Camera

This feature removes cameras from all live displays while continuing to record them, so that the users and the public are unaware that the camera is being recorded. Covert cameras are not viewable durin g

playback. Select Yes in this menu to configure a camera as covert. Rotate the Jog to navigate and Shuttle to change the values.

To disable the covert camera (make display visible) return to this menu and change the selection to NO. The camera’s display will become visible upon exiting the Main Menu.

Covert Camera

Camera 01: Camera 02: YES Camera 03: NO Camera 04: NO : : Camera 16: NO

[CANCEL] [OK]

0150-0313B 54 DVMRe CT II

Page 55

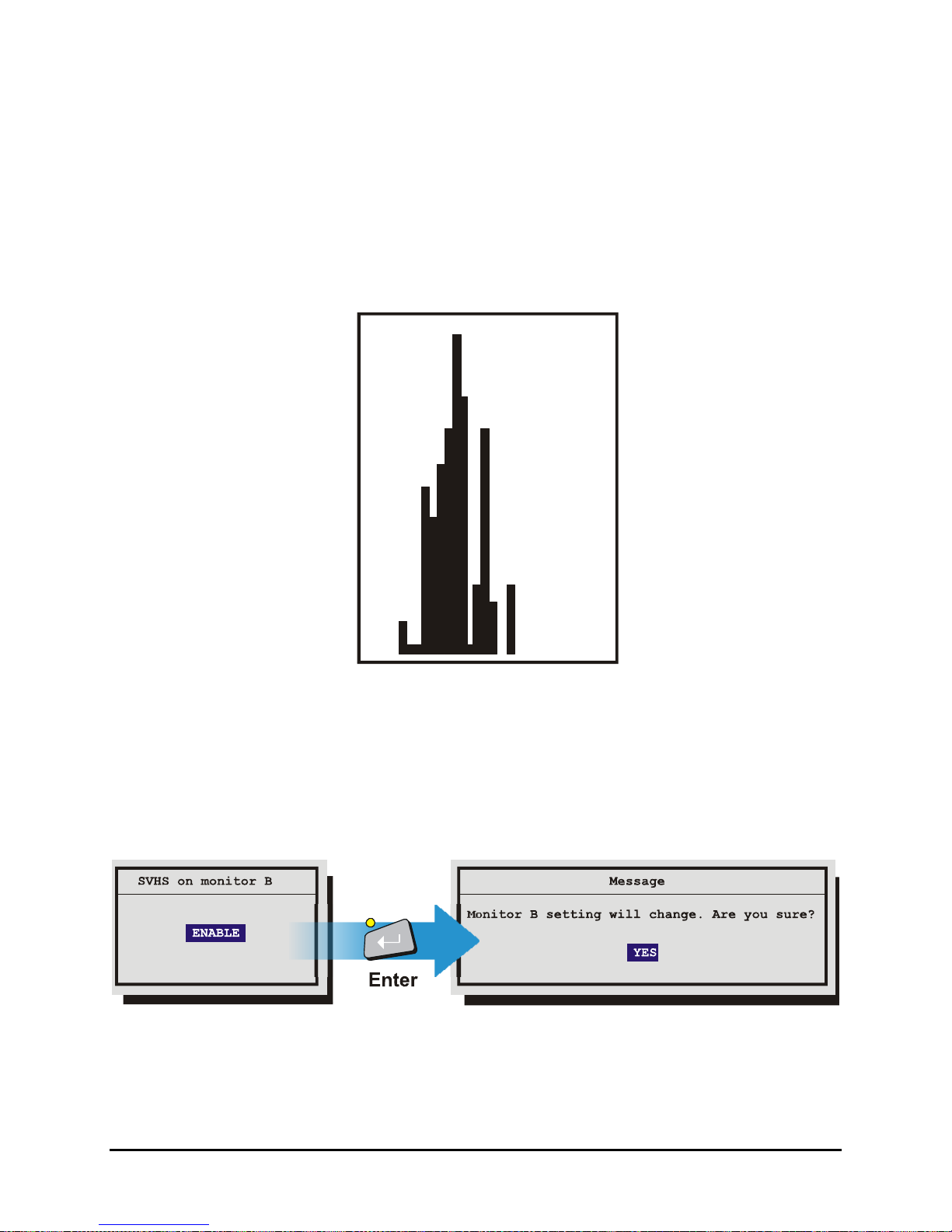

 Main Menu → Camera Setup → Camera Scope

Lumi

Use this menu to view a live luminance histogram of the currently displayed camera.

Luminance Histogram

A Luminance Histogram is a graphical representation of how many times each gr ay-level value occurs in an image.

Use this feature to analyze and optimize the video input signal.

nance Histogram

Black

minan

White

 Main Menu → Camera Setup → MonB SVHS

Use this menu to enable or disable SVHS output on Monitor B. Select Enable or Disable from the menu and press Enter. A confirmation screen will appear. Select from Yes or No and press Enter. The output of monitor B will change immediately. When this feature is enabled the PIP display mode is disabled.

0150-0313B 55 DVMRe CT II

Page 56

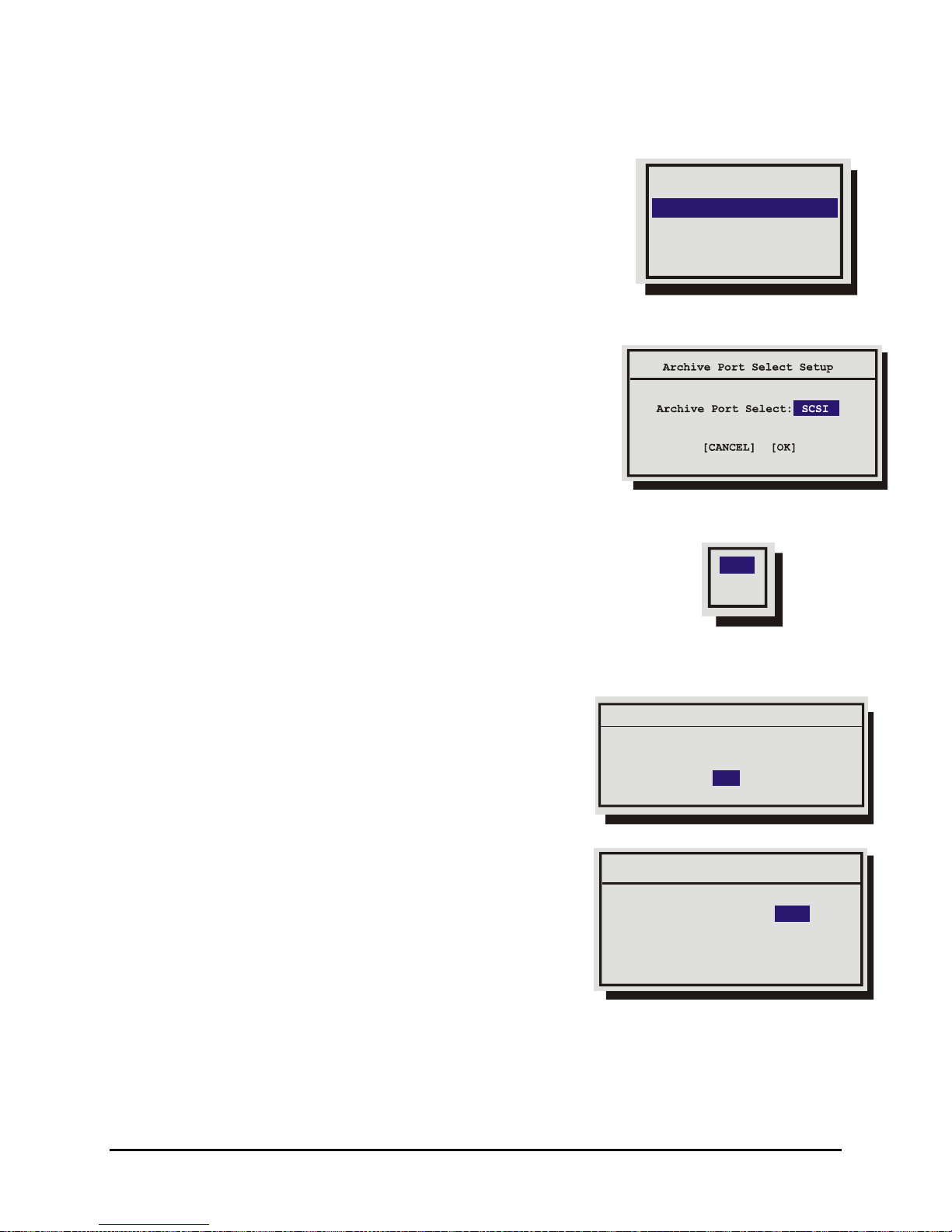

3.15 Archive Setup

Data recorded by the unit can be archived to an external archive device.

Use this menu to:

• Select the Port where the archive device will be connected.

• Turn Background Archiving mode Off and On.

• Erase the recorded data on a compatible archive device.

• Enable or Disable QuickWave Setup.

 Main Menu → Archive Setup → Port Select

Select the Port or interface to which the archive device will be connected. Select from the following items.

SCSI: SCSI archive devices. 1394: 1394 Firewire archive devices.

 Main Menu → Archive Setup → Background Archive

Background Archive: Commands the unit to record data to both the

hard disk and the archive device simultaneously. Select from the following items.

OFF: Turns background archiving Off. ON: Turns background archiving On.

Port Select

Background Archive

Erase Archive Medium QuickWave Setup

OFF

 Main Menu → Archive Setup → Erase Archive Medium

Use this feature to erase all of the recorded data on an archive device.

With Erase Archive Medium highlighted, press the Enter button. If a compatible archive device is connected, a confirmation box will appear, otherwise no action will occur.

 Main Menu → Archive Setup → QuickWave Setup

This feature provides the option of having the QuickWave software written to any CDs that are created. This allows the CD to be read on any PC without installing software. Select ON to enable, OFF to disable.

Message

Erase all Records. Are you sure?

YES

QuickWave Setup

QuickWave CD Write: ON

[CANCEL] [OK]

0150-0313B 56 DVMRe CT II

Page 57

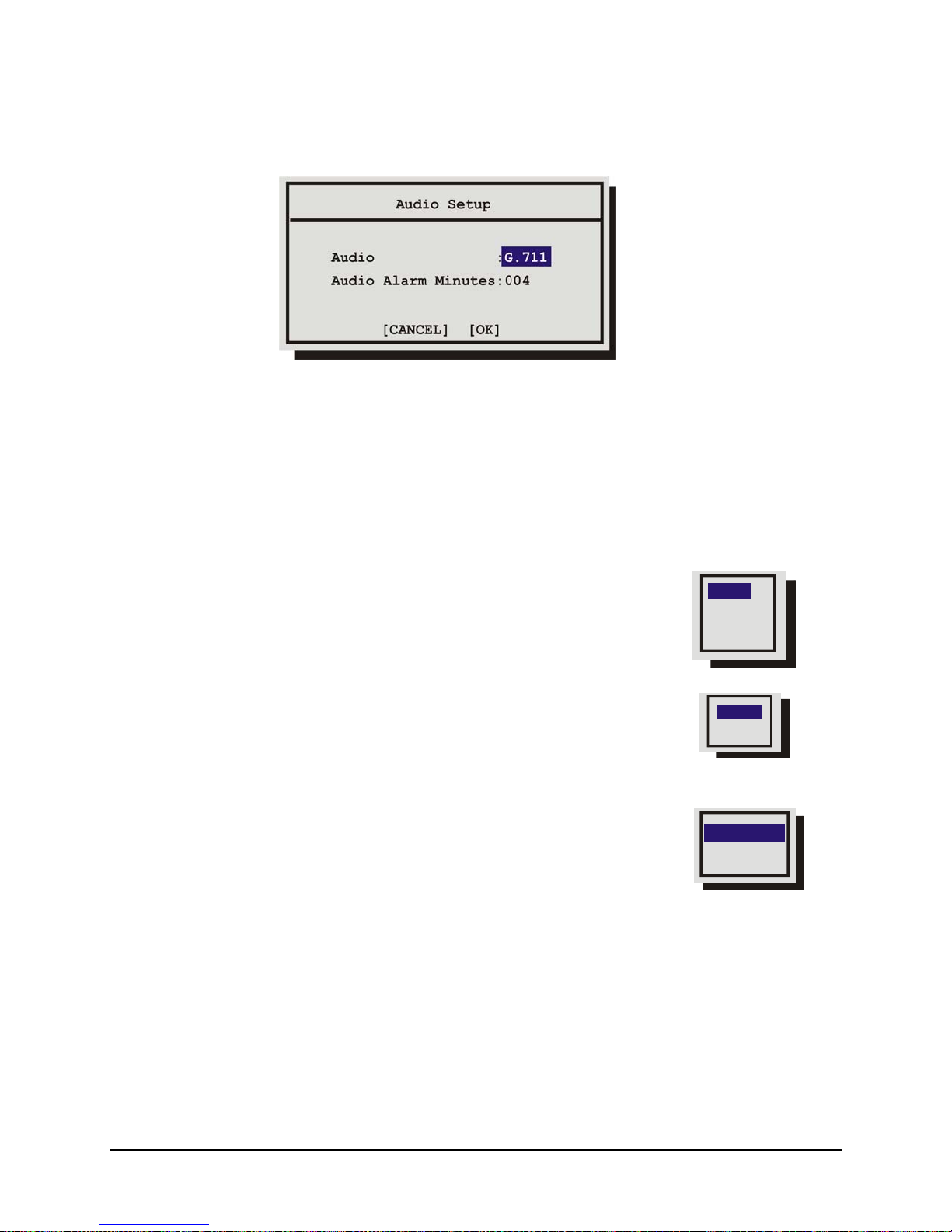

3.16 Audio Setup

Use this menu to enable or disable the audio feature of the CT II. You can also select the audio alarm duration in minutes in this menu.

Audio Limitations:

1. To record audio at least one the unit’s video inputs must be set to record video at a rate of 1pps or faster.

2. If all the cameras are set to EVENT mode and no events are occurring, no audio will be recorded regardless of the event recording speed.

3.17 Communications

Use this menu to:

• Configure the baud rates and settings for the RS232 ports.

• Configure the network address for the RS485 network.

• Configure the Ethernet address and networks settings.

RS232

RS485 Ethernet

 Main Menu → Communications → RS232

Select the Port you wish to configure and press the ENTER button.

Port 1

Port 2

Port 1

Use this menu to:

• Enable/Disable POTS and configure the Modem initialization string (POTS Setup).

• Adjust the Baud rate.

POTS Setup

Baud Rate

POTS Setup

The default modem string (shown below) is for use with Hayes Accura 56k, Diamond Supra Express 56k, and 5686 US Robotics modems in their default conditions. Consult with the modem manual before attempting to make any changes. It is strongly recommended that the modem initialization string only be modified by a qualified technician.

0150-0313B 57 DVMRe CT II

Page 58

OTS Setup

POTS : DISABLE

Modem Init String : AT&F1&K3M0E1Q0V1S0=0&R2&C1&D0&H1

[Default Modem String] [CANCEL] [OK]

@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^

SEQ key selects character bank ‘1’ key inserts blank character ‘2’ key inserts selected character

1. With the Modem Init String highlighted, press the Enter button to enter the Edit mode. The character bank will appear in the center of the menu.

2. Press the Sequence button to select the desired characte r bank.

3. Rotate the Shuttle to navigate the Modem Init String.

4. Rotate the Jog to select a character from the character bank.

5. Use the Number 2 button or rotate the Shuttle to insert the desired character from the character

bank into the Modem Init String and advance to the next character.

6. Use the Number 1 button to insert a blank character.

7. When finished, press the Enter button.

8. To save the changes and reboot, select OK, then press the Enter button. The unit will only reboot

if changes were made to the Modem Init String.

9. To exit the menu without making changes, select Cancel, then press the Enter button. Pressing the Menu button also exits the menu without making changes.

Baud Rate

Use this menu to configure the baud rate for Port 1. Rotate the Jog to select a baud rate from the menu.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

Port 2

Use this menu to configure the baud rate for Port 2. Rotate the Jog to select a baud rate from the menu.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

The RS232 port 2 is used for Event Generation and ASCII Text Insertion. See Section 7 for the RS232 Protocol required to perform these functions.

1200 Baud 2400 Baud 4800 Baud

9600 Baud

19200 Baud 38400 Baud 57600 Baud

1200 Baud 2400 Baud 4800 Baud

9600 Baud

19200 Baud 38400 Baud 57600 Baud

0150-0313B 58 DVMRe CT II

Page 59

 Main Menu → Communications → RS485

Network Address

Connect several units to a single keyboard, or vice-versa. Up to 32 units (any combination of multiplexers and keyboards) can be networked together. Use this menu to specify the units unique network address.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

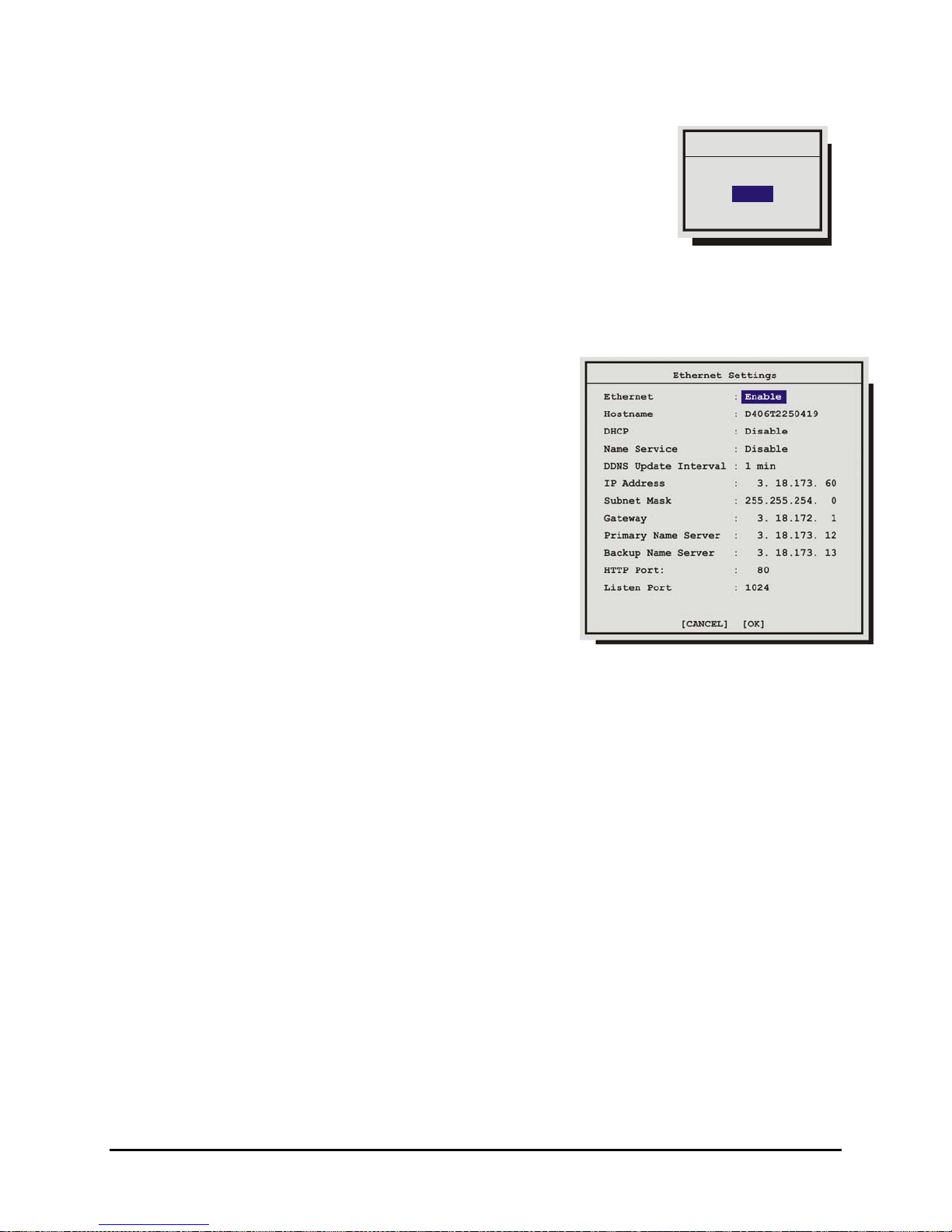

 Main Menu → Communications → Ethernet Settings

An ethernet connection can be used to connect to the unit from a PC for the viewing of live or recorded images. Use this menu to configure the Ethernet communications settings. Select from the following:

Ethernet: Select Enable or Disable. Hostname: The default Hostname is the unit’s serial number

without the dashes. The user should modify only when GnuDIP is selected in the Name Service field.

DHCP: Select Enable or Disable. Enables dynamic IP addressing. When DHCP is enabled, the IP address, Subnet Mask, Gateway, and Server fields are dynamically addressed.

Name Service: Select from Disable, WINS or GnuDIP. Enabling WINS registers the hostname and IP address within the current Network. This ensures that you can connect to the Triplex by hostname within the network. See the Note below for information on configuring Dynamic DDS with GnuDIP.

DDNS Update Interval: Select the Dynamic Domain Name Server interval. Select from Disable or from 1 to 1440 minutes.

IP Address / Subnet Mask / Gateway: Consult with a qualified Network Administrator or an MIS professional to configure these settings if DHCP is not enabled.

Primary Name Server / Backup Name Server: The IP addresses of the Primary and Backup Name Servers. Not required if DHCP is enabled.

HTTP Port : Select the HTTP Port. Select from Port 0 to 65535. Shortcuts are available for port 80 (Camera 1 button) and 8080 (camera 2 button). Consult with a qualified Network Administrator or an MIS professional to configure these settings.

Listen Port: The port the CT II uses to listen to communicate with WaveReader. When changing the port number to another value, the WaveReader configuration file bwval.dat must also reflect the new value.

0150-0313B 59 DVMRe CT II

Page 60

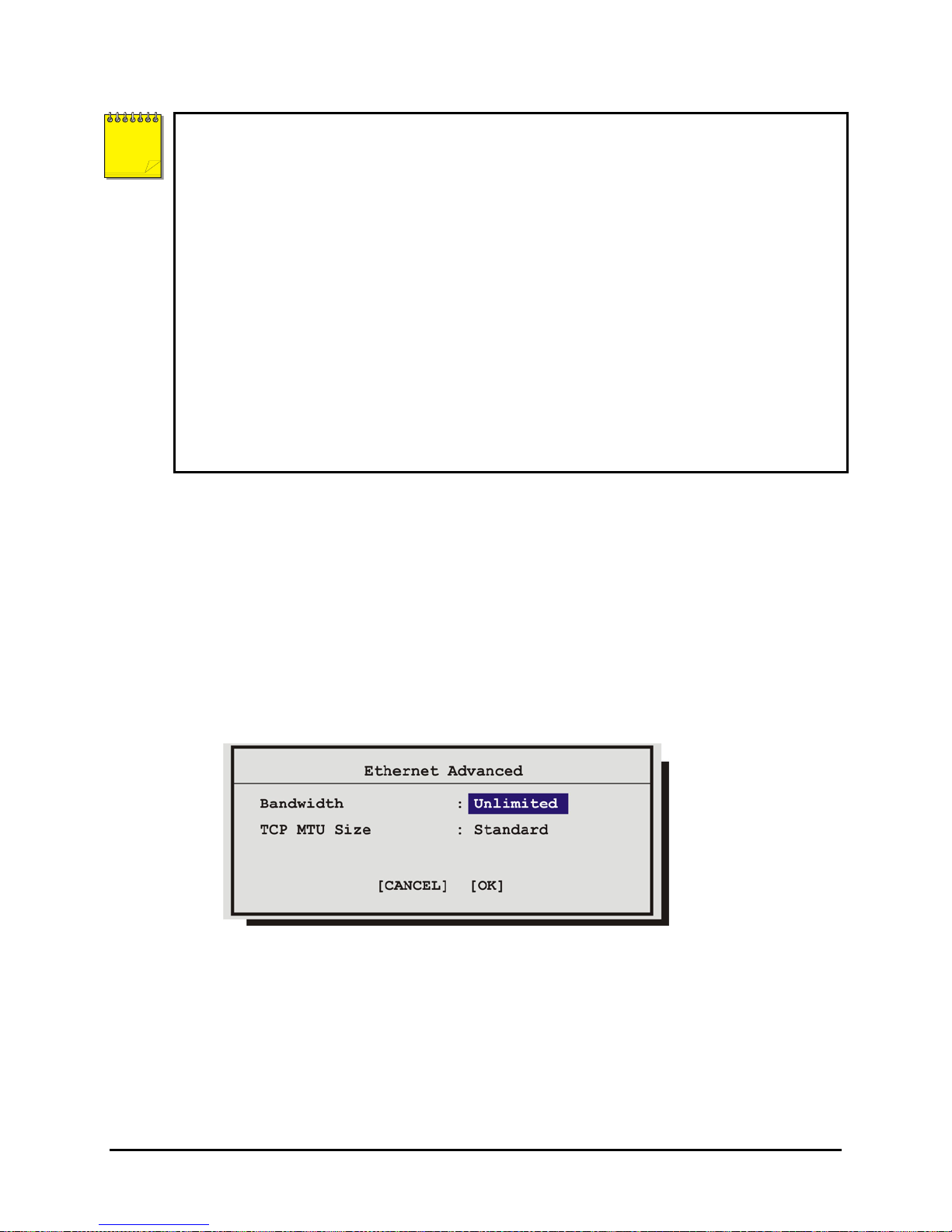

In order to use Dynamic DNS with GnuDIP, the user has to configure following in the menus:

NOTE

• Name Service must be set to GnuDIP (Ethernet Setting Menu).

• Primary Name Server must be set to the IP address of the GnuDIP server (Ethernet

Setting Menu).

• Hostname must be set to the required hostname format e.g. ge04.companyname.net. For registration purposes, the string until the first dot is used as hostname (here: ge04), the remainder is used as domain (here: companyname.net). The hostname is set via the Ethernet Setting menu and is case sensitive.

• DDNS update interval must be set to a reasonable value (e.g. 2 minutes).

• The password for the DDNS server has to be set in the Passwords->DDNS password

menu. The password is 4 digits long (The Enter button can be used for the number 0).

When everything is configured correctly, the DVMRe will send periodically a Dynamic DNS update message over TCP port 3495 to the Dynamic DNS server telling the server its hostname. The DVMRe does not include its IP address in the message. Instead the Dynamic DNS server extracts the IP address of the DVMRe via the Ethernet source IP address. This guarantees that the correct IP address is used even when the DVMRe is behind a NAT router.

 Main Menu → Communications → Ethernet Settings

Use this menu to configure the Ethernet Advanced communications settings. Select from the following: Bandwidth: Local bandwidth control, set from 5Kb per second through 250Kb and Unlimited. The

minimum of this setting and the setting requested by WaveReader will be used. TCP MTU Size: Select from Standard, 1400, and 1200. The MTU describes the maximum possible TCP

packet size. Standard (1500) is optimal for most ethernet network environments.

0150-0313B 60 DVMRe CT II

Page 61

3.18 Front Panel Lock

Use this feature to lock the front panel keypad. While locked, the only operational key on the front panel is the Menu button. To unlock the front panel, enter the Installer password and return to this menu.

Highlight the item you wish to select.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

3.19 Factory Settings

Return To Factory Defaults

From the Factory Setting menu, press the Enter button. A password box will appear. Enter the Factory Default password. Select OK, then press the Enter button.

Unlock Keyboard

Lock Keyboard

Factory Default Password

10 and 16-Channel

8 1 1 1

The unit will reboot, returning all settings (except the time, date, email addresses, and email IP address) to the factory defaults. Due to the large size of the hard disk, the reboot may take several minutes.

Change Language

From the Factory Setting menu, enter the Language password. A menu will appear displaying the available language selections.

Rotate the Jog to select the desired language.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button. Available Languages:

English French German Italian Russian Polish Czech Finnish Hungarian Slovak Spanish Dutch

4-Channel

Language Password

10 and 16-Channel 4-Channel

4 1 1 1

5 4 1 5 1 4 1 4

Danish

3.20 Passwords

Use this feature to change the Installer, Operator, Ethernet, or DDNS passwords.

0150-0313B 61 DVMRe CT II

Page 62

Changing the Installer or Operator Passwords

To change the password:

1. Highlight the password you wish to change, then press the

Password Box

Enter button. A password box will appear.

2. Enter the new password using the Number buttons.

3. Highlight OK, then press the Enter button.

Enter a new Install Password

----

4. Re-enter the password.

5. Highlight OK, then press the Enter button. The user will be

prompted, indicating if the password was entered correctly and changed.

The Ethernet Password

The Ethernet Password feature limits access to only those users who access the unit using the password feature of WaveReader versions 2.3 or later. When the unit is first setup, the default is No Password Protection. Meaning, anyone using WaveReader and accessing with an ethernet connection can connect to the unit.

Enter a new Ethernet Password

Password Box

----

Activate The Ethernet Password

1. Enter the new password using the Number buttons.

2. Highlight OK, then press the Enter button.

3. Re-enter the password.

4. Highlight OK, then press the Enter button. The user will be prompted, indicating if the password was

entered correctly and changed.

0150-0313B 62 DVMRe CT II

Page 63

Deactivate The Ethernet Password

To return the unit to No Ethernet Password Protection, enter the Ethernet Access Reset Password in the password box shown above.

The DDNS Password

The DDNS password enables the DVMRe CT II to contact the Domain Name Server in order to provide IP to Domain Name translation. You must obtain this number by calling you Domain Name Service. By default this password is

2222. This password is only used when Name Service in the Ethernet Settings Menu is set to GnuDIP.

3.21 The QuickInstall Menu

Ethernet Access Reset Password

1 1 1 1

QuickInstall Menu Overview

After installation is complete, it is strongly recommended that, as a minimum, the items in the QuickInstall menu be configured before the unit is used.

All items located in the QuickInstall menu are also found in the Main menu. These items are provided in the separate QuickInstall menu as a convenience for the installer.

Use the following table to find detailed information about configuring specific items from the QuickInstall menu.

QuickInstall Menu Item Primary Menu Location Section In

Change the time Change the date Edit Camera Titles Camera Disable Record Quality

Main Menu → Time/Date → Set Time Main Menu → Time/Date → Set Date Main Menu → Camera Setup → Camera Titles Main Menu → Camera Setup → Camera Disable Main Menu → Record → Record Quality

Change the time Change the date

dit Camera Titles Camera Disable Record Quality

nstaller Password Auto Disable Now

Manual

3.8

3.14

3.10 Installer Password Auto Disable Now

0150-0313B 63 DVMRe CT II

Main Menu → Passwords → Installer Password Main Menu → Camera Setup → Camera Disable

→ Auto Disable Now

3.20

3.14

Page 64

3.22 The Operator Menu

The Operator Menu Overview

The Operator menu is provided so that the user has access to a limited number of menu items. These menu items are primarily monitor display setup options, so that the user may “personalize” the monitor displays during their shifts. Other options include video archive setup and changing the operator password.

None of the items are unique to the Operator menu. All items located in the Operator menu are also found in the Main menu.

equencing Time/Date Display Titles Display Alarm History Archive Setup Operator Password

Use the following table to find detailed information about configuring specific items from the Operator menu.

Operator Menu Item Primary Menu Location Section In

Manual

Sequencing Time/Date Display Titles Display

Main Menu → Sequencing Main Menu → Time/Date → Time/Date Display Main Menu → Camera Setup → Camera Titles →

3.9

3.8

3.14

Title Display Alarm History Video Archive Setup

Main Menu → Alarm → Alarm History

Main Menu → Archive Setup

3.11

3.15

Operator Password

Main Menu → Password → Operator Password

3.23 The SystemView Menu

The SystemView Menu Overview

The SystemView menu is provided so that users may quickly view global software and hardware settings.

3.20

bout DVMR View Screen 1 View Screen 2 View Screen 3 View Screen 4 View Screen 5 View Screen 6 View Screen 7 View Screen 8 View Screen 9

iew Screen 10

0150-0313B 64 DVMRe CT II

Page 65

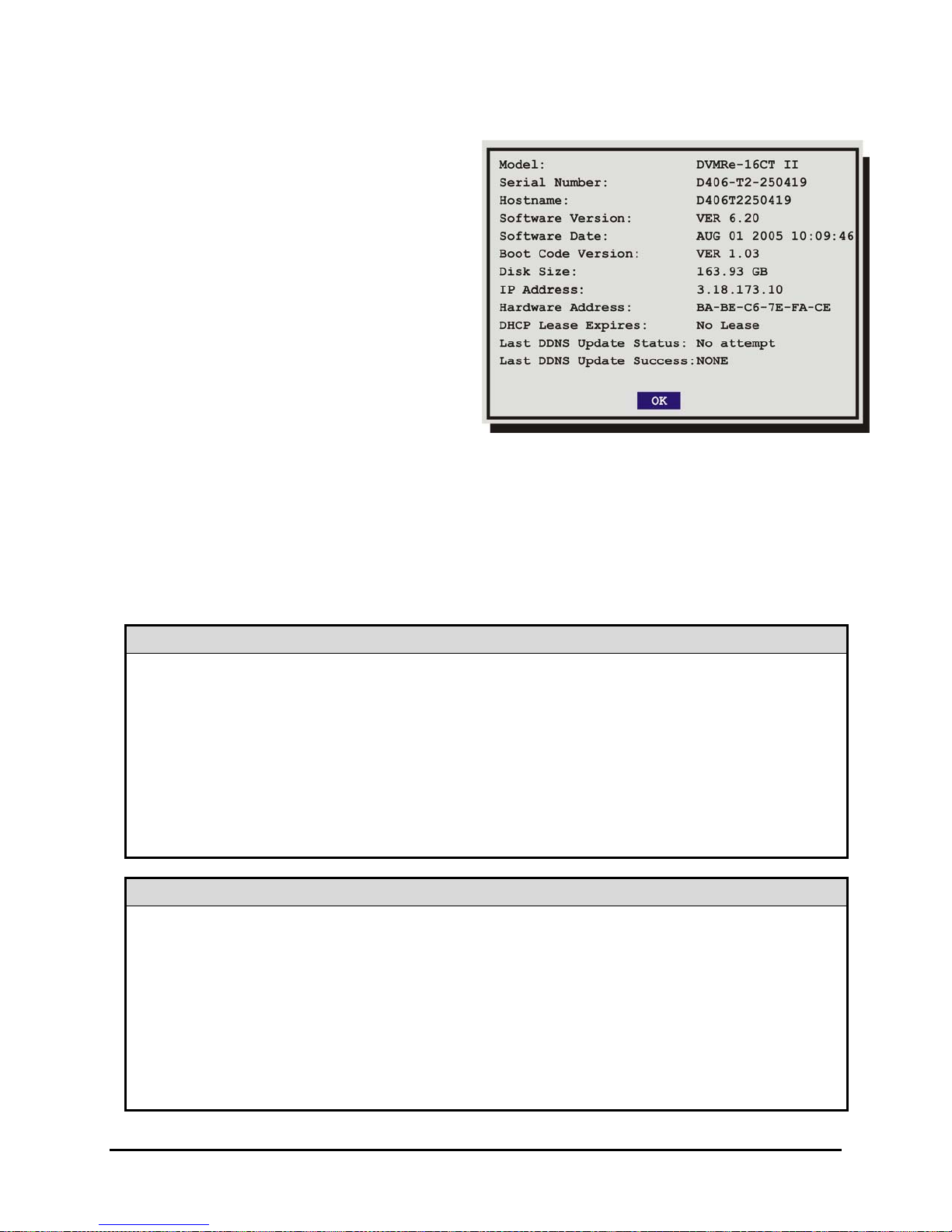

About DVMR menu: This menu provides information such as:

• Model Designation

• Serial Number

• Hostname

• Software Version

• Software Date

• Boot Code Version

• Hard Disk Size

• IP Address

• Hardware Address (MAC)

• DHCP Lease Expiration Date

• Last DDNS Update Status

• Last DDNS Update Success

View Screens 1 through 10: These menus provide an overview of the units current operating parameters and the menu settings selected by the user or installer. Each View Screen is described in the following tables. The default values are bolded and italicized.

The View Screens

View Screen 1

Alarm Input

• Enable/Disable: 1 = Enabled, 0 = Disabled

• Normally Open or Normally Closed: 0 = Open, C = Closed

• Macro: Macro number if activated.

Alarm Action

• Freeze: 1 = Freeze, 0 = No Freeze

• Cameras: Primary camera in alarm and three associated cameras.

• Relay: 1, 2, 1+2, or None.

• Intrusion AND/OR: AND, OR

View Screen 2

Camera

• Enable/Disable: 1 = Enabled, 0 = Disabled

• Signal Gain: AGC setting from 50 through 100. 50

• Covert Camera: Yes or No

• Camera Title: Camera x, x=number

Videoloss Action

• Relay 1: 1 = Enabled, 0 = Disabled

• Relay 2: 1 = Enabled, 0 = Disabled

• Buzzer: 1 = Enabled, 0 = Disabled

0150-0313B 65 DVMRe CT II

Page 66

View Screen 3

Motion Detection

• Enable/Disable: 1 = Enabled, 0 = Disabled

• Activity or Intrusion Detection: I = Intrusion, A = Activity

• Sensitivity: 1 through 10, 5

• Relay Output: None, 1, 2, 1+2

• Link to Event: Yes or No

• Rejection Ratio: High, Medium, or Low

• Target Size: 1 through 255

• Alarm Camera: 1 through 4, 10 or 16

View Screen 4

Record Rate

• Event Camera Settings: T = Timelapse, E = Event, ET = Event and Timelapse

• Timelapse Record Rate: In pictures per second (pps). 30 spp

• Event Record Rate: In pictures per second (pps). 1 pps

• Pre Event Duration: 0 to 5 seconds. 2

• Post Event Duration: 0 to 200 seconds. 0

• Acitvity Record Rate: In pictures per second (pps). 2 spp

• Record Quality: High 8 (7,8,9), Medium (4,5,6), or Standard (1,2,3).

• Event Associated Cameras: Up to 3.

View Screen 5

Record Timer

• DAY: 1-31, Mon, Tue, Wed, Thu, Fri, Sat, Sun, Mon-Fri, Sat-Sun, Mon-Sun

• Start: Time (HH:MM)

• Stop: Time (HH:MM)

• Macro: Macro Number

• On/Off: On or Off

View Screen 6

• Time and Date Display A: On or Off.

• Time and Date Display B: On or Off.

• Time Format: 12 or 24 hour

• Date Format: MM/DD/YY, DD/MM/YY, or YY/MM/DD

• Master Clock: Yes or No.

• Multiscreen Dwell: In seconds. 003

• Full Screen Dwell: In seconds. 003

• Titles Display A: On or Off.

• Titles Display B: On or Off.

0150-0313B 66 DVMRe CT II

Page 67

View Screen 7

• Record Mode: No Overwrite, Write Once, or Continuous.

• Indicate Detection: On or Off.

• Global Buzzer: On or Off.

• Live Alarm Buzzer: On or Off.

• Video Loss Buzzer: On or Off.

• Playback Buzzer: On or Off.

• Disk Monitor Buzzer: On or Off.

• Relay 1: Normally Open or Normally Closed.

• Relay 2: Normally Open or Normally Closed.

• Alarm Latch: T = Transparent, L = Latched, TO (020) = Timed Out (Time)

• Alarm Record Mode: Interleaved, Exclusive, or No Change.

• Full Screen Alarm: Yes or No. This feature is not selectable on the 4-Channel units. 4ch = Yes.

• Global Alarm Record Rate: In pictures per second (pps). 30 pps

• Pre Alarm Duration: In seconds. 001

• Archive Alarm: Enable or Disable.

View Screen 8

• Auto Disable: On or Off.

• Background Archive: On or Off.

• Monitor Setup: Single or Dual.

• Baud Rate Port 1: 1200,1400, 4800, 9600, 19200, 38400, and 57600.

• Baud Rate Port 2: 1200,1400, 4800, 9600, 19200, 38400, and 57600.

• Network Address: 001-005. 001

• Ethernet: Enable or Disable.

• POTS: Enable or Disable.

• Language: English, German, French, Italian, Russian, Polish, Czech, Finnish, Hungarian,

Slovak, Spanish, Dutch, or Danish.

• Keyboard Lock: On or Off.

• Record Lock: On or Off.

• Regional Settings: Off, USA, EUR, AUS, NZ, or RUS.

• Time Zone: GMT+00:00

• QuickWave CD Write: On or Off.

0150-0313B 67 DVMRe CT II

Page 68

View Screen 9

• NTP Update Interval: Enable or Disable.

• NTP Primary Server: 3. 37. 8. 26

• NTP Backup Server: 0. 0. 0. 0

• Subnet Mask: 255.255.254. 0

• Gateway: 3. 18.172. 1

• DHCP: Enable or Disable.

• Name Service: WINS or Disable.

• Primary Name Server: 3. 18.173. 12

• Backup Name Server: 3. 18.173. 13

• TCP MTU Size: Standard, 1200, and 1400.

• Archive Port Select: SCSI, 1394.

• SVHS on monitor B: Enable or Disable.

• DDNS Update Interval: Disable, 1 – 1440 min. 2 minutes.

• HTTP Port: 80 – 8080.

View Screen 10

• Disk Test: Test Now, Test Periodically or Disable.

• Test Frequency in hours: 0 – 1000.

• Test Duration: Fast or Thorough.

• Disk Test Results: Disk Test Success or Disk Test Failed.

• Bandwidth: Unlimited, 5 KB per second thru 250 KB per second.

0150-0313B 68 DVMRe CT II

Page 69

4 Alarms

4.1 Alarm Input

Alarm devices are connected via the Alarm PCB on the back panel of the unit (see section 1.7). Each Alarm Input corresponds with the Camera Input of the same number. Alarm input to camera number assignments can be changed on 10 and 16-channel models. See Alarm Action menu (se ction 3.11).

4.2 Alarm Output

Front Panel Alarm LED: The LED located to the left and above the Alarm button is lit for the duration

of the alarm. Internal Buzzer: The internal buzzer is activated until it is Silenced and Acknowledged. This feature

can be turned off in the menu system (see Buzzer Setup in section 3.11).

Monitor Displays: Discussed below in the On-screen Displays During Alarms section. Output Relays: The alarm output relays are active for the duration of the alarm. This feature is

configured in the menu system (see Alarm Action and Relay Configuration in section 3.11) and can be deactivated.

Macro Activation: Unit can be configured in the menu system to activate a macro when an alarm is detected.

Preset PTZ Camera commands: Unit can be configured in the menu system to send preset commands to specific cameras when an alarm is detected.

Record Rate: Record Rate can be increased by recording at the Alarm Record Rate (see section

3.10) and by Interleaved or Exclusive Recording (see Alarm Record mode in section 3.11).

4.3 Alarm Acknowledge

Pressing the Alarm button acknowledges to the unit that the alarm has been recognized and silences the internal buzzer. This does not clear the alarm condition.

4.4 On-screen Displays During Alarms

10 and 16-Channel Units

Monitor-A in Live Multiscreen Mode

Single Alarm: When a single alarm is received, the unit changes to 4-way

display containing the camera in alarm, and three associated cameras. The three associated cameras are defined as a group in the menu system (see Alarm Action in section 3.11). The top left cameo displays the camera in alarm.

Second Alarm: When a second alarm is received, the unit changes to a 10-way multiscreen, displaying the alarm cameras in the top two cameos. The associated cameras are displayed in the remaining cameos.

Third Alarm: When a third alarm is received, the unit changes to a 9-way multiscreen, displaying the alarm cameras in the top three cameos. The associated cameras are displayed in the remaining cameos.

More than three alarms simultaneously: The unit switches to the maximum multiscreen display, i.e. 16 or 10-way.

4-Way

Single Alarm

10-Way

Second Alarm

9-Way

Third Alarm

0150-0313B 69 DVMRe CT II

Page 70

Other display options include:

• A full screen display of a single camera in alarm, with a sequenced full screen display for additional cameras in alarm. This option is selectable in the menu system (see Full Screen Alarm in section 3.11).

• Freeze camera display at the time the alarm was received.

Monitor-B Display During Alarm

Single Alarm: Unit switches to a full screen display of the camera in alarm. Additional Alarms: Unit switches to a sequenced display of all cameras in alarm.

4-Channel Units

Single Alarm: Unit switches to a full screen display of the camera in alarm. Additional Alarms: Unit switches to a sequenced display of all cameras in alarm.

4.5 Alarm Operations During Playback

Live Alarms Displays

Single Alarm: Unit switches to a full screen display of the camera in alarm on Monitor B. Additional Alarms: Unit switches to a sequenced display of all cameras in alarm on Monitor B.

LIVE MODE

Monitor A

LIVE

LIVE ALARM

LIVE

Monitor B

LIVE

LIVE ALARM

FULL

SCREEN

ALARM

PLAYBACK MODE

Monitor A

PLAY

BACK

LIVE ALARM

PLAY

BACK

Monitor B

LIVE

LIVE ALARM

FULL

SCREEN

ALARM

0150-0313B 70 DVMRe CT II

Page 71

Recorded Alarms

Internal Buzzer: During playback, the internal buzzer is activated until it is silenced and

acknowledged. This feature can be turned off in the menu system (see Playback Buzzer, Buzzer Setup in section 3.11).

Front Panel Alarm LED: The LED located to the left and above the Alarm button is lit for the duration of the alarm.

Monitor-A Multiscreen: Each camera in alarm is indicated on-screen by a flashing red “A” in its cameo. Alarm LED lights to indicate an alarm condition. There is no change in the playback (or Triplex) multiscreen based on playback of recorded alarms.

4.6 Alarm History Box

The Alarm History feature provides a list of the 100 most recent alarms. View the Alarm History Box by accessing the menu system, and selecting Operator → Alarm History. The Alarm History Box can also be found under Main Menu → Alarm → Alarm History. For detailed information about viewing the Alarm History Box see Alarm History in section 3.11.

4.7 Searching For Recorded Alarms

See section 5.

0150-0313B 71 DVMRe CT II

Page 72

‘

5 Searching

The DVMRe CT II is equipped with a powerful search interface to access video files stored on the hard disk or an external archive device.

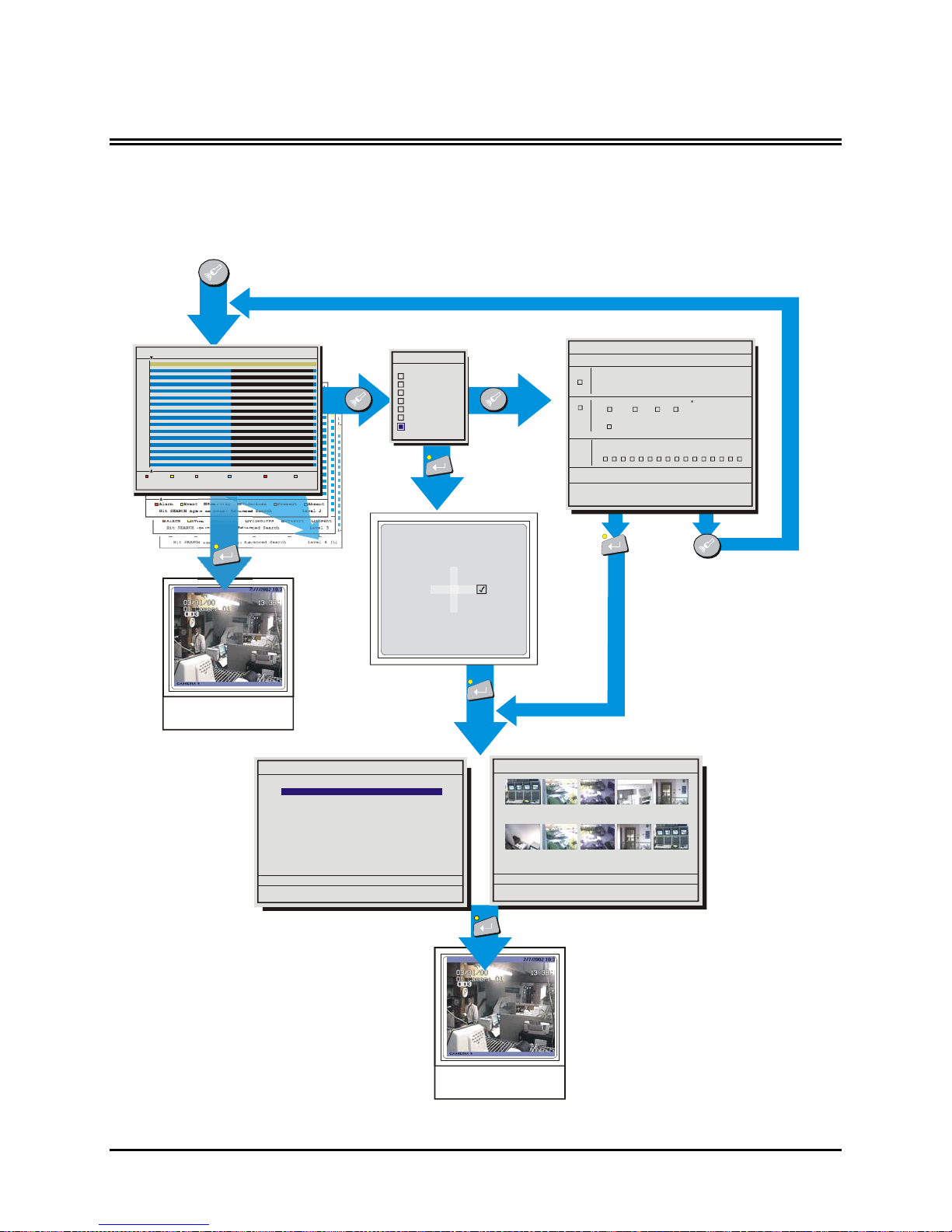

Search Menu Overview

earch

Button

Disk Analysis Screen

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Alarm Event Activity Videoloss Present A bsent Hit SEARCH again to enter Advanced Search Level 1

01/21/2002 20:17:01

Enter

Play Back

Start Date Start Time Days HH MM SS

000 01/21/2002 20:07:10 0 04:35:15

001 01/21/2002 20:08:10 0 00:01:55 002 01/21/2002 20:09:10 0 00:00:38 003 01/21/2002 20:10:10 0 01:07:22 004 01/22/2002 20:07:10 0 00:00:07 005 01/23/2002 20:07:10 0 00:08:56 006 01/24/2002 20:07:10 0 00:00:06 007 01/25/2002 20:07:10 0 05:57:31 008 01/26/2002 20:07:10 0 00:46:43

9 matches found.

‘PLAY REV/FWD’ to page up/down ‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Motion Search

Search Button

Activity Setup

Time/Date Search Results

Search Results

Motion Search

Last 2hrs Last 8hrs Last day Last 7 days Last 4 weeks Last 12 weeks

Custom

Search Button

Enter

Search Results

Search Filters

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/04 01/27/04 20:57 20:59

Activity Event Alarm Text

Camera

[CANCEL] [START SEARCH]

Hit ‘ZOOM’ to edit retail text list Hit ‘ENTER’ to toggle EDIT Mode

Enter

Activity, Text, Alarm Se arch Res ults

3/19 06:11 02

3/20 18:51 02

10 matches found.

‘PLAY REV/FWD’ to page up/down

ENTER’ to play event; ‘SEQ’ to repeatedly play event.

3/19 21:42 02

3/20 21:54 02

earch Results

3/19 23:51 02

3/21 02:25 02

earch Filters

Retail

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

XXXXXXXXXXXXXXX

Button

3/20 6:26

3/20 14:30

3/21 03:51

3/22 21:01

EDIT MODE

0150-0313B 72 DVMRe CT II

Enter

Play Back

Page 73

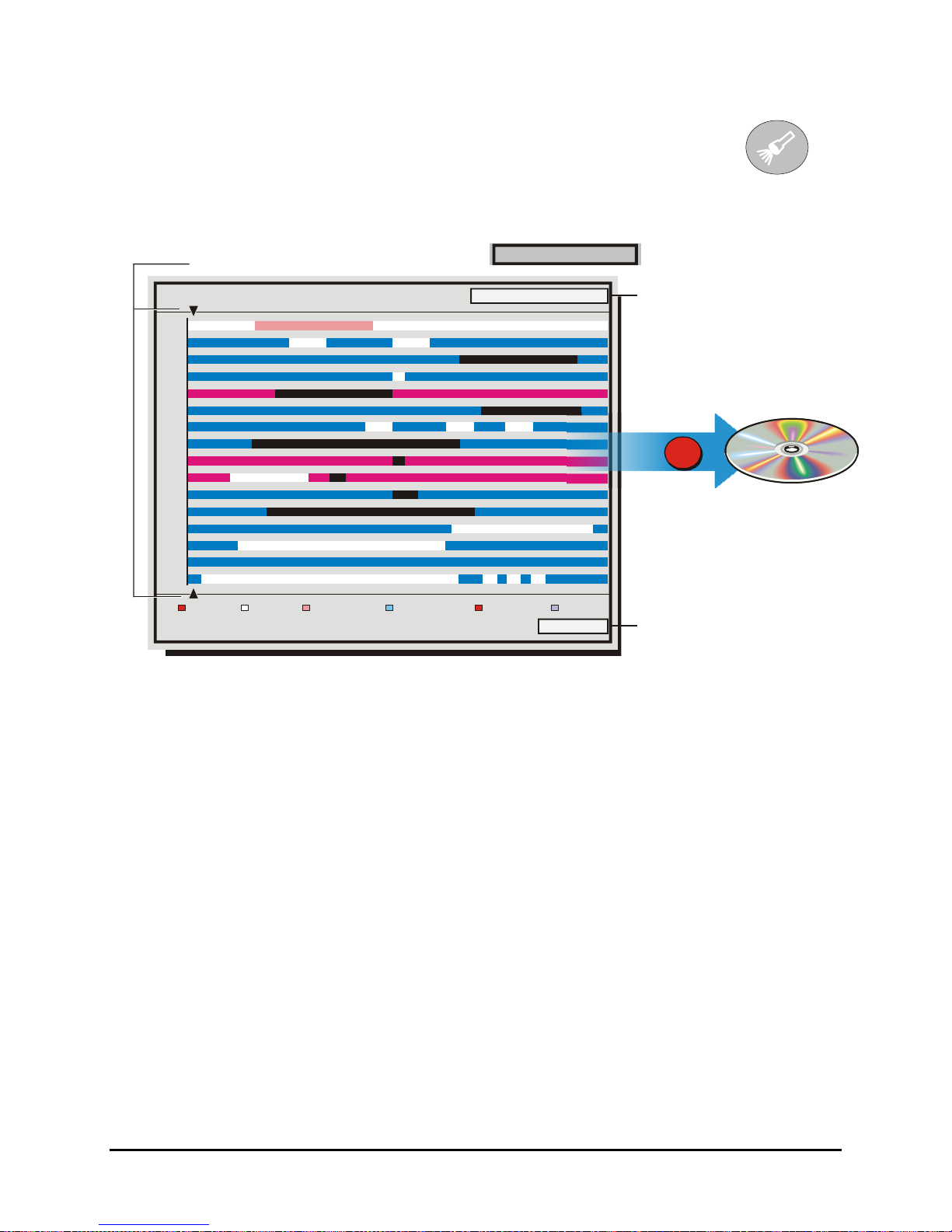

5.1 Disk Analysis Screen

Begin by pressing the Search button. The Disk Analysis Screen will appear. This screen shows a graphical representation of the recorded video stored on the internal hard disk.

Arrow Cursors

02/28/2002 20:45:00

Search Button

Disk Analysis Screen

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Alarm Event Activity Videoloss Present Absent Hit SEARCH again to enter Advanced Search Level 1

01/21/2002 20:17:01

evel 1

Disk Time and Date at cursor location.

Record

Button

Zoom Level

Write to CD

Rotating the Jog moves the two arrow cursors across the representation of the recorded video. As the cursors move across the screen the corresponding disk time is indicated in the upper right of the screen. The video representations are color-coded by category. Rotating the Shuttle expands (Zooms) the display. The Lowest level (most detail) is indicated on screen with an (L). Pressing the Enter button will start Playback from the cursor location.

0150-0313B 73 DVMRe CT II

Page 74

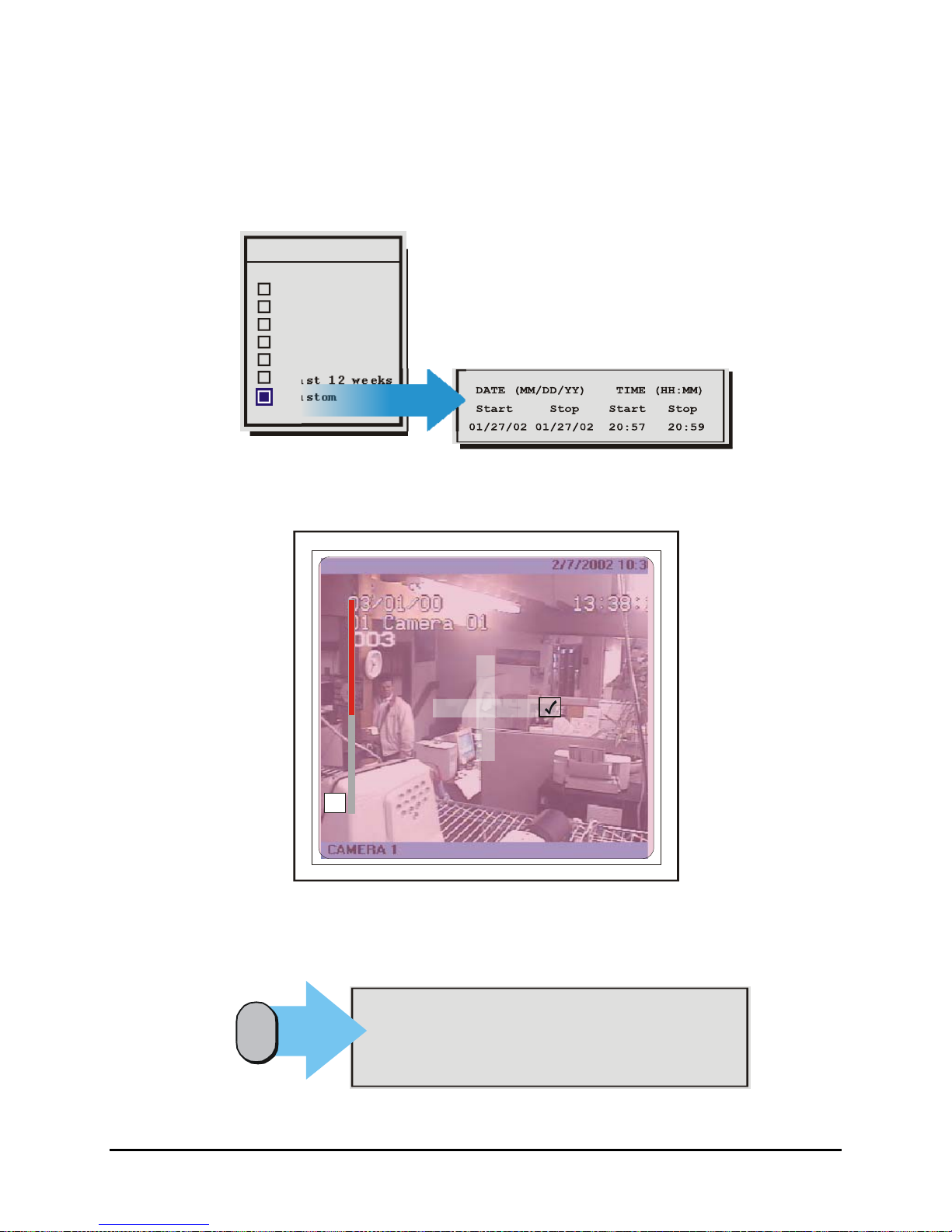

5.2 Motion Search

utto

Pressing the Search button a second time will bring up the Motion Search menu. This menu performs a motion search with six preset time parameters and a custom search option. Rotate the Jog to navigate and the Shuttle to select a specific parameter. Selecting the Custom option and pressing the Enter button starts playback and brings up another window with Start/Stop, Time/Date options. These options provide the parameters to focus the search to a specific time period.

Motion Search

Last 2hrs Last 8hrs Last day Last 7 days Last 4 weeks Last 12 weeks

Custom

Selecting any of the other options and pressing Enter starts playback and displays the Motion Search Setup Screen.

This screen overlays the current playback video and allows the user to enable or disable motion detection on the screen within blocks that form a 16 x 16 grid.

Pressing the Function key while in this screen overlays a help screen with all the available commands.

{F}

Function

0150-0313B 74 DVMRe CT II

‘MENU’ : Exit Activity Setup ‘ENTER’: Save and Exit Activity Setup ‘PAUSE’: Toggle between Enable and Neutral ‘STOP’ : Toggle between Disable and Neutral ‘ZOOM’ : Disable/Enable all zones

Page 75

Pressing Enter upon completion of the activity setup will start the search and launch the Search

XXXXXXXXX

Results window. See section 5.4 for operating instructions.

5.3 Search Filters

Pressing the Search button a third time brings up the Search Filters Menu. Use the Search Filters menu to specify:

• The type of operation to be performed: Play from Disk, Play from Archive, Copy from Disk to Archive, and Copy from Archive to Disk.

• The Start and Stop date of the search.

• The Start and Stop time of the search.

• Searching for recorded activity, events, retail text, or alarms.

• Searching for a text string.

• Which cameras to search inclusively or exclusively.

Search Filters

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/04 01/27/04 20:57 20:59

[CANCEL] [START SEARCH]

Hit ‘ZOOM’ to edit retail text list Hit ‘ENTER’ to toggle EDIT Mode

Activity Event Alarm Text

Retail

Camera 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

XXXXXXXXXXXXXXX

XXXXXX

EDIT MODE

The following options are available when an archive device is connected:

1. Play from Disk.

2. Play from Archive.

3. Copy from Disk to Archive.

4. Copy from Archive to Disk.

Selecting these functions displays thumbnails in the Search Results window.

To access the Retail Search Menu select ‘RETAIL’ and press the ‘ZOOM’ key.

Hit Camera buttons to select/deselect individual cameras. Use the Zoom button to globally select/deselect cameras to search.

Selecting Search Parameters

1. Rotating the Jog to navigate, highlight the box adjacent to the parameters that you wish to modify.

2. Once in the Parameter Box, use the Shuttle to navigate through the fields and the Jog to change

the values.

3. To activate the parameter, use the Shuttle or the Enter button to place an [X] in the check box.

4. When finished, use the Jog to navigate to another parameter.

0150-0313B 75 DVMRe CT II

Page 76

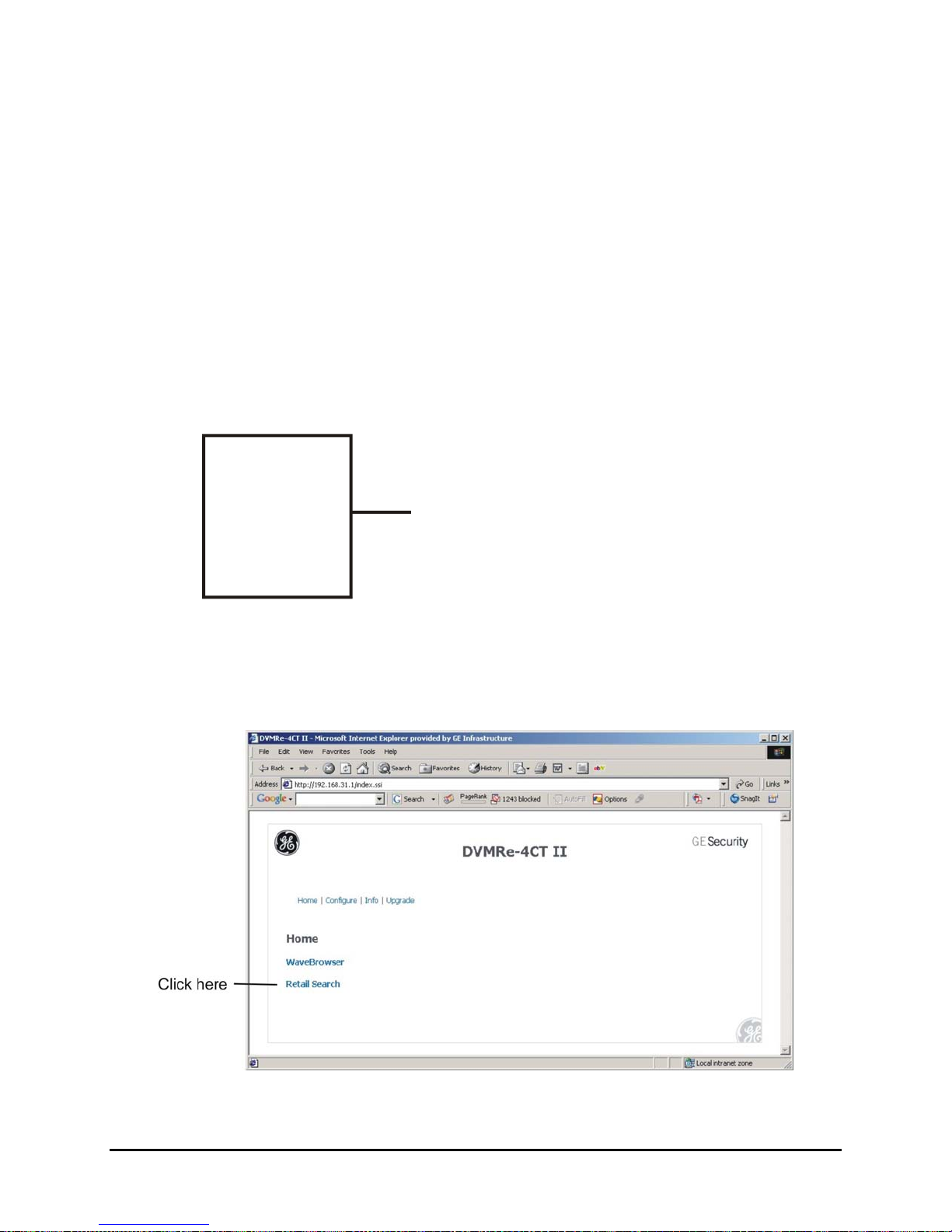

5.4 Retail Search

The local retail search feature is provided for customers who wish to search video for specific products from the front panel of the DVMRe. The customer can select from predefined product names from predefined categories. To use this feature you must create a text file containing the categories (product types) and product names (sub levels) that you want to search. This file is then uploaded to the DVMRe via the web interface.

Text File Format

To create a retail search text file open Notepad or any other simple text editor. The file must be saved as a text only file. The meta-character # is used in this text file to identify a category. All strings below a category are interpreted as sub levels of that category until another category appears. The creator of the retail text file is responsible to put the categories and sub levels into correct order. The DVMRe will not sort the strings. A category has to have at least one sub level. The customer has to store this file as a .txt file named retail_search.txt.

Example:

#Ice_Cream Vanilla Chocolate_Chip #Soda Vanilla Root_Beer Orange #Beer Draft Light Extra_Light

filename: retail_search.tx

Uploading/Downloading the retail_search .txt File

The retail search text file can be uploaded to the DVMRe unit via the Web interface. The index.ssi page will contain a link to the retail search page. Open the embedded web browser by typing the DVMRe’s IP address in the address field of your Internet browser.

0150-0313B 76 DVMRe CT II

Page 77

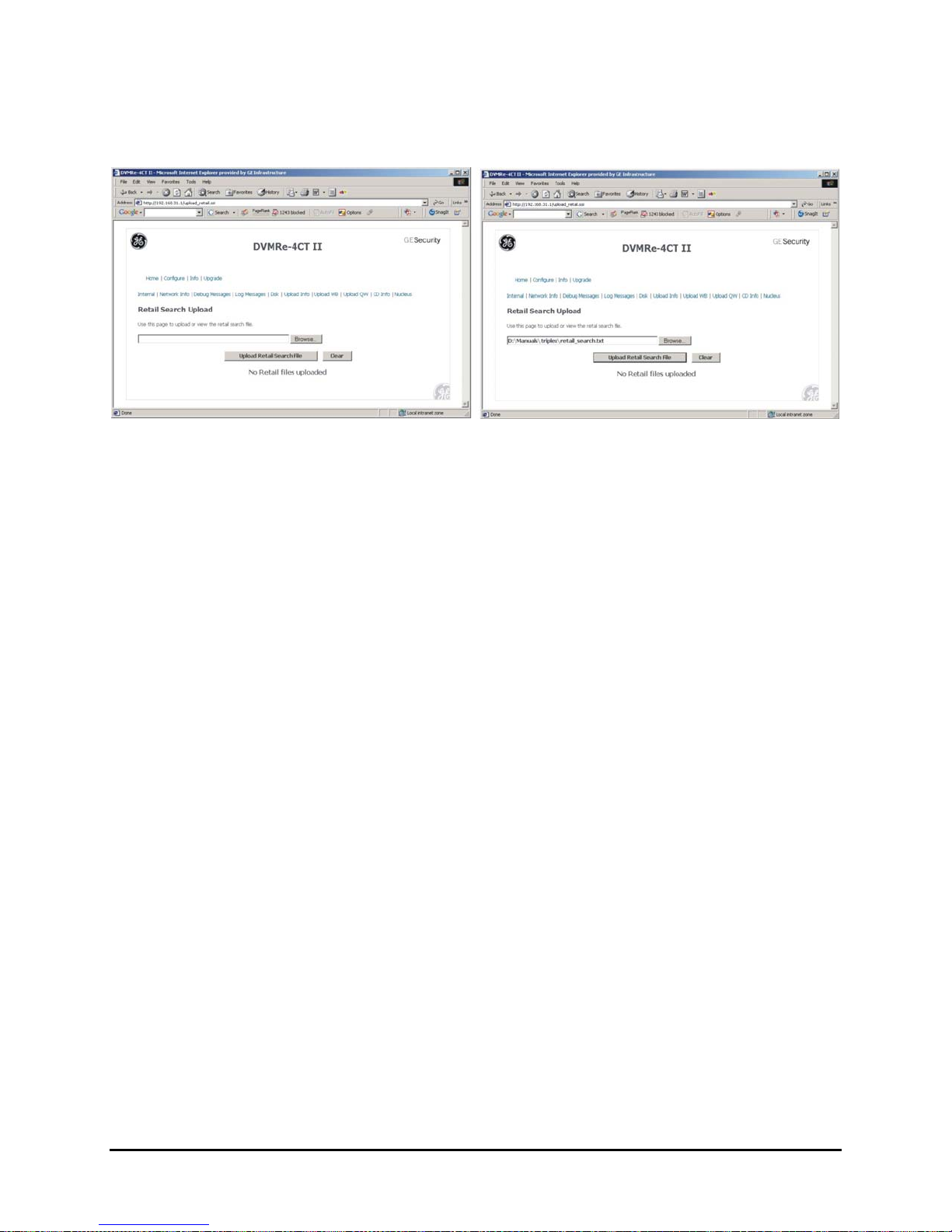

This page will appear if no retail text file has previously been uploaded. To upload the file, click the Browse button and navigate to the file location. Once the file is selected, click on the Upload Retail Search File button.

When the retail text file has been uploaded this page provides the options to delete or upload a new retail text file. The user can view the retail text file by clicking the link to the retail text file. The user can download the retail text file to a PC by right-clicking the link and by choosing 'Save Target As'. The user can only upload one retail text file and can delete the current retail text file. After uploading the file (and also after a reboot), the DVMRe will read the contents of the file and store it in memory.

The Local Retail Search Screen

Access to the Local Retail Search screen is gained through the Search Filters Menu. Press the Search button one or more times until the Search Filters Screen appears, then select the Retail radio box and press the Zoom key.

0150-0313B 77 DVMRe CT II

Page 78

Search Filters

[

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/04 01/27/04 20:57 20:59

Activity Event Alarm Text

Retail

Camera 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

XXXXXXXXXXXXXXX

[CANCEL] [START SEARCH]

Hit ‘ZOOM’ to edit retail text list Hit ‘ENTER’ to toggle EDIT Mode

EDIT MODE

etup Retail Search

Catagories

Sub Level

Selected Strings

Clear Individual (1)

Clear All

CANCEL]

[OK]

it ‘ENTER’ to toggle EDIT Mode

Ice_Cream Soda

(3)

Beer

(2)

To access the Retail Search Menu select ‘RETAIL’ and press the ‘ZOOM’ key.

Vanilla Chocolate_Chip

Vanilla

Ice Cream selecte from Category List

Vanilla selected from Sub Level

The following operations can be performed on this screen:

• Select category in the categories list.

• Select and deselect sub levels of the currently highlighted category.

• Clear individual or all selected sub levels.

3 categories, 5 sub levels, and 5 selected sub levels can be displayed on screen at one time. Up/down keys will scroll the screen backward and forward. The user can select sub levels from different categories by first selecting the category, then going to sub level frame and highlighting the selection. The user selections are kept in non-volatile memory so they survive a reboot. The user selections will be cleared when the user uploads a new retail text file. Like the other text searches, the results will display in thumbnail pictures and can be viewed through full screen playback with text.

Restrictions and Limitations

• The limit of the search strings is 1000. For example there might be 50 categories and 950 sub levels.

• It is not possible to have a second sub level (e.g. Soda>Diet Soda>Root _Beer).

• It is not possible to do a normal text search and a retail search at the same time.

• The characters #, *, and @ are meta characters and are not to be used in the text string.

0150-0313B 78 DVMRe CT II

Page 79

• It is not possible to search for categories. In the previous retail search text file for example, the

‘

user cannot search for Beer.

• Only the first word of a sub level will be searched. For example, when the sub level 'Chocolate Chip' is selected, only the word 'Chocolate' will be searched for. The search string cannot contain blank characters or spaces and is not case sensitive.

• Only the first 30 characters of a category or sub level are displayed.

• The user can select up to 25 sub levels and search them simultaneously.

• A maximum of 200 matches are available for each specific search. The user can further modify

searches by selecting time limit and cameras.

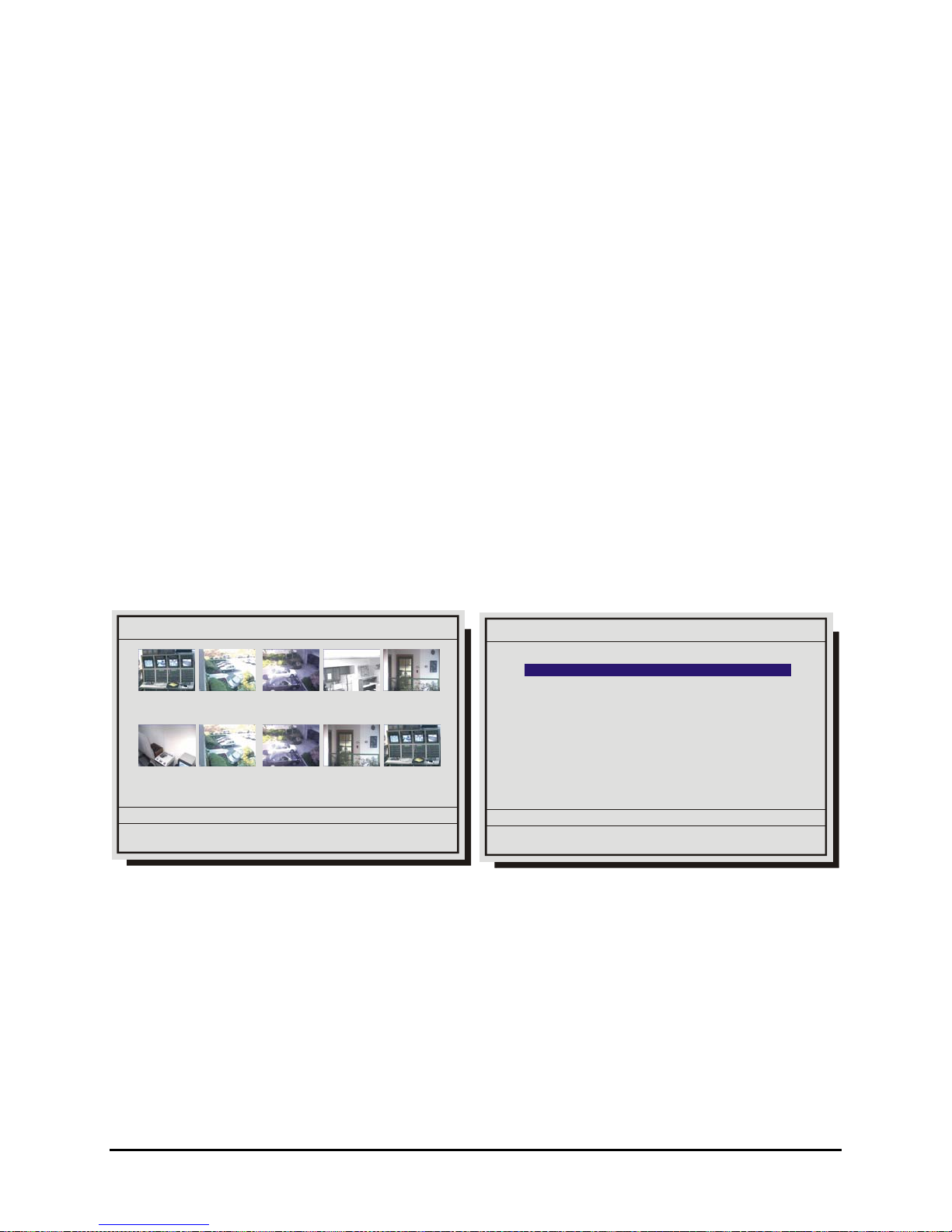

5.5 Search Results

Activate Search

From the Search Filters menu, use the Jog to navigate to the Start Search parameter. With the Start Search parameter highlighted, press the Enter button to begin the search operation. When finished

searching, the Search Results window will appear. A maximum of 200 results can be displayed per search. Two types of Search Result windows will appear depending on the Operation and type of

search that is performed.

Activity, Text, Motion, Alarm Search Results

Search Results

3/19 06:11 02

3/20 18:51 02

10 matches found.

‘PLAY REV/FWD’ to page up/down ‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

3/19 21:42 02

3/20 21:54 02

3/19 23:51 02

3/21 02:25 02

3/20 6:26 02

3/21 03:51 02

3/20 14:30 02

3/22 21:01 02

9 matches found.

‘PLAY REV/FWD’ to page up/down

ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Follow the directions on-screen to select, archive, playback, etc.

Time/Date Search Results

Search Results

Start Date Start Time Days HH MM SS

000 01/21/2002 20:07:10 0 04:35:15

0150-0313B 79 DVMRe CT II

Page 80

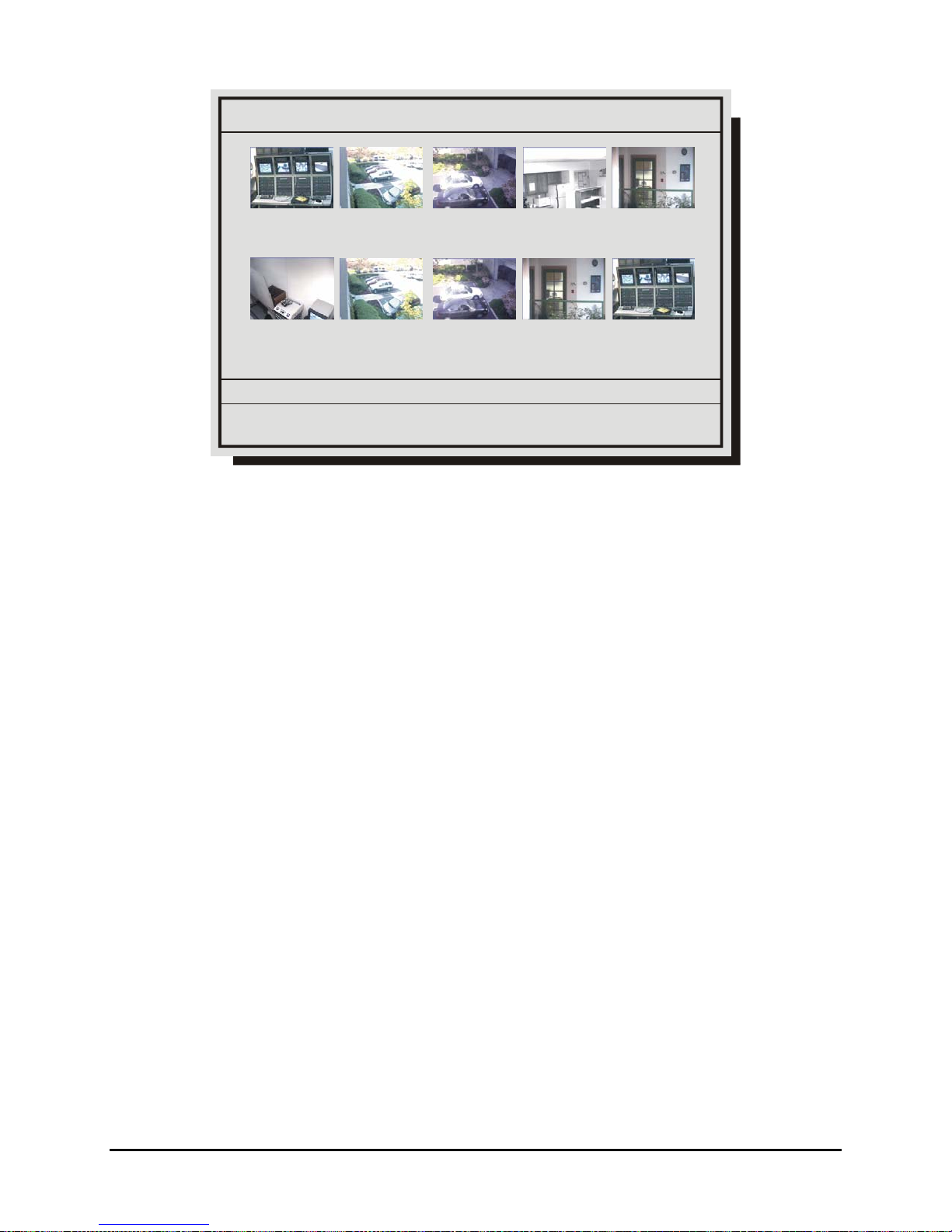

earch Results

3/19 06:11 02

3/20 18:51 02

10 matches found.

‘PLAY REV/FWD’ to page up/down ‘ENTER’ to play event; ‘SEQ’ to repeate dly play event.

3/19 21:42 02

3/20 21:54 02

3/19 23:51 02

3/21 02:25 02

3/20 6:26 02

3/21 03:51 02

3/20 14:30 02

3/22 21:01 02

Some options may be unavailable depending on the type of search performed. These options are not displayed. When archiving, the unit will not allow the amount of selected data to exceed the amount of space available on the target medium.

Press the Menu button to exit the Search Results window without making a selection. Hitting the Enter button will play the selected search result. Hitting the Enter button again while in playback will cause the next selection from the search list to be

played. Press the Sequence button to repeatedly play the selected event.

0150-0313B 80 DVMRe CT II

Page 81

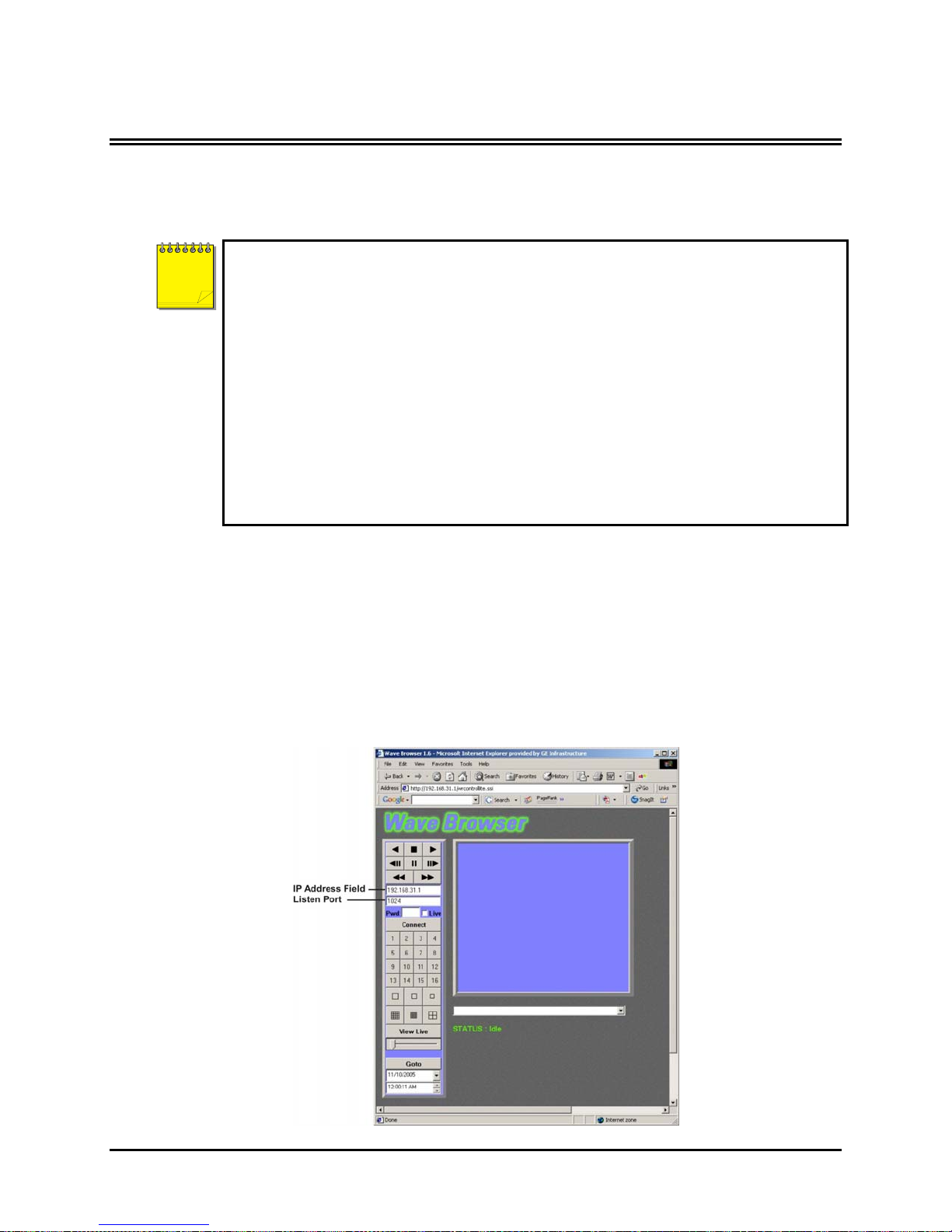

6 WebBrowser

The DVMRe CT II has an integrated WebBrowser interface. The WaveBrowser option allows the user to view video from any ethernet connected CT II with software version 4.09 or above.

For WaveBrowser to function properly, certain ActiveX controls must be set correctly. To

NOTE

setup the ActiveX controls:

1. Click on the Tools → Internet Options Menu in Internet Explorer.

2. Click on the Security tab.

3. Select Internet for the Web Content Zone.

4. Click on the Custom Level button.

5. Ensure that both Download unsigned ActiveX controls and Initalize and Script ActiveX controls not marked as Safe are set to Prompt.

6. Click the OK button.

7. Click on the Yes button in the Warning message.

8. Click the OK button in the Internet Options window.

To access the web interface:

1. Launch Internet Explorer (version 5.5 or later) on any local Internet connected PC or laptop.

2. Type in the Triplex’s IP address or hostname in the address field and press enter. The Enter Network Password box should appear.

3. Enter the correct Username and Password in their respective fields (the default username and password is admin). Click the OK button.

4. The WaveBrowser window should appea r. Type t he IP address in the IP Address Field and click the Connect button.

0150-0313B 81 DVMRe CT II

Page 82

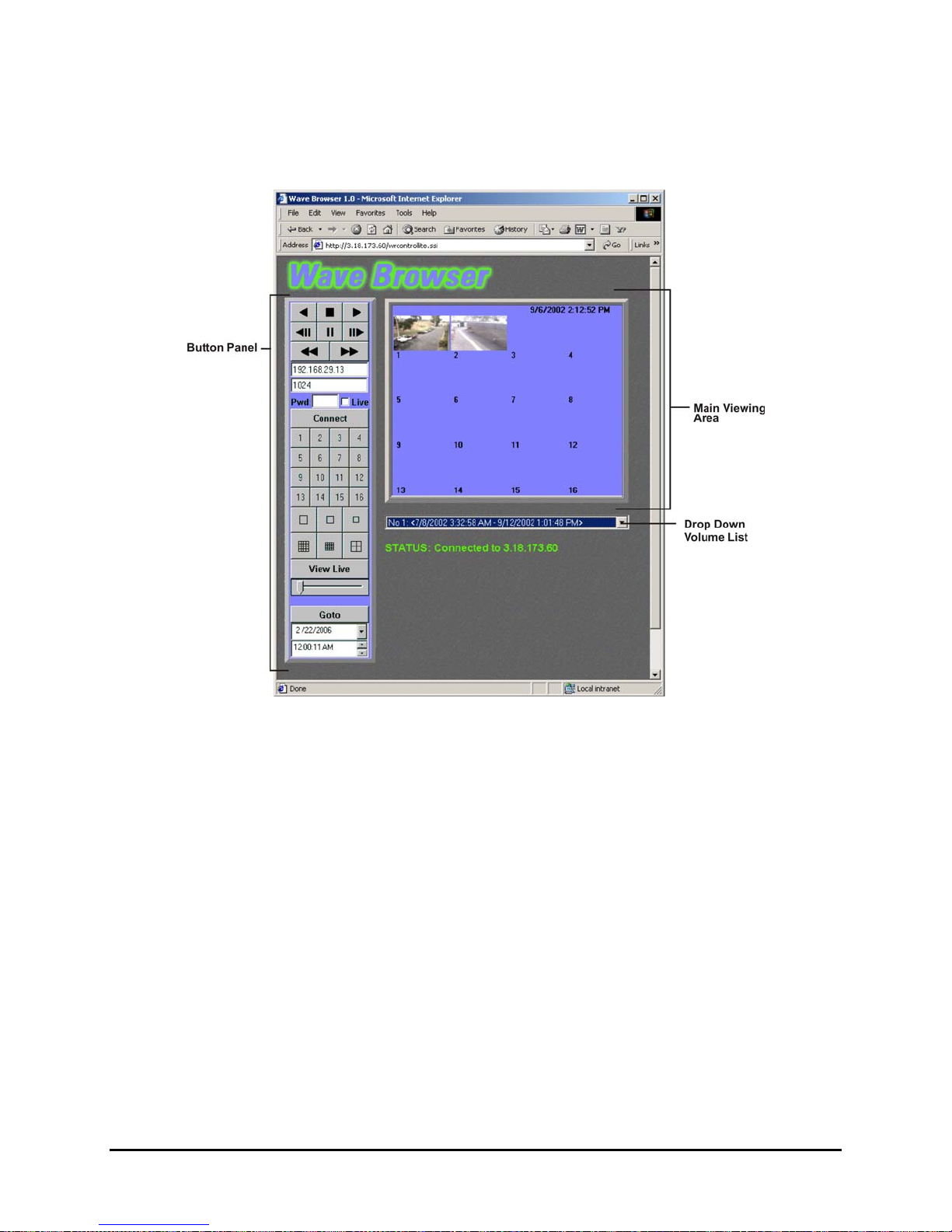

6.1 WaveBrowser Overview and Controls

The Main program window consists of the following areas:

• The Main Viewing Area: The large blue area.

• The Button Panel: The left side of the window.

• The Drop Down Volume List: Allows the selection of available Disk volumes.

The Main Viewing Area

Pictures are displayed in this area in Multi-Camera, and Single-Camera formats. Picture display order is according to the information encoded by the unit used to create the original video data file.

Choose from the following displays:

• 16-way Multiscreen Display (Large and Medium)

• 4-way Display

• Single Camera Display Large

• Single Camera Display Medium

• Single Camera Display Small

0150-0313B 82 DVMRe CT II

Page 83

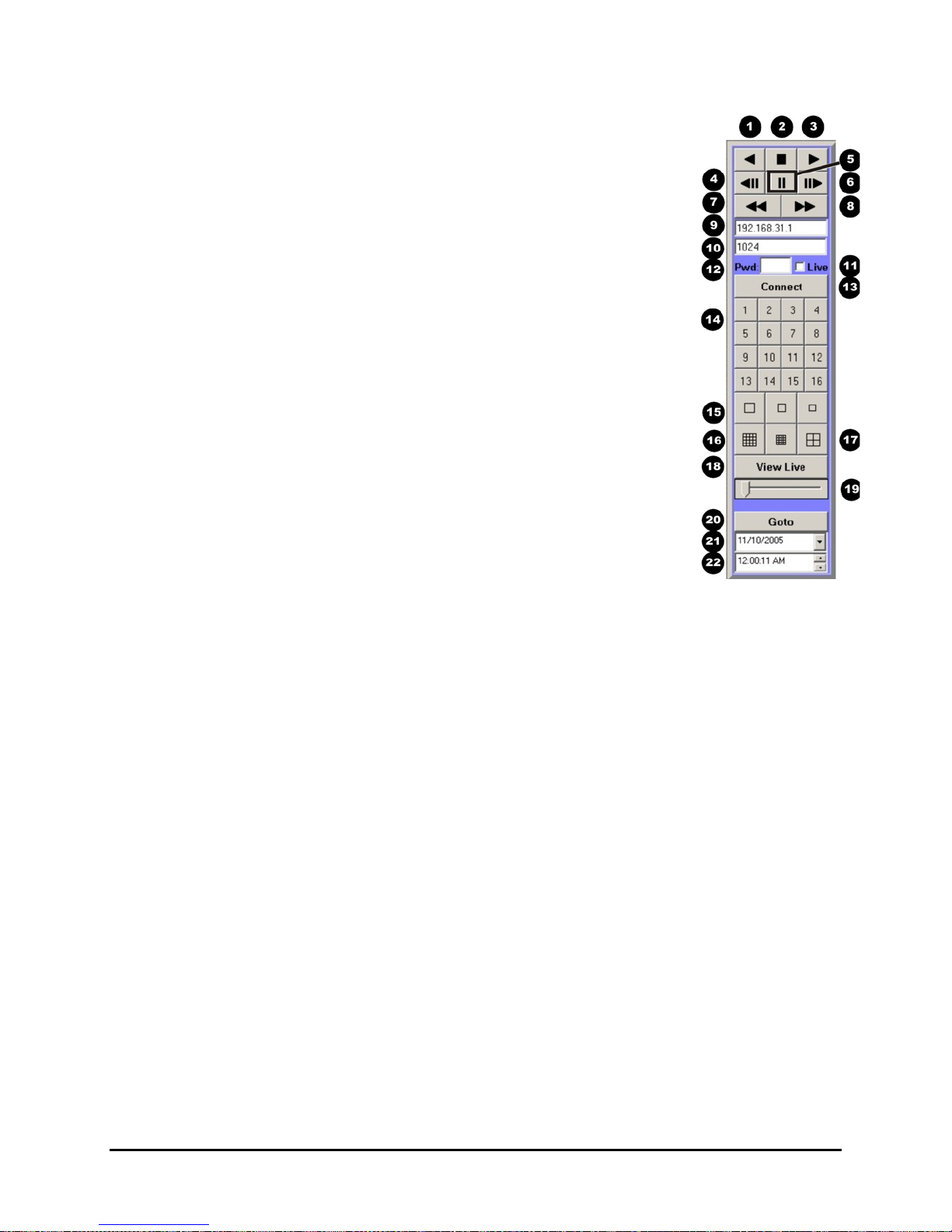

The Button Panel

1. Play Backward button: Click on this button to playback vide o in

reverse.

2. Stop button: Click on this button to halt all playback operations. The Play Pointer Slider Bar moves to the start of data.

3. Play Forward button: Click on this button to playback vide o.

4. Single Frame Rewind button: Click on this button to rewin d the video a

single frame.

5. Pause button: Pauses playback until the Pause button is pressed again. Clicking any of the buttons, except Stop will also resume playback. The Play Pointer slider bar stays at the current position while paused.

6. Single Frame Advance button: Click on this button to advance the video a single frame.

7. Rewind button: Click on this button to perform high-speed reverse playback.

8. Fast Forward button: Click on this button to perform high-sp eed playback.

9. IP Address Field: Enter the unit’s IP address.

10. Listen Port: This nu mber must match the number in the Ethernet

settings menu.

11. Live check box: Click in this box to enable live viewing before connecting.

12. Password Field: Enter the unit’s password, if necessary.

13. Connect/Disconnect button: Click on this button(s) to connect to the unit.

14. Number buttons: Press any of these buttons to call up individual cameras for display. When

connected to a unit that has more than 16 cameras, right-clicking over the number buttons will display numbers 17 through 32. Right-click again to return to cameras 1 through 16.

15. Single Camera Display Size: Choose from Small, Medium, or Large.

16. 16-way Multiscreen button: Choose from a Medium 16-way, or Large 16-way.

17. 4-way Multiscreen button: Selects a Large 4-way display.

18. View Live Button: Click on this button while connected to view live video.

19. Play Pointer Slider Bar: The Play Pointer slider bar advances to the right to indicate the playback position on the disk. The user can drag the bar to navigate forward or backward.

20. Goto Button: Click on this button to go to the selected date for the drop down time and date boxes.

21. Drop down Date Selection Menu: Click on this field to display a graphic calendar to select a

date to view.

22. Time Selection Menu: Click on the Up or Down Arrows to select a specific time to view.

The Drop Down Volume List Box

Click on the arrow to display a list of available disk volumes on the connected unit. Click on the volume to select.

0150-0313B 83 DVMRe CT II

Page 84

6.2 DVMRe CT II WaveLink

A new feature with Triplex software version 5.00 is the DVMRe CT II WaveLink. This feature allows putting command codes in the URL when calling WaveBrowser to control actions the WaveBrowser is going to perform.

This feature can be used by Web Developers to link various cameras to specific Web content. It will also be used by the DVMRe Email feature to allow the recipient of an alarm email to click on a link in the email, which causes the WaveBrowser to connect and play back at the time when the alarm occurred.

Functionality

The traditional WaveBrowser URL is http://<IP_Address>/wrcontrollite.ssi. This URL will start the WaveBrowser in the disconnected state. Triplex software version 5.00 supports command codes placed after an underscore after wrcontrollite and before .ssi. In the following example, the options are in bold.

Example: http://3.18.172.230/wrcontrollite_c=1s=2a=3t=1361959858.ssi.

The following table specifies the supported options:

Name Code Description Example

Camera c=<n> Describes either the camera number for

fullscreen (1=Camera 1, …16=Camera

16) or the type of the multiscreen display (100 = Multiscreen 16 large, 101= Multiscreen 16 small, 102= Quad screen)

Size s=<n> For fullscreen camera, describes the

size of the display (1=large, 2 =medium, 3= small)

Action a=<n> Describes the action the WaveBrowser

has to take: 0 No action 1 Normal Connection Play 2 Normal Connection Live 3 Normal Connection Goto 4 Live Connection

Time t=<n> When action is set to 3 (Goto), the time

specifies where to go in number of seconds since 01/01/1960.

c=10

s=2

a=2

t=1361959858

Please Note: When an option is not specified, it will be set to 0.

NOTE

0150-0313B 84 DVMRe CT II

When a normal connection is requested, but the DVMRe unit is already connected via a normal connection, the WaveBrowser should open a live connection instead.

Page 85

The default page, http://3.18.172.230, does not accept option codes and will open the WaveBrowser in disconnected state.

The example URL from above (http://3.18.172.230/wrcontrollite_c=1s=2a=3t=1361959858.ssi) requests the WaveBrowser to make a normal connection, play back at 2/27/2003 10:53:32 displaying camera 1 in medium size.

Email Links

The DVMRe CT II is able to send emails when certain events occur (like videoloss, alarms, etc.). When in record mode, the Triplex software version 5.00 will add a WaveBrowser link in the email notification. It will only add a link in the email if Notify Alarm is set to enable and the link will only pertain to the Alarm start.

Clicking this link initiates WaveBrowser to be started, make a normal connection and play back the specific camera with a medium size video window at the time the alarm occurred.

0150-0313B 85 DVMRe CT II

Page 86

7 Technical Specifications

General

External Power Supply

12 Volt DC. 60 Watt (5 Amp)

Connector Power Consumption Operating Temperature Range Relative Humidity Range (Non-Condensing) Dimensions Weight

Connections

10/100 Ethernet Port RS232 Port 1 AUX Port RS232 Port 2 Camera Inputs Monitor-A Output (Y/C) Monitor-B Output (Y/C) Monitor-A Output (Composite) Monitor-B Output (Composite)

2.1mm barrel connector, center positive. 35 Watt nominal (single hard disk). Operating: 0 to 40°C. Storage: -20 to +60°C. Operating: 10% to 80%. Storage: 10% to 95%

17.5 x 14 x 1.7 Inches. 1U, 19 inch rack unit. 9 Lbs.

RJ-45 Connector. DB-9 Male Connector. DB-9 Male Connector. RJ-45 Connector. BNC connectors. Auto Terminating. Color & Mono. 4-pin Mini-DIN Connector. 4-pin Mini-DIN Connector. BNC Connector. BNC Connector.

RS485 Port SCSI Port IEEE 1394 Firewire Port Alarm I/O Port

Two Looping RJ-45 Connectors 50 pin, High Density SCSI-2 female connector. 6 position IEEE 1394 Socket Use Supplied DB-25 PCB connector.

Video

Video Signal Input Video Signal Output Input Termination Display Memory Resolution Gray Scale Colors Compression Standard

0150-0313B 86 DVMRe CT II

0.5 to 2.0 Volts peak-to-peak with Automatic Gain Control. 1 Volt peak-to-peak into 75-Ohm. 75-Ohm (Auto Terminating) 4 Megabytes Horizontal: 720 Pixels. Vertical: 484 Lines (576 for PAL). 256 levels Y:U:V 4:2:2, 16.8 Million Colors J200 JPEG

Page 87

Audio

Audio Input

315mV, 40k Ohms. Unbalanced.

Audio Output

Alarms

Inputs Relay Configuration Record Priority Alarm Status Indicators

Motion Detection

Zones Per Camera Sensitivity Settings Gray Levels Per Zone Motion Detection Status

Output

Part Numbers

Remote Keyboard

315mV, 600 Ohms. Unbalanced.

1 per camera. User programmable as Normally Open or Normally Closed. Interleaved, Exclusive, or No Change. Relay Outputs, On-screen Indicators. Status Retrievable via RS232

port.

256: 16 x 16 grid. 10 levels 256 levels Relay Outputs, Link to Alarms, Link to Events, On-screen Indicators.

Status retrievable via RS232 port.

CBR-KB3, CBR-KB3/J, KTD405. Includes motorized pan, tilt, and zoom controls.

Rack Mount Kit Replacement Manual

0150-0313B 87 DVMRe CT II

CBR-RK6. 1U Height. Part Number: 0110-R601 0150-0313

Page 88

8 RS232 Alarm/Event Generation/Text Insertion

Protocol

The RS232 Alarm/Event Generation /Text Insertion Protocol is designed to deliver Alarm, Event (commands), and Text data to the DVMRe from serial interface devices through the RS232 port.

NOTE

Setting and Clearing Alarms with this Protocol is equivalent to activating and deactivating Alarms on the hardware alarm inputs.

8.1 Message Structure

The Delimiter byte signals the start of a new message, and has a value of 0xFF. The Class and Command fields identify the type of message. The Data Length is a 16-bit value indicating the number of bytes in the Data portion of

the message. Data Length is sent using Intel byte ordering (Little Endian). The Check Sum byte is the result of XORing all the bytes in the message.

8.2 Message Type

One message is currently supported to store text along with recorded video.

Delimiter Class Command Data Length Data Check Sum

0xFF

CMD_NEW_ADD_TEXT

Class byte is 0x14. Command byte is 0x40. Data Length is the number of data bytes in the message (from 2 to 502). Camera byte indicates the camera associated with the alarm, event, or text. The

valid range is from 0 to 15.

Alarm/Event byte usage is described in the following section. String fields contain text characters. The string length can be from 0 to 500

characters in length. The String field is not required. If text data is available, it will be recorded with the next video frame for the camera identified by the camera field.

0x14 0x40 Data Length[0] Data Length[1] Camera Alarm/Event String[0] String[1] : String[n-1] Check Sum

0150-0313B 88 DVMRe CT II

Page 89

8.3 Alarm/Event Fields

The two least significant bits are currently used for the Event commands. Bits 2 and 3 are used for the Alarm commands.

MSB LSB

7 6 5 4 3 2 1 0

Event Start Event Stop

larm Start larm Stop

8.4 Alarm Actions

No Alarm Change – 0000 00XXb

If both the start and stop bits are clear, the alarm status and camera record rates will remain unchanged.

Start Alarm – 0000 01XXb

If only the start bit is set, the DVMRe will enter the Alarm mode. The selected camera will become the alarm camera. Pre-alarm video will be recorded and the Alarm Record Rate will be initiated.

Every Start Alarm command should subsequently be followed with a Stop Alarm command

NOTE

Stop Alarm – 0000 10XXb

If only the stop bit is set, the selected camera’s alarm status will be cleared. If no other alarms are present, the DVMRe will exit the alarm mode.

at some point. Failure to do so will render that alarm input useless, even if the alarm was latched and gets acknowledged from the front panel. A Stop Alarm followed by a Start Alarm will have to be sent to create a new alarm on that channel.

Momentary Alarm – 0000 11XXb

If both the start and stop bits are set, a momentary alarm will be initiated on the selected camera. Prealarm video will be recorded at the alarm record rate, after which the DVMRe will continue to record video at the normal record rate.

0150-0313B 89 DVMRe CT II

Page 90

8.5 Event Actions

NOTE

All Event messages will be ignored while an Alarm condition exists in the DVMRe.

No Event Change – 0000 0000b

If both the start and stop bits are clear, there will be no change to the event status. The camera’s record rate will not be changed.

Start Event – 0000 0001b

If only the start bit is set, an event will be initiated on the selected camera. This will cause the selected camera, as well as any pre-event video to be recorded at the Event Record Rate.

Stop Event – 0000 0010b

If only the stop bit is set, the current event on the selected camera will be terminated. This will start the post-event timer after which, the selected camera will resume recording at the normal record rate.

Momentary Event – 0000 0011b

If both the start and stop bits are set, a momentary event will be initiated on the selected camera. Preevent video will be recorded at the event record rate for the selected camera. The post-event timer will continue recording at the event record rate, after which the selected camera will resume recording at the normal record rate.

0150-0313B 90 DVMRe CT II

Page 91

9 RS232 Remote Control Protocol

The unit supports two different communication types:

• Remote Front Panel Button Emulation

• Remote Configuration and Status

9.1 Front Panel Button Emulation

Data Structure

Byte 1: 0xFF Byte 2: 0x55 Byte 3: Front Panel Button Code

Description

Byte 1 and 2 are header bytes. Byte 3 contains the code for a specific front

panel button. The different buttons and their corresponding

codes are as follows. No Button Pressed 0

Record 1 Play 2 Stop 3 Alarm 4 Freeze 5 Zoom 6 Sequence 7 Reserved 8 Camera 1 9 Camera 2 10 Camera 3 11 Camera 4 12 Camera 5 13 Camera 6 14 Camera 7 15 Camera 8 16 Camera 9 17 Camera 10 18 Camera 11 19 Camera 12 20 Camera 13 21 Camera 14 22 Camera 15 23 Camera 16 24 Reserved 25 - 40 Menu 41 Enter 42 Reserved 43 Macro 44 Reserved 45-49

Monitor B 50 Reserved 51-63 Left Arrow 64 Right Arrow 65 Up Arrow 66 Down Arrow 67 Reserved 68-74 Alarm and Sequence 75 *Alarm and Camera 1 76 *Alarm and Camera 2 77 *Alarm and Camera 3 78 *Alarm and Camera 4 79 *Alarm and Camera 5 80 *Alarm and Camera 6 81 *Alarm and Camera 7 82 *Alarm and Camera 8 83 *Alarm and Camera 9 84 *Alarm and Camera 10 85 *Alarm and Camera 11 86 *Alarm and Camera 12 87 *Alarm and Camera 13 88 *Alarm and Camera 14 89 *Alarm and Camera 15 90 *Alarm and Camera 16 91 Reserved 92-110 Search 111 Frame Reverse 112 Frame Forward 113 Play Reverse 114 Stop 115 Play Forward 116 Monitor A 130 2 Way Multiscreen 131 4 Way Multiscreen 132 6 Way Multiscreen 133 7 Way Multiscreen 134 9 Way Multiscreen 135 10 Way Multiscreen 136 13 Way Multiscreen 137 16 Way Multiscreen 138

*Must send a “No Button Pressed” command immediately following any of these commands.

0150-0313B 91 DVMRe CT II

Page 92

9.2 Configuration and Status

i) Data structure

Byte 1: 0xFF Byte 2: Command Type

0xAA: (SET) Update DVMRe with data.

0xBB: (GET) Extract data from DVMRe. Byte 3: Data Length (n) Byte 4: Data Type

0x61: Restart DVMRe

0xFE: Send configuration data to DVMRe 0x09: Read Alarm History from DVMRe 0xFF: Read configuration and status data

from DVMRe Byte 5: Data byte 1 Byte 6: Data byte 2 : : Byte x: Data byte n

ii) Sending data to the DVMRe

a) Restart DVMRe CT II

This command will restart the DVMRe CT II.

Byte 1: 0xFF Byte 2: 0xAA Byte 3: 0 Byte 4: 0x61

b) Send data to DVMRe CT II

Configuration data can be sent to the DVMRe CT II, to change the way it operates. The data is arranged in the form of 16 byte blocks, numbered from 1 to 213. Blocks 182, 183 and 185 are status blocks, and hence cannot be written to. For details about the contents of each block, contact GE Security and request the Block Data Structure for the DVMRe CT II.

Byte 1: 0xFF Byte 2: 0xAA Byte 3: 17 Byte 4: 0xFE Byte 5: Block Number

(1-181, 184, 186-213)

Byte 6: data[0] : : : : Byte 21:data[15]

After sending a block or series of blocks, block number 255 must be updated to signal the end of the configuration session. All data bytes for block 255 must be set to 0.

iii) Requesting data from the DVMRe

When a message of type 0xBB is sent to the DVMRe CT II, it will respond by sending 16 bytes of requested data.

a) Read Alarm History List

Byte 1: 0xFF

Byte 2: 0xBB Byte 3: 0 Byte 4: 0x09

When the "Read Alarm History List" message is received by the DVMRe CT II, it responds by sending a start byte 0xFF, followed by ASCII strings for every alarm event in its alarm history list, and a stop byte, 0xFF. Each string is formatted as follows:

dd.bmm/ddbhh:mm:ssbaa<CR><LF>

dd: index number (00 - 99) b: space character mm: month (01-12) dd: day (01-31) hh: hours (00-23) mm: minutes (00-59) ss: seconds (00-59) aa: alarm number (01-16) <CR> Carriage return (0x0D) <LF> Line feed (0x0A)

Example: 03. 11/27 22:48:58 15

b) Read data from DVMRe CT II

Configuration and status data can be read from the DVMRe CT II. The data is arranged in the form of 16 byte blocks, numbered from 1 to 213. For details about the contents of each block, contact GE Security and request the Block Data Structure for the DVMRe CT II.

Byte 1: 0xFF Byte 2: 0xBB Byte 3: 1 Byte 4: 0xFF Byte 5: Block Number 1-213 or 255 if all

blocks are requested.

The DVMRe CT II responds to the “Read data” request by sending all the requested data bytes consecutively, without any start or stop bytes.

A total of either 16 bytes or 3408 bytes will be transmitted, depending on whether a single block or all the blocks were requested.

0150-0313B 92 DVMRe CT II

Page 93

10 Macro Tables

Photo copy this page and use it to keep a record of the programmed macro functions.

10.1 Macro Functions Table

Macro Number

Description

Function + Sequence

0150-0313B 93 DVMRe CT II

Daylight Savings Time: Sets clock ahead one hour in April, and back one hour in October.

Page 94

10.2 Scheduled Macro Table

Event Day Time Macro to Run 1

0150-0313B 94 DVMRe CT II

Page 95

10.3 Contacting technical support

For assistance installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, you may contact technical support during normal business hours (Monday through Friday, excluding holidays, between 6 a.m. an d 5 p.m. Pacific Time)

Phone:

Sales Technical support

Toll-free: 888.GESECURity (888.437.3287 in the US, including Alaska and Hawaii; Puerto Rico; Canada).

Outside the toll-free area: 503.885.5700.

E-mail

Fax

Note: Be ready at the equipment before calling for technical support.

cvovideosales@ge.com generaltech@ge.com

800.483.2495 541.752.9096 (available 24 hours a day)

10.4 Online publication library

Another great resource for assistance with your GE Security products is our online publication library, available to all of our customers on our website. To access our publication library, go to our website at the following location:

http://www.gesecurity.com/

In the Tools area at the top, click the Publication Library link then select Video Surveillance. After you register and log on, you may search through our online library for the documentation you need.

1 Many GE Security documents are provided as PDFs (portable document format). To read these documents, you will need Adobe

Acrobat Reader, which can be downloaded free from Adobe’s website at www.adobe.com.

0150-0313B 95 DVMRe CT II

Page 96

0150-0313B

GE DVMRe CT II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
