1 DVMRe Triplex eZ Overview

1.1 Products Featured In This Manual

DVMRe –4eZT: Digital Video Multiplexer Recorder, Four-Channel, Color, Triplex eZ. DVMRe –10eZT: Digital Video Multiplexer Recorder, Ten-Channel, Color, Triplex eZ. DVMRe –16eZT: Digital Video Multiplexer Recorder, Sixteen-Channel, Color, Triplex eZ.

Key To Model Numbers

1. DVMRe: Digital Video Multiplexer Recorder, Ethernet capable.

DVMRe 16 eZ T

2. 4, 10, or 16: Maximum number of camera inputs.

3. eZ: Simplified version.

4. T: Triplex.

1 2 3 4

1.2 Product Description

The DVMRe Triplex eZ is a video multiplexer capable of recording from multiple cameras to one or more internal hard drives while simultaneously providing playback. Unlike outdated time-lapse VCRs, the DVMRe Triplex eZ records high-resolution pictures. Digital recording improves playback quality over VCRs, and eliminates the hassle of cleaning heads, changing tapes or servicing motors. Depending on the setup, the DVMRe Triplex eZ can store from a few hours to more than 3 years of color images.

Programmable search features eliminate time consuming Fast Forwarding or Rewinding of tapes, searching for critical data. Search for recorded images or events by alarm, time, date, video loss, camera number and ASCII cash register or ATM text.

Caution! This products primary purpose is to furnish video multiplexing and recording. Although the unit has alarm handling and motion detection functions, they are considered secondary features. This unit should not be the only alarm device on site.

Features

• Multiplexer functionality with built-in digital recording.

• Triplex simultaneous recording, playback, and live multiscreen viewing.

• 60pps (pictures per second) recording of up to 16 cameras.

• Remote programming and control through the RS232, RS485 and Ethernet ports.

• View live or recorded images remotely using WaveReader software.

• Dual monitor displays.

• Auto-detect video mode on startup (NTSC or PAL).

• Video motion detection (intrusion and activity).

• Retail text search.

• Preview search results with thumbnail images.

• Displays include full screen, sequenced, picture-in-picture, and multiscreens.

• Alarm Handling with History Log. Pre- and post alarm recording.

• Archive onto GE Security DVSe Disk Array, or RAID, DAT, AIT, or CD-Rs.

• IEEE 1394 Firewire interface for GE Security DVSe Disk Array or Firewire Disk Drives.

• Continuous Recording with simultaneous Archiving.

• PTZ control via ethernet or POTS, using CBR-KB3/J or KTD-405 keypad.

• Covert camera recording (recording without display).

0150-0198H 6 DVMRe Triplex eZ

• Auto-Daylight savings time change function.

• Clock synchronization with Network Server.

• Integrated WaveBrowser Software.

• Dynamic IP addressing (DHCP).

• Support for Dynamic Domain Name Server (DDNS).

• Support for over a dozen languages.

• Hard Disk monitoring and testing features.

• Playback and live audio via WaveReader on audio supported models.

• Alarm Notification via email.

1.3 Passwords

Passwords are provided to limit access to menus and certain functions. Two levels of password security are provided:

• Operator: Limited menu access, only the Operator menu is available.

• Installer: Complete menu access, both the Main and Operator menus are available.

As a security measure, it is recommended that the Operator and Installer passwords be changed after installation is complete (see section 3.19). Store the passwords in the administrator’s secure files.

Default Passwords

Four-Channel Units

Password

Type

Operator Operator

Installer Installer

Factory

Defaults

Language Installer

Ethernet

Access

Reset

Access

Level

Installer

Function

Provides access to the Operator

menu.

Provides access to all on-screen

menus.

Resets the multiplexer to the

factory defaults (except the time,

date, email addresses, and email

IP address).

Provides access to the On-screen

Language menu.

Deactivates the ethernet

password, so that any PC

equipped with WaveReader may

access the unit.

Changeable

by user?

Yes

Yes 3 4 4 4

No 4 1 1 1

No 1 4 1 4

No 1 1 1 1

Press ‘ENTER’

Default

Password

4 Times

0150-0198H 7 DVMRe Triplex eZ

Ten and Sixteen-Channel Units

Password

Type

Operator Operator

Installer Installer

Factory

Defaults

Language Installer

Ethernet

Access

Reset

Access

Level Function

Provides access to the Operator

menu.

Provides access to all on-screen

menus.

Resets the multiplexer to the

Installer

factory defaults (except the time,

date, email addresses, and email

IP address).

Provides access to the On-screen

Language menu.

Deactivates the ethernet

password, so that any PC

equipped with WaveReader may

access the unit.

Changeable

by user?

Yes

Yes 3 4 7 7

No 8 1 1 1

No 5 4 1 5

No 1 1 1 1

Press ‘ENTER’

Default

Password

4 Times

1.4 Unpacking

Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit, contact the supplier immediately. If the unit must be returned, it must be shipped in the original packing box.

Package Contents

• The DVMRe Triplex eZ unit.

• The Alarm Interface Circuit Board (P/N 0090-0077).

• The User Manual (P/N 0150-0198).

• Accessory PCB (P/N 0900-0127). Audio equipped models only.

• A WaveReader Software CD (P/N 0151-0005-25W11).

• The WaveReader Software Manual (P/N 0150-0143).

• The Archiving Addendum (P/N 0150-0194).

• WaveWatch User Manual (P/N 0150-0189).

• Power Supply (P/N 4310-0020).

• Power Cords (120 VAC P/N 4310-0002) and (220 VAC P/N 4310-0001).

1.5 Installation Environment

Power: Ensure that the installation site’s AC power is stable and within the rated voltage of the 12

Volt DC power supply. If the site’s AC power is likely to have spikes or power dips, use power line conditioning or an Uninterruptable Power Supply (UPS).

Ventilation: Ensure that the location planned for the installation of the unit is well ventilated. Take note of the locations of the cooling vents in the unit’s enclosure, and ensure that they are not obstructed.

Temperature: Consider the unit’s operating temperature (0 to 40 °C) and non-condensing humidity specifications (10% to 80%) before choosing an installation location. Extremes of heat or cold beyond

0150-0198H 8 DVMRe Triplex eZ

the specified operating temperature limits may cause the unit to fail. Do not install the unit on top of

RS-485/1

ETHERNET

RS-485/2

RS-232/2

2345678

131415

other hot equipment. Leave space between rack mounted units. Moisture: Do not expose the unit to rain or moisture. Moisture can damage the internal components.

Do not install the unit near sources of water. Chassis: Other equipment may be placed on top of the unit if it weighs less than 35 pounds (16

kilograms).

1.6 Associated Equipment

Associated equipment in a typical security system could contain the following items:

• Two monitors

• A Keyboard (KB3 or KTD405).

• Video cameras: Composite video, 1 volt peak-to-peak.

• Alarm input devices: Pressure sensors, motion detectors, etc.

• Alarm output devices: Buzzers, Sirens, Flashing Lights, etc.

• A PC connected via ethernet cable.

• An external archive device, such as a DVSe, RAID, CD-R, DAT, or AIT drive.

For instructions regarding the connection of the associated security equipment in your system, please consult the instruction manual of the associated equipment.

1.7 The Back Panel

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1. Camera Inputs: BNC connector, looping. Auto Terminating.

2. Composite Monitor-A Output: Composite video output with BNC style connector.

3. Y/C Monitor-A Output: Y/C video output with 4-pin mini-DIN style connector.

4. Alarm I/O: For connecting alarm inputs, and alarm output relays.

5. Power Input: For connecting the power supply.

6. Aux Port: For connecting the Accessory PCB for Audio inputs and outputs.

7. RS485 Port 1 Connector: For connecting to keyboard and other RS485 devices.

8. 10/100 Ethernet Port: For connecting to remote PC via ethernet network.

9. Composite Monitor-B Output: Composite video output with BNC style connector.

10. Y/C Monitor-B Output: Not available on this model.

11. SCSI Port: For connecting SCSI compatible archive devices.

SVHS

10 11 12

SCSI

12V DC

IEEE-1394

AUX

RS-232/1

10/100

12. IEEE 1394 Firewire Port: For connecting Firewire compatible archive devices.

13. RS232 Port 1: For modem connection and external control of the unit.

14. RS485 Port 2 Connector: For connecting to keyboard and other RS485 devices.

15. RS232 Port 2: For Event Generation and ASCII Text insertion.

0150-0198H 9 DVMRe Triplex eZ

Camera Inputs

There are two BNC jacks for each camera. Either jack can receive a camera signal. The signal is looped (directly connected to the other jack), making the camera signal available to other equipment.

Cable: 75-Ohm Coaxial Connectors: BNC Auto Terminating: Yes

The camera input connectors are Auto Terminating.

Passive Looping: Yes

This means that the input signal will automatically be terminated with 75-Ohms unless a 2nd cable is connected to the 2nd BNC connector of the same camera input. Make sure there is 75-Ohm termination at the end of the video line if the signal is looped through the DVMRe Triplex eZ.

Time base correction is performed during digital capture. As a result, cameras do not require synchronization.

See section 3.13 for information about disabling unused camera jacks in the menu system.

Composite Monitor Output

When connecting directly from the DVMRe Triplex eZ to the monitor, select the 75-Ohm impedance setting on the monitor.

If an additional device is connected to the monitor’s looping output, set the termination of the additional device as 75-Ohm, and set the termination of the monitor as Hi-Z (High Impedance).

Cable: 75-Ohm Coaxial Connectors: BNC

Y/C Monitor Output (Monitor A only)

Y/C video output has a 4-pin mini-DIN style connector. This style of connection is also referred to as SVHS and S-Video.

Cable: 75-Ohm Coaxial Connectors: BNC

Alarm I/O Port

The back panel of the unit is equipped with an Alarm Port (DB-25 style connector).

Do not attempt to wire directly to the DB-25 connector on the back panel.

Connect the Alarm PCB (supplied with the unit) to the Alarm Port. Wire all alarm inputs to the Alarm PCB per the pin out specifications shown below.

0150-0198H 10 DVMRe Triplex eZ

DB-25 Connector on Back panel

Pin 1: Alarm Input 1.

A 7

G N D

Pin 13: Alarm Input 13. Pin 2: Alarm Input 2. Pin 3: Alarm Input 3. Pin 4: Alarm Input 4. Pin 5: Alarm Input 5. Pin 6: Alarm Input 6. Pin 7: Alarm Input 7. Pin 8: Alarm Input 8. Pin 9: Alarm Input 9. Pin 10: Alarm Input 10. Pin 11: Alarm Input 11. Pin 12: Alarm Input 12.

Pin 14: Alarm Input 14.

Pin 15: Alarm Input 15.

Pin 16: Alarm Input 16.

Pin 17: Alarm Output Relay #1.

Pin 18: Ground.

Pin 19: Ground.

Pin 20: Ground.

Pin 21: Alarm Output Relay #1 Common.

Pin 22: Alarm Output Relay #2.

Pin 23: External Alarm Silence and Acknowledge Input.

Pin 25: Alarm Output Relay #2 Common.

Signal

NO1A1 A2A14 A15 A16A3 A4 A5 GND

171 214 15 163 4 5 18 7196

GNDA6

Alarm PCB

Active alarm inputs vary by DVMRe model. 4 channel units (4eZT) have 4 active alarm inputs. 10 channel units (10eZT) have 10 active alarm inputs.

Alarm Input

An alarm condition can be activated by devices such as pressure pads, passive infrared detectors, door switches, or other similar devices.

Signal

NO2 COM1

22 21 208910 20231124121 3 25

A8A9A10 GNDACKA11VextA12A13 COM2

Alarm Relay Output

The alarm relay output is activated when an alarm condition exists. The alarm output is only active for the duration of the alarm.

Alarm relays can be programmed in the menu system to respond to macros, and video loss. See section 3.11 for information about configuring the alarms in the menu system.

External Alarm Acknowledge Input

Connect a switch or similar device to ground this pin in order to acknowledge an alarm condition, and silence associated buzzers and relays. Connect from pin 23 to either pin 18, 19, or 20 (ground pins).

NOTE

All specifications subject to change without notice. GE-Security believes all specifications to be correct at time of printing, but no liability is assumed for omissions or errors.

AUX Port

The back panel of the unit is equipped with an Aux Port (DB-9 style connector).

Do not attempt to wire directly to the DB-9 connector on the back panel.

Output: Normally Open Zero

potential relay contact.

Voltage: 30V (Max) Current: 500mA (Max)

External Device: Normally Open

Zero potential relay contact.

DB-9 Connector on Back Panel

0150-0198H 11 DVMRe Triplex eZ

Connect the Accessory PCB (supplied with the audio equipped models) to the AUX port to access the

123456789

GND

#24 AWG, twisted pair with shield

Audio features. Wire the audio input and output to the Accessory PCB per the pin out specifications shown below.

Pin 1: Not Used. Pin 2: Audio Out. Pin 3: Ground. Pin 4: Audio In. Pin 5: Ground. Pin 6: Not Used. Pin 7: Ground. Pin 8: Not Used. Pin 9: Ground. GND: Ground.

Accessory PCB

Warning! The use of clandestine listening and recording devices is forbidden by Federal Law as well as other State and Municipal Jurisdictions. Please review local and Federal Law prior to the installation or operation of this equipment to ensure that you are in legal compliance with the Authorities having Jurisdiction.

RS485 Connector

Shields are grounded at one end, preferably at the DVMRe Triplex eZ.

See section 3.16 for information about configuring the RS485 network address settings in the menu system.

Wire Type:

Connector Type: RJ-45 Max. Cable Length: 3200 feet / 1000 meters

RJ-45 Pin Configuration For RS485 Port

Pin Use

1 Ground (Shield) 5 Not Connected 2 Not Connected 6 Network -VE 3 Network +VE 7 Ground (Shield) 4 Not Connected 8 Not Connected

Pin Use

(2-wire)

82 3 4 5 6 71

RJ-45 socket on

back panel.

0150-0198H 12 DVMRe Triplex eZ

Ethernet Port

, RAID, DAT, AIT,

The cable connection configuration depends on your network configuration:

• For a DVMRe Triplex eZ that connects directly to

a Hub or Switch, use a straight through connection.

Wire Type: Cat 5 Connector Type: RJ-45 Max. Cable Length: 100 meters / 328 ft. Min. Cable Length: 6 feet / 1.8 meters

• For a DVMRe Triplex eZ that connects directly to

a PC, use a cross over connection.

Consult with your MIS personnel for the specific type of configuration. See section 3.16 for information about configuring the ethernet settings in the menu system.

Hub Wiring Configuration: Straight Through PC Wiring Configuration: Cross Over

RJ-45 Pin Configuration For Ethernet Port

Pin Use

1 TX+ 5 Not Connected 2 TX- 6 RX- 3 RX+ 7 Not Connected 4 Not Connected 8 Not Connected

SCSI and IEEE 1394 archiving devices should not be connected to the GE Security

NOTE

DVMRe Triplex eZ simultaneously. Archiving support is only available for one or the other type of interface at a time.

Pin Use

RJ-45 socket on

back panel.

82 3 4 5 6 71

SCSI Port

The unit is equipped with a SCSI port for connecting external archive devices. The unit only supports a single SCSI device. The SCSI ID of the archive device must be set to 0.

The SCSI bus must be terminated, otherwise the system will not operate properly.

Additional menu setup may be necessary to configure archive device. See section 3.15.

Connector: 50 Pin, High Density SCSI-2. Gender (on unit) : Female Compatible devices : DVSe

CD-R, CD-RW

SCSI ID : 0

IEEE 1394 Firewire Port

The unit is equipped with an IEEE 1394 Firewire port for connecting Firewire compatible external archive devices. For information on the approved devices, please refer to the Archiving Addendum manual that is supplied with this unit.

Caution! Ensure the power to DVMRe Triplex e Z is OFF BEFORE connecting any SCSI or 1394 devices. Do not attempt to use the SCSI and 1394 ports simultaneously.

0150-0198H 13 DVMRe Triplex eZ

Cable: 6 position Firewire Connectors: 6 position DIP

RS232 Port 1

Slide approximately 6 inches of the power cord through the pre-installed

Loop the power cord end around and insert into the power receptacle on

For a Modem connection or remote control of unit. See section 3.16 for information about configuring the modem settings in the menu system. See section 9 for RS232 Remote Control Protocols.

DB-9 Pin Configuration For Port 1

Pin Use

1 DCD 4 DTR 7 RTS

Pin Use

2 RX 5 Ground 8 CTS 3 TX 6 Not Connected 9 Not Connected

RS232 Port 2

For Event Generation and ASCII Text Insertion.

RJ-45 Pin Configuration For RS232 Port 2

Pin Use

1 Ground 5 TXD 2 Reserved 6 Not Connected 3 Not Connected 7 Ground 4 RXD 8 Reserved

Pin Use

1.8 Power-Up

Use the diagram below to secure the power cord to the back panel.

DB-9 on back panel.

RJ-45 socket on

back panel.

82 3 4 5 6 71

cable tie (approximately 1 inch after the ferrite core).

Tighten the cable tie until the cord is secure. Do not over tighten.

the back panel.

0150-0198H 14 DVMRe Triplex eZ

It is important that the power-up procedures be followed carefully. The unit uses its auto-detect feature to detect camera signals during power-up, and configure itself automatically.

Power-up procedure

Once the system installation is complete, apply power in the following order:

1. Energize the monitors and all of the cameras.

2. Energize the DVMRe Triplex eZ.

Once power is applied to the unit, it will begin its power-up procedure. The unit will begin by displaying the software version on Monitor-A, and then the unit will begin recording automatically.

Voltage: 12 Volt DC Power: 60 Watt (5 Amp) Connector: 2.1mm barrel, center positive

Power Supply Input

Check Video Input Quality

Check the picture quality by selecting each camera for full screen display. If the picture quality is poor, check the following items:

• The BNC connections.

• The loop-through terminations.

• The video levels of incoming signals.

• The possibility of ground loops.

• Consult the camera’s installation instructions for additional information about proper camera setup.

Check Record And Playback Quality

Record for at least three minutes at the default record rate. Then play back the recording, selecting each camera for full screen display. Check the playback picture quality.

0150-0198H 15 DVMRe Triplex eZ

2 DVMRe Triplex eZ Basic Operations

2345678

45678

2.1 Principal Operating Modes

The DVMRe Triplex eZ has three principal modes of operation:

• Live Viewing.

• Playback.

• Recording.

All three of these modes can operate simultaneously. Each mode is discussed in detail later in this section.

2.2 The Front Panel

1 2 3

GE Security

DVMRe Triplex eZ

{F}

9 10 11 12 13 14 15 16

11 12 13 14 15 16 17

1. Multiscreen Selection Buttons: 16, 10, 7, and 4 way.

2. Monitor Selection Button: Monitor A or Monitor B.

3. Multiscreen Selection Buttons: 13, 9, 6 way, and Picture-in-Picture.

4. Camera Selection Number buttons: Camera numbers 1 through 16.

5. Reverse Play Button: Playback in Reverse.

6. Freeze Button: Freezes camera images on-screen in Live mode. Pauses Playback.

7. Play Forward Button: Begins Playback.

8. Jog/Shuttle: Controls Playback speed and Menu selections.

9. Menu Button: Provides access to on-screen menus.

10. Power Indicator: Indicates power on/off condition.

11. Alarm button: Allows user to acknowledge and silence alarms.

12. Sequence Button: Sequences camera views.

13. Zoom Button: Provides a 2X digital zoom.

14. Function Button: Used in conjunction with Camera Buttons to run Macros.

15. Record Button: Used to Start and Stop Recording.

16. Stop Button: To stop Playback and return to Live mode.

17. Search Button: Access to stored video data.

18. Enter Button: Confirms selection in menus.

0150-0198H 16 DVMRe Triplex eZ

2.3 Live Viewing

Multiscreen Display

In Live Multiscreen mode, press one of the Multiscreen buttons to activate the multiscreen display on Monitor-A. Multiscreen displays are not available on Monitor-B. Live Multiscreens are displayed with gray borders. For detailed information about Multiscreen displays, see section 2.6.

Multiscreen Display With Sequencing

If a multiscreen display does not include all of the cameras, the remaining cameras can be sequenced in the bottom right cameo. While in a multiscreen display, press the Sequence button to begin sequencing. For detailed information about sequencing, see section 2.8.

Full Screen Display

Select any camera for Full Screen display by pressing the Number button of the desired camera. Pressing the Camera number button again displays the Status Display Box. Pressing the same button a third time displays any associated ATM or cash register ASCII text, see section 2.9.

Sequenced Full Screen Display

While in a Full Screen display, press the Sequence button to begin full screen sequencing. The sequence list is programmable. For detailed information about programming the sequence list see section 2.8.

Multiscreen Buttons

Sequence Button

Number Button

Sequence Button

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the primary monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, rotate the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Press the Zoom button again to cancel the Zoom operations.

NOTE

If the Zoom button is pressed while in a multiscreen display, the camera from the last active cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

Freezing

Pressing the Freeze button freezes all camera images on-screen. Full Screen freezing is indicated as FRZ on-screen. Multiscreen freezing is indicated as * (a flashing asterisk) in each frozen cameo.

Individual cameos can be frozen in Active Cameo mode (see section 2.7). Press the Freeze button again or any camera button to cancel Freeze

operations.

Zoom Button

with LED

Freeze Button

0150-0198H 17 DVMRe Triplex eZ

Selecting Monitor-B

To control Monitor-B, press the lower part of the Monitor button. The Monitor-B LED will light to indicate that the number keypad now controls Monitor-B. Press the upper part of the Monitor button again to return the keypad control to Monitor-A.

Monitor Button

2.4 Playback

Playback always displays on Monitor A. Playback multiscreen borders are black, as opposed to the gray borders of the live multiscreens. Monitor B continues to display live full screen images in playback mode. To begin playback, press the Play Forward or Reverse Play button.

Play Forward

When the Play Forward button is pressed, the unit will play forward at the rate the data was recorded. While in Playback mode, the user may change the playback direction, playback speed, etc. To return to Play Forward operations, press the Play Forward button.

Reverse Play

To begin reverse playback, press the Reverse Play button.

Play Forward

Button

Fast Forward

During playback, rotate the Shuttle (the outer dial) clockwise to view data at a higher than normal rate. Increasing the amount of rotation increases the rate of playback.

AutoPause

During playback, moving the Jog (the inner dial) in any direction will freeze playback. Depress the Freeze or any Play button to continue playback.

Rewind

During playback, rotate the Shuttle counter-clockwise to view data (in reverse) at a higher than normal rate. Increasing the amount of rotation increases the rate of playback.

Freeze

During playback, press the Freeze button. This feature pauses all full screen and multiscreen images

Reverse Play

Button

Jog / Shuttle

Freeze Button

0150-0198H 18 DVMRe Triplex eZ

Single Frame Advance & Single Frame Rewind

During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame directly before or after the frame displayed on-screen.

Stop Playback

To stop playback and return to Live Multiscreen mode on Monitor A, press the

Stop button.

Multiscreen Display

During Playback, press one of the Multiscreen buttons to activate a multiscreen display. The 6-way and PIP multiscreen displays are not available in Playback mode. For detailed information about Multiscreen displays, see section 2.6.

Multiscreen Display With Sequencing

Full Screen Display

Sequenced Full Screen Display

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, use the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Stop Button

Multiscreen Buttons

Sequence Button

Number Button

Sequence Button

Zoom Button

with LED

Press the Zoom button again, or another camera button to cancel the Zoom operations.

If the Zoom button is pressed while in a multiscreen display, the camera from the last active

NOTE

cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

0150-0198H 19 DVMRe Triplex eZ

Searching Recorded Data

Monitor A

Monitor B

Stop Mode

Playback Mode

The DVMRe Triplex eZ has a powerful search interface feature that allows the user to search for data on the internal hard disk or an external archive device. The user may search the data for previous recording sessions, text insertion, and alarm conditions. Because the search interface is so dynamic, the search interface is covered in detail in a separate section of this manual. See section 5.

Search Button

2.5 Recording

To begin recording, press the Record button. Recording will be indicated by the LED located directly above the Record button. The unit always starts recording at the end of previously recorded data. The unit will continue recording until the record button is pressed again, unless Record Lock is ON.

The DVMRe Triplex eZ also remembers its current record mode in the event of power loss. If the unit was recording during a power loss, then when power is restored the unit will put itself back in that mode.

Monitor Displays During Recording

Multiscreen Live and Playback display on Monitor A and Monitor B are not affected by recording operations.

Record Button

LIVE

PLAY

BACK

LIVE

Triplex Mode

PLAY

LIVE

BACK

0150-0198H 20 DVMRe Triplex eZ

2.6 Display Options

Monitor A

Monitor B

Available Multiscreen Displays

Press the Multiscreen buttons to activate the multiscreen display. Pressing the individual multiscreen button will display the corresponding multiscreen.

10-Way

7-Way

16-Way

4-Way

9-Way

6-Way

PIP

13-Way

The multiscreen display is limited to the number of camera inputs on the unit.

Sixteen-Channel unit: Capable of displaying all multiscreens. Ten-Channel unit: Only capable of displaying 10-way through 4-way multiscreen and PIP. Four-Channel unit: Only capable of displaying 4-way multiscreen and PIP.

The camera assignments for each multiscreen is retained (in non-volatile memory) for both Live and Playback multiscreen mode on Monitor A.

PIP: Use the Jog/Shuttle to adjust the location and size of the PIP display. Please note that the PIP display is only available on Monitor A in Live mode.

2.7 Active Cameos

A cameo is defined as any cell within a multiscreen display. Active Cameo mode allows the user to access and edit each cameo individually.

Entering Active Cameo Mode

While viewing a multiscreen, enter Active Cameo mode by pressing the Enter button. Active Cameo mode is indicated on-screen by flashing the number and titles of the active cameo and the LED above the Enter button is lit. By default, the top left cameo is activated.

Selecting Cameos

Select a cameo using the Jog/Shuttle to navigate the multiscreen. Rotating the Jog selects the next screen up or down a row. Rotating the shuttle selects the next screen in numerical order. The active cameo will always be indicated by the flashing camera number and titles.

0150-0198H 21 DVMRe Triplex eZ

Enter Button

Jog/Shuttle

Selecting Cameras

Display any camera in the active cameo by pressing the Number button of the desired camera. Once a camera has been selected, the active cameo advances to the next cameo on the right.

Number Button

The camera selection only changes the multiscreen currently being displayed. Each multiscreen must be configured separately. Changes to the multiscreen display are saved in non-volatile memory, and will be retained even if power is removed from the unit.

Freezing

Press the Freeze button to freeze the image in the selected cameo. Each frozen cameo is indicated as * (a flashing asterisk) on-screen.

Press the Freeze button again to cancel Freeze operations.

Freeze Button

2.8 Sequencing

The sequencing feature allows a camera to be displayed briefly on-screen, before advancing to the next camera in the sequence list. The default sequence list displays each camera in numerical order.

Sequence Button

Dwell Time

The dwell time is the amount of time each camera is displayed on-screen before advancing to the next camera. The default dwell time is 3 seconds.

Autolist™ Custom Sequence List

The Autolist™ feature allows the user to create a custom sequence list, controlling the order the cameras are displayed and the dwell time. Separate Autolists may be created for Monitor A (Live and Playback mode) and Monitor B (Live mode). Using the Monitor button, select the monitor to be programmed. Then, using a Number button, select any camera for full screen display.

NOTE

To begin recording the Autolist™ sequence: Press the Alarm button and Sequence button simultaneously. Autolist Program mode is indicated as PGM on-screen.

Recording starts when the first camera number is pressed. Press the camera numbers in the order you wish them to appear on-screen. The amount of time between button presses determines the Dwell Time. During sequence list programming, pressing any button other than a Number button or the

Sequence button voids the sequence list. To end the recording: Press the Sequence button. The amount of time between pressing the last

Number button and the Sequence button determines the dwell time for the final camera in the

sequence list.

The unit must be in Full Screen Display mode before starting to create the sequence list. This initial camera is not part the sequence list.

Alarm Button and

Sequence Button

Returning To The Default Sequence List

The default sequence list is all cameras in numeric order with a three second dwell time. To return the unit to the default sequence list, go to the Main Menu → Factory Settings menu.

0150-0198H 22 DVMRe Triplex eZ

Caution! Initiating the Factory Setting menu command returns all settings back to the original factory defaults (except the time, date, email addresses, and email IP address). This will cause the loss of any custom settings.

Sequencing In Cameos

While viewing a multiscreen display, additional cameras (cameras not shown in the multiscreen display) can be sequenced in the lower right hand cameo by pressing the Sequence button. The sequence list is not programmable. Press the Sequence button again to cancel sequencing.

2.9 On-screen Indicators

There are five types of on-screen indicators.

Camera Titles: Displays the camera number and the camera title. Status Indicators: Displays Time, Date, and Hard Disk record time left. Conditional Indicators: Displays indicators for Freeze, Zoom, Alarm, Motion Detection, Videoloss,

Autolist™ Program mode, Macro Record and Macro Playback mode. Status Display Box: Displays Archive Device, Network status and Image Quality Setting (Playback

mode only).

Text Display Box: Displays ATM/POS Text data.

Camera Titles

Camera Titles are displayed on either the upper or lower corner of the left hand side of the screen. The camera title can be changed in the menu system (see section 3.13). The user can change display position and color. See below.

Changing Position And Color Of Title And Status Indicators

Camera Titles: To change the color and position of the camera

titles, select a camera for full screen display, then press the Enter button to advance to the next display setting. Repeatedly pressing the Enter button advances the display settings through the sequence show in the table on the right.

Status Indicators & Camera Titles: Select Camera 1 for full screen display. Using the Enter button, cycle through the sequence shown on the right. Each time the position cycle is completed, the unit advances the Status Indicator color. Choose Black, White or Gray.

Position Color

Top Left Black Top Left White Top Left Gray Bottom Left Black Bottom Left White Bottom Left Gray

Title not displayed

0150-0198H 23 DVMRe Triplex eZ

Status Indicators

Status indicators are displayed on the upper right hand corner of the screen.

Status indicators include:

• Time and Date (these can be turned off in the menu system, see

section 3.8). The Time and Date format can also be changed in the menu system.

• Time remaining on Hard Disk(s).

Small Cameo

Conditional Indicators

Condition Full Screen Indicator Multiscreen Indicator

Alarm ALM A in cameo of camera in alarm

Autolist™ Program

mode

Freeze FRZ

Macro Record mode F followed by macro number F followed by macro number

Motion Detection M M in cameo w/ motion detection

Videoloss VDL V in cameo with videoloss

Zoom ZOOM ZOOM

PGM PGM

(Asterisk) in frozen cameo

Status Display Box

A Status Display Box can be viewed by pressing the Camera Number button twice. Status Indicators include:

On Live Fullscreen:

• Archive Status: Not Connected, Not Ready, Ready, Ejecting, Play, and timeleft. Timeleft

indicates the amount of time before the archive medium is full (Only available if the unit has Background Archiving turned On).

• Network: Displays all current Network connections. Normal connection is displayed as ip.ip or ---

if there is no connection. Live connections are displayed as E1: ip.ip, E2: ip.ip, etc. (where ip.ip represents the last 2 bytes of the IP Address). POTS connection is displayed as IP 1.1.

On Playback Fullscreen:

• All the above, including Image Quality Setting: High, Medium, Standard.

ATM/POS Text Display

Pressing the Camera Number a third time displays an ATM/POS text display. This feature can be used during live viewing mode to verify that the DVMRe Triplex eZ is receiving ATM/POS text, or in Playback mode to review recorded text and video.

0150-0198H 24 DVMRe Triplex eZ

2.10 Triplex Mode

Triplex mode allows the display of both live and playback images to appear on Monitor A simultaneously. Live images have gray borders, while playback images have black borders.

To enter Triplex mode, press the Play Forward button while in Play Forward mode. Alternatively, press the Play Reverse button while in Play Reverse mode. Both the Play Forward LED and the Stop LED turn on to indicate that the unit is in Triplex mode.

Monitor B always displays a fullscreen live display whenever Triplex mode is entered.

Play Forward

When in Play Forward mode and the Play Forward button is pressed, the unit will enter the Triplex mode of operation. When Play Forward is pressed again, the unit will revert back into the normal Playback mode. While in the Triplex mode, if reverse play is in progress, the Play Forward button will change the playback direction.

Reverse Play

When in Reverse Play mode and the Reverse Play button is pressed, the unit will enter the Triplex mode of operation. When Reverse Play is pressed again, the unit will revert back into the normal Playback mode. While in the Triplex mode, if forward play is in progress, the Reverse Play button will change the playback direction.

Fast Forward

During Triplex mode, rotate the Shuttle (the outer dial) clockwise to view playback images at a higher than normal rate. Increasing the amount of rotation increases the rate of playback. Live images are not affected.

Play Forward

Button

Reverse Play

Button

Rewind

During Triplex mode, rotate the Shuttle counter-clockwise to view playback images (in reverse) at a higher than normal rate. Increasing the amount of rotation increases the rate of playback. Live images are not affected.

Freeze

During Triplex mode, pressing the Freeze button pauses all multiscreen images, both Live and Playback.

Single Frame Advance & Single Frame Rewind

During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame directly before or after the frame displayed on-screen. Only the playback images are affected.

Stop

To stop Triplex mode and return to Live mode on Monitor A, press the Stop button.

Jog / Shuttle

Freeze Button

Stop Button

0150-0198H 25 DVMRe Triplex eZ

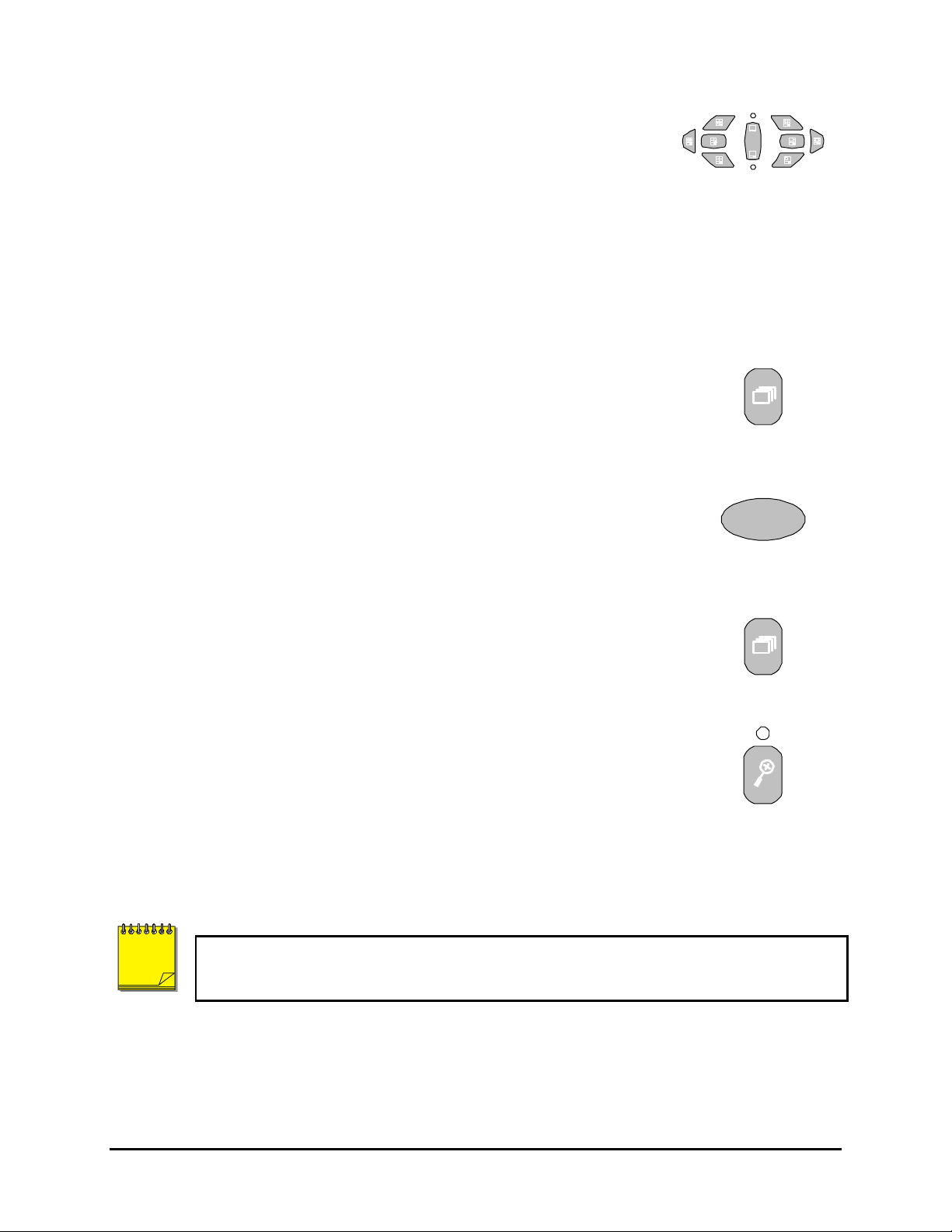

Multiscreen Display

During Triplex mode, press one of the Multiscreen buttons to activate a multiscreen display. The 6-way and PIP multiscreen displays are not available in Triplex mode. For detailed information about Multiscreen displays, see section 2.6. The Live and Playback images in a multiscreen display may be transposed by pressing the multiscreen button that corresponds with the current multiscreen display.

E.g. If the current display is a 13-way multiscreen with the center cameo being a playback image and the rest of the cameos being live images, pressing the 13-way multiscreen button will result in the center cameo being live and the rest of the cameos being playback images.

Multiscreen Buttons

Multiscreen Display With Sequencing

The bottom right cameo of any multiscreen will start sequencing when the Sequence button is pressed. If this camera is a playback image, the sequencing will include all the non-displayed playback cameras, and vice versa for a live image.

Sequence Button

Full Screen Display

Number Button

Sequenced Full Screen Display

Sequence Button

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, use the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Zoom Button

with LED

Press the Zoom button again, or another camera button to cancel the Zoom operations.

NOTE

If the Zoom button is pressed while in a multiscreen display, the camera from the last active cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

0150-0198H 26 DVMRe Triplex eZ

Time/Date Display

Operator Password

3 Menu System Overview

3.1 Menu Notation In This Manual

In the following sections, there are headings like this:

q Main Menu → Time/Date → Set Time

Meaning: From the Main Menu, select Time/Date, then press the Enter button. The Time/Date menu

will appear. From the Time/Date menu, select Set Time, then press the Enter button. A pop-up or pull-down menu will appear.

Selected Items

Items selected in the menu system are represented in the manual as follows:

Selected Not Selected

Time/Date Time/Date

3.2 Accessing The Menu System

Enter the menu system by pressing the Menu button. A Password Box will appear on the primary monitor. Enter either the:

• Operator Password: Providing limited access to the menu system. Only the

Operator and System View menus are available.

Menu Button

• Installer Password: Providing complete menu access. Use the Number buttons to enter the appropriate password. Default passwords are provided in the beginning of this manual, in section 1.

3.3 Available Menus

Main

Time/Date Record Alarms Macro Motion Detection Camera Setup Archive Setup Audio Setup Communications Front Panel Lock Factory Settings Passwords

Operator

About DVMR

Titles Display Alarm History Archive Setup

0150-0198H 27 DVMRe Triplex eZ

3.4 Menus In This Manual

Shuttle

Jog

Each menu is covered in detail in this chapter of this manual. Menus and Menu Items appear in the manual in the same order they appear on-screen.

• Main Menu

• Operator menu

3.5 Navigating The Menu System

Selecting a Menu from the Menu Bar: When the menu system is first accessed, only the menu bar is displayed. Use the Shuttle to select the desired menu.

Opening the Drop Down Menus: Rotate the Jog. Navigating in Menus: Rotate the Jog to highlight items in the drop-down menus. Selecting Menu Items: Hit the ENTER button to select the highlighted menu item. Exiting Menus: Press the Menu button to exit a menu. From the menu bar, press the Menu button

to exit the menu system completely.

Main

Time/Date Record Alarms Macro Motion Detection Camera Setup Archive Setup Audio Setup Communications Front Panel Lock Factory Settings Passwords

Operator

g o J

3.6 Menu Shortcuts

Zoom Button: In menu lists that have 2 settings per camera, the Zoom button will toggle all

selections. This provides a quick and easy way to enable or disable all cameras for a particular feature.

Camera Button: In menu lists that provide settings per camera, a particular camera may be

accessed directly by pressing on the associated camera button. Rotate the Shuttle to modify the setting.

0150-0198H 28 DVMRe Triplex eZ

3.7 The Main Menu

Time Setup

[CANCEL] [OK]

Date Setup

[CANCEL] [OK]

Network Time Setup

Main Menu Overview

The Main menu contains the majority of programmable options for the DVMRe Triplex eZ. Each item in the Main menu is described in detail in this section of the manual.

Main menu items appear in this section in the same order they appear in the menu.

3.8 Time/Date

Use this menu to specify:

• The time and date.

• The date format: MM/DD/YY, YY/MM/DD, or DD/MM/YY.

• Which monitors will display the time and date.

• Set Regional Daylight Savings Time.

• Setup clock synchronization between Triplex and Network Server.

q Main Menu → Time/Date → Set Time

1. Rotate the Shuttle to navigate, highlight HH MM SS.

Set Time Set Date Set Date Format Time/Date Display Set Region

2. Press the Enter button, the highlighting will move to the row of numbers.

3. Enter the time in Hours, Minutes, and Seconds. Rotate the Jog to

change the values and the Shuttle to navigate.

4. Press the Enter button to confirm the selection and exit the edit mode.

5. To save the changes and exit the menu: Rotate the Jog to select [OK],

then press the Enter button.

6. To exit the menu without making changes: Rotate the Jog to select

[CANCEL], then press the Enter button.

HH MM SS

03 05 53

q Main Menu → Time/Date → Set Date

1. Press the Enter button, the highlighting will move to the row of

numbers.

2. Enter the date in Months, Days, Years. The day of the week is

calculated automatically. Rotate the Jog to change the values and the Shuttle to navigate.

3. Press the Enter button to confirm the selection and exit the edit mode.

4. To save the changes and exit the menu: Rotate the Jog to select [OK], then press the Enter

button.

5. To exit the menu without making changes: Rotate the Jog to select [CANCEL], then press the

Enter button.

MM DD YY Day

01 28 02 MON

0150-0198H 29 DVMRe Triplex eZ

q Main Menu → Time/Date → Set Date Format

Rotate the Jog to set the desired date format. Select from either:

Date Format Setup

• MM/DD/YY

• DD/MM/YY

Select Format

MM/DD/YY

• YY/MM/DD

Press the Enter button to confirm the selection and exit the menu. Press the Menu button to exit the menu without making changes.

q Main Menu → Time/Date → Time / Date Display

Use this menu to specify if the time and date will be displayed on:

• Monitor-A.

• Monitor-B.

• Both Monitors.

• Not Displayed

Rotate the Jog to navigate, then rotate the Shuttle to change the values. Save changes and exit the menu: Select [OK], then press the Enter button. Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press

the Enter button.

Time/Date Display

Monitor A : Monitor B : ON

[CANCEL] [OK]

q Main Menu → Time/Date → Set Region

Use this menu to set the region for the Auto Daylight Savings Time feature. Choices are:

• OFF: Clock will not be changed automatically, but can still

be adjusted by one hour using the daylight saving macros.

• USA: DST starts at 02:00 on the first Sunday in April.

DST ends at 02:00 on the last Sunday in October.

Daylight Saving : Time Zone :

SUN, 7 APR 2002 02:00 (+1) SUN, 27 OCT 2002 02:00 (-1)

Includes: United States (except Hawaii, American Samoa, Guam, Puerto Rico, Virgin Islands, parts of Indiana and Arizona) and Canada (except Saskatchewan).

• EUR: DST starts at 01:00 GMT on the last Sunday in

March. DST ends at 01:00 GMT on the last Sunday in October. Includes: European Union Countries.

• AUS: DST starts at 02:00 on the last Sunday in October. DST ends at 03:00 on the last Sunday

in March. Includes: South Australia, Victoria, ACT, NSW. Excludes: Tasmania.

The Time Zone must be set correctly to ensure that the DST adjustments are made at the right time. It is also required for accurate email time stamping.

Regional Settings

USA

GMT+00:00

[CANCEL] [OK]

The clock will only be automatically adjusted once on a given time and date. If you manually

NOTE

set the clock back before the last DST change, the time will not get automatically adjusted again for that same time change.

0150-0198H 30 DVMRe Triplex eZ

q Main Menu → Time/Date → Network Time Setup

Use this menu to enable/disable and specify how often time synchronization should occur between the Triplex and the Network Server. The Region /Time Zone must be setup prior to enabling the option.

Update Interval, Select from: Enable, Disable, Once per Day, Twice per Day, and Once per Hour NTP Primary Server: Enter IP Address of Primary Server. NTP Backup Server: Enter IP Address of Backup Server.

1. To save changes and exit the menu: Select [OK], then press the Enter button.

2. To exit the menu without making changes: Press the Menu button, or select [CANCEL], and then

press the Enter button.

Network Time Protocol Setup

Update Interval : NTP Primary Server : 3. 37. 8. 26 NTP Backup Server : 0. 0. 0. 0

[CANCEL] [OK] Last Update: Never Since Power-up Warning: Region/Time Zone must be set correctly!

DISABLE

3.9 Record

Use this menu to:

• Specify a schedule for recording.

• Specify if a camera is to be used for event recording,

time-lapse recording, or both.

• Specify the record quality: High, Medium, or Standard.

• Specify the time-lapse record rate.

• Specify the event record rate.

• Specify the activity record rate.

• Specify the global alarm record rate.

• Specify the Alarm/Event actions.

• Perform disk maintenance by Testing the Hard Disk, Deleting,

Un-deleting, or Destroying previously recorded video.

Record Timer

Event/Timelapse Record Settings Alarm/Event Actions Disk Maintenance Record Lock Auto Delete Mode

• Turn the Record Lock feature ON or OFF.

• Turn the Automatic Delete Mode ON or OFF.

0150-0198H 31 DVMRe Triplex eZ

q Main Menu → Record → Record Timer

Day Start Stop Macro ON/OFF

Use this menu to setup Preset Record Timer Events.

1. Rotate the Shuttle to select a timed event from the list.

2. Press the ENTER button to enter the Edit mode.

3. Rotate the Shuttle to navigate to the desired field.

4. Rotate the Jog to change the values of the selected field.

5. Press the Enter button to exit the Edit mode.

6. Rotate the Jog to highlight the [OK] field and press the ENTER button to save the changes.

q Main Menu → Record → Event /Timelapse

Use this menu to specify how each camera will record during normal and event conditions.

TL: Records at the Time-lapse Record Rate under normal conditions. Does not change record rate during an event.

Event: Records during events at the Event Record Rate. Camera does not record under normal conditions.

Event + TL: Records at the Time-lapse Record Rate under normal conditions. Records at the Event Record Rate during events. This is the default setting.

22:59 01:59 NONE ON

MON-FRI 05:56 04:06 10 ON

-- --:-- --:-- -- --

[OK]

Hit ‘ENTER’ to toggle EDIT Mode

Event Camera Settings

Camera 01: Camera 02: TL Camera 03: Event Camera 04: TL : : Camera 16: Event + TL

[CANCEL] [OK]

Event + TL

About Events: An Event is an action that the unit acknowledges by recording at the Event

NOTE

Record Rate, yet it is not cause for an Alarm. Events may be created two ways, via RS232 text insertion and Activity detection.

Example of an Event: A camera is pointed at the front door inside the lobby during business hours. With the Event Camera Settings Type set to Event, the unit does not record while the doorway is empty. When activity motion detection senses that someone is entering or leaving the doorway, the unit begins recording at the Event Record Rate and stops recording when the motion ceases.

RS232 Event: See section 8 for information about generating an Event via RS232, and optionally inserting ASCII text to mark the Event.

Activity Detection Event: See Setup Parameters in section 3.13 for detailed information about configuring activity detection as an event in the menu system.

q Main Menu → Record → Record Settings

Use this menu to:

• Specify the record quality: High, Medium, or Standard.

• Specify the Timelapse Record Rate.

0150-0198H 32 DVMRe Triplex eZ

• Specify the Activity Record Rate.

Global Alarm Record Rate

Estimate of the % of time each

camera will typically spend in

have about 20 total events each

day, each lasting 3 minutes on

average, then the % of the time

• Specify the Event Record Rate.

• Specify the Global Alarm Record Rate.

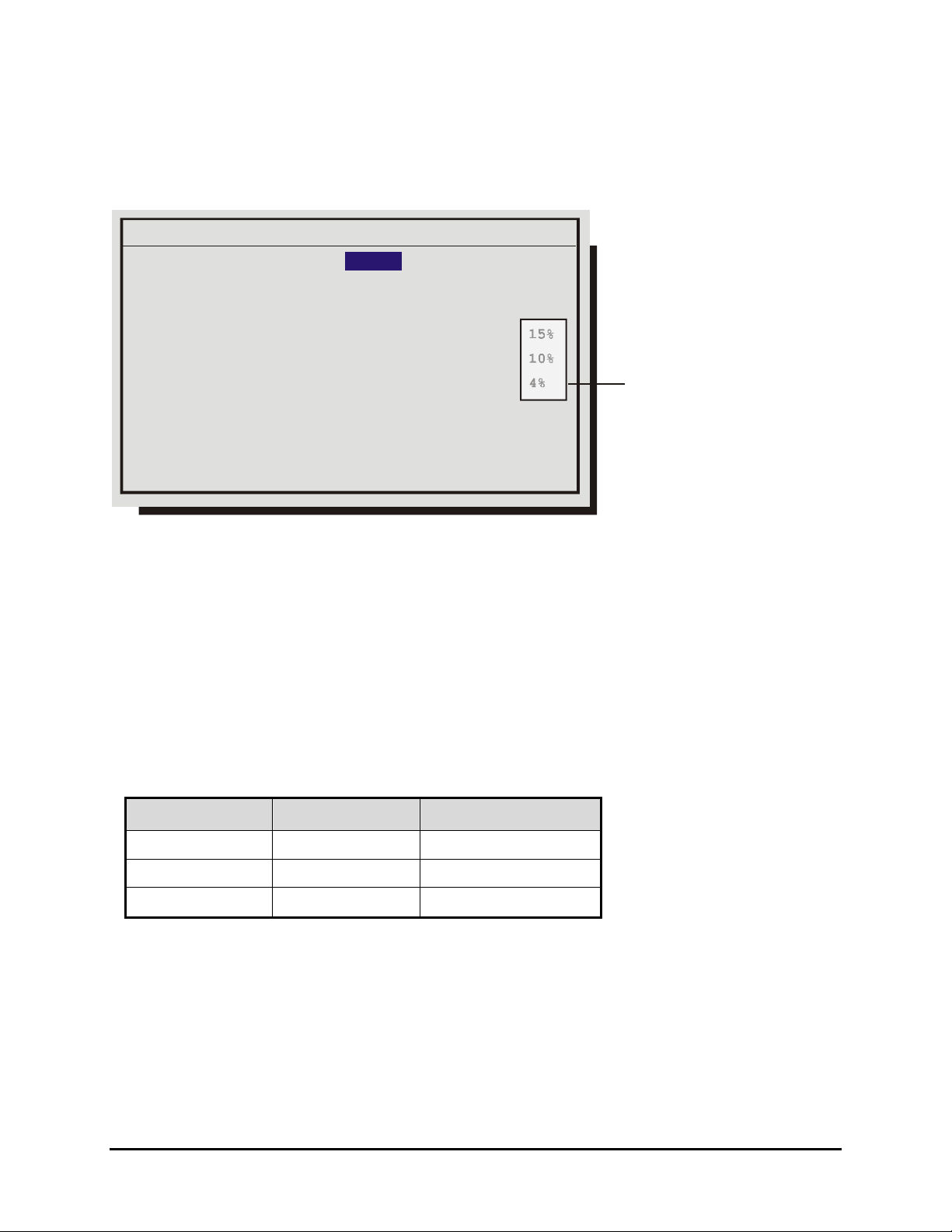

Record Settings

Record Quality

Timelapse Record Rate Activity Record Rate Event Record Rate

Disk Duration

[CANCEL] [OK]

High

Global

1.1pps

24.00pps

3 days

Per Camera

0.57pps

1.1pps

1.7pps

19 h

%Time 15% 10% 4%

the associated record rate. For example, if you expect to

will be (1 hour/24 hours) 4%.

1. Rotate the Jog to navigate, and the Shuttle to change the values.

2. To save changes and exit the menu: Select [OK], and then press the Enter button.

3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

Record Quality

Use this setting to specify the record quality for all cameras. Decreasing the record quality decreases the amount of disk space required to store the images, due to a higher compression scheme.

Record Quality Picture Quality Disk Space Needed

High Excellent Most Medium Good Medium Standard Fair Least

Timelapse Record Rate

The unit records at the Timelapse Record Rate under normal conditions, when there are no alarms, events, or activity present. Record rates are measured in Pictures Per Second (pps).

0150-0198H 33 DVMRe Triplex eZ

Activity Record Rate

The unit will record at the Activity Record Rate when the camera is in normal Timelapse Record Mode and activity is detected in the camera scene. Activity should not be linked to Event, in which case the Event Record Rate will be used. Record rates are measured in Pictures Per Second (pps).

Event Record Rate

The unit will record at the Event Record Rate when an Event is activated. Events can be activated by RS232 event generation or activity detection. Record rates are measured in Pictures Per Second (pps).

Global Alarm Record Rate

During an alarm, the unit records at the alarm record rate. The configuration of the Alarm Record Rate is closely associated with the Alarm Record Mode. For detailed information about configuring the Alarm Record Mode, see Alarm Record mode in the next section.

Disk Duration Calculator

The bottom of the menu contains a disk duration calculator. The duration indicates the estimated recording time, taking into consideration the estimated amount of time the unit will spend in Time-lapse, Activity, Event, and/or Alarm record mode.

The maximum record rate per camera is inversely proportional to the number of cameras

NOTE

connected to the unit. The fewer cameras connected, the higher the maximum record rate for each camera, and vice versa. The maximum record rate for multiple cameras is 48pps (NTSC)(40pps PAL). The maximum record rate for a single camera is 30pps (NTSC)(25pps PAL).

q Main Menu → Record → Alarm/Event Actions

Pre Event Duration: The unit will record up to 5 seconds of data ahead of the event trigger, at the

Event Record Rate. Select from 0 to 5 seconds. Post Event Duration: The unit will record up to 250 seconds after the completion of the Event, at the

Event Record Rate. Select from 0 to 250 seconds.

Alarm/Event Actions

Pre Event Duration Post Event Duration Pre Alarm Duration Alarm Record Mode ACTIVITY Link to Event

0 0 Interleaved Yes

[CANCEL] [OK]

0150-0198H 34 DVMRe Triplex eZ

Pre Alarm Duration: The unit will record up to 5 seconds of data ahead of the alarm trigger, at the Alarm Record Rate. Select from 0 to 5 seconds.

Alarm Record Mode: Use this option to determine how the unit will record cameras in alarm.

Exclusive: The unit records only the camera (or cameras) in alarm. Interleaved: Alarmed cameras are recorded at a higher rate than

non-alarm cameras. The unit accomplishes this by interleaving images of alarmed cameras between images from non-alarmed cameras in the record list. Interleaved is

the recommended mode of operation.

Example of Record Lists: Exclusive record list for 8 cameras, Camera-4 in alarm. 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Interleaved record list for 8 cameras, Camera-4 in alarm. 1 4 2 4 3 4 5 4 6 4 7 4 8 4 1 4

ACTIVITY Link to Event: Selecting Yes in this menu will activate the event record speed when

activity detection is present.

q Main Menu → Record → Disk Maintenance

Use the Jog to select from the following options, then press the

Enter button to begin. Delete: Delete all data from the hard disk (with the possibility of restoring it). Undelete: Restore data that has been deleted, but not yet overwritten. Destroy: Erase all data from the hard disk permanently, without the possibility

of restoring it. Selecting this option brings up a confirmation dialog box.

Delete

UnDelete Destroy Test

Test: Provides access to the Disk Test Setup menu which features disk test and monitoring options.

Disk Test Setup Menu

The Disk Test Setup menu provides several testing options including the test time, frequency, and duration.

Disk Test: Options include Disable, Test Now, Test Periodically. The Test Periodically option runs the Disk Test at the specified frequency. The Disk Tests run in the background and will not interfere with normal operations.

Test Frequency in hours: From 0 to 1000 hours between tests. Test Duration: This option is for the type of test to run; Fast or Thorough. The Thorough test will

test significantly more sectors than the Fast test. GE recommends using the Thorough test. The Fast test can miss some disk failures.

0150-0198H 35 DVMRe Triplex eZ

Disk Test Setup

Disk Test Result

Disk 1:Write Error

Disk 2:Write Error

PASSED

FAILED

Disk Test: Test Frequency in hours: 0 Test Duration: Fast

[CANCEL] [OK]

Disk Test Result: Disk Failed Disk 1: Write Error Disk 2: Write Error

Use the Jog to move between the menu fields and the Shuttle for the selections within the fields. When satisfied with the selections select OK and press the Enter button to execute.

The Disk Test will run in the background and will not interfere with normal operations. Once the disk test is done, a message will appear on the screen indicating the test result.

DISABLE

Disk Test Result

Disk Failure

Disk Test Success

[OK] [OK]

Press the Enter button to clear from the display. Should a disk test fail, several actions will performed:

• An icon will be displayed indicating disk failure. It is displayed on Monitor A on the bottom of the

screen in the middle. This icon will only disappear when the disk is replaced.

• If the Notify Alarm or Notify Record email option is enabled in the Email Notification Setup Screen,

an email will be sent indicating that a disk failure occurred.

q Main Menu → Record → Record Lock

The Record Lock feature prevents Recording from being halted from the Front Panel. Turning this feature ON automatically starts the unit recording.

0150-0198H 36 DVMRe Triplex eZ

q Main Menu → Record → Auto Delete Mode

Yes

The ADM feature prevents the unit from displaying or archiving any search results that are more than thirty days old. This feature may be required by law in some jurisdictions. Choose from 1 to 99 days or Off. The default setting is Off.

ADM Setting

Message

ADM will change. Are you sure?

99 Days

3.10 Alarms

Use this menu to configure the alarm handling features of the unit.

Caution! The DVMRe Triplex eZ’s primary function is to furnish video multiplexing and recording with a multiscreen display. Although the unit has alarm handling and motion detection functions, these are considered secondary features. This unit should not be the only alarm device on site.

Input Configuration

Alarm Latch Enable / Disable Alarm History Link to a Macro Buzzer Setup Notification Archive Alarms

q Main Menu → Alarms → Input Configuration

Configure the alarm inputs as either Normally Open or Normally Closed. Configure inputs as follows. Normally Open Zero Potential Relay Contact: Configure in menu as

Normally Open. Normally Closed Zero Potential Relay Contact: Configure in menu

as Normally Closed

TTL Active High: Configure in menu as Normally Closed.

TTL Active Low: Configure in menu as Normally Open. Open Collector Active On: Configure in menu as Normally Open. Open Collector Active Off: Configure in menu as Normally Closed.

q Main Menu → Alarms → Alarm Latch

This feature determines how the unit latches alarm conditions. Selecting from the following options.

Latched: The alarm is activated until it is silenced and acknowledged by the user.

Latched

Transparent Timed Out

0150-0198H 37 DVMRe Triplex eZ

Transparent: The alarm is active only while receiving alarm input. The alarm condition is canceled when the alarm input ceases.

Timed Out: The alarm condition is latched for the amount of time selected in this menu, then it is automatically silenced and acknowledged. If the alarm input exceeds the duration specified in this menu, the unit silences and acknowledges the alarm when the alarm input ceases. Select the timeout duration, the range is from 1 to 250 seconds.

Transparent alarms cannot be silenced and acknowledged. If transparent mode is preferred, but the ability to silence and acknowledge alarms is desired, select Timed Out and set the Alarm Timeout to two seconds.

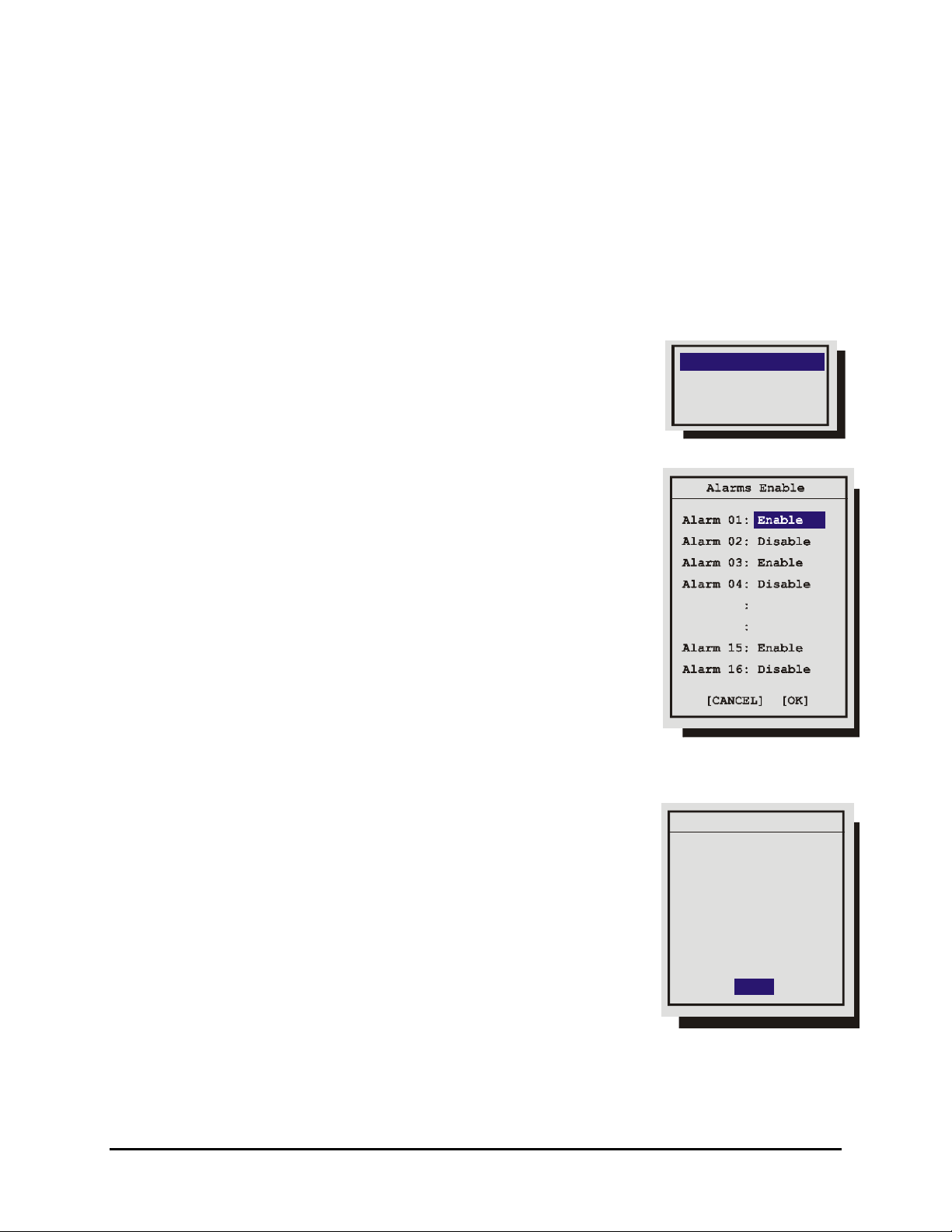

q Main Menu → Alarms → Enable / Disable

Use this menu to Enable or Disable the alarm inputs. Select from the following:

• Individual Enable: Allow the user to access the Alarm

Enable submenu, and enable or disable alarm inputs on a per camera basis.

• Enable All

• Disable All

Rotate the Jog to navigate, and the Shuttle to change the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

q Main Menu → Alarms → Alarm History

Use this window to view a list of the 100 most recent alarms. Alarms are displayed 10 at a time. Rotate the Jog to scroll through the alarms.

Information displayed in this window is:

• The alarms number in the list.

• The date of the alarm (month and day).

• The time of the alarm (hours, minutes, and seconds).

The number of the camera input in alarm.

Individual Enable

Enable All Disable All

Alarm History Box

001- 02/04 18:40:32 16 002- 02/15 12:00:10 11 003- 02/28 10:10:20 08 : : 010- 03/15 05:12:16 04

[OK]

0150-0198H 38 DVMRe Triplex eZ

q Main Menu → Alarms → Link To A Macro

Buzzer Setup

[CANCEL] [OK]

Use this menu to link an alarm input to a macro. If a link is created, a macro will run each time that alarm is activated.

Alarm: Select the alarm input you would like to link.

Macro: Select the macro number you wish to link to. Leave this

setting blank if you do not wish to link to a macro. Rotate the Jog to navigate, and the Shuttle to change

the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

q Main Menu → Alarms → Buzzer Setup

Use this menu to configure the internal buzzer. Global Buzzer: The Global Buzzer setting acts as a master On/Off

switch. Setting the Global Buzzer to OFF deactivates all buzzer activity.

Global Buzzer : ON

q Main Menu → Alarms → Notification

Use this menu to select Email Alarm Notification.

Email Notification Setup

This screen allows the user to setup the types of events to be notified of, and the email addresses (up to two) to be notified. Follow the context sensitive on-screen instructions to setup the individual fields. Also, please note that the Region/Time Zone setting must be set correctly for Email notification to time stamp messages accurately. If the Notify Alarm or Notify Record fields are enabled you will notified of the results of the Hard Disk Test.

0150-0198H 39 DVMRe Triplex eZ

Email Notification Setup

[CANCEL] [OK]

Macro Record

Select Macro

One or more of these

fields must be set to

ENABLE to receive an

email notification of

the selected event.

Notify Vidloss: Notify Record: Notify Menu Access: Notify Connection: Email User 1: Email Domain 1: Email User 2: Email Domain 2: Local User: Local Domain: SMTP Server:

Format of email address: user@domain Warning: Region/Time Zone must be set correctly!

ENABLE

DISABLE DISABLE DISABLE john.doe somecompany.com jane.doe somecompany.com jim.doe somecompany.com

0. 0. 0. 0

Notify Alarm: Notify Archive: Notify Power Up SMTP Port:

DISABLE DISABLE DISABLE 25

Email Address Format

The format of the email addresses should be entered as follows. If the email address to be notified is

john.doe@somecompany.com, then john.doe should be entered in one of the Email User fields and

somecompany.com should be entered in the subsequent Email Domain field.

q Main Menu → Alarms → Archive Alarms

Selecting Enable from this menu will cause the unit to activate

Archive Alarm

Relay 2

Relay 2 if a malfunction occurs while archiving.

ENABLE

3.11 Macro

A macro is a recorded sequence of keystrokes. The number of macros depends on the number of camera inputs (4, 10 or 16). Each macro can have up to 32 keystrokes.

Use this menu to:

• Enter Macro Record mode.

• Program a scheduled start time for a macro.

q Main Menu → Macro → Macro Record

Note: Do not attempt macro programming while the front panel is locked.

To begin recording a macro:

1. Select the macro number you wish to record, then press the Enter button. The unit will automatically exit the menu system and go to a starting point. Macro Record mode is indicated as F and the Macro Number on-screen.

Macro Record

Timed Macro Start

2. From this point, begin recording the desired keystroke sequence. Record up to 32 keystrokes. If 32 keystrokes are exceeded, the unit will end the macro recording automatically.

0150-0198H 40 DVMRe Triplex eZ

3. When finished programming, press the Function button then the Enter button to end the macro recording. A form is provided in section 10 to keep track of recorded macro functions.

Keystroke count while in the menu system: While recording a macro, entering the

NOTE

During macro recording, the following button combinations perform special functions.

Button Sequence Resulting Action

Function then 1. Activate Relay 1 output. Function then 2. Reset Relay 1 output. Function then 3. Pause macro for 1 second. Function then 4. Pause macro for 5 seconds. Function then 5. Activate Relay 2 output.

menu system, changing multiple menu items, and exiting the menu system are only counted as one keystroke. Using the Jog to navigate the menu system does not count as keystrokes. Once the menu system has been exited, re-entering the menu system will count as a second keystroke.

Not all menu items can be programmed using macros. For a complete list of macro programmable menu items, see the table below.

Function then 6. Reset Relay 2 output. Function then Enter. End macro recording

Macro Excluded Features

The following core features or settings cannot be programmed by Macro.

• Disk Maintenance.

• Erase Archive Medium.

• POTS Setting.

• Ethernet Setting.

• RS485 Network Address.

• Front Panel Lock/Unlock.

• Record Timer.

Running A Macro

A macro is a recorded sequence of up to 32 keystrokes. To activate a macro, press the Function button followed by the Number button of the desired macro. While running, the macro is indicated on-screen as the letter F and the macro number.

The user can cancel the macro at any time by pressing the Function button.

Daylight Savings Time (Alternate Method)

To adjust the time one hour for daylight savings time, press the Function button, then the Sequence button. If this function is activated during April, one hour is added to the time. If this function is activated in October, one hour is subtracted from the time. This function will only operate once per time period.

{F}

Function and

Number Buttons

{F}

Function and

Sequence Buttons

0150-0198H 41 DVMRe Triplex eZ

Setup Parameters

Setup Active Zones

Indicate Detection

Detection Enable

Camera 02: Disable

q Main Menu → Macro → Timed Macro Start

Use this menu to program scheduled start times for macros. Up to 20 scheduled start times can be programmed in this menu.

Timed Macro Setup

Event: Select the scheduled start event you wish to edit. Day: Select the start day (Monday – Sunday) of the macro.

Select ** (double asterisks) to run the macro every day. Select None to cancel the scheduled start time.

Time: Select the start time for the macro.

[CANCEL] [OK]

Macro: Select the desired macro number. A form is provided in section 10 to keep track of scheduled macros.

3.12 Motion Detection

Use this menu to:

• Enable motion detection on a per camera basis.

• Activate individual zones in a scene to respond to motion

detection.

• Activate the on-screen motion detection indicator.

• Set motion detection as Activity detection or Intrusion Detection.

• Configure the motion detection parameters on a per camera basis.

q Main Menu → Motion Detection → Enable/Disable Detection

Selecting Enable All or Disable All from this menu will activate or deactivate motion detection on all cameras.

Selecting Individual Enable from this menu will bring up the following menu.

Event : Day : Monday Time : 00:00 Macro : 01

Enable/Disable Detection

Individual Enable

Enable All Disable All

Individual Enable Menu

Use this menu to enable or disable motion detection on a per camera basis. Rotate the Jog to navigate, and the Shuttle

Camera 01:

Enable

to change the values.

Camera 03: Enable : : Camera 16: Enable

[CANCEL] [OK]

q Main Menu → Motion Detection → Setup Parameters

Use this menu to select the Camera, Motion Detection Type, and Sensitivity of the Motion Detection you wish to configure.

0150-0198H 42 DVMRe Triplex eZ

Motion Detection Parameters Setup

Camera Motion Detection Type Sensitivity Relay Output

Rejection Target Size Link to Alarm

[CANCEL] [OK]

Navigate in this menu using the Jog to select the field and the Shuttle to change the parameters.

ACTIVITY 06 2

LOW 01 NONE

Activity Vs. Intrusion

Activity Detection is a simple type of motion detection having only a sensitivity setting and a relay output. Intrusion Detection is a more sophisticated type of motion detection, with additional features such as false alarm rejection levels, minimum target size, and an alarm output.

Activity Detection Setup

If Activity is selected in Motion Detection Type field, the following parameters are enabled: Relay Output: The unit may be configured to activate a relay output when motion detection is

present. Select either 1, 2, 1+2 (both relays), or None.

Intrusion Detection Setup

If Intrusion is selected in Motion Detection Type field, the following parameters are enabled: Sensitivity: Rotate the Shuttle to change the motion detection sensitivity, 10 being the most

sensitive. Rejection: Configure the unit’s false alarm rejection feature by selecting Low, Medium, or High.

These settings are based on the number of simultaneously triggered zones and the persistence of motion in a scene. The Low setting is the most sensitive to motion. The Medium setting will filter out most false alarm situations due to sudden luminance changes over the whole scene (clouds passing over). The High setting will filter out sudden luminance changes as well as spurious motion events that do not persist for a number of frames (a bird flying past the lens).

Target Size: This setting is the minimum number of zones (from the 16 x 16 grid) that must be activated simultaneously before it is considered to be valid motion.

Link To Alarm: Select the alarm number that you wish to activate when motion detection is activated.

q Main Menu → Motion Detection → Setup Active Zones

Use this menu to setup the Active Zones for motion detection. The screen shown below will overlay the current video image allowing for precise activity zone setup. The disabled zones will be tinted. The enabled zones will be clear.

0150-0198H 43 DVMRe Triplex eZ

Activity Grid Setup Screen

‘MENU’ : Exit Activity Setup

‘ENTER’: Save and Exit Activity Setup

‘PAUSE’: Toggle between Enable and Neutral

‘STOP’ : Toggle between Disable and Neutral

‘PLAY FORWARD’: Increase the Sensitivity level

“PLAY REVERSE’: Decrease the Sensitivity level

Pressing the Function button will bring up the Help screen shown below. This screen will overlay the current video image.

{F}

‘ZOOM’ : Disable/Enable all zones

NOTE

Function

Button

This Help Screen will display for 15 seconds, and then disappear. Press the Function button again to redisplay.

0150-0198H 44 DVMRe Triplex eZ

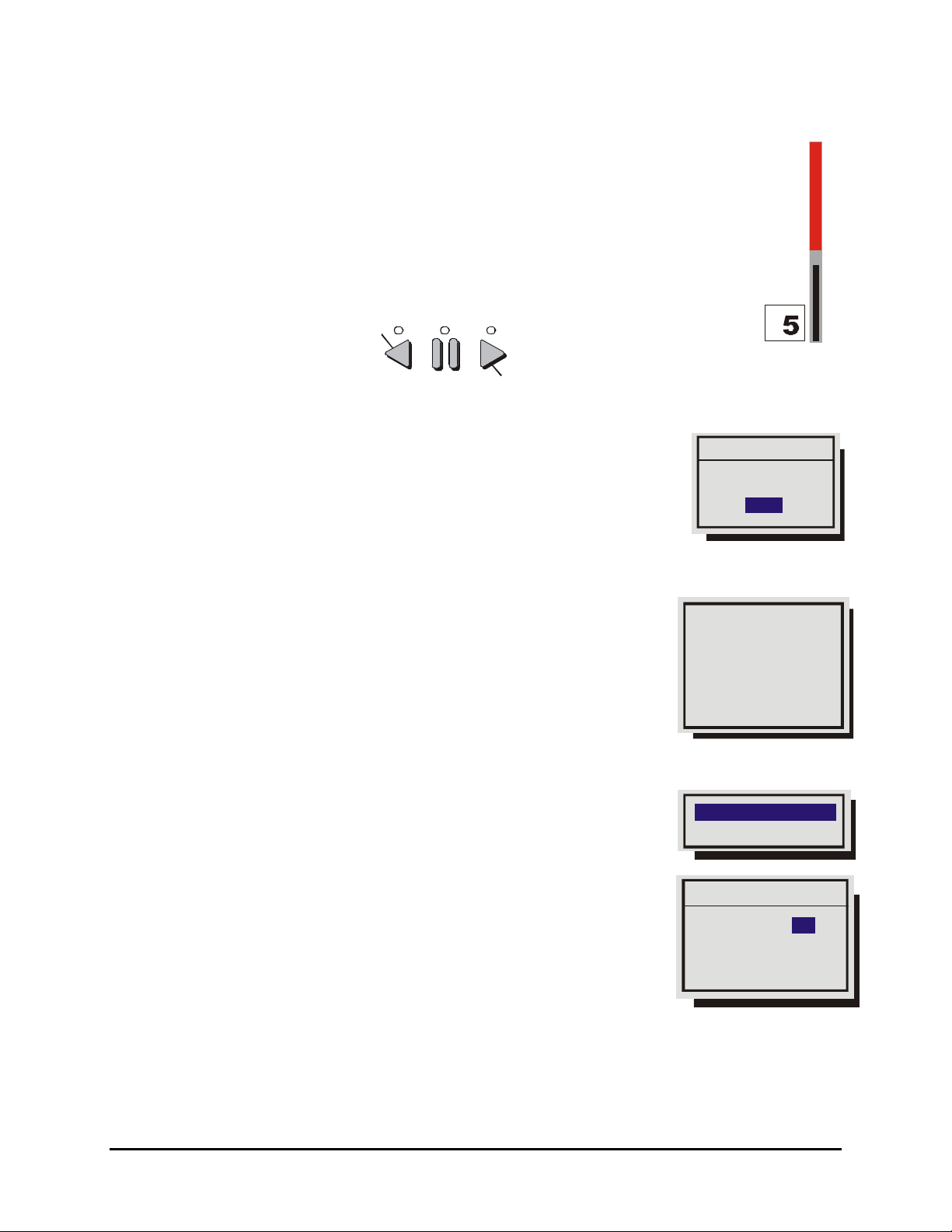

Play Forward to increase the Sensitivity

Indicate Detection

Titles Display

[CANCEL] [OK]

Monitor B: OFF

Camera Disable

Sensitivity Scope

Use the sensitivity scope to adjust the motion detection sensitivity for the scene. The sensitivity scope is the bar located near the left-hand corner of the screen.

The black bar raises and lowers to indicate the degree of motion detected. When the black bar reaches the red bar, a motion detection alarm is activated.

Adjusting Motion Detection Sensitivity: Raise and lower the red bar to change the motion detection sensitivity. Use the Play Forward button to increase the sensitivity level and the Play Reverse button to decrease the sensitivity level. The sensitivity level is also displayed as a numeric value.

Play Reverse to decrease the Sensitivity

q Main Menu → Motion Detection → Indicate Detection

Motion Detection may be indicated on-screen by displaying the letter M. Use this menu to turn this feature On or Off.

Detection

3.13 Camera Setup

Use this menu to:

• Edit the title for each camera.

• Adjust the Automatic Gain Control.

• Disable or Enable camera inputs.

• Specify cameras as covert (recorded but not displayed).

• View the Camera Scope (Histogram)

q Main Menu → Camera Setup → Camera Titles

Use this menu to:

• Specify if the camera titles will be displayed on the monitors.

Edit the title for each camera.

Titles Display

Camera titles may be displayed on either monitor. Use this menu to turn this feature On or Off.

Rotate the Jog buttons to navigate and the Shuttle to change the values.

Camera Titles Camera AGC

Covert Camera Camera Scope

Edit Titles

Monitor A:

0150-0198H 45 DVMRe Triplex eZ

Edit Titles

Rotate the Shuttle to select the camera whose title you wish to configure, and then press the Enter button. The Camera Title Edit menu will appear.

Camera Title Edit

Camera Title : Camera 01

@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^

SEQ key selects character bank ‘1’ key inserts blank character ‘2’ key inserts selected character

[CANCEL] [OK]

Camera Title Edit Menu

1. With the camera title selected, press the Enter button. The menu will enter the Edit mode and the

character bank will appear in the center of the menu.

2. Press the Sequence button to select the desired character set.

3. Rotate the Shuttle to navigate the cursor in the camera title.

4. Rotate the Jog to navigate the cursor in the character bank.

5. Press the Number 1 button to insert a blank character or press the Number 2 button to insert the selected character.

6. When finished editing the title, press the Enter button to exit the edit mode.

7. Save changes and exit the menu: Select [OK], then press the Enter button.

8. Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

q Main Menu → Camera Setup → AGC

Use the Automatic Gain Control (AGC) to adjust the video input signal level for cameras whose level is outside the normal range. The default gain setting is 100%.

Rotate the Jog to navigate and the Shuttle to change the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

Signal Gain Setup

Camera 01 Signal Gain 100%

[CANCEL] [OK]

0150-0198H 46 DVMRe Triplex eZ

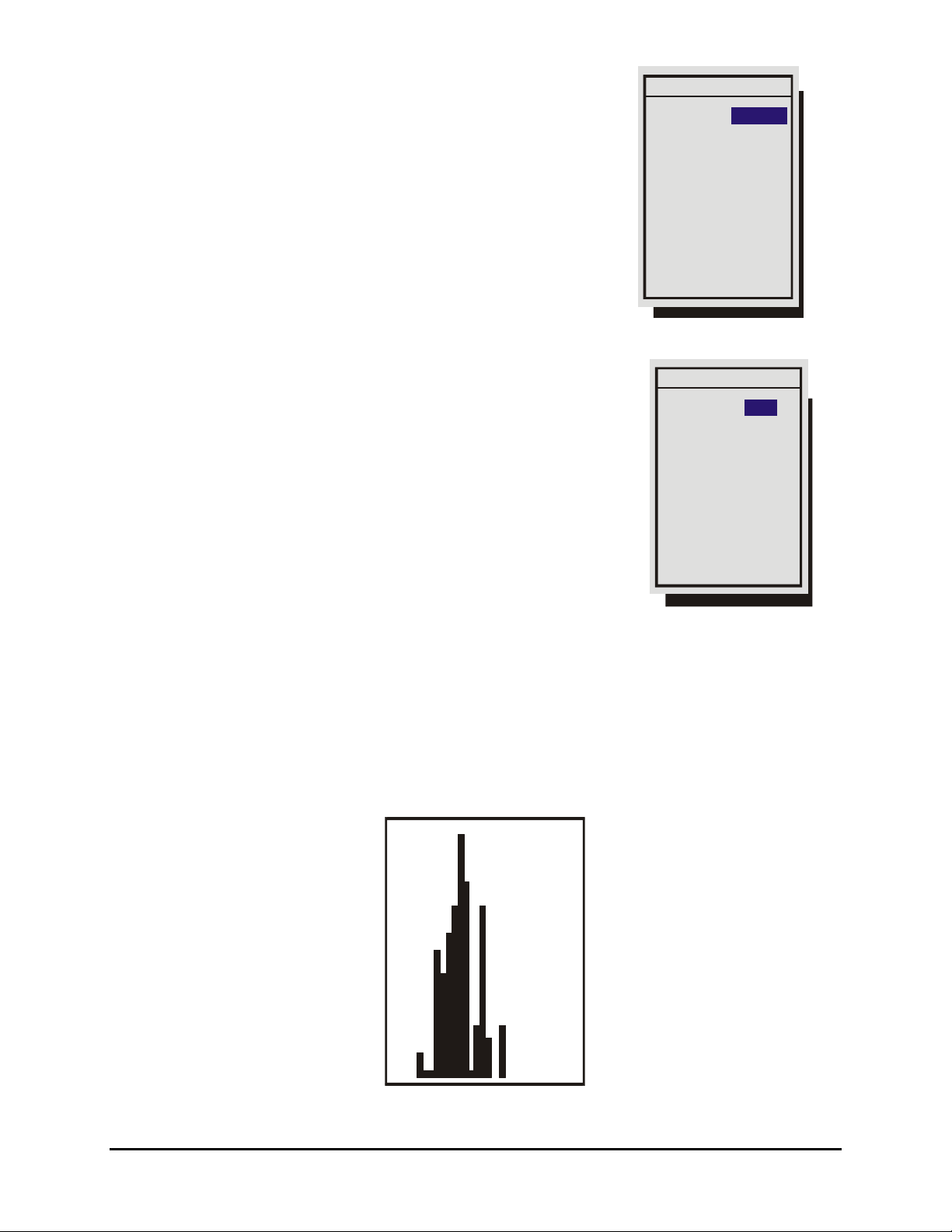

q Main Menu → Camera Setup → Camera Disable

Luminance Histogram

Luminance

Camera Disable

[CANCEL] [OK]

Camera 03: Disable

[CANCEL] [OK]

Camera 02: YES

Use this menu to Disable or Enable each camera input individually.

Use the Jog to navigate and the Shuttle to change the values. Save changes and exit the menu: Select [OK], then press

the Enter button. Exit the menu without making changes: Press the Menu

button, or select [CANCEL], then press the Enter button.

Camera 01: Camera 02: Enable

Camera 04: Enable : : Camera 16: Enable

Disable

q Main Menu → Camera Setup → Covert Camera

This feature removes cameras from all live displays while continuing

Covert Camera

Camera 01:

to record them, so that the users and the public are unaware that the camera is being recorded. Covert cameras are viewable during playback.

Select Yes in this menu to configure a camera as covert. Rotate the Jog to navigate and Shuttle to change the values. To disable the covert camera (make display visible) return to this menu

and change the selection to NO. The camera’s display will become visible upon exiting the Main Menu.

Camera 03: NO Camera 04: NO : : Camera 16: NO

q Main Menu → Camera Setup → Camera Scope

Use this menu to view a live luminance histogram of the currently displayed camera.

Luminance Histogram

A Luminance Histogram is a graphical representation of how many times each gray-level value occurs in an image. Use this feature to analyze and optimize the video input signal.

0150-0198H 47 DVMRe Triplex eZ

Black

White

3.14 Archive Setup

OFF

Data recorded by the unit can be archived to an external archive device.

Use this menu to:

• Select the Port where the archive device will be connected.

• Turn Background Archiving mode Off and On.

• Erase the recorded data on a compatible archive device.

• Enable or Disable QuickWave Setup.

q Main Menu → Archive Setup → Port Select

Select the Port or interface to which the archive device will be connected. Select from the following items.

• SCSI: SCSI archive devices.

• 1394: 1394 Firewire archive devices.

q Main Menu → Archive Setup → Background Archive

Background Archive: Commands the unit to record data to both the

hard disk and the archive device simultaneously. Select from the following items.

• OFF: Turns background archiving Off.

• ON: Turns background archiving On.

Port Select

Background Archive

Erase Archive Medium QuickWave Setup

q Main Menu → Archive Setup → Erase Archive Medium

Use this feature to erase all of the recorded data on an archive device.

With Erase Archive Medium highlighted, press the Enter button. If a compatible archive device is connected, a confirmation box will appear, otherwise no action will occur.

Erase all Records. Are you sure?

q Main Menu → Archive Setup → QuickWave Setup

This feature provides the option of having the QuickWave software written to any CDs that are created. This allows the CD to be read on any PC without installing software. Select ON to enable, OFF to disable.

0150-0198H 48 DVMRe Triplex eZ

QuickWave CD Write: ON

Message

YES

QuickWave Setup

[CANCEL] [OK]

3.15 Audio Setup

RS485

POTS Setup

G.711

Use this menu to enable or disable the audio feature of the Triplex. Select from:

• OFF

• G.711

Audio Limitations:

1. To record audio at least one the unit’s video inputs must be set to record video at a rate of 1pps

or faster.

2. If all the cameras are set to EVENT mode and no events are occurring, no audio will be recorded

regardless of the event recording speed.

OFF

3.16 Communications

Use this menu to:

• Configure the baud rates and settings for the RS232 ports.

• Configure the network address for the RS485 network.

• Configure the Ethernet address and networks settings.

RS232

Ethernet

q Main Menu → Communications → RS232

Select the Port you wish to configure and press the ENTER button.

Port 1

Port 2

Port 1

Use this menu to:

• Enable/Disable POTS and configure the Modem initialization

string (POTS Setup).

• Adjust the Baud rate.

Baud Rate

POTS Setup

The default modem string (shown below) is for use with Hayes Accura 56k, Diamond Supra Express 56k, and 5686 US Robotics modems in their default conditions. Consult with the modem manual before attempting to make any changes. It is strongly recommended that the modem initialization string only be modified by a qualified technician.

0150-0198H 49 DVMRe Triplex eZ

POTS Setup

POTS : DISABLE

1200 Baud

2400 Baud

4800 Baud

19200 Baud

38400 Baud

57600 Baud

1200 Baud

2400 Baud

4800 Baud

19200 Baud

38400 Baud

57600 Baud

Modem Init String : AT&F1&K3M0E1Q0V1S0=0&R2&C1&D0&H1

[Default Modem String] [CANCEL] [OK]

@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^

SEQ key selects character bank ‘1’ key inserts blank character ‘2’ key inserts selected character

1. With the Modem Init String highlighted, press the Enter button to enter the Edit mode. The character bank will appear in the center of the menu.

2. Press the Sequence button to select the desired character bank.

3. Rotate the Shuttle to navigate the Modem Init String.

4. Rotate the Jog to select a character from the character bank.

5. Use the Number 2 button or rotate the Shuttle to insert the desired character from the character

bank into the Modem Init String and advance to the next character.

6. Use the Number 1 button to insert a blank character.

7. When finished, press the Enter button.

8. To save the changes and reboot, select OK, then press the Enter button. The unit will only reboot

if changes were made to the Modem Init String.

9. To exit the menu without making changes, select Cancel, then press the Enter button. Pressing the Menu button also exits the menu without making changes.

Baud Rate

Use this menu to configure the baud rate for Port 1 for external control of the unit via RS232. Rotate the Jog to select a baud rate from the menu.

Save changes and exit the menu: Press the Enter button.

9600 Baud

Exit the menu without making changes: Press the Menu button.

Port 2

Use this menu to configure the baud rate for Port 2. Rotate the Jog to select a baud rate from the menu.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

The RS232 port 2 is used for Event Generation and ASCII Text Insertion. See Section 7 for the RS232 Protocol required to perform these functions.

9600 Baud

0150-0198H 50 DVMRe Triplex eZ

q Main Menu → Communications → RS485

Connect several units to a single keyboard, or vice-versa. Up to 32 units (any combination of multiplexers and keyboards) can be networked together. Use this menu to specify the units unique network address.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

Network Address

q Main Menu → Communications → Ethernet Settings

An ethernet connection can be used to connect to the unit from a PC for the viewing of live or recorded images. Use this menu to configure the Ethernet communications settings. Select from the following:

Ethernet: Select Enable or Disable. Hostname: The default Hostname is the unit’s serial number

without the dashes. The user should modify only when GnuDIP is selected in the Name Service field.

DHCP: Select Enable or Disable. Enables dynamic IP addressing. When DHCP is enabled, the IP address, Subnet Mask, Gateway, and Server fields are dynamically addressed.

Name Service: Select from Disable, WINS or GnuDIP. Enabling WINS registers the hostname and IP address within the current Network. This ensures that you can connect to the Triplex by hostname within the network. See the Note below for information on configuring Dynamic DDS with GnuDIP.

DDNS Update Interval: Select the Dynamic Domain Name Server interval. Select from Disable or from 1 to 1440 minutes.

IP Address / Subnet Mask / Gateway: Consult with a qualified Network Administrator or an MIS professional to configure these settings if DHCP is not enabled.

Primary Name Server / Backup Name Server: The IP addresses of the Primary and Backup Name Servers. Not required if DHCP is enabled.

Print Server: Enter the Print Servers IP address to enable the Print Image operation (Function and Zoom).

TCP MTU Size: Select from Standard, 1400, and 1200. The MTU describes the maximum possible TCP packet size. Standard (1500) is optimal for most ethernet network environments.

HTTP Port : Select the HTTP Port. Select from Port 0 to 65535. Shortcuts are available for port 80 (Camera 1 button) and 8080 (camera 2 button). Consult with a qualified Network Administrator or an MIS professional to configure these settings.

0150-0198H 51 DVMRe Triplex eZ

In order to use Dynamic DNS with GnuDIP, the user has to configure following in the menus:

NOTE

• Name Service must be set to GnuDIP (Ethernet Setting Menu).

• Primary Name Server must be set to the IP address of the GnuDIP server (Ethernet

Setting Menu).

• Hostname must be set to the required hostname format e.g. ge04.companyname.net.

For registration purposes, the string until the first dot is used as hostname (here: ge04), the remainder is used as domain (here: companyname.net). The hostname is set via the Ethernet Setting menu and is case sensitive.

• DDNS update interval must be set to a reasonable value (e.g. 2 minutes).

• The password for the DDNS server has to be set in the Passwords->DDNS password

menu. The password is 4 digits long (The Enter button can be used for the number 0).

When everything is configured correctly, the DVMRe will send periodically a Dynamic DNS update message over TCP port 3495 to the Dynamic DNS server telling the server its hostname. The DVMRe does not include its IP address in the message. Instead the Dynamic DNS server extracts the IP address of the DVMRe via the Ethernet source IP address. This guarantees that the correct IP address is used even when the DVMRe is behind a NAT router.

3.17 Front Panel Lock

Use this feature to lock the front panel keypad. While locked, the only operational key on the front panel is the Menu button. To unlock the front panel, enter the Installer password and return to this menu.

Unlock Keyboard

Lock Keyboard

Highlight the item you wish to select.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

3.18 Factory Settings

Return To Factory Defaults

From the Factory Setting menu, press the Enter button. A password box will appear. Enter the Factory Default password. Select OK, then press the Enter button.

The unit will reboot, returning all settings (except the time, date, email addresses, and email IP address) to the factory defaults. Due to the large size of the hard disk, the reboot may take several minutes.

Change Language

From the Factory Setting menu, press the Enter button. A password box will appear. Enter the Language password. Select OK, then press the Enter button.

A menu will appear displaying the available language selections. Rotate the Jog to select the desired language.

Save changes and exit the menu: Press the Enter button.

Factory Default Password

10 and 16-Channel

4-Channel

Language Password

10 and 16-Channel

4-Channel

8 1 1 1

4 1 1 1

5 4 1 5

1 4 1 4

Exit the menu without making changes: Press the Menu button.

0150-0198H 52 DVMRe Triplex eZ

Available Languages:

Installer Password

English French German Italian Russian Polish Czech Finnish Hungarian Slovak Spanish Dutch Danish

3.19 Passwords

Use this feature to change the Installer, Operator or Ethernet passwords.

Changing the Installer or Operator Passwords

To change the password:

1. Highlight the password you wish to change, then press the Enter button. A password box will appear.

2. Enter the new password using the Number buttons.

3. Highlight OK, then press the Enter button.

4. Re-enter the password.

Operator Password Ethernet Password

Password Box

Enter a new Install Password

---

5. Highlight OK, then press the Enter button. The user will be prompted, indicating if the password was entered correctly and changed.

The Ethernet Password

The Ethernet Password feature limits access to only those users who access the unit using the password feature of WaveReader versions 2.4 or later. When the unit is first setup, the default is No Password Protection. Meaning, anyone using WaveReader and accessing with an ethernet connection can connect to the unit.

Enter a new Ethernet Password

Password Box

---

Activate The Ethernet Password

1. Enter the new password using the Number buttons.

2. Highlight OK, then press the Enter button.

3. Re-enter the password.

4. Highlight OK, then press the Enter button. The user will be prompted, indicating if the password was

entered correctly and changed.

0150-0198H 53 DVMRe Triplex eZ

Deactivate The Ethernet Password

About DVMR

Serial Number:

Boot Code Version:

To return the unit to No Ethernet Password Protection, enter the Ethernet Access Reset Password in the password box shown above. 1 1 1 1

Ethernet Access Reset Password

The DDNS Password

The DDNS password enables the DVMRe Triplex to contact the Domain Name Server in order to provide IP to Domain Name translation. You must obtain this number by calling you Domain Name Service. By default this password is

2222. This password is only used when Name Service in the Ethernet Settings Menu is set to GnuDIP.

3.20 The Operator Menu

The Operator Menu Overview

The Operator menu is provided so that the user has access to a limited number of menu items. These menu items are primarily monitor display setup options, so that the user may “personalize” the monitor displays during their shifts. Other options include video archive setup and changing the operator password.

None of the items are unique to the Operator menu. All items located in the Operator menu are also found in the Main menu.

Time/Date Display Titles Display Alarm History Archive Setup Operator Password

q Operator Menu → About DVMR

About DVMR menu: This menu provides information

such as:

• Model Designation

• Serial Number

• Hostname

• Software Version

• Software Date

• Boot Code Version

• Hard Disk Size

• IP Address

• Hardware Address (MAC)

• DHCP Lease Expiration Date

• Last DDNS Update Status

• Last DDNS Update Success

Model:

Hostname: Software Version: Software Date:

Disk Size: IP Address: Hardware Address: DHCP Lease Expires: Last DDNS Update Status: Last DDNS Update Success:

DVMRe-16eZT D406-T2-250419 D406T2250419 VER 5.24 May 27 2004 10:09:46 VER 1.03

163.93 GB

3.18.173.10 BA-BE-C6-7E-FA-CE No Lease No attempt NONE

0150-0198H 54 DVMRe Triplex eZ

Use the following table to find detailed information about configuring specific items from the Operator menu.

Operator Menu Item Primary Menu Location Section In

Manual

Time/Date Display Titles Display

Alarm History Video Archive Setup Operator Password

Main Menu → Time/Date → Time/Date Display Main Menu → Camera Setup → Camera Titles → Title

Display Main Menu → Alarm → Alarm History Main Menu → Archive Setup Main Menu → Password → Operator Password

3.8

3.13

3.11

3.14

3.19

0150-0198H 55 DVMRe Triplex eZ

4 Alarms

4.1 Alarm Input

Alarm devices are connected via the Alarm PCB on the back panel of the unit (see section 1.7). Each Alarm Input corresponds with the Camera Input of the same number. Alarm input to camera number assignments can be changed on 10 and 16-channel models. See Alarm Action menu (section 3.10).

4.2 Alarm Output

Front Panel Alarm LED: The LED located to the left and above the Alarm button is lit for the duration

of the alarm. Internal Buzzer: The internal buzzer is activated until it is Silenced and Acknowledged. This feature

can be turned off in the menu system (see Buzzer Setup in section 3.10).

Monitor Displays: Discussed below in the On-screen Displays During Alarms section. Output Relays: The alarm output relay is active for the duration of the alarm. Macro Activation: Unit can be configured in the menu system to activate a macro when an alarm is

detected (see Link to Macro in section 3.10). Record Rate: Record Rate can be increased by recording at the Alarm Record Rate (see section

3.10) and by Interleaved or Exclusive Recording (see Alarm Record mode in section 3.10).

4.3 Alarm Acknowledge

Pressing the Alarm button acknowledges to the unit that the alarm has been recognized and silences the internal buzzer. This does not clear the alarm condition.

4.4 On-screen Displays During Alarms

Monitor-A and Monitor-B Display During Alarm

Single Alarm: Unit switches to a full screen display of the camera in alarm. Additional Alarms: Unit switches to a sequenced display of all cameras in alarm.

4.5 Alarm Operations During Playback

Live Alarms Displays

Single Alarm: Unit switches to a full screen display of the camera in alarm on Monitor B.

Alarm Button

Additional Alarms: Unit switches to a sequenced display of all cameras in alarm on Monitor B.

0150-0198H 56 DVMRe Triplex eZ

LIVE

LIVE MODE

PLAYBACK MODE

Monitor A

Monitor B

LIVE

PLAY

BACK

LIVE

LIVE ALARM

FULL

SCREEN

ALARM

LIVE ALARM

FULL

SCREEN

ALARM

LIVE ALARM

PLAY

BACK

LIVE ALARM

FULL

SCREEN

ALARM

Recorded Alarms

Internal Buzzer: During playback, the internal buzzer is activated until it is silenced and

acknowledged. This feature can be turned off in the menu system (see Buzzer Setup, in section

3.10). Front Panel Alarm LED: The LED located to the left and above the Alarm button is lit for the duration

of the alarm. Monitor-A Multiscreen: Each camera in alarm is indicated on-screen by a flashing red “A” in its

cameo. Alarm LED lights to indicate an alarm condition. There is no change in the playback (or Triplex) multiscreen based on playback of recorded alarms.

4.6 Alarm History Box

The Alarm History feature provides a list of the 100 most recent alarms. View the Alarm History Box by accessing the menu system, and selecting Operator → Alarm History. The Alarm History Box can also be found under Main Menu → Alarm → Alarm History. For detailed information about viewing the Alarm History Box see Alarm History in section 3.10.

4.7 Searching For Recorded Alarms

See section 5.

0150-0198H 57 DVMRe Triplex eZ

Play Back

Enter

Search Results

Start Date Start Time Days HH MM SS

002 01/21/2002 20:09:10 0 00:00:38

003 01/21/2002 20:10:10 0 01:07:22

004 01/22/2002 20:07:10 0 00:00:07

005 01/23/2002 20:07:10 0 00:08:56

006 01/24/2002 20:07:10 0 00:00:06

007 01/25/2002 20:07:10 0 05:57:31

008 01/26/2002 20:07:10 0 00:46:43

000 01/21/2002 20:07:10 0 04:35:15

Activity, Text, Motion, Alarm Search Results

Search Results

‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Write to CD

Search Filters

Search Results

Alarm Event Activity Videoloss Present Absent

Search Filters

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

5 Searching

The DVMRe Triplex eZ provides a powerful search interface to access video files stored on the hard disk or an external archive device.

Search Menu Overview

Button

Disk Analysis Screen

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Hit SEARCH again to enter Advanced Search Level 1

01/21/2002 20:17:01

Search Button

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/04 01/27/04 20:57 20:59

Activity Event Alarm Text

Retail

Camera

X X X X X X X X X X X X X X X

[CANCEL] [START SEARCH]

Hit ‘ZOOM’ to edit retail text list Hit ‘ENTER’ to toggle EDIT Mode

EDIT MODE

Enter

Play Back

Start Search

Enter

Time/Date Search Results

001 01/21/2002 20:08:10 0 00:01:55

9 matches found.

‘PLAY REV/FWD’ to page up/down ‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Search Button

3/19 06:11

3/19 21:42 02

3/20 21:54 02

3/19 23:51 02

3/21 02:25 02

3/20 18:51 02

10 matches found.

‘PLAY REV/FWD’ to page up/down

3/20 6:26 02

3/21 03:51 02

3/20 14:30 02

3/22 21:01 02

Record

Button

0150-0198H 58 DVMRe Triplex eZ

5.1 Disk Analysis Screen

Level 1

Disk Time

Record

Button

Archive Incident

Begin by pressing the Search button. The Disk Analysis Screen will appear. This screen shows a graphical representation of the recorded video stored on the internal hard disk.

Arrow Cursors

02/28/2002 20:45:00

Search Button

Disk Analysis Screen

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Alarm Event Activity Videoloss Present Absent Hit SEARCH again to enter Advanced Search Level 1

01/21/2002 20:17:01

and Date at cursor location.

Zoom Level

Write to CD

Rotating the Jog moves the two arrow cursors across the representation of the recorded video. As the cursors move across the screen the corresponding disk time is indicated in the upper right of the screen. The video representations are color-coded by category. Rotating the Shuttle expands (Zooms) the display. The Lowest level (most detail) is indicated on screen with an (L). Pressing the Enter button will start Playback from the cursor location.

5.2 Quick Archive to CD

Archive to CD on the Disk Analysis Screen by selecting the time and date and pressing the record button. The QuickWave Setup must be set to ON from the Archive Setup → Quick Wave Setup menu (see section 3.14). The Archive Incident menu should appear.

1. Use the Jog to modify the time parameters and use the Shuttle to move between the Start and Stop fields.

2. Press the Record button on the front panel when satisfied.

3. The CD Writer will open the CD tray when completed.

The video may now be viewed on any PC equipped with a CD-ROM.

0150-0198H 59 DVMRe Triplex eZ

07/31/2003 02:20:06P Start Stop

02:02:51P

Capacity: 557MB

‘RECORD’ to Archive

02:20:09P

5.3 Search Filters

Search Filters

3. Copy from Disk to Archive.

4. Copy from Archive to Disk.

XXXXXXXXXXX

Pressing the Search button a second time brings up the Search Filters Menu. Use the Search Filters menu to specify:

• The type of operation to be performed: Play from Disk, Play from Archive, Copy from Disk to

Archive, and Copy from Archive to Disk.

• The Start and Stop date of the search.

• Searching for recorded activity, events, retail text, or alarms.

• Searching for a text string.

• Which cameras to search inclusively or exclusively.

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/04 01/27/04 20:57 20:59

[CANCEL] [START SEARCH]

Hit ‘ZOOM’ to edit retail text list Hit ‘ENTER’ to toggle EDIT Mode

Activity Event Alarm Text

Retail

Camera 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

X X X X X X X X X X X X X X X

X X X X X

EDIT MODE

The following options are available when an archive device is connected:

1. Play from Disk.

2. Play from Archive.

Selecting these functions displays thumbnails in the Search Results window.

To access the Retail Search Menu select ‘RETAIL’ and press the ‘ZOOM’ key.

Hit Camera buttons to select/deselect individual cameras. Use the Zoom button to globally select/deselect cameras to search.

Selecting Search Parameters

1. Rotating the Jog to navigate, highlight the box adjacent to the parameters that you wish to modify.

2. Once in the Parameter Box, use the Shuttle to navigate through the fields and the Jog to change

3. To activate the parameter, use the Shuttle or the Enter button to place an [X] in the check box.

4. When finished, use the Jog to navigate to another parameter.

0150-0198H 60 DVMRe Triplex eZ

the values.

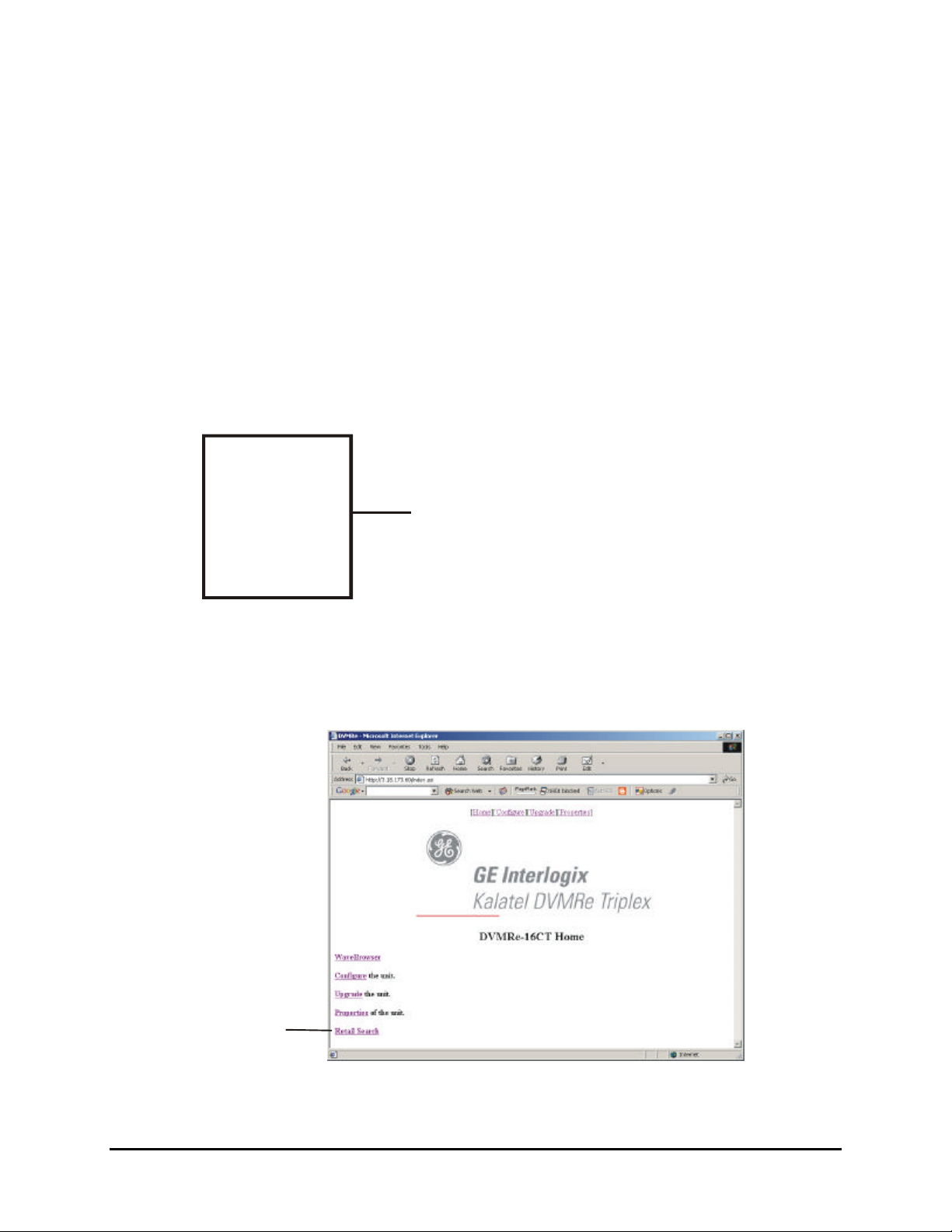

5.4 Retail Search

filename: retail_search.txt

The local retail search feature is provided for customers who wish to search video for specific products from the front panel of the DVMRe. The customer can select from predefined product names from predefined categories. To use this feature you must create a text file containing the categories (product types) and product names (sub levels) that you want to search. This file is then uploaded to the DVMRe via the web interface.

Text File Format

To create a retail search text file open Notepad or any other simple text editor. The file must be saved as a text only file. The meta-character # is used in this text file to identify a category. All strings below a category are interpreted as sub levels of that category until another category appears. The creator of the retail text file is responsible to put the categories and sub levels into correct order. The DVMRe will not sort the strings. A category has to have at least one sub level. The customer has to store this file as a .txt file named retail_search.txt.

Example:

#Ice_Cream Vanilla Chocolate_Chip #Soda Vanilla Root_Beer Orange #Beer Draft Light Extra_Light

Uploading/Downloading the retail_search .txt File

The retail search text file can be uploaded to the DVMRe unit via the Web interface. The index.ssi page will contain a link to the retail search page. Open the embedded web browser by typing the DVMRe’s IP address in the address field of your Internet browser.

Click here

This page will appear if no retail text file has previously been uploaded. To upload the file, click the Browse button and navigate to the file location. Once the file is selected, click on the Upload Retail Search File button.

0150-0198H 61 DVMRe Triplex eZ

Setup Retail Search

Hit ‘ENTER’ to toggle EDIT Mode

[CANCEL]

Ice Cream selected

from Category List

When the retail text file has been uploaded this page provides the options to delete or upload a new retail text file. The user can view the retail text file by clicking the link to the retail text file. The user can download the retail text file to a PC by right-clicking the link and by choosing 'Save Target As'. The user can only upload one retail text file and can delete the current retail text file. After uploading the file (and also after a reboot), the DVMRe will read the contents of the file and store it in memory.

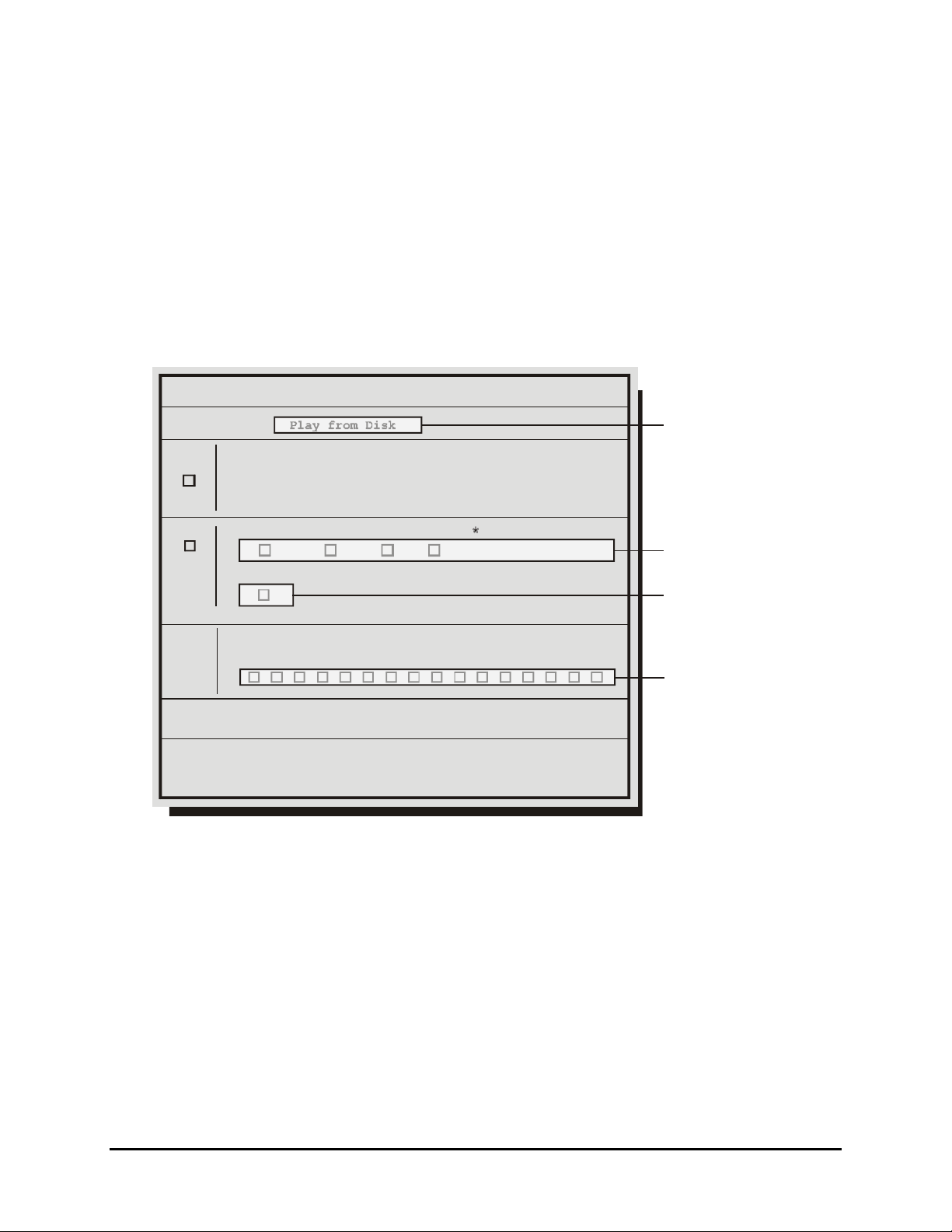

The Local Retail Search Screen

Access to the Local Retail Search screen is gained through the Search Filters Menu. Press the Search button one or more times until the Search Filters Screen appears, then select the Retail radio box and press the Zoom key.

Search Filters

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/04 01/27/04 20:57 20:59

Activity Event Alarm Text

Retail

Camera 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

X X X X X X X X X X X X X X X

[CANCEL] [START SEARCH]

Hit ‘ZOOM’ to edit retail text list Hit ‘ENTER’ to toggle EDIT Mode

EDIT MODE

To access the Retail Search Menu select ‘RETAIL’ and press the ‘ZOOM’ key.

0150-0198H 62 DVMRe Triplex eZ

Catagories

Sub Level

Selected Strings

Clear Individual (1)

Clear All

[OK]

Ice_Cream Soda

(3)

Beer

Vanilla

(2)

Chocolate_Chip

Vanilla

Vanilla selected from Sub Level

The following operations can be performed n this screen:

• Select category in the categories list.

• Select and deselect sub levels of the currently highlighted category.

• Clear individual or all selected sub levels.

3 categories, 5 sub levels, and 5 selected sub levels can be displayed on screen at one time. Up/down keys will scroll the screen backward and forward. The user can select sub levels from different categories by first selecting the category, then going to sub level frame and highlighting the selection. The user selections are kept in non-volatile memory so they survive a reboot. The user selections will be cleared when the user uploads a new retail text file. Like the other text searches, the results will display in thumbnail pictures and can be viewed through full screen playback with text.

Restrictions and Limitations

• The limit of the search strings is 1000. For example there might be 50 categories and 950 sub

levels.

• It is not possible to have a second sub level (e.g. Soda>Diet Soda>Root _Beer).

• It is not possible to do a normal text search and a retail search at the same time.

• The characters #, *, and @ are meta characters and are not to be used in the text string.

• It is not possible to search for categories. In the previous retail search text file for example, the

user cannot search for Beer.

• Only the first word of a sub level will be searched. For example, when the sub level 'Chocolate

Chip' is selected, only the word 'Chocolate' will be searched for. The search string cannot contain blank characters or spaces and is not case sensitive.

• Only the first 30 characters of a category or sub level are displayed.

• The user can select up to 25 sub levels and search them simultaneously.

• A maximum of 200 matches are available for each specific search. The user can further modify

searches by selecting time limit and cameras.

5.5 Search Results

From the Search Filters menu, use the Jog to navigate to the Start Search parameter. With the Start Search parameter highlighted, press the Enter button to begin the search operation. When finished

searching, the Search Results window will appear. A maximum of 200 results can be displayed per search. Two types of Search Result windows will appear depending on the type of search that is performed.

0150-0198H 63 DVMRe Triplex eZ

Start Date Start Time Days HH MM SS

002 01/21/2002 20:09:10 0 00:00:38

003 01/21/2002 20:10:10 0 01:07:22

004 01/22/2002 20:07:10 0 00:00:07

005 01/23/2002 20:07:10 0 00:08:56

006 01/24/2002 20:07:10 0 00:00:06

007 01/25/2002 20:07:10 0 05:57:31

008 01/26/2002 20:07:10 0 00:46:43

000 01/21/2002 20:07:10 0 04:35:15

‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Time/Date Search Results

Search Results

‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Activity, Text, Alarm Search Results

Search Results

001 01/21/2002 20:08:10 0 00:01:55

9 matches found.

‘PLAY REV/FWD’ to page up/down

3/19 06:11 02

3/20 18:51 02

10 matches found.

‘PLAY REV/FWD’ to page up/down

Follow the directions on-screen to select, archive, playback, etc.

3/19 06:11 02

3/19 21:42 02

3/19 23:51 02

3/20 6:26 02

3/19 21:42 02

3/20 21:54 02

3/20 14:30 02

3/19 23:51 02

3/21 02:25 02

3/20 6:26 02

3/21 03:51 02

3/20 14:30 02

3/22 21:01 02

3/20 18:51 02

3/20 21:54 02

3/21 02:25 02

3/21 03:51 02

3/22 21:01 02

10 matches found.

‘PLAY REV/FWD’ to page up/down ‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

Some options may be unavailable depending on the type of search performed. These options are not displayed. When archiving, the unit will not allow the amount of selected data to exceed the amount of space available on the target medium.

Press the Menu button to exit the Search Results window without making a selection. Hitting the Enter button will play the selected search result. Hitting the Enter button again while in playback will cause the next selection from the search list to be

played. Press the Sequence button to repeatedly play the selected event.

0150-0198H 64 DVMRe Triplex eZ

6 WebBrowser

The DVMRe Triplex eZ has an integrated WebBrowser interface. The WaveBrowser option allows the user to view video from any ethernet connected Triplexes with software version 4.09 or above.

For WaveBrowser to function properly, certain ActiveX controls must be set correctly. To

NOTE

setup the ActiveX controls:

1. Click on the Tools → Internet Options Menu in Internet Explorer.

2. Click on the Security tab.

3. Select Internet for the Web Content Zone.

4. Click on the Custom Level button.

5. Ensure that both Download unsigned ActiveX controls and Initalize and Script ActiveX controls not marked as Safe are set to Prompt.

6. Click the OK button.

7. Click on the Yes button in the Warning message.

8. Click the OK button in the Internet Options window.

To access the web interface:

1. Launch Internet Explorer (version 5.5 or later) on any local Internet connected PC or laptop.

2. Type in the Triplex’s IP address or hostname in the address field and press enter. The Enter Network Password box should appear.

3. Enter the correct Username and Password in their respective fields (the default username and password is admin). Click the OK button.

4. The WaveBrowser window should appear. Type the IP address in the IP Address Field and click the Connect button.

IP Address Field

0150-0198H 65 DVMRe Triplex eZ

6.1 WaveBrowser Overview and Controls

Main Viewing

Drop Down

Volume List

Button Panel

Area

The Main program window consists of the following areas:

• The Main Viewing Area: The large blue area.

• The Button Panel: The left side of the window.

• The Drop Down Volume List: Allows the selection of available Disk volumes.

The Main Viewing Area

Pictures are displayed in this area in Multi-Camera, and Single-Camera formats. Picture display order is according to the information encoded by the unit used to create the original video data file.

Choose from the following displays:

• 16-way Multiscreen Display (Large and Medium)

• 4-way Display

• Single Camera Display Large

• Single Camera Display Medium

• Single Camera Display Small

0150-0198H 66 DVMRe Triplex eZ

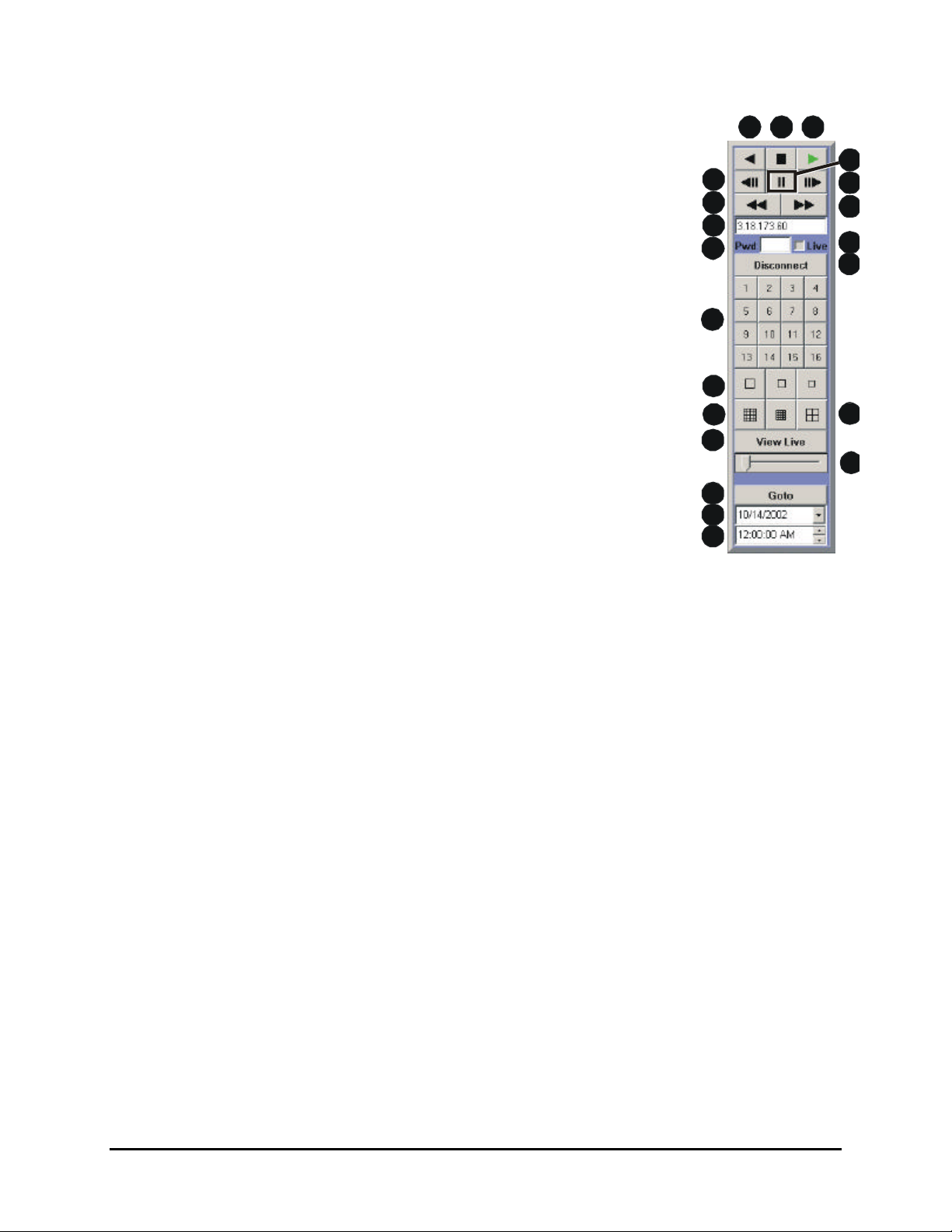

The Button Panel

3467891415181920211716121311105

1. Play Backward button: Click on this button to playback video in

reverse.

2. Stop button: Click on this button to halt all playback operations. The

Play Pointer Slider Bar moves to the start of data.

3. Play Forward button: Click on this button to playback video.

4. Single Frame Rewind button: Click on this button to rewind the video a

single frame.

5. Pause button: Pauses playback until the Pause button is pressed

again. Clicking any of the buttons, except Stop will also resume playback. The Play Pointer slider bar stays at the current position while paused.

6. Single Frame Advance button: Click on this button to advance the

video a single frame.

7. Rewind button: Click on this button to perform high-speed reverse

playback.

8. Fast Forward button: Click on this button to perform high-speed

playback.

9. IP Address Field: Enter the unit’s IP address.

10. Password Field: Enter the unit’s password, if necessary.

1 2

11. Live check box: Click in this box to enable live viewing before connecting.

12. Connect/Disconnect button: Click on this button(s) to connect to the unit.

13. Number buttons: Press any of these buttons to call up individual cameras for display. When

connected to a unit that has more than 16 cameras, right-clicking over the number buttons will display numbers 17 through 32. Right-click again to return to cameras 1 through 16.

14. Single Camera Display Size: Choose from Small, Medium, or Large.

15. 16-way Multiscreen button: Choose from a Medium 16-way, or Large 16-way.

16. 4-way Multiscreen button: Selects a Large 4-way display.

17. View Live Button: Click on this button while connected to view live video.

18. Play Pointer Slider Bar: The Play Pointer slider bar advances to the right to indicate the playback position on the disk. The user can drag the bar to navigate forward or backward.

19. Goto Button: Click on this button to go to the selected date for the drop down time and date boxes.

20. Drop down Date Selection Menu: Click on this field to display a graphic calendar to select a date to view.

21. Time Selection Menu: Click on the Up or Down Arrows to select a specific time to view.

The Drop Down Volume List Box

Click on the arrow to display a list of available disk volumes on the connected unit. Click on the volume to select.

6.2 DVMRe Triplex eZ WaveLink

A new feature with Triplex eZ software version 5.00 is the DVMRe Triplex eZ WaveLink. This feature allows putting command codes in the URL when calling WaveBrowser to control actions the WaveBrowser is going to perform.

0150-0198H 67 DVMRe Triplex eZ

This feature can be used by Web Developers to link various cameras to specific Web content. It will also be used by the DVMRe Email feature to allow the recipient of an alarm email to click on a link in the email, which causes the WaveBrowser to connect and play back at the time when the alarm occurred.

Functionality

The traditional WaveBrowser URL is http://<IP_Address>/wrcontrollite.ssi. This URL will start the WaveBrowser in the disconnected state. Triplex software version 5.00 supports command codes placed after an underscore after wrcontrollite and before .ssi. In the following example, the options are in bold.

Example: http://3.18.172.230/wrcontrollite_c=1s=2a=3t=1361959858.ssi.

The following table specifies the supported options:

Name Code Description Example

Camera c=<n> Describes either the camera number for

fullscreen (1=Camera 1, …16=Camera

16) or the type of the multiscreen display (100 = Multiscreen 16 large, 101= Multiscreen 16 small, 102= Quad screen)

Size s=<n> For fullscreen camera, describes the

size of the display (1=large, 2 =medium, 3= small)

Action a=<n> Describes the action the WaveBrowser

has to take: 0 No action 1 Normal Connection Play 2 Normal Connection Live 3 Normal Connection Goto 4 Live Connection

Time t=<n> When action is set to 3 (Goto), the time

specifies where to go in number of seconds since 01/01/1960.

c=10

s=2

a=2

t=1361959858

Please Note: When an option is not specified, it will be set to 0.

NOTE

The default page, http://3.18.172.230, does not accept option codes and will open the WaveBrowser in disconnected state.

The example URL from above (http://3.18.172.230/wrcontrollite_c=1s=2a=3t=1361959858.ssi) requests the WaveBrowser to make a normal connection, play back at 2/27/2003 10:53:32 displaying camera 1 in medium size.

0150-0198H 68 DVMRe Triplex eZ

When a normal connection is requested, but the DVMRe unit is already connected via a normal connection, the WaveBrowser should open a live connection instead.

Email Links

The DVMRe Triplex eZ is able to send emails when certain events occur (like videoloss, alarms, etc.). When in record mode, the Triplex eZ software version 5.00 will add a WaveBrowser link in the email notification.

Clicking this link initiates WaveBrowser to be started, make a normal connection and play back the specific camera with a medium size video window at the time the event occurred.

0150-0198H 69 DVMRe Triplex eZ

7 Technical Specifications

General

External Power Supply 12 Volt DC. 60 Watt (5 Amp) Connector 2.1mm barrel connector, center positive. Power Consumption 35 Watt nominal (single disk). Operating Temperature Range Operating: 0 to 40°C. Storage: -20 to +60°C. Relative Humidity Range (Non-Condensing) Operating: 10% to 80%. Storage: 10% to 95% Dimensions 17.5 x 14 x 1.7 Inches. 1U, 19 inch rack unit. Weight 9 Lbs.

Connections

10/100 Ethernet Port RJ-45 Connector. RS232 Port 1 DB-9 Male Connector. RS232 Port 2 RJ-45 Connector. Camera Inputs BNC connectors. Auto Terminating. Color & Mono. Monitor-A Output (Y/C) 4-pin Mini-DIN Connector. Monitor-B Output (Y/C) 4-pin Mini-DIN Connector. Monitor-A Output (Composite) BNC Connector Monitor-B Output (Composite) BNC Connector RS485 Port Two Looping RJ-45 Connectors IEEE 1394 Firewire Port 6 position IEEE 1394 Socket SCSI Port 50 pin, High Density SCSI-2 female connector. Alarm I/O Port Use Supplied DB-25 PCB connector.

Video

Video Signal Input 0.5 to 2.0 Volts peak-to-peak with Automatic Gain Control. Video Signal Output 1 Volt peak-to-peak into 75-Ohm. Input Termination 75-Ohm (Auto Terminating) Display Memory 4 Megabytes Resolution Horizontal: 720 Pixels. Vertical: 484 Lines (576 for PAL). Gray Scale 256 levels Colors Y:U:V 4:2:2, 16.8 Million Colors Compression Standard Wavelets

0150-0198H 70 DVMRe Triplex eZ

Audio

Audio Input 315mV, 40k Ohms. Unbalanced. Audio Output 315mV, 600 Ohms. Unbalanced.

Alarms

Inputs 1 per camera. Relay Configuration Normally Open. Record Priority Interleaved or Exclusive Alarm Status Indicators Relay Outputs, On-screen Indicators. Status Retrievable via RS232

port.

Motion Detection

Zones Per Camera 256: 16 x 16 grid. Sensitivity Settings 10 levels Gray Levels Per Zone 256 levels

Motion Detection Status Output

Relay Outputs, Link to Alarms, Link to Events, On-screen Indicators. Status retrievable via RS232 port.

Part Numbers

Remote Keyboard CBR-KB3, CBR-KB3/J, KTD405. Includes motorized pan, tilt, and zoom

controls.

Rack Mount Kit CBR-RK6. 1U Height. Part Number: 0110-R601 Replacement Manual 0150-0198

0150-0198H 71 DVMRe Triplex eZ

8 RS232 Alarm/Event Generation/Text Insertion

Protocol

The RS232 Alarm/Event Generation /Text Insertion Protocol is designed to deliver Alarm, Event (commands), and Text data to the DVMRe from serial interface devices through the RS232 port.

NOTE

8.1 Message Structure

The Delimiter byte signals the start of a new message, and has a value of 0xFF.

Setting and Clearing Alarms with this Protocol is equivalent to activating and deactivating Alarms on the hardware alarm inputs.

Delimiter The Class and Command fields identify the type of message. The Data Length is a 16-bit value indicating the number of bytes in the Data portion of

the message. Data Length is sent using Intel byte ordering (Little Endian). The Check Sum byte is the result of XORing all the bytes in the message.

8.2 Message Type

One message is currently supported to store text along with recorded video.

CMD_NEW_ADD_TEXT

Class byte is 0x14. Command byte is 0x40. Data Length is the number of data bytes in the message (from 2 to 502). Camera byte indicates the camera associated with the alarm, event, or text. The

valid range is from 0 to 15.

Alarm/Event byte usage is described in the following section. String fields contain text characters. The string length can be from 0 to 500

characters in length. The String field is not required. If text data is available, it will be recorded with the next video frame for the camera identified by the camera field.

Class

Command

Data Length

Data

Check Sum

0xFF 0x14 0x40 Data Length[0] Data Length[1] Camera Alarm/Event String[0] String[1] : String[n-1] Check Sum

0150-0198H 72 DVMRe Triplex eZ

8.3 Alarm/Event Fields

MSB

LSB

Event Start

Alarm Start

Alarm Stop

The two least significant bits are currently used for the Event commands. Bits 2 and 3 are used for the Alarm commands.

7 6 5 4 3 2 1 0

Event Stop

8.4 Alarm Actions

No Alarm Change – 0000 00XXb

If both the start and stop bits are clear, the alarm status and camera record rates will remain unchanged.

Start Alarm – 0000 01XXb

If only the start bit is set, the DVMRe will enter the Alarm mode. The selected camera will become the alarm camera. Pre-alarm video will be recorded and the Alarm Record Rate will be initiated.

Every Start Alarm command should subsequently be followed with a Stop Alarm command

NOTE

at some point. Failure to do so will render that alarm input useless, even if the alarm was latched and gets acknowledged from the front panel. A Stop Alarm followed by a Start Alarm will have to be sent to create a new alarm on that channel.

Stop Alarm – 0000 10XXb

If only the stop bit is set, the selected camera’s alarm status will be cleared. If no other alarms are present, the DVMRe will exit the alarm mode.

Momentary Alarm – 0000 11XXb

If both the start and stop bits are set, a momentary alarm will be initiated on the selected camera. Prealarm video will be recorded at the alarm record rate, after which the DVMRe will continue to record video at the normal record rate.

0150-0198H 73 DVMRe Triplex eZ

8.5 Event Actions

NOTE

No Event Change – 0000 0000b

If both the start and stop bits are clear, there will be no change to the event status. The camera’s record rate will not be changed.

Start Event – 0000 0001b

If only the start bit is set, an event will be initiated on the selected camera. This will cause the selected camera, as well as any pre-event video to be recorded at the Event Record Rate.

Stop Event – 0000 0010b

If only the stop bit is set, the current event on the selected camera will be terminated. This will start the post-event timer after which, the selected camera will resume recording at the normal record rate.

Momentary Event – 0000 0011b

If both the start and stop bits are set, a momentary event will be initiated on the selected camera. Preevent video will be recorded at the event record rate for the selected camera. The post-event timer will continue recording at the event record rate, after which the selected camera will resume recording at the normal record rate.

All Event messages will be ignored while an Alarm condition exists in the DVMRe.

0150-0198H 74 DVMRe Triplex eZ

9 RS232 Remote Control Protocol

The unit supports two different communication types:

• Remote Front Panel Button Emulation

• Remote Configuration and Status

9.1 Front Panel Button Emulation

Data Structure

Byte 1: 0xFF Byte 2: 0x55 Byte 3: Front Panel Button Code

Description

Byte 1 and 2 are header bytes. Byte 3 contains the code for a specific front

panel button. The different buttons and their corresponding

codes are as follows. No Button Pressed 0

Record 1 Play 2 Stop 3 Alarm 4 Freeze 5 Zoom 6 Sequence 7 Reserved 8 Camera 1 9 Camera 2 10 Camera 3 11 Camera 4 12 Camera 5 13 Camera 6 14 Camera 7 15 Camera 8 16 Camera 9 17 Camera 10 18 Camera 11 19 Camera 12 20 Camera 13 21 Camera 14 22 Camera 15 23 Camera 16 24 Reserved 25 - 40 Menu 41 Enter 42 Reserved 43 Macro 44 Reserved 45-49 Monitor B 50

Reserved 51-63 Left Arrow 64 Right Arrow 65 Up Arrow 66 Down Arrow 67 Reserved 68-74 Alarm and Sequence 75 *Alarm and Camera 1 76 *Alarm and Camera 2 77 *Alarm and Camera 3 78 *Alarm and Camera 4 79 *Alarm and Camera 5 80 *Alarm and Camera 6 81 *Alarm and Camera 7 82 *Alarm and Camera 8 83 *Alarm and Camera 9 84 *Alarm and Camera 10 85 *Alarm and Camera 11 86 *Alarm and Camera 12 87 *Alarm and Camera 13 88 *Alarm and Camera 14 89 *Alarm and Camera 15 90 *Alarm and Camera 16 91 Reserved 92-110 Search 111 Frame Reverse 112 Frame Forward 113 Play Reverse 114 Stop 115 Play Forward 116 Monitor A 130 2 Way Multiscreen 131 4 Way Multiscreen 132 6 Way Multiscreen 133 7 Way Multiscreen 134 9 Way Multiscreen 135 10 Way Multiscreen 136 13 Way Multiscreen 137 16 Way Multiscreen 138

*Must send a “No Button Pressed” command immediately following any of these commands.

0150-0198H 75 DVMRe Triplex eZ

9.2 Configuration and Status

i) Data structure

Byte 1: 0xFF Byte 2: Command Type

0xAA: (SET) Update DVMRe with data.

0xBB: (GET) Extract data from DVMRe. Byte 3: Data Length (n) Byte 4: Data Type

0x61: Restart DVMRe

0xFE: Send configuration data to DVMRe 0x09: Read Alarm History from DVMRe 0xFF: Read configuration and status data

from DVMRe Byte 5: Data byte 1 Byte 6: Data byte 2 : : Byte x: Data byte n

ii) Sending data to the DVMRe

a) Restart DVMRe Triplex eZ

This command will restart the DVMRe Triplex eZ.

Byte 1: 0xFF Byte 2: 0xAA Byte 3: 0 Byte 4: 0x61

b) Send data to DVMRe Triplex eZ

Configuration data can be sent to the DVMRe Triplex eZ, to change the way it operates. The data is arranged in the form of 16 byte blocks, numbered from 1 to 213. Blocks 182, 183 and 185 are status blocks, and hence cannot be written to. For details about the contents of each block, contact GE-Security and request the Block Data Structure for the DVMRe Triplex eZ.

Byte 1: 0xFF Byte 2: 0xAA Byte 3: 17 Byte 4: 0xFE Byte 5: Block Number

(1-181, 184, 186-200)

Byte 6: data[0] : : : : Byte 21:data[15]

After sending a block or series of blocks, block number 255 must be updated to signal the end of the configuration session. All data bytes for block 255 must be set to 0.

iii) Requesting data from the DVMRe

When a message of type 0xBB is sent to the DVMRe Triplex eZ, it will respond by sending 16 bytes of requested data.

a) Read Alarm History List

Byte 1: 0xFF

Byte 2: 0xBB Byte 3: 0 Byte 4: 0x09

When the "Read Alarm History List" message is received by the DVMRe Triplex eZ, it responds by sending a start byte 0xFF, followed by ASCII strings for every alarm event in its alarm history list, and a stop byte, 0xFF. Each string is formatted as follows:

dd.bmm/ddbhh:mm:ssbaa<CR><LF>

dd: index number (00 - 99) b: space character mm: month (01-12) dd: day (01-31) hh: hours (00-23) mm: minutes (00-59) ss: seconds (00-59) aa: alarm number (01-16) <CR> Carriage return (0x0D) <LF> Line feed (0x0A)

Example: 03. 11/27 22:48:58 15

b) Read data from DVMRe Triplex eZ

Configuration and status data can be read from the DVMRe Triplex eZ. The data is arranged in the form of 16 byte blocks, numbered from 1 to

213. For details about the contents of each block, contact GE-Security and request the Block Data Structure for the DVMRe Triplex eZ.

Byte 1: 0xFF Byte 2: 0xBB Byte 3: 1 Byte 4: 0xFF Byte 5: Block Number 1-213 or 255 if all

blocks are requested.

The DVMRe Triplex eZ responds to the “Read data” request by sending all the requested data bytes consecutively, without any start or stop bytes.

A total of either 16 bytes or 3408 bytes will be transmitted, depending on whether a single block or all the blocks were requested.

0150-0198H 76 DVMRe Triplex eZ

10 Macro Tables

Photo copy this page and use it to keep a record of the programmed macro functions.

10.1 Macro Functions Table

Macro Number

Description

Function + Sequence

Daylight Savings Time: Sets clock ahead one hour in April, and back one hour in October.

0150-0198H 77 DVMRe Triplex eZ

10.2 Scheduled Macro Table

Event Day Time Macro to Run

0150-0198H 78 DVMRe Triplex eZ

11 Warranty and Service

11.1 Factory Service

Warning: Do not open the top cover or attempt to service the unit, as this may

expose you to dangerous voltages and other hazards. Programmer maintenance of this unit is limited to external cleaning and inspection. Refer all servicing to qualified personnel.

If the unit requires factory service, contact the dealer who supplied the unit to you for the correct procedures on returning the unit to the factory or the nearest factory service center.

If the dealer is not available, contact the manufacturer of the unit as detailed below and request a Return Material Authorization number (RMA). The unit’s serial number must be provided before a RMA number can be issued. Units returned to the factory for service must have freight and insurance prepaid, and must show the RMA number clearly on all shipping documents. The failure symptoms must be clearly described by the operator and enclosed with the unit together with a copy of the original suppliers invoice. Failure to comply with these instructions will delay service of the unit, and may result in the unit not being accepted by the Repair Center.

Factory Address

GE Security Attention: Repair Center 3050 Redhill ave Costa Mesa, CA. 92626 United States of America Telephone: 800-343-3358 (7:00 AM to 4:30 PM, Pacific Time) In Oregon: 541-754-9133 Fax: 541-754-7162 (24 hours a day)

For warranty information, see the following page.

0150-0198H 79 DVMRe Triplex eZ

11.2 Warranty and Return Information

GE Security warrants all of its equipment for three years from the date of purchase. This warranty covers any defects in materials and workmanship. Equipment failures that are due to improper installation, modification, abuse, or acts of nature will not be covered by this warranty. The repair department will evaluate all equipment returned for repair to determine warranty coverage. The Tech Support Manager will resolve any questions that may arise during evaluation to make a final determination.

Note: The three-year warranty does not apply to the following products:

MobileView® and the monitor CRT, which carry a 12-month warranty from the date of purchase.

The warranty specifically covers any defects in material and workmanship and does not cover equipment that has been abused, damaged, or modified.

For all warranty repairs, GE Security will cover all costs, including parts, labor, and shipping. Repaired equipment will be returned via the same method of shipment in which it was received. If a customer requests a faster return shipment, the difference will be charged.

For all non-warranty repairs, the customer will be billed for parts, labor, and shipping. Labor will be billed in half-hour increments.

Note: Customers requesting an estimate prior to repair will be notified by phone. If they cannot be reached, they will be notified by fax. If we are unable to reach the contact person for repair authorization after one phone attempt and two fax attempts, the equipment will be returned without being repaired. We will hold equipment no longer than two weeks.

Advance Replacement Policy

When an advance replacement is required, we will send the customer replacement equipment from our stock and receive the returned product in exchange. The received equipment will be evaluated and the repair department will determine whether it is a warranty replacement. If it is non-warranty, see our repair policy above for details. The following guidelines will be used for all advance replacements:

• Fewer than 45 days from purchase, GE Security will replace the product with new equipment.

• From 45 days to 1 year from purchase, GE Security will replace the product with refurbished

equipment.

• From 1 year to 3 years from purchase, the product must be sent in for repair. Advance

replacements will be sent for a fee of $100.

If you have questions about this policy, please contact the GE Security RMA Department at 800-469-1676.

0150-0198H 80 DVMRe Triplex eZ

0150-0198H

GE DVMRe 4eZT, DVMRe 16eZT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
