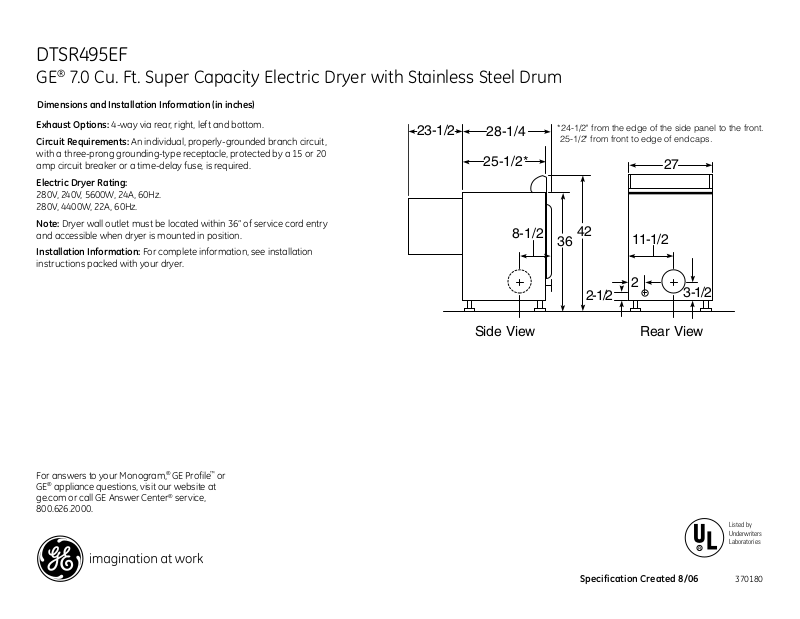

GE DTSR495EF Specification

DTSR495EF

36

25-1/2

42

51

Side View

27

Rear View

36

42

27

2

3-1/2

2-1/2

25-1/2*

Side View

Rear View

8-1/2

28-1/4

23-1/2

11-1/2

*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of endcaps.

GE® 7.0 Cu. Ft. Super Capacity Electric Dryer with Stainless Steel Drum

Dimensions and Installation Information (in inches)

Exhaust Options: 4-way via rear, right, left and bottom.

Circuit Requirements: An individual, properly-grounded branch circuit,

with a three-prong grounding-type receptacle, protected by a 15 or 20
amp circuit breaker or a time-delay fuse, is required.

Electric Dryer Rating:

280V, 240V, 5600W, 24A, 60Hz.
280V, 4400W, 22A, 60Hz.

Note: Dryer wall outlet must be located within 36” of service cord entry
and accessible when dryer is mounted in position.

Installation Information: For complete information, see installation
instructions packed with your dryer.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Specification Created 8/06

Listed by
Underwriters
Laboratories

370180

DTSR495EF

B

2-1/2

A

4

GE Dryer Vent

GE® 7.0 Cu. Ft. Super Capacity Electric Dryer with Stainless Steel Drum

Dryer Exhausting Information — Use Metal Duct Only

Special Installation Requirements

Ducting Materials: 4-way via rear, right, left and bottom.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust
to the side or bottom of dryer, add one turn.

2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be
tolerated is shown in the table. The maximum length for flexible ducts are
less than for rigid duct.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should
be treated as a 90° elbow.
A turn over 45° should be treated as a 90° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent large
amounts of moisture and lint from being blown into the room. Gas dryers or any
dryer located in a closet must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any
enclosed house floor (crawl space), or into an attic, since the accumulated lint could
create a fire hazard or moisture could cause damage. Never terminate the exhaust
into a common duct or plenum with a kitchen exhaust, since the combination of lint
and grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts,
bird nesting, etc. The wall cap must also be located at least 12" above the ground or
any other obstruction with the opening pointed down.

Other terminations, such as louvered wall boxes, are acceptable provided they are
equivalent to a 4" opening dampered wall cap.

For more information on venting kits and accessories, please call 1-800-GE CARES.

Vertical and Horizontal Ducting

Alcove or Closet Installation:

• If your dryer is approved for installation in an alcove or closet, it will be stated on
a label on the dryer back.

• The dryer MUST be exhausted to the outside

• Minimum clearances between dryer cabinet and adjacent walls or other surfaces
are: 0" either side and 3" front and rear

• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".

• Closet doors must be louvered or otherwise ventilated and must contain a
minimum of 60 sq. in. of open area equally distributed. If this closet contains both
a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area
equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with a gas
dryer.

Best performance

of

90°

turns

Maximum length of 4"
dia. rigid metal duct
Exhaust hood type

A

4" openingB2-1/2"

opening

A

Number

Domestic
dryer models

0 150 ft. 127 ft. 75 ft. 52 ft.
1 140 ft. 117 ft. 65 ft. 42 ft.
2 130 ft. 107 ft. 55 ft. 32 ft.

7.3 capacity electric 3 120 ft. 97 ft. 45 ft. 22 ft.
and gas dryers 4 110 ft. 87 ft . 35 ft. 12 ft.
0 90 ft. 60 ft. 55 ft. 45 ft.
1 60 ft. 45 ft. 40 ft. 30 ft.

7.0 and 6.0 2 45 ft. 35 ft. 30 ft. 20 ft.
capacity models 3 35 ft. 25 ft. 20 ft. 15 ft.
all electric dryers 4 25 ft. 15 ft. 15 ft. 10 ft.
0 90 ft. 60 ft. 55 ft. 45 ft.

7.0 and 6.0 1 60 ft. 45 ft. 40 ft. 30 ft.
capacity models 2 45 ft. 35 ft. 30 ft. 20 ft.
all gas dryers 3 35 ft. 25 ft. 20 ft. 15 ft.
0 60 ft. 48 ft. 30 ft. 18 ft.
1 52 ft. 40 ft. 22 ft. 14 ft.
2 44 ft. 32 ft. 14 ft. 10 ft.

5.7 capacity electric 3 32 ft. 24 ft. — —
and gas dryers 4 28 ft. 16 ft. — —

Maximum length of 4"
dia. flexible metal duct
Exhaust hood type

A

4" openingB2-1/2"

Listed by
Underwriters
Laboratories

opening

Specification Created 8/06

370180
