Dryers
Part No. 175D1807P295 Pub. No. 49-90028
10/99 JR
131892900
DCB330E
DCB330G
DCD330E
DCD330G
Models:
Owner’s Manual & Installation Instructions
Commercial
www.geappliances.com
GE Answer Center®800.626.2000
Congratulations!
You Are Now Part of Our Family.
Welcome to our family. We’re proud of our quality products and we are committed to
providing dependable service. You’ll see it in this easy-to-use Owner’s Manual and you’ll
hear it in the friendly voices of our customer service department.
Best of all, you’ll experience these values each time you use your dryer. That’s
important, because your new dryer will be part of your family for many years. And we
hope you will be part of ours for a long time to come.
We thank you for buying our product. We appreciate your purchase, and hope you will
continue to rely on us whenever you need quality appliances.
A Service Partnership.
Safety Instructions
Safety Precautions . . . . . . . . . .3–5
Care and Cleaning
Care and Cleaning . . . . . . . . . . . . .6
Customer Service
Warranty . . . . . . . . . . . .Back Cover
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
They are on the label on the front of the left side of the door opening.
Inside you will find many helpful hints on how to use and maintain
your dryer properly. Just a little preventive care on your part can save
you a great deal of time and money over the life of your dryer.
READ THIS MANUAL
PROPER VENTING
For the best drying performance the dryer needs to be properly
vented. The dryer will use more energy and run longer if it is not
vented to the specifications outlined in the
Exhausting
section in the
Installation Instructions.
IF YOU NEED SERVICE
If you need service, contact your General Electric Commercial
Laundry distributor.
IMPORTANT!
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service
under the warranty.
2
Installation Instructions
Preparing to Install Your Dryer . . .7
Electrical Requirements . . . . . . . .8
Exhausting the Dryer . . . . . . . .9, 10
Gas Supply Requirements . . . . . .10
Location of Your Dryer . . . . . . . . .11
Mobile Home Installation . . . . . .12
Electrical Installation for
Electric Dryers . . . . . . . . . . . .13, 14
Gas Connection
for Gas Dryers . . . . . . . . . . . . . . .15
Reversing the Door Swing . . . . .16
Countdown Display . . . . . . . . . . .17
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
■ Properly ground dryer to conform with all
governing codes and ordinances. Follow details
in the
Installation Instructions
section.
■ Install or store where it will not be exposed to
temperatures below freezing or exposed to the
weather.
■ Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
■ Remove all sharp packing items and dispose of all
shipping materials properly.
■ In fulfilling the specific needs of different
commercial installations the purchaser of this
dryer may wish to locate the coin box and controls
in any of a number of locations. The
responsibility for the proper performance of this
work lies solely with the purchaser. It should be
done by properly trained and qualified
personnel, and in accordance with local code
requirements.
■ Any coin box or similar device added to the dryer,
either electrically or mechanically, should be
properly grounded.
■ Remove any accumulated time by manually
rotating timing cam in the coin box
counterclockwise until switch shuts off. Apply a
slight additional counterclockwise pressure to
further seat drive. Make certain not to turn cam
past switch shut-off position. Otherwise, one
increment of time will be gained. Switches are off
when the plastic switch actuating arm (inner) is
down and all 3 switch buttons are depressed.
Exhaust/Ducting:
This dryer
MUST
be exhausted to the outside.
Use only rigid metal or flexible metal 4″
diameter ductwork inside the dryer cabinet or
for exhausting to the outside.
USE OF PLASTIC
OR OTHER COMBUSTIBLE DUCTWORK CAN
CAUSE A FIRE. PUNCTURED DUCTWORK CAN
CAUSE A FIRE IF IT COLLAPSES OR BECOMES
OTHERWISE RESTRICTED IN USE OR DURING
INSTALLATION.
Follow details in the
Installation Instructions
section.
2
1
PROPER INSTALLATION
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used.
3
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or death.
FOR GAS DRYERS: YOU MUST POST IN A PROMINENT LOCATION
1.
Instructions to follow if the user smells gas: Contact your local gas
supplier for information to be displayed.
2.
Instructions concerning flammable materials as follows:
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
California Safe Drinking Water and Toxic Enforcement Act
This act requires the governor of California to publish a list of substances known to the state to cause cancer,
birth defects or other reproductive harm and requires businesses to warn customers of potential exposure
to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the outdoors.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
Customer Service
Care and CleaningSafety Instructions Installation Instructions
4
IMPORTANT SAFETY INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
YOUR LAUNDRY AREA
■ Keep the area underneath and around your
appliances free of combustible materials, such
as lint, paper, rags, chemicals, gasoline and other
flammable vapors and liquids.
■ Keep the floor around your appliances clean and
dry to reduce the possibility of slipping.
■ Keep area around the exhaust opening and
surrounding areas free from the accumulation of
lint, dust and dirt.
■ Do not obstruct the flow of ventilating air. Do not
stack or place laundry or throw rugs against the
front or back of the dryer.
■ Close supervision is necessary if this appliance is
used by or near children. Do not allow children to
play on, with, or inside this or any other appliance.
■ Keep all laundry aids (such as detergents,
bleaches, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all
warnings on container labels to avoid injury.
■ Never climb on or stand on the dryer top.
■ Do not install or store this appliance where it will
be exposed to the weather.
WHEN USING YOUR DRYER
■ Never reach into the dryer while the drum is
moving. Before loading, unloading or adding
clothes, wait until the drum has completely
stopped.
■ Clean the lint filter before each load to prevent
lint accumulation inside the dryer or in the room.
DO NOT OPERATE THE DRYER WITHOUT THE LINT
FILTER IN PLACE.
■ Do not wash or dry articles that have been
cleaned in, washed in, soaked in, or spotted
with combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
explode. Do not add these substances to the
wash water. Do not use or place these substances
around your washer or dryer during operation.
■ Any article on which you have used a cleaning
solvent or that contains flammable materials
(such as cleaning cloths, mops, towels used in
beauty salons, restaurants, or barber shops, etc.)
must not be placed in or near the dryer until
solvents or flammable materials have been
removed. There are many highly flammable
items used in homes such as acetone, denatured
alcohol, gasoline, kerosene, some household
cleaners, some spot removers, turpentines,
waxes, wax removers and products containing
petroleum distillates.
■ The laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer’s
care instructions.
■ Do not dry articles containing rubber, plastic,
or similar materials such as padded bras, tennis
shoes, galoshes, bath mats, rugs, bibs, baby pants,
plastic bags, pillows, etc. that may melt or burn.
Some rubber materials, when heated, can under
certain circumstances produce fire by
spontaneous combustion.
■ Do not store plastic, paper or clothing that may
burn or melt on top of the dryer during operation.
■ Garments labeled
Dry Away from Heat orDo
Not Tumble Dry
(such as life jackets containing
Kapok) must not be put in your dryer.
■ Do not dry fiberglass articles in your dryer.
Skin irritation could result from the remaining
particles that may be picked up by clothing
during subsequent dryer uses.
■ To minimize the possibility of electric shock,
unplug this appliance from the power supply
or disconnect the dryer at the distribution panel
by removing the fuse or switching off the circuit
breaker before attempting any maintenance or
cleaning.
■ Do not spray any type of aerosol into, on or near
dryer at any time.
■ Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a load to catch fire.
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
WHEN NOT USING YOUR DRYER
■ Grasp the plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Place the cord away from traffic areas
so it will not be stepped on, tripped over or
subjected to damage.
■ Do not attempt to repair or replace any part of
this appliance or attempt any servicing unless
specifically recommended in this Owner’s Manual
or in published user-repair instructions that you
understand and have the skills to carry out.
■ Before discarding a dryer, or removing it from
service, remove the dryer door to prevent
children from hiding inside.
■ Do not tamper with controls.
■ Never attempt to operate this appliance if
it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts,
including a damaged cord or plug.
■ The interior of the machine and the exhaust duct
connection inside the dryer should be cleaned at
least once a year by a qualified technician. See the
Care and Cleaning
section. Do not use any type of
spray cleaner when cleaning dryer interior.
Hazardous fumes or electrical shock could occur.
■ If yours is a gas dryer, it is equipped with an
automatic electric ignition and does not have a
pilot light.
DO NOT ATTEMPT TO LIGHT WITH A
MATCH.
Burns may result from having your hand
in the vicinity of the burner when the automatic
ignition turns on.
■ You may wish to soften your laundered fabrics or
reduce the static electricity in them by using a
dryer-applied fabric softener or an anti-static
conditioner. We recommend you use either a
fabric softener in the wash cycle, according to the
manufacturer’s instructions for those products,
or try a dryer-added product for which the
manufacturer gives written assurance on the
package that their product can be safely used in
your dryer. Service or performance problems
caused by use of these products are the
responsibility of the manufacturers of those
products and are not covered under the warranty
to this appliance.
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS
5
Customer ServiceCare and CleaningSafety Instructions Installation Instructions
6
Care and cleaning.
The Exterior:
Wipe or dust any spills or washing
compounds with a damp cloth. Dryer control
panel and finishes may be damaged by some
laundry pretreatment soil and stain remover
products. Apply these products away from the
dryer. The fabric may then be washed and dried
normally. Damage to your dryer caused by these
products is not covered by your warranty.
The Lint Filter:
Clean the lint filter before each
use. Run your fingers
across the back of the filter to
remove lint.
Do not operate the dryer without the
lint filter in place.
Have a qualified technician vacuum the lint from
the dryer once a year.
The Exhaust Duct:
Inspect and clean the exhaust
ducting at least once a year to prevent clogging. A
partially clogged exhaust can lengthen the drying
time.
Follow these steps:
Turn off electrical supply by disconnecting the
plug from the wall socket.
Disconnect the duct from the dryer.
Vacuum the duct with the hose attachment and
reconnect the duct.
The Exhaust Hood:
Check with a mirror that the inside
flaps of the hood move freely when operating. Make
sure that there is not wildlife (birds, insects, etc.)
nesting inside the duct or hood.
3
2
1
,
yz
Care and Cleaning of the Dryer
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
Tools and Materials Required for Dryer Installation
7
Using the four shipping carton corner posts (two
on each side), carefully lay the dryer on its left
side and remove foam shipping pad.
CAUTION:
To prevent damage, do not use the
control panel as a means to pick up or move
the dryer.
Return the dryer to an upright position.
Adjust the leveling legs to match the washer
height. The dryer must be level and rest firmly
on all four leveling legs.
3
2
1
Preparing to install your dryer.
Read these instructions completely and carefully.
WARNING
■ This dryer must be exhausted to the outdoors
using only rigid metal or flexible metal 4″
diameter ductwork for inside the dryer cabinet
or exhausting.
■
Never use plastic or other combustible ductwork.
See Exhausting section.
■ This appliance must be properly grounded
and installed as described in these
Installation
Instructions.
■ Do not install or store appliance in an area where
it will be exposed to water/weather. See
Location
of Your Dryer
section.
■ The National Fuel Gas code restricts installations
of
gas appliances
in garages. They must be 18″
(45.7 cm) off the ground and protected from
vehicles by a barrier. See
Location of Your Dryer
section.
■ The
electrical service
to the dryer must conform
with local codes and ordinances and the latest
edition of the National Electrical Code,
ANSI/NFPA 70.
■ The
gas service
to the dryer must conform
with local codes and ordinances or the latest
edition of the National Fuel Gas Code ANSI
Z223.1. The gas dryer is designed for use under
ANSI Z 21.5.1. This dryer is not recommended
for commercial applications such as restaurants
or beauty salons, etc.
Unpacking the Dryer
Foam shipping pad
Packing
Electric Dryer
■ Channel-lock pliers (adjust leveling legs)
■ 1/2″open-end wrench (lock leveling legs)
■ Carpenter’s level
■ Rigid or flexible metal 4″(10.2 cm) duct
■ Duct tape
■ Vent hood
■ 1/4″nut driver (remove terminal block access
cover and install cord)
■ Flat or straight blade screwdriver (may be needed
for cord strain relief)
■ UL approved 30A, 240V, 3-wire, #10 AWG
minimum conductor power cord (For a mobile
home installation, a UL approved 30A, 240V,
4-wire, #10 AWG minimum conductor power
cord is required.)
■ UL approved cord strain relief (may be supplied
with cord)
Gas Dryer
■ Channel-lock pliers (adjust leveling legs)
■ 1/2″open-end wrench (lock leveling legs)
■ Carpenter’s level
■ Rigid or flexible metal 4″(10.2 cm) duct
■ Duct tape
■ Vent hood
■ Flexible stainless steel or plastic-coated brass
connecting gas tube (if allowed by building code)
■ Connector for between dryer and flexible tube
(3/8″pipe thread on dryer side, may be supplied
with flexible tube)
■ Pipe thread sealer
■ Open-end wrenches for flexible tube and
connector
Door Reversal
■ Plastic knife
■ Phillips head or #1 square screw driver
Customer ServiceCare and CleaningSafety Instructions
Installation Instructions
Electrical requirements.
Read these instructions completely and carefully.
Electrical Connection Information for Gas Dryers
WARNING—
To reduce the risk of fire,
electric shock, or personal injury:
•
DO NOT USE AN EXTENSION CORD OR AN ADAPTER
PLUG WITH THIS APPLIANCE.
•
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD GROUNDING PRONG FROM
THE POWER CORD.
This dryer
must be electrically grounded in
accordance with local codes and ordinances,
or in the absence of local codes, in accordance with
the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.
Electrical Requirements
• This dryer must be supplied with 120V, 60 Hz,
and connected to an individual properly
grounded brand circuit, protected by a 15 or
20 amp circuit breaker or time-delay fuse.
• If the electric supply provided does not meet the
above specifications, it is recommended that a
licensed electrician install an approved outlet.
External Ground (if required)
An external ground wire, (not provided), which meets
local codes, may be added by attaching it to the green
ground screw on the rear of the dryer in the upper left
hand corner, and to grounded metal cold water pipe or
other established ground.
NOTE:
A wiring diagram is located inside the
control panel.
Electrical Connection Information for Electric Dryers
WARNING—
To reduce the risk of fire,
electric shock, or personal injury:
•
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.
•
THIS APPLIANCE MUST BE PROPERLY GROUNDED.
This dryer must be electrically grounded in
accordance with local codes and ordinances,
or in the absence of local codes, in accordance with
the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.
Electrical Requirements
• This dryer must be connected to an individual
branch circuit, protected by the required timedelay fuses or circuit breakers. 208V or 240V
installation 30 amps.
• Use copper conductors only.
• If the electric supply does not meet the above
specifications, call a licensed electrician.
NOTE:
A wiring diagram is located inside the
control panel.
Ensure proper ground
exists before use
Attach ground wire
(obtain locally)
8
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
9
If all rigid metal duct cannot be used, then flexible
all-metal venting can be used, but it will reduce the
maximum recommended duct length. In special
installations when it is impossible to make a
connection with the above recommendations, then
UL-listed clothes dryer transition duct
may be used as
transition venting between the dryer and wall
connection only. The use of this ducting will affect
drying time.
If flexible transition duct is necessary, only UL-listed
duct identified for use with clothes dryers is approved.
The following directions must be followed.
• Use the shortest length possible.
• Stretch the duct to its maximum length.
• Do not crush or collapse.
• Never use transition duct inside the wall, flooring,
ceiling or inside the dryer.
• Avoid resting the duct on sharp objects.
• Venting must conform to local building codes.
Exhausting the dryer.
Exhaust System Requirements
Use only 4″(10.2 cm) diameter (minimum) rigid metal
duct for best performance, or flexible metal duct.
Use
approved vent hood which has swing-out dampers
that open when the dryer is in operation. When the
dryer stops, the dampers automatically close to
prevent drafts and the entrance of insects and
rodents. To avoid restricting the outlet, maintain a
minimum of 12″(30.5 cm) clearance between the
vent hood and the ground or any other obstruction.
If all rigid metal duct cannot be used, then flexible
all-metal venting can be used, but it will reduce the
maximum recommended duct length. See
Additional Installation Instructions
following.
WARNING: The following are specific requirements
for proper and safe operation of your dryer. Failure
to follow these instructions can create excessive
drying times and fire hazards.
DO NOT use plastic flexible duct to exhaust the
dryer. Excessive lint can build up inside exhaust
system and create a fire hazard and restrict air
flow. Restricted air flow will increase drying
times. If your present system is made up of plastic
duct or metal foil duct, replace it with rigid or
flexible metal duct. Ensure the present duct is free
of any lint prior to installing dryer duct.
The dryer exhaust system MUST BE EXHAUSTED
TO THE OUTSIDE.
DO NOT
allow combustible materials (for
example: clothing, draperies/curtains, paper)
to come in contact with exhaust system.
The dryer MUST NOT be exhausted into a gas vent,
chimney, a wall, a ceiling, a common duct with a
kitchen exhaust or any concealed space of a
building which can accumulate lint, resulting in a
fire hazard.
DO NOT
exceed the length of duct pipe or
number of elbows allowed in the
Maximum
Length
charts. Lint can accumulate in the
exhaust system, plugging the system and
creating a fire hazard, as well as increasing
drying times.
DO NOT
screen the exhaust ends of the vent
system, nor use any screws or rivets to assemble
the exhaust system. Lint can become caught in
the screen, on the screws or rivets, clogging the
duct work and creating a fire hazard as well as
increasing drying times. Use an approved vent
hood to terminate the duct outdoors, and seal
all joints with duct tape. All male duct pipe
fittings
MUST
be installed downstream with
the flow of air.
EXPLOSION HAZARD.
Do not install the dryer
where gasoline or other flammables are kept
or stored. If the dryer is installed in a garage,
it must be a minimum of 18″(45.7 cm) above
the floor. Failure to do so can result in death,
explosion, fire or burns.
Provide an access for inspection and cleaning
of the exhaust system, especially at turns.
Inspect and clean at least once per year.
Do not obstruct incoming or exhausted air.

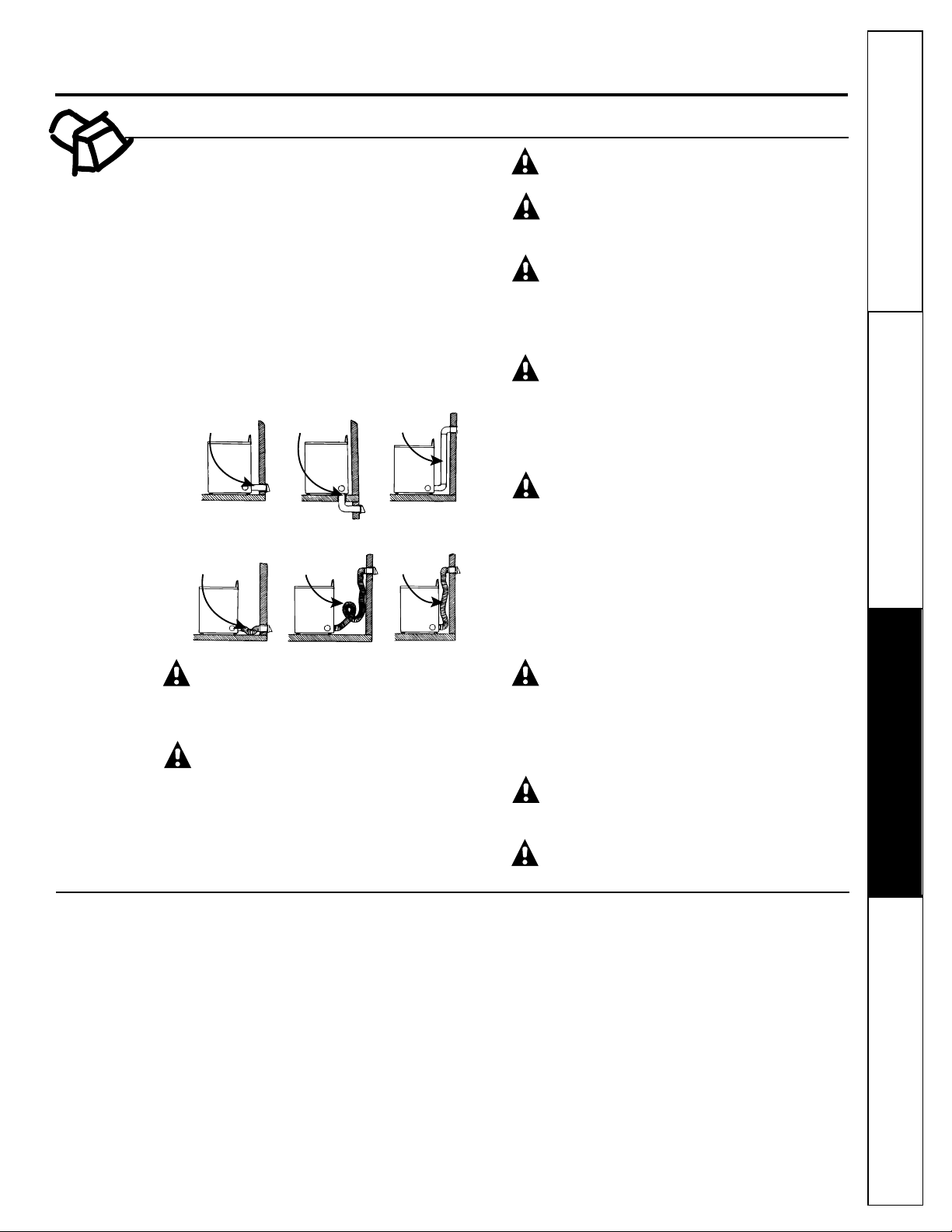

Correct
Incorrect
Do
Do
Do
Don’t
Don’t
Don’t
Additional Ducting Instructions
Customer Service
Care and Cleaning
Safety Instructions Installation Instructions
Replace brass connecting pipe that is not plasticcoated. Stainless steel or plastic-coated brass
MUST
be used.
WARNING:
Never reuse old flexible connectors.
The use of old flexible connectors can cause gas
leaks and personal injury. Always use
NEW
flexible
connectors when installing a gas appliance.
Installation
MUST
conform with local codes, or in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1 (latest edition).
The gas supply line should be of 1/2″ (1.27 cm)
rigid pipe.
If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing
MUST
be constructed of stainless steel or
plastic-coated brass.
The gas supply line
MUST
have an individual
shutoff valve.
A 1/8″ (0.32 cm) NPT minimum plugged
tapping, accessible for test gauge connection,
MUST
be installed immediately upstream of the
gas supply connection to the dryer.
The dryer and its individual shutoff valve
MUST
be disconnected from the gas supply piping
system during any pressure testing of the gas
supply piping system at test pressures in excess
of 1/2 psig (3.45 kPa).
The dryer
MUST
be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig (3.45 kPa).
7
6
5
4
3
2
1
Installing the dryer.
Exhaust Direction
All dryers shipped from the factory are set up for rear
exhausting. However, on
ELECTRIC DRYERS
, exhausting
can be on the right or left side of the cabinet or the
bottom of the dryer. On
GAS DRYERS
, exhausting can
be on the right side of the cabinet or the bottom of the
dryer. Directional exhausting can be accomplished by
installing Exhaust Kit, Pub. No. 14-A018, available
through your parts distributor. Follow the instructions
supplied with the kit. Use only metal ducting inside the
dryer cabinet.
Gas Supply Requirements
MAXIMUM LENGTH
of 4“ (10.2 cm) Dia. RIGID METAL DUCT
PREFERRED VENT HOOD TYPE
0 60’ (18.28 m) 48’ (14.63 m)
1 52’ (15.84 m) 40’ (12.19 m)
2 44’ (13.41 m) 32’ (9.75 m)
3 32’ (9.75 m) 24’ (7.31 m)
4 28’ (8.53 m) 16’ (4.87 m)
Exhaust Ducting Length
The exhaust system should be inspected and cleaned
at least once a year with normal usage. The more the
dryer is used, the more often you should check the
exhaust system and vent hood for proper operation.
If roof vents or louvered plenums are used, they must
be equivalent to a 4″dampered wall cap in regard to
resistance to airflow, prevention of back drafts and
maintenance required to prevent clogging.
•
DO NOT
assemble the duct work with fasteners that
extend into the duct. They will serve as collection
points for lint.
• Ductwork which runs through an unheated area or
is near an air conditioning duct should be insulated
to reduce condensation and lint build-up.
4” (10.2 cm) Louvered
4”
(10.2 cm)
Number of
90° turns
2.5”
(6.35
cm)
MAXIMUM LENGTH
of 4“ (10.2 cm) Dia.
FLEXIBLE METAL DUCT
PREFERRED VENT HOOD TYPE
0 30’ (9.14 m) 18’ (5.49 m)
1 22’ (6.71 m) 14’ (4.27 m)
2 14’ (4.27 m) 10’ (3.05 m)
3 not recommended
4” (10.2 cm) Louvered
4”
(10.2 cm)
Number of
90° turns
2.5”
(6.35
cm)
CORRECT
INCORRECT
INSTALL MALE FITTINGS IN
CORRECT DIRECTION
Same as
other side
EXHAUST DUCT LOCATING
DIMENSIONS
3-3/4″(9.5 cm)
3-3/4″(9.5 cm)
13-1/2″
(34 cm)
4-3/8″
(11 cm)
5-7/8″
(15 cm)
10
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
Installation in Recess or Closet
This dryer MUST be exhausted outdoors.
No other fuel burning appliance shall be
installed in the same closet as the
GAS DRYER.
Your dryer needs the space around it for proper
ventilation.
DO NOT INSTALL YOUR DRYER IN A
CLOSET WITH A SOLID DOOR.
A minimum of 120 square inches (774.2 square
cm) of opening, equally divided at the top and
bottom of the door, is required. Air openings
are required to be unobstructed when a door is
installed. A louvered door with equivalent air
openings for the full length of the door is
acceptable.
Allow the following clearances for ease of installation:
FRONT SIDES REAR TOP
Alcove
0 (0 cm) 0 (0 cm) 0 (0 cm) 15″(38.1 cm)
Closet
1″(2.54 cm) 0 (0 cm) 0 (0 cm) 15″(38.1 cm)
Closet door ventilation required: 2 louvered
openings each 60 square inches (387.1 square cm)
—3″ (7.6 cm) from bottom and top of door.
4
3
2
1
60 sq. in.
(387.1 sq. cm)
0" (0 cm)
1" (2.54 cm)
15"
(38.1 cm)
60 sq. in.
(387.1 sq. cm)
Closet door
11
Location of Your Dryer
Do Not Install the Dryer:
Do not install the dryer
in an area exposed to
dripping water or outside weather conditions.
Do not install the dryer
in an area where it will
come in contact with curtains, drapes, or
anything that will obstruct the flow of
combustion and ventilation air.
Do not install the dryer
on carpet.
Floor
MUST
be solid with a maximum slope of 1″
(2.54 cm).
3
2
1
0" (0 cm)
Customer ServiceCare and CleaningSafety Instructions Installation Instructions
Installing the dryer (cont.).
Rough-In Dimensions
Dryer
MUST
be exhausted outside (outdoors,
not beneath the mobile home) using metal
ducting that will not support combustion. Metal
ducting must be 4″(10.16 cm) in diameter with
no obstructions. Rigid metal duct is preferred.
If dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the
exhaust system
MUST
terminate outside the
enclosure with the termination securely fastened
to the mobile home structure.
When installing a gas dryer into a mobile home,
a provision must be made for outside make-up
air. This provision is to be not less than twice the
area of the dryer exhaust outlet.
This dryer
MUST
be fastened to the floor. Mobile
Home Installation Kit Pub. No. 14-D346-33 is
available from your dealer.
See the
Exhaust System Requirements
section for
other important venting information.
Installation
MUST
conform to current
Manufactured Home Construction & Safety
Standard (which is a Federal Regulation Title
24 CFR—Part 32–80) or, when such standard is
not applicable, with American National
Standard for Mobile Homes.
The dryer is designed for use under ANSI Z 21.5.1.
6
5
4
3
2
1
Mobile Home Installation
26 7/8″
(68.3 cm)
47 1/2″
(120.7 cm)
43 5/8″
(110.7 cm)
2 9/16″
(6.5 cm)
13 1/2″
(34.4 cm)
36″
(91.5 cm)
Door open
90˚
4 3/8″
(11.1 cm)
Optional
vent knockout
27″
(68.6 cm)
Electrical connection
3/8″(0.96 cm) Dia.
gas pipe
1″(2.54 cm)
3 3/4″
(9.5 cm)
3 3/4″
(9.5 cm)
REAR VIEW
SIDE VIEW
Correct
Incorrect
Do
Do
Do
Don’t
Don’t
Don’t
Servicing – Consideration must be given to provide adequate clearances for installation and servicing.
CAUTION:
Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation (verify proper operation after servicing/installation).
12
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
13
Electrical Installation for Electric Dryers
WARNING:
The following are specific
requirements for proper and safe electrical
installation of your dryer. Failure to follow
these instructions can create electrical shock
and/or a fire hazard.
WARNING:
This appliance
MUST
be properly
grounded. Electrical shock can result if the
dryer is not properly grounded. Follow the
instructions in this manual for proper
grounding.
WARNING: DO NOT
use an extension cord with
this dryer. Some extension cords are not
designed to withstand the amounts of
electrical current this dryer utilizes and can
melt, creating electrical shock and/or fire
hazard. Locate the dryer within reach of the
wall outlet, taking into account the length
of power cord to be purchased and allowing
some slack in the cord. Refer to
Electrical
Requirements
in this manual for the proper
power cord to be purchased.
WARNING:
A UL-approved strain relief must
be installed onto power cord. If the strain relief
is not attached, the cord can be pulled out of
the dryer and can be cut by any movement of
the cord, resulting in electrical shock.
WARNING: Use copper receptacles only.
NOTE:
Dryers operating on 208-volt power supply
will have longer drying times than those
operating on 240-volt power supply.
A wiring diagram is located inside the
control panel.
Grounding Requirements
DANGER:
Improper connection of the
equipment-grounding conductor can result in a risk
of electric shock. Check with a licensed electrician if
you are in doubt as to whether the appliance is
properly grounded.
Grounding must be in accordance with local codes
and ordinances, or in the absence of local codes, in
accordance with the National Electrical Code
ANSI/NFPA No. 70.
For a grounded, cord-connected electric dryer:
The dryer
MUST
be grounded. In the event of
a malfunction or breakdown, grounding will
reduce the risk of electrical shock by creating
a path of least resistance for electrical current.
If your dryer is equipped with a power supply
cord having an equipment-grounding
conductor and a grounding plug, the plug
MUST
be plugged into an appropriate, copperwired receptacle that is properly installed and
grounded in accordance with all local codes and
ordinances.
If in doubt, call a licensed electrician.
For a permanently-connected electric dryer:
■The dryer
MUST
be connected to a grounded
metal, permanent wiring system; or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
appliance.
For a cord-connected gas dryer:
■This dryer is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly into
a properly grounded three-prong receptacle. Do
not cut or remove the grounding prong from this
plug.
2
1
Customer ServiceCare and CleaningSafety Instructions Installation Instructions
Installing the dryer (cont.).
Remove the screws securing the terminal block
access cover and the strain relief mounting
bracket located on the back of the dryer upper
corner.
Install a UL-approved strain relief into the power
cord entry hole of the mounting bracket. Use
a strain relief which attaches to the mounting
bracket with a nut. Finger-tighten the nut only
at this time.
Thread a UL-approved 30A, 240V, 3 #10 AWG
minimum copper conductor power cord through
the strain relief.
Attach the power cord neutral (center wire)
conductor to the silver-colored center terminal
on the terminal block. Tighten the screw
securely.
Attach the remaining two power cord outer
conductors to the outer brass-colored terminals
on the terminal block. Tighten both screws
securely.
WARNING:
Do not make a sharp bend or crimp
wiring/conductor at connections.
Reattach the strain relief mounting bracket to
the back of the dryer with one screw. Tighten
screw securely.
Tighten the screws securing the cord restraint
firmly against the power cord.
Tighten the strain relief nut securely so that the
strain relief does not turn.
Reinstall the terminal block access cover.
9
8
7
6
5
4
3
2
1
4-Wire System for Electric Dryers—MUST be used for Mobile Home Installations
Remove the screws securing the terminal block
access cover and the strain relief mounting
bracket located on the back of the dryer upper
corner.
Install a UL-approved strain relief in the entry
hole of the mounting bracket. Use a strain relief
which attaches to the mounting bracket with a
nut. Finger-tighten the nut only at this time.
Remove the green neutral ground wire from the
green ground screw located above the terminal
block.
Thread a UL-approved 30A, 240V, 4 #10 AWG
minimum copper conductor power cord through
the strain relief.
Attach the green power cord ground wire to the
cabinet with the green ground screw.
Attach the white (neutral) power cord
conductor from the power cord and the green
ground wire from the dryer harness to the silvercolored center terminal on the terminal block.
Tighten the screw securely.
Attach the red and black power cord conductors
to the outer brass-colored terminals on the
terminal block.
WARNING:
Do not make a sharp bend or crimp
wiring/conductor at the connections.
Tighten the screws securing the cord restraint
firmly against the power cord.
Tighten the strain relief nut securely so the
strain relief does not turn.
Reinstall the terminal block access cover.
10
9
8
7
6
5
4
3
2
1
3-Wire System for Electric Dryers—DO NOT use for Mobile Home Installations
Green ground screw
Silver terminal
Nut
Tighten nut to
these threads
Power cord
Strain relief
mounting bracket
Green neutral
ground wire
Green ground
screw
Green neutral
ground wire
Red
White
Black
Terminal block
Silver terminal
Green power cord ground wire
Nut
Tighten nut to
these threads
Power cord
Strain
relief
mounting
bracket
Typical 4
conductor
receptacle
Black 240V
White neutral
Red 240V
Green ground
Typical
4 conductor cord
Use copper
conductors only.
14
Customer Service Care and Cleaning
Safety Instructions
Installation Instructions
15
Replacement Parts
If replacement parts are needed for your dryer,
contact the source where you purchased your dryer.
CAUTION:
Label all wires prior to disconnection
when servicing controls. Wiring errors can
cause improper and dangerous operation.
Verify proper operation after servicing.
WARNING:
Destroy the carton and plastic bags
after the parts are unpacked. Children might
use them for play. Cartons covered with rugs,
bedspreads or plastic sheets can become
airtight chambers causing suffocation. Place all
materials in a garbage container or make
materials inaccessible to children.
WARNING:
The instructions in the manual and
all other literature included with this dryer are
not meant to cover every possible condition
and situation that may occur. Good safe
practice and caution
MUST
be applied when
installing, operating and maintaining any
appliance.
Gas Connection for Gas Dryers
Remove the shipping cap from gas pipe at the
rear of the dryer.
NOTE: DO NOT
connect the dryer to LP gas service
without converting the gas valve. An LP conversion
kit (Pub. No. 14-A038)
MUST
be installed by a
qualified gas technician.
Connect a 1/2″(1.27 cm) I.D. semi-rigid
or approved pipe from gas supply line to
the 3/8″(0.96 cm) pipe located on the back
of the dryer. Use a 1/2″to 3/8″(1.27 cm to
0.96 cm) reducer for a connection. Apply an
approved thread sealer that is resistant to the
corrosive action of liquefied gases on all pipe
connections.
Open the shutoff valve in the gas supply line.
Test all connections by brushing on a soapy
water solution.
CAUTION: NEVER TEST FOR GAS LEAKS WITH
AN OPEN FLAME.
NOTE:
On gas dryers, before the burner will light,
it is necessary for the gas line to be bled of air. If
the burner does not light within 45 seconds the first
time the dryer is turned on, the safety switch will
shut the burner off. If this happens, turn the dryer
off and wait 5 minutes before making another
attempt to light.
4
3
2
1
Before Operating the Dryer
Connect the exhaust duct to outside exhaust
system. Use duct tape to seal all joints.
With the dryer in its final position, adjust one or
more of the legs until the dryer is resting solidly
on all four legs. Place a level on top of the dryer.
THE DRYER MUST BE LEVEL AND RESTING
SOLIDLY ON ALL FOUR LEGS.
Turn the lock nuts
on each of the four legs up toward the base of
the dryer and snug with a 1/2″open-end
wrench.
Plug the power cord into a grounded outlet.
NOTE:
Check to ensure the power is off at circuit
breaker/fuse box before plugging the power
cord into the outlet.
Turn on the power at the circuit breaker/fuse
box.
CAUTION:
Before operating the dryer, make
sure the dryer area is clear and free from
combustible materials, gasoline, and other
flammable vapors. Also see that nothing
(such as boxes, clothing, etc.) obstructs the
flow of combustion and ventilation air.
Run the dryer through a cycle check for proper
operation.
Place these instructions in a location near the
dryer for future reference.
6
5
4
3
2
1
Customer ServiceCare and CleaningSafety Instructions Installation Instructions
Installing the dryer (cont.).

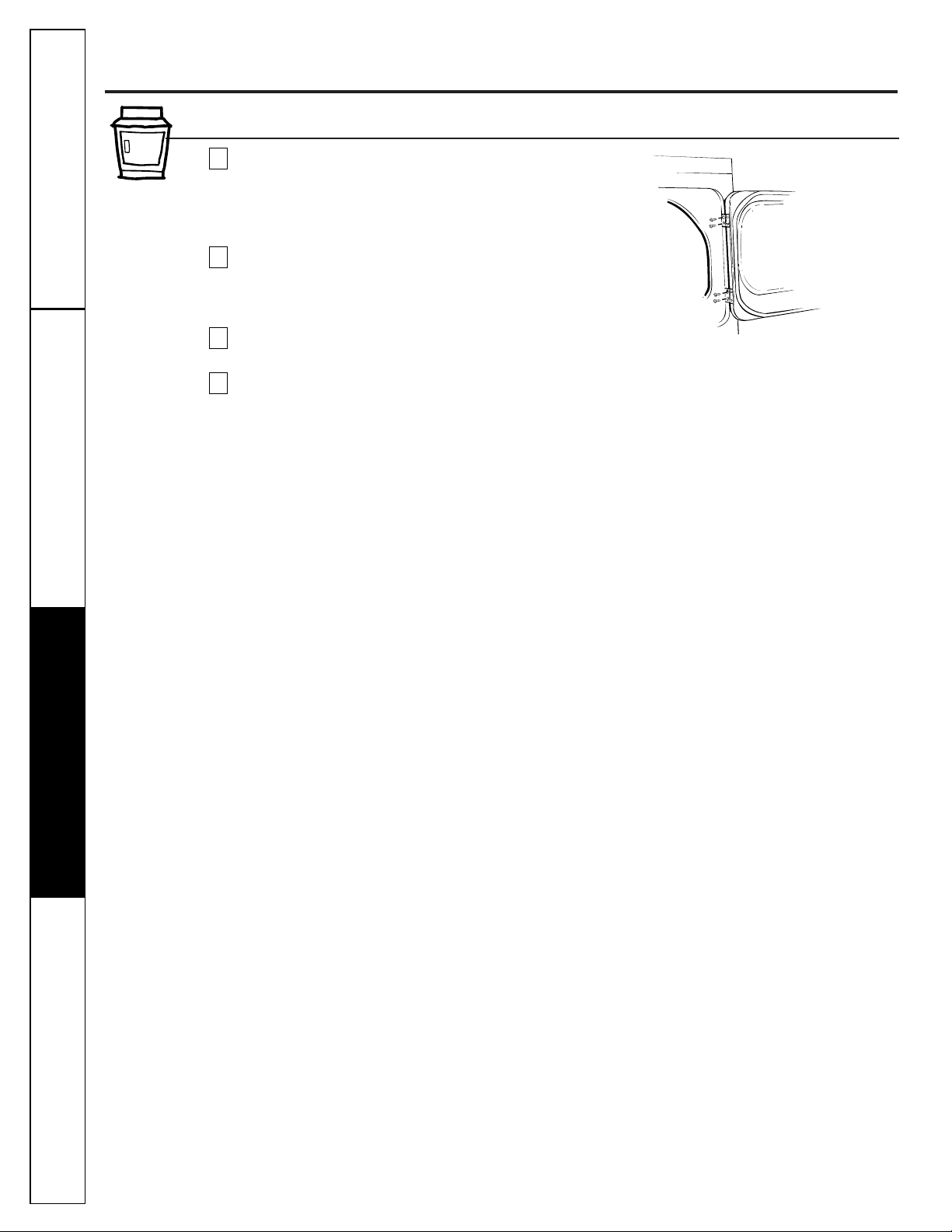

Reversing the Dryer Door Swing
Open the dryer door. Remove the 4 hinge hole
plugs or screws from the left side of door
opening. Place nearby for future installation.
NOTE: You may need a plastic knife to help pull out
the plugs. Be careful not to scratch the paint.
Remove the four screws that secure the door
hinges to the dryer front panel.
NOTE: Remove 1
screw from each of the 2 hinges first. Hold the door
firmly before removing the last 2 screws.
Rotate the door 180° and reinstall the door
hinges to the dryer front panel with the 4 screws.
Install the 4 hinge hole plugs or screws that were
removed in step 1 into the open screw holes on
the right side of the door opening.
4
3
2
1
Remove 4 screws—one from each hinge first
16
Customer Service Care and Cleaning
Safety InstructionsInstallation Instructions
17

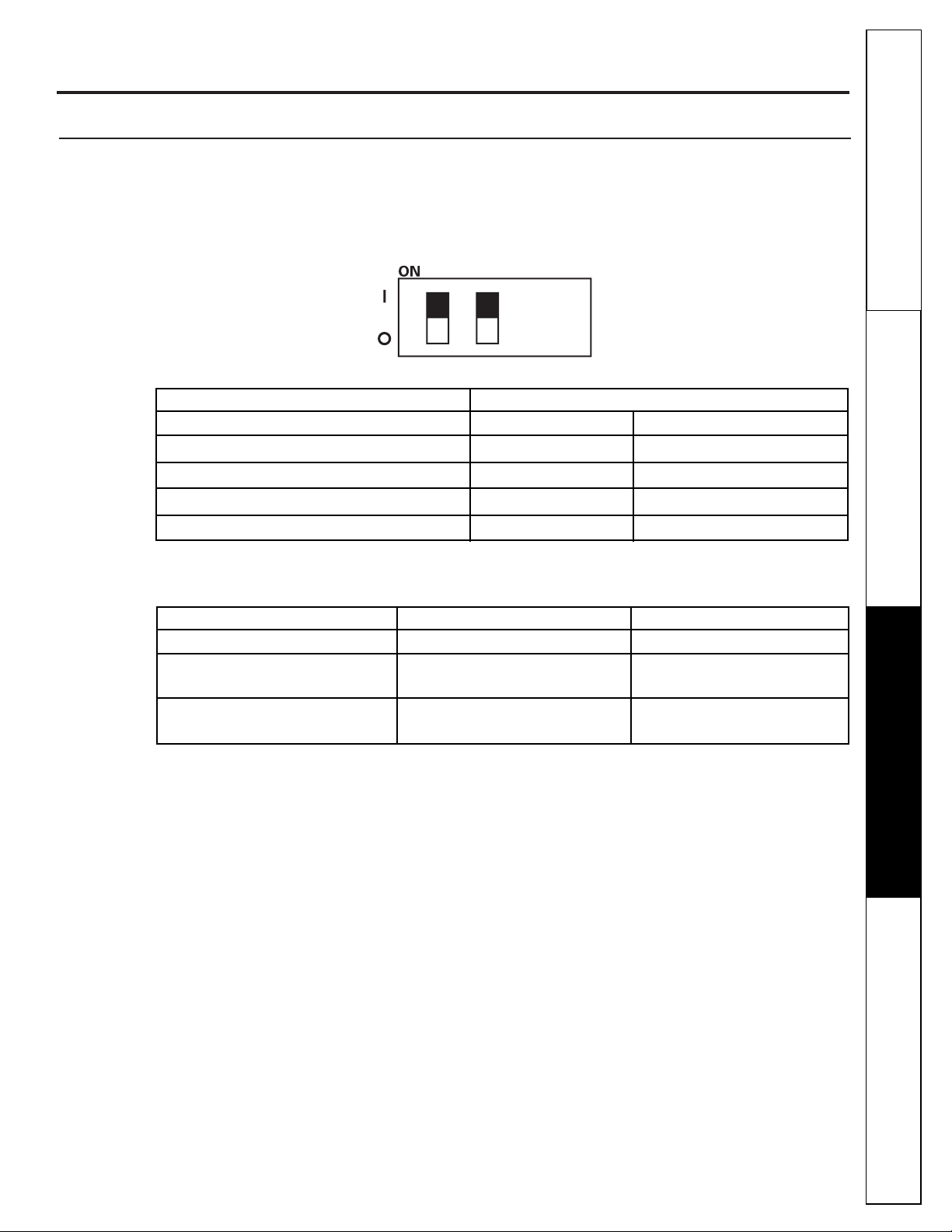

Countdown Display (DCD models only)
The countdown display shows the remaining
operating time as well as the current drying cycle.
The display board is configured for a 45-minute dry
time at the factory to correspond with the 45-minute
timer cam pre-installed in the coin box. If the timer
cam is modified for another operating duration, the
dipswitches on the display board should be set as
follows:
NOTE:
This display does not accumulate time. See the following examples of display possibilities.
DIP SWITCH NUMBERS
DRYING TIME (minutes) 1 2
45 1 1
60 1 0
90 0 1
120 0 0
Customer ServiceCare and CleaningSafety Instructions Installation Instructions
DIPSWITCH SETTING (min) COIN SLIDE ACTUATIONS DISPLAY READING (min)
45 1 45 to 0, then blank
45 2 45 to 1, then 1 for next 45 min.,
then 0 and blank
120 1 99 for 21 minutes, then 98 to 0,
then blank
Notes
18
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
19
Customer ServiceCare and CleaningSafety Instructions Installation Instructions
20
GE Commercial Dryer Warranty
Parts and service are available from your General Electric
Commercial Laundry distributor.
For The Period Of: GE Will Replace:
Three Years Any part
of the dryer which fails due to a defect in materials or workmanship, except the drop
From the date of the
coin meter, coin slide mechanism, coin vault and locks, which are excluded from this warranty.
original purchase
During this
limited three-year warranty,
any related service, labor and diagnostic calls are not
included.
■Service trips to your place of business to teach you how to
use the product.
■Improper installation.
■Failure of the product if it is abused, misused, or used for
other than the intended purpose.
■Any and all implied warranties of merchantability and
fitness for a particular purpose are hereby excluded.
■Replacement of fuses or resetting of circuit breakers at
place of business.
■Damage to the product caused by accident, fire, floods or
acts of God.
■Incidental or consequential damage to personal property
caused by possible defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
commercial use within the USA. In Alaska, the warranty excludes the cost of shipping to your place of business.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Printed in the United States
Customer Service Care and Cleaning Safety InstructionsInstallation Instructions
Loading...
