Installation
Instructions
36" Electric Cooktop
CP650, JP655, PP962, PP972, PP975, PP980, ZEU36K
“If you have questions, call 800.GE.CARES or visit our website at: ge.com”
Before You Begin
Read these instructions completely and carefully.
• IMPORTANT — Save these instructions for local inspector’s use.
• IMPORTANT — Observe all governing codes and ordinances.
•Note to Installer – Be sure to leave these instructions with the Consumer.
•Note to Consumer – Keep these instructions for future reference.
•Product failure due to improper installation is not covered under the Warranty.
WARNING — This appliance must be properly grounded.
• ATTENTION INSTALLER — ALL
COOKTOPS MUST BE HARD WIRED (DIRECT WIRED) INTO AN APPROVED JUNCTION BOX. A “PLUG AND RECEPTACLE” IS NOT PERMITTED ON THESE PRODUCTS.
•Proper installation is the responsibility of the installer and product failure due to
improper installation is NOT covered under warranty.
MATERIALS YOU WILL NEED
|
|
|
|
|
|
Wire Nuts |
|
Junction Box |
|||
|
TOOLS YOU WILL NEED
Pencil
Saber Saw
Phillips Head
Screwdriver
1/8≤ Drill Bit & Electric or Hand Drill
Ruler or Straightedge
Safety Glasses
PARTS INCLUDED
2 Hold Down
Brackets
4 Screws |
Foam Tape |
(WB1X1137) |
|
31-10636-2 (11-10 GE) |
1 |
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
For Your Safety
•For Personal Safety, remove house fuse or open circuit breaker before beginning installation. Failure to do so could result in serious injury or death.
•Be sure your cooktop is installed properly by a qualified installer or service technician.
•To eliminate the risk of burns or fire due to reaching over heated surface elements, cabinet storage located above the surface units should be avoided. If cabinet storage space is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" beyond the bottom of the cabinets. Cabinet installation above the cooktop may be no deeper than 13".
•Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 200°F) generated by the cooktop.
•The cooktop should be easy to reach and lighted with natural light during the day.
•Always disconnect the electrical service to the cooktop before repairing or servicing the
cooktop. This can be done by disconnecting the fuse or circuit breaker. Failure to do this could result in a dangerous or fatal shock. Know where your main disconnect switch is located. If you do not know, have your electrician show you.
Electrical Requirements
This appliance must be supplied with the proper voltage and frequency, and connected to an individual, properly grounded branch circuit, protected by a circuit breaker or a time delay fuse as noted on name plate.
We recommend you have the electrical wiring and hookup of your cooktop connected by a qualified electrician. After installation, have the electrician show you where your main cooktop disconnect is located.
Wiring must conform to National Electrical Code. You can get a copy of the National Electrical Code, ANSI/NFPA No. 70-Latest Edition, by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
The cooktop conduit wiring is approved for copper wire connection only, and if you have aluminum house wiring, you must use special UL approved connectors for joining copper to aluminum.
You must use a two-wire, three conductor 208/240 VAC, 60 Hertz electrical system. A white (neutral) wire is not needed for this unit. The cooktop must be installed in a circuit that does not exceed 125 VAC nominal to ground.
Refer to the name plate on your cooktop for the KW rating for your cooktop.
Name plate location
2
Installation Instructions
Pre-Installation Checklist
WARNING –The electrical power to the cooktop supply line must be shut off while
connections are being made. Failure to do so could result in serious injury or death.
AWhen preparing cooktop opening, make sure the inside of the cabinet and the cooktop do not interfere with each other. (See section on preparing the opening.)
BRemove packaging materials and literature package from the cooktop before beginning installation.
Literature
Package
Styrofoam
Packaging
Cooktop
C
D
E
F
G
Remove Installation Instructions from literature pack and read them carefully before you begin.
Be sure to place all literature, Owner’s Manual, Installations, etc. in a safe place for future reference.
Make sure you have all the tools and materials you need before starting the installation of the cooktop.
Your home must provide the adequate electrical service needed to safely and properly use your cooktop. (Refer to section on electrical requirements.)
When installing your cooktop in your home, make sure all local codes and ordinances are followed exactly as stated.
Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat (up to 200°F) generated by the cooktop.
3
Installation Instructions
Preparing the Opening
1The following MINIMUM clearance dimensions must be maintained.
13" MAX. Depth of uprotected overhead cabinets
30" MIN. Clearance from countertop to unprotected overhead surface
2" MIN. Clearance from cutout to side wall on the left of the unit
2" MIN. Clearance from cutout to side wall on the right of the unit
15" MIN. Height from countertop to nearest cabinet on either side of unit
If a 30" clearance between the cooking surface and overhead combustible materials or metal cabinets cannot be maintained, a minimum clearance of 24" is required and the underside of the cabinets above the cooktop must be protected with not less than 1/4" insulating millboard covered with sheet metal not less than 0.0122" thick.
2 Overall cooktop dimensions
|
|
|
|
|
20-7/8" (21" SS) |
|
|
|
|
|
|
|
|
|
|
|
|
36" |
|
|
Depth on Monogram ZEU36K |
|
|
|||
|
|
is 21-1/4' @ center. |
|
|
||||
|
(36-1/8" SS) |
|
|
|
||||
|
|
|
3-1/4" Front |
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
|
|
Cooktop |
|
|
4-5/8" Rear |
|
|
|
|
|
|
|
|
at the conduit |
|
|
|
|
|
|
|
|
location |
|
|
|
18-7/8" |
|
|
33-3/4" |
6-1/4" Rear |
|
||
|
|
|
|
|
on Model PP975 |
& |
||
|
|
|
|
|
|
PP980 |
|
4Cutout dimensions of the countertop
To insure accuracy, it is best to make a template when cutting the opening in the counter.
19-1/8" width of cut
33-7/8" length of
1-3/4" Min. Between cut cutout and the wall
behind the cooktop
2-1/2" Min. from front edge of cutout and front edge of countertop
5Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat (up to 200°F) generated by cooktop.
Wall covering, cabinets and countertop must withstand heat up to 200°F.
3Five inches (5") minimum vertical clearance between the cooktop bottom and any combustible surfaces.
5" Min.
Vertical Clearance
4
Installation Instructions
Installing the Cooktop

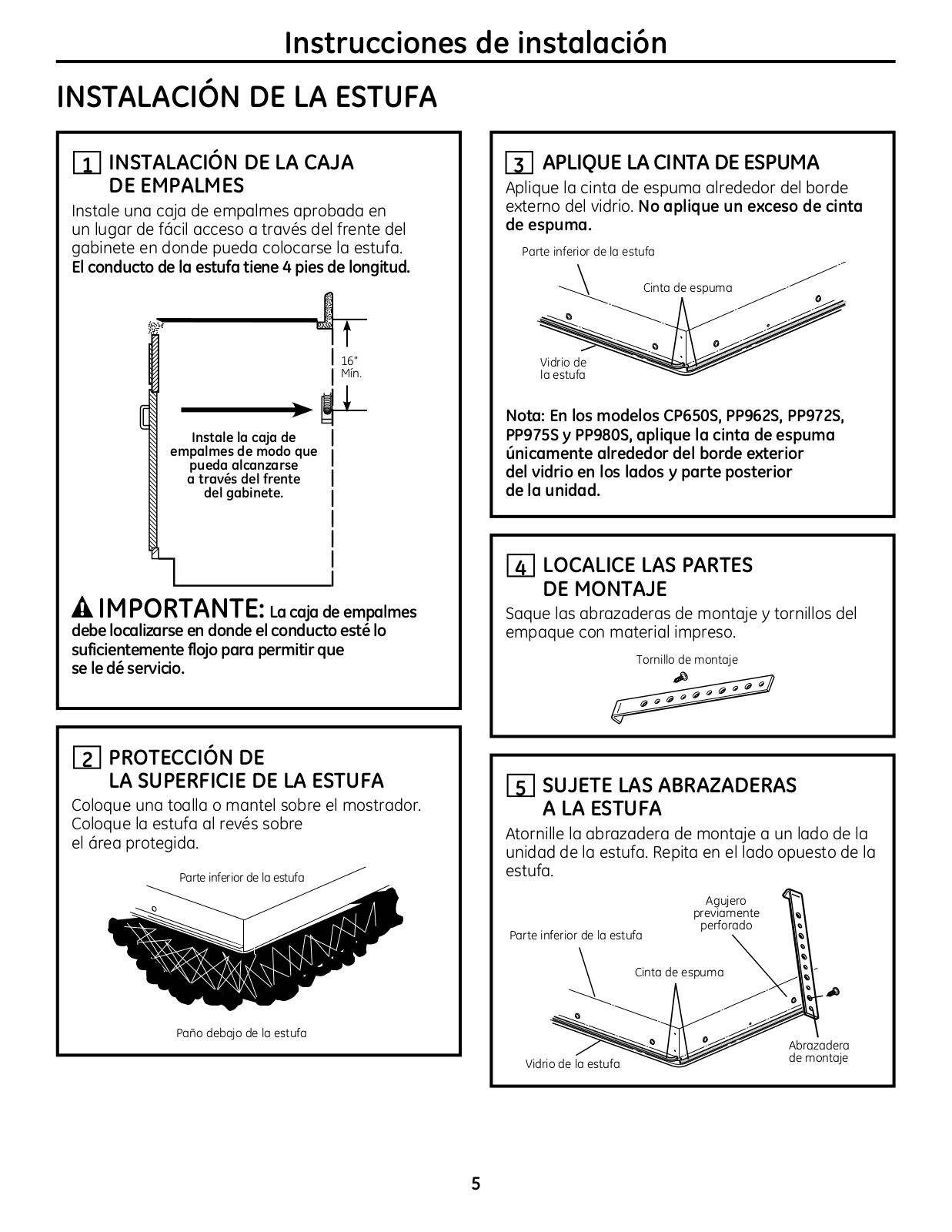

1 Installing the Junction Box
Install an approved junction box where it will be easily reached through the front of the cabinet where the cooktop will be located. The cooktop conduit is 4 feet long.
16"
Min.
Install junction box so that it can be reached through the front of the cabinet.
IMPORTANT:The junction box must be located where it will allow considerable slack in the conduit for serviceability.
3 Attach Foam TAPE
Apply the foam tape around the outer edge of the glass. Do not overlap the foam tape.
Bottom of Cooktop
Foam Tape
Cooktop
Glass
Note: On CP650S, PP962S, PP972S, PP975S & PP980S models, apply the foam tape around the outer edge of the glass on the sides and rear of the unit only.
4 Locate Mounting Parts
Remove the Hold Down Brackets and screws from the literature package.
Mounting Screw
2 Protect Surface of Cooktop
Place a towel or tablecloth onto the countertop. Lay the cooktop upside down onto the protected surface.
Bottom of cooktop
Cloth under Cooktop
5 Attach Brackets to Cooktop
Screw the Hold Down Bracket to the side
of the cooktop unit. Repeat for opposite side of cooktop.
Bottom of Cooktop |
Pre-Drilled Hole |
|
|
|
Foam Tape |
|
Hold Down |
Cooktop Glass |
Bracket |
|
5
