Safety Instructions . . . . . .2–7

Operating Instructions

Aluminum Foil . . . . . . . . . . . .13

Clock and Timer . . . . . . . .15, 16

Gas/Control Lockout . . . . . .25

Lower Oven Drawer . . . . . . . .29

Oven . . . . . . . . . . . . . . . . . .11–31

Baking and Roasting . . . . . . .13

Broiling, Broiling Guide . . . .14

Convection . . . . . . . . . . . .19-23

Oven Control . . . . . . . . . . . .11

Power Outage . . . . . . . . . . . .12

Preheating . . . . . . . . . . . . . . .13

Probe . . . . . . . . . . . . . . . . . . .18

Sabbath Feature . . . . . . .26, 27

Self-Cleaning . . . . . . . . . .30, 31

Shelves . . . . . . . . . . . . . . . . . .12

Special Features . . . . . . .24, 25

Thermostat . . . . . . . . . . .28, 29

Timed Baking

and Roasting . . . . . . . . . . . . .17

Timed Convection Baking . . .23

Surface Cooking . . . . . . . . .8–10

Griddle . . . . . . . . . . . . . . . . . .10

Care and Cleaning

Burner Assembly . . . . . . . .32, 33

Burner Grates . . . . . . . . . . . . .34

Control Panel and Knobs . . . .35

Cooktop . . . . . . . . . . . . . . . . . .34

Door Removal . . . . . . . . . . . . .37

Griddle . . . . . . . . . . . . . . . . . . .34

Oven Bottom . . . . . . . . . . . . . .37

Oven Light Replacement . . . .38

Oven Vents . . . . . . . . . . . . . . . .35

Self-Cleaning . . . . . . . . . . .30, 31

Shelves . . . . . . . . . . . . . . . . . . .37

Stainless Steel Surfaces . . . . . .36

Drawer . . . . . . . . . . . . . . . . . . .38

Installation Instructions

. . . . . . . . . . .39–50

Air Adjustment . . . . . . . . . . . .49

Anti-Tip Device . . . . . . . . .42, 50

Assemble Surface Burners . . .47 Checking Burner

Ignition . . . . . . . . . . . . . . . . . .48

Connecting the Range

to Gas . . . . . . . . . . . . . . . .43–45

Dimensions and Clearances . .41 Electrical Connections . . .46, 47

Leveling the Range . . . . . . . . .49

LP . . . . . . . . . . . . . . . . . . . . . . .50

Troubleshooting Tips

. . . . . . . . . . . . . . . . . .51–54

Accessories . . . . . . . . . . . . . .55

Consumer Support

Consumer Support . .Back Cover

Product Registration . . . . .56, 57

Warranty for Customers

in Canada . . . . . . . . . . . . . . . . .59

Warranty for Customers

in the U.S.A. . . . . . . . . . . . . . .58

Ranges

183D5580P213 49-85129 05-07 JR

CGS980

Owner’s Manual

& Installation

Instructions

ge.com

Self-Cleaning Gas

Write the model and serial numbers here:

Model #______________________

Serial # ______________________

You can find them on a label on the front of the range behind the lower oven drawer.

In Canada contact us at: www.GEAppliances.ca

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

—

WHAT TO DO IF YOU SMELL GAS

■ Do not try to light any appliance.

■ Do not touch any electrical switch;

do not use any phone in your building.

■ Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions.

■ If you cannot reach your gas supplier,

call the fire department.

— Installation and service must be

performed by a qualified installer, service agency or the gas supplier.

WARNING:

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WARNING!

ANTI-TIP DEVICE

■

ALL RANGES CAN TIP

■

INJURY TO PERSONS COULD RESULT

■

INSTALL ANTI-TIP DEVICES PACKED WITH RANGE

■

SEE INSTALLATION INSTRUCTIONS

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

All ranges can tip and injury could result.

To prevent accidental tipping of the range, attach it to the wall by installing the Anti-Tip device supplied.

If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB2X7909.

To check if the device is installed and engaged properly, carefully tip the range forward. The Anti-Tip device should engage and prevent the range from tipping over.

If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.

Please refer to the Anti-Tip device information in this manual. Failure to take this precaution could result in tipping of the range and injury.

ANTI-TIP DEVICE



Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

ge.com

WARNING!

Have the installer show you the location of the range gas shut-off valve and how to shut it off if necessary.

■ Have your range installed and properly

grounded by a qualified installer, in accordance with the Installation Instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians.

■ Do not attempt to repair or replace any

part of your range unless it is specifically recommended in this manual. All other service should be referred to a qualified technician.

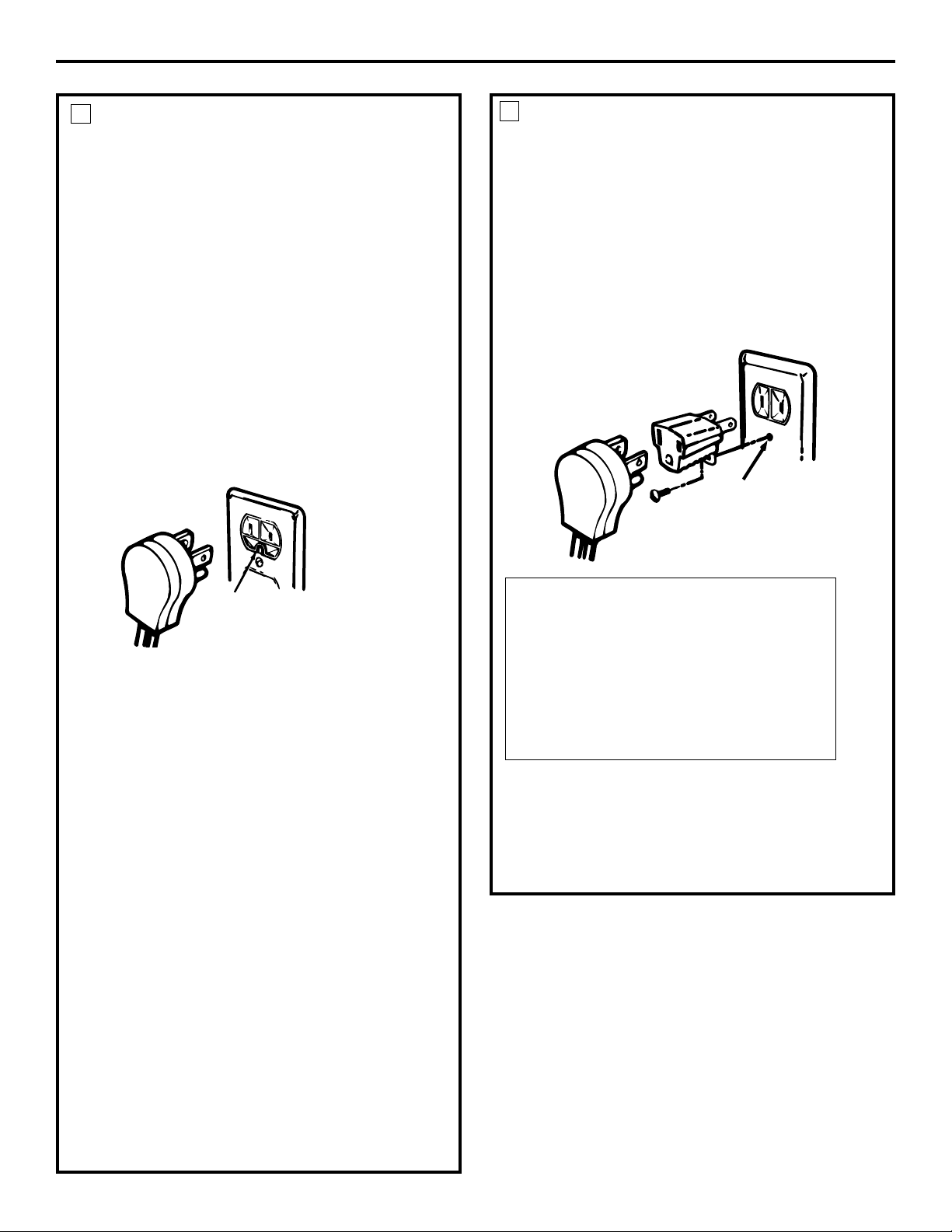

■ Plug your range into a 120-volt grounded

outlet only. Do not remove the round grounding prong from the plug. If in doubt about the grounding of the home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded, three-prong outlet in accordance with the National Electrical Code. Do not use an extension cord with this appliance.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

■ Locate the range out of kitchen traffic path

and out of drafty locations to prevent poor air circulation.

■ Be sure all packaging materials are

removed from the range before operating it to prevent fire or smoke damage should the packaging material ignite.

■ Be sure your range is correctly adjusted by

a qualified service technician or installer for the type of gas (natural or LP) that is to be used. Your range can be converted for use with either type of gas. See the

Installation of

the range

section.

■

WARNING:

These adjustments must be made by a qualified service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.

■ After prolonged use of a range, high floor

temperatures may result and many floor coverings will not withstand this kind of use. Never install the range over vinyl tile or linoleum that cannot withstand such type of use. Never install it directly over interior kitchen carpeting.

■ Do not leave children alone or unattended

where a range is hot or in operation. They could be seriously burned.

■ Do not allow anyone to climb, stand or

hang on the oven door, lower oven drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

■

CAUTION:

Items of interest to children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

■ Never wear loose fitting or hanging garments

while using the appliance. Be careful when reaching for items stored in cabinets over the range. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.

■ Do not store flammable materials in an

oven, a range drawer or near a cooktop.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Do not let cooking grease or other flammable

materials accumulate in or near the range.

■ Do not use water on grease fires. Never pick

up a flaming pan. Turn the controls off. Smother a flaming pan on a surface burner by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flaming grease outside a pan can be put

out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flame in the upper oven or lower oven

drawer can be smothered completely by closing the oven door or drawer and turning the control to off or by using a multipurpose dry chemical or foam-type fire extinguisher.

■ Let the burner grates and other surfaces

cool before touching them or leaving them where children can reach them.

■ Never block the vents (air openings) of the

range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range under the lower oven drawer.

■ Large scratches or impacts to glass doors

can lead to broken or shattered glass.

SAFETY PRECAUTIONS

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING:

NEVER

use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

ge.com

SURFACE BURNERS

Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped and remain cool.

■ Always use the

LITE

position when igniting the top burners and make sure the burners have ignited.

■ Never leave the surface burners unattended

at high flame settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■ Adjust the top burner flame size so it

does not extend beyond the edge of the cookware. Excessive flame is hazardous.

■ Use only dry pot holders— moist or damp

pot holders on hot surfaces may result in burns from steam. Do not let pot holders come near open flames when lifting cookware. Do not use a towel or other bulky cloth in place of a pot holder.

■ When using glass cookware, make sure it

is designed for top-of-range cooking.

■ To minimize the possibility of burns, ignition

of flammable materials and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.

■ Carefully watch foods being fried at a high

flame setting.

■ Always heat fat slowly, and watch as it heats.

■ Do not leave any items on the cooktop. The

hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

■ If a combination of oils or fats will be used

in frying, stir together before heating or as fats melt slowly.

■ Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■ Use the least possible amount of fat for

effective shallow or deep-fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■ Do not flame foods on the cooktop. If you

do flame foods under the hood, turn the fan on.

■ Do not use a wok on the cooking surface

if the wok has a round metal ring that is placed over the burner grate to support the wok. This ring acts as a heat trap, which may damage the burner grate and burner head. Also, it may cause the burner to work improperly. This may cause a carbon monoxide level above that allowed by current standards, resulting in a health hazard.

■ Foods for frying should be as dry as possible.

Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■ Never try to move a pan of hot fat, especially

a deep fat fryer. Wait until the fat is cool.

■ Do not leave plastic items on the cooktop—

they may melt if left too close to the vent.

■ Keep all plastics away from the surface

burners.

■ To avoid the possibility of a burn, always be

certain that the controls for all burners are at the

OFF

position and all grates are cool

before attempting to remove them.

■ If range is located near a window, do not

hang long curtains that could blow over the surface burners and create a fire hazard.

■ If you smell gas, turn off the gas to the range

and call a qualified service technician. Never use an open flame to locate a leak.

■ Always turn the surface burner controls off

before removing cookware.

■ Do not lift the cooktop. Lifting the cooktop

can lead to damage and improper operation of the range.

■ When disabling Gas/Control Lockout, make

sure the surface controls are set to the

OFF

position. This will preclude gas flow when the range is turned on

WARNING!

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ Be sure to wipe off excess spillage before

self-cleaning operation.

■ Before self-cleaning the oven, remove any

broiler pan, broiler grid, all cookware, probe and any aluminum foil.

■ Never place, use or self-clean the lower oven

drawer pan in the upper oven.

■ The gray porcelain-coated oven shelves may

be cleaned in the oven during the self-clean cycle.

■ Clean only parts listed in this Owner’s

Manual.

■ Do not clean the door gasket. The door

gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■ If the self-cleaning mode malfunctions,

turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.

■ Do not use oven cleaners. No commercial

oven cleaner or oven liner of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

SELF-CLEANING THE UPPER OVEN

COOK MEAT AND POULTRY THOROUGHLY…

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

■ The purpose of the warm setting of the

lower oven drawer is to hold hot cooked foods at serving temperature. Always start with hot food; cold food cannot be heated or cooked using the warm setting of the lower oven drawer.

■ Do not use the drawer to dry newspapers.

If overheated, they can catch on fire.

■ Do not leave paper products, plastics,

canned food or combustible materials in the drawer.

■ Never leave jars or cans of fat drippings in

or near your drawer.

■ Do not warm food in the drawer for more

than two hours.

■ Never place, use or self-clean the lower oven

drawer pan in the upper oven.

■

Do not touch the heating element or the interior surface of the drawer.

These

surfaces may be hot enough to burn.

REMEMBER:

The inside surface of the drawer may be hot when the drawer is opened.

■ Use care when opening the drawer. Open

the drawer a crack and let hot air or steam escape before removing or replacing food. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

■ Do not use aluminum foil to line the lower

oven drawer. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and it could damage the interior finish.

LOWER OVEN DRAWER

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

ge.com

■ Do not use the oven for a storage area.

Items stored in the oven can ignite.

■ Keep the oven free from grease buildup.

■ Place the oven shelves in the desired

position while the oven is cool.

■ Pulling out the shelf to the stop-lock is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls. The lowest position is not designed to slide.

■ Do not heat unopened food containers.

Pressure could build up and the container could burst, causing an injury.

■ Do not use aluminum foil anywhere in the

oven except as described in this manual. Misuse could result in a fire hazard or damage to the range.

■ When using cooking or roasting bags in the

oven, follow the manufacturer’s directions.

■ Do not use your oven to dry newspapers.

If overheated, they can catch fire.

■ Use only glass cookware that is

recommended for use in gas ovens.

■ Always remove any broiler pan from range as

soon as you finish broiling. Grease left in the pan can catch fire if oven is used without removing the grease from the broiler pan.

■ When broiling, if meat is too close to the

flame, the fat may ignite. Trim excess fat to prevent excessive flare-ups.

■ Make sure any broiler pan is in place

correctly to reduce the possibility of grease fires.

■ If you should have a grease fire in a broiler

pan, press the

CLEAR/OFF

pad, and keep the oven door closed to contain fire until it burns out.

■ For safety and proper cooking performance,

always bake and broil with the oven door closed.

■ Never place, use or self-clean the lower oven

drawer pan in the upper oven.

Stand away from the range when opening the door of a hot oven. The hot air and steam that escape can cause burns to hands, face and eyes.

UPPER OVEN

WARNING:

NEVER

cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.

Throughout this manual, features and appearance may vary from your model.

How to Light a Gas Surface Burner

Make sure all the surface burners are placed in their respective positions.

Push the control knob in and turn it to the

LITE

position.

You will hear a little

clicking

noise— the sound of the electric spark igniting the burner.

Turn the knob to adjust the flame size. If the knob stays at

LITE,

it will continue

to click.

When one burner is turned to

LITE,

all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

Push the control knob in and turn it to the LITE position.

How to Select Flame Size

For safe handling of cookware, never let the flames extend up the sides of the cookware.

Watch the flame, not the knob, as you reduce heat. When fast heating is desired, the flame size on a gas burner should match the cookware you are using.

Flames larger than the bottom of the cookware will not result in faster heating of the cookware and could be hazardous.

Before Lighting a Gas Burner

■ Make sure all burners are in place.

■ Make sure all grates on the range are

properly placed before using any burner.

■ If your range has the Gas/Control

Lockout feature, make sure it is disabled before attempting to light the surface burners.

After Lighting a Gas Burner

■ Do not operate the burner for an

extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

■ Be sure the burners and grates are cool

before you place your hand, a pot holder, cleaning cloths or other materials on them.

Sealed Gas Burners

Your gas range cooktop has five sealed gas burners. They offer convenience, cleanability and flexibility to be used in a wide range of cooking applications.

The smallest burner in the right rear position is the simmer burner. This burner can be turned down to LOfor a very low simmer setting. It provides precise cooking performance for delicate foods such as sauces or foods that require low heat for a long cooking time.

The medium (left rear) and the extra large (left front) burners are the primary burners for most cooking. These general-purpose burners can be turned down from HIto

to suit a wide range of cooking needs. The extra large (left front) burner also has a special

POWER BOIL

™

setting designed to be used with cookware 10 inches or larger in diameter.

The dual flame extra large burner (right front) is the maximum output burner. Like the other four burners, it can be turned down from HIto LOfor a wide range of cooking applications; however, this burner is designed to quickly bring large amounts of liquid to a boil. It has a special

POWER BOIL

™

setting designed to be used with cookware 10 inches or larger in diameter.

The center oval burner is the largest in size and is for large oval pots/pans, round pots/pans 10” or greater in diameter or with the griddle.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Using the gas surface burners.

Medium

Small

Extra large

Dual flame extra large

Small, medium and center burner graphics only.

Extra large and dual flame extra large burners only.

Oval

In Case of Power Failure

In case of a power failure, you can light the gas surface burners on your range with a match. Hold a lit match to the burner, then push in and turn the control knob to the

LITE

position. Use extreme caution when

lighting burners this way.

Surface burners in use when an electrical power failure occurs will continue to operate normally.

NOTE: If Gas/Control Lockout is in use at the time of a power failure, the surface burners cannot be lit.

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

ge.com

Wok This Way

We recommend that you use a 14-inch or smaller flat-bottomed wok. Make sure the wok bottom sits flat on the grate. They are available at your local retail store.

Only a flat-bottomed wok should be used.

Do not use a wok support ring. Placing the ring over the burner or grate may cause the burner to work improperly, resulting in carbon monoxide levels above allowable standards. This could be dangerous to your health.

Use a flat-bottomed wok.

Stove Top Grills

Do not use stove top grills on your sealed gas burners. If you use the stove top grill on the sealed gas burner, it will cause incomplete combustion and can result in exposure to carbon monoxide levels above allowable current standards.

This can be hazardous to your health.

Top-of-Range Cookware

Aluminum:

Medium-weight cookware is recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with tightfitting lids when cooking with minimum amounts of water.

Cast-Iron:

If heated slowly, most skillets will

give satisfactory results.

Enamelware:

Under some conditions, the enamel of some cookware may melt. Follow cookware manufacturer’s recommendations for cooking methods.

Glass:

There are two types of glass cookware—those for oven use only and those for top-of-range cooking (saucepans, coffee and teapots). Glass conducts heat very slowly.

Heatproof Glass Ceramic:

Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly. Check cookware manufacturer’s directions to be sure it can be used on gas ranges.

Stainless Steel:

This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution. Combination metal skillets usually work satisfactorily if they are used with medium heat as the manufacturer recommends.

Most griddled foods require cooking on a preheated surface. Preheat griddle according to the guide below, then switch to the desired cook setting.

IMPORTANT NOTES:

■

Avoid cooking extremely greasy foods and be careful of grease spill-over while cooking.

■

Do not use oil on the griddle for extended lengths of time. Permanent staining and/or craze lines on the surface could result.

■

Never place or store any items on the griddle, even when it is not in use. The griddle can become heated when using the surrounding burners.

■

Do not overheat the griddle. Leaving the griddle burner on at HI for an extended amount of time without food can damage the non-stick coating

■

Avoid using metal utensils with sharp points pr rough sharp edges which might damage the griddle surface.

■

Do not cut foods on the griddle.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Your non-stick coated griddle provides an extra-large cooking surface for meats, pancakes, or other food usually prepared in a frying pan or skillet.

NOTE: Your griddle will discolor over time as it becomes seasoned with use.

How to Insert the Griddle

Using the griddle.

CAUTION:

Place and remove the griddle only when all grates and griddle are cool and all surface units are turned OFF.

The griddle can only be used with the center burner. To insert the griddle, remove the center grate and replace with the griddle.

Using the Griddle

Type of Food Preheat Cook

Conditions Setting

Warming none 3 (MED-LOW) Tortillas

Pancakes 4 (MED) 4 (MED)

10 min.

Hamburgers HI 5 (MED)

5 min. Sear on HI for 1

minute on each side

Fried Eggs HI 4 (MED)

5 min.

Bacon none 5 (MED)

Breakfast HI 5 (MED) Sausage Links 5 min.

Hot Sandwiches HI HI (such as 4 min. Grilled Cheese)

NOTE: Griddle settings may need to be adjusted if the griddle is used for an extended time.

Using the upper oven controls.

ge.com

(Throughout this manual, features and appearance may vary from your model.)

Consumer Support

Operating Instructions

Safety Instructions Installation Instructions Troubleshooting Tips

BAKE Pad

Touch to select the bake function.

BROIL HI/LO Pad

Touch to select the broil function.

CONVECTION BAKE MULTI/1 RACK Pad

Touch to select baking with the convection function.

CONVECTION ROAST Pad

Touch to select roasting with the convection function.

START Pad

Must be touched to start any cooking or cleaning function.

Display

Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode, the times set for the timer or automatic oven operations, and if the range is locked.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code. Touch the CLEAR/OFF pad. Allow the oven to cool for

one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed

functions must be reset.

The time of day will flash in the display when there has been a power outage.

SELF-CLEAN Pad

Touch to select self-cleaning function. See the

Using the self-cleaning oven

section.

OVEN LIGHT Pad

Touch to turn the oven light on or off.

DELAY START Pad

Use along with

COOKING TIME

SELF CLEAN

pads to set the oven to start and stop automatically at a time you set.

COOKING TIME Pad

Touch and then touch the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

CLEAR/OFF Pad

Touch to cancel

ALL

upper oven operations except the clock, timer and Gas/Control Lockout.

CLOCK Pad

Touch before setting the clock.

Number Pads

Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the internal food temperature, the start time and length of operation for timed baking and self-cleaning.

KITCHEN TIMER ON/OFF Pad

Touch to select the timer feature.

PROBE Pad

Touch when using the probe to cook food.

GAS/CONTROL LOCKOUT Pad

Touch and hold the

GAS/CONTROL LOCKOUT

pad for 3 seconds to lock/unlock the surface burners, oven burners and control panel so they cannot be activated.

Oven Control, Clock, Timer and Features

Features and appearance may vary.

Operating Instructions

Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Using the upper oven.

To avoid possible burns, place the shelves in the desired position before you turn the oven on.

Before you begin…

The shelves have stop-locks, so that when placed correctly on the shelf supports (A through E), they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the shelf out to the bump on the shelf support.

To remove a shelf,

pull it toward you, tilt the

front end up and pull it out.

To replace,

place the end of the shelf (stoplocks) on the support, tilt up the front and push the shelf in.

NOTE: The shelf is not designed to slide out at the special low shelf (R) position.

The oven has 5 shelf positions. It also has a special low shelf

position (R) for extra large items, such as a large turkey.

Power Outage

CAUTION: Do not make any attempt to operate the

electric ignition oven during an electrical power failure.

The oven or broiler cannot be lit during a power failure. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power failure occurs, the oven burner shuts off and cannot be re-lit until power is restored. This is because the flow of gas is automatically stopped and will not resume when power is restored until the glow bar has reached operating temperature.

Upper Oven Light

Touch the

OVEN LIGHT

pad to turn the light

on or off.

Upper Oven Vent

Your oven is vented through ducts at the rear of the range. Do not block these ducts when cooking in the oven—it is important that the flow of hot air from the oven and fresh air to the oven burner be uninterrupted. Avoid touching the vent openings or nearby surfaces during oven or broiler operation—they may become hot.

■

Handles of pots and pans on the cooktop may become hot if left too close to the vent.

■

Do not leave plastic or flammable items on the cooktop—they may melt or ignite if left too close to the vent.

■

Do not leave closed containers on the cooktop. The pressure in closed containers may increase, which may cause them to burst.

■

Metal items will become very hot if they are left on the cooktop, and could cause burns.

Plastic items on the cooktop may melt if left too close to the vent.

Vent appearance and location vary.

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

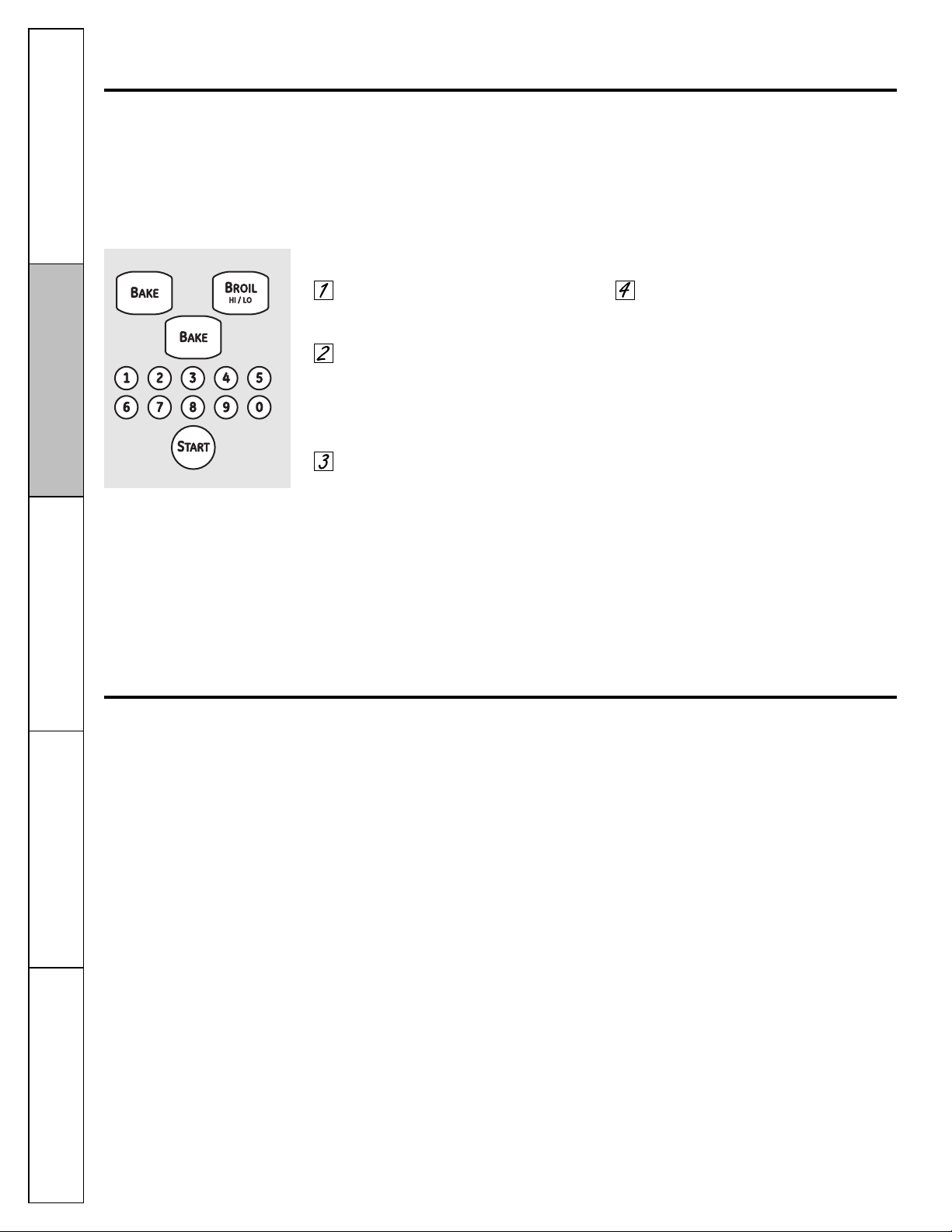

How to Set the Upper Oven for Baking or Roasting

Your oven is not designed for open-door cooking.

Touch the

BAKE

pad.

Touch the number pads to set the desired temperature.

Touch the

START

pad.

The word ONand

100°

will be displayed. As the oven heats up, the display will show the changing temperature. When the oven reaches the temperature you set, a tone will sound.

To change the oven temperature during BAKE cycle, press the BAKE pad and then the number pads to get the new temperature.

Check food for doneness at minimum time on recipe. Cook longer if necessary.

Touch the

CLEAR/OFF

pad when

cooking is complete.

Type of Food Shelf Position

Frozen pies (on cookie sheet) B or C

Angel food cake A

Bundt or pound cakes B

Biscuits, muffins, brownies, C cookies, cupcakes, layer cakes, pies

Casseroles B or C

Roasting R or A

Preheating and Pan Placement

Preheat the oven if the recipe calls for it. To preheat, set the oven at the correct temperature. Preheating is necessary when convection baking and for good results when baking cakes, cookies, pastry and breads.

For ovens without a preheat indicator light or tone, preheat 7 minutes.

Baking results will be better if baking pans are centered in the oven as much as possible. Pans should not touch each other or the walls of the oven. If you need to use two shelves, stagger the pans so one is not directly above the other, and leave approximately 11⁄2″ between pans, from the front, back and sides of the wall.

Oven Moisture

As your oven heats up, the temperature change of the air in the oven may cause water droplets to form on the door glass. These droplets are harmless and will evaporate as the oven continues to heat up.

The oven has a special low shelf (R) position just above the oven bottom. Use it when extra cooking space is needed, for example, when cooking a large turkey. The shelf is not designed to slide out at this position.

ge.com

Aluminum Foil

Do not use aluminum foil on the bottom of the oven.

Never entirely cover a shelf with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower shelf several inches below the food.

Using the upper oven.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Broiling Guide

Quantity and/ Shelf* First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Bacon 1/2 lb. C 4 3 Arrange in single layer.

(about 8 thin slices)

Ground Beef 1 lb. (4 patties) C 10 7–10 Space evenly. Up to Well Done 1/2 to 3/4″ thick 8 patties take about

the same time.

Beef Steaks

Rare

†

1″ thick C 9 7 Steaks less than 1″ thick cook Medium 1 to 11⁄2 lbs. C 12 5–6 through before browning. Well Done C 13 8–9 Pan frying is recommended.

Slash fat.

Rare

†

11⁄2″ thick C 10 6–7 Medium 2 to 21⁄2 lbs. C 12–15 10–12 Well Done C 25 16–18

Chicken 1 whole B 30–35 15–20 Brush each side with melted

2 to 21⁄2 lbs., butter. Broil skin-side-down

split lengthwise first.

4 bone-in breasts B 25–30 10–15 Lobster Tails 2–4 C 13–16 Do not Cut through back of shell.

6 to 8 oz. each turn Spread open. Brush with

over. melted butter before broiling

and after half of broiling time.

Fish Fillets 1/4 to 1/2″ thick D 6 6 Handle and turn very

carefully. Brush with lemon butter before and during cooking, if desired. Preheat broiler to increase browning.

Ham Slices 1″ thick C 8 8 (precooked)

1/2″ thick D 6 6 Pork Chops 2 (1/2″ thick) D 10 8 Slash fat.

Well Done 2 (1″ thick) about 1 lb. D 15 8

Lamb Chops

Medium 2 (1″ thick) about 10 D 8 4–7 Slash fat. Well Done to 12 oz. D 10 10

Medium 2 (11⁄2″ thick) about 1 lb. D 10 4–6 Well Done D 17 12–14

How to Set the Upper Oven for Broiling

Place the meat or fish on a broiler grid in a broiler pan.

Follow suggested shelf positions in the

Broiling Guide.

The oven door

must

be closed during

broiling.

Touch the

BROIL HI/LO

pad once for

HI Broil.

To change to

LO Broil,

touch the

BROIL

HI/LO

pad again.

Touch the

START

pad.

NOTE: The display will always automatically remind you to close the door.

When broiling is finished, touch the

CLEAR/OFF

pad.

Serve the food immediately, and leave the pan outside the oven to cool during the meal for easiest cleaning.

Use

LO Broil

to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

†The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F. means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.)

The oven has 5 shelf positions.

*See illustration for description of shelf positions.

Close the door. Always broil with

the door closed.

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

Not all features are on all models.

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or selfcleaning cycle.

Touch the

CLOCK

pad to set.

Touch the number pads.

Touch the number pads the same way you read them. For example, to set 12:34, touch the number pads

1, 2, 3

and 4in that order.

If number pads are not touched within one minute after you touch the

CLOCK

pad, the display reverts to the original setting. If this happens, touch the

CLOCK

pad and reenter

the time of day.

Touch the

START

pad until the time of day shows in the display. This enters the time and starts the clock.

To check the time of day when the display is showing other information, simply touch the CLOCK pad. The time of day shows until another pad is touched.

To Set the Timer

The timer does not control oven operations. The maximum setting on the timer is 9 hours and 59 minutes.

Touch the

KITCHEN TIMER ON/OFF

pad.

Touch the number pads until the amount of time you want shows in the display. The maximum time that can be entered in minutes is 59. Times more than 59 minutes should be changed to hours and minutes. For example, to enter 90 minutes as 1 hour 30 minutes, touch

1, 3 and 0

that order.

If you make a mistake, press the KITCHEN TIMER ON/OFF pad and begin again.

Touch the

START

pad. After pressing the

START

pad,

SET

disappears; this tells you the time is counting down, although the display does not change until one minute has passed.

When the timer reaches

:00,

the control will beep 3 times followed by one beep every 6 seconds until the

KITCHEN TIMER ON/OFF

pad is

touched.

The 6 second tone can be canceled by following the steps in the Special features of your oven control section under Tones at the End of a Timed Cycle.

Using the clock and timer.

ge.com

Make sure the clock is set to the correct time of day.

The timer is a minute timer only. The CLEAR/OFF pad does not affect

the timer.

Power Outage

If a flashing time is in the display, you have experienced a power failure. Reset the clock.

Touch the

CLOCK

pad to reset. Enter the correct time of day by touching the appropriate number pads. Touch the

START

pad.

To Reset the Timer

If the display is still showing the time remaining, you may change it by touching the

KITCHEN TIMER ON/OFF

pad, then touch the number pads until the time you want appears in the display.

If the remaining time is not in the display (clock, delay start or cooking time are in the display), recall the remaining time by touching the

KITCHEN TIMER ON/OFF

pad and then touching the number pads to enter the new time you want.

To Cancel the Timer

Touch the

KITCHEN TIMER ON/OFF

pad twice.

Using the clock and timer.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Consumer Service

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

Using the timed baking and roasting features. (upper oven only)

ge.com

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more

than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The upper oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Touch the

BAKE

pad.

Touch the number pads to set the desired oven temperature.

Touch the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the

START

pad.

The oven will turn ON, and the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temperature reaches 100°F.) When the oven reaches the temperature you set, 3 beeps will sound.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the

Cook and Hold

feature was set. See the

Special features of your oven control

section.

After the oven turns off, the end-of-cycle tone will sound.

Touch the

CLEAR/OFF

pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.

How to Set a Delayed Start and Automatic Stop

The upper oven will turn on at the time of day you set, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Touch the

BAKE

pad.

Touch the number pads to set the desired oven temperature.

Touch the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the

DELAY START

pad.

Touch the number pads to set the time of day you want the oven to turn on and start cooking.

Touch the

START

pad.

NOTE: An attention tone will sound if you are using timed baking and do not touch the START pad.

NOTE: If you would like to check the times you have set, touch the DELAY START pad to check the start time you have set or touch the COOKING TIME pad to check the length of cooking time you have set.

When the oven turns ONat the time of day you set, the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temperature reaches 100°F.) When the oven reaches the temperature you set, beeps will sound.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the

Cook and Hold

feature was set. See

the

Special features of your oven control

section.

After the oven turns off, the end-of-cycle tone will sound.

Touch the

CLEAR/OFF

pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.

For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The temperature probe takes the guesswork out of cooking foods to the exact doneness you want.

Use of probes other than the one provided with this product may result in damage to the probe.

Use the handles of the probe and plug when inserting and removing them from the food and outlet.

■

To avoid damaging your probe, do not use tongs to pull on the cable when removing it.

■

To avoid breaking the probe, make sure food is completely defrosted before inserting.

■

To prevent possible burns, do not unplug the probe from the outlet until the oven has cooled.

■

Never leave your probe inside the oven during a self-cleaning cycle.

■

Do not store the probe in the oven.

The temperature probe has a skewer-like probe at one end and a plug at the other end that goes into the outlet in the oven.

After preparing the meat and placing it on a trivet or on a broiler pan grid, follow these directions for proper probe placement.

Insert the probe completely into the meat. It should not touch the bone, fat or gristle.

For roasts with no bone, insert the probe into the meatiest part of the roast. For bone-in ham or lamb, insert the probe into the center of the lowest large muscle.

Insert the probe into the center of dishes such as meat loaf or casseroles.

Insert the probe into the meatiest part of the inner thigh from below and parallel to the leg of a whole turkey.

How to Set the Upper Oven For Cooking When Using the Probe

Insert the probe into the food.

Plug the probe into the outlet in the oven. Make sure it’s pushed all the way in. Close the oven door.

Touch the

PROBE

pad.

Touch the number pads to set the desired internal food or meat temperature between 100°F and 200°F.

Touch the

BAKE

pad.

Touch the number pads to set the desired oven temperature.

Touch the

START

pad.

The display will flash if the probe is inserted into the outlet and you have not set a probe temperature and touched the START pad.

The display will show LOuntil the internal temperature of the food reaches 100°F; then the changing internal temperature will be shown.

When the internal temperature of the food reaches the number you have set, the probe and the oven turn off and the oven control signals. To stop the signal, touch the

CLEAR/OFF

pad. Use hot pads to remove the probe from the food. Do not use tongs to pull on it—they might damage it.

To change the oven temperature during probe cooking, touch the

BAKE

pad and then the number pads to set the new temperature.

■

If the probe is removed from the food before the final temperature is reached, a tone will sound and the display will flash until the probe is removed from the oven.

■

You can use the timer even though you cannot use timed oven operations while using the probe.

Plug

Probe

Cable

Handles

Using the probe.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

Using the convection oven.

ge.com

The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time while using convection cooking.

To help you understand the difference between convection bake and roast and traditional bake and roast, here are some general guidelines.

Convection Bake

■

Preheat the oven. See the Using the Oven– Preheating and Pan Placement section.

■

Ideal for foods cooked on multiple shelves.

■

Good for large quantities of baked foods.

■

Good results with cookies, biscuits, brownies, cupcakes, cream puffs, sweet rolls, angel food cake and bread.

The convection fan circulates the heated air evenly over and around the food.

Convection Roast

■

Good for large tender cuts of meat, uncovered.

The convection fan circulates the heated air evenly over and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. Heated air will be circulated over, under and around the food being roasted. The heated air seals in juices quickly for a moist and tender product while, at the same time, creating a rich golden brown exterior.

Roasts or poultry should be cooked on shelf position (A).

When you are convection roasting, it is important that you use a broiler pan and grid for best convection roasting results. The pan is used to catch grease spills and the grid is used to prevent grease spatters.

■

Place the shelf in shelf position (A).

In a convection oven, a fan circulates hot air over, under and around the food. This circulating hot air is evenly distributed throughout the oven cavity. As a result, foods are evenly cooked and browned— often in less time than with regular heat.

NOTE: To maximize cooking evenness, the fan is designed to rotate in both directions with a pause in between. This is normal.

Auto Recipe™Conversion

You can use your favorite recipes in the convection oven.

When using CONVECTION BAKE, the oven will automatically convert the oven temperature from regular baking to Convection Bake temperatures.

Using the number pads, enter the temperature recommended in the recipe.

Touch the

START

pad.

The display will show the temperature you entered from your recipe. The oven will automatically convert it to the convection cooking temperature.

Touch the

CLEAR/OFF

pad when

baking is finished.

■

Use pan size recommended in the recipe.

■

Some package instructions for frozen casseroles, main dishes or baked goods have been developed using commercial convection ovens. For best results in this oven, preheat the oven and use the temperature, for regular baking, on the package.

Cookware for Convection Cooking

Before using your convection oven, check to see if your cookware leaves room for air circulation in the oven. If you are baking with several pans, leave space between them. Also, be sure the pans do not touch each other or the walls of the oven.

Paper and Plastic

Heat-resistant paper and plastic containers that are recommended for use in regular ovens can be used in convection ovens. Plastic cookware that is heat-resistant to temperatures of 400°F can also be used, when oven is below 400°F.

Metal and Glass

Any type of cookware will work in your convection oven. However, metal pans heat the fastest and are recommended for convection baking.

■

Darkened or matte-finished pans will bake faster than shiny pans.

■

Glass or ceramic pans cook more slowly.

When baking cookies, you will get the best results if you use a flat cookie sheet instead of a pan with low sides.

For recipes like oven-baked chicken, use a pan with low sides. Hot air cannot circulate well around food in a pan with high sides.

How to Set the Upper Oven for Convection Baking or Roasting

Touch the

CONVECTION BAKE MULTI/

1 RACK

pad once for multi-rack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See the

Multi-Shelf Baking

section for more

information. Touch the

CONVECTION

BAKE MULTI/1 RACK

pad twice for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Touch the

CONVECTION ROAST

pad for

convection roasting.

Touch the number pads to set the desired oven temperature.

Touch the

START

pad.

To change the oven temperature, touch the

CONVECTION BAKE MULTI/1 RACK

CONVECTION ROAST

pad and then the

number pads to set the new temperature.

When the oven starts to heat, the changing temperature, starting at 100°F, will be displayed. When the oven reaches the temperature you set, 3 beeps will sound.

Touch the

CLEAR/OFF

pad when

finished.

NOTE: You will hear a fan while cooking with convection. The fan will stop when the door is opened but the heat will not turn off.

The fan will not start until the preheat temperature is reached.

In convection bake modes, for maximum cooking evenness, the fan is designed to rotate in both directions with a pause in between. This is normal.

Multi-Shelf Baking

The number of shelves provided depends on your model.

Because heated air is circulated evenly throughout the oven, foods can be baked with excellent results using multiple shelves.

Multi-shelf baking may increase cook times slightly for some foods but the overall result is time saved. Cookies, muffins, biscuits and other quick breads give very good results with multi-shelf baking.

To cook food on more than one shelf in convection bake, use

CONVECTION BAKE

MULTI.

When baking larger foods on 3 shelves, place one shelf in the 2nd (A) position, one on the 4th (C) position and the third shelf in the 6th (E) position.

When baking cookies, place the shelves in the 3rd (B), 4th (C) and 6th (E) positions.

When convection baking with only 1 shelf, follow the shelf positions recommended in the Using the Oven section.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Using the convection oven.

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

How to Set the Upper Oven for Convection Roasting when Using the Probe

The display will flash

PROBE

and the oven control will signal if the probe is inserted into the outlet, and you have not set a probe temperature and touched the

START

pad.

Place the shelf in the shelf position (A). Insert the probe completely into the food.

Plug the probe into the outlet in the oven. Make sure it is pushed all the way in. Close the oven door.

Touch the

CONVECTION ROAST

pad.

Touch the number pads to set the desired oven temperature.

Touch the

PROBE

pad.

Touch the number pads to set the desired internal food temperature.

To change the oven temperature during the Convection Roast cycle, touch the

CONVECTION ROAST

pad and then touch the number pads to set the new desired temperature.

Touch the

START

pad.

When the oven starts to heat, the word

will be in the display.

After the internal temperature of the food reaches 100°F, the changing internal temperature will be shown in the display.

When the internal temperature of the food reaches the number you have set, the probe and the oven turn off and the oven control signals. To stop the signal, touch the

CLEAR/OFF

pad. Use hot pads to remove the probe from the food. Do not use tongs to pull on it—they might damage it.

CAUTION: To prevent possible burns, do not unplug the probe from the oven outlet until the oven has cooled. Do not store the probe in the oven.

NOTE:

■

If the probe is removed from the food before the final temperature is reached, a tone will sound and the display will flash until the probe is removed from the oven.

■

You will hear a fan while cooking with this feature. The fan will stop when the door is opened but the heat will not turn off.

■

You can use the timer even though you cannot use timed oven operations while using the probe.

For best results when roasting large turkeys and roasts, we recommend using the probe included in the convection oven.

ge.com

Using the convection oven.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Convection Roasting Guide

Meats Minutes/Lb. Oven Temp. Internal Temp.

Beef Rib (3 to 5 lbs.) Rare

Boneless Rib, Top Sirloin Rare

Beef Tenderloin Rare

Pot Roast (2 1⁄2 to 3 lbs.) chuck, rump 35–45 300°F 170°F

Pork Bone-in (3 to 5 lbs.) 23–27 325°F 170°F

Boneless (3 to 5 lbs.) 23–27 325°F 170°F Pork Chops (1⁄2 to 1″ thick) 2 chops 30–35 total 325°F 170°F

Ham Canned (3 lbs. fully cooked) 14–18 325°F 140°F

Lamb Bone-in (3 to 5 lbs.) Medium 17–20 325°F 160°F

Seafood Fish, whole (3 to 5 lbs.) 30–40 total 400°F

Poultry Whole Chicken (2 1⁄2

* Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent

overbrowning and drying of skin.

†The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means

some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide.

Butt (5 lbs. fully cooked) 14–18 325°F 140°F Shank (5 lbs. fully cooked) 14–18 325°F 140°F

Boneless (3 to 5 lbs.) Medium 17–20 325°F 160°F

Lobster Tails (6 to 8 oz. each) 20–25 total 350°F

Cornish Hens Unstuffed (1 to 1 Cornish Hens Stuffed (1 to 11⁄2

Duckling (4 to 5 lbs.) 24–26 325°F 180°–185°F

Turkey, whole* Unstuffed (10 to 16 lbs.) 8–11 325°F 180°–185°F Unstuffed (18 to 24 lbs.) 7–10 325°F 180°–185°F

Turkey Breast (4 to 6 lbs.) 16–19 325°F 170°F

†

Medium 24–28 325°F 160°F

Well 28–32 325°F 170°F

†

Medium 24–28 325°F 160°F

Well 28–32 325°F 170°F

†

Medium 14–18 325°F 160°F

4 chops 35–40 total 325°F 170°F 6 chops 40–45 total 325°F 170°F

Well 20–24 325°F 170°F

⁄2

to 3

lbs.) 24–26 350°F 180°–185°F

⁄2

lbs.) 50–55 total 350°F 180°–185°F

lbs.) 55–60 total 350°F 180°–185°F

20–24 325°F 140°F

10–14 325°F 140°F

USDA Rev. June 1985.)

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

Using the timed convection baking features.

ge.com

You will hear a fan while cooking with this feature. The fan will stop when the door is opened but the heat will not turn off. NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more

than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The upper oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Touch the

CONVECTION BAKE MULTI/

1 RACK

pad once for multi-rack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See the

Multi-Shelf Baking

section for more

information. Touch the

CONVECTION

BAKE MULTI/1 RACK

pad twice for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Touch the

CONVECTION ROAST

pad

for convection roasting.

Touch the number pads to set the desired oven temperature.

Touch the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the

START

pad.

The oven will turn ON, and the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once oven temperature reaches 100°F.) When the oven reaches the temperature you set, 3 beeps will sound.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the

Cook and Hold

feature was set. See the

Special features of your oven control

section.

After the oven turns off, the end-of-cycle tone will sound.

Touch the

CLEAR/OFF

pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.

How to Set a Delayed Start and Automatic Stop

The upper oven will turn on at time of day you set, cook for a specific length of time and then turn off automatically.

Make sure the clock shows correct time of day.

Touch the

CONVECTION BAKE MULTI/1

RACK

pad once for multi-rack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See the

Multi-Shelf Baking

section for more

information. Touch the

CONVECTION

BAKE MULTI/1 RACK

pad twice for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Touch the

CONVECTION ROAST

pad

for convection roasting.

Touch the number pads to set the desired oven temperature.

Touch the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the

DELAY START

pad.

Touch the number pads to set time of day you want oven to turn on and start cooking.

Touch the

START

pad.

NOTE: If you would like to check the times you have set, touch the DELAY START pad to check the start time you have set or touch the COOKING TIME pad to check the length of cooking time you have set.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the

Cook and Hold

feature was set. See

the

Special features of your oven control

section.

After the oven turns off, the end-of-cycle tone will sound.

Touch the

CLEAR/OFF

pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.

Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.

When the display shows your choice, touch the START pad. The special features will remain in memory after a power failure.

12 Hour Shut-Off

With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

If you wish to turn

OFF

this feature, follow

the steps below.

Touch the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Touch the

DELAY START

pad. The

display will show

12 shdn

(12 hour

shut-off). Touch the

DELAY START

pad

again and the display will show

no shdn

(no shut-off).

Touch the

START

pad to activate the no shut-off and leave the control set in this special features mode.

Fahrenheit or Celsius Temperature Selection

Your oven control is set to use the Fahrenheit temperature selections but you may change this to use the Celsius selections.

Touch the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Touch the

BROIL HI/LO

and

COOKING

TIME

pads at the same time. The

display will show F(Fahrenheit).

Touch the

BROIL HI/LO

and

COOKING

TIME

pads again at the same time.

The display will show C(Celsius).

Touch the

START

pad.

At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds until the CLEAR/OFF pad is touched. This continual 6-second beep may be canceled.

To cancel the 6-second beep:

Touch the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Touch the

KITCHEN TIMER ON/OFF

pad. The display shows

CON BEEP

(continual beep) and

BEEP

. Touch the

KITCHEN TIMER ON/OFF

pad again. The

display shows

BEEP.

(This cancels the

one beep every 6 seconds.)

Touch the

START

pad.

Special features of your upper oven control.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Tones at the End of a Timed Cycle

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

ge.com

12-Hour, 24-Hour or Clock Blackout

Your control is set to use a 12-hour clock.

If you would prefer to have a 24-hour military time clock or black out the clock display, follow the steps below.

Touch the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Touch the

CLOCK

pad once. The

display will show

12 hr.

If this is the

choice you want, touch the

START

pad.

Touch the

CLOCK

pad again to change to the 24-hour military time clock. The display will show

24 hr.

If this is the choice

you want, touch the

START

pad.

Touch the

CLOCK

pad again to black out the clock display. The display will show

OFF.

If this is the choice you want, touch the

START

pad.

NOTE: If the clock is in the black-out mode, you will not be able to use the Delay Start function.

Cook and Hold

Your new control has a cook and hold feature that keeps cooked foods warm for up to 3 hours after the cooking function is finished.

This feature can only be used when timed cooking.

To activate this feature, follow the steps below.

Touch the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Touch the

COOKING TIME

pad. The

display will show

Hld OFF.

Touch the

COOKING TIME

pad again to activate the feature. The display will show

Hld ON.

Touch the

START

pad to activate the cook and hold feature and leave the control set in this special features mode.

Your control will allow you to lock out the surface burners, oven burners and control panel so they cannot be activated.

To lock/unlock the controls:

Turn all surface burners off.

Touch and hold the

GAS/CONTROL

LOCKOUT

pad for 3 seconds until the

display shows

LOC

To unlock the control, touch and hold the

GAS/CONTROL LOCKOUT

pad for

3 seconds until

LOC

disappears from

the display.

When this feature is on and the touch pads are touched, the control will beep and the display will show

LOC

■

The control lock-out mode affects all controls. No controls will work when this feature is activated.

■

The adjustment will be retained in memory after a power failure.

Gas/Control Lockout

(on some models)

Using the Sabbath Feature.

(Designed for use on the Jewish Sabbath and Holidays)

The Sabbath feature can be used for baking/roasting in the upper oven only. It cannot be used for convection, broiling, self-cleaning or Delay Start cooking.

NOTE: The oven light comes on automatically when the door is opened and goes off when the door is closed. The bulb may be removed. See the Oven Light Replacement section.

How to Set for Regular Baking/Roasting

Make sure the clock shows the correct time of day and the oven is off.

Press and hold

both

the

BAKE

and

BROIL HI/LO

pads,

at the same time

until the display shows

SF.

Tap the

DELAY START

pad until

SAb bAtH

appears in the display.

Touch the

START

pad and ⊃ will

appear in the display.

Touch the

BAKE

pad. No signal will

be given.

Using the number pads, enter the desired temperature between 170° and 550°. No signal or temperature will be given.

Touch the

START

pad.

After a random delay period of approximately 30 seconds to 1 minute, ⊃ will appear in the display indicating that the oven is baking/roasting.

If ⊃ doesn’t appear

in the display, start again at Step 4.

To adjust the oven temperature, touch the

BAKE

pad, enter the new temperature

using the number pads, and touch the

START

pad.

NOTE:

The

CLEAR/OFF

and

COOKING TIME

pads are active during the Sabbath feature.

⊃

How to Set for Timed Baking/Roasting–Immediate Start and Automatic Stop

Make sure the clock shows the correct time of day and the oven is off.

Press and hold

both

the

BAKE

and

BROIL HI/LO

pads,

at the same time

until the display shows

SF.

Tap the

DELAY START

pad until

SAb bAtH

appears in the display.

Touch the

START

pad and ⊃ will

appear in the display.

Touch the

COOKING TIME

pad.

Touch the number pads to set the desired length of cooking time between 1 minute and 9 hours and 99 minutes. The cooking time that you entered will be displayed.

Touch the

START

pad.

Touch the

BAKE

pad. No signal will

be given.

Using the number pads, enter the desired temperature. No signal or temperature will be given.

Touch the

START

pad.

After a random delay period of approximately 30 seconds to 1 minute, ⊃ will appear in the display indicating that the oven is baking/roasting.

If ⊃ doesn’t appear

in the display, start again at Step 7.

To adjust the oven temperature, touch the

BAKE

pad, enter the new temperature

using the number pads, and touch the

START

pad.

When cooking is finished, the display will change from ⊃ to ⊃ and

0:00

will appear,

indicating that the oven has turned

OFF

but is still set in Sabbath. Remove the cooked food.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃the oven is baking/roasting.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃the oven is baking/roasting.

⊃

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

How to Exit the Sabbath Feature

Touch the

CLEAR/OFF

pad.

If the oven is cooking, wait for a random delay period of approximately 30 seconds to 1 minute, until only ⊃ is in the display.

Press and hold

both

the

BAKE

and

BROIL HI/LO

pads,

at the same time

until the display shows

SF.

Tap the

DELAY START

pad until

12 shdn

no shdn

appears in the

display.

12 shdn

indicates that the oven will automatically turn off after 12 hours.

no shdn

indicates that the oven

will not automatically turn off.

Touch the

START

pad.

NOTE: If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. The oven control must be reset.

ge.com

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

To Adjust the Thermostat

Touch the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Touch the

BAKE

pad. A two digit

number shows in the display.

Touch

BAKE

once to decrease (-) the oven temperature, or twice to increase (+).

The oven temperature can be adjusted up as much as 35°F. or down as much as 35°F. Touch the number pads the same way you read them. For example, to change the oven temperature 15°F, touch 1and

When you have made the adjustment, touch the

START

pad to go back to the time of day display. Use your oven as you would normally.

NOTE: The thermostat adjustment for Baking will also affect Convection Baking or Convection Roasting.

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

Adjust the upper oven thermostat—Do it yourself!

ge.com

The type of margarine will affect baking performance!

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Consumer Support

Installation Instructions Troubleshooting TipsOperating InstructionsSafety Instructions

Using the lower oven drawer.

ge.com

To Use the Lower Oven Drawer

Push in and turn the lower oven drawer knob to any desired setting.

Allow the lower oven drawer to preheat.

■ The ON signal light is located on the

upper right side of the knob and glows when the knob is in the ON position. It remains ON until the knob is moved to the OFF position.

■ The “Heating” signal light is located

below the ON signal light and glows when the heating elements are active. Preheat is complete after the “Heating” signal has turned off for the first time each use.

NOTES:

■

Always use the included drawer rack when using the lower oven drawer.

■

The lower oven drawer cannot be used during a self-clean cycle of the upper oven.

■

Do not put food, foil or cookware directly on the bottom of the lower oven drawer. Always use the included drawer rack.

■

If foods require a cover, use only foil or lids able to withstand baking temperatures. Do not use plastic.

■

Maximum height of foods that can be placed in the lower oven drawer is 4″.

■

Do not put liquid or water in the lower oven drawer.

■

Never place plastics, paper, canned foods or combustible material in the lower oven drawer.

The lower oven drawer may be used to bake foods using the same times and temperatures as a standard oven. Foods ideal for baking in the lower oven drawer include pizza, frozen foods, casseroles, biscuits, rolls and many desserts.

Push in and turn the lower oven drawer knob to any desired setting.

The lower oven drawer uses less energy than the upper oven. Allow the following approximate times for preheating:

Desired Lower Preheat Oven Temperature Time

WARM 10 minutes

350° F 20 minutes

425° F 30 minutes

Back of Lower Oven Knob (Appearance may vary.)

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE:

This adjustment will not affect the broiling temperatures.

Adjust the oven thermostat—Do it yourself!

Pull the

OVEN CONTROL

knob off the range and look at the back side. To make an adjustment, loosen (approximately one turn), but do not completely remove, the two screws on the back of the knob.

With the back of the knob facing you, hold the outer edge of the knob with one hand and turn the front of the knob with the other hand.

To raise the oven temperature, move the top screw toward the right. You’ll hear a click for each notch you move the knob.

To lower the temperature, move the top screw toward the left.

Each click will change the oven temperature approximately 10°F. (Range is ± 60°F. from the arrow.) We suggest that you make the adjustment one click from the original setting and check oven performance before making any additional adjustments.

After the adjustment is made, retighten screws so they are snug, but be careful not to overtighten.

Re-install knob on range and check performance.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

The oven door must be closed and all controls set correctly for the cycle to work properly.

Before a Clean Cycle

For the first self-clean cycle, we recommend venting your kitchen with an open window or using a ventilation fan or hood.

Remove any broiler pan, broiler grid, all cookware, probe and any aluminum foil from the oven—they cannot withstand the high cleaning temperatures.

NOTE:

■ The gray porcelain-coated oven shelves

may be left in the oven during the self-clean cycle.

Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled scouring pads or cleansers such as Soft Scrub®. Rinse well with clean water and dry.

Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.

Wipe up any heavy spillovers on the oven bottom.

Make sure the oven light bulb cover is in place and the oven light is off.

IMPORTANT:

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well ventilated room.

NOTE: Use caution when opening the upper oven after the self-clean cycle has ended. The oven may still be hot.

Wipe up heavy soil on the oven bottom.

How to Set the Upper Oven for Cleaning

Touch and hold the

GAS/CONTROL

LOCKOUT

pad for 3 seconds to turn

it off. See the

Gas/Control Lockout

section.

NOTE: The surface burners must be turned off prior to the self-clean start time.

Touch the

SELF CLEAN

pad.

Using the number pads, enter the desired clean time, if a time other than 4 hours is needed.

Clean cycle time is normally 4 hours. You can change the clean time to any time between 3 hours and 5 hours, depending on how dirty your oven is.

Touch the

START

pad.

The door locks automatically. The display will show the clean time remaining. It will not be possible to open the oven door until the temperature drops below the lock temperature and the

LOCKED DOOR

light goes off.

The oven shuts off automatically when the clean cycle is complete.

When the

LOCKED DOOR

light is off,

the door will unlock automatically.

■ The words

LOCK DOOR

will flash and the oven control will signal if you set the clean cycle and forget to close the oven door.

■ To stop a clean cycle, touch the

CLEAR/OFF

pad. When the

LOCKED DOOR

light goes off indicating the oven has cooled below the locking temperature, you may open the door.

■ Do not use the lower oven drawer

during a self-clean cycle.

Using the self-cleaning upper oven.

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

The oven door must be closed and all controls set correctly for the cycle to work properly.

How to Delay the Start of Cleaning

Make sure the clock shows the correct time of day.

Touch and hold the

GAS/CONTROL

LOCKOUT

pad for 3 seconds to turn

it off.

NOTE: The surface burners must be turned off prior to the self-clean start time.

Touch the

SELF CLEAN

pad.

Using the number pads, enter the desired clean time.

Touch the

DELAY START

pad. The earliest start time you can set will appear in the display.

Using the number pads, enter the time of day you want the clean cycle to start.

Touch the

START

pad.

The door locks automatically. The display will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and the

LOCKED DOOR

light

goes off.

The oven shuts off automatically when the clean cycle is complete.

When the

LOCKED DOOR

light is off,

the door will unlock automatically.

■ The words

LOCK DOOR

will flash and the oven control will signal if you set the clean cycle and forget to close the oven door.

■ To stop a clean cycle, touch the

CLEAR/OFF

pad. When the

LOCKED DOOR

light goes off indicating the oven has cooled below the locking temperature, you may open the door.

After a Clean Cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soapfilled scouring pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■ You cannot set the oven for cooking until

the oven is cool enough for the door to unlock.

■ While the oven is self-cleaning, you can

touch the

CLOCK

pad to display the time of day. To return to the clean countdown, touch the

COOKING TIME

pad.

■ If the shelves become hard to slide, apply

a small amount of vegetable oil or cooking oil to a paper towel and wipe the edges of the oven shelves with the paper towel.

ge.com

Turn all controls

OFF

before removing the

burner parts.

The round side burner caps and burner heads can be lifted off, making them easy to clean. The electrodes are not removable.

The oval center burner head and cap assembly can be lifted off, making it easy to clean. The burner electrode is not removable.

CAUTION:

Do not operate the

cooktop without all burner parts and grates in place.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.

If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

Care and cleaning of the range.

Sealed Burner Assemblies

Burner head

and cap

assembly

Center griddle

Electrode

Burner cap

Burner head

Burner base

Front right burner

Make sure the hole in the burner

head is positioned over the electrode

and that the burner head is fully

inserted inside the burner base.

A small gap between the base and

head is normal.

Electrode

Burner cap

Stability chamber

Burner base

Front left burner, back right burner

and back left burner

Make sure the slot in the burner head

is positioned over the electrode.

Burner head

Use a sewing

needle or

twist-tie to

unclog the

small hole in

the burner

head.

The electrode of the spark igniter is exposed when the burner head is removed. When one burner is turned to

LITE,

all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

Electrode

Burner head

Burner base

Front right burner

Front left, back right and back left burner

Consumer SupportInstallation Instructions Troubleshooting TipsOperating InstructionsSafety Instructions

ge.com

Burner Caps and Heads

Before removing the burner caps and heads, remember their size and location. Replace them in the same location after cleaning.

NOTE: Do not use steel wool or scouring powders to clean the burner parts.

Burner caps

Lift off when cool. Wash burner caps in hot, soapy water and rinse with clean water. You may scour with a plastic scouring pad to remove burned-on food particles.

Burner Heads and Oval (Center) Burner Head/Cap Assembly

The burner heads and the oval burner head/cap assembly are removable. Simply lift them off the range for cleaning.

For proper ignition, make sure the small hole in the section that fits over the electrode is kept open. A sewing needle or wire twist-tie works well to unclog it.

The slits in the burner heads must be kept clean at all times for an even, unhampered flame.

Clogged or dirty burner ports or electrodes will not allow the burner to operate properly.

Any spill on or around an electrode must be carefully cleaned. Take care to not hit an electrode with anything hard or it could be damaged.

Clean the burner heads routinely, especially after bad spillovers, which could clog the openings. Lift off when cool.

To remove burned-on food, soak the burner heads in a solution of mild liquid detergent and hot water for 20–30 minutes. For more stubborn stains, use a toothbrush.

After cleaning

Before putting the burner caps, heads and oval head/cap assembly back, shake out excess water and then dry them thoroughly by setting in a warm oven for 30 minutes.

Replacement

Burner Heads

Replace burner heads over the electrodes on the cooktop, in the correct locations according to their size. There is one small, one medium, one extra large and one dual flame extra large burner head.

Make sure the slot (on front left, back right and back left heads) and the hole (front right head) in the burner head is positioned over the electrode.

Oval (Center) Burner Head/Cap Assembly

Replace the oval (center) head/cap assembly over the electrode on the cooktop.

Caps

Replace the matching size caps onto the burner bases or heads.

Make sure that the heads and caps are replaced in the correct locations.

The oval burner head/cap assembly is removable. Simply lift it off the range for cleaning. Use a sewing needle or twist-tie to unclog the small hole in the burner heads.

Burner cap is

properly seated.

Burner cap is NOT

properly seated.

Electrode

Slot

Front of range

Oval head and cap

assembly

Medium head

Front of range

Extra large

head

Small head

Dual flame

extra large head

Medium cap

Front of range

Extra large cap

Small cap

Dual flame extra

large cap

Make sure the slot in the burner head is positioned over the electrode.

Hole in

burner

head

Slot

Electrode

Burner head

Electrode

Burner head

Front right head

Hole

Electrode

Burner cap

Burner head

Burner base

Front right burner

Make sure the hole in the burner

head is positioned over the electrode

and that the burner head is fully inserted inside the burner base.

A small gap between the base and

head is normal.

Electrode

Burner cap

Stability chamber

Burner base

Front left burner, back right burner

and back left burner

Make sure the slot in the burner head

is positioned over the electrode.

Burner head

Use a sewing

needle or

twist-tie to

unclog the

small hole in

the burner

head.

Front left, back right and back left heads

Care and cleaning of the range.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Burner Grates

Your range has three professional-style double grates. These grates are positionspecific. For maximum stability, these grates should only be used in their proper position. For convenience, the undersides of the side grates are marked “OUTSIDE.” Make sure the front portion of both grates is in front. The center grate can be interchanged front to back.

Cleaning

Lift out when cool. Grates should be washed regularly and, of course, after spillovers. Wash them in hot, soapy water and rinse with clean water. When replacing the grates, be sure they are positioned securely over the burners. Replace the grates so that straight lines are formed with the center ribs of all three grates.

Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

To get rid of burned-on food, place the grates in a covered container. Add 1/4 cup ammonia and let them soak several hours or overnight. Wash, rinse well and dry.

Although they are durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures. You will notice this sooner with lighter color grates.

NOTE: The grates may also be cleaned in a self-cleaning oven.

If one or more of the circular black silicone grate support bumpers in the cooktop are missing or damaged, replacement parts can be obtained by calling 1.800.GE.CARES. To insert the new bumpers, simply insert the cone shaped end and push down while gently twisting or rocking the bumper.

Cooktop Surface

To avoid damaging the stainless steel surface of the cooktop and to prevent it from becoming dull, clean up spills right away. Foods with a lot of acid (tomatoes, sauerkraut, fruit juices, etc.) or foods with high sugar content could cause a dull spot if allowed to set.

When the surface has cooled, wash and rinse. For other spills such as fat spatterings, etc., wash with soap and water once the surface has cooled. Then rinse and polish with a dry cloth.

NOTE: Do not lift the cooktop. Lifting the cooktop can lead to damage and improper operation of the range.

NOTE: Do not store flammable materials in an oven, drawer or near the cooktop. Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

The grates may be cleaned in a dishwasher.

Appearance may vary.

Outside grate

Center grate

Griddle

NOTES:

■

The griddle is to be used over the center burner only.

■

Do not clean the griddle in a self-cleaning oven.

■

Do not clean the griddle in a dishwasher.

■

Wash with hot, soapy water after each use while using a sponge or dishcloth.

■

If oil or food residue is left on the griddle, further cooking will harden the residue and cause sticking over time. In this case, use a non-abrasive cleanser such as Bon Ami®or one of the soft scrub cleansers. Apply with a sponge, Scrunge®or other cleaning pad labeled safe for non-stick pans

■

Use only plastic, nylon or wooden utensils or SilverStone®kitchen tools to prevent marring of the coating.

■

Never use knives or cut food on the griddle. Wash with hot, soapy water after each use. Store carefully to prevent scratching.

Griddle Precautions:

■

If something has spilled under the griddle, it should be cleaned up as soon as possible to prevent “baked on” food soil.

■

Do not allow grease to accumulate under the griddle as it can be a fire hazard. Clean under the griddle as soon as it is cool. Clean with hot soapy water.

■

Do not place your griddle in the microwave.

■

Always turn off all surface burners before removing the griddle. Use caution when handling a hot griddle.

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

Oven Air Vents

Never block the vents (air openings) of the range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion.

Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range, under the lower cooking drawer.

Upper Control Panel

See the

Gas/Control Lockout

information in

the

Special features of your oven control

section in this manual.

Clean up splatters with a damp cloth.

You may also use a glass cleaner.

Remove heavier soil with warm soapy water. Do not use abrasives of any kind.

Unlock the touch pads after cleaning.

Vent appearance and location vary.

Lower Control Panel (Front Manifold Panel) and Knobs

It’s a good idea to wipe the control panel after each use of the oven. Use a damp cloth to clean or rinse. For cleaning, use mild soap and water or a 50/50 solution of vinegar and water. For rinsing, use clean water. Polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the control panel—they will damage the finish.

Do not try to bend knobs by pulling them up or down or by hanging a towel or other such loads. This can damage the gas valve shaft.

The control knobs may be removed for easier cleaning.

Make sure the knobs are in the

OFF

positions and pull them straight off the stems for cleaning.

The knobs can be cleaned in a dishwasher or they may also be washed with soap and water. Make sure the insides of the knobs are dry before replacing.

Replace the knobs in the

OFF

position

to ensure proper placement.

Metal parts can be cleaned with soap and water. Do not use steel wool, abrasives, ammonia, acids or commercial oven cleaners. Dry with a soft cloth.

NOTE: The lower oven drawer control knob is not interchangeable with the surface burner knobs. Be sure to reinstall the lower oven drawer knob to the original location. The lower oven drawer knob may be identified by the increasing numbers from “WM” to “450.”

Surface burner knob

ge.com

Care and cleaning of the range.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Stainless Steel Surfaces

(on some models)

Do not use a steel wool pad; it will scratch the surface.

IMPORTANT: APPLY A PROTECTIVE COAT OF CERAMA BRYTE®STAINLESS STEEL BRIGHTENER BEFORE USING.

This will help you to maintain the brightness and appearance of your stainless steel range.

■ In order to avoid any discolorations

and/or grease stains, we recommend cleaning and removing any spills, spots and grease from the range after use.

■ It is important to use a soft cloth or paper

towel every time the range is cleaned to avoid any scratches.

Read carefully the instructions on the back of the Brightener for better results.

Cleaning Instructions:

Remove grates.

Wash using warm, soapy water:

Wet soft cloth or paper towel (avoid using excessive water).

Wipe the surface in the direction of the grain (following the steel lines).

Rinse and wring out a soft cloth or paper towel and dry the range.

Apply a degreaser that does not contain sodium hydroxide or Stainless Steel Cleaner (follow instructions).

Apply Cerama Bryte

Stainless Steel

Brightener (follow instructions).

Repeat steps 2–4 as many times as needed.

Put grates back in place.

Follow these instructions for any Stainless Steel surface on your range.

DO NOT USE for Cooktop or Stainless Steel parts cleaning:

• Caustic Lye (Sodium Hydroxide) or cleaners containing this chemical

• Hard or Steel Wool Pads

• Abrasive Materials or Chemicals

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center 800.626.2002 (U.S.)

888.261.3055 (Canada) ge.com (U.S.) www.GEAppliances.ca (Canada)

Lift-Off Oven Door

The oven door is removable, but it is heavy. You may need help removing and replacing the door.

To remove the door,

open it a few inches to the special stop position that will hold the door open. Grasp firmly on each side and lift the door straight up and off the hinges.

NOTE: Be careful not to place hands between the hinge and the oven door frame as the hinge could snap back and pinch fingers.

To replace the door,

make sure the hinges are in the special stop position. Position the slots in the bottom of the door squarely over the hinges. Then lower the door slowly and evenly over both hinges at the same time. If the hinges snap back against the oven frame, pull them back out.

To clean the inside of the door:

■ Do not allow excess water to run into

any holes or slots in the door.

■ Because the area inside the gasket is

cleaned during the self clean cycle, you do not need to clean this by hand. Any soap left on the liner causes additional stains when the oven is heated.

■ The area outside the gasket can be

cleaned with a soap-filled plastic scouring pad.

To clean the outside of the door:

■ Use soap and water to thoroughly clean

the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door.

■ Spillage of marinades, fruit juices, tomato

sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When the surface is cool, clean and rinse.

■ Do not use oven cleaners, cleansing

powders or harsh abrasives on the outside of the door.

Lift the door straight up and off the hinges.

The gasket is designed with a gap at the bottom to allow for proper air circulation.

Do not rub or clean the door gasket—it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

ge.com

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

Oven Bottom

The oven bottom has a porcelain enamel finish. To make cleaning easier, protect the oven bottom from excessive spillovers by placing a cookie sheet on the shelf below the shelf you are cooking on. This is particularly important when baking a fruit pie or other foods with a high acid content. Hot fruit fillings or other foods that are highly acidic (such as tomatoes, sauerkraut and sauces with vinegar or lemon juice) may cause pitting and damage to the porcelain enamel surface and should be wiped up immediately.

We don’t recommend using aluminum foil on the oven bottom. It can affect air flow if the holes are blocked and it can concentrate heat at the bottom of the oven, resulting in poor baking performance.

To clean up spillovers, use soap and water, an abrasive cleaner or soap-filled scouring pad. Rinse well to remove any soap before self-cleaning.

Oven Shelves and Drawer Racks

The gray porcelain-coated shelves may be cleaned in the oven during the self-clean cycle.

They may also be cleaned by using an abrasive cleanser. After cleaning, rinse the shelves with clean water and dry with a clean cloth. If the shelves ever become hard to slide, wipe the shelf edges or oven shelf supports with vegetable oil.

Oven Light Replacement

CAUTION: Before replacing your oven light bulb,

disconnect the electrical power to the range at the main fuse or circuit breaker panel. Be sure to let the light cover and bulb cool completely.

The oven light bulb is covered with a removable glass cover that is held in place with a bail-shaped wire. Remove the oven door, if desired, to reach cover easily.

To remove:

Hold a hand under the cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

Do not remove any screws to remove the cover.

Do not touch hot bulb with a wet cloth. Replace bulb with a 40-watt household appliance bulb.

To replace cover:

Place it into the groove of the light receptacle. Pull the wire forward to the center of the cover until it snaps into place. When in place, the wire holds the cover firmly. Be certain the wire is in the depression in the center of the cover.

Connect electrical power to the range.

Wire cover holder.

Removable Lower Oven Drawer Pan

NOTE: Allow lower oven drawer to cool before

removing pan.

NOTE: Wipe spills promptly after each use.

■ Never place, use or self-clean the lower

oven drawer pan in the upper oven.

■ Lower oven drawer has a removable pan

for easy cleaning. Clean with hot soapy water and a sponge or dish towel. Dry with a clean cloth. An oven cleaner, such as Easy-Off®, may also be used. Be sure to follow the directions on the oven cleaner. Replace the pan in the lower oven drawer.

NOTE: Before performing any adjustments, cleaning or service, disconnect the range electrical power supply at the household distribution panel by removing the fuse or switching off the circuit breaker. Make sure drawer heating element is cool.

Removable Lower Oven Drawer

Most cleaning can be done with the drawer in place. However, the drawer may be removed if further cleaning is needed. Use soap and warm water to thoroughly clean.

To remove the drawer:

Pull the drawer straight out until it stops.

Press the tabs on both sides in while pulling the drawer forward and free.

To replace the drawer:

Place the left drawer rail around the inner left rail guide and slide it in slightly to hook it.

Place the right drawer rail around the inner right rail guide and slide it in slightly to hook it.

Slide the drawer all the way in.

Care and cleaning of the range.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting Tips

Consumer Support

BEFORE YOU BEGIN

Read these instructions completely and carefully.

Installation of this range must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1 or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This range has been design-certified by CSA International according to ANSI Z21.1, latest edition and Canadian Gas Association according to CAN/CGA-1.1 latest edition.

As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find these precautions in the

Important Safety

Information

section in the front of this manual. Read

them carefully.

•

IMPORTANT – Save these

instructions for local electrical inspector’s use.

•

IMPORTANT – Observe all

governing codes and ordinances.

• Note to Installer – Leave these instructions

with the appliance after installation is completed.

• Note to Consumer – Keep this Owner’s

Manual and Installation Instructions for future reference.

• Note – This appliance must be properly grounded.

• Servicer – The electrical diagram is in an envelope

attached to the back of the range.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

Installation

Range

Instructions

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

If you smell gas:

Open windows.

Don’t touch electrical switches.

Extinguish any open flame.

Immediately call your gas supplier.

FOR YOUR SAFETY

In the Commonwealth of Massachusetts

•

This product must be installed by a licensed plumber or gas fitter.

•

When using ball type gas shut-off valves, they shall be the T-handle type.

•

A flexible gas connector, when used, must not exceed 3 feet.

TOOLS YOU WILL NEED

Flat-blade screwdriver

Pipe wrenches (2)

(one for backup)

Phillips screwdriver

Open-end or

adjustable wrench

Pencil and ruler

Level

Drill, awl or nail

MATERIALS YOU MAY NEED

• Gas line shut-off valve

• Pipe joint sealant or UL-approved pipe thread tape

with Teflon* that resists action of natural and LP gases

• Flexible metal appliance connector (1/2″ I.D.)

A 5-foot length is recommended for ease of installation but other lengths are acceptable. Never use an old connector when installing a new range.

• Flare union adapter for connection to gas supply line

(3/4 ″ or 1/2 ″ NPT x 1/2 ″ I.D.)

• Flare union adapter for connection to pressure

regulator on range (1/2 ″ NPT x 1/2 ″ I.D.)

• Liquid leak detector or soapy water.

• Lag bolt or 1/2″ O.D. sleeve anchor (for concrete

floors only).

*Teflon: Registered trademark of DuPont

Installation Instructions

WARNING!

INSTALLATION SAFETY INSTRUCTIONS

Read these instructions completely and carefully.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, manufacturer (dealer) or the gas supplier.

Never reuse old flexible connectors. The use of old flexible connectors can cause gas leaks and personal injury. Always use NEW flexible connectors when installing a gas appliance.

IMPORTANT – Remove all packing

material and literature from oven before connecting gas and electrical supply to range.

CAUTION – Do not attempt to operate

the oven of this range during a power failure (Electric Ignition models only).

■ Have your range installed by a qualified installer.

■ Your range must be electrically grounded in

accordance with local codes or, in the absence of local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes. See

Electrical Connections

in this section.

■ Before installing your range on linoleum or any other synthetic floor covering, make sure the floor covering can withstand 180°F without shrinking, warping or discoloring. Do not install the range over carpeting unless a sheet of 1/4″ thick plywood or similar insulator is placed between the range and carpeting.

■ Make sure the wall coverings around the range can withstand heat generated by the range up to 200°F.

■ Avoid placing cabinets above the range. To reduce the hazard caused by reaching over the open flames of operating burners, install a ventilation hood over the range that projects forward at least 5″ beyond the front of the cabinets.

■ The ventilating hood must be constructed of sheet metal not less than 0.0122″ thick. Install above the cooktop with a clearance of not less than 1/4″ between the hood and the underside of the combustible material or metal cabinet. The hood must be at least as wide as the appliance and centered over the appliance. Clearance between the cooking surface and the ventilation hood surface MUST NEVER BE LESS THAN 24

INCHES.

EXCEPTION: Installation of a listed microwave oven

or cooking appliance over the cooktop shall conform to the installation instructions packed with that appliance.

■ If cabinets are placed above the range, allow a minimum clearance of 30″ between the cooking surface and the bottom of unprotected cabinets.

■ If a 30″ clearance between cooking surface and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4″ insulating millboard covered with sheet metal not less than 0.0122″ thick. Clearance between the cooking surface and protected cabinets MUST

NEVER BE LESS THAN 24 INCHES

■ The vertical distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets extending closer than 1″ to the plane of the range sides must not be less than 18″. (See the

Dimensions

and Clearances

illustration in this section.)

■ CAUTION – Items of interest to

children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

293⁄4”

Depth with door closed (includes door handle)

Depth varies depending on model. See specifications sheet for your model.

30”

361⁄4” ±1⁄4”

To cabinets below cooktop and at the range back

30”

6”

Minimum

13”

Minimum clearnace to right wall

Maximum depth

for cabinets

above

countertops

Front edge of the range side panel forward from cabinet

18”

0”

1/4”

Minimum to cabinets on either side of the range

36”

371⁄4”

Depth with door open:

463⁄4”

Height

Installation Instructions

Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions must be met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electric Outlet Locations) may be adjusted to meet specific requirements.

The range may be placed with 0 ″ clearance (flush) at the back wall.

DIMENSIONS AND CLEARANCES

6”

Minimum clearnace to left wall

Installation Instructions

WARNING!

ANTI-TIP DEVICE

All ranges can tip and injury could result.

To prevent accidental tipping of the range, attach an approved Anti-Tip device to the wall. (See

Installing the Anti-Tip Device

in this section.) To check if the device is installed and engaged properly, carefully tip the range forward. The Anti-Tip device should engage and prevent the range from tipping over.

If you pull the range out from the wall for any reason, make sure the Anti-Tip device is engaged when you push the range back against the wall.

■ For your safety, never use your range for warming or heating the room. Your oven and cooktop are not designed to heat your kitchen. Top burners should not be operated without cookware on the grate. Such abuse could result in fire and damage to your range and will void your warranty.

■ Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Explosions or fires could result.

■ Do not use oven for a storage area. Items stored in the oven can ignite.

■ Do not let cooking grease or other flammable materials accumulate in or near the range.

LOCATION

Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings around the base of the range that supply fresh air for combustion and ventilation are not obstructed by carpeting or woodwork.

Your range, like many other household items, is heavy and can settle into soft floor coverings such as cushioned vinyl or carpeting. Use care when moving the range on this type of flooring. It is recommended that the following simple and inexpensive instructions be followed to protect your floor.

The range should be installed on a sheet of plywood (or similar material). When the floor covering ends at the front of the range, the area that the range will rest on should be built up with plywood to the same level or higher than the floor covering.

This will allow the range to be moved for cleaning or servicing. Also, make sure your floor covering will withstand 180°F. (See the

Installation Safety Instructions

section.)

Make sure the wall coverings around your range can withstand the heat generated (up to 200°F) by the range. (See the

Installation Safety Instructions

section.)

IMPORTANT!

Remove all tape and packaging. Make sure the burners are properly seated and level.

Take the accessory pack out of the oven and/or drawer.

Check to be sure that no range parts have come loose during shipping.

Installation Instructions

PROVIDE ADEQUATE GAS SUPPLY

Your range is designed to operate at a pressure of 5″ of water column on natural gas or, if designed for LP gas (propane or butane), 10 ″ of water column.

Make sure you are supplying your range with the type of gas for which it is designed.

This range is convertible for use on natural or propane gas. If you decide to use this range on LP gas, conversion must be made by a qualified LP installer before attempting to operate the range on that gas.

For proper operation, the pressure of natural gas supplied to the regulator must be between 5″ and 13″ of water column.

For LP gas, the pressure supplied must be between 10″ and 13″ of water column.

When checking for proper operation of the regulator, the inlet pressure must be at least 1″ greater than the operating (manifold) pressure as given above.

The pressure regulator located at the inlet of the range manifold must remain in the supply line regardless of whether natural or LP gas is being used.

A flexible metal appliance connector used to connect the range to the gas supply line should have an I.D. of 1/2″ and be 5 feet in length for ease of installation. In Canada, flexible connectors must be single wall metal connectors no longer than 6 feet in length.

CONNECT THE RANGE TO GAS

Shut off the main gas supply valve before disconnecting the old range and leave it off until the new hook-up has been completed. Don’t forget to relight the pilot on other gas appliances when you turn the gas back on.

Because hard piping restricts movement of the range, the use of a CSA International-certified flexible metal appliance connector is recommended unless local codes require a hard-piped connection.

Never use an old connector when installing a new range. If the hard piping method is used, you must carefully align the pipe; the range cannot be moved after the connection is made.

To prevent gas leaks, put pipe joint compound on, or wrap pipe thread tape with Teflon* around, all male (external) pipe threads.

A. Install a manual gas line shut-off valve in the gas line

in an easily accessed location outside of the range. Make sure everyone operating the range knows where and how to shut off the gas supply to the range.

B. Install male 1/2″ flare union adapter to the 1/2″

NPT internal thread at inlet of regulator. Use a backup wrench on the regulator fitting to avoid damage.

When installing the range from the front, remove the 90° elbow for easier installation.

C. Install male 1/2″ or 3/4″ flare union adapter to the

NPT internal thread of the manual shut-off valve, taking care to back-up the shut-off valve to keep it from turning.

D. Connect flexible metal appliance connector to the

adapter on the range. Position range to permit connection at the shut-off valve.

E. When all connections have been made, make sure

all range controls are in the off position and turn on the main gas supply valve. Use a liquid leak detector at all joints and connections to check for leaks in the system.

When using test pressures greater than 1/2 psig to pressure test the gas supply system of the residence, disconnect the range and individual shut-off valve from the gas supply piping. When using test pressures of 1/2 psig or less to test the gas supply system, simply isolate the range from the gas supply system by closing the individual shut-off valve.

*Teflon: Registered trademark of DuPont

WARNING: DO NOT USE A

FLAME TO CHECK FOR GAS LEAKS.

Installation Instructions

Recommended area for 120V outlet on rear wall and area for through-the-wall connection of pipe stub and shut-off valve.

Recommended area for through-the-floor connection of pipe stub and shut-off valve.

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS

30”

/2”

4”

24”

9”

3”

13”

2”

/2”

21/2”

Installation Instructions

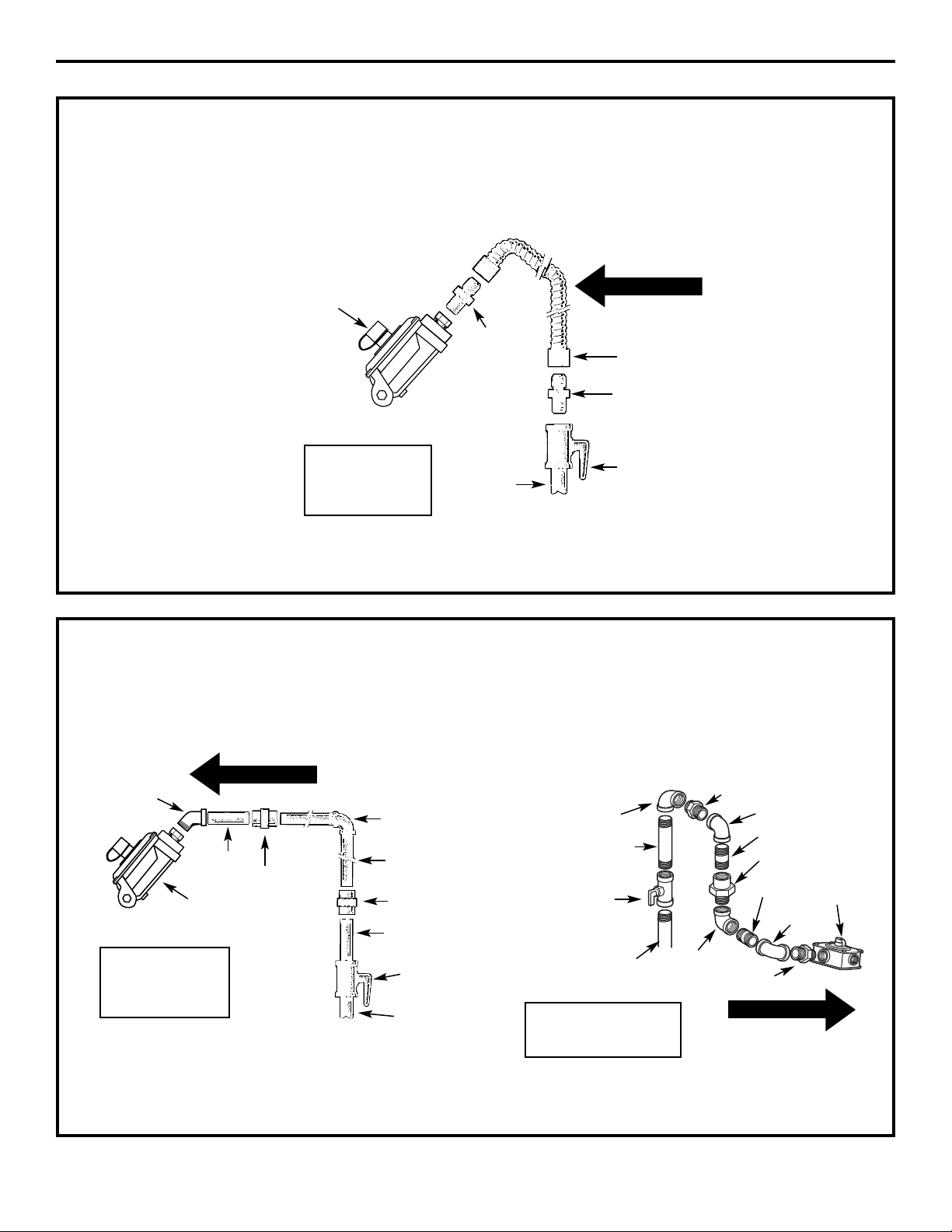

RIGID PIPE HOOKUP OPTIONS

FLEXIBLE CONNECTOR HOOKUP

Pressure regulator

Gas Flow into Range

Flex connector (6 ft. max.)

Adapter

Installer: Inform the consumer of the location of the gas shut-off valve.

1/2″ or 3/4″

Gas pipe

Adapter

Gas shut-off valve

Pressure regulator

45° Elbow

Nipple

Union

90° Elbow

Black iron pipe

Union

Nipple

Gas

shut-off

valve

1/2″ or 3/4″

Gas pipe

Gas Flow into Range

Installer: Inform the consumer of the location of the gas shut-off valve.

Gas Flow into Range

Gas shut-off valve

1/2″ or 3/4″

Gas pipe

Pressure regulator

Nipple

90° Elbow

Adapter

90° Elbow

Quick connect or union

Installer: Inform the consumer of the location of the gas shut-off valve.

Alternate Hookup

Nipple

90° Elbow

Installation Instructions

ELECTRICAL CONNECTIONS

Electrical Requirements

120-volt, 60 Hertz, properly grounded dedicated circuit protected by a 15-amp or 20-amp circuit breaker or time delay fuse.

Extension Cord Cautions

Because of potential safety hazards associated with certain conditions, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding-type appliance extension cord and that the current carrying rating of the cord in amperes be equivalent to, or greater than, the circuit rating.

Grounding

IMPORTANT—(Please read carefully)

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong grounding wall receptacle to minimize the possibility of electric shock hazard from this appliance.

The customer should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded three-prong wall receptacle.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD.

A word about GFCI’s – GFCI’s are not required or recommended for gas range receptacles.

Ground Fault Circuit Interrupters (GFCI’s) are devices that sense leakage of current in a circuit and automatically switch off power when a threshold leakage level is detected. These devices must be manually reset by the consumer. The National Electrical Code requires the use of GFCI’s in kitchen receptacles installed to serve countertop surfaces. Performance of the range will not be affected if operated on a GFCIprotected circuit but occasional nuisance tripping of the GFCI breaker is possible.

Preferred Method

Ensure proper ground exists before use

ELECTRICAL CONNECTIONS (CONT.)

A. Usage Situations where Appliance Power Cord will

be Disconnected Infrequently.

An adapter may be used only on a 15-amp circuit. Do not use an adapter on a 20-amp circuit. Where local codes permit, a TEMPORARY CONNECTION may be made to a properly grounded two-prong wall receptacle by the use of a UL-listed adapter, available at most hardware stores. The larger slot in the adapter must be aligned with the larger slot in the wall receptacle to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter with one hand. If this is not done, the adapter ground terminal is very likely to break with repeated use. Should this happen, DO NOT USE the appliance until a proper ground has again been established.

CAUTION: Attaching the adapter

ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded through the house wiring. The customer should have the circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Temporary Method

Ensure proper ground and firm connection before use

(Adapter plugs not permitted in Canada)

Align large prongs/slots

ASSEMBLE SURFACE BURNERS

(CONT.)

Oval (Center) Burner Head/Cap Assembly

Place the oval (center) head/cap assembly over the electrode on the cooktop.

Caps

Place the matching size caps onto the burner bases or heads.

Make sure that the heads and caps are replaced in the correct locations.

Grates

Place the side and center grates on the cooktop. These grates are position specific. The undersides of the side grates are marked “OUTSIDE.” The center grate can be interchanged front to back.

CAUTION: Do not operate the

burner without all burner parts in place.

Installation Instructions

ELECTRICAL CONNECTIONS (CONT.)

B. Usage Situations where Appliance Power Cord will

be Disconnected Frequently.

Do not use an adapter plug in these situations because disconnecting of the power cord places undue strain on the adapter and leads to eventual failure of the adapter ground terminal. The customer should have the twoprong wall receptacle replaced with a three-prong (grounding) receptacle by a qualified electrician before using the appliance.

The installation of appliances designed for mobile home installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part

280) or, when such standard is not applicable, the Standard for Manufactured Home Installations, latest edition (Manufactured Home Sites, Communities and Set-Ups), ANSI A225.1, latest edition, or with local codes. In Canada, mobile home installation must be in accordance with the current CAN/CSA Z240/MH Mobile Home Installation Code.

Electric Disconnect

■ Locate disconnect plug on the range back.

■ Pinch sides of connector and pull out of range back.

SEAL THE OPENINGS

Seal any openings in the wall behind the range and in the floor under the range when hookups are completed.

ASSEMBLE SURFACE BURNERS

Burner Heads

Place burner heads over the electrodes on the cooktop, in the correct locations according to their size. There is one small, one medium, one extra large and one dual flame extra large burner head.

Medium head

Front of range

Extra large head

Small head

Dual flame

extra large head

Electrode

Slot

Front of range

Oval head and cap

assembly

Medium cap

Front of range

Extra large cap

Small cap

Dual flame extra

large cap

Make sure the slot in the burner head is positioned over the electrode.

Outside grate

Center grate

Burner cap

Burner

head

Burner base

Electrode

Burner cap

Burner

head

Burner

base

Electrode

Stability

chamber

Make sure the slot in the burner head is positioned over the electrode.

Make sure the hole in the burner head assembly is positioned over the electrode and that the burner head is fully inserted inside the burner base. A small gap between the base and head is normal.

Front left, back right and back left burners

Front right burner

CHECK IGNITION OF SURFACE BURNERS

Operation of all cooktop and oven burners should be checked after the range and gas supply lines have been carefully checked for leaks.

Electric Ignition Models

Select a top burner knob and simultaneously push in and turn to LITE position. You will hear a clicking sound indicating proper operation of the spark module. Once the air has been purged from the supply lines, burners should light within 4 seconds. After burner lights, rotate knob out of the LITE position. Try each burner in succession until all burners have been checked.

Quality of Flames

The combustion quality of burner flames needs to be determined visually.

If burner flames look like (A), call for service. Normal burner flames should look like (B) or (C), depending on the type of gas you use.

With LP gas, some yellow tipping on outer cones is normal.

natural gas

(B) Yellow tips on outer cones—

Normal for LP gas

(A) Yellow flames—

Call for service

CHECK IGNITION OF OVEN BURNER

The oven is designed to operate quietly and automatically. To operate the oven, press the BAKE pad and then press the number pads until 350° appears in the display. Touch the START pad. After 30–90 seconds, the oven burner will ignite and burn until the set temperature is reached. The oven burner will continue to cycle on and off as necessary to maintain the oven at the temperature indicated by the display.

To check ignition of the broil burner, touch the BROIL HI/LO pad and then the START pad. After 30–90 seconds, the broil burner will ignite.

Electric ignition models require electrical power to operate. In case of a power outage, the oven burners on these models cannot be lit manually with a match. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power outage occurs, the burner will shut off and cannot be re-lit until power is restored.

Installation Instructions

To remove the oven bottom:

A. Remove the screws holding down rear of the oven

bottom.

B. Grasp the oven bottom at finger slots on each side.

C. Lift the rear of the oven bottom enough to clear the

lip of the range frame, push it back, and then pull it up and out.

Installation Instructions

ADJUST BROIL AND OVEN BURNER AIR ADJUSTMENT SHUTTERS IF NECESSAR

Air adjustment shutters for the top and bottom burners regulate the flow of air to the flames.

The air adjustment shutter for the top (broil) burner is in the center of the rear wall of the oven.

The shutter for the bottom (oven) burner is near the back wall behind the drawer. Remove the drawer. See the

Care and cleaning of the range

section.

To adjust the flow of air to either burner, loosen the Phillips head screw and rotate the shutter toward open or closed position as needed.

The flames for the top (broil) burner should be steady with approximately 1″ blue cones and should not extend out over the edges of the burner baffle.

To determine if the bottom burner flames are burning properly, remove the oven bottom. Flames should have approximately 1″ blue cones and, if range is supplied with natural gas, should burn with no yellow tipping. (With most LP gas, small yellow tips at the end of outer cones are normal.) Flames should not lift off burner ports. If lifting is observed, gradually reduce air shutter opening until flames are stabilized.

ADJUST BROIL AND OVEN BURNER AIR ADJUSTMENT SHUTTERS IF NECESSAR

(CONT.)

Air

adjustment shutter

Loosen

Air adjustment shutter

Loosen

Oven bottom

LEVELING THE RANGE

A. Install the oven shelves in the oven and position the

range where it will be installed.

B. Check for levelness by placing a spirit level or a cup,

partially filled with water, on one of the oven shelves. If using a spirit level, take two readings—with the level placed diagonally first in one direction and then the other.

C. Remove the drawer. See the

Care and cleaning of the

range

section. The front leveling legs can be adjusted from the bottom and the rear legs can be adjusted from the top or the bottom.

D. Use an open-end or adjustable wrench to adjust the

leveling legs until the range is level.

E. After the range is level, slide the range away from the

wall so that the Anti-Tip device can be installed.

Leg leveler

Lower range

Raise range

(on some models)

Raise range

Lower range

(on some models)

Installation Instructions

INSTALLING THE ANTI-TIP DEVICE

A. Mark the wall where the RIGHT EDGE of the range

is to be located. Be sure to allow for the countertop overhang if you intend to install the range next to cabinets.

B. Locate the outside edge of the device 21⁄8″ toward the

center of the range from the marked edge of the range.

C. Using the device as a template, mark the position of

the hole for the screw.

D. For wood construction, drill a pilot hole at an angle

of 20 degrees from the horizontal. A nail or awl may be used if a drill is not available.

Mount the Anti-Tip device with the screw provided.

For cement or concrete construction, you will need a 1/4″ x 11⁄2″ lag bolt and a 1/2″ O.D. sleeve anchor, which are not provided. Drill the recommended size hole for the hardware.

WARNING!

■ Range must be secured with an approved AntiTip device.

■ Unless properly installed, the range could be tipped by you or a child standing, sitting or leaning on an open door.

■ After installing the Anti-Tip device, verify that it is in place by carefully attempting to tilt the range forward.

■ This range has been designed to meet all recognized industry tip standards for all normal conditions.

■ The use of this device does not preclude tipping of the range when not properly installed.

■ If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB2X7909.

Anti-Tip device

Slotted head

screw

Wallplate

Approx.

20°

21⁄8”

Marked edge of range

INSTALLING THE ANTI-TIP DEVICE

(CONT.)

Install the sleeve anchor into the drilled hole and then install the lag bolt through the device. The bolts must be properly tightened as recommended for the hardware.

E. Slide the range against the wall, and check for

proper installation by grasping the front edge of the cooktop and carefully attempting to tilt the range forward.

Back of range

Wallboard

Wood screw

Anti-Tip device

WHEN ALL HOOKUPS ARE COMPLETED

Make sure all controls are left in the off position. Make sure the flow of combustion and ventilation air to the range is unobstructed.

CONVERTING TO LP GAS

(or

converting back to natural gas from LP)

This range leaves the factory set for use with natural gas. If you want to convert to LP gas, the conversion must be performed by a qualified LP gas installer.

The conversion instructions and LP orifices can be found attached to the range next to the pressure regulator.

Keep these instructions and the orifices in case you want to convert back to natural gas.

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Before you call for service…

ge.com

Problem Possible Causes What To Do

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly inserted in the electrical outlet. grounded outlet.

Burner slits on the side of the • Remove the burners and clean them. Check the burner may be clogged. electrode area for burned-on food or grease. See

the

Care and cleaning of the range

section.

Improper burner assembly. • Make sure the burner parts are installed correctly.

See the

Care and cleaning of the range

section.

Burner flames very

Improper air to gas ratio. • If range is connected to LP gas, contact the person

large or yellow

who installed your range or made the conversion.

Surface burners light

The oven gas shut-off valve • To check the oven gas shut-off valve, remove the

but oven does not

may have accidentally been drawer (see the

Care and cleaning of the range

section).

moved during cleaning or Remove the rear access panel by unscrewing the moving. thumb screws in the upper left and right corners.

Look for the gas shut-off lever at the back of the range.

Control signals after

You forgot to enter a bake • Touch the

BAKE

pad and desired temperature or

entering cooking time

temperature or cleaning time. the

SELF CLEAN

pad and desired clean time.

or start time

Food does not bake or

Oven controls improperly set. • See the

Using the upper oven

section.

roast properly in the

Shelf position is incorrect. • See the

Using the upper oven

section.

upper oven

Incorrect cookware or cookware • See the

Using the upper oven

section.

of improper size being used.

Oven thermostat needs • See the

Adjust the upper oven thermostat—Do it

adjustment.

yourself!

section.

Clock not set correctly. • See the

Using the clock and timer

section.

Aluminum foil used improperly • See the

Care and cleaning of the range

section.

in the oven.

Oven bottom not securely • See the

Installation of the range

section.

seated in position.

Burners do not light

Gas/Control Lockout feature • Allow the range to cool down and touch and hold the is activated.

GAS/CONTROL LOCKOUT

pad (on some models) for

3 seconds until

LOC

disappears from the display.

Plug on range is not • Make sure electrical plug is plugged into a live, properly completely inserted in the grounded outlet. electrical outlet.

Gas supply not connected • See the Installation Instructions that came with your or turned on. range.

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or circuit breaker tripped.

Burner parts not replaced • See the

Care and cleaning of the range

section.

correctly.

Top burners do not light or do not burn evenly. (The front right burner is designed to have slightly smaller flames between the 6 and 9 o’clock positions. This is normal.)

Lever is shown closed. PULL TO OPEN.

Thumb screws

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Troubleshooting Tips

Before you call for service…

Problem Possible Causes What To Do

Gas/Control Lockout or

• If

LOC

appears in the display, the range control is

Control Lockout feature

locked. Turn this feature off to use the range. See the

is activated Gas/Control Lockout

section.

“Close Door” scrolls in

The display will always • This is a normal reminder to close the door when

the display when BROIL

automatically remind you to broiling.

is set

close the door.

Food does not broil

Oven controls improperly set. • Make sure you touch the

BROIL HI/LO

pad.

properly in the upper oven

Oven door not closed. • See the

Using the upper oven

section.

Improper shelf position • See the

Broiling Guide.

being used.

Food being cooked • For best results, use a pan designed for broiling. in a hot pan. Make sure it is cool.

Cookware not suited • For best results, use a pan designed for broiling. for broiling.

Oven bottom not securely • See the

Installation of the range

section.

seated in position.

Upper oven temperature

Oven thermostat • See the

Adjust the upper oven thermostat—Do it

too hot or too cold

needs adjustment.

yourself!

section.

Clock and timer

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly

do not work

inserted in the electrical outlet. grounded outlet.

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

Oven controls improperly set. • See the

Using the clock and timer

section.

Upper oven light does

Light bulb is loose or defective. • Tighten or replace the bulb.

not work

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly inserted in the electrical outlet. grounded outlet.

Upper oven will not

The oven temperature is too • Allow the range to cool to room temperature and

self-clean

high to set a self-clean operation. reset the controls.

Oven controls improperly set. • See the

Using the self-cleaning upper oven

section.

“Crackling” or

This is the sound of the • This is normal.

“popping” sound

metal heating and cooling during both the cooking and cleaning functions.

Problem Possible Causes What To Do

Excessive smoking

Excessive soil. • Touch the

CLEAR/OFF

pad. Open the windows to

rid the room of smoke. Wait until the

LOCKED DOOR

light goes off. Wipe up the excess soil and reset the clean cycle.

Oven door will not open

Oven too hot. • Allow the oven to cool below locking temperature.

after a clean cycle

Oven not clean after a

Oven controls not properly set. • See the

Using the self-cleaning upper oven

section.

clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.

“LOCK DOOR” flashes

The self-clean cycle has been • Close the oven door.

in the display

selected but the door is not closed.

LOCKED DOOR light

The oven door is locked • Touch the

CLEAR/OFF

pad. Allow the oven to cool.

is on when you want

because the temperature

to cook

inside the oven has not dropped below the locking temperature.

“F—and a number or

You have a function error code. • Touch the

CLEAR/OFF

pad. Allow the oven to cool for

letter” flash in the display

one hour. Put the oven back into operation.

If the function code repeats. • Disconnect all power to the range for 5 minutes

and then reconnect power. If the function error code repeats, call for service.

Oven shelves are

The gray porcelain-coated shelves • Apply a small amount of vegetable oil to a paper

difficult to slide

were improperly cleaned. towel and wipe the edges of the oven shelves with

the paper towel. Do not spray with Pam®or other lubricant sprays.

“Probe” appears in

This is reminding you to enter a • Enter a probe temperature.

the display

probe temperature after plugging in the probe.

LOC appears in

The Gas/Control Lockout feature • Be sure the surface burner controls are turned OFF.

the display

is activated. Turn this feature off to use the range. See the

Gas/Control Lockout

section.

ge.com

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

Problem Possible Causes What To Do

Display goes blank

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

The clock is in the • See the

Special features of your oven control

section.

black-out mode.

Display flashes

Power failure. • Reset the clock.

Unable to get the

Oven control pads were • The

BAKE

and

BROIL HI/LO

pads must be touched at

display to show “SF”

not pressed properly. the same time and held for 3 seconds.

Power outage,

Power outage or surge. • Reset the clock. If the oven was in use, you must reset

clock flashes

it by touching the

CLEAR/OFF

pad, setting the clock

and resetting any cooking function.

“Burning” or “oily”

This is normal in a new oven • To speed the process, set a self-clean cycle for a

odor emitting from

and will disappear in time. minimum of 3 hours. See the

Using the self-cleaning

the vent oven

section.

Strong odor

An odor from the insulation • This is temporary. around the inside of the oven is normal for the first few times the oven is used.

Fan noise

The convection fan may turn on • This is normal. To maximize cooking evenness, the and off automatically. fan is designed to operate in both directions with a

pause in between.

Convection fan not

Preheat temperature • Fan will start automatically once the preheat

working

not reached. temperature is reached.

Drawer does not slide

The drawer is out of alignment. • Fully extend the drawer and push it all the way in.

smoothly or drags

See the

Care and cleaning of the range

section.

Drawer is over-loaded or load • Reduce weight. Redistribute drawer contents. is unbalanced.

Lower oven drawer

A fuse in your home may be • Replace the fuse or reset the circuit breaker.

will not work

blown or the circuit breaker tripped.

The oven is self-cleaning. • Wait for the self-clean cycle to finish and the oven

to cool.

Controls improperly set. • See the

Lower oven drawer

section.

Excessive condensation

Liquid in drawer. • Remove liquid.

in the drawer

Uncovered foods. • Cover food with lid or aluminum foil.

Temperature setting too high. • Reduce temperature setting.

Food dries out in the

Moisture escaping. • Cover food with lid or aluminum foil.

lower oven drawer

Drawer not fully closed. • Push drawer in until latch engages.

Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsConsumer Support

Troubleshooting Tips

Before you call for service…

General Electric Company

Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150

GE Service Protection Plus

™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus

™

—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

• Backed by GE

• All brands covered

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance. Anywhere. Anytime.*

Please place in envelope and mail to:

✁

Cut here

Consumer Product Ownership Registration

Important

Mail Today!

First

Name

Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■

Street

Address

City

State

Date Placed

In Use

Month

Day

Year

Zip

Code

Apt. #

Last

Name

Phone

Number

Consumer Product Ownership Registration

Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Model Number Serial Number

✁

Cut here

Complete and mail your Consumer Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of

safety modification.

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is

800.GE.CARES (800.432.2737).

Read your Owner’s Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

E-mail Address*

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.

For information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224.

GE Consumer & Industrial

Appliances General Electric Company Louisville, KY 40225 ge.com

Consumer SupportInstallation Instructions Troubleshooting TipsOperating Instructions

Safety Instructions

Accessories.

ge.com

Looking For Something More?

You can find these accessories and many more at ge.com (U.S.) or www.GEAppliances.ca (Canada), or call 800.626.2002 (U.S.) or 888.261.3055 (Canada) (during normal business hours). Have your model number ready.

Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?

NOW AVAILABLE

for your range:

GE’

s innovative, self-cleanable porcelain-coated oven racks!

• Heavy Duty

• Durable

• Able to be cleaned in a self-cleaning oven

Visit

ge.com

(U.S.) or

www.GEAppliances.ca

(Canada) for more

information.

Grates

Broiler Pan

Light Bulbs Knobs

Cleaner

Surface Burner Caps

Oven and Drawer Racks

Consumer Support

Operating InstructionsSafety Instructions Installation Instructions

Troubleshooting Tips

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused,

or used for other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

For The Period Of: GE Will Replace:

One Year Any part

of the range which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty,

GE will also provide,

free of charge,

all labor and in-home service

original purchase

to replace the defective part.

GE Gas Range Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

All warranty service provided by our Factory Service Centers or an authorized Customer Care

technician. For service, call 1.800.561.3344. Please have serial number and model number available when calling for service.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused,

or used for other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What Mabe Will Not Cover:

For The Period Of: Mabe Will Replace:

One Year Any part

of the range which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty,

Mabe will also provide,

free of charge,

all labor and in-home service to

original purchase

replace the defective part.

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

Warrantor: MABE CANADA INC.

GE Gas Range Warranty. (For customers in Canada)

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Consumer Support

Installation Instructions

Troubleshooting Tips

Operating InstructionsSafety Instructions

Consumer Support.

GE Appliances Website

In the U.S.:

ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even schedule service on-line. In Canada: www.GEAppliances.ca

Schedule Service

In the U.S.:

ge.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.:

ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.:

ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still

in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer

Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.:

ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.888.261.3055.

In the U.S.:

ge.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details

including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

In the U.S.:

ge.com

communication and prompt service under the terms of your warranty, should the need arise. You may also mail

in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca

Printed in Mexico

This book is printed on recycled paper.

GE CGS980 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating Instructions

Care and Cleaning

Consumer Support

Operating Instructions Safety InstructionsInstallation Instructions

Power Outage

Aluminum Foil

PROBE

GAS/CONTROL LOCKOUT

Burner Grates

Griddle

Stainless Steel Surfaces

Oven Bottom

Oven Light Replacement

DIMENSIONS AND CLEARANCES

ANTI-TIP DEVICE

ELECTRICAL CONNECTIONS

ASSEMBLE SURFACE BURNERS

LEVELING THE RANGE

Troubleshooting Tips
