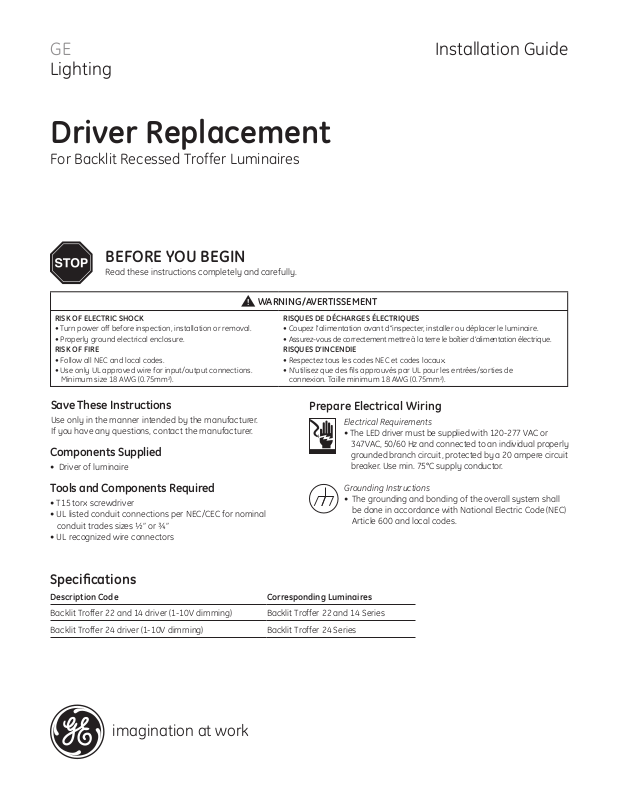

GE
Lighting
Driver Replacement
For Backlit Recessed Troffer Luminaires
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING/AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Turn power off before inspection, installation or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all NEC and local codes.
• Use only UL approved wire for input/output connections.
Minimum size 18 AWG (0.75mm2).
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation avant d’’inspecter, installer ou déplacer le luminaire.
• Assurez-vous de correctement mettre à la terre le boîtier d’alimentation électrique.
RISQUES D’INCENDIE
• Respectez tous les codes NEC et codes locaux.
• N’utilisez que des ls approuvés par UL pour les entrées/sorties de
connexion. Taille minimum 18 AWG (0.75mm2).
Installation Guide
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
Components Supplied
• Driver of luminaire
Tools and Components Required
• T15 torx screwdriver
• UL listed conduit connections per NEC/CEC for nominal
conduit trades sizes ½” or ¾”
• UL recognized wire connectors
Prepare Electrical Wiring
Electrical Requirements
• The LED driver must be supplied with 120-277 VAC or
347VAC, 50/60 Hz and connected to an individual properly
grounded branch circuit, protected by a 20 ampere circuit
breaker. Use min. 75°C supply conductor.
Grounding Instructions
• The grounding and bonding of the overall system shall
be done in accordance with National Electric Code (NEC)
Article 600 and local codes.
Specications
Description Code Corresponding Luminaires
Backlit Troffer 22 and 14 driver (1-10V dimming) Backlit Troffer 22 and 14 Series
Backlit Troffer 24 driver (1-10V dimming) Backlit Troffer 24 Series
imagination at work
Wiring Diagrams
PSU
(1-10V) +
(1-10V) –
+
–
Light
Engine
+
–
Line
Neutral
Remote Switch
1-10V
(Optional)
VIOLET
GREY
RED
BLUE
BLACK
WHITE
(1-10V) –
(1-10V) +
GND
N
L
PSU
(1-10V) +
(1-10V) –
+
–
Light
Engine
+
–
Line
Neutral
Remote Switch
1-10V
(Optional)
VIOLET
GREY
RED
BLUE
BLACK
WHITE
(1-10V) -
GND
N
L
(1-10V) +
Line
Neutral
BLUE
BLACK
BLACK
RED
347V TRANSFORMER
PSU
(1-10V) +
(1-10V) –
+
–
Line
Neutral
Light
Engine
+
–
LUTRON
LUTRON
EcoSystem
Link (E1, E2)
GND
Neutral
Switched Hot
Hot
E1
E2
RED
BLUE
VIOLET
GREY
GREEN
WHITE
BLACK
BLACK
VIOLET
GRAY
E2
E1
GND
N
L
(1-10V) +
(1-10V) –
WHITE
BLACK
1-10V Dimming: Standard Version
1-10V Dimming: 347V Version
Lutron EcoSystem® Version
Driver Replacement Steps
NOTE: The following steps depict the 22 Series luminaire. However, the procedure is the same for the 14 and 24 Series xtures.
Rotate latches to unlock the front bezel. Swing down panel and lift off front bezel.
1 2
Backlit Troffer 14Backlit Troffer 22 and 24
For Backlit Troffer 22 and 24: unfasten the screw(s) holding the driver cover and remove it.
3
For Backlit Troffer 14: unfasten the screws near the LED bar and remove the cover.
2 cm
Neutral
Input
Line
Input
First, disconnect the driver from the luminaire by
4 5
White
Black
Ground
Old
Driver
Green
Violet Grey
Dimming (+) Dimming (-)
cutting the wires at the distance of 2 cm (0.75 in.)
from the old driver. Then, unscrew the screws
and star washers which attach the driver to the
luminaire and remove the old driver.
NOTE: Keep the screws and star washers for later use.
Blue
Red
Luminaire
Input
Neutral
Input
Line
Input
White
Black
Green
Ground
The length of wires from the new driver should
be no less than 6 cm (2.36 in.). Reattach the new
driver in the same location as the old driver using
star washers and screws. Strip off 10 mm (0.4 in.)
from all wires and reconnect the new driver to the
luminaire with UL-certied connectors. Wires with
the same color should be connected together.
6 cm
Blue
New
Driver
Violet Grey
Dimming (+) Dimming (-)
Red
Luminaire
Input
NOTE: Steps 4 and 5 depict the standard version. For 347V version and Lutron EcoSystem version
please see page 2 for wiring diagrams.
Reattach the driver cover with screw(s).
6
Backlit Troffer 14Backlit Troffer 22 and 24
Rotate latches to lock the front bezel.Hang panel on its hinges and swing up into place.
87
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class [A] RFLD
complies with the Canadian standard ICES-003. Ce DEFR de la classe [ A ] est conforme à la NMB-003 du Canada.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
GE Lighting • 1-888-MY-GE-LED (1-888-69-43-533) • www.gelighting.com
GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand and logo are trademarks of the General Electric Company.
© 2014 GE Lighting Solutions, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
IND125-081414
