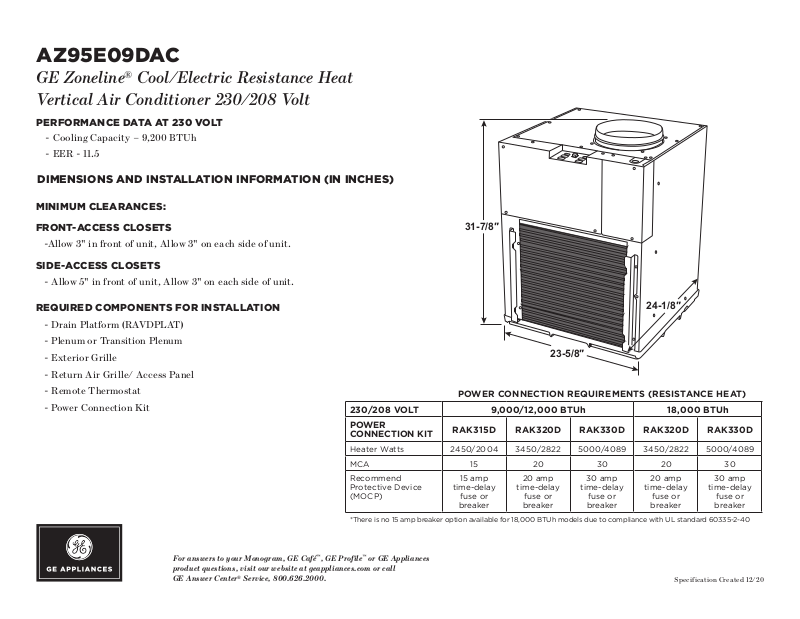

GE AZ95E09DAC Specification
AZ95 E09DAC
GE Zoneline® Cool/Electric Resistance Heat
Vertical Air Conditioner 230/208 Volt
PERFORMANCE DATA AT 230 VOLT
- Cooling Capacity – 9,200 BTUh
- EER - 11.5
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MINIMUM CLEARANCES:
FRONT-ACCESS CLOSETS
-Allow 3" in front of unit, Allow 3" on each side of unit.
SIDE-ACCESS CLOSETS
- Allow 5" in front of unit, Allow 3" on each side of unit.
REQUIRED COMPONENTS FOR INSTALLATION
- Drain Platform (RAVDPLAT)
- Plenum or Transition Plenum
- Exterior Grille
- Return Air Grille/ Access Panel
- Remote Thermostat
- Power Connection Kit
31-7/8″
24-1/8″
23-5/8″
POWER CONNECTION REQUIREMENTS (RESISTANCE HEAT)
230/208 VOLT 9,000/12,000 BTUh 18,000 BTUh
POWER
CONNECTION KIT
Heater Watts 2450/2004 3450/2822 5000/4089 3450/2822 5000/4089
MCA 15 20 30 20 30
Recommend
Protective Device
(MOCP)
*There is no 15 amp breaker option available for 18,000 BTUh models due to compliance with UL standard 60335-2-40
RAK315D RAK320D RAK330D RAK320D RAK330D
15 amp
time-delay
fuse or
breaker
20 amp
time-delay
fuse or
breaker
30 amp
time-delay
fuse or
breaker
20 amp
time-delay
fuse or
breaker
30 amp
time-delay
fuse or
breaker
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Specification Created 12/20
AZ95 E09DAC
GE Zoneline® Cool/Electric Resistance Heat
Vertical Air Conditioner 230/208 Volt
FEATURES AND BENEFITS
In sta-Pl atform™ – One-piece design fully integrates with the
wall plenum and aligns for a tight seal. Eliminates need for a
customized platform construction on site
Self-Contained Drainage System – Easy installation and
simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing – Thoughtful design enables platform
build and rough plumbing completed in only minutes
Quick-Install Plenum – Plenum is easily installed from the
interior of building, without the need for exterior building
access* (*caulking required)
Self-aligning, lock in place system – Perfect fit and mistake proof
when the chassis is placed on the platform
Onboard Diagnostics – Electronic controls give clear and fast
diagnostics data and fault codes, for quick and easy notifications
Anti-Corrosion Design – Exclusive rust-proof basepan and
bulkhead provide another level of corrosion protection
Ultra-Quiet – Delivers quiet cooling power with a smooth sound
for a good night’s sleep
SmartHQ WIFI capability – An optional WiFi module gives
property managers the ability to oversee units, increasing
productivity and enhancing guests’ experience
ZONELINE® WARRANTY*
WHAT IS COVERED
LIMITED ONE-YEAR WARRANTY
For one year from date of original purchase,
we will provide, free of charge, parts and service
labor on site to repair or replace any part of the
Zoneline that fails because of a manufacturing defect.
LIMITED ADDITIONAL FOUR-YEAR
WARRANTY
For an additional four years from the date of original
purchase, we will provide, free of charge, parts and
on-site service labor to repair or replace any part
of the sealed refrigerating system (the compressor,
condenser, evaporator and all connecting tubing) that
fails because of a manufacturing defect.
*See Written Warranty For Details
LIMITED 2ND THROUGH 5TH YEAR
PARTS WARRANTY
For the second through the fifth year from date
of original purchase, GE Appliances will provide,
free of charge, parts that fail as a result of a
manufacturing defec t. Parts covered are fan motors,
switches, heater, heater protectors, compressor
overload, solenoids, circuit boards, auxiliary controls,
thermistors, frost controls, capacitors and varistors.
This is a limited parts-only warranty, and does not
include labor or transportation to and from the
service shop.
All warranty ser vice will be provided by our Factor y
Service Centers or by our authorized Customer Care®
servicers during normal working hours.
Specification Created 12/20
