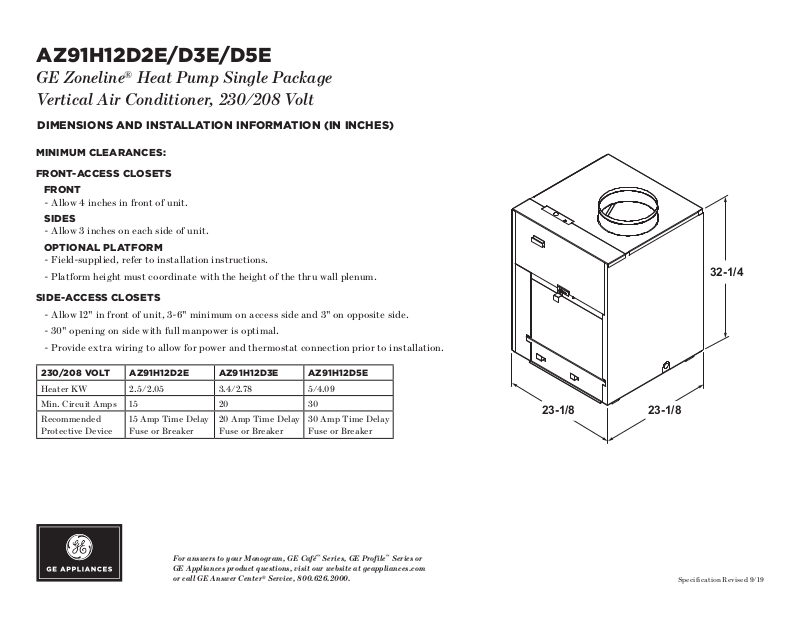

AZ91H12D2E/D3E/D5E
GE Zoneline® Heat Pump Single Package
Vertical Air Conditioner, 230/208 Volt
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MINIMUM CLEARANCES:
FRONT-ACCESS CLOSETS
FRONT
- Allow 4 inches in front of unit.
SIDES
- Allow 3 inches on each side of unit.
OPTIONAL PLATFORM
-Field-supplied, refer to installation instructions.
-Platform height must coordinate with the height of the thru wall plenum.
SIDE-ACCESS CLOSETS
-Allow 12" in front of unit, 3-6" minimum on access side and 3" on opposite side.
-30" opening on side with full manpower is optimal.
-Provide extra wiring to allow for power and thermostat connection prior to installation.
230/208 VOLT |
AZ91H12D2E |
AZ91H12D3E |
AZ91H12D5E |
Heater KW |
2.5/2.05 |
3.4/2.78 |
5/4.09 |
Min. Circuit Amps |
15 |
20 |
30 |
|
|
|
|
Recommended |
15 Amp Time Delay |
20 Amp Time Delay |
30 Amp Time Delay |
Protective Device |
Fuse or Breaker |
Fuse or Breaker |
Fuse or Breaker |
|
|
|
|
|
32-1/4 |
23-1/8 |
23-1/8 |
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or |
|
GE Appliances product questions, visit our website at geappliances.com |
|
or call GE Answer Center® Service, 800.626.2000. |
Specification Revised 9/19 |
AZ91H12D2E/D3E/D5E
GE Zoneline® Heat Pump Single Package
Vertical Air Conditioner, 230/208 Volt
FEATURES AND BENEFITS
Energy efficiency – Enhanced energy efficiency with an EER of 11.0
Cooling capacity – 11,500/11,000 BTU
Vertical space-saving design – Optimizes usable floor space with hidden closet design
Reliable & quiet – Every component is engineered to provide exceptional performance
Robust plenum gasket seals keep dirt outside and reduces chassis vibration
Corrosion treatment on outside coils Standard filter size
Internal diagnostic program Auxiliary fan ready
Room air sampling feature maintains a balanced temperature throughout the room
Remote wall thermostat capable Model AZ91H12D2E - 15 amp Model AZ91H12D3E - 20 amp Model AZ91H12D5E - 30 amp
|
Closet Door |
|
|
|
|
|
ZONELINE®WARRANTY* |
|
|
WHAT IS COVERED |
LIMITED 2ND THROUGH 5TH YEAR |
|
LIMITED ONE-YEAR WARRANTY |
PARTS WARRANTY |
|
For the second through the fifth year from |
|
|
For one year from date of original purchase, |
|
|
date of original purchase, General Electric will |
|
|
we will provide, free of charge, parts and |
|
|
provide, free of charge, parts that fail as a result |
|
|
service labor on site to repair or replace any |
|
|
of a manufacturing defect. Parts covered are |
|
|
part of the Zoneline that fails because of a |
|
|
fan motors, switches, heater, heater protectors, |
|
|
manufacturing defect. |
|
|
compressor overload, solenoids, circuit boards, |
|
|
LIMITED ADDITIONAL FOUR-YEAR |
|
|
auxiliary controls, thermistors, frost controls, |
|
|
WARRANTY |
capacitors and varistors. This is a limited |
|
For an additional four years from the date |
parts-only warranty, and does not include labor |
|
of original purchase, we will provide, free of |
|
|
or transportation to and from the service shop. |
|
|
charge, parts and on-site service labor to repair |
|
|
All warranty service will be provided by our |
|
|
or replace any part of the sealed refrigerating |
|
|
Factory Service Centers or by our authorized |
|
|
system (the compressor, condenser, evaporator |
|
|
Customer Care® servicers during normal |
|
|
and all connecting tubing) that fails because of |
|
|
working hours. |
|
|
a manufacturing defect. |
|
|
|
|
|
*SEE WRITTEN WARRANTY FOR DETAILS |
|
|
|
|
