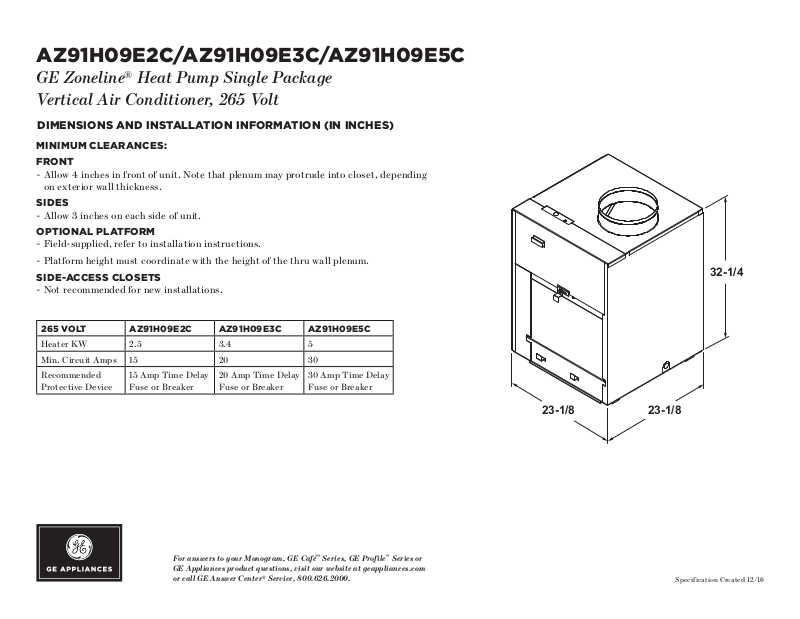

AZ91H09E2C/AZ91H09E3C/AZ91H09E5C

GE Zoneline® Heat Pump Single Package Vertical Air Conditioner, 265 Volt

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

MINIMUM CLEARANCES:

FRONT

- Allow 4 inches in front of unit. Note that plenum may protrude into closet, depending on exterior wall thickness.

SIDES

- Allow 3 inches on each side of unit.

OPTIONAL PLATFORM

- Field-supplied, refer to installation instructions.

- Platform height must coordinate with the height of the thru wall plenum.

SIDE-ACCESS CLOSETS

- Not recommended for new installations.

265 VO LT AZ91H09E2C AZ91H09E3C AZ91H09E5C

Heater KW 2.5 3.4 5

Min. Circuit Amps 15 20 30

Recommended Protective Device

15 Amp Time Delay Fuse or Breaker

20 Amp Time Delay Fuse or Breaker

30 Amp Time Delay Fuse or Breaker

32-1/4

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

23-1/8

Specification Created 12/16

AZ91H09E2C/AZ91H09E3C/AZ91H09E5C

GE Zoneline® Heat Pump Single Package Vertical Air Conditioner, 265 Volt

FEATURES AND BENEFITS

Cooling capacity - 9,400 BTU

Vertical space-saving design - Optimizes usable floor space

Reliable & quiet - Every component is engineered to provide exceptional performance

Corrosion treatment on outside coils

Model AZ91H09E2C - 15 amp

Model AZ91H09E3C - 20 amp

Model AZ91H09E5C - 30 amp

ZONELINE® WARRANTY*

WHAT IS COVERED

LIMITED ONE-YEAR WARRANTY

For one year from date of original purchase, we will provide, free of charge, parts and service labor on site to repair or replace any part of the Zoneline that fails because of a manufacturing defect.

LIMITED ADDITIONAL FOUR-YEAR WARRANTY For an additional four years from the date of original purchase, we will provide, free of charge, parts and on-site service labor to repair or replace any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) that fails because of a manufacturing defect.

*SEE WRITTEN WARRANTY FOR DETAILS

LIMITED 2ND THROUGH 5TH YEAR PARTS WARRANTY

For the second through the fifth year from date of original purchase, General Electric will provide, free of charge, parts that fail as a result of a manufacturing defect. Parts covered are fan motors, switches, heater, heater protectors, compressor overload, solenoids, circuit boards, auxiliary controls, thermistors, frost controls, capacitors and varistors. This is a limited parts-only warranty, and does not include labor or transportation to and from the service shop.

All warranty service will be provided by our Factory Service Centers or by our authorized Customer Care® servicers during normal working hours.

Closet Door
