GE AZ65H07DAM Specification
AZ65H07DAM
SIDE
VIEW
Room
Cabinet
Outside
Grille
7-1/8
RAB71A = 16
RAB77A = 16-1/4
RAB71A = 20-7/8
RAB77A = 21
A
C
B
Zoneline RAC Wall Installation

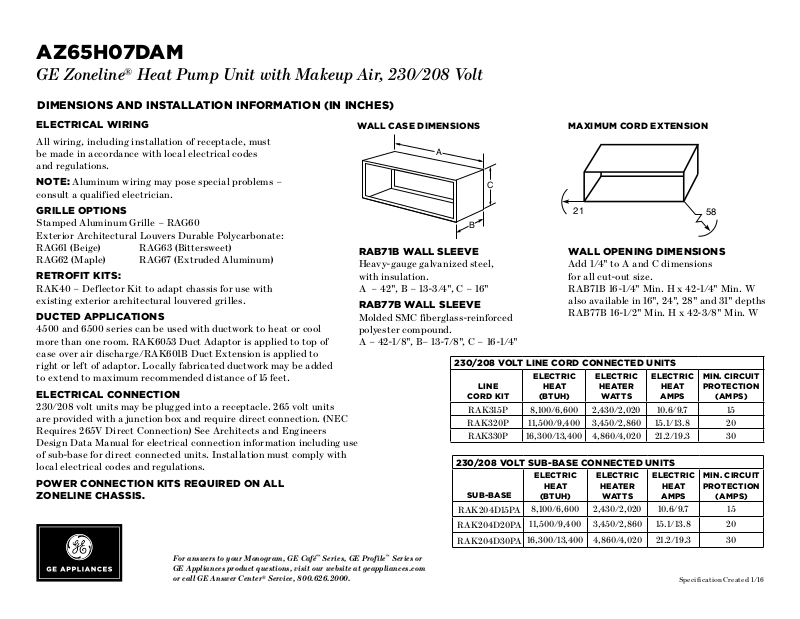

GE Zoneline® Heat Pump Unit with Makeup Air, 230/208 Volt
DiMensions AnD instAllAtion inforMAtion (in incHes)
ElEctrical Wiring
All wiring, including installation of receptacle, must
be made in accordance with local electrical codes
and regulations.
notE: Aluminum wiring may pose special problems –
consult a qualified electrician.
grillE options
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 (Beige) RAG63 (Bittersweet)
RAG62 (Maple) RAG67 (Extruded Aluminum)
rEtrofit Kits:
RAK40 – Deflector Kit to adapt chassis for use with
existing exterior architectural louvered grilles.
DuctED applications
4500 and 6500 series can be used with ductwork to heat or cool
more than one room. RAK6053 Duct Adaptor is applied to top of
case over air discharge/RAK601B Duct Extension is applied to
right or left of adaptor. Locally fabricated ductwork may be added
to extend to maximum recommended distance of 15 feet.
ElEctrical connEction
230/208 volt units may be plugged into a receptacle. 265 volt units
are provided with a junction box and require direct connection. (NEC
Requires 265V Direct Connection) See Architects and Engineers
Design Data Manual for electrical connection information including use
of sub-base for direct connected units. Installation must comply with
local electrical codes and regulations.
poWEr connEction Kits rEquirED on all
ZonElinE chassis.
Wall casE DiMEnsions
raB71B Wall slEEvE
Heavy-gauge galvanized steel,
with insulation.
A – 42", B – 13-3/4", C – 16"
raB77B Wall slEEvE
Molded SMC fiberglass-reinforced
polyester compound.
A – 42-1/8", B– 13-7/8", C – 16-1/4"
230/208 volt linE corD connEctED units
linE
corD Kit
RAK315P 8,100/6,600 2,430/2,020 10.6/9.7 15
RAK320P 11,500/9,400 3,450/2,860 15.1/13.8 20
RAK330P 16,300/13,400 4,860/4,020 21.2/19.3 30
230/208 volt suB-BasE connEctED units
suB-BasE
R A K 204 D15 PA
RAK204D20PA
R A K 204 D 30PA
MaxiMuM corD ExtEnsion
21
58
Wall opEning DiMEnsions
Add 1/4" to A and C dimensions
for all cut-out size.
RAB71B 16-1/4" Min. H x 42-1/4" Min. W
also available in 16", 24", 28" and 31" depths
RAB77B 16-1/2" Min. H x 42-3/8" Min. W
ElEctric
hEat
(Btuh)
ElEctric
hEat
(Btuh)
8,100/6,600 2,430/2,020 10.6/9.7 15
11,500/9,400 3,450/2,860 15.1/13.8 20
16,300/13,400 4,860/4,020 21.2/19.3 30
ElEctric
hEatEr
Watts
ElEctric
hEatEr
Watts
ElEctric
hEat
aMps
ElEctric
hEat
aMps
Min. circuit
protEction
(aMps)
Min. circuit
protEction
(aMps)
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Created 1/16
AZ65H07DAM
GE Zoneline® Heat Pump Unit with Makeup Air, 230/208 Volt
fEaturEs anD BEnEfits
Makeup air – Delivers 35 CFM of continuous, conditioned fresh makeup air
Cooling capacity – 6,800/6,600 BTU
Energy efficiency – 11.9/11.9 EER
Dehumidification – Conditions incoming air above 55% relative humidity
Reverse heat cycle – 6,000/5,900 BTUH
Heat pump efficiency – 3.3/3.3 COP
Quiet operation – Baked-on mastic, cross flow blower and two DC fan motors
create less noise to ensure comfort
Heat & Freeze Sentinels – Keeps the room from overheating or freezing
Boost heat option – Provides supplemental resistance heat in heat pump
mode
Electronic temperature limiting – Prevents expensive over-cooling or over-
heating of the room
Electronic touch controls with LED display
R-134A & R-410A refrigerant
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Created 1/16
