GE AJES10DCA Specification
AJES10DCA—GE 230 Volt ”J Series” Window/Wall Mount Heat and Cool Unit with Mechanical Controls
GE Appliances
Specification Created 5/01
26
15-5/8
16-7/8

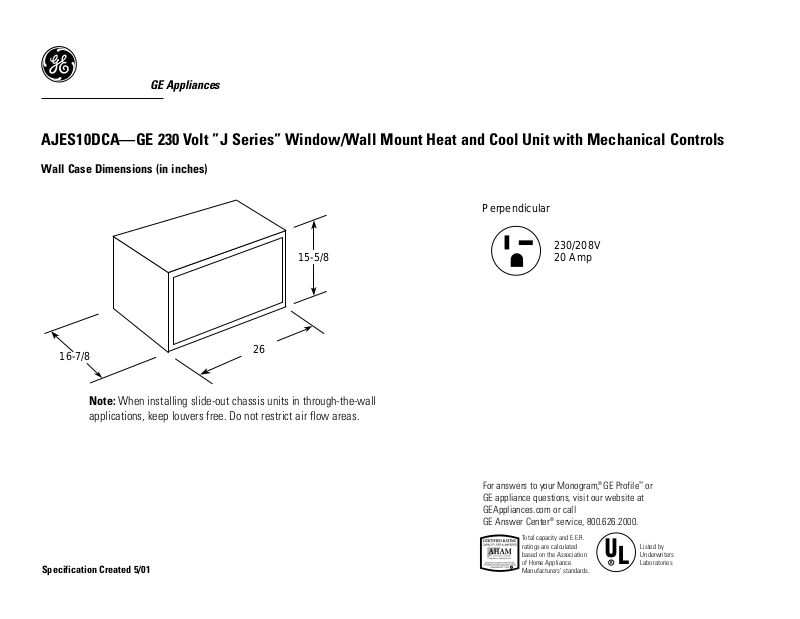

Wall Case Dimensions (in inches)
Perpendicular
230/208V
20 Amp
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
Specification Created 5/01
GE Appliances
AJES10DCA—GE 230 Volt ”J Series” Window/Wall Mount Heat and Cool Unit with Mechanical Controls
Dimensions (in inches)
Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
Note: Units should be caulked on all four sides of case to
the building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option,
these wall cases provide protection against outside elements.
RAB47–includes wall case, exterior grille and steel
closure panels.
RAB48–includes wall case, exterior grille, steel
closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with
baked enamel finish. Welded areas are coated with a
sealing compound to help resist rust and corrosion.
Polymer gasket surrounds opening to assure tight weather
seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection
prior to installation of chassis.provide firm anchoring with
screws. Case can be fastened directly to brick or block
walls with screws sunk in lead expansion shields.
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
