AJES09DCB – GE®230/208 Volt Window/Wall Mount Heat and Cool Unit
GE Appliances
26
15-5/8
16-7/8

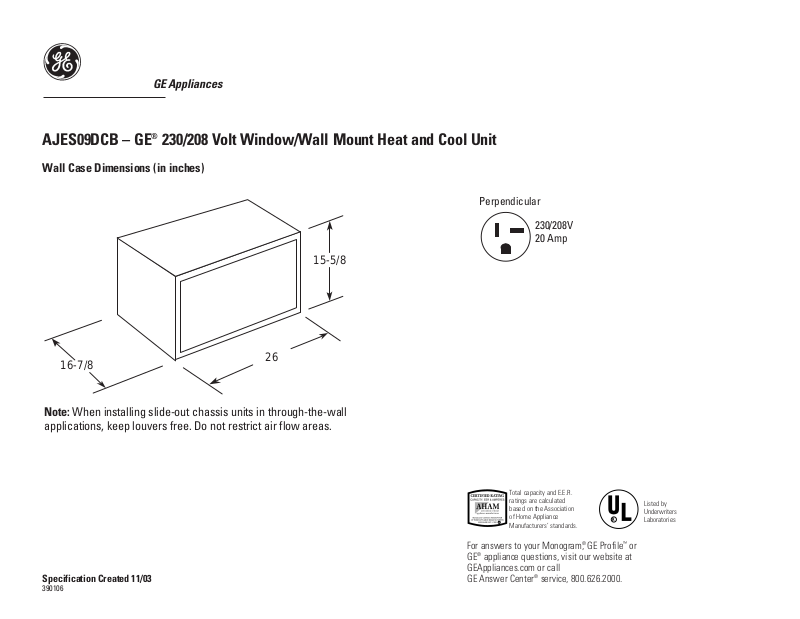

Wall Case Dimensions (in inches)
Note:
When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
Specification Created 11/03
390106
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
230/208V
20 Amp
Perpendicular
Page 2
GE Appliances
AJES09DCB – GE®230/208 Volt Window/Wall Mount Heat and Cool Unit
Dimensions (in inches)
Installation Information: A finished opening of 26-1/8" x 15-3/4"
clear of intrusions is required. Keep clearance of 4" from side
walls. Brick veneer or frame walls should have wood studding
surrounding case to provide firm anchoring with screws. Case
can be fastened directly to brick or block walls with screws sunk
in lead expansion shields.
Note: Units should be caulked on all four sides of case to the
building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these
wall cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel
closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel
and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked
enamel finish. Welded areas are coated with a sealing compound
to help resist rust and corrosion. Polymer gasket surrounds opening
to assure tight weather seal. Aluminum grille (RAG13) is included.
Panels on interior and between case and grille provide weather
protection prior to installation of chassis.provide firm anchoring
with screws. Case can be fastened directly to brick or block
walls with screws sunk in lead expansion shields.
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
Specification Created 11/03
390106
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Page 3
GE Appliances
AJES09DCB – GE®230/208 Volt Window/Wall Mount Heat and Cool Unit
Features and Benefits
• 8900/8700 BTU
• 11,600/9480 BTU heat
• 3670/3010 Watts heat
• 9.5/9.5 EER
• 230/208 Volts
• Mechanical controls
• Variable position thermostat
• Four-way air direction
• Up-front, washable air filter
• 2 Cool/2 heat/2 fan only speeds
• Model AJES09DCB – Cameo White
