GE AJEQ09DCD Specification

Page 1
AJEQ09DCD

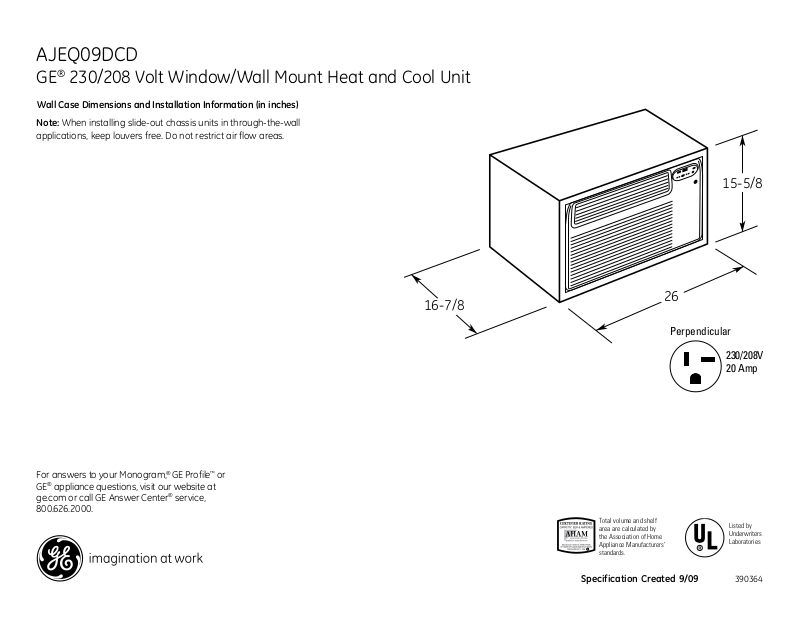

Premium, Deluxe and Value Model Wall Case Dimensions (in inches)
15-5/8
26
16-7/8
GE® 230/208 Volt Window/Wall Mount Heat and Cool Unit
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,
800.626.2000.
Perpendicular
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Specification Created 9/09
230/208V 20 Amp
Listed by Underwriters Laboratories
390364
Page 2
15-3/4
26-1/8
Frame Construction
Brick Block and Brick Frame Construction
Fill open cells with mortar or insulation
15-3/4
26-1/8
Lintel
Make frame if desired or caulk between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick Frame Construction
Fill open cells with mortar or insulation
15-3/4
26-1/8
Lintel
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding (if desired)
Plaster Line
Flexible Mounting Position
AJEQ09DCD
GE® 230/208 Volt Window/Wall Mount Heat and Cool Unit
Wall Case Dimensions and Installation Information (in inches)
Installation Information: A finished opening of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel and two layers of insulation.
Standard Wall Case RAB46 Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis. Provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,
800.626.2000.
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Specification Created 9/09
Listed by Underwriters Laboratories
390364
Page 3
AJEQ09DCD
GE® 230/208 Volt Window/Wall Mount Heat and Cool Unit
Features and Benefits
• R-410A Refrigerant
• 8,900/8,700 Cooling BTU
• 11,600/9,500 Heating BTU
• 9.4/9.4 EER
• 230/208 Volts
• Electronic controls with remote
• Electronic digital thermostat
• Four-way air direction
• Up-front, washable air filter
• 2 cool/2 heat/2 fan only speeds
• Remote thermostat capable
• Unit dimensions: 14-7/8"W x 24-3/4"H x 19-7/8"D
• Model AJEQ09DCD – Soft Gray
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,
800.626.2000.
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Specification Created 9/09
Listed by Underwriters Laboratories
390364
