AJEQ08ACH
Premium, Deluxe and Value Model
Wall Case Dimensions (in inches)
GE® 115 Volt Built-In Heat/Cool Room Air Conditioner

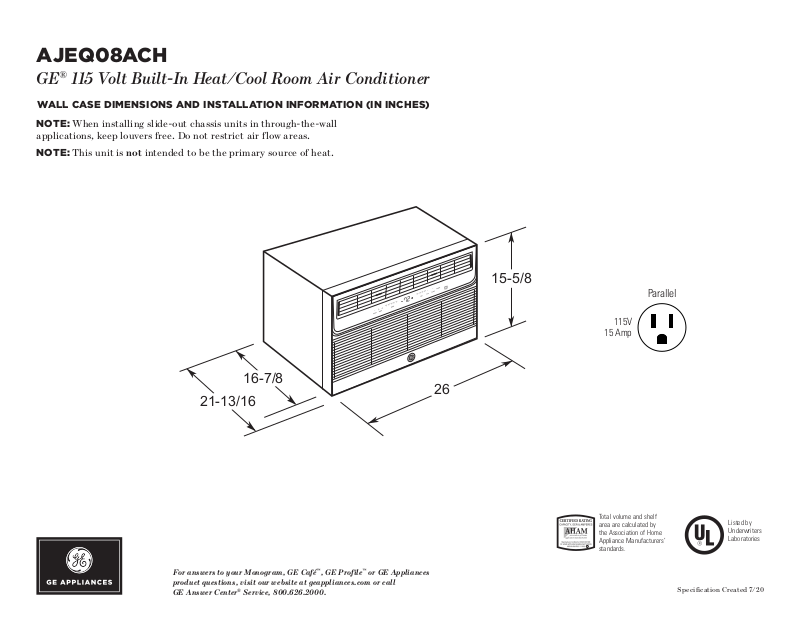

WALL CASE DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air f low areas.
NOTE: This unit is not intended to be the primary source of heat.
15-5/8
Parallel
115V
15 Amp
16-7/8
21-13/16
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
26
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 7/20
Page 2
AJEQ08ACH
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
GE® 115 Volt Built-In Heat/Cool Room Air Conditioner
WALL CASE DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
INSTAL L ATION I N FORMATI O N : A finished opening
of 26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame walls
should have wood studding surrounding case to provide
firm anchoring with screws. Case can be fastened directly
Make frame if desired or caulk
between case and siding
Lintel
to brick or block walls with screws sunk in lead expansion
shields.
NOTE: Units should be caulked on all four sides of case to
the building exterior to assure building integrity.
TWO WALL CASES FOR TENANT OPTION
INSTAL L ATION
26-1/8
15-3/4
OUTSIDE INSIDE
Caulking
Drip Rail
16-7/8
When the air conditioner is offered as a tenant option,
these wall cases provide protection against outside
elements.
RAB47 – includes wall case, exterior grille and steel
closure panels.
RAB48 – includes wall case, exterior grille, steel closure
Frame Construction
Flexible Mounting Position
Lintel
panel and two layers of insulation.
STANDARD WALL CASE RAB46
Solid-sided wall case fabricated of galvanized steel with
baked enamel finish. Welded areas are coated with a sealing
compound to help resist rust and corrosion. Polymer gasket
surrounds opening to assure tight weather seal. Aluminum
grille (RAG13) is included. Panels on interior and between case
and grille provide weather protection prior to installation
of chassis.Provide firm anchoring with screws. Case can be
Brick Block and Brick
Frame Construction
15-3/4
26-1/8
Fill open cells
with mortar
or insulation
fastened directly to brick or block walls with screws sunk in
lead expansion shields.
Plaster Line
Trim Molding
(if desired)
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 7/20
Page 3
AJEQ08ACH
GE® 115 Volt Built-In Heat/Cool Room Air Conditioner
FEATURES AND BENEFITS
True Built In Design – The ultimate fit & finish for more usable space and the best in built-in installation.
Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps
Premium Guard Seacoast Protection – Premium Seacoast Protection on heat/cool models has special coatings
and double coats of paint on key components including coils, base pan, compressor and stainless screws
Premium Finish – Bright, clean color & a decorative metallic silver accent encasing the air discharge louver,
provide an overall sleek appearance
Electronic Cap Touch Controls – Controls offer a high-end and smooth to-the-touch panel
Large LCD Auto-Dimming Display - Intuitive & large white LCD display can be easily seen from anywhere
in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
Slim Room Front – A slim room front provides more usable space in the room. It’s the sleekest design
in the industry
ECO Mode – Innovative mode where the fan cycles off during cooling intervals, creating energy savings
while keeping the room comfortable
Dry Mode – Designed for humid environments, it helps provide a dryer & more comfortable atmosphere
with room-air dehumidification
Auto Mode – Automatically select heating or cooling mode and fan speed to maintain the current temperature
setpoint. It monitors the room temperature for optimal comfort
3-Speed Fan – Select High, Medium, Low or Auto Setting to achieve the best in air comfort & ultimate
flexibility. Available on heat-cool models
6-Way Directional Airflow – Direct where the air flows with up to 6 directional vents—cooling and/or
heating the areas of the room that need it the most
Washable Filter – Easy to remove and rinse clean, the filter helps remove dust and other particles from
transmitting in the air—providing a cleaner environment
Remote Control Included – Slim, intuitive and easy to use, the remote control enables adjusting temperatures
and settings conveniently from anywhere in the room
Quiet Performance – Designed & engineered by GE Appliances for ultra-quiet comfort
Commercial Grade – Designed for durability with high-grade components and tested for long performance
Model AJEQ08ACH – Soft Gray
COOL DRY FAN
AUTO
HEAT
●
● ● ●
●
●
●
●
OFF
ON
SLEEP
TIMER MODE FAN
72
AUTO
LOW MED HIGH
●
●
●
●
●
●
POWER
FILTER
ECO
