AJEQ06LCF

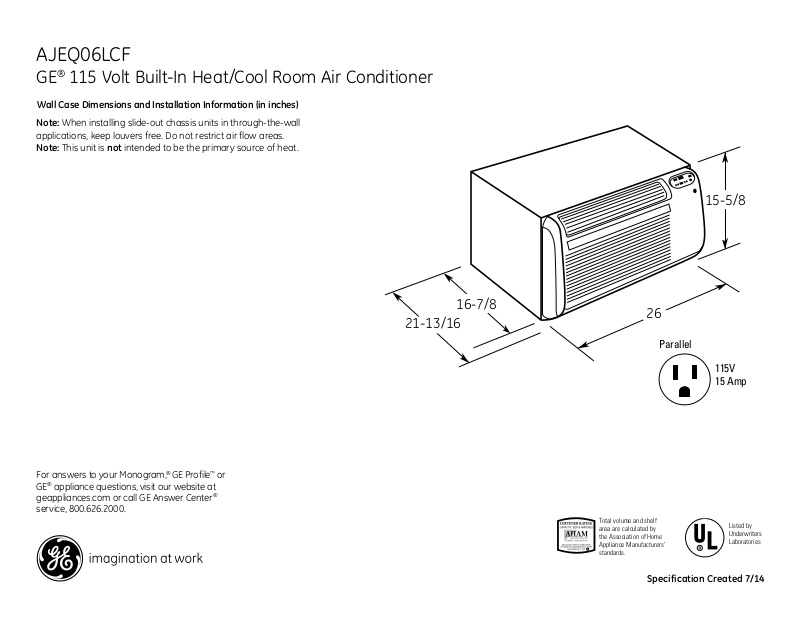

GE® 115 Volt Built-In Heat/Cool Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas. Note: This unit is not intended to be the primary source of heat.
15-5/8
16-7/8 |
26 |
|
21-13/16 |
||
|
Parallel
115V
15 Amp
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters Laboratories
Specification Created 7/14
AJEQ06LCF
GE® 115 Volt Built-In Heat/Cool Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Installation Information: A finished opening of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis. Provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
Make frame if desired or caulk between case and siding
26-1/815-3/4
Plaster Line
Lintel |
|
Trim Molding |
|
(if desired) |
|
OUTSIDE |
16-7/8 |
INSIDE |
|
|
|
Caulking |
|
|
Drip Rail |
|
|
Frame Construction |
Flexible Mounting Position |
|
|
Lintel |
|
15-3/4
26-1/8
Fill open cells
with mortar
Brick Block and Brick or insulation Frame Construction
Total volume and shelf |
Listed by |
|
area are calculated by |
||
Underwriters |
||
the Association of Home |
||
Laboratories |
||
Appliance Manufacturers’ |
||
|
||
standards. |
|
Specification Created 7/14
