GE AJCQ10ACH Specifications
AJCQ10ACH
Premium, Deluxe and Value Model
Wall Case Dimensions (in inches)

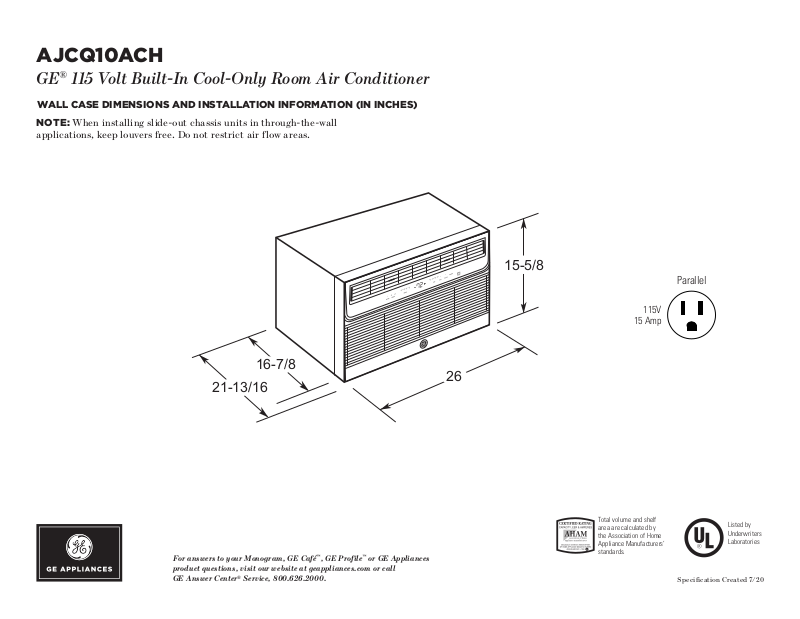

GE® 115 Volt Built-In Cool-Only Room Air Conditioner
WALL CASE DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
15-5/8
Parallel
115V
15 Amp
16-7/8
21-13/16
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
26
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 7/20
AJCQ10ACH
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
GE® 115 Volt Built-In Cool-Only Room Air Conditioner
DIMENSIONS (IN INCHES)
INSTA LLATION INFORM ATION: A finished opening
of 26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
Make frame if desired or caulk
between case and siding
Lintel
directly to brick or block walls with screws sunk in lead
expansion shields.
NOTE: Units should be caulked on all four sides of case
to the building exterior to assure building integrity.
WALL CASE FOR TENANT OPTION INSTALLATION
When the air conditioner is offered as a tenant option, this
26-1/8
15-3/4
OUTSIDE INSIDE
Caulking
Drip Rail
16-7/8
wall case provides protection against outside elements.
RAB48 – includes wall case, exterior grille,
Frame Construction
Flexible Mounting Position
steel closure panel and two layers of insulation.
STANDARD WALL CASE RAB46
Solid-sided wall case fabricated of galvanized steel
with baked enamel finish. Welded areas are coated with
Lintel
a sealing compound to help resist rust and corrosion.
Polymer gasket surrounds opening to assure tight weather
seal. Aluminum grille (RAG13) is included. Panels on
interior and between case and grille provide weather
protection prior to installation of chassis. Provide
firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in
lead expansion shields.
Brick Block and Brick
Frame Construction
15-3/4
26-1/8
Fill open cells
with mortar
or insulation
Plaster Line
Trim Molding
(if desired)
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 7/20
