AJCH08ACB – GE® ENERGY STAR® 115 Volt Built-In Room Air Conditioner

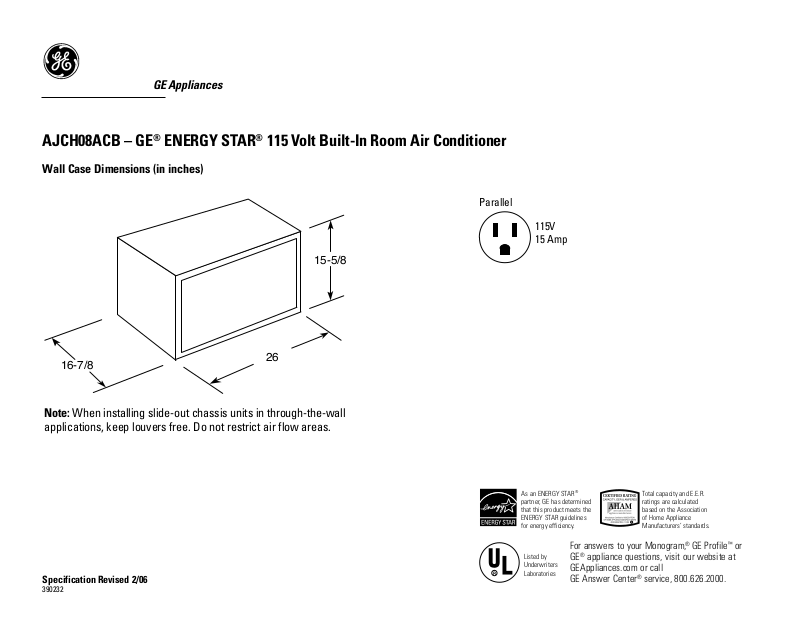

Wall Case Dimensions (in inches)
Parallel
115V 15 Amp
15-5/8
16-7/8 |
26 |
|
Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas.
Specification Revised 2/06
As an ENERGY STAR® |
Total capacity and E.E.R. |
partner, GE has determined |
ratings are calculated |
that this product meets the |
based on the Association |
ENERGY STAR guidelines |
of Home Appliance |
for energy efficiency. |
R Manufacturers’ standards. |
|
|
For answers to your Monogram,® GE Profile™ or |
|
Listed by |
GE® appliance questions, visit our website at |
R |
Underwriters |
GEAppliances.com or call |
Laboratories |
GE Answer Center® service, 800.626.2000. |
|
|
|
390232
GEAppliances
AJCH08ACB – GE® ENERGY STAR® 115 Volt Built-In Room Air Conditioner
Dimensions (in inches)
Make frame if desired or caulk between case and siding
26-1/815-3/4
|
|
Plaster Line |
Lintel |
|
Trim Molding |
|
(if desired) |
|
OUTSIDE |
16-7/8 |
INSIDE |
|
|
|
Caulking |
|
|
Drip Rail |
|
|
Frame Construction |
Flexible Mounting Position |
|
|
Lintel |
|
15-3/4 26-1/8
InstallationInformation: A finished opening of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis.provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
|
Fill open cells |
Brick Block and Brick |
with mortar |
or insulation |
|
Frame Construction |
|
