Page 1
GE Appliances
AJA12DF—”J Series” Cool Unit

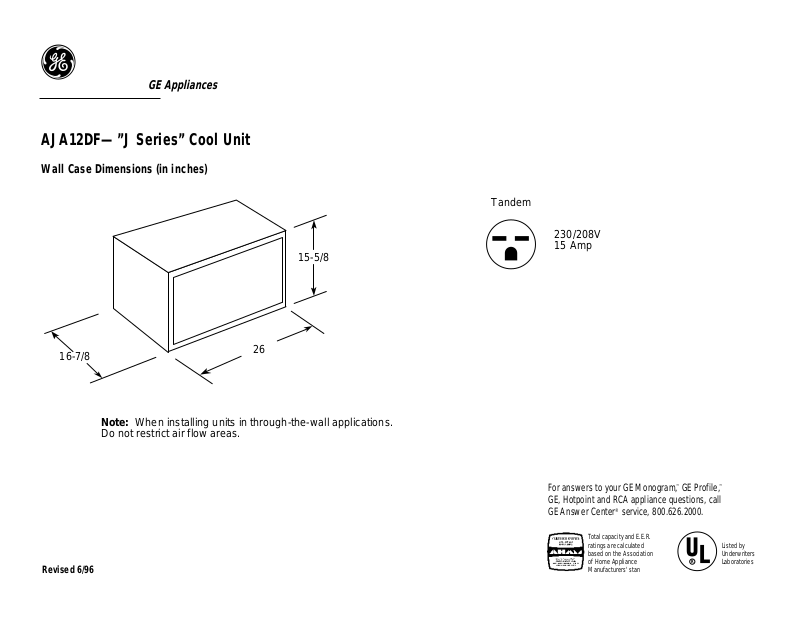

Wall Case Dimensions (in inches)
Tandem
230/208V
15 Amp
15-5/8
16-7/8
Revised 6/96
26
Note: When installing units in through-the-wall applications.
Do not restrict air flow areas.
For answers to your GE Monogram,™GE Profile,
GE, Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers' stan
R
™
Listed by
Underwriters
Laboratories
Page 2
GE Appliances
AJA12DF—Built-In Room Air Conditioner RAB46/47/48
Dimensions (in inches)
Make frame if desired or caulk
between case and siding
26-1/8
15-3/4
Frame Construction
Lintel
15-3/4
26-1/8
5" Min.
from floor
Fill open cells
with mortar
Brick Block and Brick
or insulation
Frame Construction
Revised 6/96
5" Min.
from floor
Plaster Line
Trim Moulding
Lintel
(if desired)
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Flexible Mounting Position
Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
For answers to your GE Monogram,™GE Profile,
GE, Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
™
Listed by
R
Underwriters
Laboratories
Page 3
GE Appliances
AJA12DF—”J Series” Cool Unit
THERMOSTAT SELECTOR
C
O
O
5
6
L
E
R
4
7
3
8
2
9
1
10
Features and Benefits
OFF
LOW
LOW
FAN
COOL
HIGH
HIGH
FAN
COOL
GE Quality Product
•Decorative Warm Gray-Beige Front
•11,500/11,300 BTUH, 8.5/8.5 EER, 230/208 Volts
•Hidden Energy Saver Switch for Reduced Energy Consumption
•10-Position Thermostat
•2 Cooling/2 Fan Speeds
•EZ Installation
•Slide-Out Filter for Easy Cleaning
•Hidden Exhaust Control for Air Exchange
•Slide-Out Chassis
•Wall Case–Optional Accessory
•Plug Type–Tandem
Revised 6/96
