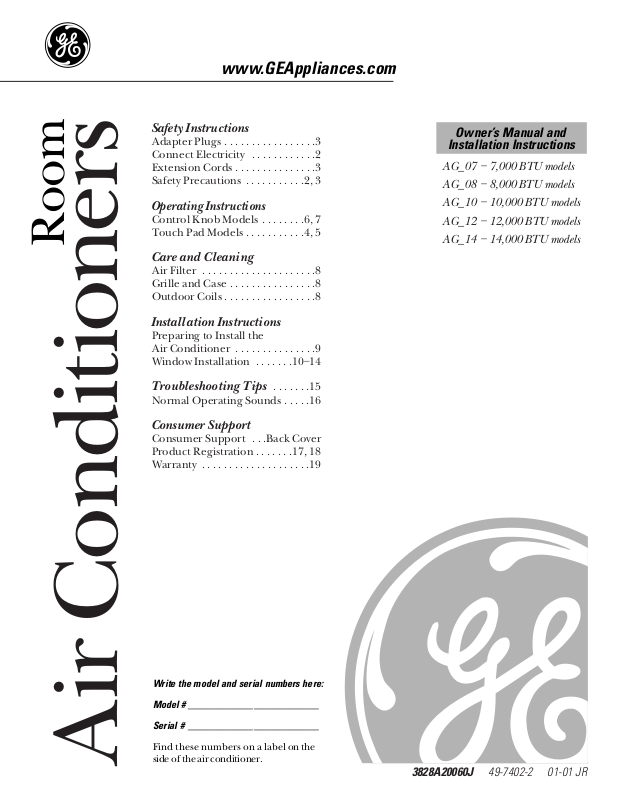

GE AG-07 User Manual

AG_07 – 7,000 BTU models
AG_08 – 8,000 BTU models
AG_10 – 10,000 BTU models
AG_12 – 12,000 BTU models
AG_14 – 14,000 BTU models
Air Conditioners

Safety Instructions

Adapter Plugs . . . . . . . . . . . . . . . . .3

Operating Instructions

Control Knob Models . . . . . . . .6, 7
Touch Pad Models . . . . . . . . . . .4, 5

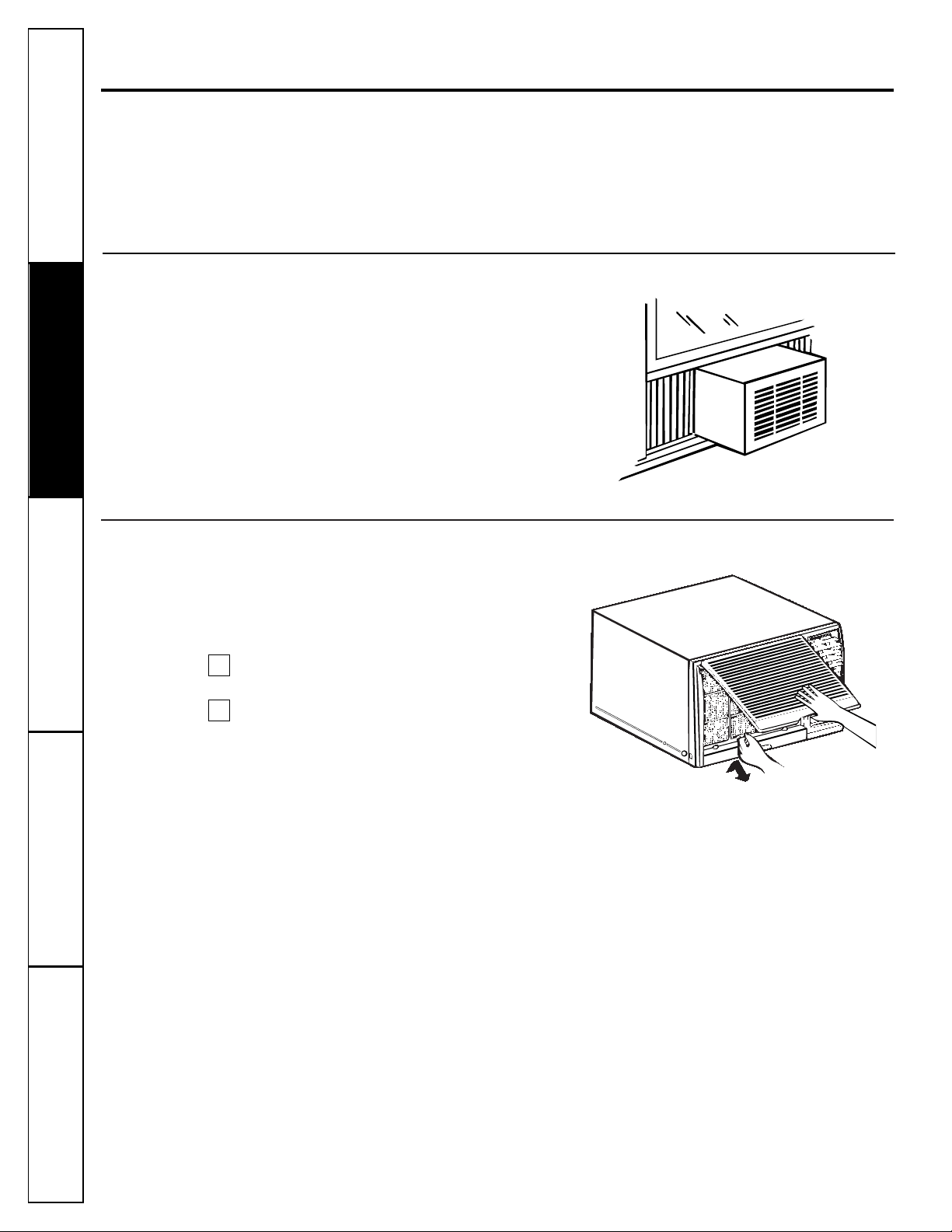

Care and Cleaning

Outdoor Coils . . . . . . . . . . . . . . . . .8

Installation Instructions

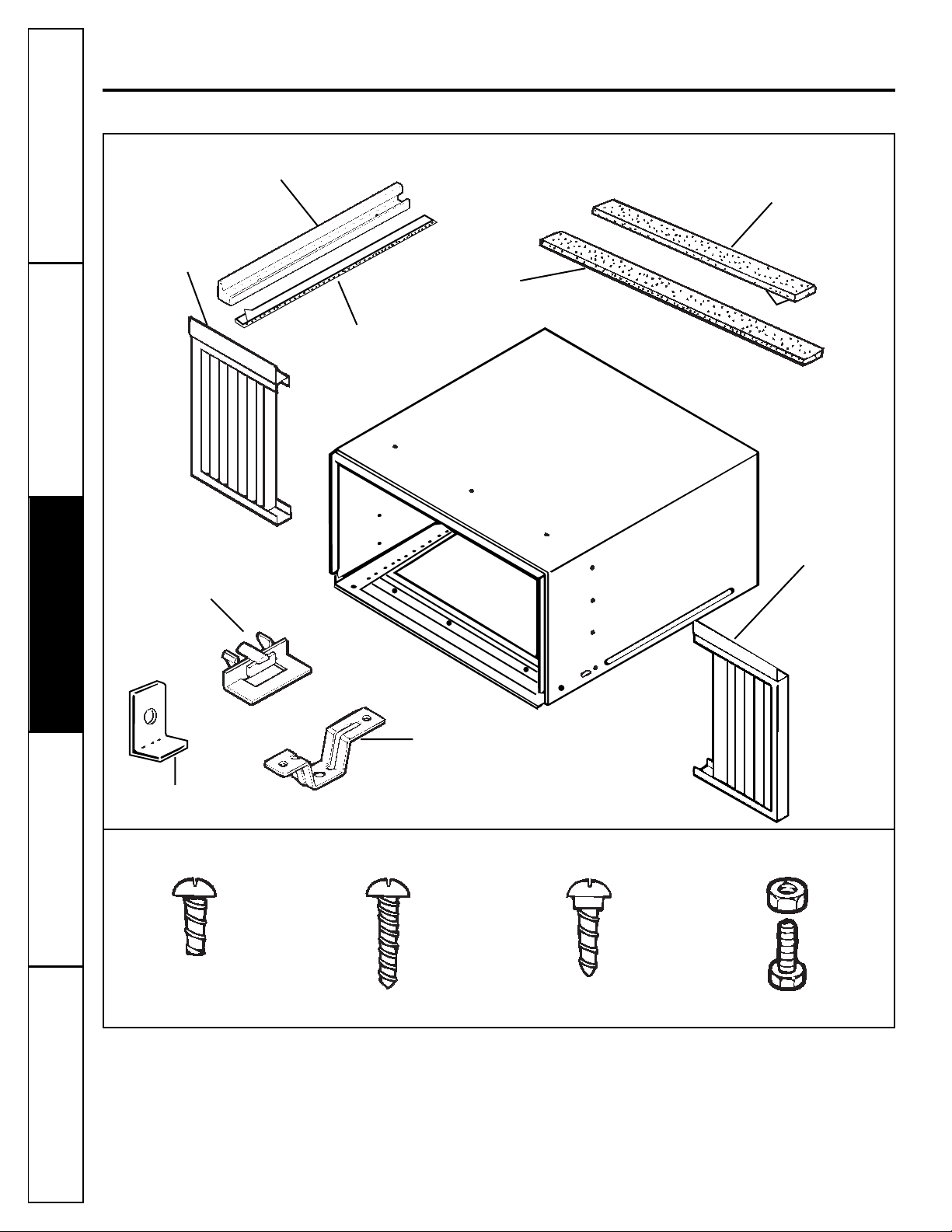

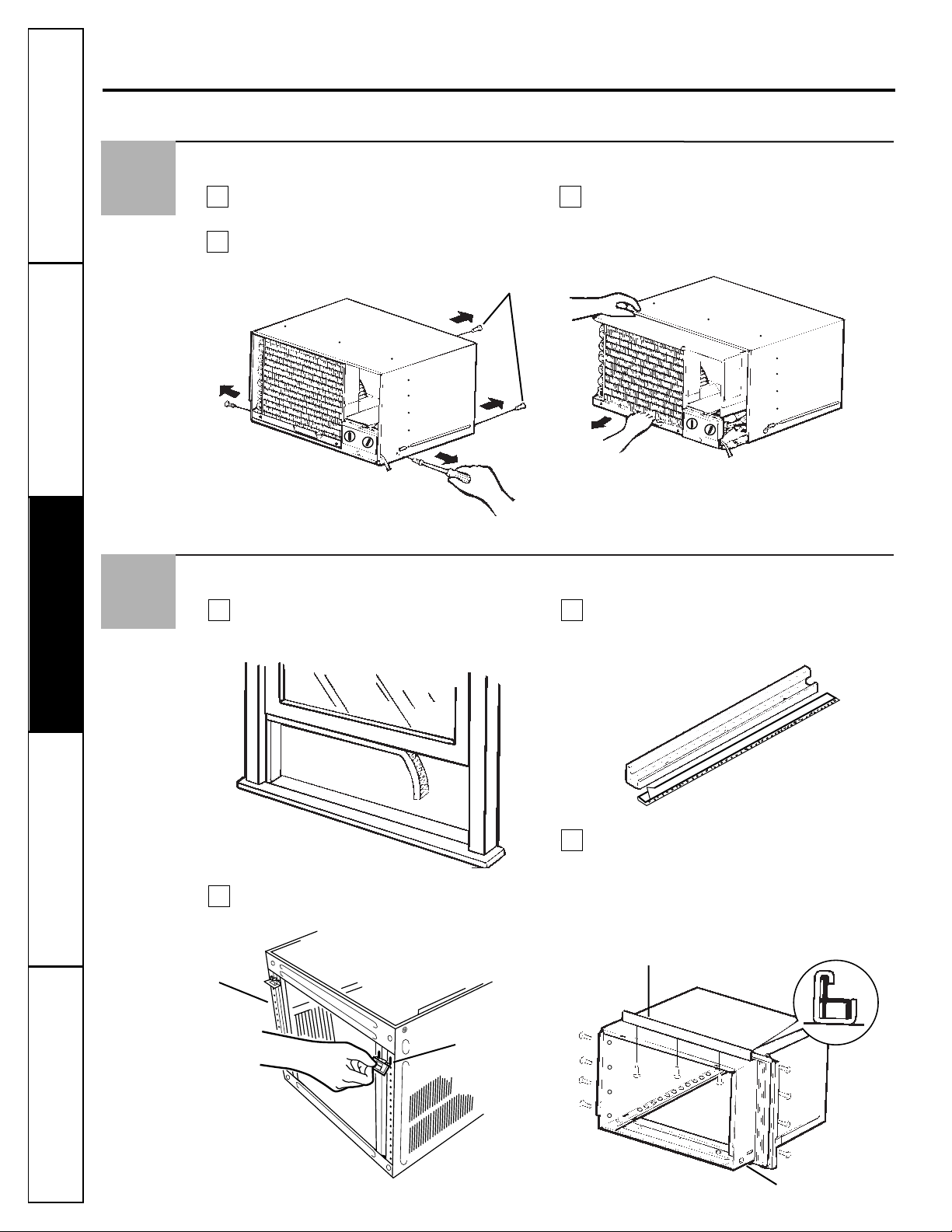

Preparing to Install the

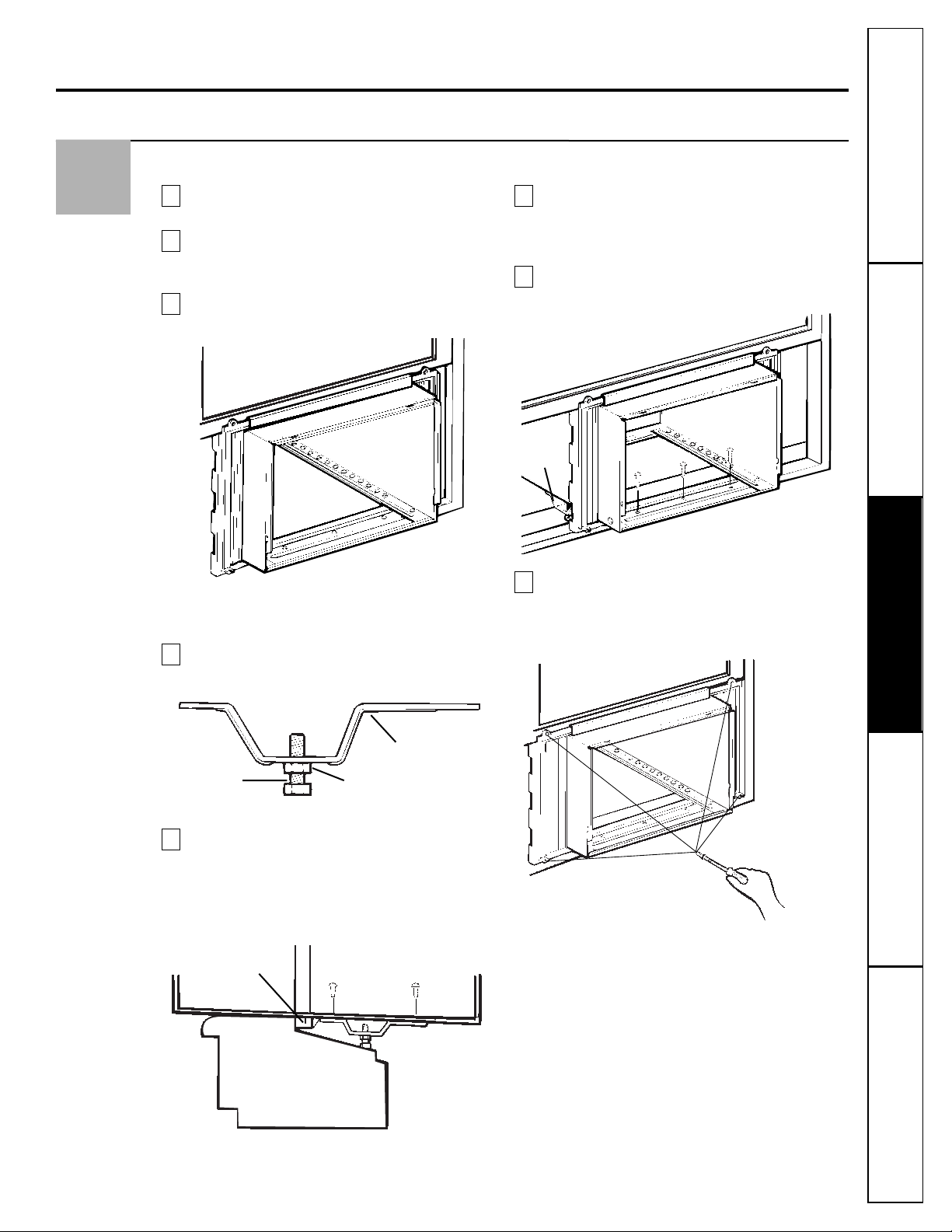

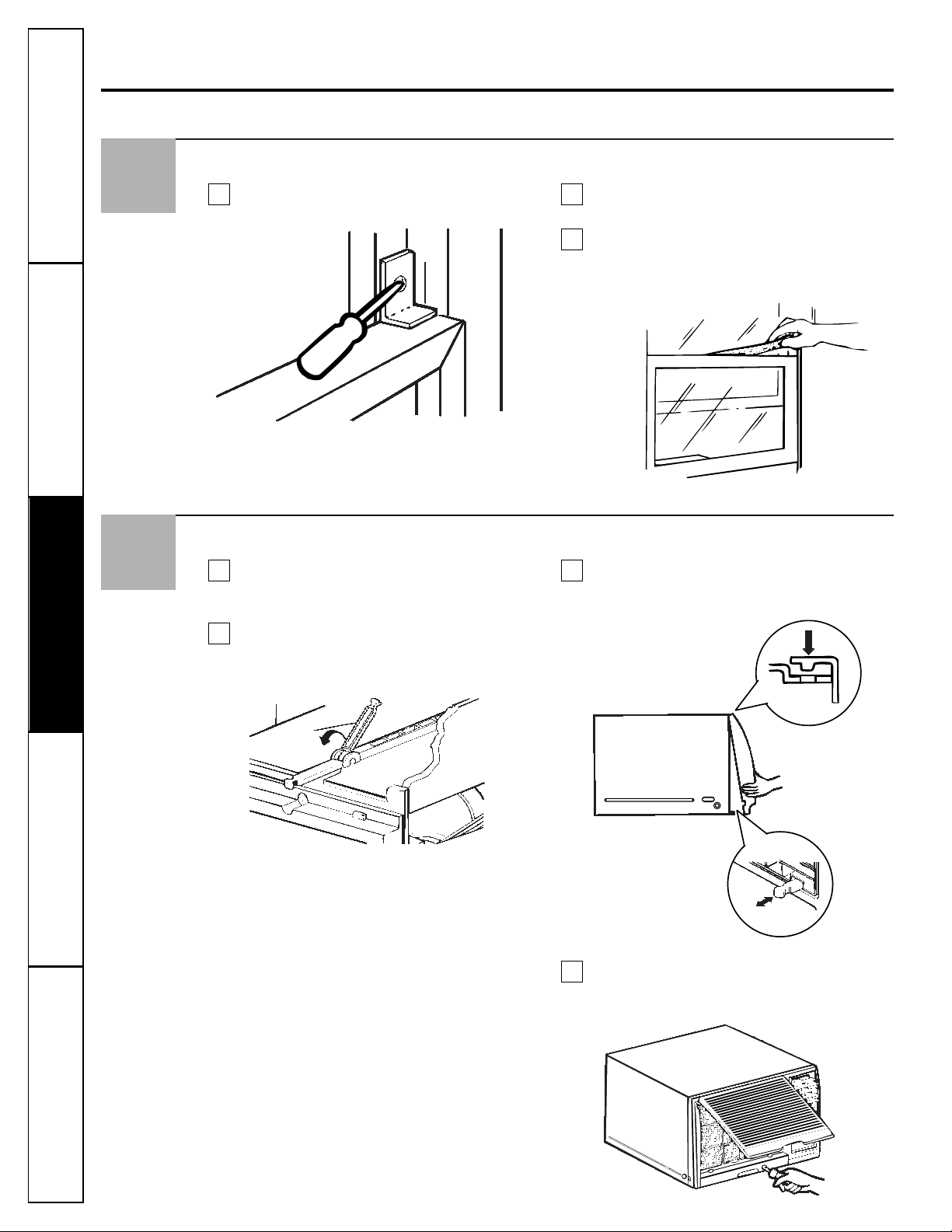

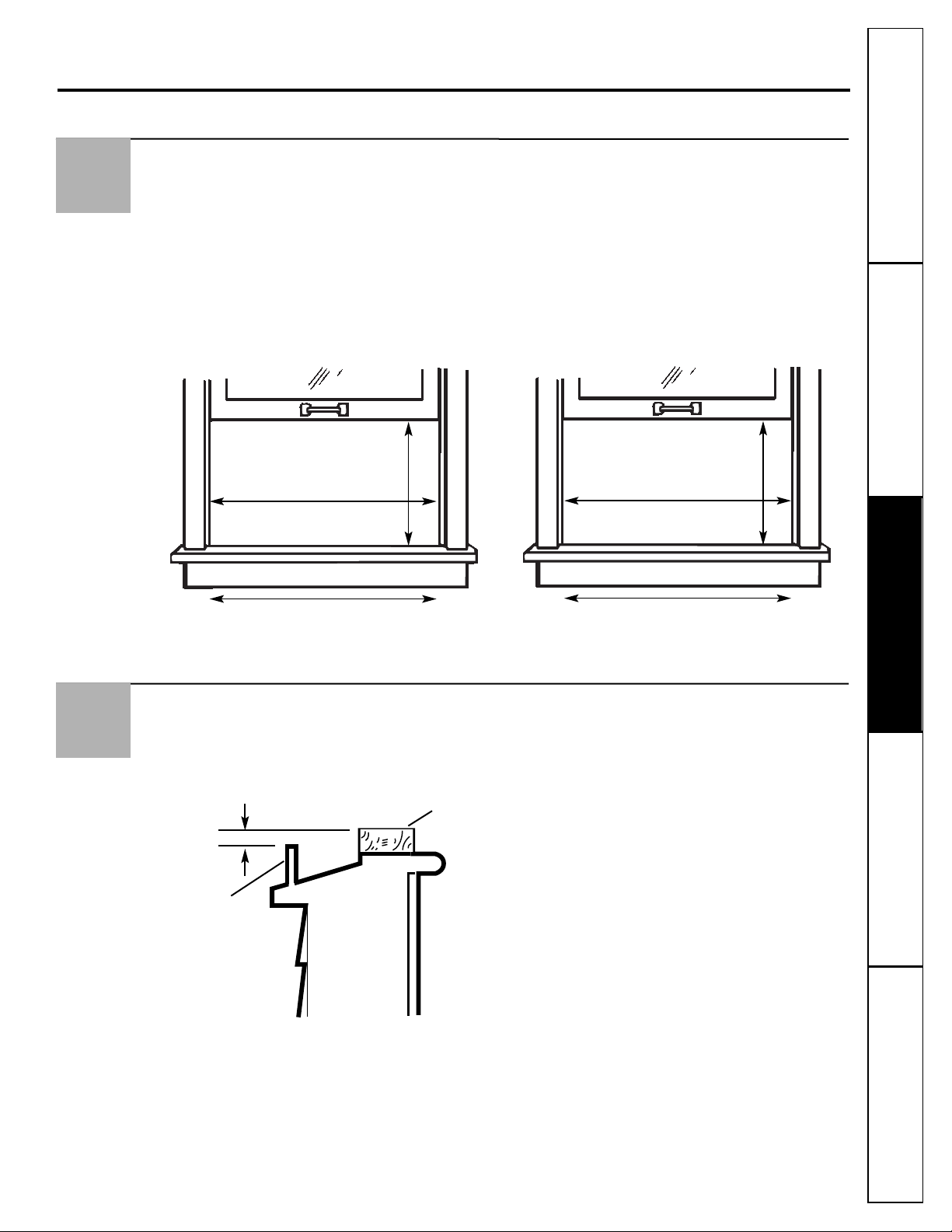

Window Installation . . . . . . .10–14
Troubleshooting Tips . . . . . . .15
Normal Operating Sounds . . . . .16

Consumer Support

Product Registration . . . . . . .17, 18
3828A20060J 49-7402-2 01-01 JR
Owner’s Manual and
Installation Instructions
www.GEAppliances.com
Write the model and serial numbers here:
Model # __________________________
Serial # __________________________
Find these numbers on a label on the side of the air conditioner.
Room
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s Manual.
■This air conditioner must be properly
installed in accordance with the Installation Instructions before it is used.
■Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly and pull straight out from the receptacle.
■ Repair or replace immediately all electric
service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
■ Turn the mode control to
OFF
and unplug your air conditioner before making any repairs or cleaning.
NOTE:
We strongly recommend that any servicing be performed by a qualified individual.
■ For your safety…do not store or use
combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

SAFETY PRECAUTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY
Consumer Support Troubleshooting Tips
Operating Instructions
Safety InstructionsInstallation Instructions
2
3
Consumer SupportTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
WARNING!
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of the 230/208 volt models.
USE OF EXTENSION CORDS –
115-Volt models only
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.
However, if you must use an adapter, where local codes permit, a
temporary connection
may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.
The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.
When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.
If the adapter ground terminal breaks,
DO NOT
USE
the air conditioner until a proper ground
has been established.
Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.
USE OF ADAPTER PLUGS –
115-Volt models only
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
www.GEAppliances.com
4
Consumer Support Troubleshooting Tips
Operating Instructions
Safety InstructionsInstallation Instructions
■ To ensure proper operation, aim the
remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up
to 21 feet.
■ Make sure nothing is between the air
conditioner and the remote control that could block the signal.
■ Make sure batteries are fresh and installed
correctly–see the
Care and Cleaning
section.
About the controls on the air conditioner–models with touch pads.
Features and appearance will vary.
Air Conditioner Controls
Controls
ON/OFF Pad
Turns air conditioner on and off.
Display
Shows the set temperature or time remaining on timer.
MODE
Use to set the air conditioner to
COOL
or
FAN
mode.
Increase ▲ /Decrease ▼Pads
Use to set temperature when in
COOL
mode.
FAN Pad
Use to set the fan speed to
LOW (F1), MED (F2)
or
HIGH (F3).
ENERGY SAVER–
Controls the fan.
ON–
The fan and compressor cycle on and off. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied.
Note: The fan will continue to run for a short time after the compressor cycles off.
OFF–
The fan runs all the time, while the
compressor cycles on and off.
This switch must be set at
OFF
in order to use
the fan settings (on the mode control).
CIRCULAIRE
For continuous side-to-side air circulation (cool settings only), set the Circulaire switch to ON.
For fixed side-to-side air direction, turn
ON
until the desired air direction is obtained, then turn it
OFF
.
TIMER Pad
ON–
When the air conditioner is off, it can be set to automatically come on in 1 to 12 hours at its previous setting. Each touch will set the timer in hours.
OFF–
When the air conditioner is on, it can be set to automatically turn off in 1 to 12 hours. Each touch will set the timer in hours. After the timer has been on for 30 minutes, the temperature will automatically rise 2°F, and after another 30 minutes, it will automatically rise 2°F again. The temperature will then stay the same until the timer goes
OFF
.
To cancel the timer, press the
TIMER
pad until
the display time disappears.
Remote Control Signal Receiver
Remote Control
Remote Control
www.GEAppliances.com
When the air conditioner is turned on, it will automatically start in the last cool and fan settings used.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
COOL Mode
Use the
COOL
mode with
HIGH (F3), MED (F2)
or
LOW (F1)
fan for cooling. Use the
INCREASE ▲ /
DECREASE
▼ pads to set the desired temperature
between 60°F and 86°F in 1°F increments.
A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling–
Select the
COOL
mode and
HIGH (F3)
or
MED (F2)
fan with a middle set
temperature.
For Maximum Cooling–
Select the
COOL
mode
and
HIGH (F3)
fan with a lower set temperature.
For Quieter & Nighttime Cooling–
Select the
COOL
mode and
LOW (F1)
fan with a middle set
temperature.
NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.
FAN Mode
Use the
FAN
at
HIGH (F3), MED (F2) orLOW (F1)
to provide air circulation and filtering without cooling. Since fan only settings do not provide cooling, a temperature setting will not be displayed.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

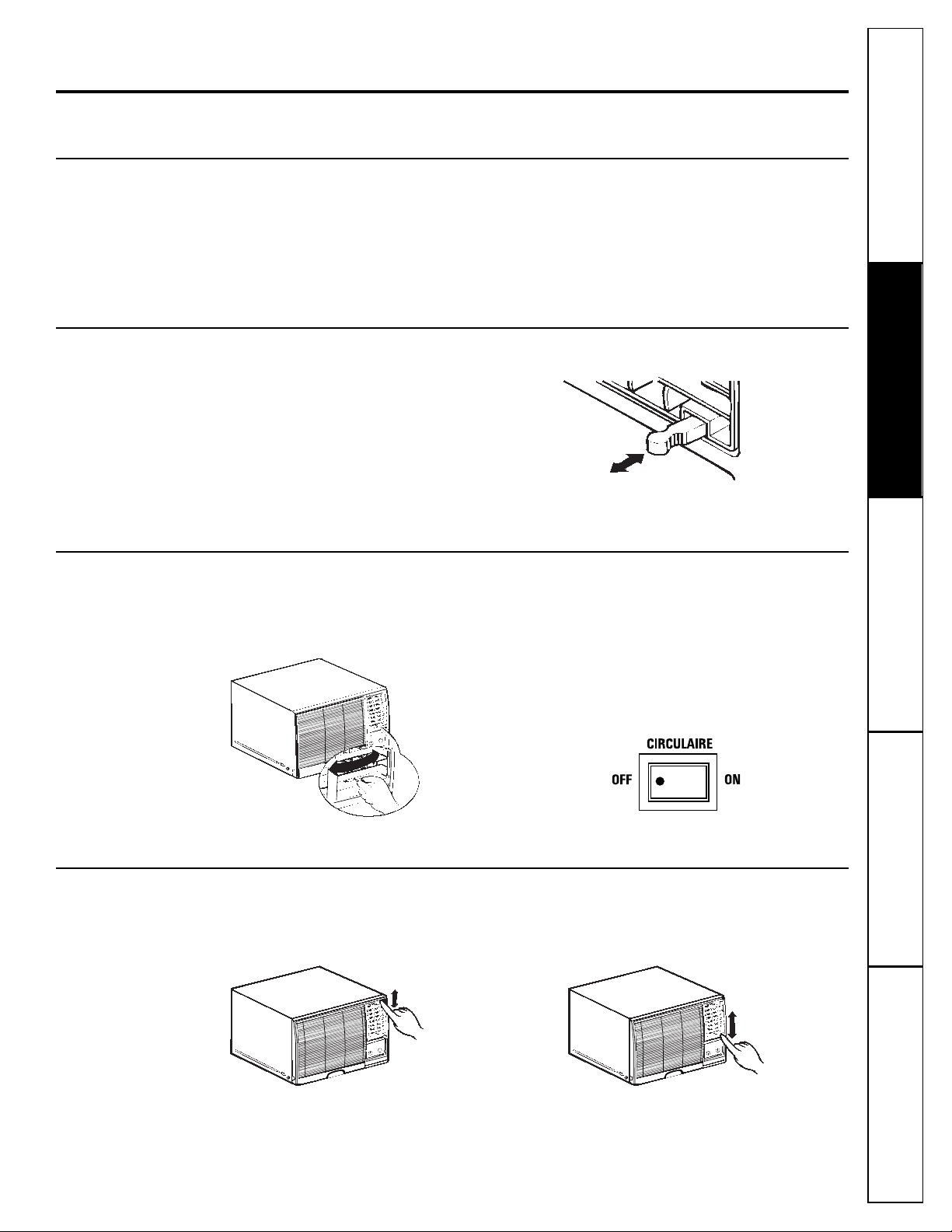

Vent Control
The vent control is located above the control panels.
When set at
CLOSE
, only the air inside the room
will be circulated and conditioned. When set at
OPEN
, some inside air is exhausted outside.
To open the vent, pull the lever toward you. To close it, push it in.
Air Direction – Side-to-Side
The side-to-side air direction is adjusted by moving the lever to the left or right.
5
Air Direction – Up and Down
Fingertip pressure on the horizontal louvers adjusts the air direction up or down.
(on some models)
About the controls on the air conditioner–models with control knobs.
Features and appearance will vary.
Controls
Mode Controls
HIGH COOL, MED COOL
and
LOW COOL
provide
cooling with different fan speeds.
LOW FAN
or
HIGH FAN
provides air circulation
and filtering without cooling.
NOTE: If you move the switch from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.
Cooling Descriptions
For Normal Cooling
—Select
HIGH COOL
or
MED
COOL
with the temp control at midpoint.
For Maximum Cooling
—Select
HIGH COOL
with the temp control at the highest number available on your knob.
For Quieter & Nighttime Cooling
—Select
LOW COOL
with the temp control at midpoint.
Temp Controls
The temp control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number, the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.
MODE CONTROLS
Your model will have one of the above type controls.
TEMP CONTROLS
Your model will have one of the above type controls.
OFF
LOW
FAN
LOW
COOL
HIGH
FAN
HIGH COOL
MED COOL
OFF
LOW
FAN
LOW COOL
HI
FAN
HI
COOL
Consumer Support Troubleshooting Tips
Operating Instructions
Safety InstructionsInstallation Instructions
6
4
3
2
5
1
6
7
8
9
10
45
3
2
1
34
6
7
8
2
1
5
6
