GE AEV24, AEQ24, AEW24, AEH24 User Manual

AEH24 AEQ24

AEV24

AEW24

Safety Instructions . . . . . . . .2, 3

Operating Instructions

Additional Controls . . . . . . . . . .7

Control Knob Models . . . . . . . .6

Normal Operating Sounds . . . .7

Touch Pad Models . . . . . . . . .4, 5

Care and Cleaning

Air Filter . . . . . . . . . . . . . . . . . .8

Grille and Case . . . . . . . . . . . . .8

Outdoor Coils . . . . . . . . . . . . . .8

Installation Instructions

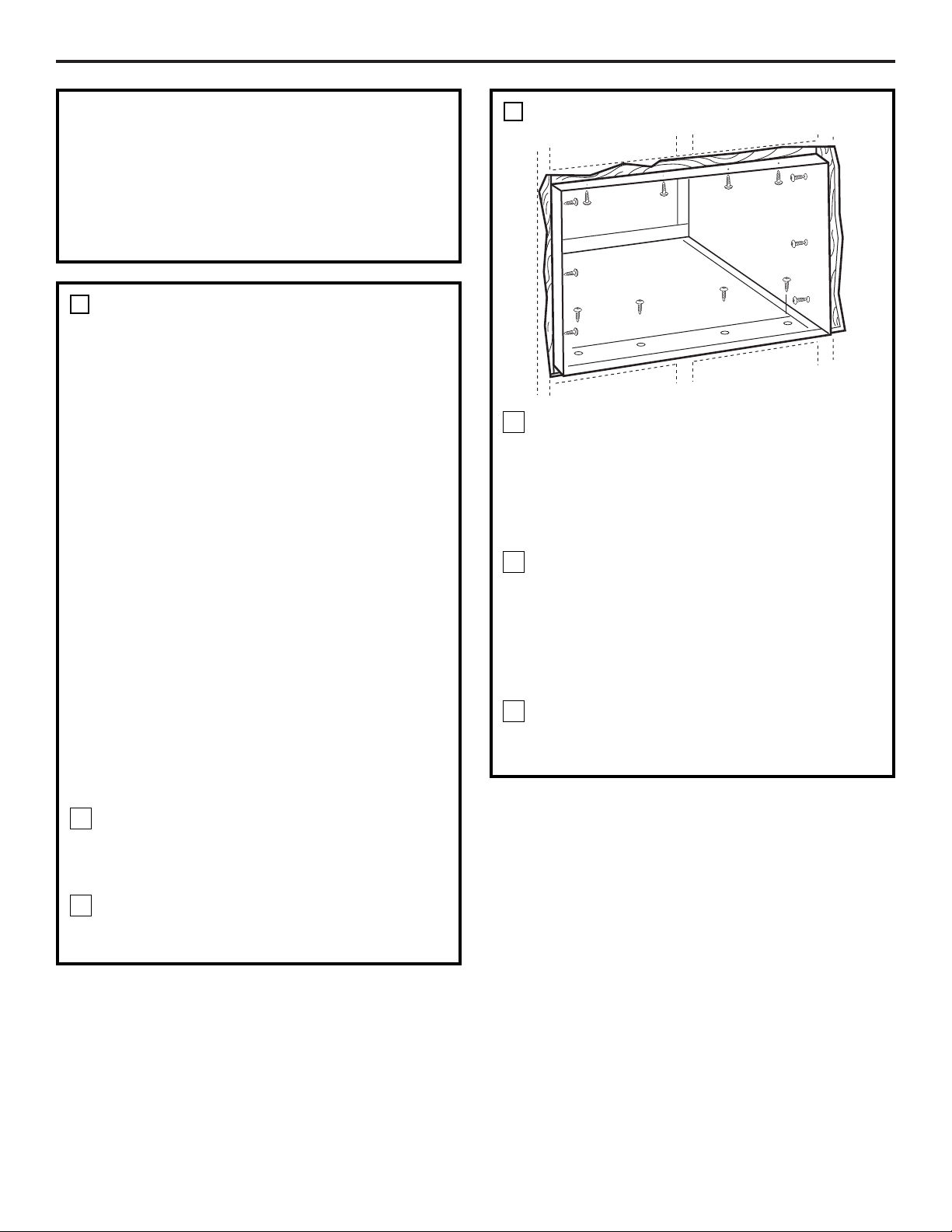

Through-the-Wall

Installation—Optional . . . . . . .15

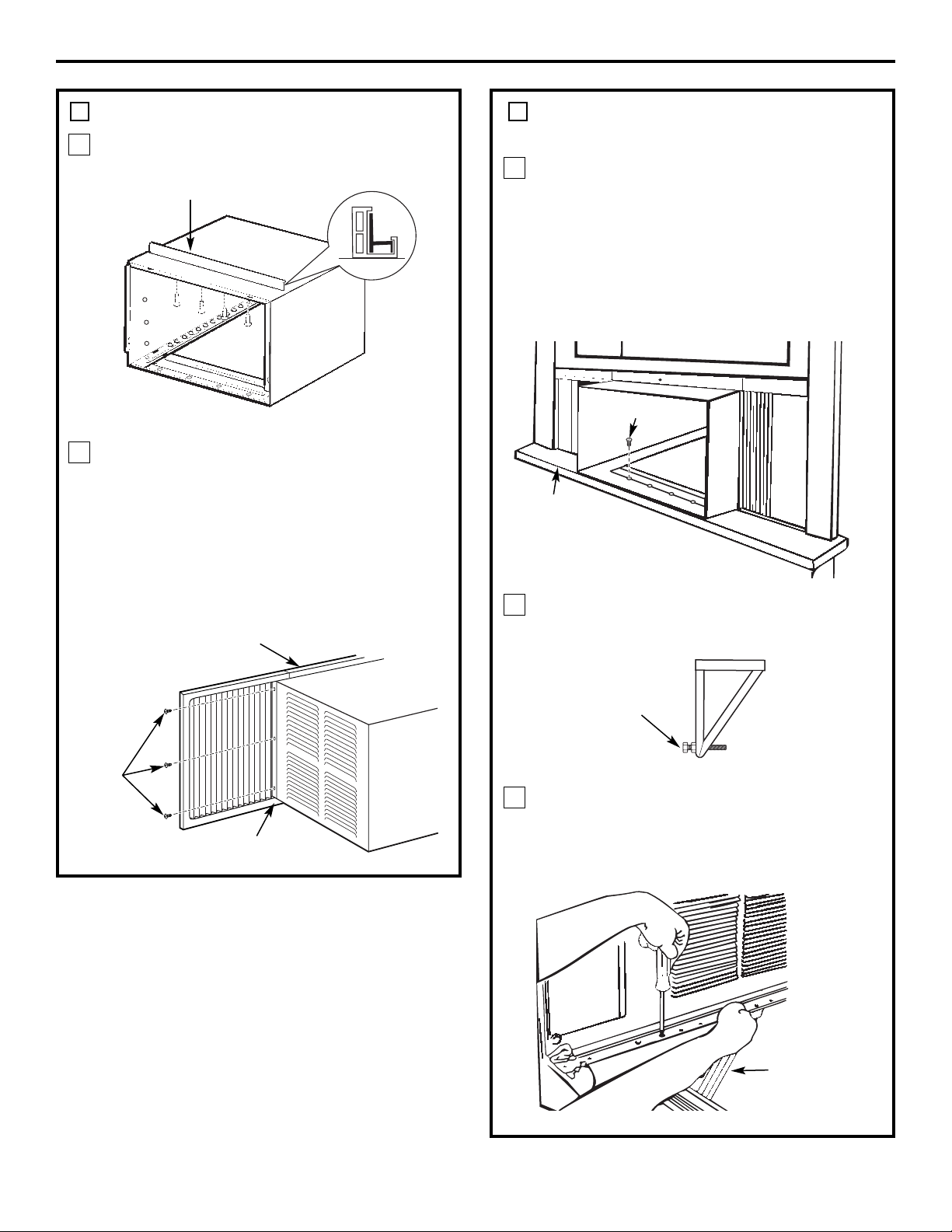

Window Installation . . . . . . .9–14

Troubleshooting Tips . . . . . .16

Consumer Support

Consumer Support . . . . . . . . .20

Product Registration . . . . .17, 18

Warranty . . . . . . . . . . . . . . . . .19

49-7562 11-06 JR

Owner’s Manual and

Installation Instructions

Write the model and serial numbers here:

Model # __________________________

Serial # __________________________

Find these numbers on a label on the side of the air conditioner.

Air Conditioners

Room

ge.com

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

■ Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■ This air conditioner must be properly

installed in accordance with the Installation Instructions before it is used.

■ Never unplug your air conditioner by pulling

on the power cord. Always grip plug firmly and pull straight out from the receptacle.

■ Replace immediately all electric service

cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ If the receptacle does not match the plug,

the receptacle must be changed out by a qualified electrician.

■ Turn the unit OFF and unplug your air

conditioner before making any repairs or cleaning.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

■ For your safety…do not store or use

combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

■ All air conditioners contain refrigerants,

which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

SAFETY PRECAUTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

HOW TO CONNECT ELECTRICITY

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Consumer Support

Troubleshooting TipsOperating Instructions

Safety Instructions

Installation Instructions

WARNING!

CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

EXTENSION CORDS

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

ge.com

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

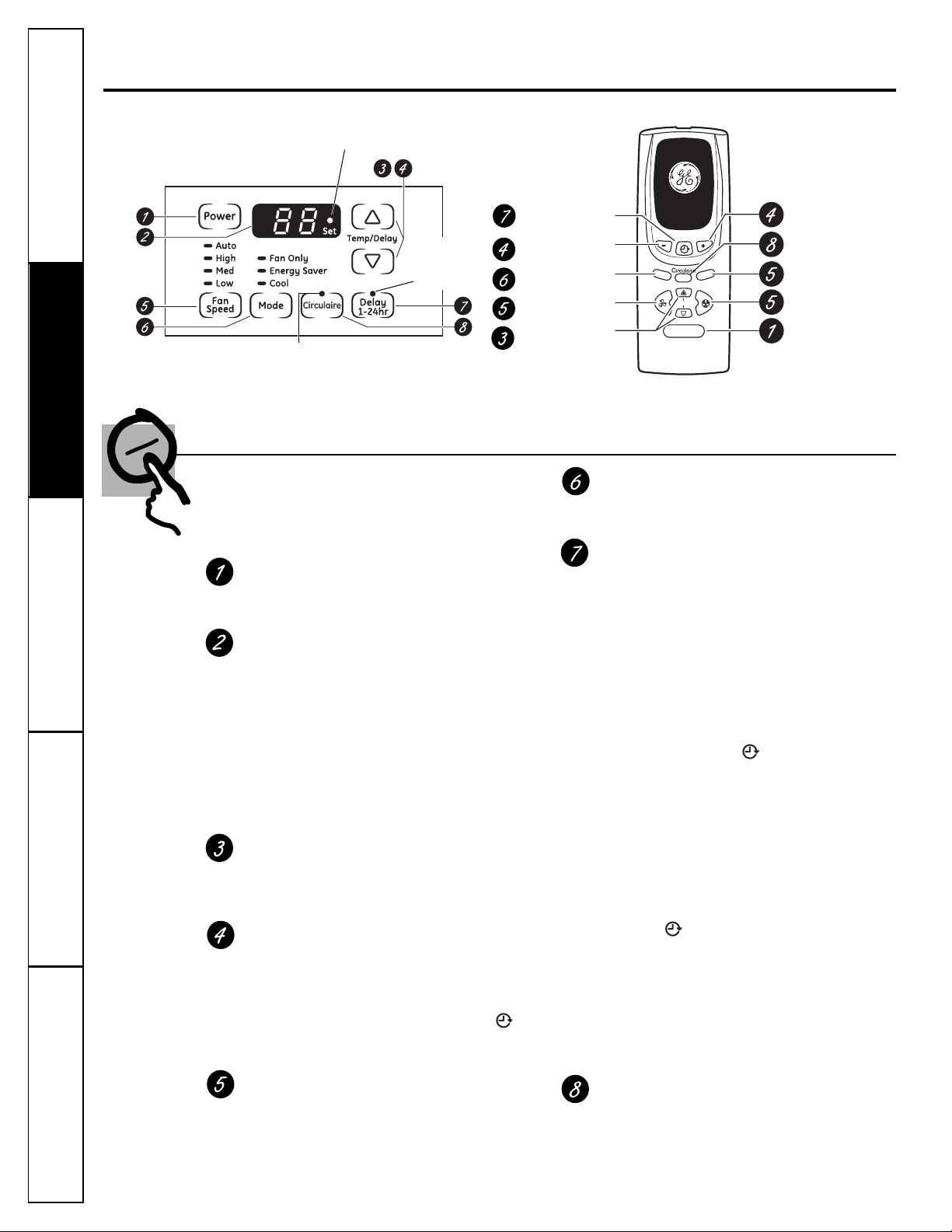

About the controls on the air conditioner—models with touch pads.

Controls

The air conditioner controls are located behind the control panel door. Press to open and close the door.

NOTE: The remote control will work with the control panel door open or closed.

Power Pad

Turns air conditioner on and off. When turned on, the display will show the room temperature.

Display

Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or Energy Saver modes. The Set light will turn on while setting.

NOTE: The display will change to show the room temperature after settings have been made. To recall the Set temperature, press the

Temp Increase ▲ or Decrease ▼ pads.

Temp Increase ▲ /Decrease ▼ Pads

Use to set temperature when in Cool or Energy Saver mode. The Set light will turn on while

setting.

Delay Timer Increase ▲ (+) /Decrease ▼ (–) Pads

Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control will set the delay time when using the Delay 1–24hr timer ( ). The Set light will turn on while setting.

Fan Speed Pads

Use to set the fan speed to Low, Med, High or Auto on the unit. NOTE: On the remote control, use the fan speed Increase + /

Decrease – pads to set the fan speeds to Low, Med or High. Use the Auto pad to turn Auto

fan on.

Mode Pad

Use to set the air conditioner to Cool, Energy Saver or Fan Only mode.

Delay Pads

Delay ON—When the air conditioner is off, it

can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings.

Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours.

How to set:

Press the Delay 1–24hr pad on the unit or the pad on the remote control. Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control will set the timer in 1-hour intervals. The Set light will turn on while setting.

To review the remaining time on the Delay 1–24hr timer, press the Delay 1–24hr pad on the unit or the pad on the remote control. Use the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control to set a new time if desired.

To cancel the timer, press the Delay 1–24hr pad until the light on the Delay 1–24hr pad goes off.

CIRCULAIRE Pad

Turn on to provide continuous side-to-side air circulation.

For fixed side-to-side air direction, turn on until the desired air direction is obtained, then turn it off.

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

Delay 1–24hr

Delay timer Decrease

Mode select

Fan speed Decrease

Temperature set Increase and Decrease

Remote Control

Delay timer Increase

Circulaire

Auto Fan on/off

Fan speed Increase

Unit power on/off

The display always shows the room temperature except when setting the Set temperature or the Delay timer.

Air Conditioner Controls

Light indicates the delay timer is set.

Light indicates the unit is in the temperature or delay time Set mode.

Light indicates Circulaire is on.

Delay

Power

Temp

Consumer Support

Troubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

■ To ensure proper operation, aim the remote

control at the signal receiver on the air conditioner.

■ The remote control signal has a range of

up to 20 feet.

■ Make sure nothing is between the air conditioner

and the remote control that could block the signal.

■ Make sure batteries are fresh and installed

correctly as indicated on the remote control.

Remote Control

ge.com

Cool Mode

Use the Cool mode at Low, Med, High or Auto Fan Speed for cooling. Use the Temperature Increase ▲ / Decrease ▼ pads to set the desired temperature

between 64°F and 86°F in 1°F increments.

An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.

For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.

For Quieter & Nighttime Cooling—Select the Cool mode and Low fan with a middle set

temperature.

Fan Only Mode

Use the Fan Only Mode at Low, Med or High fan speed to provide air circulation and filtering without cooling. Since fan only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display.

NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.

Set to Auto fan speed for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature.

If the room needs more cooling, the fan speed will automatically increase. If the room needs less cooling, the fan speed will automatically decrease.

NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.

Energy Saver Mode

Controls the fan.

ON—The fan will cycle on and off with the compressor. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. NOTE: The fan may continue to run

for a short time after the compressor cycles off.

OFF—The fan runs all the time, while the compressor cycles on and off.

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. If the Delay 1–24hr

feature was set, it will resume countdown. You may need to set a new time if desired.

Power Outage Recovery Feature

Auto Fan Speed

This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions.

Do Not Operate in Freezing Outdoor Conditions

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

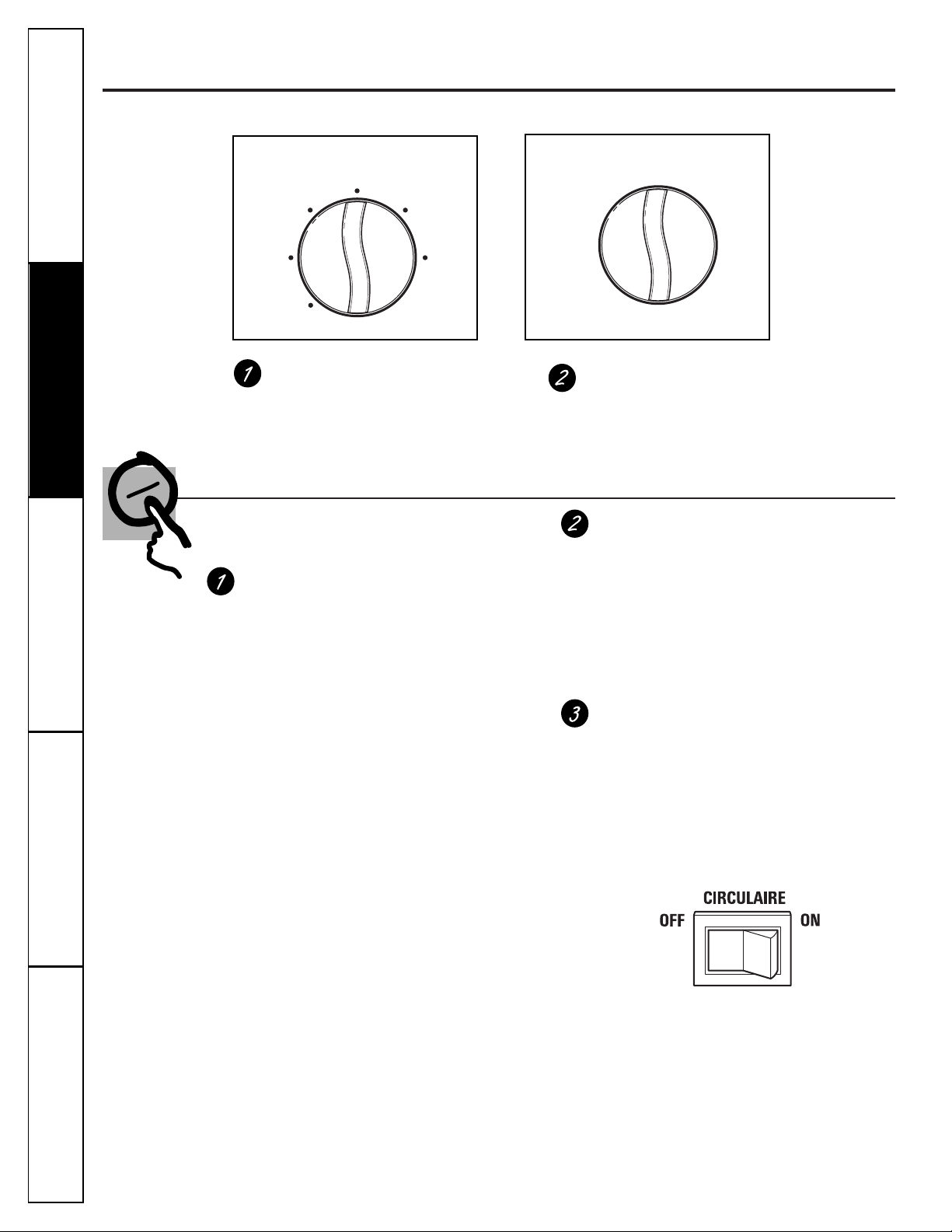

About the controls on the air conditioner—models with control knobs.

Features and appearance will vary.

Controls

The air conditioner controls are located behind the control panel door. Press to open and close the door.

Mode Control

High Cool, Med Cool and Low Cool

provide cooling with different fan speeds.

Fan settings provide air circulation and filtering without cooling.

NOTE: If you move the mode control from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.

Cooling Descriptions

For Normal Cooling—Select High Cool or Med Cool

with the TEMPERATURE control at midpoint.

For Maximum Cooling—Select High Cool with the TEMPERATURE control at the highest number available on your knob.

For Quieter & Nighttime Cooling—Select Low Cool with the TEMPERATURE control at midpoint.

TEMP Control

The TEMP control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number, the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.

CIRCULAIRE

For continuous side-to-side air circulation, set the Circulaire switch to ON.

For fixed side-to-side air direction, set the Circulaire switch to ON until the desired air direction is obtained, then move it to OFF.

MODE CONTROL TEMPERATURE CONTROL

MODE

High Cool

OFF

High

Fan

Coolest

TEMP

Med Cool

Low

Cool

Low

Fan

Vent Control

The vent control is located above the control panels.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some outside air is let into the room.

To open the vent, push the lever to the right. To close it, push it to the left.

Air Direction—Up and Down

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Control Panel Door

Press to open and close the door.

NOTE: The remote control (on some models) will work with the control panel door open or closed.

Consumer SupportTroubleshooting TipsOperating Instructions

Safety Instructions

Installation Instructions

Additional controls. ge.com

Normal operating sounds.

■ You may hear a pinging noise caused by

water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

■ You may hear the thermostat click when the

compressor cycles on and off.

■ Water will collect in the base pan during

high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.

■ The fan may run even when the compressor

does not.

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

To remove:

Open the inlet grille upward by pulling out the bottom of the inlet grille.

Using the tab, pull up slightly on the filter to release it and pull it down.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

CAUTION: DO NOT operate the air

conditioner without a filter because dirt and lint will clog it and reduce performance.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

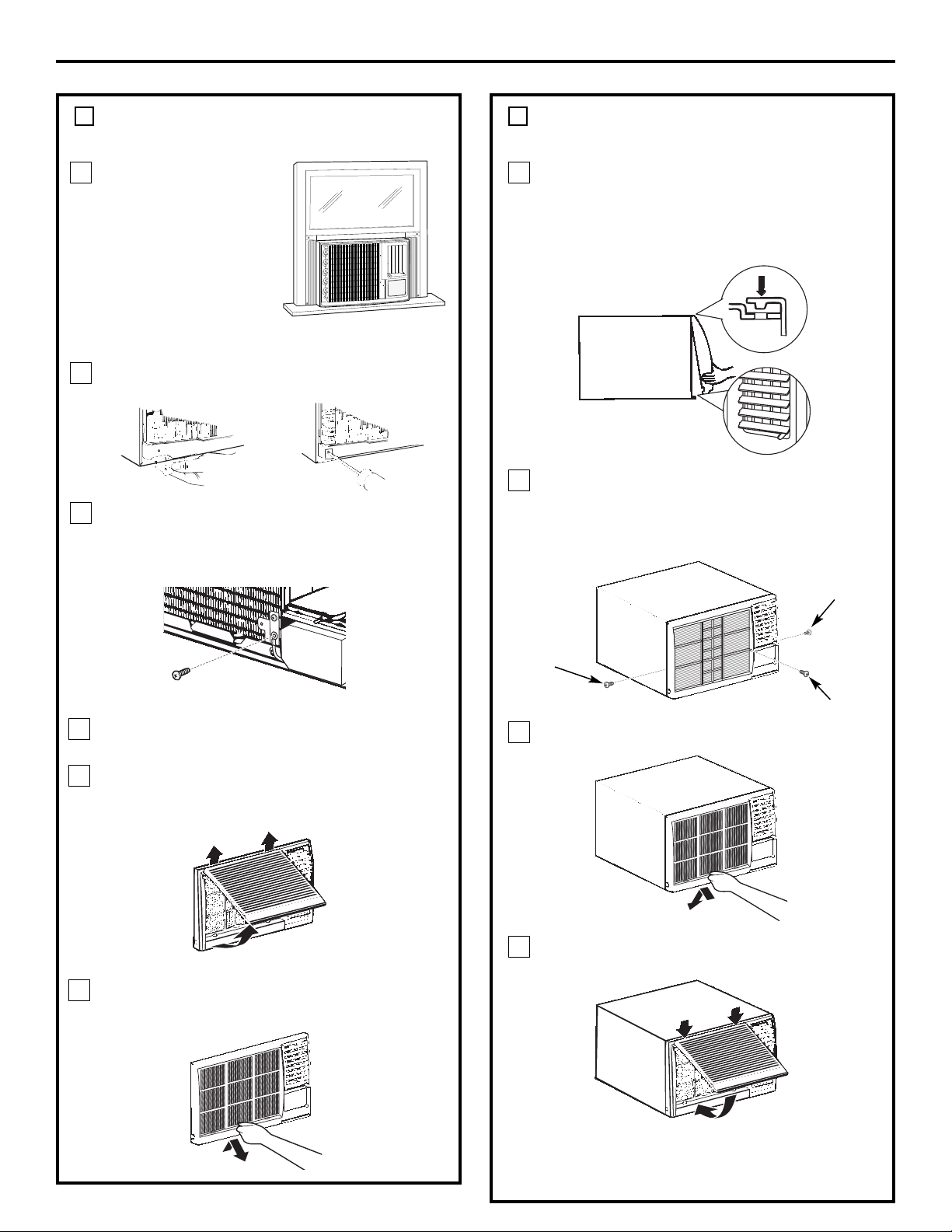

Grille Frame Removal (if necessary for coil cleaning)

Remove the air filter. See the Air Filter section above. If present, remove the grille frame attachment screw.

Grasp the lower corners of the grille frame while pressing in on the case side tabs with your finger tips. Pull out to release and lift it up.

NOTE: Do not pull the bottom edge toward you more than 3″ or you may damage the tabs of the grille.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Care and cleaning of the air conditioner.

How to Insert the Batteries in the Remote Control

Remove the battery cover by sliding it according to the arrow direction.

Insert new batteries, making sure that the (+) and (–) of battery are installed correctly.

Reattach the cover by sliding it back into position.

NOTES:

■ Use 2 “AAA” (1.5 volt) alkaline batteries. Do not

use rechargeable batteries.

■ Remove the batteries from the remote control if

the system is not going to be used for a long time.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

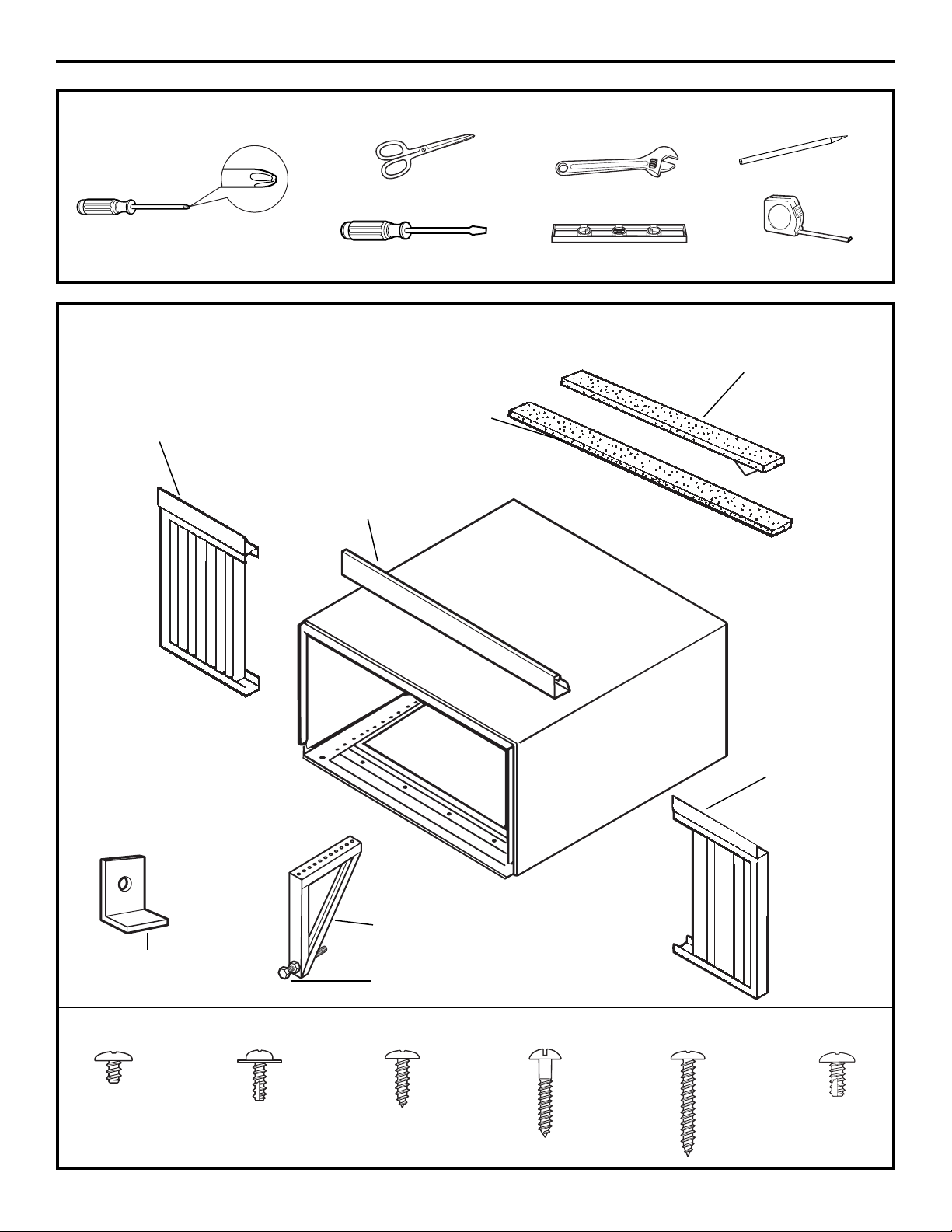

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT — Save these

instructions for local inspector’s use.

•

IMPORTANT — Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Approximately 1 hour

• We recommend that two people install

this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com

Installation

Air Conditioner

Instructions

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

ELECTRICAL REQUIREMENTS

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

TOOLS YOU WILL NEED

Phillips head screwdriver

Ruler or tape measurePencil

Level

Scissors or knife

Flat-blade screwdriver

Adjustable wrench

Type A (6)

V-support (2)

Window locking

bracket (2)

Top

mounting

rail

Right

accordion

panel

Foam top

window gasket

Window

sash seal

Left

accordion

panel

Type B (4) Type C (7) Type D (6) Type E (4)

Bolt (2) & nuts (2)

PARTS INCLUDED

(Appearance may vary)

Window Installation Instructions

Type F (2)

Window Installation Instructions

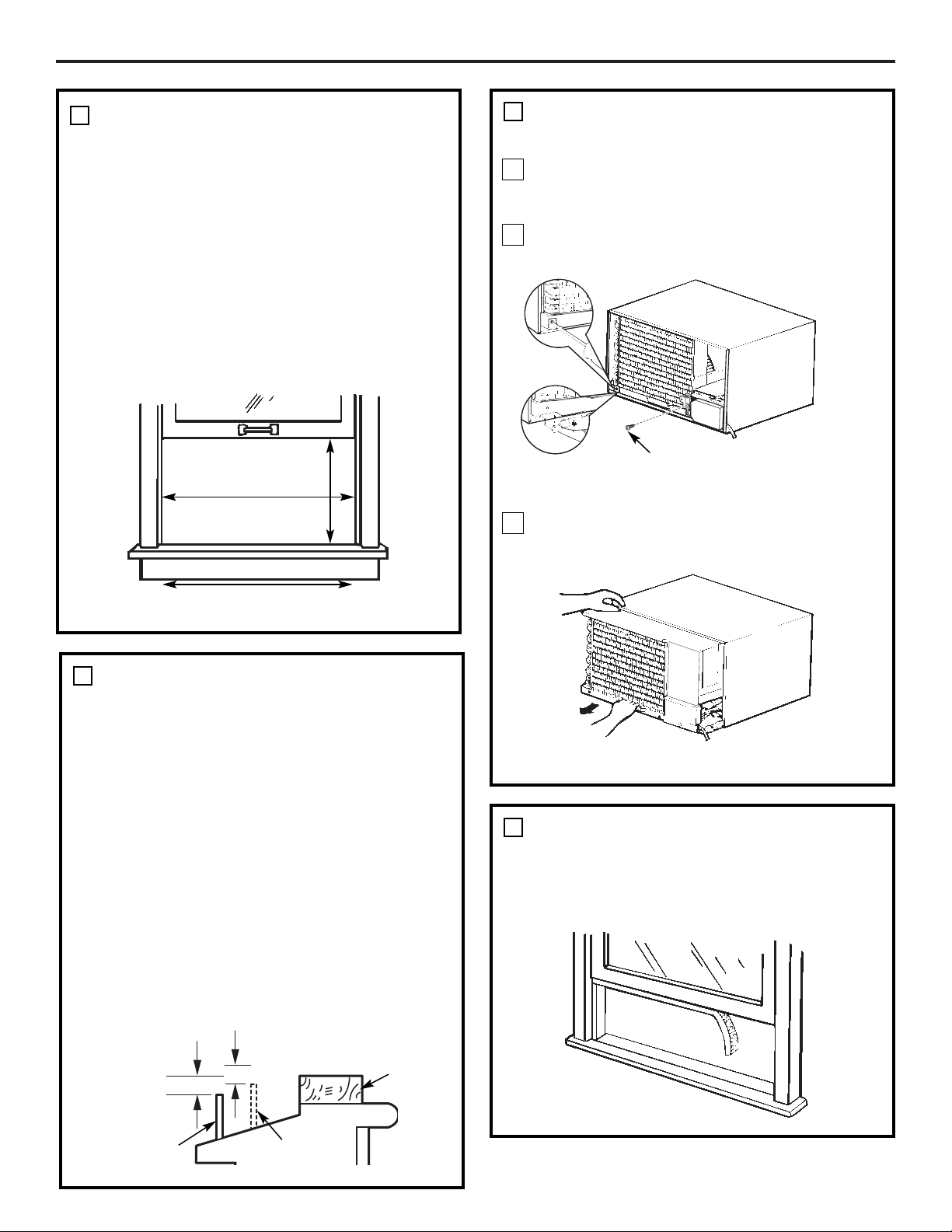

WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

• The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions.

• All supporting parts must be secured to firm wood, masonry or metal.

• The electrical outlet must be within reach of the power cord.

18″ min.

30″ to 41″

(With accordion panels)

261⁄2″ min.

(Without accordion panels)

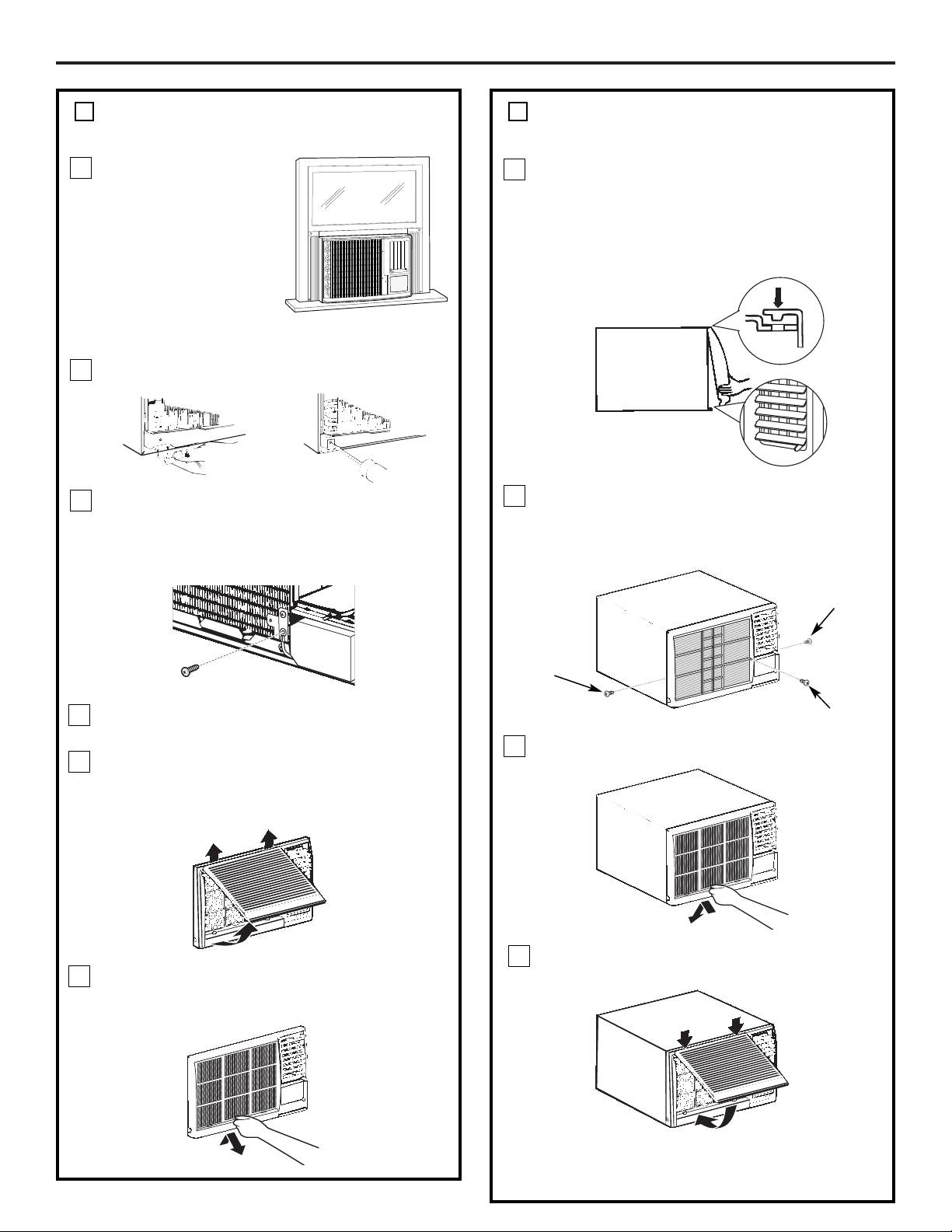

REMOVE THE AIR CONDITIONER FROM THE CASE

Remove the locking screw and locking bracket from the lower frame. Save to reinstall later.

Remove the ground screw and save to reinstall later.

Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case.

PREPARE THE WINDOW

Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

Remove the ground screw and save to reinstall later

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the stool.

WOOD PIECES– WIDTH: 2″ LENGTH: Long enough to fit inside the

window frame. THICKNESS: To determine the thickness,

place a piece of wood on the stool to make it 1/2″ higher than the top of the storm window frame or the vinyl frame.

Attach securely with nails or screws provided by the installer.

1/2″ higher than storm window frame

Storm window frame

Wood

Stool

1/2″ higher than vinyl frame (on some windows)

Vinyl frame

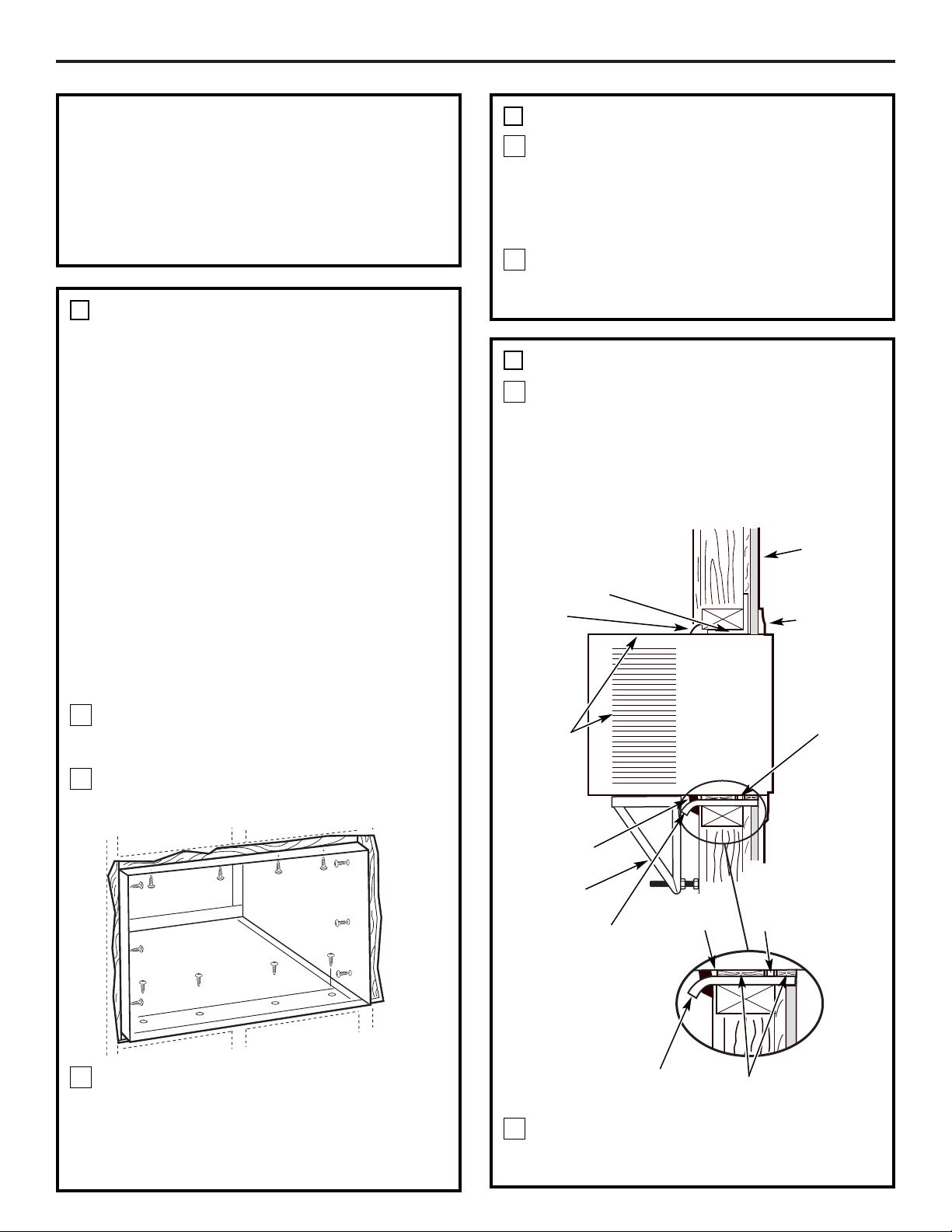

PREPARE THE CASE

Install the top mounting rail with 4 type B screws from the inside of the case.

Insert the frames for the accordion panels into the top mounting rail and the bottom frame guides. Attach the accordion panels to the side of the case using 3 type A screws on each side.

Note: When attaching the accordion panels, make sure to only screw the inner panels to the case sides.

Window Installation Instructions

Top mounting rail

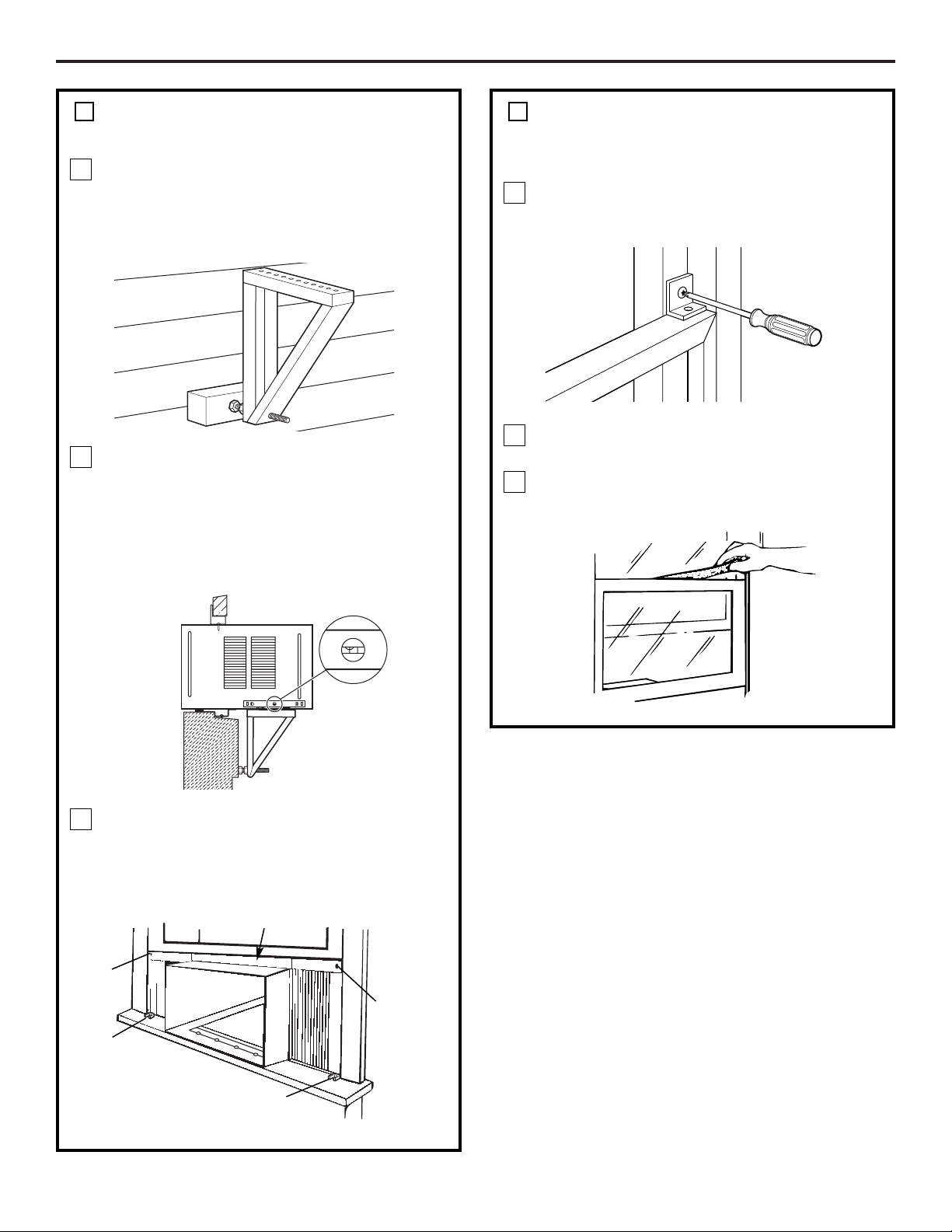

INSTALL THE CASE IN THE WINDOW

Carefully slide the case into the window and center the case. Lower the window behind the top mounting rail. Pull the bottom of the case forward so that the bottom mounting rail is tight against the back of the window stool. Mount the case to the window sill using 4 type E screws. Drill pilot holes, if necessary.

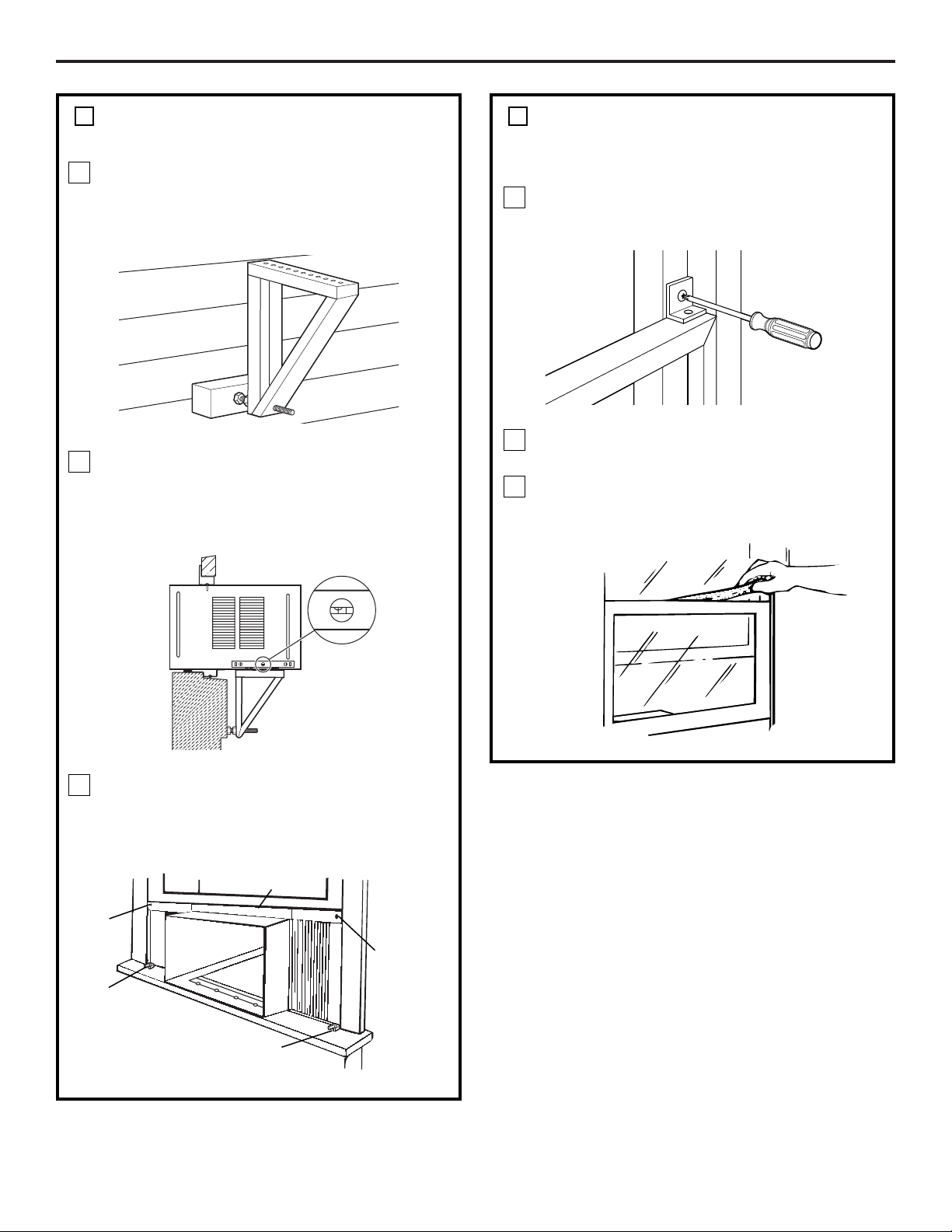

Make sure the bolts and nuts are all of the way in both the left and right V-supports.

Position the V-supports on the case bottom so that they will be near the outside wall. Attach a V-support to each side of the bottom of the case using type C screws, 3 on each side.

Bolt and nut

V-support

4 type E screws

Stool

Type A screws

Top mounting rail

Bottom mounting rail

BACK

+ 28 hidden pages
