GE Aeroderivative Gas Turbines, Heavy-duty gas turbines Brochure

GE Oil & Gas

Gas Turbines

Contents

Introduction

GE10

GE10-1

GE10-2 MS5001

MS5002C-D

MS5002E

MS6001B/MS7001EA/MS9001E

PGT16

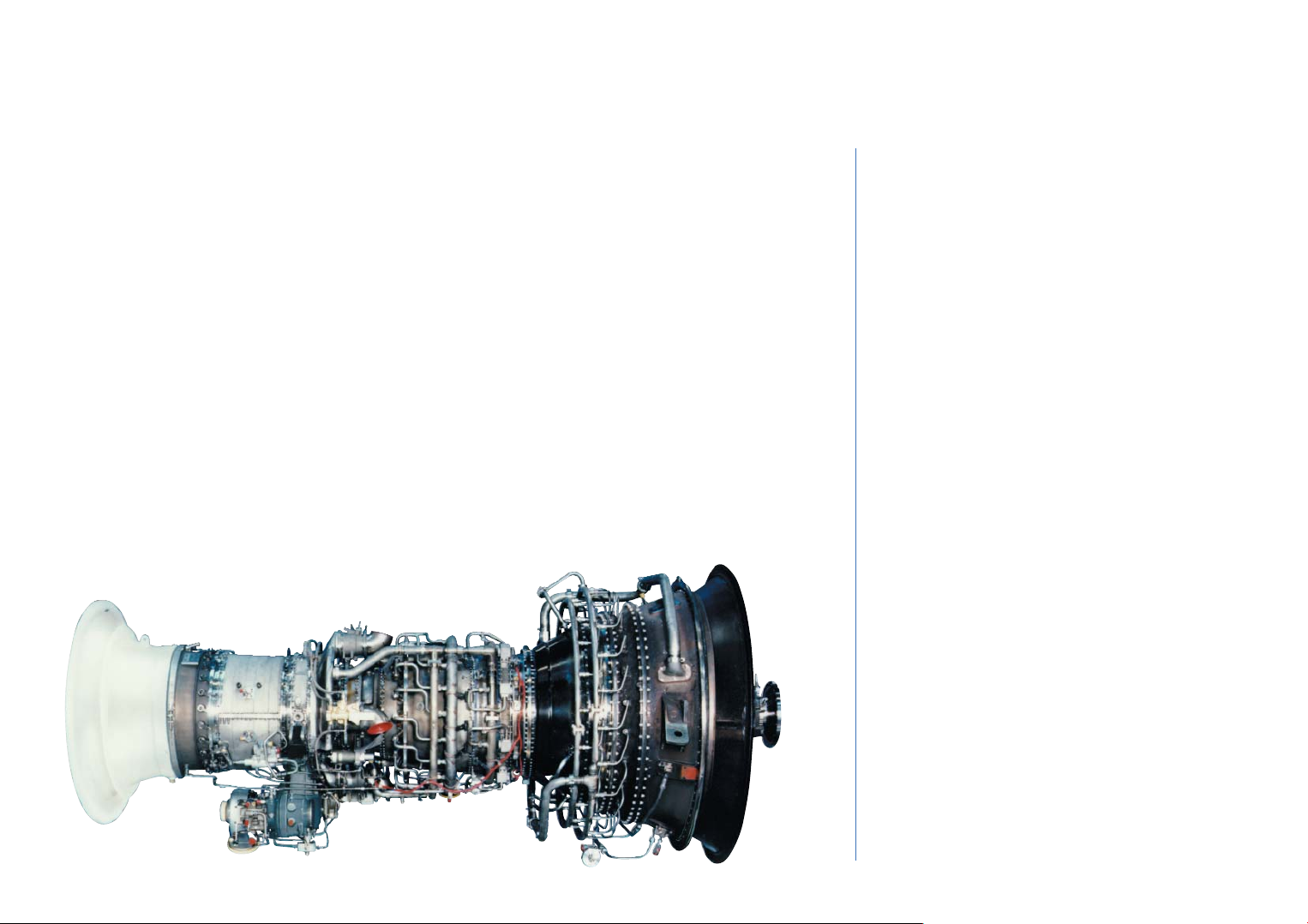

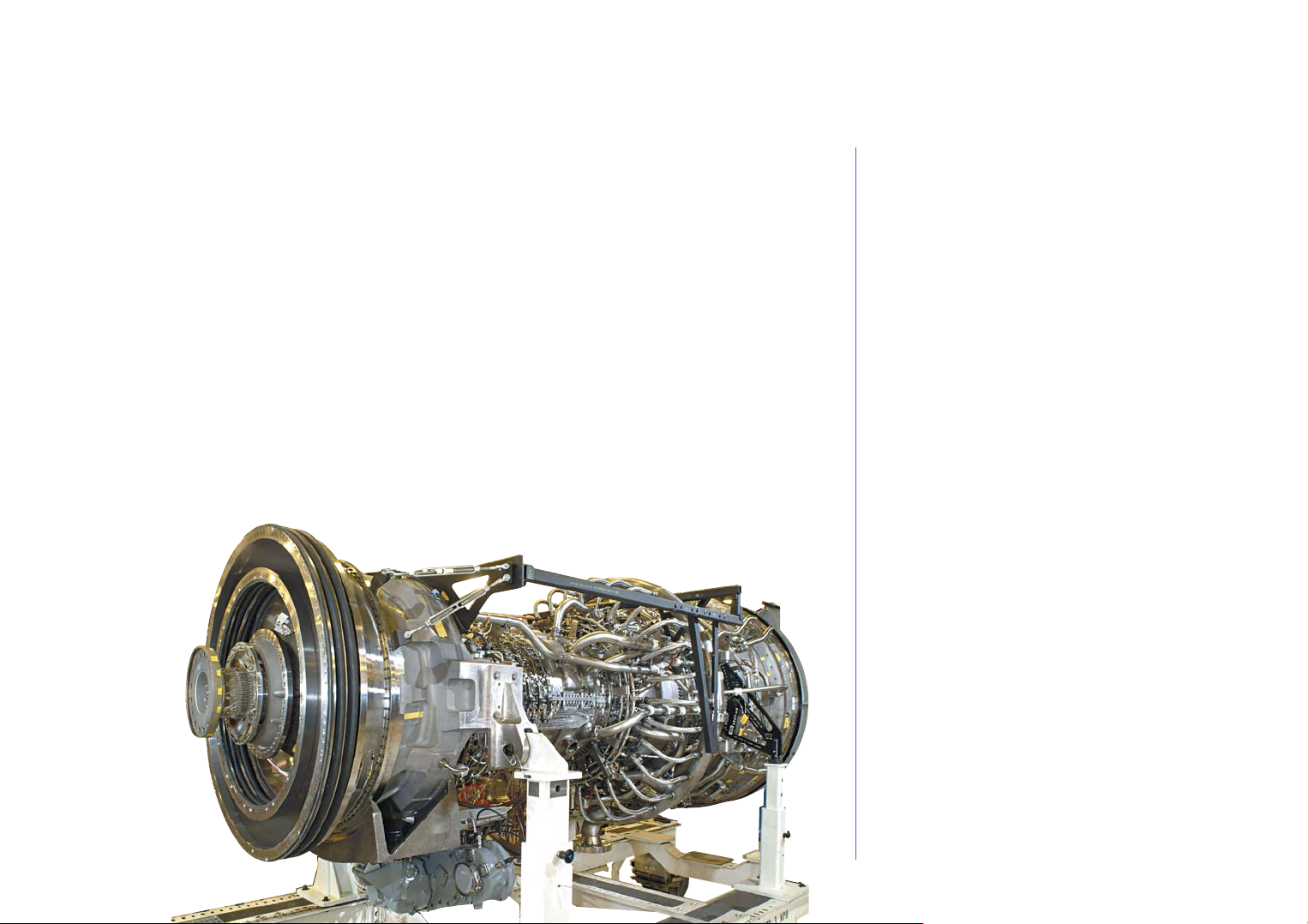

PGT25

PGT25+

PGT25+G4

LM6000

LMS100

Main Components

Heavy Duty Axial Compressor

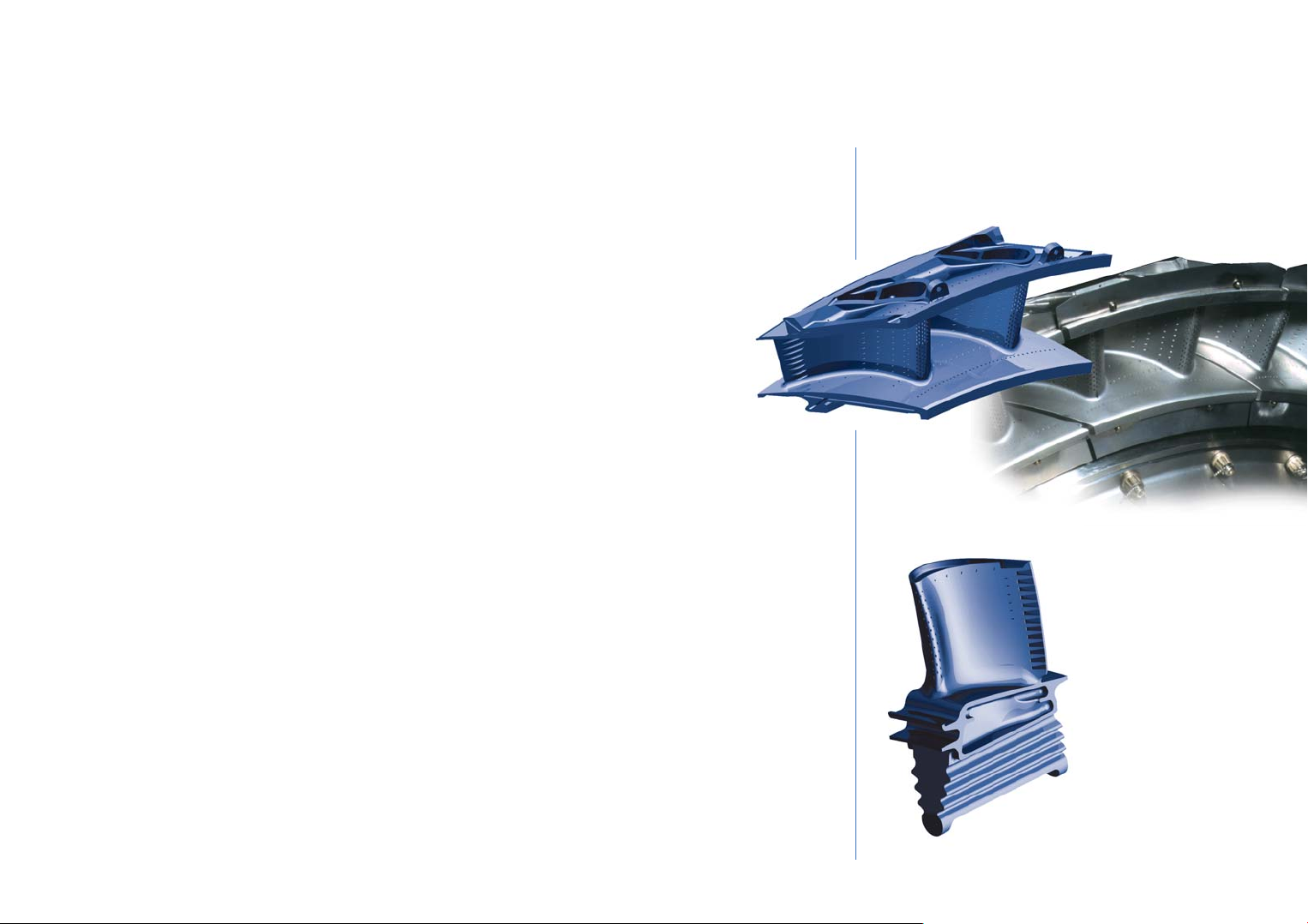

First Stage Heavy Duty Turbine Nozzles

Buckets and Heavy Duty Turbine Wheels

Gas Turbine Operability

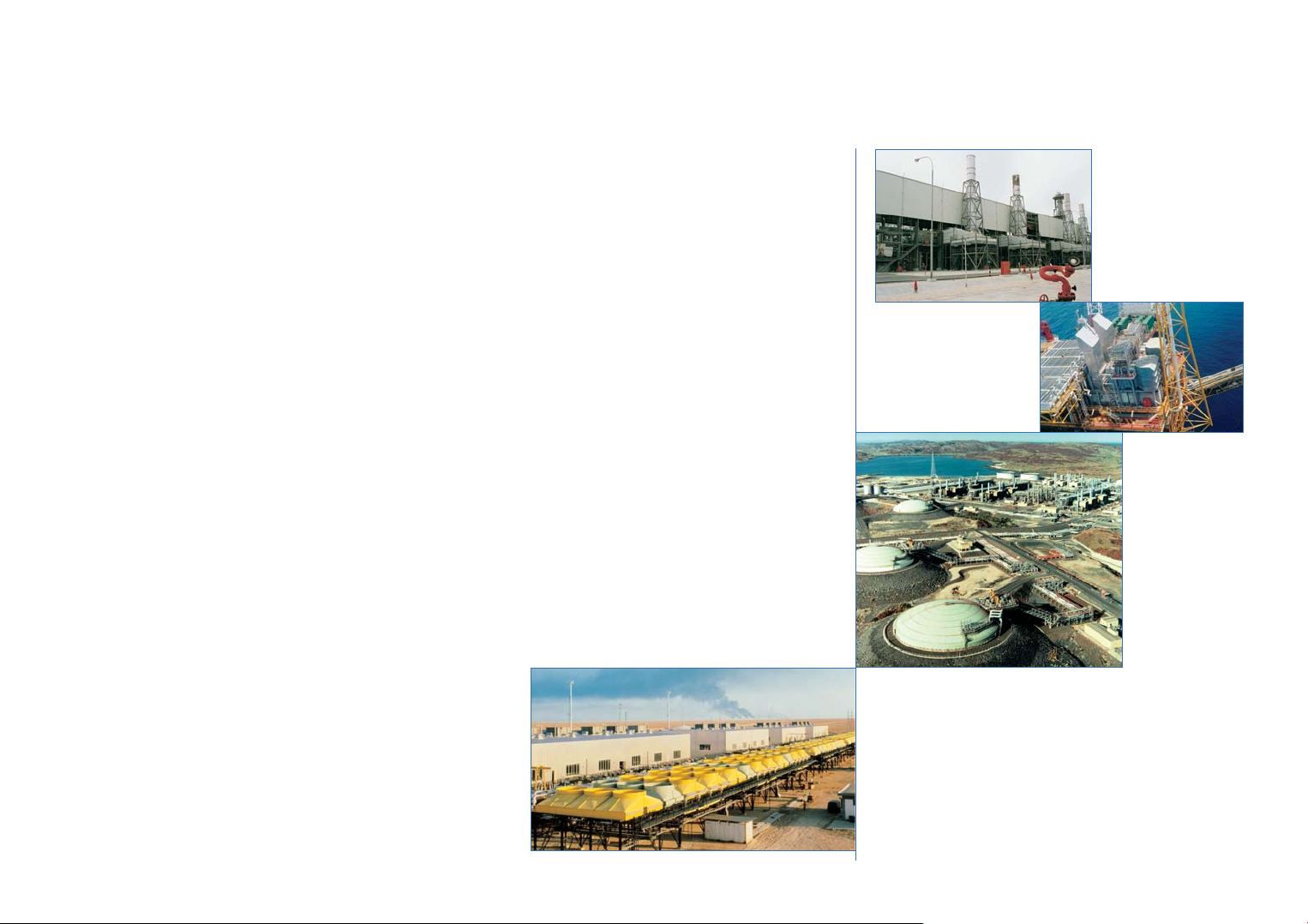

LNG, Exploration and Production,

Floating Production Units Pipeline Transportation

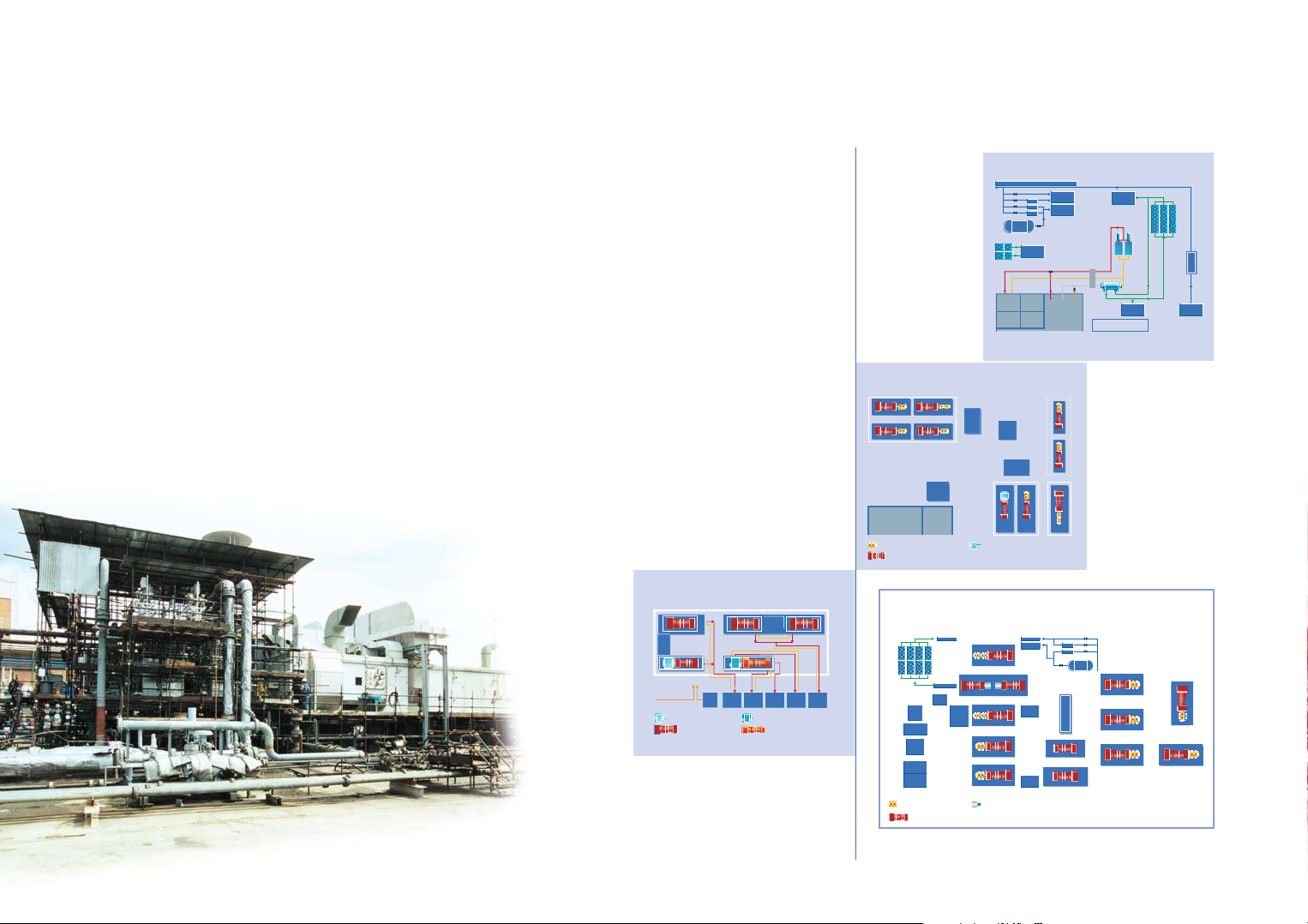

Refinery and Petrochemicals

Test Facilities

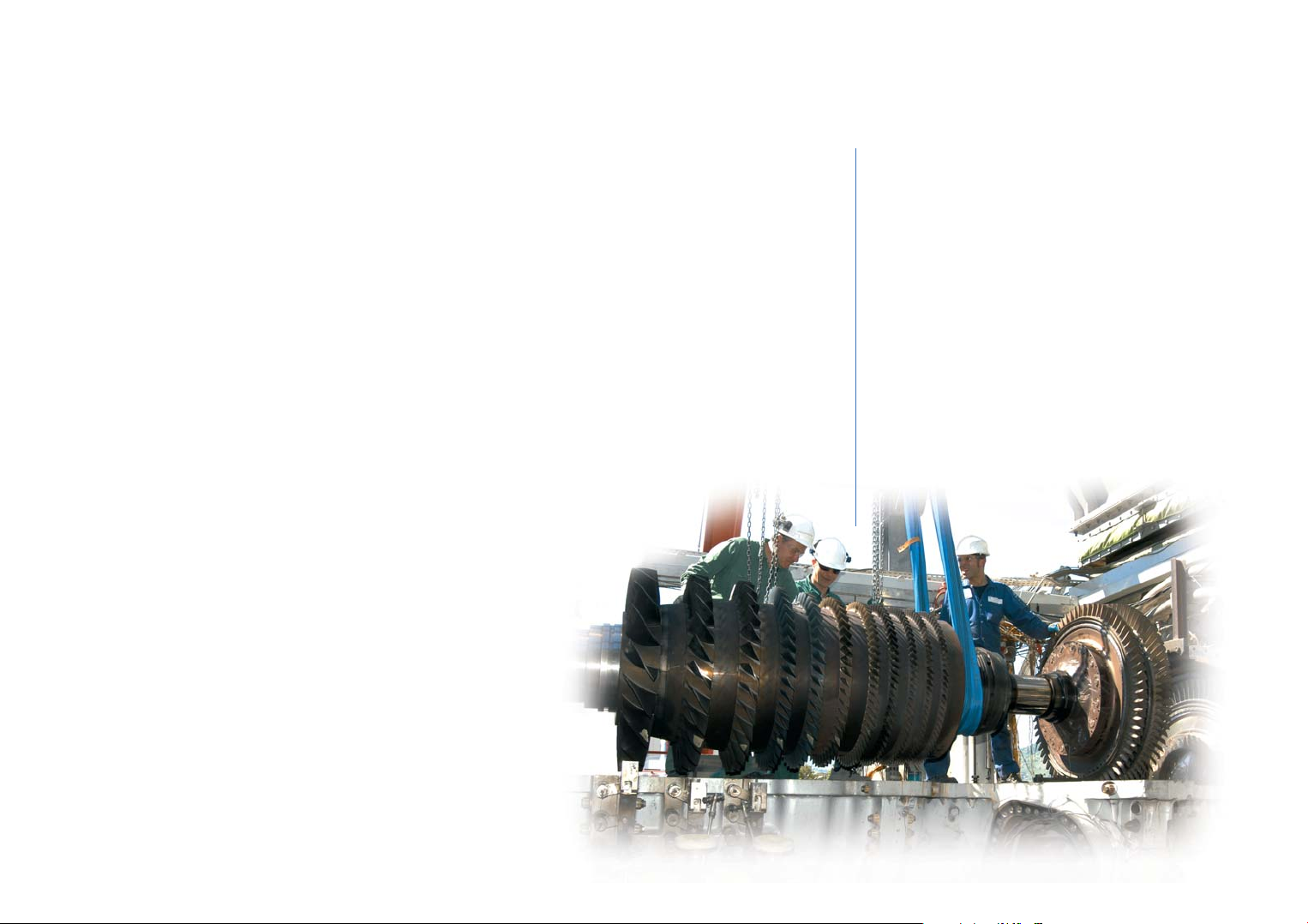

Service

Training

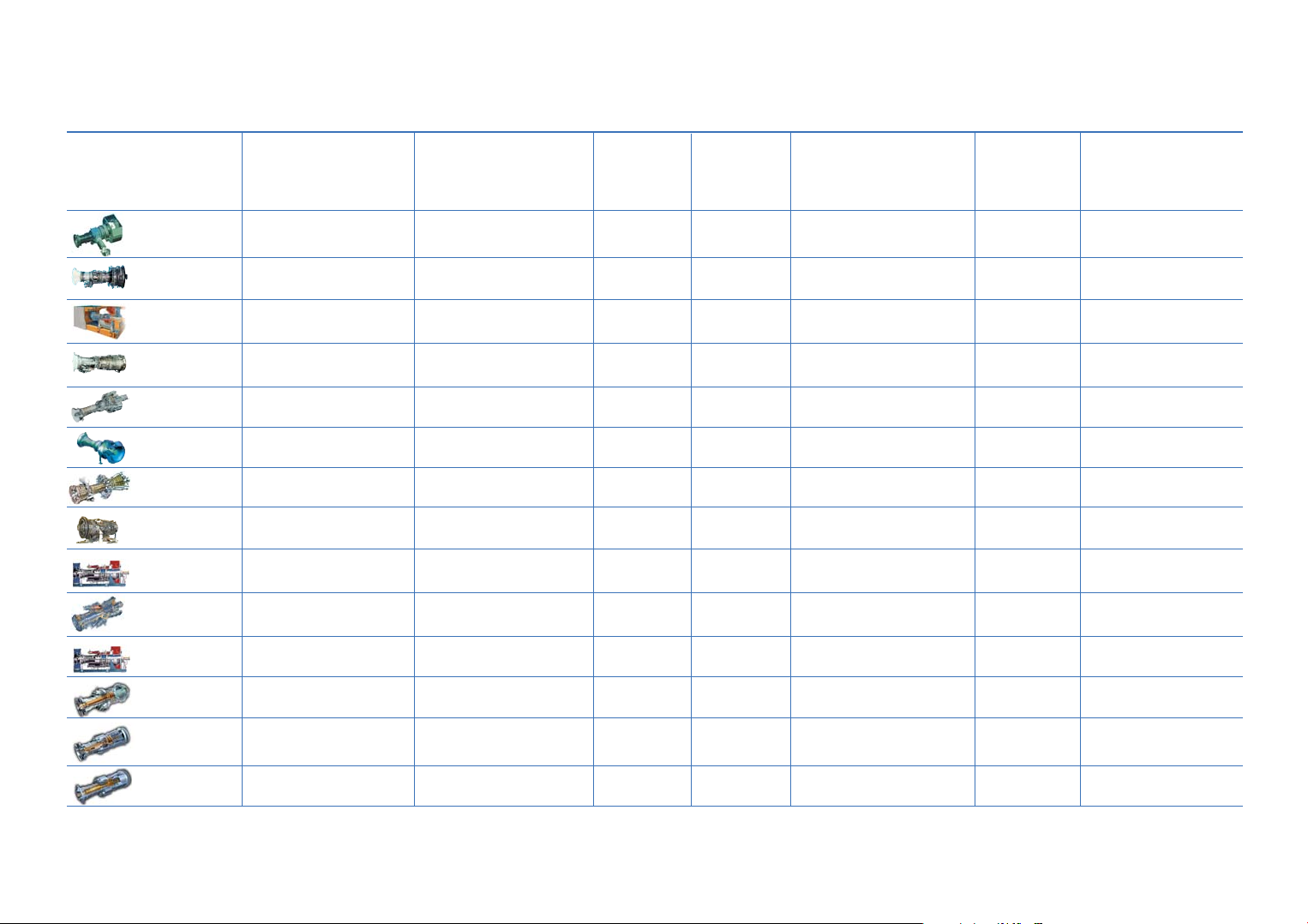

Gas Turbine Data Sheet

2 GE

Gas Turbines

GE manufactures a complete line of gas turbines for all major Oil & Gas Industry applications. They are installed in natural gas plants, gas compression stations, oil booster stations, petrochemical plants and power generation and cogeneration plants worldwide. GE’s Oil & Gas business has long-standing experience in manufacturing gas turbines dating back to 1961 when a manufacturing agreement was established with GE (U.S.A.) to complement the existing portfolio of products for the petroleum and petrochemical industries (reciprocating and centrifugal compressors, gas engines, pumps, valves, etc.). A proven combination of sound design and quality assurance techniques places these gas turbines among the world’s most reliable. Basic models produced by GE cover the 12,000 to 124,000 kW power range. They can be provided in simple or regenerative cycles for mechanical drive or generator drive applications. Extensive research and development, advanced design procedures, modern manufacturing technology and on-site experience are behind the success achieved by GE gas turbines.

3 GE

Gas Turbines

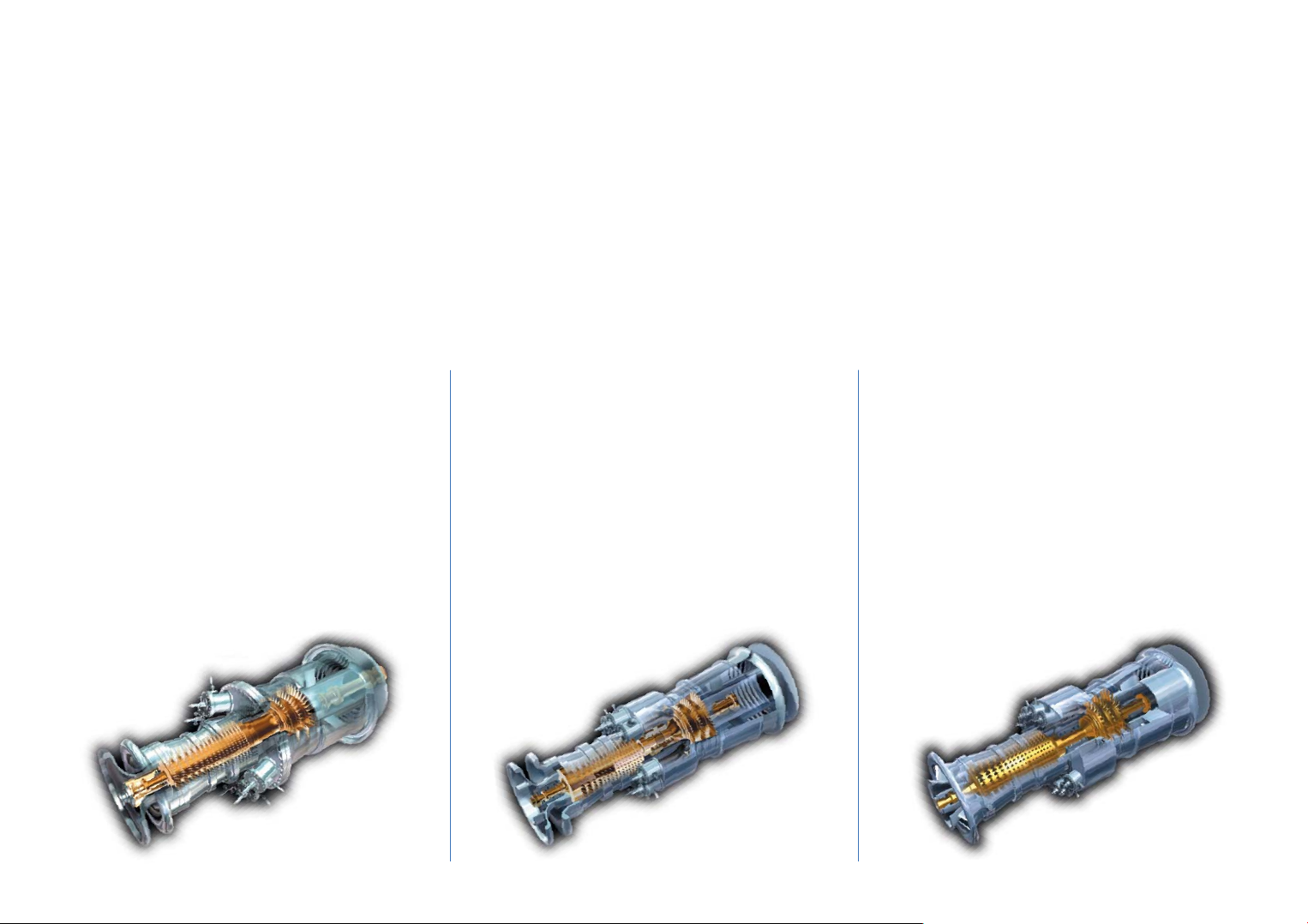

GE10 Gas Turbines

The GE10 is a heavy-duty gas turbine in the 12MW range, available in either a single or a twoshaft configuration. It is the evolution of the field proven PGT10 and incorporates the latest in aerodynamic design, and compact and versatile package arrangements for both Power Generation and Mechanical Drive applications. The cases are horizontally split and the rotor has a disk architecture. The combustion system consists of a horizontally positioned single can. The GE10 is available in both diffusion combustion system and DLN (Dry Low NOx) versions (15/25 ppmvd NOx) and is able to burn a wide range of liquid and gaseous fuels, including Low BTU gas and hydrogen. The GE10 engine design has been highly refined based on the extensive experience gained in operating in all types of environments. There are over two hundred PGT10/GE10 units running under conditions ranging from the cold of Alaska and Siberia to the heat of the desert and the humidity of the tropics. Its efficiency and operational flexibility make the GE10 a cost-effective choice for all applications.

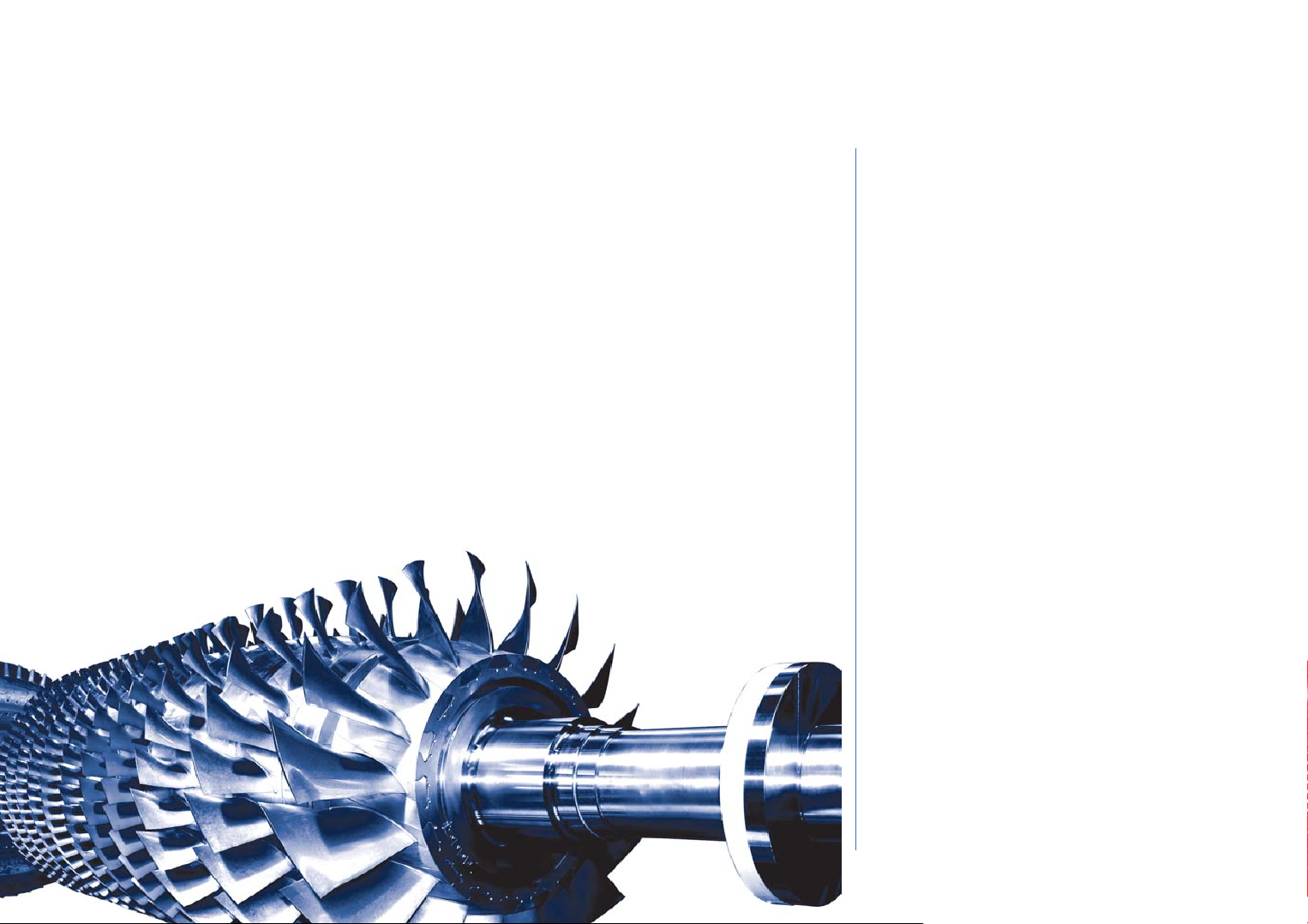

Axial Compressor

The compressor is a high performance, eleven-stage axial flow design with a 15.5:1 pressure ratio derived from GE Aircraft Engine transonic flow aero design technology. The rotational speed is 11000 rpm with a mass flow of 47 kg/s. The antisurge margin exceeds 25%. Advanced 3D airfoils are used for vanes and blades, and the first three rows of stator blades are adjustable to optimize operability. The cold-end drive configuration guarantees reduced flange movement during gas turbine thermal transients. A patented GECC-1 aluminum ceramic coating is provided for application in marine environments.

Combustion System and Emissions

The combustion system consists of a single, slot-cooled combustion chamber assembly that permits easy maintenance of the hot gas path. This combustion chamber can burn a wide range of fuels, from liquid distillates to residuals, to all gaseous fuels including low BTU gas. The broad fuel capability of this combustor is due to the variable geometry design patented by GE. Guaranteed NOx levels of either 15 or 25 ppmvd @ 15% O2 are available over a broad load range. A DLN Dual Fuel version (liquid + gas fuel) is also available.

4 GE

Gas Turbines

GE10-1 Gas Turbines

Turbine

The single-shaft version is optimized for power generation applications. The turbine consists of three reaction stages. In the first two stages the hot gas parts are cooled by air extracted from the axial compressor. The second and third stages have interlocked shrouds to limit tip leakage and blade vibration.

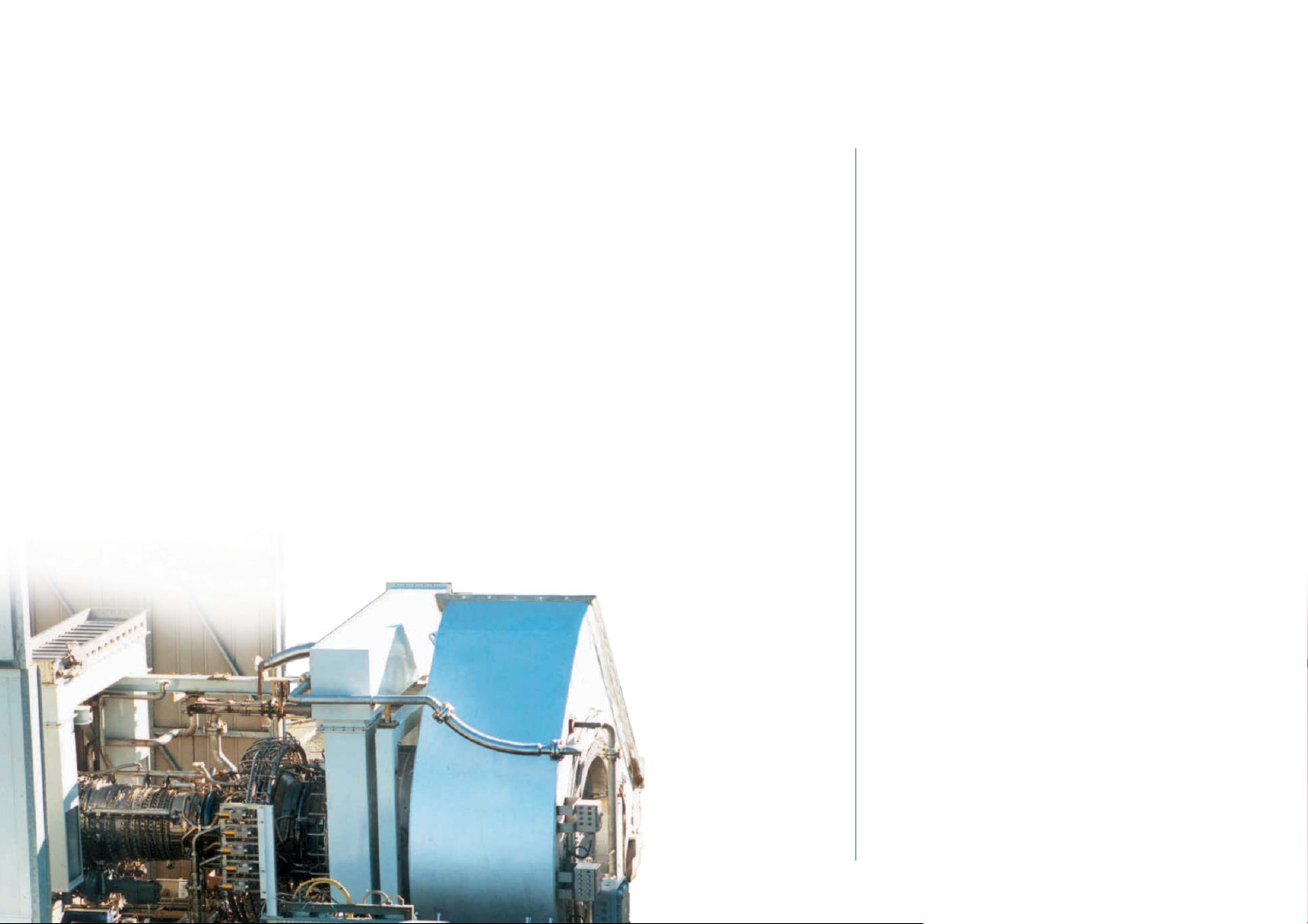

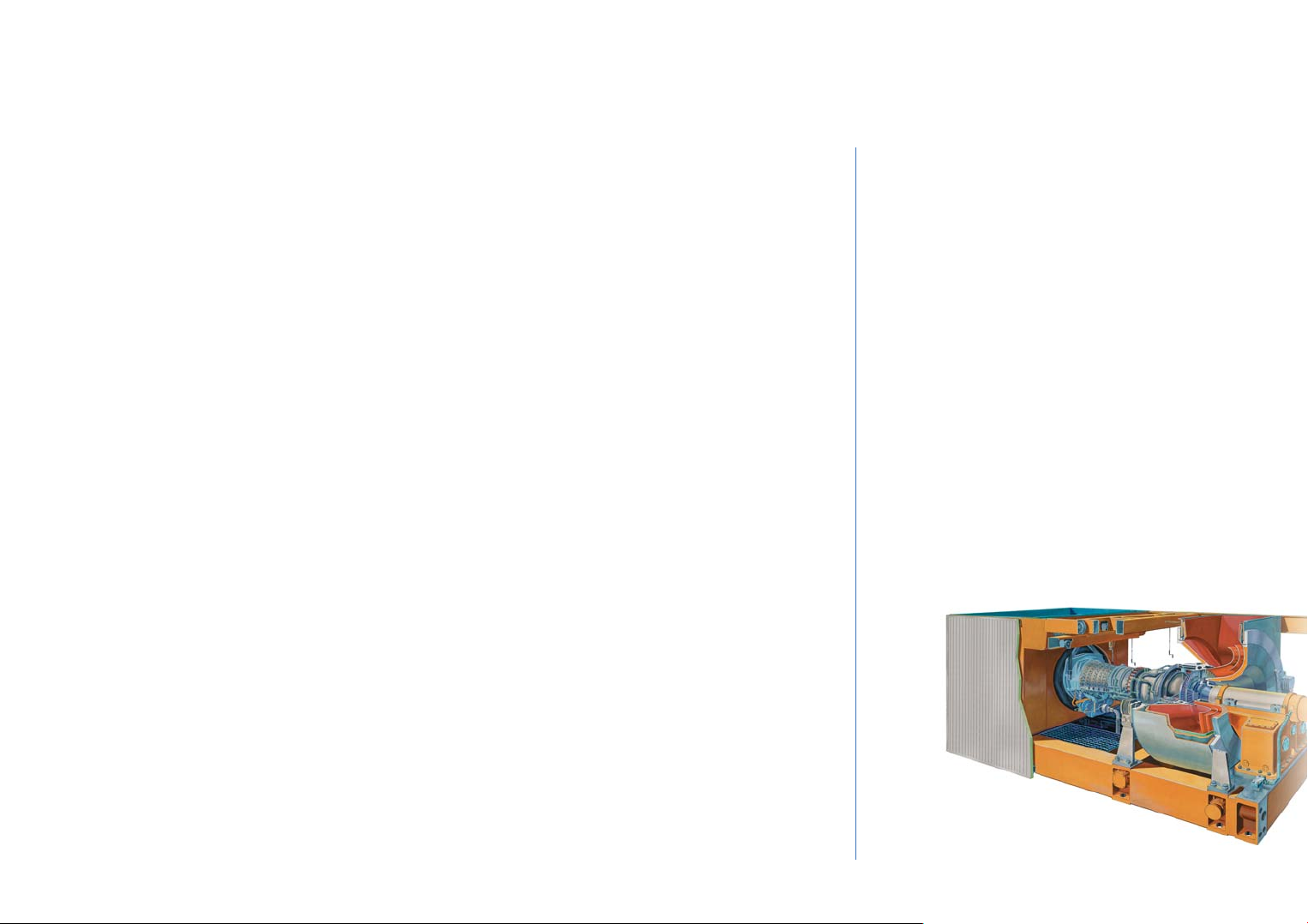

Power Generation Package Arrangement

The GE10-1 package is designed specifically for power generation applications in both Simple Cycle and CHP Cycle modes. The single lift architecture (main skid dimension 12.5 m x 2.5 m) minimizes site installation and commissioning lead time (1.5 months). The integrated control cab eliminates the need for control room civil works and related site wiring. An engine exchange maintenance option is available (5 days downtime) to reduce maintenance cost and time. Each package is performance tested before shipping to ensure product reliability and quality. The base configuration consists of a complete unit configured for outdoor installation. The enclosure guarantees a sound pressure level below 85 dBA at 1 m. The main skid incorporates the Gas Turbine, Electric Generator (11 kV, 4-poles, open air) which also acts as a starting motor, and the Gearbox (Epicyclical). The Combustion chamber and valve system is able to accommodate different types of gas/liquid fuel compositions and NOx emission requirements.

GE10-1 (ISO Conditions Standard Combustor)

GENERAL SPECIFICATIONS

Axial Compressor

- 11-Stage Axial Flow

- 15.5:1 Pressure Ratio

Combustion Chamber

- Single Can Combustor

- Pollution prevention:

- DLN Gas Fuel at 25 ppmvd NOx

- DLN Gas Fuel at 15 ppmvd NOx

- DLN Dual Fuel Gas Fuel at 25 ppmvd NOx

- DLN Dual Fuel Liquid Fuel at 85 ppmvd NOx

Turbine

- 3-Stage HP Turbine 11000 rpm

AVAILABLE OPTIONS

- Dual Fuel DLN version (liquid + gas fuel)

- 6.0kV electric generator

- 80 dBA sound pressure level package

- Indoor version

-H2O oil cooler system

- Standard exhaust duct (12 m)

- Lubrication stand-by pump

- Control cabinet located alongside the unit

- Additional pre-engineered BN1701 for complete vibration monitoring

Electrical Output (kW) 11250 Electrical Efficiency (%) 31.4 Exhaust Flow (kg/sec) 47.5 Exhaust Temperature (°C) 482

5 GE

Gas Turbines

GE10-2 Gas Turbines

Turbine

The two-shaft version of the GE10 is optimized for mechanical drive applications. It consists of two air-cooled high pressure reaction stages and two low pressure reaction stages coupled to the power shaft. To optimize the behavior at partial speed/load a variable geometry Nozzle Guide Vane (NGV) is installed between the HP and LP sections.

GENERAL SPECIFICATIONS

Axial Compressor

- 11-Stage Axial Flow

- 15.5:1 Pressure Ratio

Combustion Chamber

- Single Can Combustor

- Emission Control:

- DLN Gas Fuel at 25 ppmvd NOx

- DLN Gas Fuel at 15 ppmvd NOx

- DLN Dual Fuel Gas Fuel at 25 ppmvd NOx

- DLN Dual Fuel Liquid Fuel at 85 ppmvd NOx

Turbine

- 2-Stage HPT (11000 rpm) + 2-Stage LPT (7900 rpm)

6 GE

Gas Turbines

GE10-2 Gas Turbines

-30 -20 -10 0 10 15 20 30 40 50

18000 16000 14000 12000 10000

8000 6000 4000

12500

12000

11500

11000

10500

10000

Ambient Temperature (C)

Output (kW)

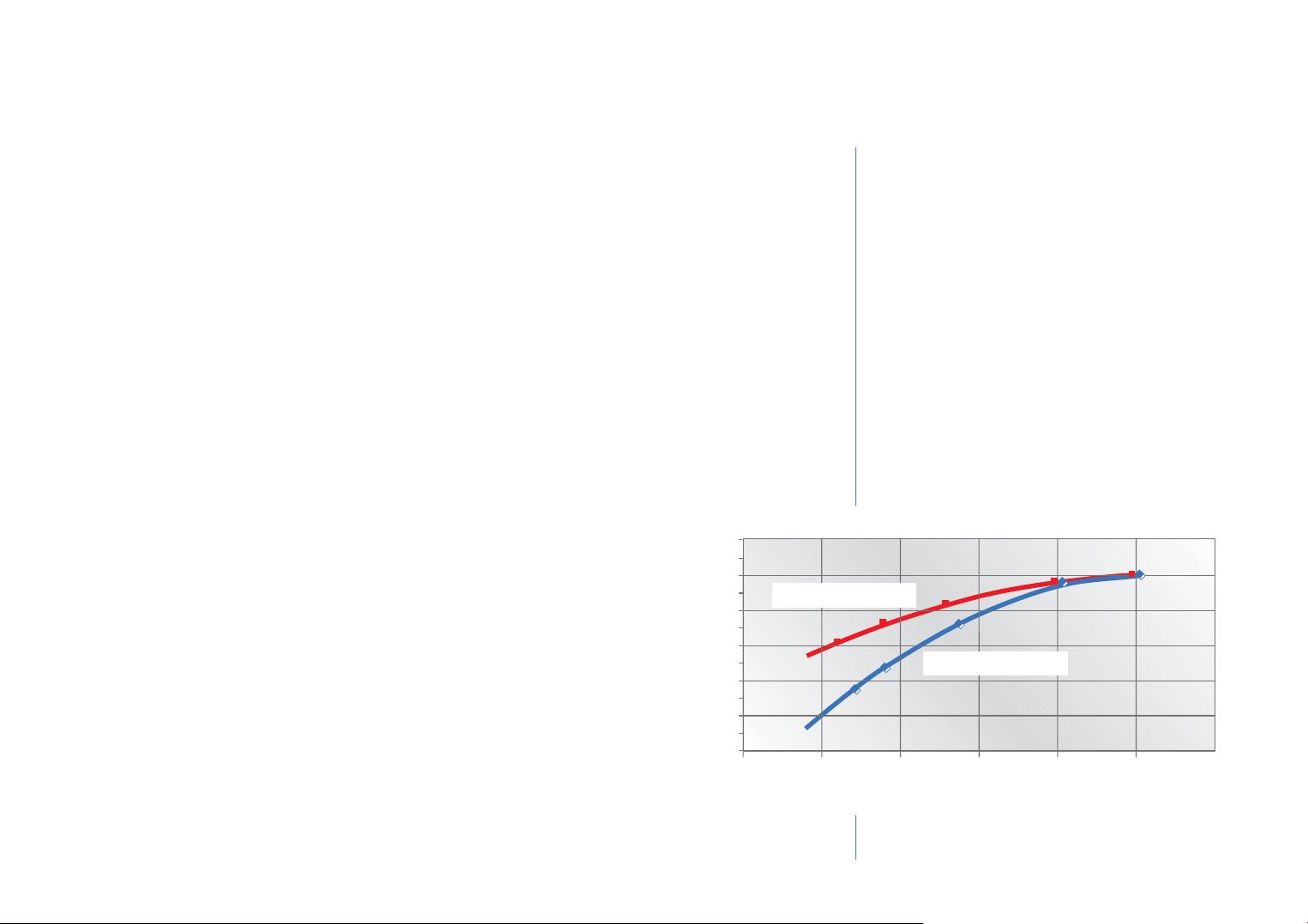

GE10-2 Output & Heat Rate

Shaft Power Output

Engine Heat Rate

Heat Rate (kJ/kWhr)

0 255075100

200

175

150

125

100

LPT = 100%

LPT = 85%

LPT = 70%

LPT = 50%

Shaft Power (percentage of ISO Base Load)

Heat Rate (percentage of ISO Heat Rate)

Mechanical Drive Package Arrangement

The GE10-2 package is designed for optimum performance in pipeline, re-injection and other oil and gas field applications (on- and off-shore), as a pump drive, and also for power generation applications. The base configuration consists of a complete unit configured for outdoor installation and has been developed for hazardous area installation in accordance with API standards. The enclosure guarantees a sound pressure level below 85 dBA at 1 m. The main skid incorporates the gas turbine, electric starting system, fuel system, and gas detection and firefighting systems (CO The lube oil tank is integral with the gas turbine base plate. The main lube oil pump is mechanical, and is driven by the auxiliary gearbox. The auxiliary oil pump is an AC electric motor-driven pump, and a DC electric motor-driven pump is provided for emergency backup. All control devices are located in a separate control room. The air filtration system consists of a “self cleaning type” filter house, an inlet duct and a silencer. The combustion chamber and valve system can accommodate different types of gas/liquid fuel compositions and NOx emission requirements. An engine exchange maintenance option is available to reduce maintenance cost and time. The package is mechanically tested prior to delivery.

GE10-2 (ISO Conditions Standard Combustor) Electrical Output (kW) 11982

Electrical Efficiency (%) 33.3 Exhaust Flow (kg/sec) 47.0 Exhaust Temperature (°C) 480

AVAILABLE OPTIONS

- Dual Fuel DLN version (liquid + gas fuel)

- 80 dBA sound pressure level package

- Indoor version

-H2O type fire fighting system

- Static air filter system

-H2O oil cooler system

- Gas expansion turbine starting system

7 GE

Gas Turbines

MS5001 Gas Turbines

The MS5001 single shaft turbine is a compact heavy-duty prime mover designed for long life and ease of operation and maintenance. The three main features of its simple design are:

- 17-stage, axial compressor

- Combustion system with 10 chambers capable of burning a wide range of fuels including natural gas, light and heavy distillates, and crude and residual oil. A DLN System is also available.

- Two-stage turbine with high energy stage design. The first-stage nozzles are cooled by the axial compressor discharge air.

The MS5001 Gas Turbine is the ideal solution for power generation where low maintenance, reliability and economy of fuel utilization are required. Low operating and investment costs make the MS5001 packaged power plant an economically attractive system for load generation. The MS5001 is also ideally suited for cogeneration achieving a very high fuel utilization index and considerable fuel savings. Typical applications are industrial plants for cogeneration of power and process steam or district heating systems. As a consequence of the extremely favorable operating, maintenance and economic characteristics of the MS5001 it has been very well accepted in the industry and there are more than 2500 units in operation all over the world.

MS5001 Gas Turbine

8 GE

Gas Turbines

MS5002C-D Gas Turbines

The MS5002 is a gas turbine specifically designed for mechanical drive applications such as gas boosting, gas injection/re-injection, oil & gas pipelines, LNG plants and gas storage. It has a broad operating speed range to meet the operating requirements of the most common driven equipment (centrifugal compressors and pumps) as well as the ability to burn a large variety of gaseous and liquid fuels. The MS5002 gas turbine was introduced in the market in the 1970s and has been updated and up-rated over the years to meet the industry demand for increased output. Presently two versions are available:

- MS5002C

- MS5002D The MS5002 two-shaft, heavy-duty gas turbine is designed for high operating efficiency over a wide range of speed and load. The simple design and extreme robustness of the MS5002 allow complete maintenance to be performed on site without the need for specialized tooling or service shop assistance. The main features of its design are:

- High pressure shaft consisting of a 16-stage (17 for MS5002D), axial-flow compressor and a

single-stage, high energy turbine. The first stage nozzles are air cooled and the second stage nozzles are of the variable angle type.

- Low pressure shaft is a single stage, high energy turbine.

- Twelve combustion chambers are contained within a single wrapper. A wide range of gaseous

and liquid fuels can be burned. A DLN Combustion System is also available.

- A centralized lube oil system supplies clean, cooled, pressurized oil to lubricate the gas turbine

and the driven equipment including the oil required for any compressor seals. As a consequence of the extremely favorable operating, maintenance and economic characteristics of the MS5002, nearly 500 units (more than 300 manufactured by GE’s Oil & Gas business) have been installed world-wide in all types of environments (arctic, desert, off-shore etc.) always demonstrating ease of operation and very high reliability and availability.

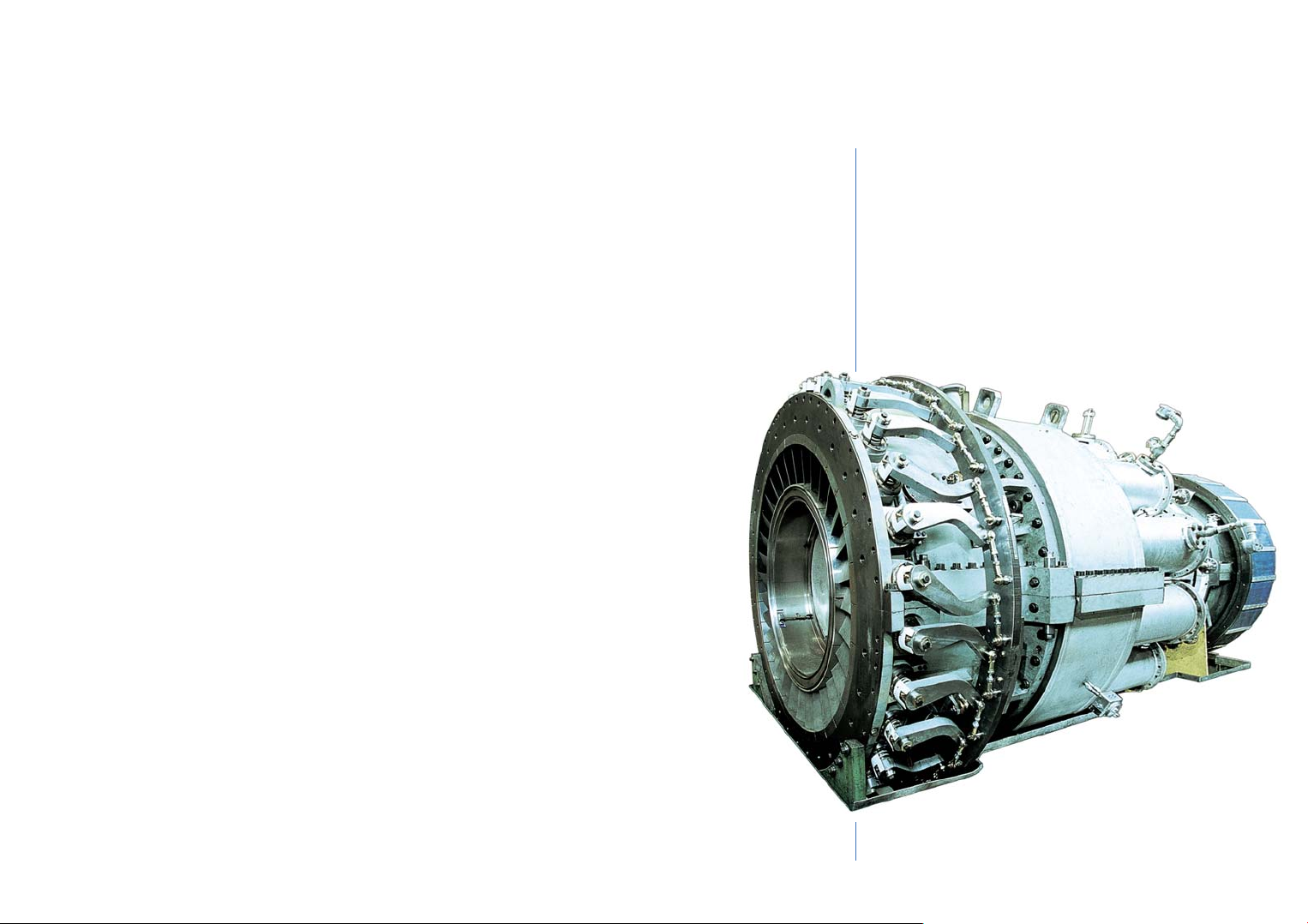

MS5002 Gas Turbine

9 GE

Gas Turbines

MS5002E Gas Turbines

The most recent addition to the GE family of gas turbines is the MS5002E which delivers high efficiency, low environmental impact and high reliability. This dual-shaft gas turbine has proven its capability for use in power generation and mechanical drive applications. The MS5002E uses GE’s state-of-the-art combustion technology (DLN2.5H) which has accumulated more than 14 million firing hours in the “F/FA” Class GE Frame gas turbine. This model was designed to maintain or exceed the availability and reliability of previous Frame5 models. To maximize hot parts life duration, the firing temperature was kept approximately 100°C lower than that of the “F/FA” Class. Superior efficiency was achieved through the use of advanced design tools to optimize airfoils (for both axial compressor and turbine sections), clearances, leakages and the distribution of cooling flows. Compared to the MS5002C and D or MS5001, the efficiency gain of the MS5002E results in a reduction in emissions of over 20,000 tons of CO2 per year, equivalent to the amount of C02 absorbed by 20 sq km of forest in a year. In addition, the MS5002E NOx emission level is down to 18 ppm. These achievements make the environmental impact of the MS5002E the lowest in its class. The design of the MS5002E was thoroughly validated through an extensive test program that included a full scale test of the axial compressor, and full scale rotordynamic testing and full load testing of the gas turbine system in both mechanical and generator string tests. The MS5002E is ready for the Oil & Gas market and will provide customers with the benefits of a long lasting and reliable machine combined with low environmental impact and low operating costs. The first requisition unit will start at the customer’s site in September of ‘07.

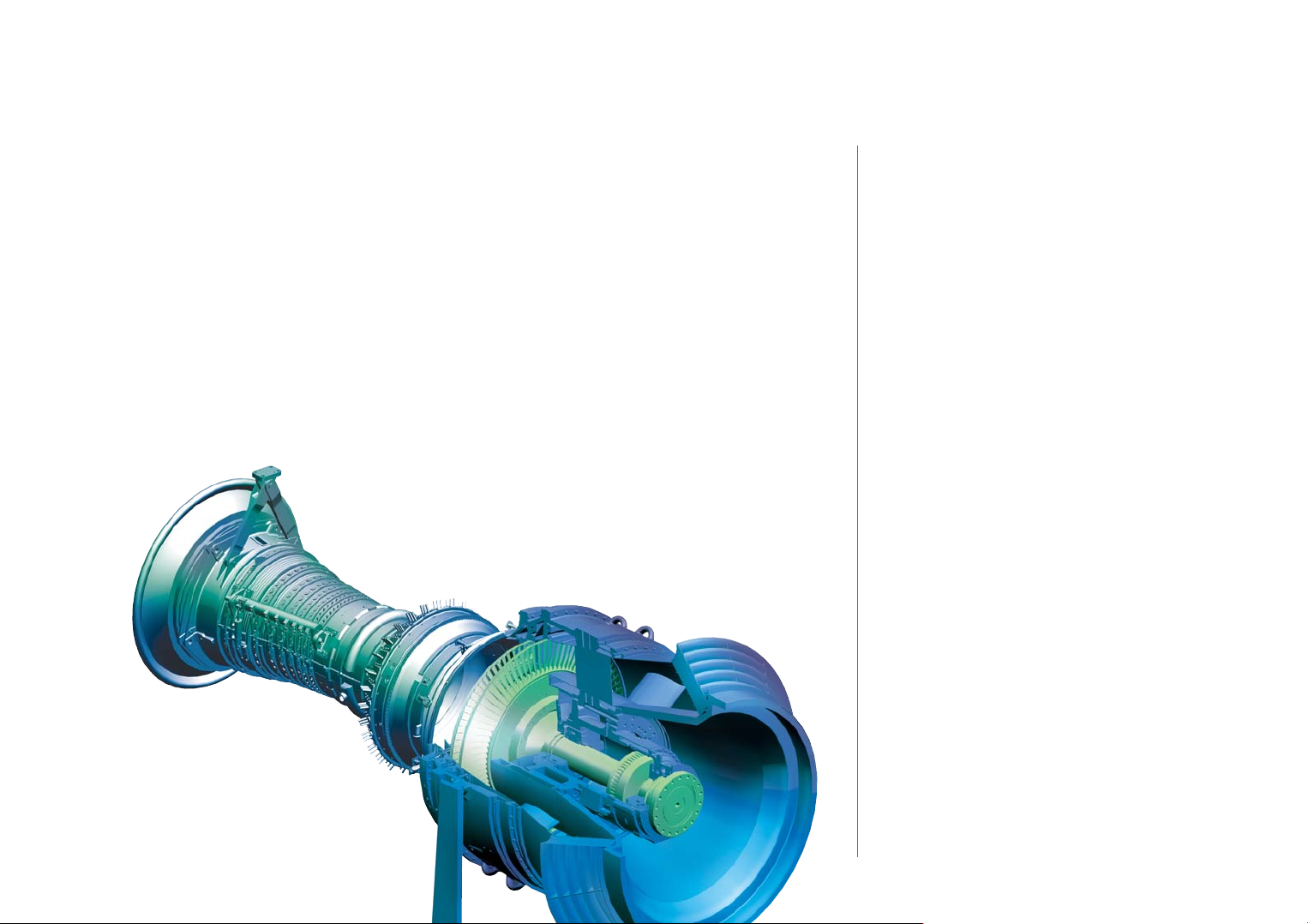

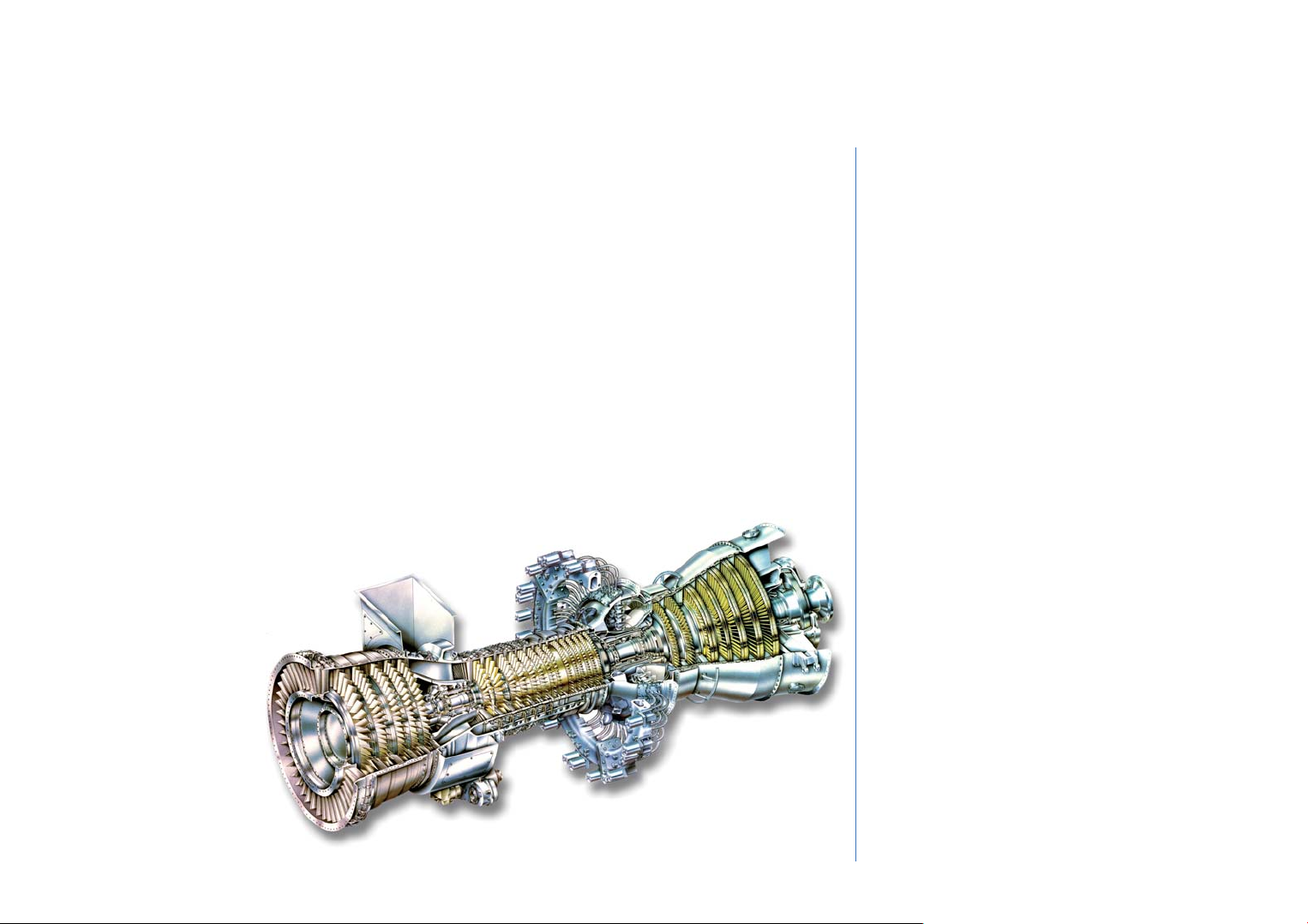

MS5002E Gas Turbine

PERFORMANCE MS5002E

(@ ISO conditions) Generator Drive Mechanical Drive

Output 31100 kWe 32000 kW SC Efficiency (%) 35.0 36.0 Pressure Ratio 17:1 17:1 Heat Rate (kJ/kWh) 10285 10000 NOx (ppm) 18 18 Exh. Gas Flow (kg/s) 101 101 Exh. Gas Temp. (°C) 510 510 Load Rated Speed (rpm) 3000/3600 5714

(both geared)

10 GE

Gas Turbines
