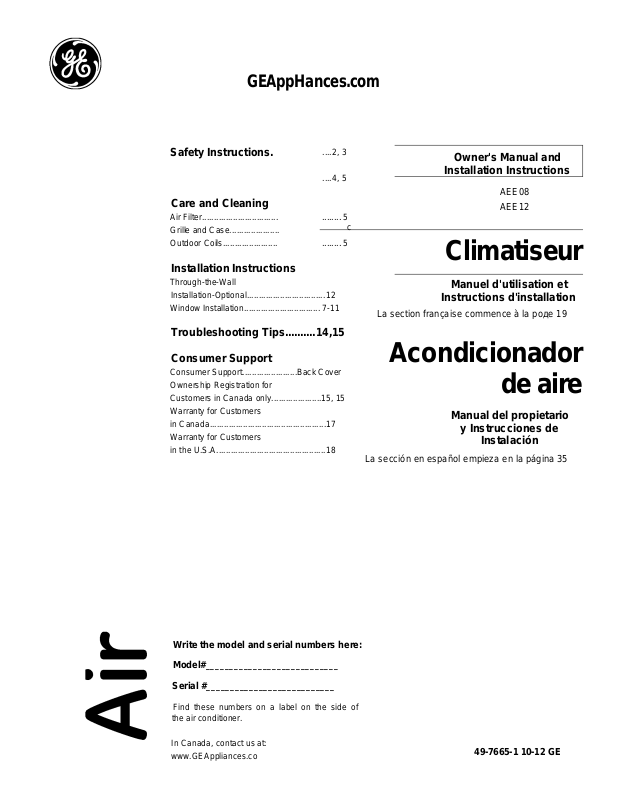

GE AEE08AR User Manual [en, es, fr]
GEAppHances.com
Safety Instructions.
Care and Cleaning
Air Filter
Grille and Case.....................
Outdoor Coils
Installation Instructions
Through-the-Wall
Installation-Optional
Window Installation
................................
.......................
.................................
................................
....
2, 3
....
4, 5
........
........
12
7-11
Owner's Manual and
Installation Instructions
AEE08
AEE12
5
c
5
Climatiseur
Manuel d'utilisation et
Instructions d'installation
La section française commence à la роде 19
Troubleshooting Tips
..........
14,15
Consumer Support
Consumer Support.......................Back Cover
Ownership Registration for
Customers in Canada only.....................15, 15
Warranty for Customers
in Canada.................................................17
Warranty for Customers
in the U.S.A..............................................18
Acondicionador
de aire
Manual del propietario
y Instrucciones de
Instalación
La sección en español empieza en la página 35
Write the model and serial numbers here:
Model#____________________________
Serial #
Find these numbers on a label on the side of
the air conditioner.
In Canada, contact us at:
www.GEAppliances.co
___________________________
49-7665-1 10-12 GE
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
AWARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric
shock or personal injury.
Miv
U'
SAFETY PRECAUTIONS
Use this appliance only for its intended purpose
as described in this Owner's Manual.
This air conditioner must be properly installed
in accordance with the Installation Instructions
before it is used.
Never unplug your air conditioner by pulling on
the power cord. Always grip plug firmly and
pull straight out from the receptacle.
Replace immediately all electric service
cords that have become frayed or otherwise
damaged. A damaged power supply cord
must be replaced with a new power supply
cord obtained from the manufacturer and not
repaired. Do not use a cord that shows cracks
or abrasion damage along its length or at
either the plug or connector end.
If the receptacle does not match the plug, the
receptacle must be changed out by a qualified
electrician.

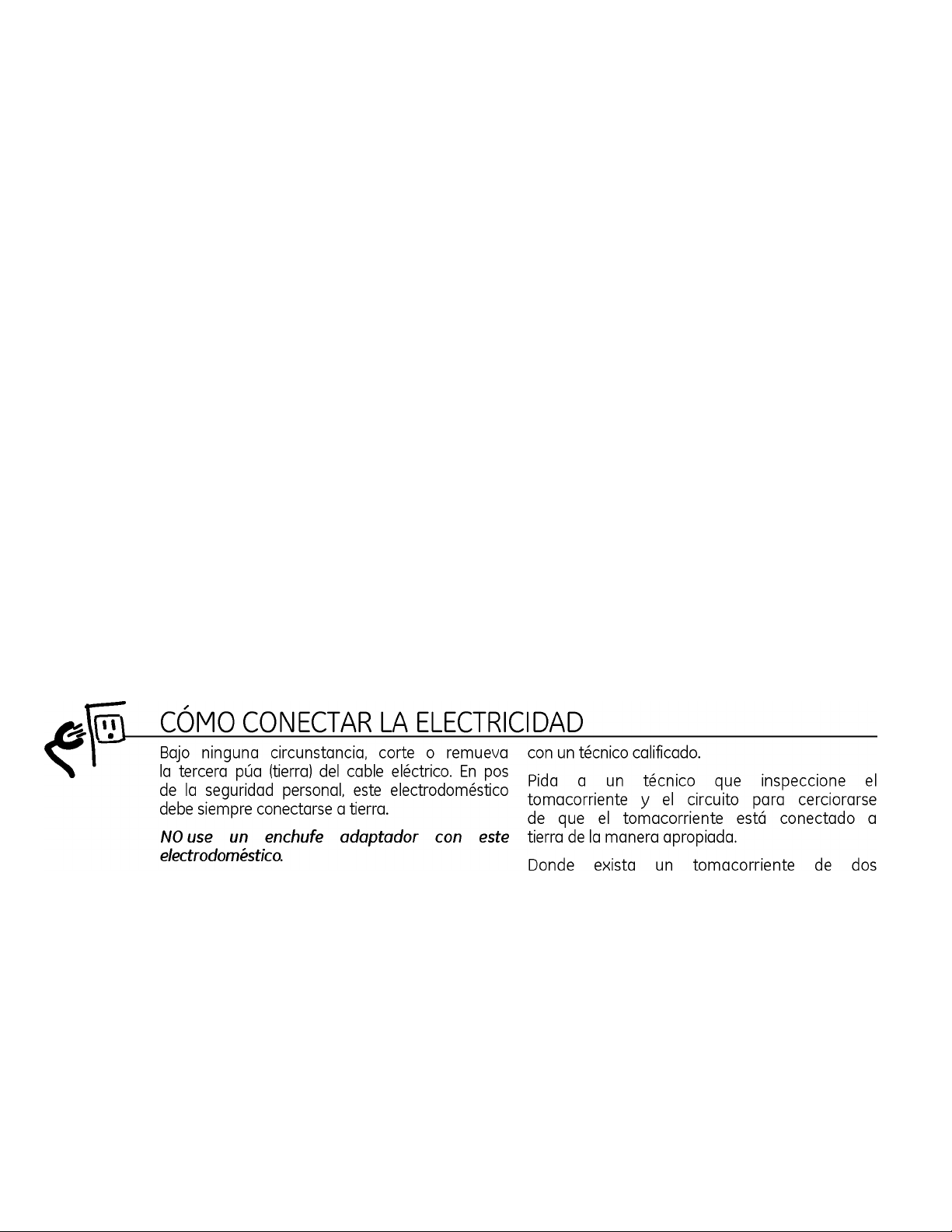

HOW TO CONNECT ELECTRICITY
TurntheunitOFF^andunplugyourairconditioner
before making any repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
Foryoursofety^donotstore or use combustible
materials, gasoline or other flammable vapors
or liquids in the vicinity of this or any other
appliance.
All air conditioners contain refrigerants, which
under federal low must be removed prior to
product disposal. If you are getting rid of an
old product with refrigerants, check with the
company handling disposal about what to do.
These R410A air conditioning systems require
contractors and technicians to use tools,
equipment and safety standards approved for
use with this refrigerant. DO NOT use equipment
certified for R22 refrigerant only.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock hazard
from this appliance.
Power cord includes a current interrupter device. A
test and reset button is provided on the plug case.
The device should be tested on a periodic basis by
first pressing the TEST button and then the RESET
button. If the TEST button does not trip or if the
RESET button will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have
it replaced with a properly grounded 3-prong wall
outlet.
The air conditioner should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.
GEAppliances.com
AWARNING!
EXTENSION CORDS
RISK OF FIRE. Could cause serious injury or
death.
• DO NOT use an extension cord with this Window
Air Conditioner.
• DO NOT use surge protectors or multi-outlet
adaptors with this Window Air Conditioner.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
About the controls on the air conditioner.
Features and appearance will vary.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
NOTE: The display always Light indicates the unit
shows the room temperature ¡s ¡n the temperature or
except when setting the Set delay time set mode,
temperature or the Delay
timer.
Delay l-24hr
• Auto
• High
— Med
• Low
Heat
Cool
Energy Saver
Fan Only
Temp
Mod^
Light indicates the delay
timer is set.
Air Conditioner Controls
Delay timer
Decrease
Mode select

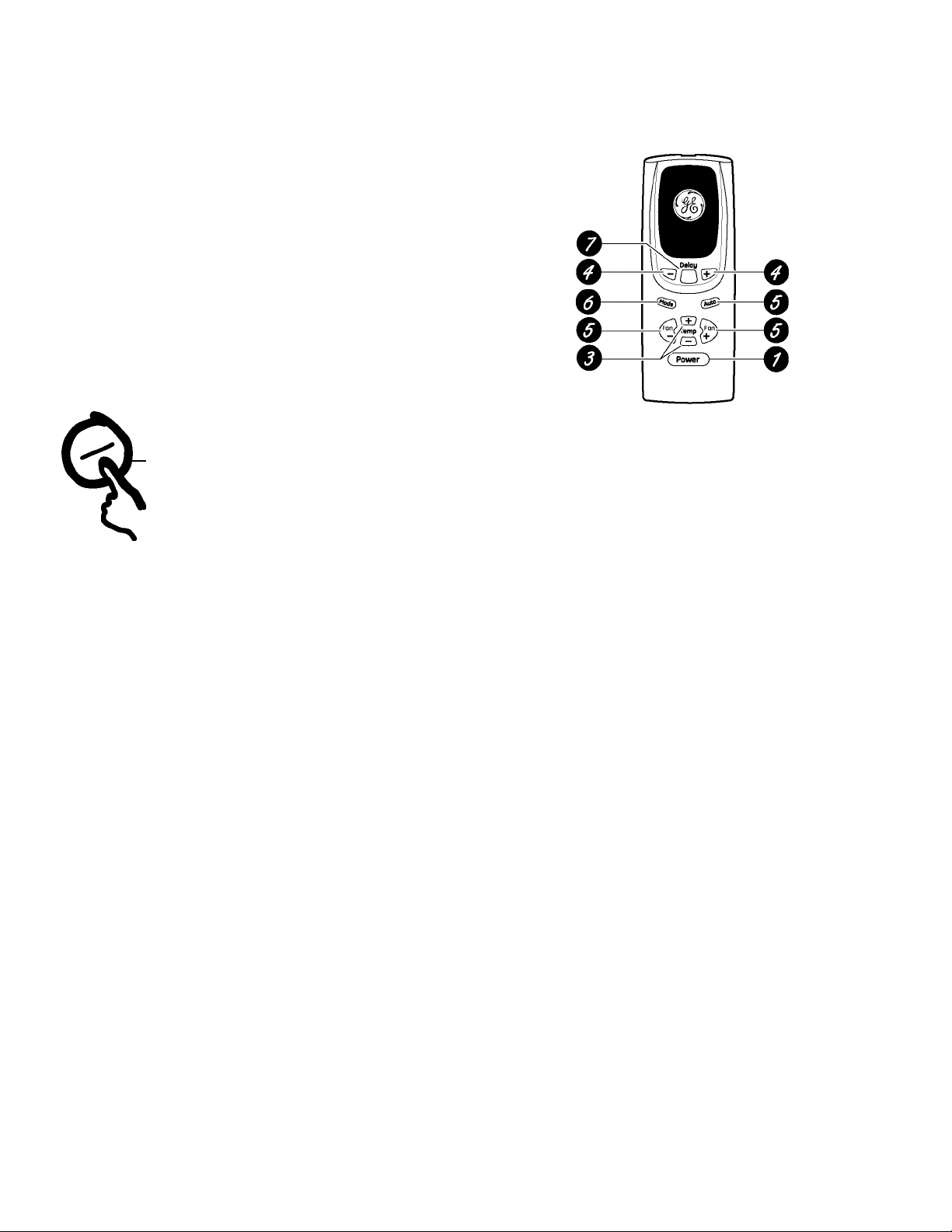

Remote Control
Controls
Delay timer
Increase
Auto Fan on
Fan speed
Increase
Unit power on/off
Power Pad
Turns air conditioner on and off. When turned on,
the display will show the room temperature.
Display
Shows the room temperature or time remaining
on the Delay timer. Shows the Set temperature
while setting the temperature in Heat, Cool or
Energy Saver modes. The Set light will turn on
while setting.
Temp Increase A /Decrease V Pads
Use to set temperature when in Heat, Cool or
Energy Saver mode. The Set light will turn on while
setting.
Delay Timer Increase A (+) /Decrease T(~)
Pads
Each touch of the Increase A / Decrease V pads
on the unit or the Increase + / Decrease - pads
on the remote control will set the delay time when
using the Delay l-24hrt\mer. The Set light will turn
on while setting.
Fan Speed Pads
Use to set the fan speed to Low, Med, High or
Auto on the unit. NOTE: On the remote control, use
the fan speed Increase + / Decrease - pads to set
the fan speeds to Low, Med or High. Use the Auto
pad to turn Auto fan on.
Mode Pad
Use to set the air conditioner to Heat, Cool, Energy
Saver or Eon Only mode.
Delay Pads
Delay ON—When the air conditioner is off, it can
be set to automatically come on in 1 to 24 hours
at its previous mode and fan settings.
Delay OFF—When the air conditioner is on, it can
be set to automatically turn off in 1 to 24 hours.
How to set:
Press the Delay l-24hr pad on the unit or on the
remote control. Each touch of the Increase A /
Decreased pads on the unit or the Increase + /
Decrease - pads on the remote control will set the
timer in 1-hour intervals. The Set light will turn on
while setting.
To review the remaining time on the Delay l-24hr
timer, press the Delay l-24hr pad on the unit
or on the remote control. Use the Increase A /
Decrease V pads on the unit or the Increase + /
Decrease - pads on the remote control to set a
new time if desired.
To cancel the timer, press the Delay l-24hr pad
until the light on the Delay l-24hr pad goes off.
Note: The default temperature reading on the display is degree Fahrenheit ( °F). To change the display to
degree Celcius (°C), press the Temp Increase A and Temp Decrease V buttons together and hold for 3
seconds. Repeat the process to change back to degree Fahrenheit (°F)
Heat Mode
Use the Heat mode at Low, Med, High or Auto Fan
Speed for heating. Use the Temperature increase A
/ Decrease T pads to set the desired temperature
between 61°F and 86°F in 1°F increments.
Cool Mode
Use the Cooi mode at Low, Med, High or Auto Fan
Speed for cooling. Use the Temperature increase A
/ Decrease T pads to set the desired temperature
between 61°F and 86°F in 1°F increments.
An electronic thermostat is used to maintain the room
temperature. The compressor will cycle on and off
to keep the room at the set level of comfort. Set the
thermostat at a lower number and the indoor air will
become cooler. Set the thermostat at a higher number
and the indoor air will become warmer.
Energy Saver Mode
Controls the fan.
ON—The fan will cycle on and off with the compressor.
This results in wider variations of room temperature and
humidity. Normally used when the room is unoccupied.
NOTE: The fan may continue to run for a short time after
the compressor cycles off.
GEAppliances.com
An electronic thermostat is used to maintain the room
temperature. The heater will cycle on and off to keep the
room at the set level of comfort.
NOTE: If the air conditioner is off and is then turned on
while set to a Cool setting or if turned from a fan setting
to a Cool setting, it may take approximately 3 minutes
for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the Cool mode and High or
Med fan with a middle set temperature.
For Maximum Cooling—Select the Cool mode and High
fan with a lower set temperature.
For Quieter and Nighttime Cooling—Select the Cool
mode and Low fan with a middle set temperature.
OFF—The fan runs all the time, while the compressor
cycles on and off.
Fan Only Mode
Use the Fan Only Mode at Low, Med or High fan speed
to provide air circulation and filtering without cooling.
Since fan-only settings do not provide cooling, a Set
temperature cannot be entered. The room temperature
will appear in the display.
Auto Fan Speed
Set to Auto fan speed for the fan speed to
automatically set to the speed needed to provide
optimum comfort settings with the set temperature.
If the room needs more cooling, the fan speed will
Remote Control
■ To ensure proper operation, aim the remote control
at the signal receiver on the air conditioner.
■ Make sure nothing is between the air conditioner
and the remote control that could block the signal.
Power Outage Recovery Feature
In the case of a power outage or interruption, the unit
will automatically re-start in the settings last used after
the power is restored. If the Delay l-24hr feature was
NOTE:Auto Fan Speed cannot be used when in the Fan
Only Mode.
automatically increase. If the room needs less cooling,
the fan speed will automatically decrease.
NOTE: Auto Fan Speed cannot be used when in the Fan
Only Mode.
■ The remote control signal has a range of
up to 20 feet.
■ Make sure batteries are fresh and installed correctly
as indicated on the remote control.
■ Remote contains a magnet allowing it to attach to
metal surfaces.
set, it will resume countdown. You may need to set a
new time if desired.
About the controls on the air conditioner.
Additional important information.
Air Direction
Use the lever to adjust the air direction left and right
only.
Fingertip pressure on the horizontal louvers adjusts the
air direction up or down.
Care and cleaning of the air conditioner.
Grille and Case
Turn the air conditioner off and remove the plug from
the wall outlet before cleaning.
Air Filter
The air filter behind the front grille should be checked
and cleaned at least every 30 days or
more often if necessary.
To clean, use water and a mild detergent. Do not use
bleach or abrasives.
To remove:

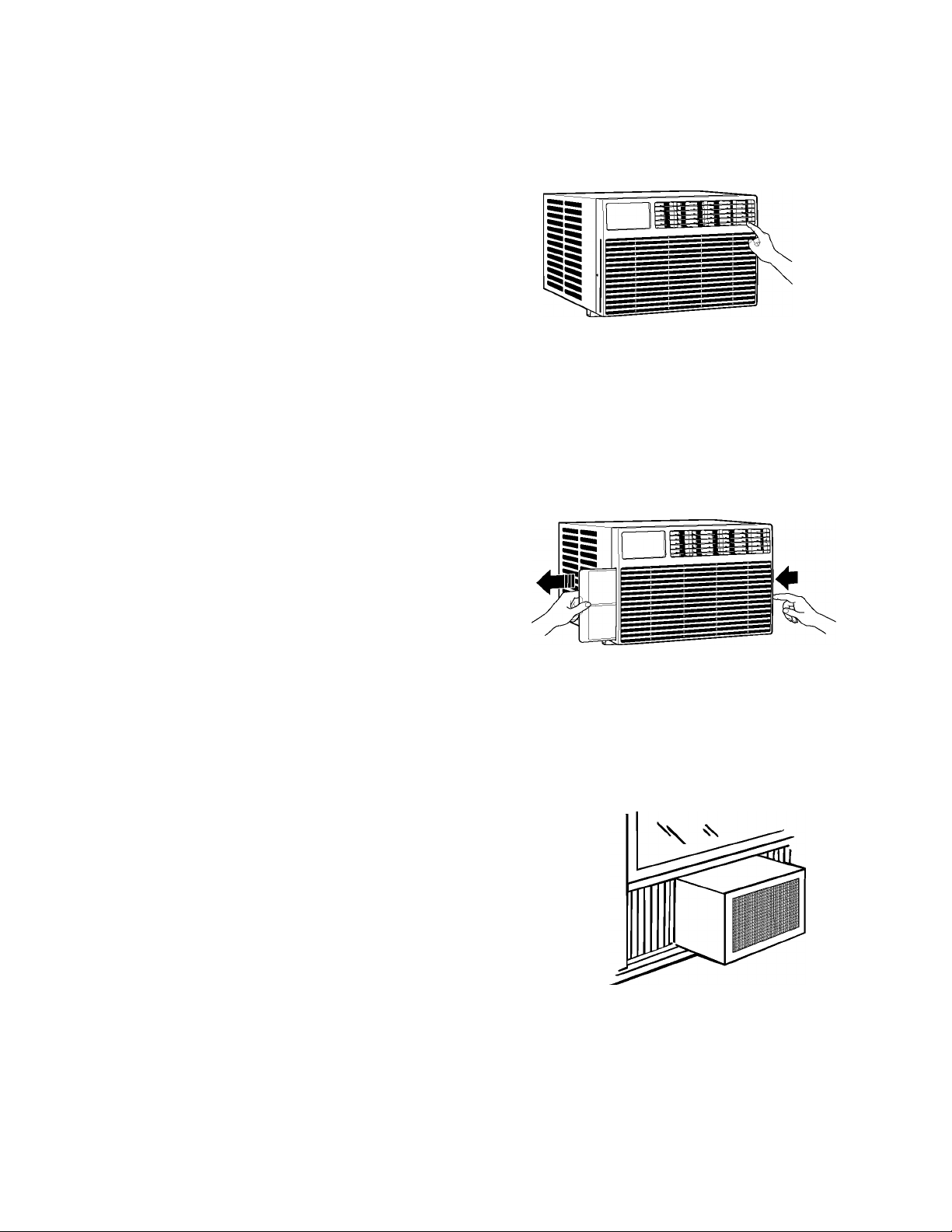

Push on one side of the filter edge and pull it out the
other side.
Clean the filter with warm, soapy water. Rinse and let
the filter dry before replacing it. Do not clean the filter in
a dishwasher.
^^CAUTIONl DO NOT operate the air
conditioner without a filter because dirt and lint
will clog it and reduce performance.
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged with dirt
or soot, they may be professionally cleaned.
Normal Operating Sounds
■ You may hear a pinging noise caused by
water being picked up and thrown against the
condenser on rainy days or when the humidity is
high. This design feature helps remove moisture
and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
Water will collect in the base pan during high
humidity or on rainy days. The watermay overflow
and drip from the outdoor side of the unit.
The fan may run even when the compressor does
not.
Installation
Air Conditioner
Instructions
I ? I Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca

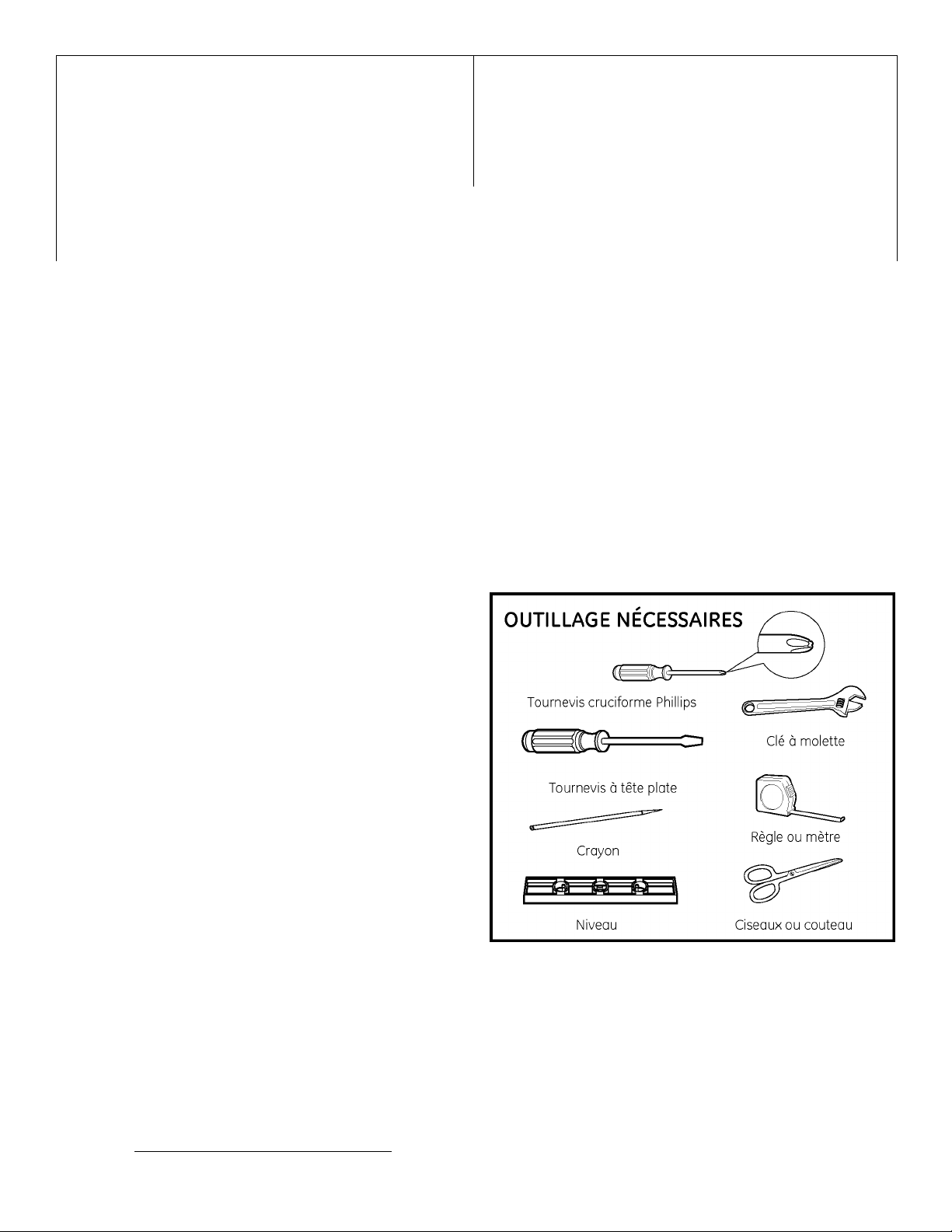

BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT — Save these instructions
for local inspector's use.
IMPORTANT — Observe all governing
codes and ordinances.
Note to Installer - Be sure to leave these
instructions with the Consumer.
Note to Consumer - Keep these instructions for
future reference.
Skill level - Installation of this appliance requires
basic mechanical skills.
Completion time - Approximately 1 hour
We recommend that two people install this
product.
Proper installation is the responsibility of the
installer.
Product failure due to improper installation is not
covered under the Warranty.
You MUST use all supplied parts and use proper
installation procedures as described in these
instructions, and any separate kit instructions,
when installing this air conditioner.
AcAUTION:
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Do not change the plug on the power cord of this
air conditioner.
Aluminum house wiring may present special
problems—consult a qualified electrician.
Ifthe sill support bolts do not contact the window
sill, or if you have a window without a sill, you
must order accessory kit RAK87 to properly install
this air conditioner. Call 800.626.2002 or visit
GEAppliances.com.
ELECTRICAL REQUIREMENTS
©
Some models require a 115/120-volta.c„ 60 Hz
©
possibility of electric shock hazard. If the wall outlet you
plan to use is only a 2-prong outlet, it is your responsibility
to have it replaced with a properly grounded 3-prong
wall outlet.
©
©
grounded outlet protected with a 15-amp time
delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for best
performance and to prevent overloading house
or apartment wiring circuits, which could cause
a possible fire hazard from overheating wires.
Power cord includes a current interrupter device. A
test and reset button is provided on the plug case.
The device should be tested on a periodic basis by
first pressing the TEST button and then the RESET
button. If the TEST button does not trip or if the RESET
button will not stay engaged, discontinue use of the air
conditioner and contact a qualified service technician.

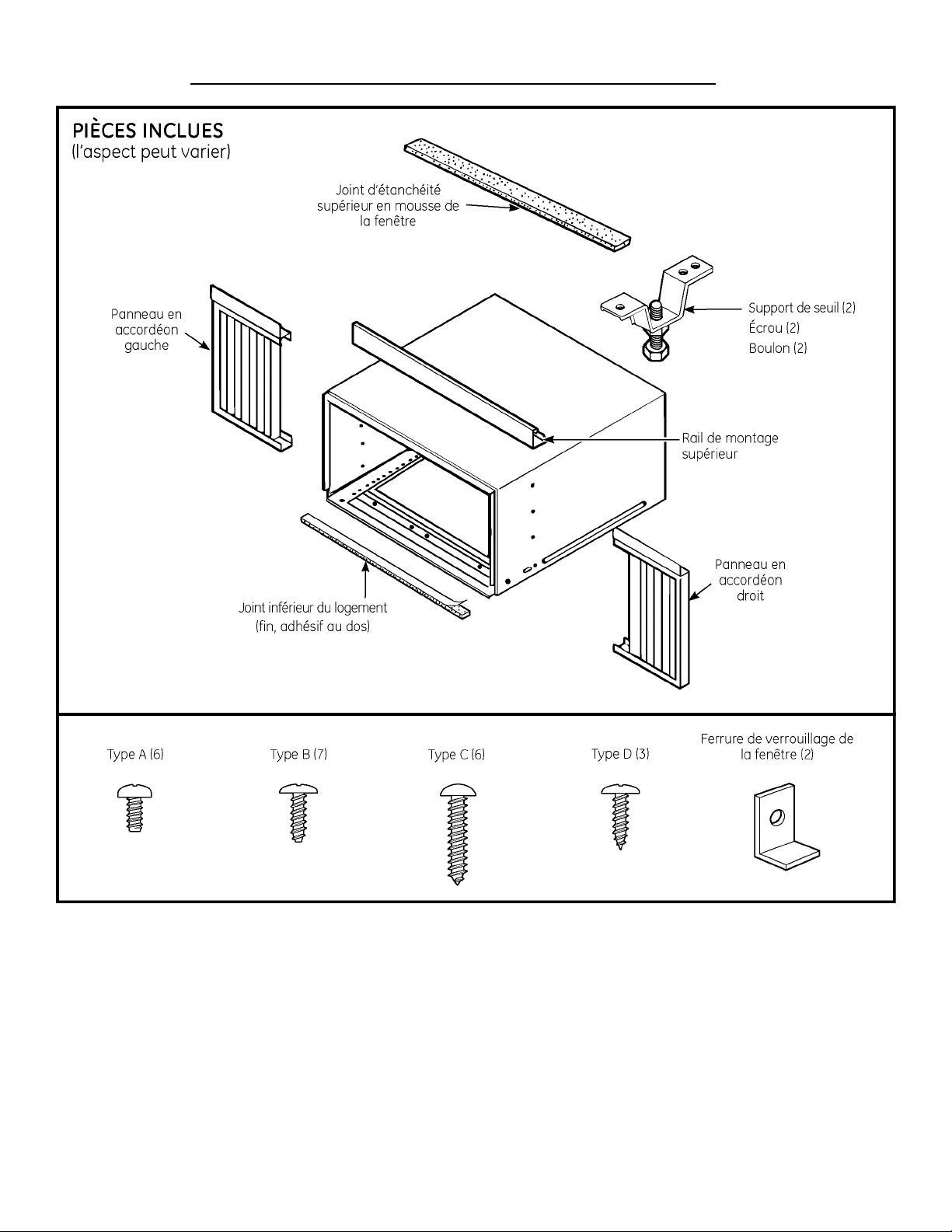

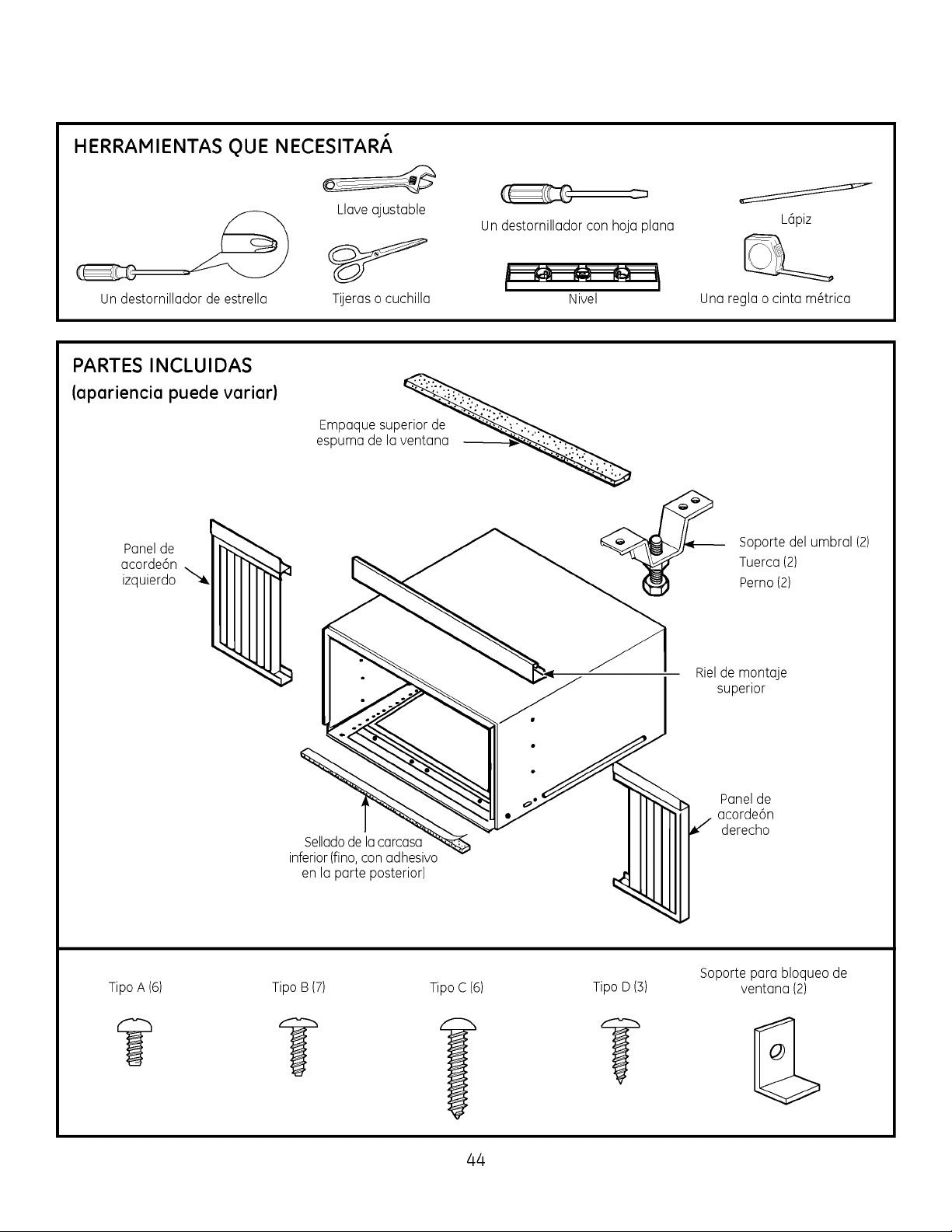

Window Installation Instructions
Window Installation Instructions

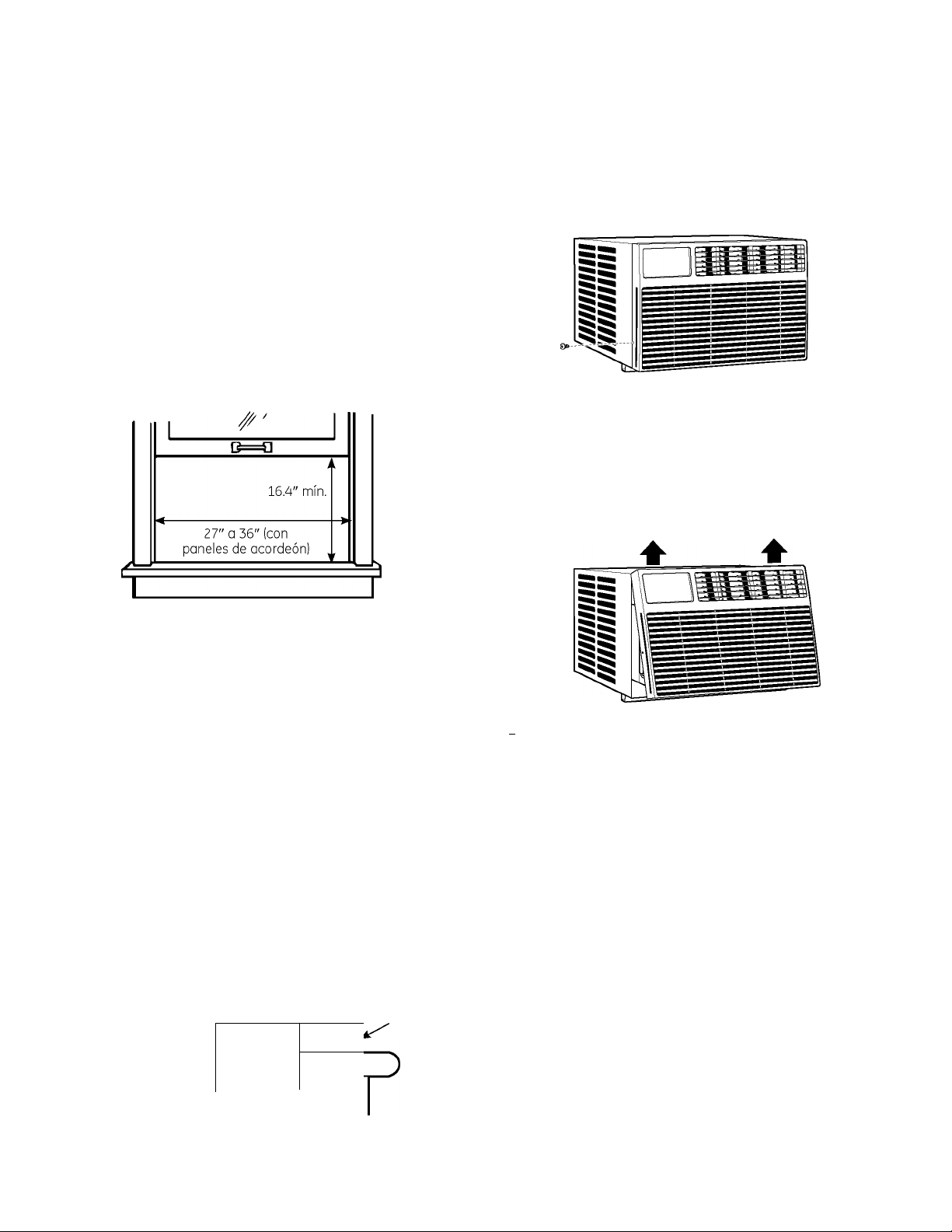

H WINDOW REQUIREMENTS
• These instructions are for a standard
double-hung window. You will need to modify
them for other types of windows.
AcAUTION: If the sill support bolts
do not contact the window sill or if you have a
window without a sill, you must order accessory
kit RAK87 to properly install this air conditioner.
Call 800.626.2002 or visit GEAppliances.com.
• All supporting parts must be secured to firm
wood, masonry or metal.
• The electrical outlet must be within reach of
the power cord.
I I
15.4" min.
27" to 35"
(With accordion panels)

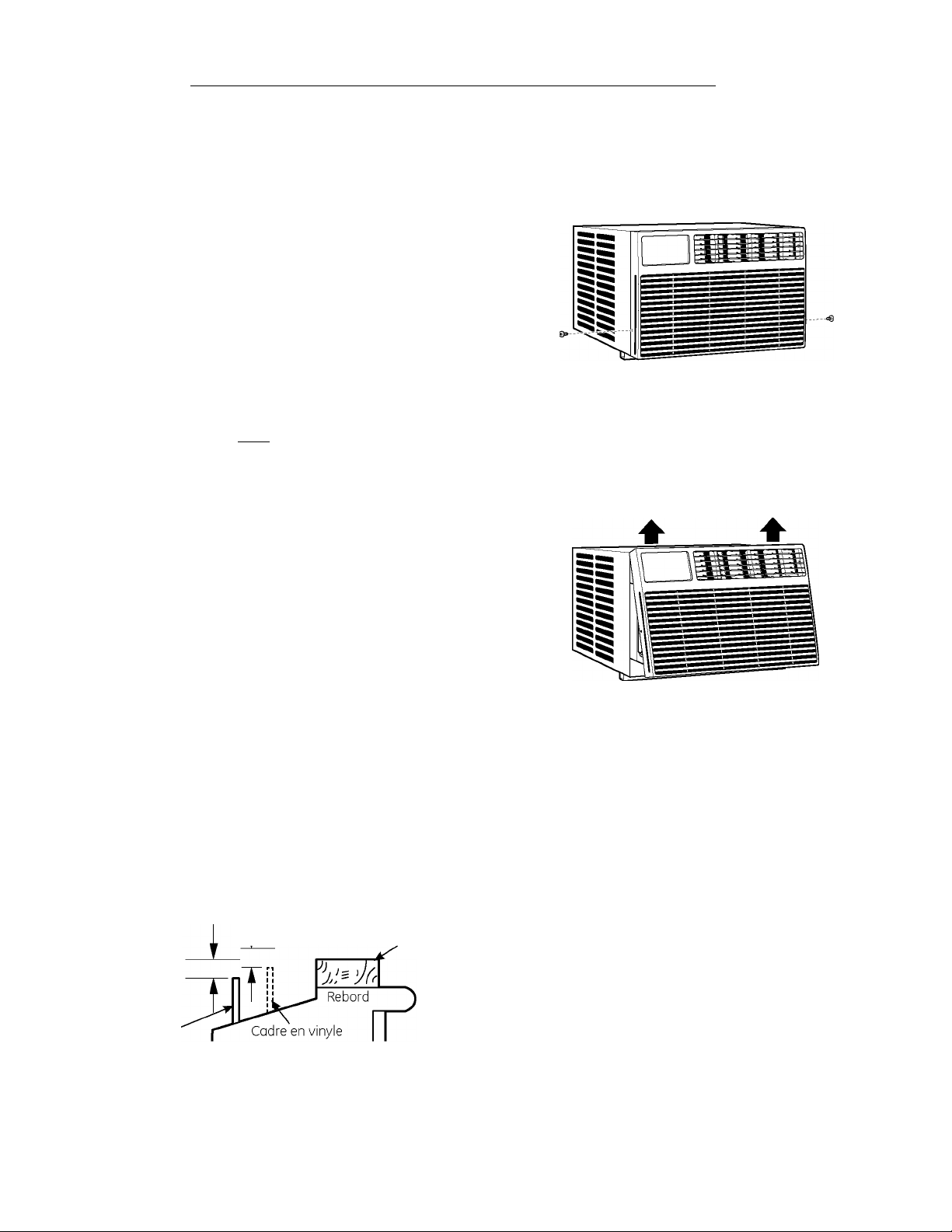

2 REMOVE THE AIR CONDITIONER FROM
THE CASE
Remove and save the 2 screws from the lower
sides of the front grille.
FRONT
Grasp the lower corners of the grille while
pressing in on the case sides with your finger
tips. Pull out to release and lift it up.
NOTE: Do not pull the bottom edge toward you
more than 3" or you may damage the tabs of
the grille.
STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the stool.
WOOD PIECESWIDTH: 2"
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: The top of the wood should be 1/2"
higher than the top of the storm window frame
or the vinyl frame.
Attach securely with nails or screws provided
by the installer.
1/2" higher
than storm
window
frame
1/2" higher
tnc
than vinyl frame
(on some windows)
nTii
'Wood
stool
Hv
Storm window
frame
Vinyl frame
r
FRONT
0 When the front grille is removed the control
panel will still be attached by a harness.
Window Installation Instructions
REMOVE THE AIR CONDITIONER FROM THE CASE (CONT.)
Slide the air conditioner from the cose by
gripping the base pan handle and pulling
forward while bracing the case. Do not pull or
lift on the styrofoam discharge area.
0 INSTALL THE BOTTOM CASE SEAL
• Peel the backing from the bottom case seal
and attach it along the bottom of the case in
front of the bottom mounting rail.

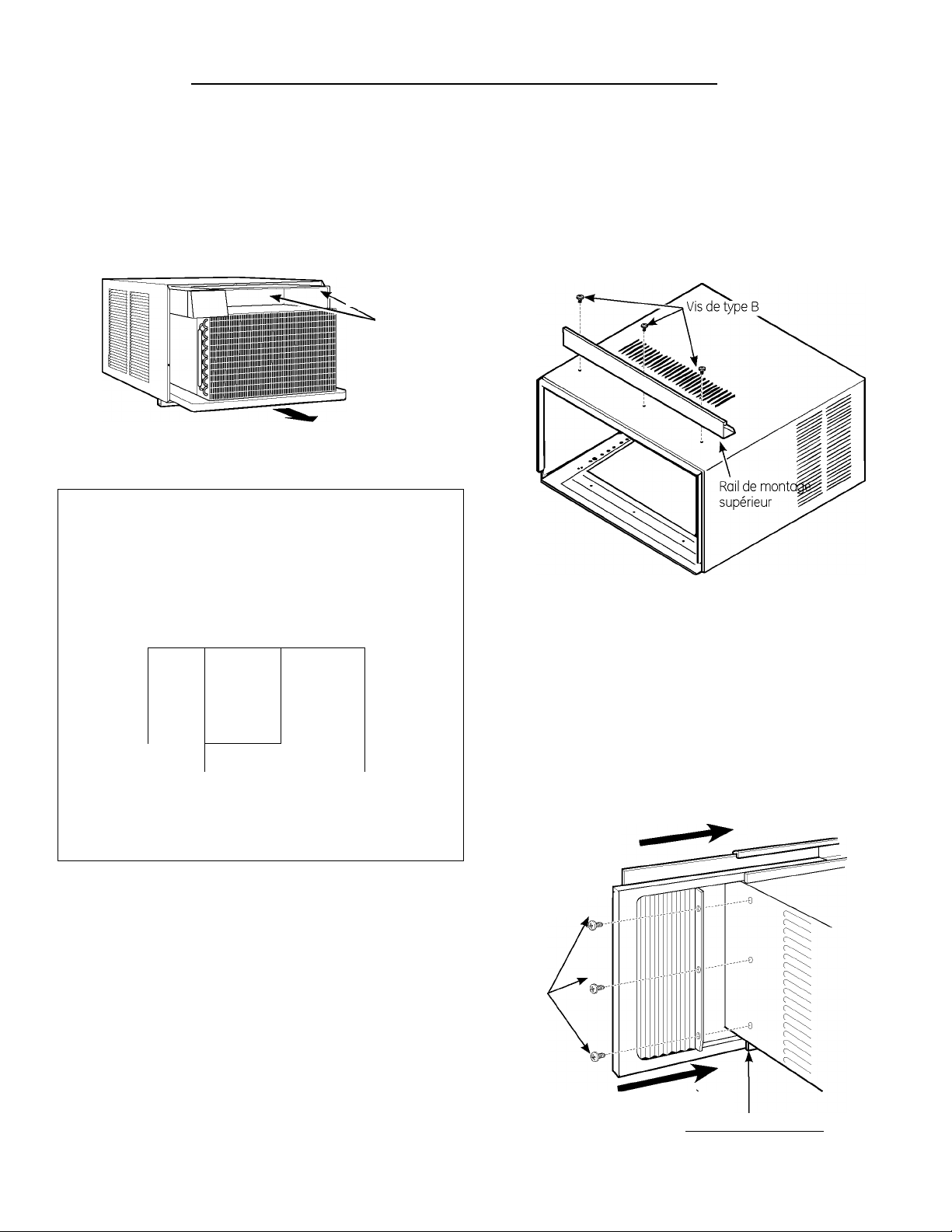

INSTALL THE TOP MOUNTING RAIL ONTO THE CASE
Attach the top mounting rail onto the top of the
case with 3 Type B screws.
Press firmly to drive the screws into the gasket
and through the top mounting rail.
Дуре В
. screws
Bottom case seal
E] INSTALL THE SIDE ACCORDION
PANELS
0 Slide the left and right accordion panels into
the top and bottom mounting rails.
Attach the accordion panels to the case using 3
Type A screws on each side.
Top mounting rail
Accordion
panel
Type A
screws
10
BACK
Bottom mounting roil
Window Installation Instructions

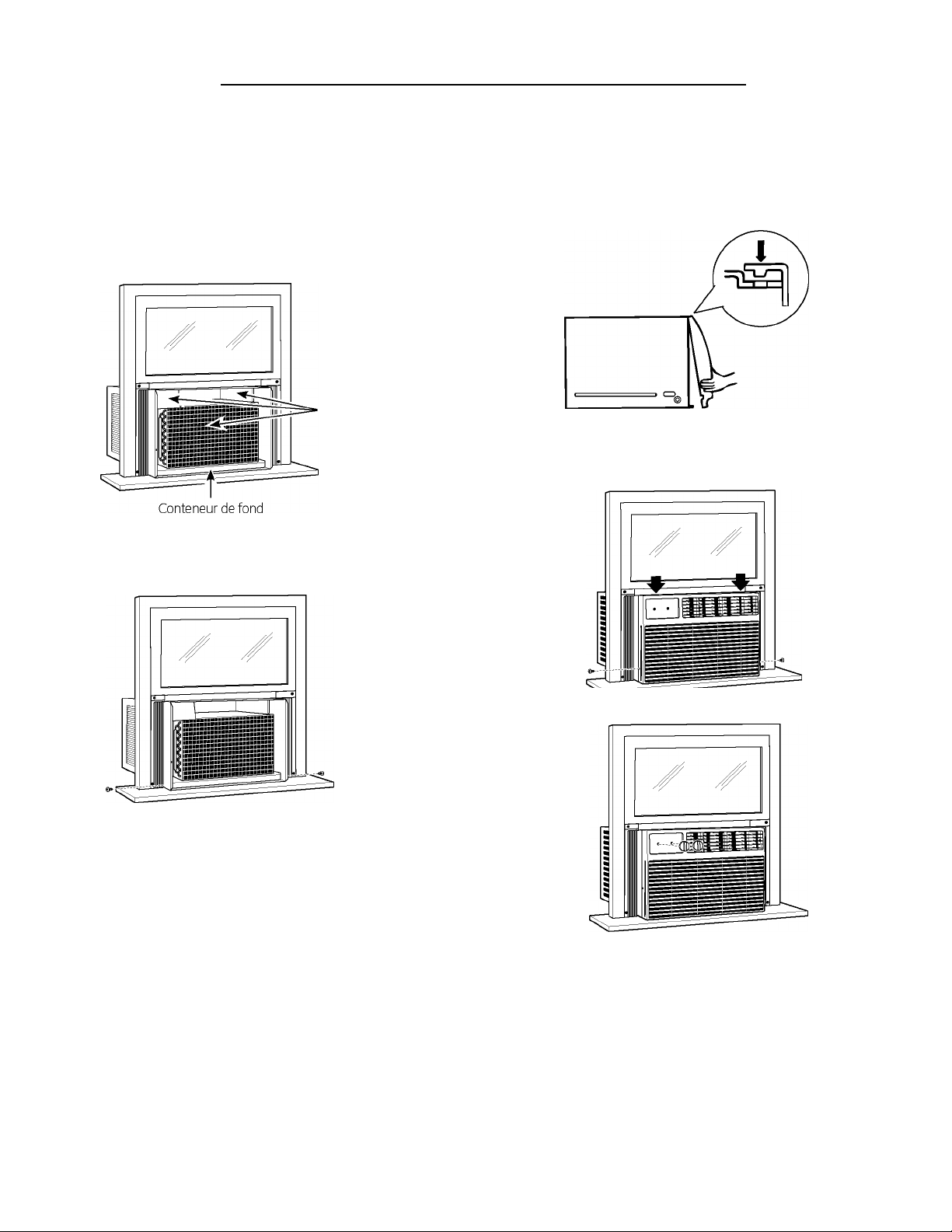

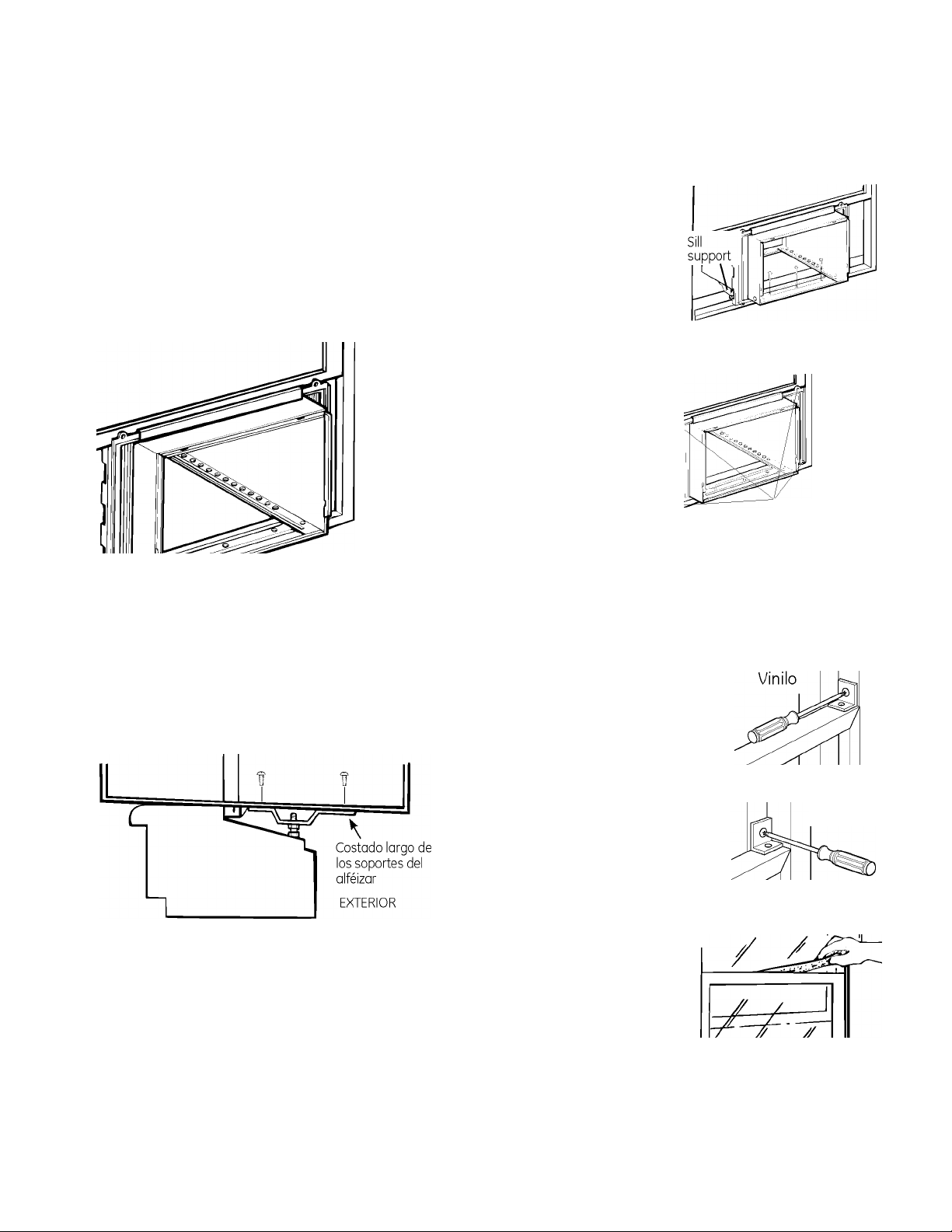

0 INSTALL THE CASE IN THE WINDOW
Open the window and mark the centerline of the
window stool.
Carefully place the case on the window stool and
B
align the center mark on the bottom front with the
centerline of the stool.
^ Pull the window down behind the top mounting rail.
NOTE: Do not shut the window so tightly that movement
of the accordion panels is restricted.

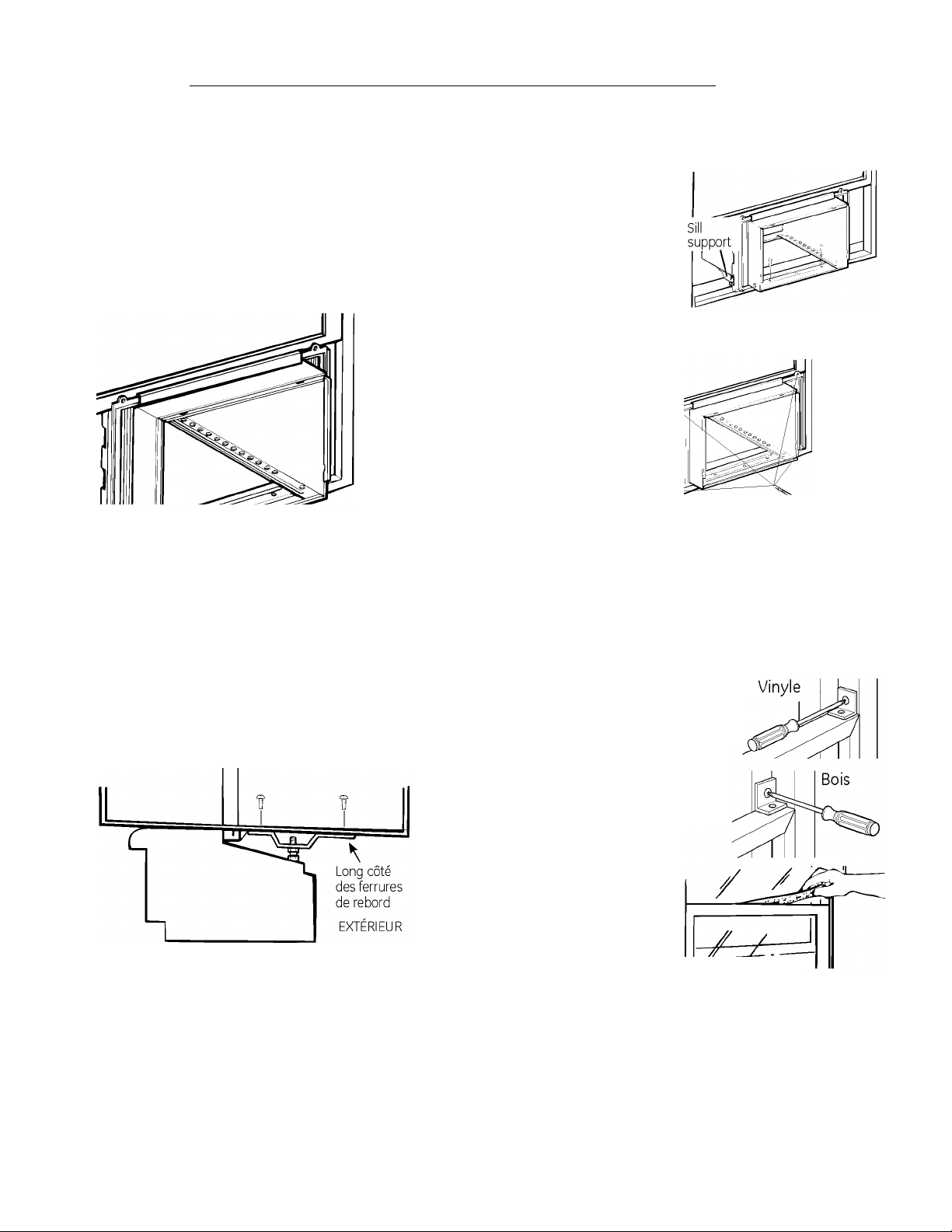

Select the position that will place the sill supports
near the outermost point on the sill. Place the short
side of the sill supports, on the case bottom, toward
the window. Attach the sill supports to the case track
hole in relation to the selected position using 2 Type
B screws in each support.
A CAUTION I Do not install this air
conditioner in a window if the bolts do not contact
the window sill.
a INSTALL THE CASE IN THE WINDOW
(CONT.)
B Secure the case to
the window stool
by using 3 Type D
screws.
Pull the accordion
panels to each window
sash track. Attach them
on each side to the
window sash and the
window stool using 4
Type C screws.
SECURE THE CASE IN THE WINDOW
AND INSTALL THE FOAM TOP
WINDOW GASKET
AcAUTION:
0
To prevent broken glass
or damage to windows,
on vinyl or other similarly
constructed windows,
attach the support bracket
to the window sidejam.
Adjust the bolt and the nut in each support so that
the case is installed with a slight tilt to the outside.
Use a level; no more than 1/2 bubble will be the
correct case slant to the outside.
A CAUTION: If the sill support bolts do
not contact the window sill or if you have a window
without a sill you must order accessory kit RAK87 to
properly install this air conditioner. Call 800.626.2002
or visit GEAppliances.com.
11
Attach the window
locking brackets (on one
each side) with Type C
screws.
Cut the foam top window gasket to the window
B
width.
Stuff the foam
between the glass
and the window
to prevent air
and insects from
getting into the
room.
NOTE: If the gasket supplied does not fit your
window, obtain appropriate material locally to
provide a proper installation seal.
Wood
Window Installation Instructions

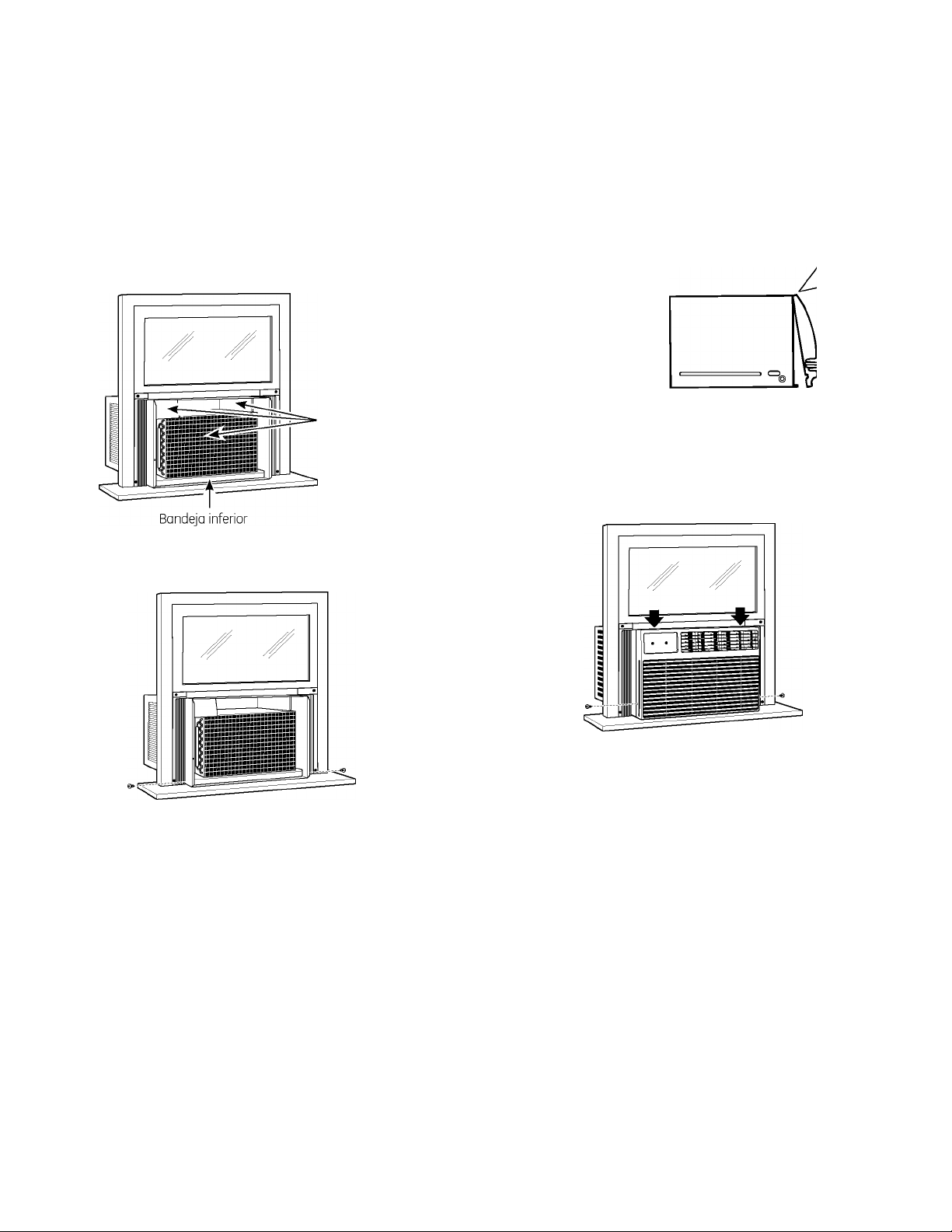

INSTALL THE AIR CONDITIONER IN
THE CASE
0 slide the air conditioner into the case by the base
pan. Do not push on the controls, styrofoam air
discharge housing or the finned coils. Make sure the
air conditioner isfirmly seated.
Do not press on
these areas—
damage to the unit
may result
U
Replace the 2 screws removed earlier, one on each
side of the case.
IMPORTANT: THE GROUND SCREWS MUST BE
REINSTALLED TO ENSURE PROPER GOUND.
INSTALL THE AIR CONDITIONER IN
THE CASE (CONT.)
Attach the front grille to the case by inserting the
tabs on the grille into the slots on the front top of
the case. Push the grille in.
0 Secure the front grille to the case by replacing the
2 screws removed earlier. Press on the top of the
grille to help with side screw installation.
II
Connect power.
1^
12
Through-the-Wall Installation Instructíons—Optíonal
The case may be installed through-the-wall in
both existing and new construction.
Read completely, then follow step-by-step.
NOTE: Obtain all materials locally for mounting
the air conditioner through-the-wall.
E IMPORTANT
Through-the-wall installation is not appropriate
if any of the side or top louvers in the case will
be obstructed by the wall.
All side and top louvers in the case must project
on the outdoor side of the wall.
The room side of the case must project into the
room far enough to maximize the balance of the
unit.
The case must be installed level from side-to-
side and with a slight tilt from front to rear. Use
a level; no more than a 1/2 bubble will be the
correct case slant to the outside.

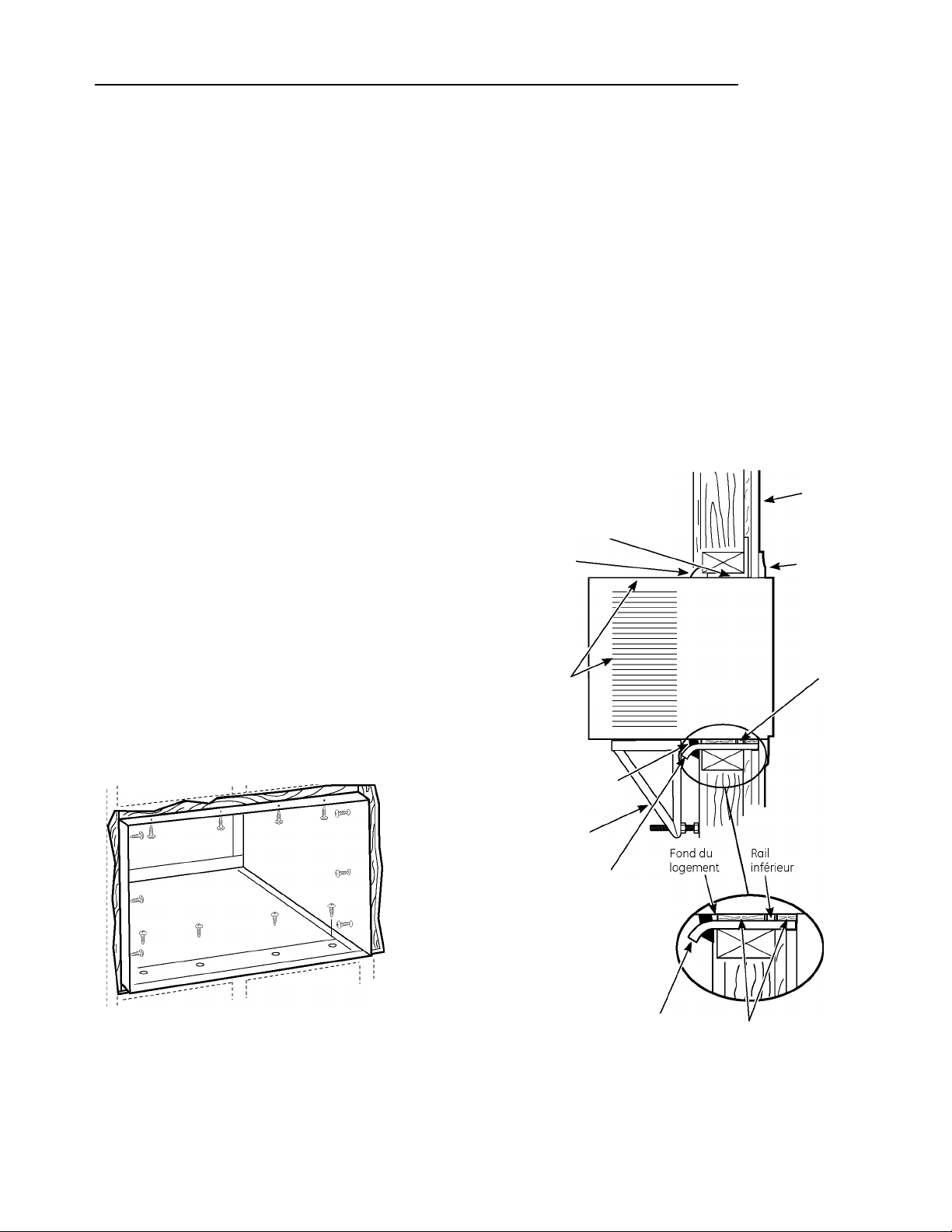

Lintel angle is required to support bricks or
blocks above opening.
0 IMPORTANT (cont.)
m Secure with 14 wood screws anchored at least an
inch into the wall support structure.
NOTE: Drill pilot holes, if necessary, for proper
installation. If the frame is oversized, use shims to
prevent case distortion.
0 FINISH THE WALL OPENING
0 Caulk all four sides on the outdoor side of the case
to prevent moisture from getting through to the
interior wall. Use of flashing (drip rail) will further
prevent water from dripping inside the wall and
down the outside of the building.
Place the air conditioner into the case.
Lintel angle
Caulking
Trim molding (if
desired)
Plaster line
Flashing is required and should extend the
length of the opening to ensure no inside cavity
leakage occurs.
0 Remove the air conditioner from the cose.
For specific instruction, refer to the Window
Installation Instructions.
Make certain that a wall receptacle is available
close to the hole location or make arrangements
to install a receptacle.

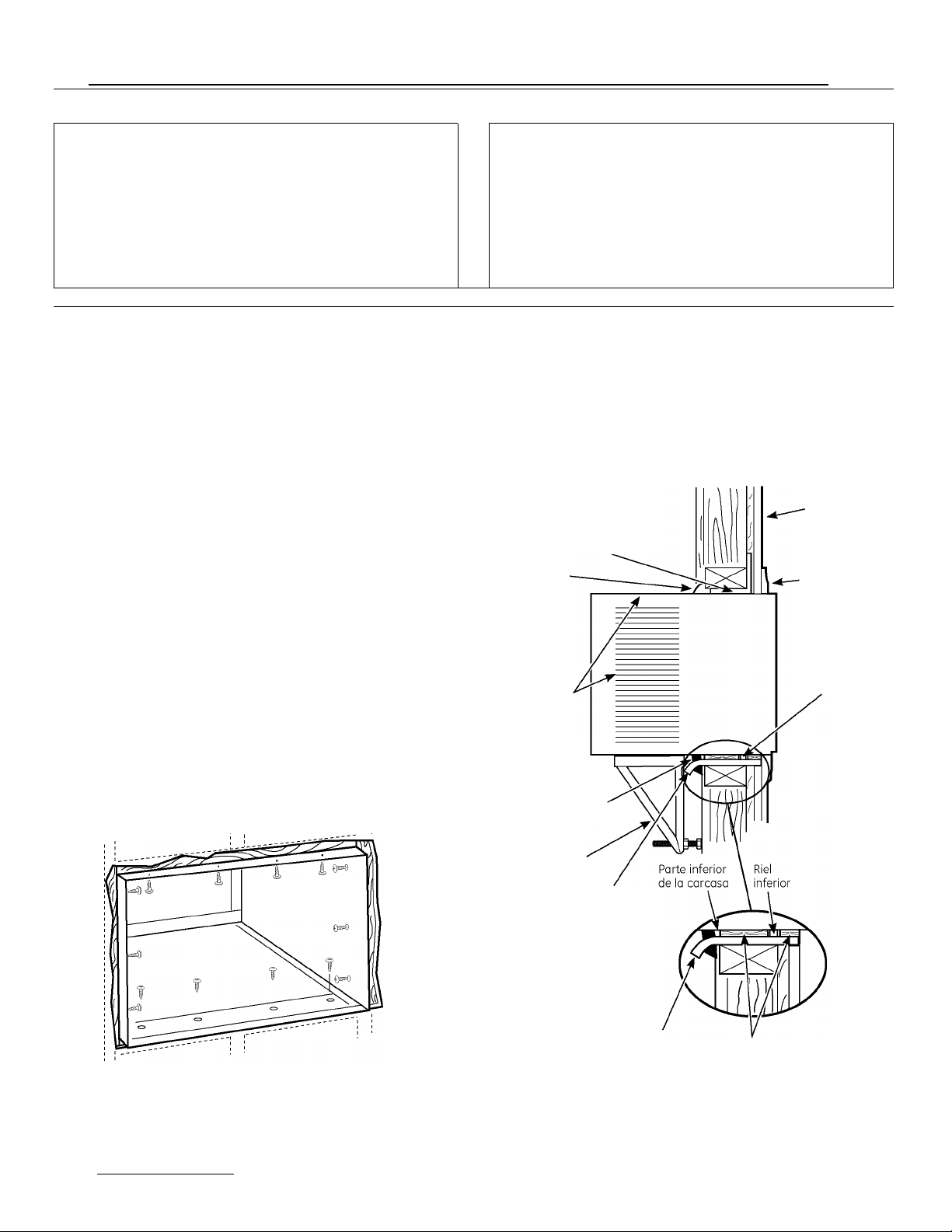

Place the case in the wall opening and place wood
0
support strips between the case bottom and the
flashing on both sides of the bottom rail. They
should be the same height as the bottom rail and
the same length as the wall opening.
OUTSIDE
Air louvers (top
and sides mus'
project on th'
outdoor side of
the wall)
Wood filler and
caulking (above an
below the flashing'"
Flashing
(Drip rai
Flashing
(Drip rai
^ For specific instruction, refer to the Window
Installation Instructions.
13
INSIDE
Bottom rail
Wood support strips
Before you call for service^
Troubleshooting Tips
Save time and money! Review the chart below
first and you may not need to call for service.
Problem Possible Causes What To Do
Air conditioner
does not start
Air conditioner
freezing up
Air conditioner does not
cool as it should
The air conditioner
is unplugged
The fuse is blown/circuit
breaker is tripped
Power failure • The unit will automatically re-stort in the settings lost
The current interrupter
device is tripped
Ice blocks the air flow
and stops the air conditioner
from cooling the room
Airflow is restricted • Make sure there are no curtains, blinds or furniture
The temp control may
not be set correctly
• Make sure the air conditioner plug is pushed completely
into the outlet.
• Check the house fuse/circuit breaker box and replace
the fuse or reset the breaker.
used after the power is restored.
• There is a protective time delay (approximately
3 minutes) to prevent tripping of the compressor
overload. For this reason, the unit may not start
normal cooling or heating for 3 minutes after it
is turned back on.
• Press the RESET button located on the power cord plug.
• If the RESET button will not stay engaged, discontinue
use of the air conditioner and contact a qualified service
technician.
• Set the mode control at Fan Only or Hi Cool with the
temp control at a warmer setting.
blocking the front of the air conditioner.
• Turn the temperature knob clockwise as far as possible.
Air conditioner does not
warm as it should
14
The air filter is dirty • Clean the filter at least every 30 days. See the Operating
Instructions section.
The room may have been hot • When the air conditioner is first turned on you need
to allow time for the room to cool down.
Cold air is escaping • Check for open furnace floor registers and
cold air returns.
• Set the air conditioner's vent to the closed position.
Cooling coils have iced up • See "Air conditioner freezing up" above.
Airflow is restricted • Make sure there are no curtains, blinds or furniture
blocking the front of the air conditioner.
The temp control may
not be set low enough
The air filter is dirty • Clean the filter at least every 30 days. See the Operating
The room may have been cold • When the air conditioner is first turned on, you need to
Warm air is escaping • Check for open furnace floor registers and
• Turn the knob counterclockwise as far as possible.
The lowest setting provides maximum warming.
Instructions section.
allow time for the room to warm up.
cold air returns.
Before you call for service^
Troubleshooting Tips
%
Problem Possible Causes What To Do
GEAppliances.com
Water drips outside Excessively hot and
humid weather
Water drips indoors The air conditioner is not
tilted to the outside
Water collects in Moisture is removed from • This is normal for a short period in areas with
base pan indoor air and drains into
rear of a cabinet where a fan
blows it against the outdoor
condenser coil
• This is normal.
• For proper water disposal, make sure the air conditioner
slants slightly from the case front to the rear.
little humidity; normal for a longer period in very
humid areas.
15
Notes.
16
Loading...
